Single-row angular contact ball bearing, 75 x 130 x 25 mm, 40°, X-life, polyamide cage, universal UA. Dynamic load rating 73,000 N; 6,900 rpm limiting.
List Price
$227.89
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 7215-B-XL-TVP-UA |
| Model | 7215-B-XL-TVP-UA |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Material | Bearing Steel |
|---|---|
| Series | 72 |
| Lubricant | Grease or oil |
| Mpn Variants | 7215-B-XL-TVP-UA, 7215B.XL.TVP.UA, 7215-B-TVP-UA, 7215B.TVP.UA, 7215BXLTVPUA, 7215B |
| Precision Class | Normal / PN |
| Min Temp | -30 °C |
| Cage Type | Solid glass-fibre reinforced PA66 |
| Dynamic Load Rating | 73,000 N |
| Static Load Rating | 62,000 N |
| Precision Rating | Normal / PN |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 1.17 kg (2.58 lb) |
| Cage Material | Polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 6,900 rpm |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 40° |
| Mounting Arrangement | Universal (DB, DF or DT), small axial clearance |
| Closure Type | Open |
| Cross Reference 1 | SKF 7215 BECBP |
|---|---|
| Cross Reference 2 | NSK 7215BW |
| Cross Reference 3 | FAG 7215-B-TVP-UA - earlier non-XL design |

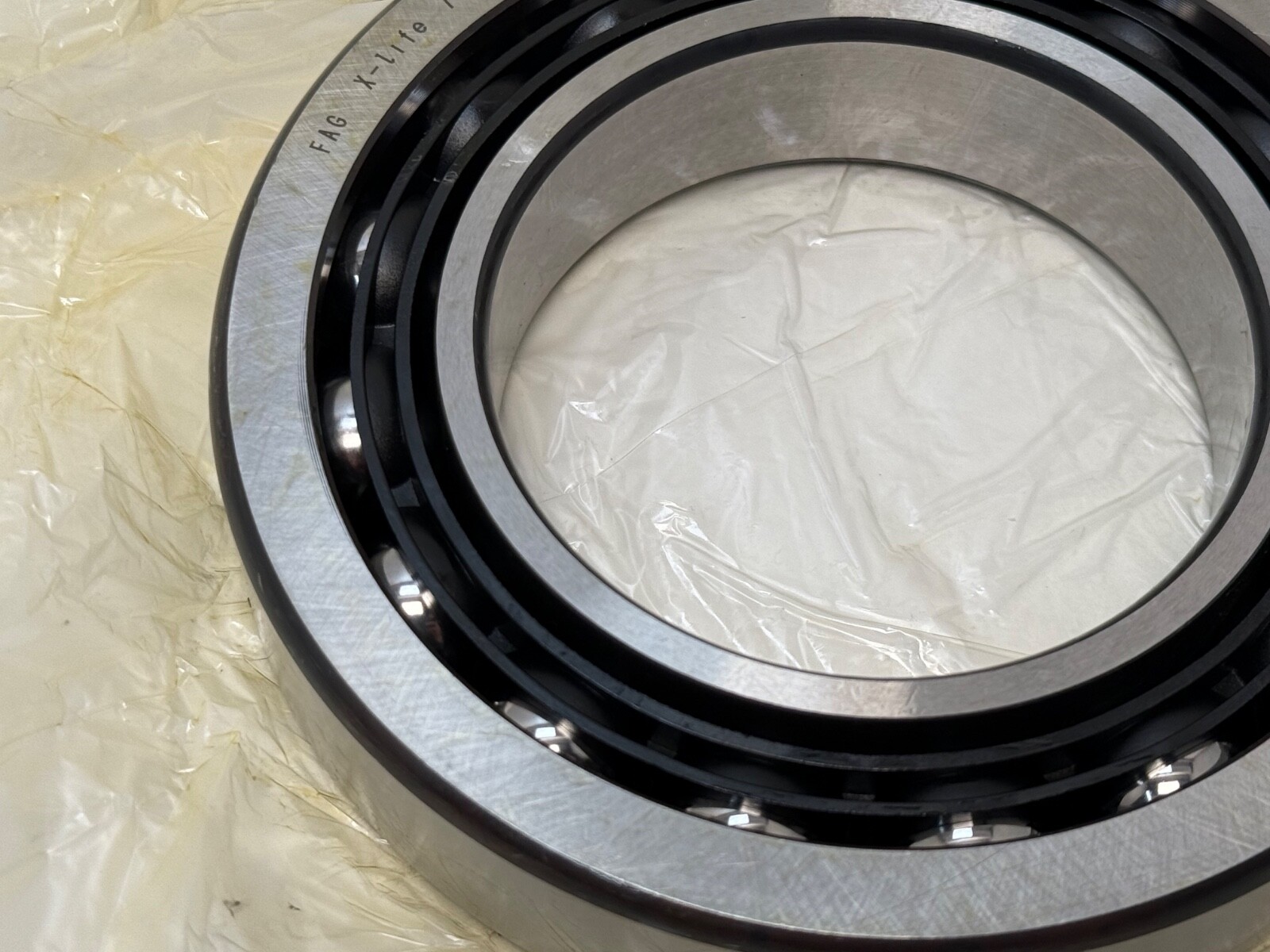

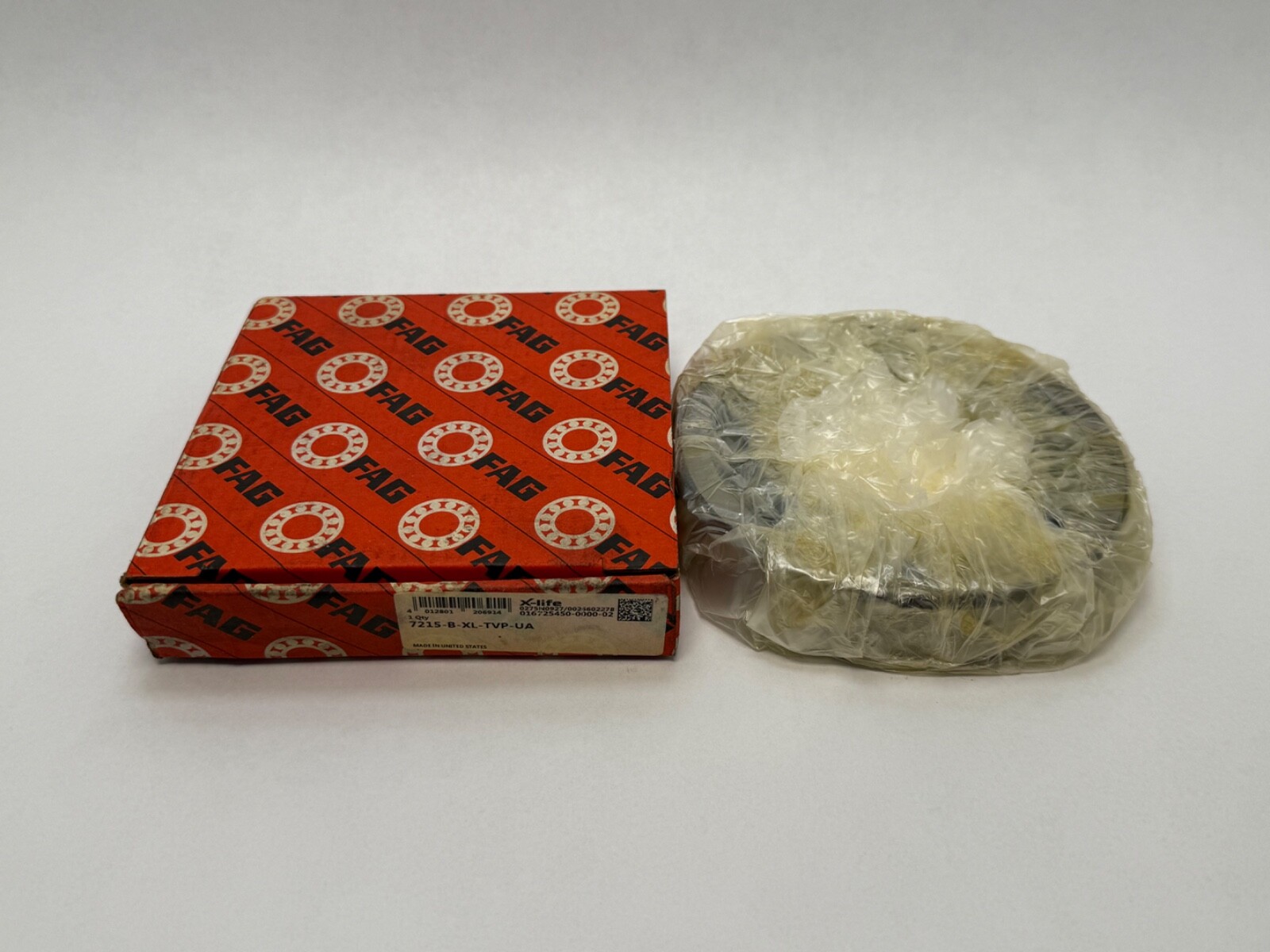

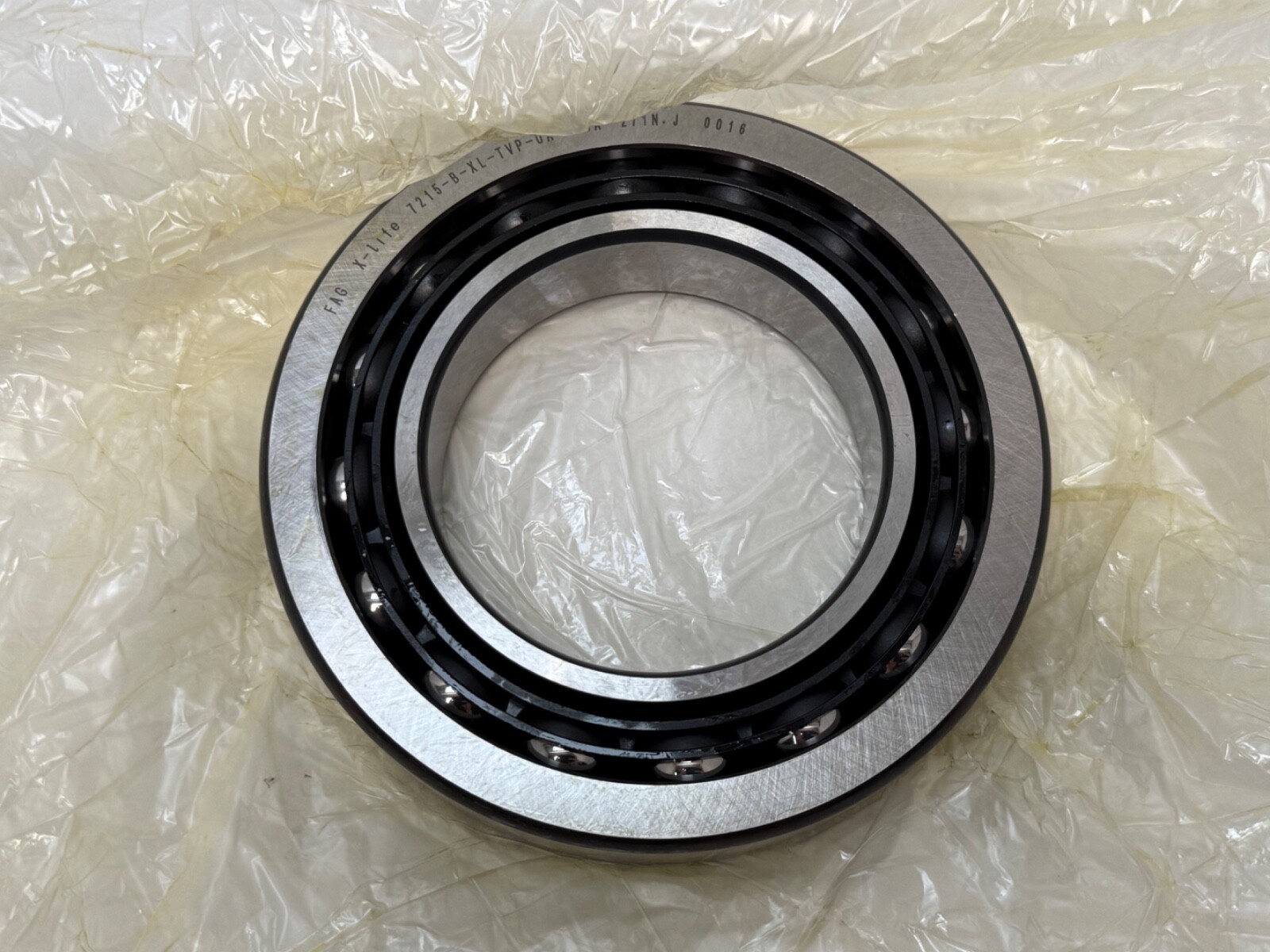

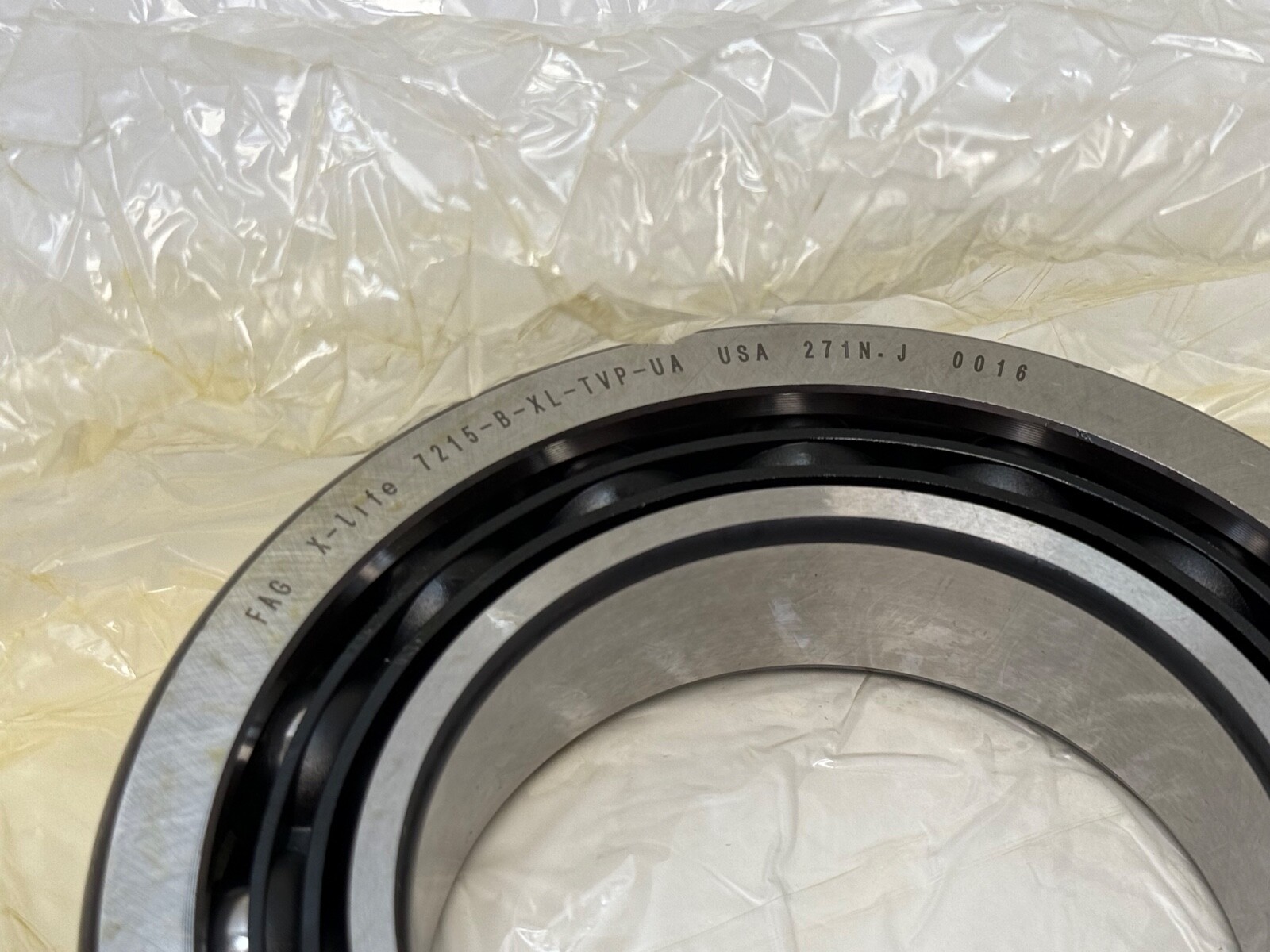

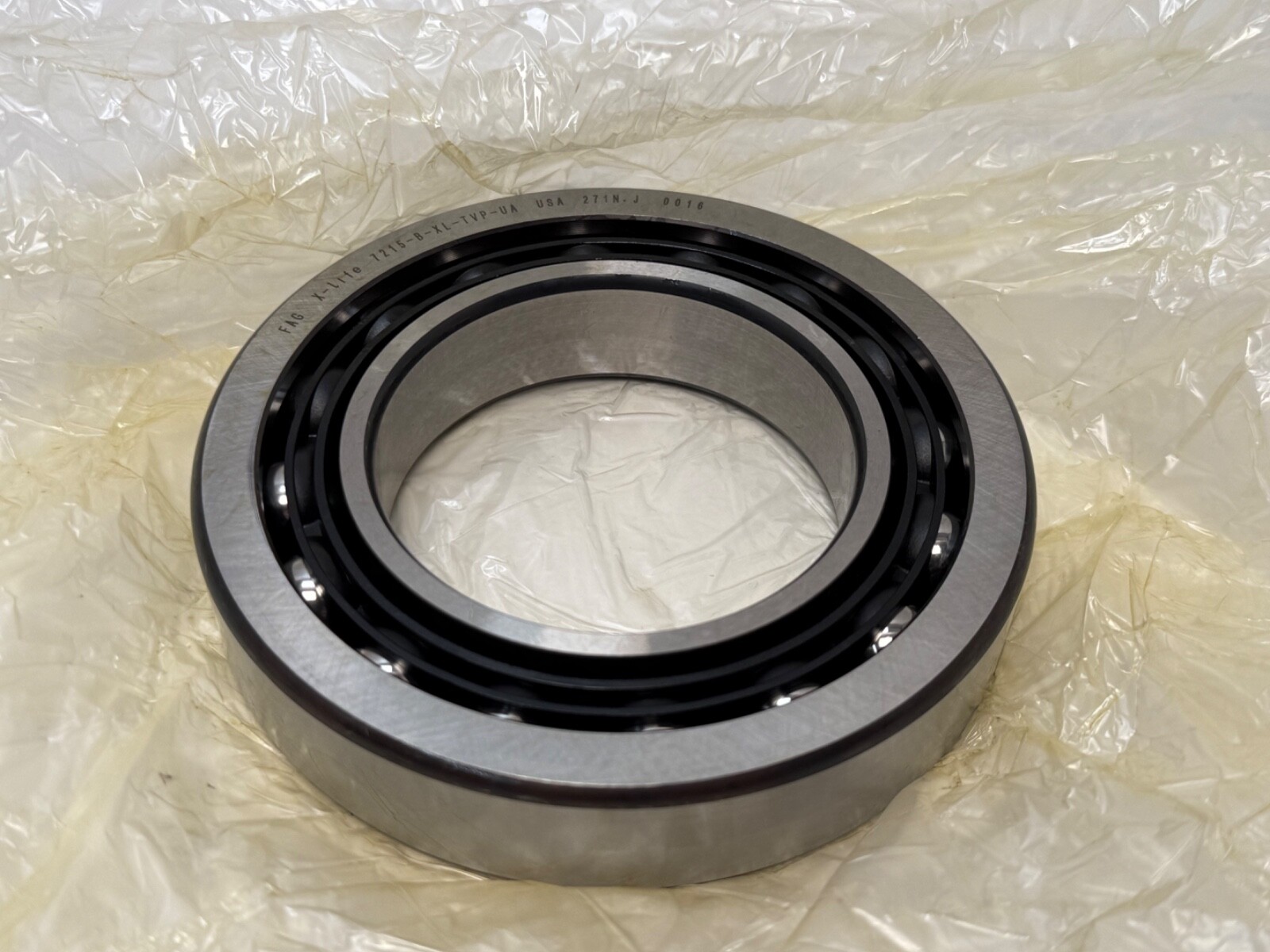

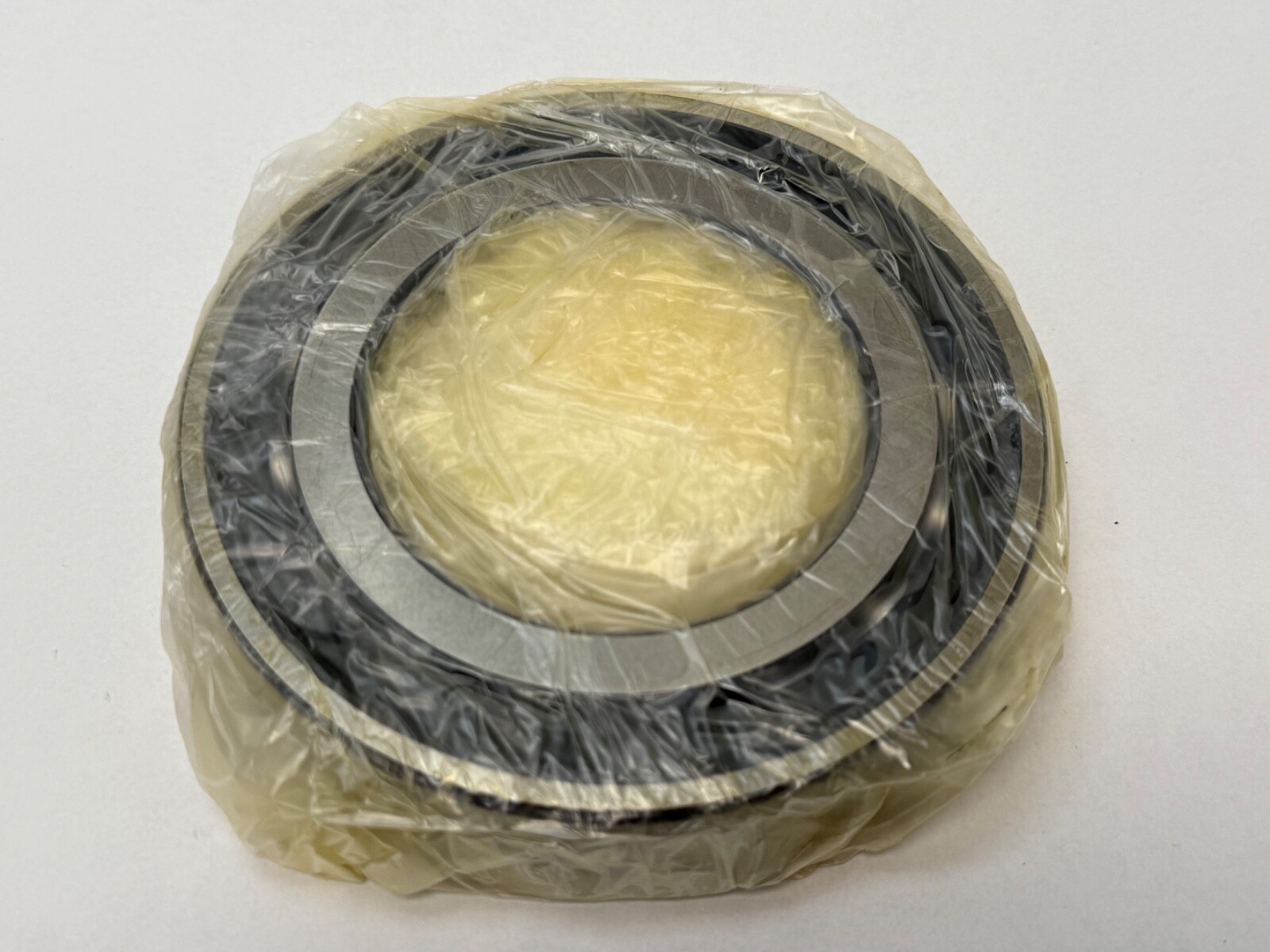

FAG 7215-B-XL-TVP-UA is a single-row X-life angular contact ball bearing in the 72 series. Universal execution for pairing in back-to-back, face-to-face or tandem arrangement, with small axial internal clearance in O or X arrangement. Unit Quantity: 1 Pc.
7215 — single-row angular contact, ISO dimension series 02; bore code 15 = 75 mm.
B — contact angle 40°.
XL — X-life, Schaeffler’s higher-performance execution.
TVP — solid cage of glass-fibre reinforced polyamide PA66.
UA — universal bearing; a pair has small axial internal clearance (50 µm min, +12 µm tolerance).
Bore Diameter: 75 mm. Outside Diameter: 130 mm. Overall Width: 25 mm. Contact Angle: 40°. Rolling Elements: Ball. Cage Material: Polyamide. Dynamic Load Rating: 73,000 N. Static Load Rating: 62,000 N. Fatigue Load Limit: 4,250 N. Limiting Speed: 6,900 rpm. Reference Speed: 5,300 rpm. Operating Temperature: -30 to 120 °C. Precision Class: Normal (PN). Item Weight: 1.17 kg (2.58 lb).
Shaft Shoulder Diameter: 84 mm min. Housing Shoulder Diameter: 121 mm max (124.4 mm on the back face). Inner Ring Shoulder Diameter: 96.5 mm. Outer Ring Shoulder Diameter: 109.2 mm. Pressure Cone Apex Distance: 55.5 mm. Minimum Chamfer: 1.5 mm (r), 1 mm (r1). Snap ring: none.
Cross-references: SKF 7215 BECBP; NSK 7215BW. The current Schaeffler designation 7215-B-XL-TVP-UA replaces 7215-B-TVP-UA and 7215B.TVP.UA.
75 mm bore, 130 mm outside diameter, 25 mm width, 40° contact angle.
UA is a universal bearing; a pair has small axial internal clearance (50 µm min, +12 µm tolerance).
Dynamic Load Rating 73,000 N and Static Load Rating 62,000 N, with a solid glass-fibre reinforced polyamide PA66 cage.
