FAG7206BXL.TVP.P5.UOAngular Contact Ball Bearing – 30 mm Bore, 62 mm OD, 16 mm Width, 40 Degree Contact Angle, P5 Class

Product Description

What this part is:

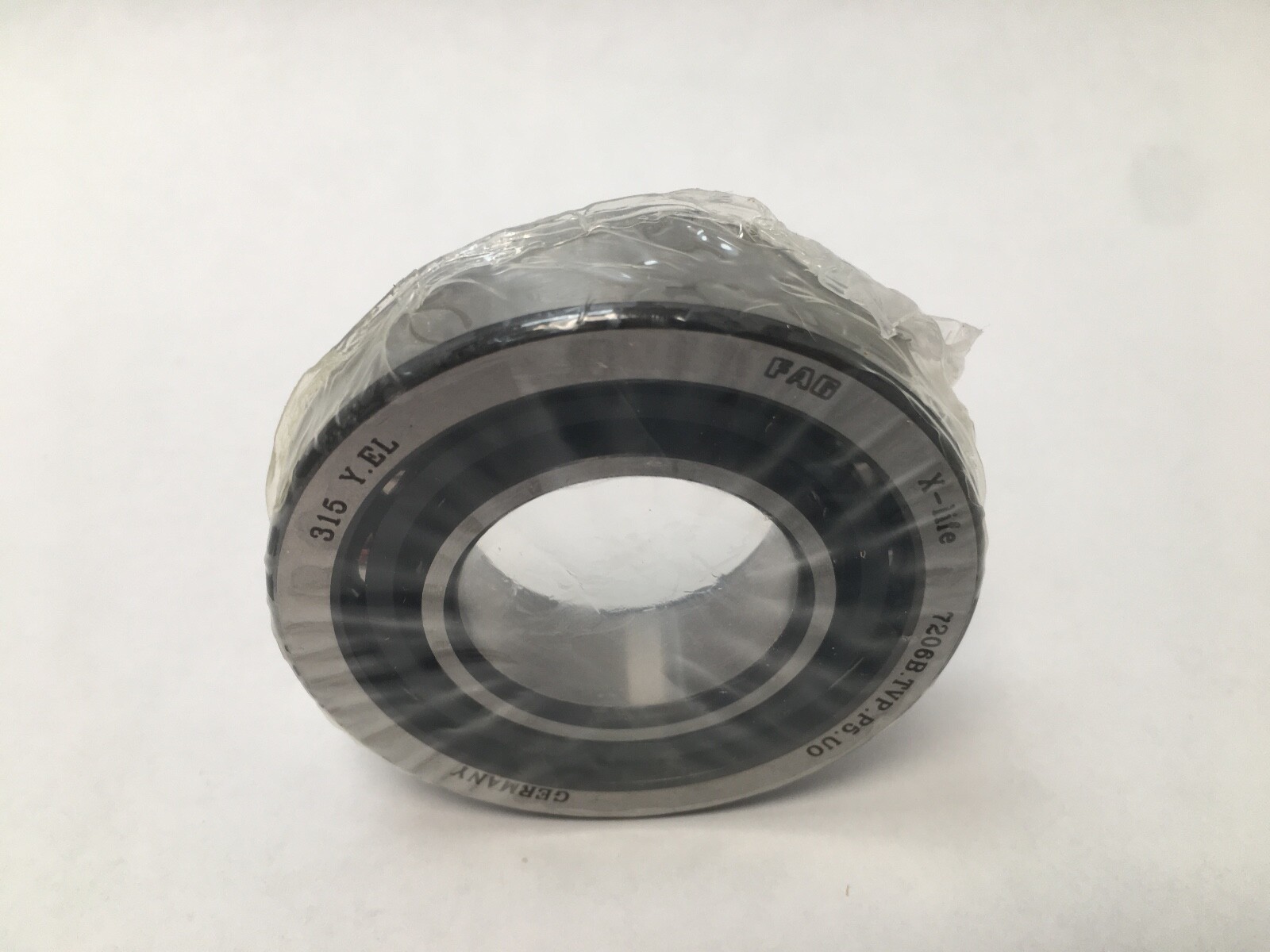

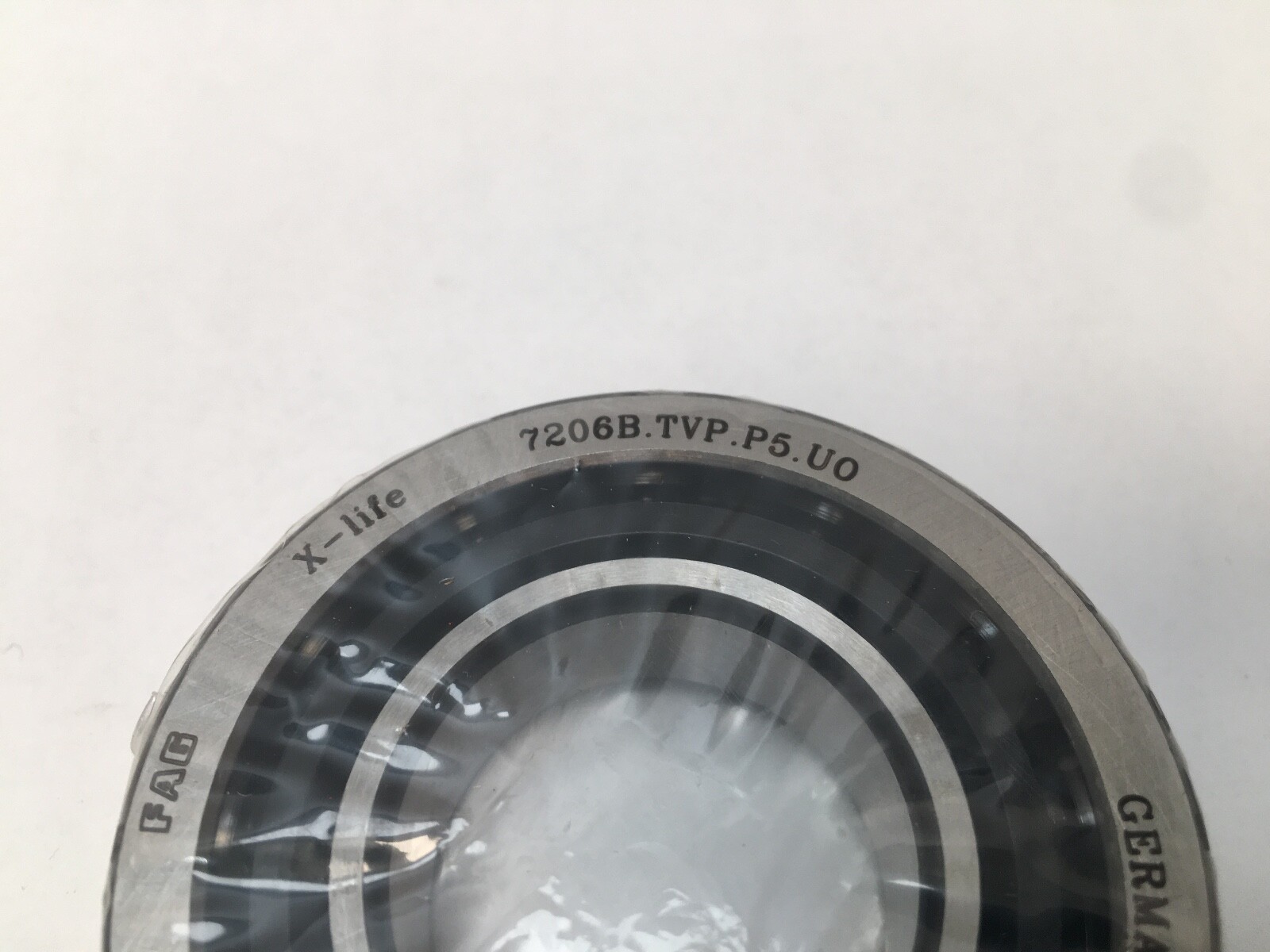

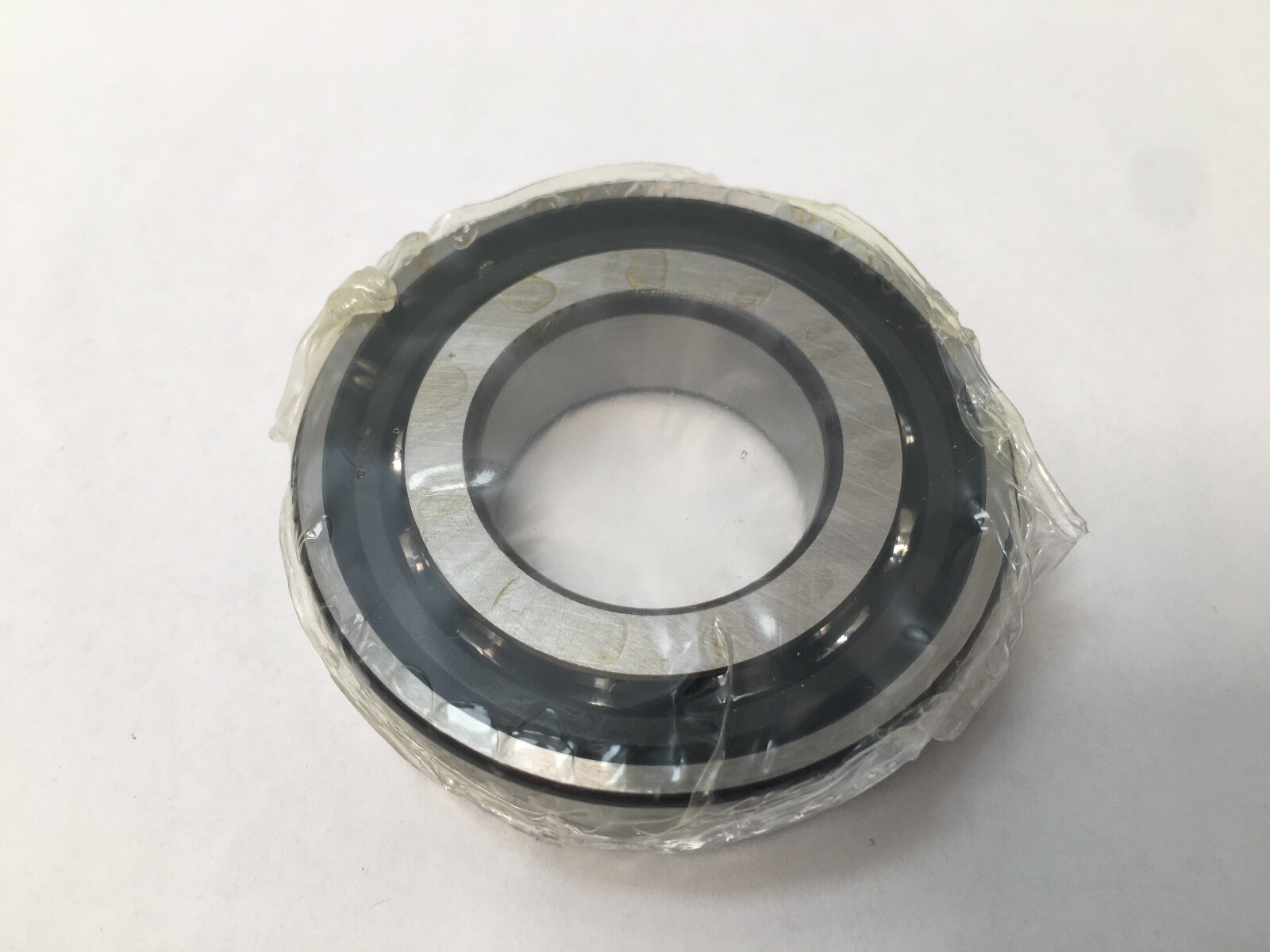

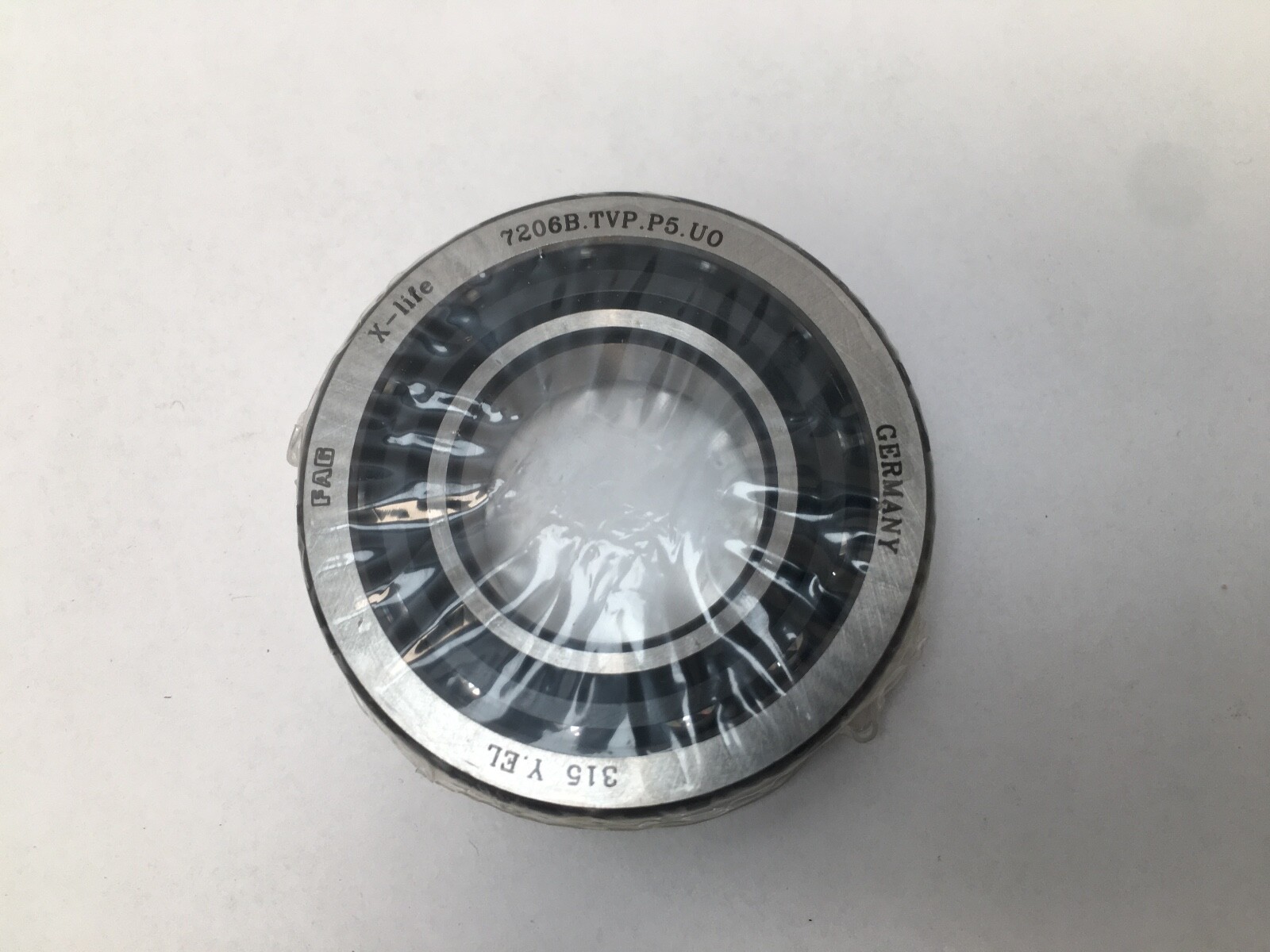

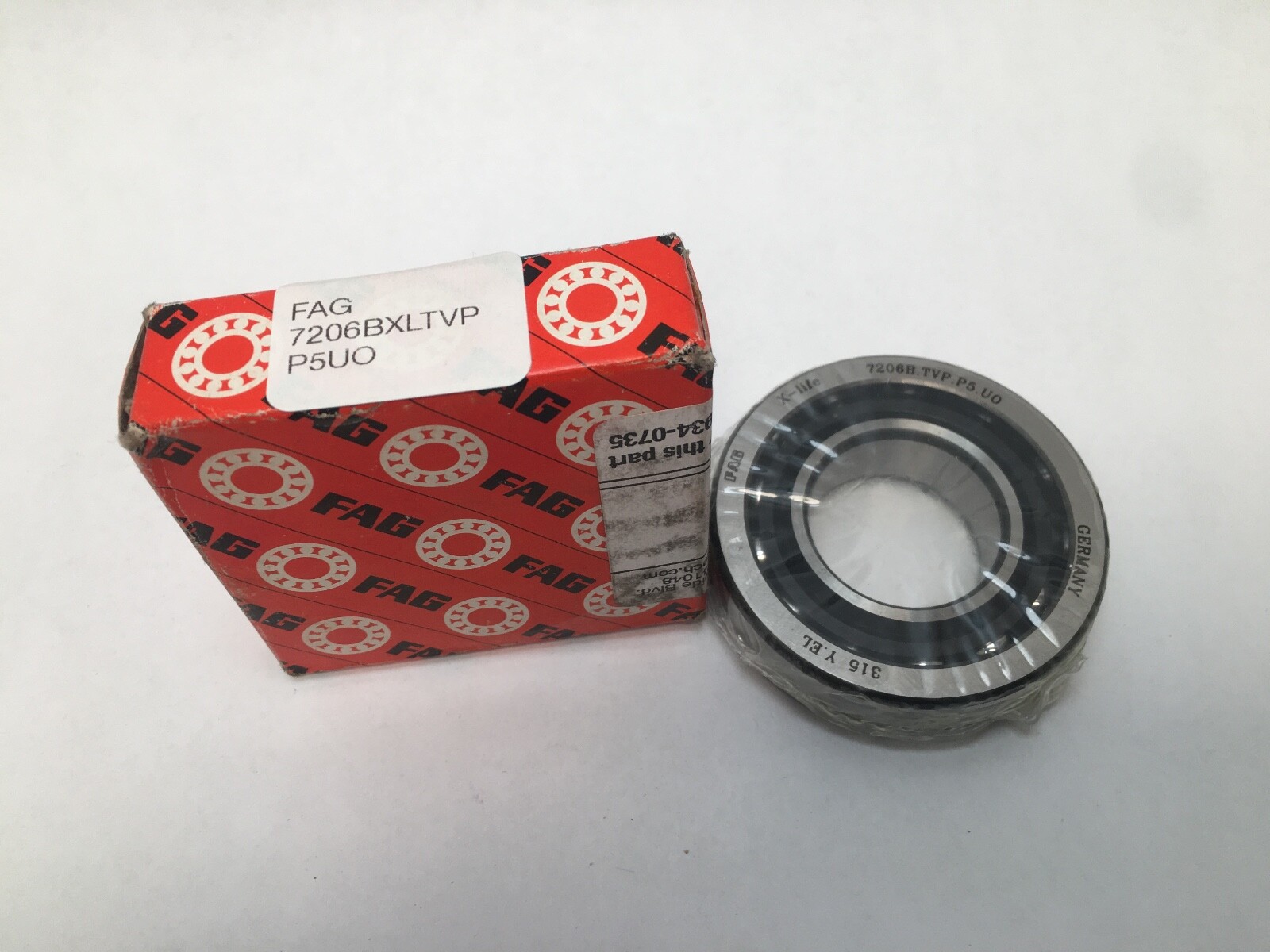

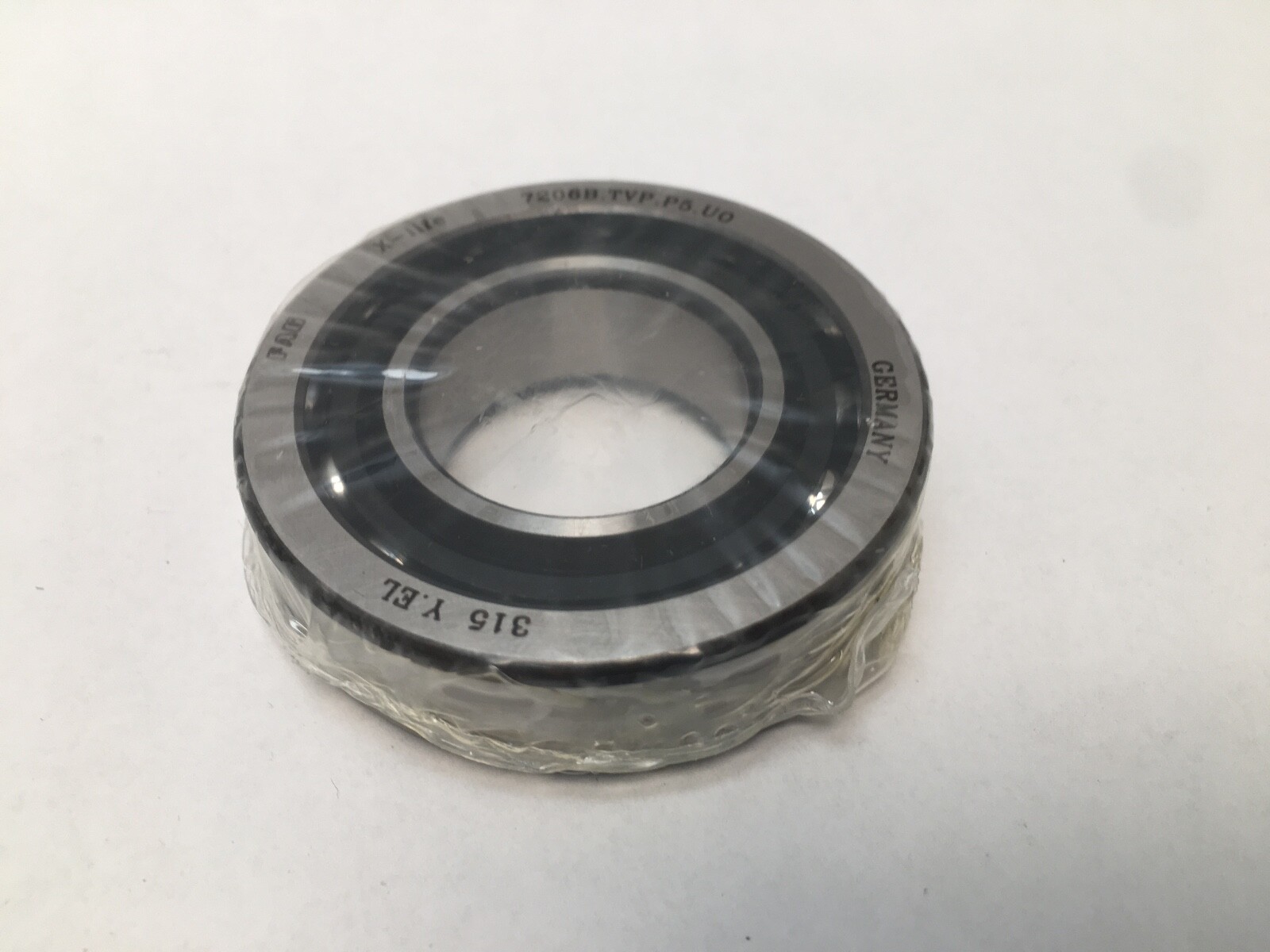

FAG 7206-B-XL-TVP-P5-UO single-row angular contact ball bearing. Bore: 30 mm. Outside Diameter: 62 mm. Width: 16 mm. Contact Angle: 40°. Precision Class: P5 (ABEC 5). Cage Material: Glass-fibre reinforced polyamide. Rolling Elements: Steel balls. Bearing Material: Chrome steel. Closure Type: Open. Number Of Rows: 1. Series: 72. Base Number: 7206. Bore Type: Straight. Arrangement: Universally matchable. Design Units: Metric. Unit Quantity: 1 Pc.

Decoding the designation:

7206 — the 72 dimension series at bore code 06, giving 30 x 62 x 16 mm.

B — 40° contact angle.

XL — X-life execution, with raceway geometry and surface finish raised over the earlier build at the same envelope.

TVP — glass-fibre reinforced polyamide cage.

P5 — tolerance class P5, ABEC 5.

UO — universally matchable, so any two bearings from the range pair in any arrangement.

What these specs mean in practice:

Contact Angle: 40° is the steepest angle FAG builds into the standard 72 series. It puts the ball load line well away from the radial plane, which gives the highest axial capacity and the highest axial stiffness of the single-row angular contact range, at the cost of speed and radial rating against a 15° or 25° execution. It is the angle used where thrust dominates: screw drives, worm gear pinion shafts, vertical spindles and pump thrust positions. Precision Class: P5 tightens bore, outside diameter, width and running accuracy well beyond the standard P0 grade, and is the point at which a bearing starts to hold shaft position rather than just support it. The polyamide cage runs quieter and lighter than pressed steel and copes with the sudden accelerations a reversing drive imposes.

Mounting data:

Universally matchable: the ring faces are ground so any two bearings pair back-to-back, face-to-face or in tandem, with the preload or clearance coming out of the grind when the faces are clamped together. Two paired back-to-back carry thrust in both directions and give the widest effective bearing spread; two in tandem double the axial capacity in one direction. A single bearing carries thrust in one direction only and needs an opposing location. Straight bore, straight outside diameter, and both rings need full shoulder support on the thrust-carrying faces. Lubricant: grease or oil.

Quantity and configuration:

Unit Quantity: 1 Pc. Single bearing, open on both faces, from the universally matchable range.

Interchange guidance:

7206 is an ISO boundary size, so a 7206 from any maker shares the 30 x 62 x 16 mm envelope. The angle is what separates the executions on that envelope: a 7206-B is 40°, an SKF 7206 BECBP is 40°, and a 7206 C at 15° shares the same envelope with a different load line, making it a related size rather than a substitution. Cross-References: SKF 7206 BEP, NSK 7206BEAT85, NTN 7206B, Koyo 7206B. Searchable variants of the manufacturer part number: 7206BXL.TVP.P5.UO, 7206-B-XL-TVP-P5-UO, 7206BXLTVPP5UO, 7206B, 7206-B-TVP-P5-UO, 7206 B XL TVP P5 UO.
