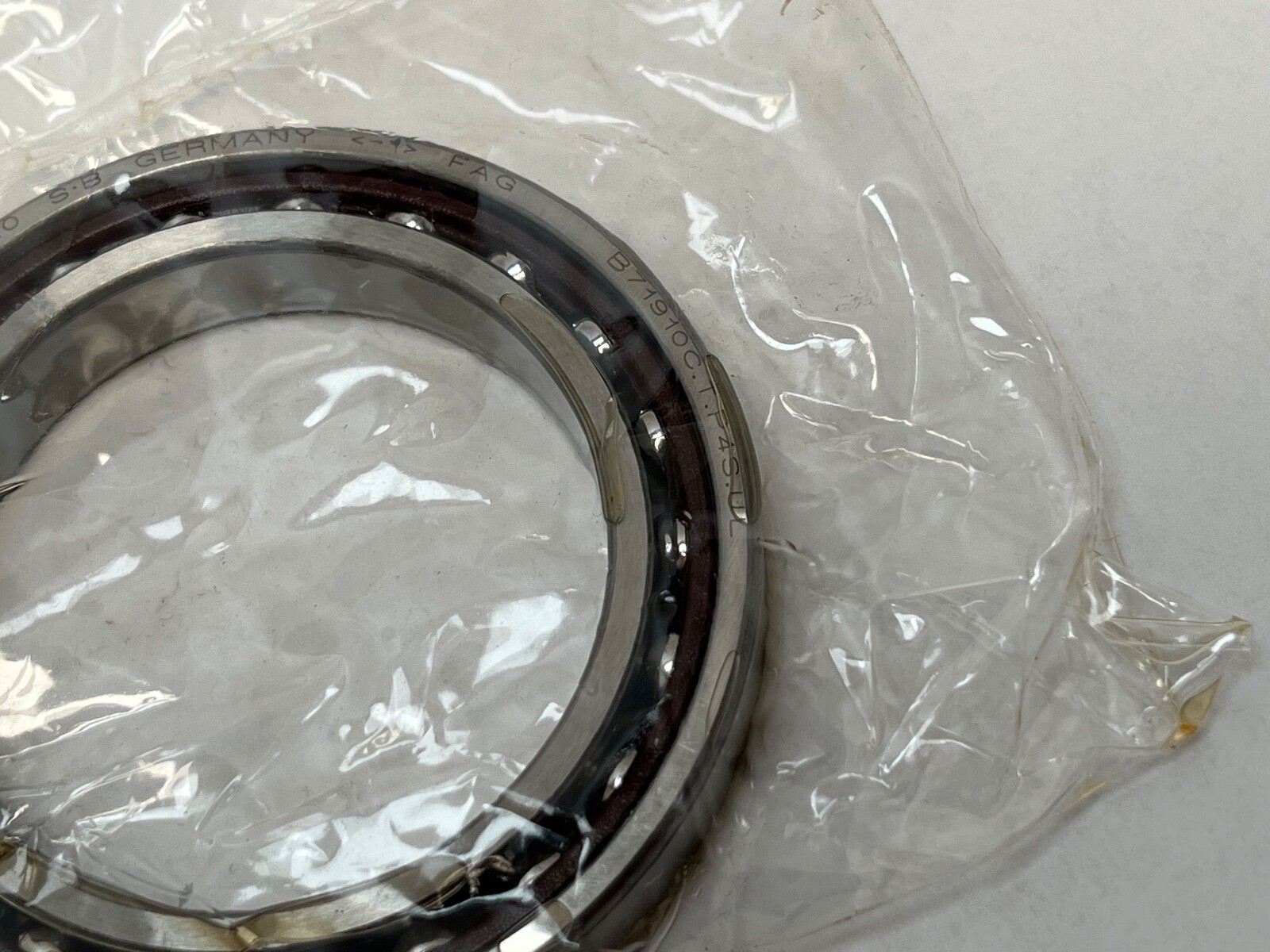

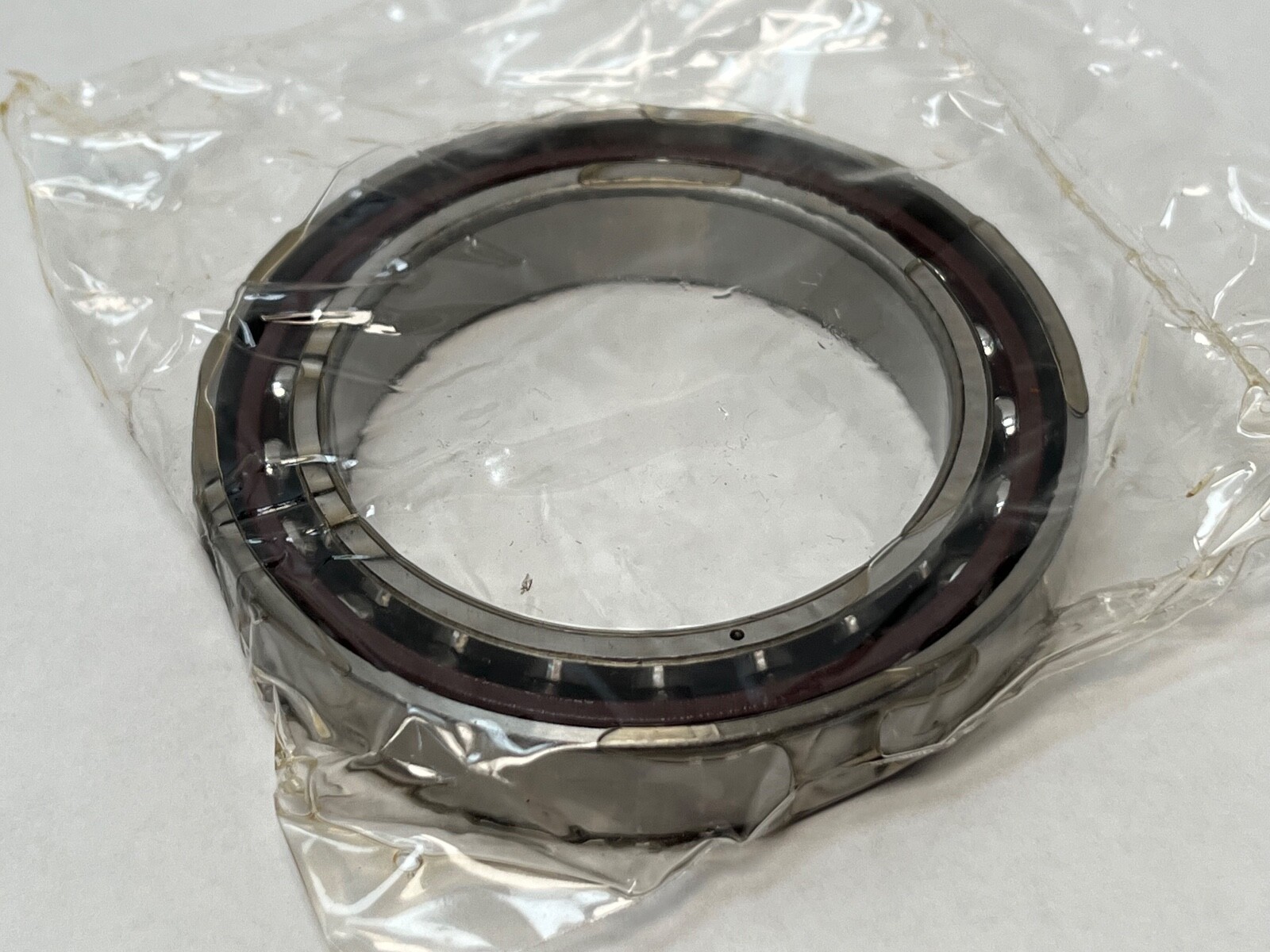

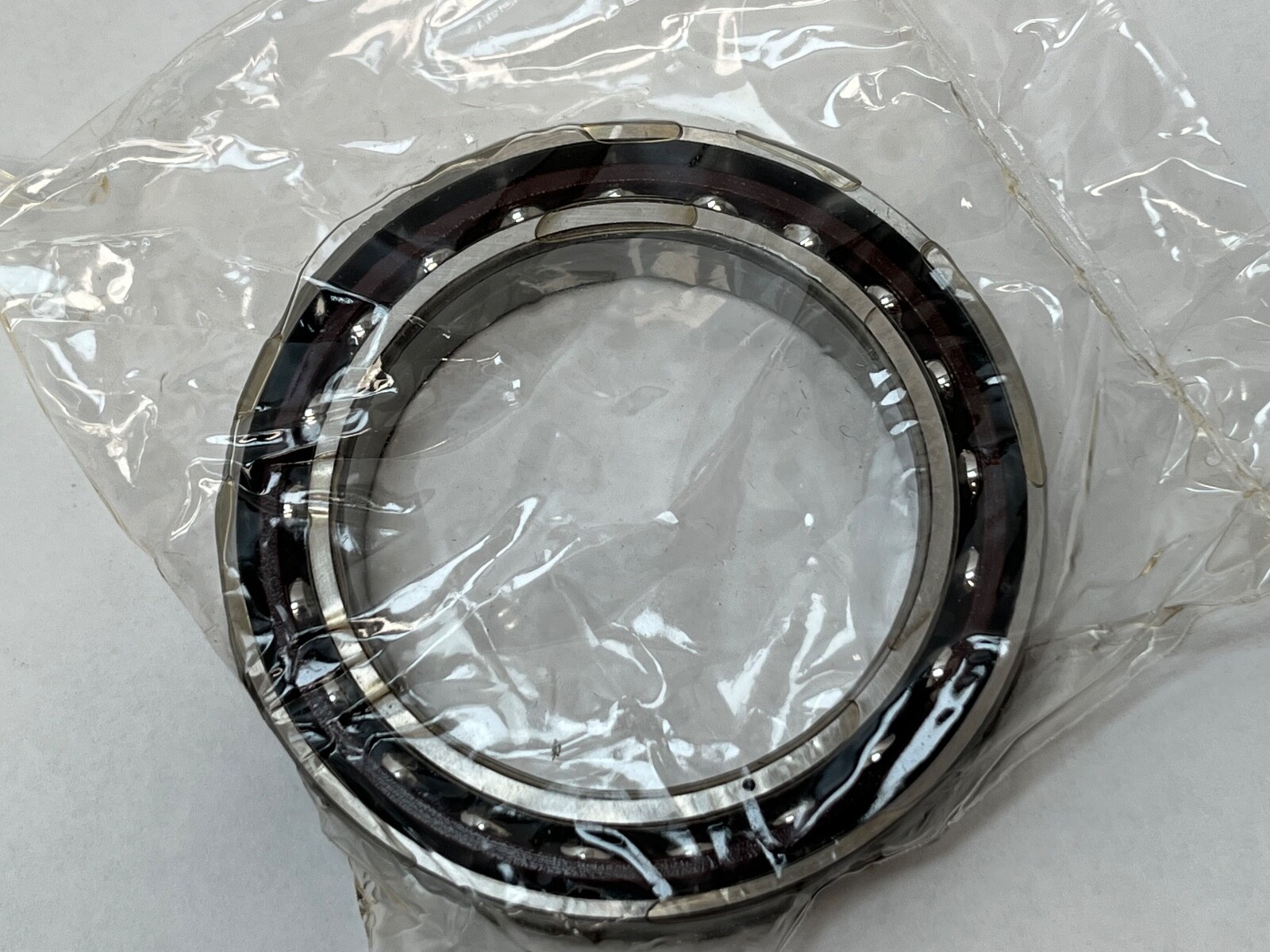

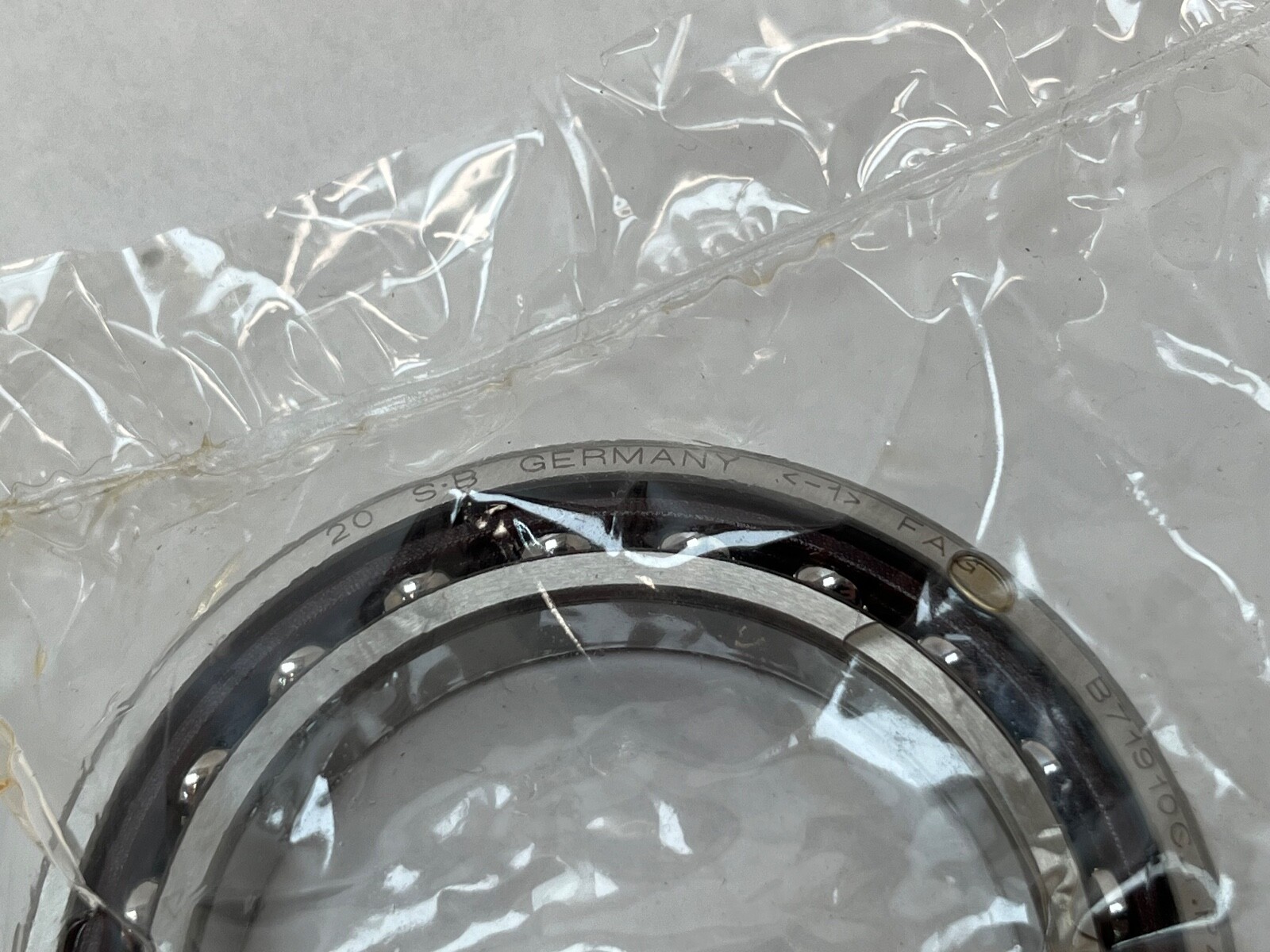

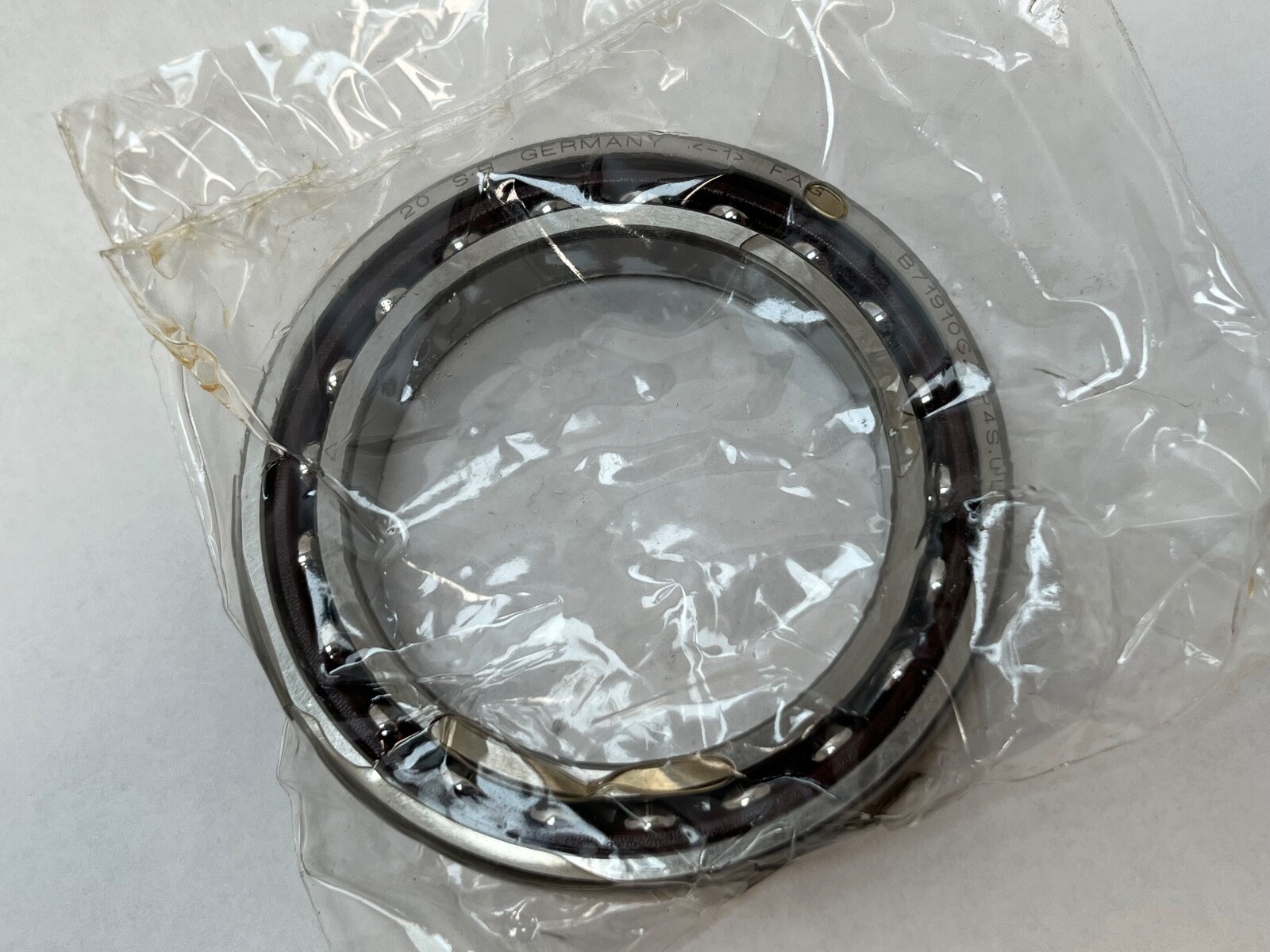

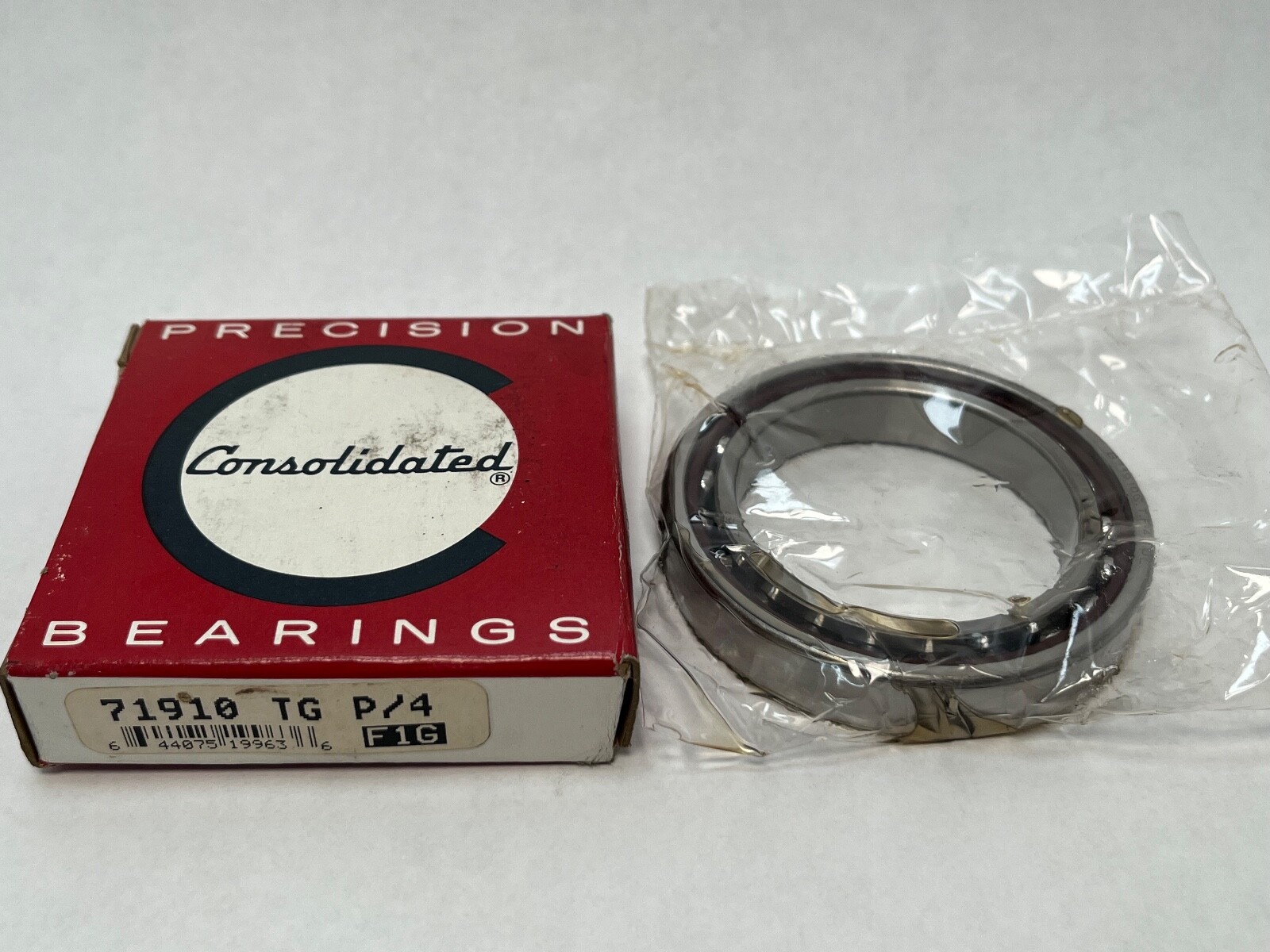

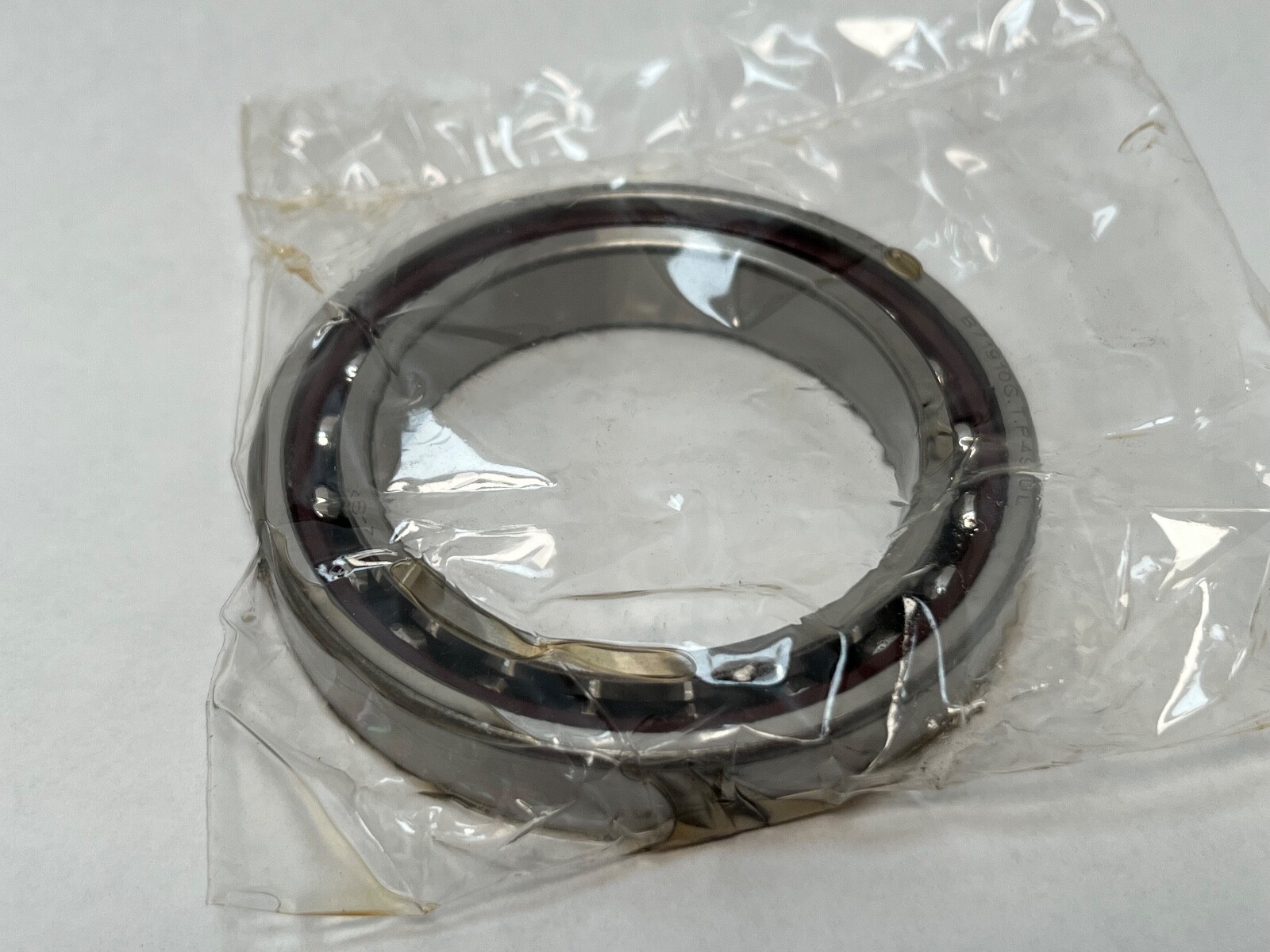

FAG 71910-TG-P4 angular contact spindle bearing, 50 x 72 x 12 mm, 15° contact angle, ABEC 7 / P4, phenolic cage, universal light preload. 1 Pc.
List Price
$127.70
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 71910-TG-P4 |
| Model | 71910TGP4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 72 mm |
| Width | 12 mm |
| Mpn Variants | 71910TGP4, 71910-TG-P4, B71910-C-T-P4S-UL, B71910C, 7910C, 7910 |
|---|---|
| Precision Class | ABEC 7 / P4 |
| Min Temp | -30 °C |
| Cage Type | Machined, outer-ring land riding |
| Dynamic Load Rating | 19,600 N |
| Static Load Rating | 11,900 N |
| Precision Rating | ABEC 7 / P4 |
| Series | B719 |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 0.127 kg (0.28 lb) |
| Cage Material | Phenolic |
| Limiting Speed | 19,000 rpm grease; 30,000 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | grease or oil |
| Contact Angle | 15° |
| Preload | Light (89 N) |
| Mounting Arrangement | Universal single (UL) |
| Industry Terms | super precision angular contact bearing; spindle bearing 50x72x12; 15 degree angular contact; universal single ball bearing; light preload spindle bearing |
| Common Misspellings | FAG 71910 TGP4; Fag 71910TG P4; FAG B71910C; FAG 71910-TG-P4; Schaeffler 71910TGP4 |
| Application Types | Machine tool spindles; high-speed motor spindles; precision grinding spindles; duplex and multi-bearing sets |
| Closure Type | Open |
| Cross Reference 1 | RHP 7910CTSULP4 - 15 deg, phenolic T cage, light preload SU |
|---|---|
| Cross Reference 2 | Fafnir 2MM9310WI CR SUL - 15 deg, phenolic CR cage, light preload |
| Cross Reference 3 | SKF 71910 CD/P4A - 15 deg, P4A, light preload universal |
| Cross Reference 4 | NSK 7910CTYNSULP4 - 15 deg, TYN polyamide cage, light preload |
FAG 71910-TG-P4 (B71910-C-T-P4S-UL) is a single super-precision angular contact spindle bearing from the Schaeffler B719 series. Bore Diameter: 50 mm. Outside Diameter: 72 mm. Width: 12 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Preload: Light. Unit Quantity: 1 Pc.
71910 — ISO 719 series, 50 x 72 x 12 mm, the extra-light section.
TG — machined phenolic cage, outer-ring land riding, universally flush-ground faces.
C — 15° contact angle.
P4 — ISO tolerance class P4, equivalent to ABEC 7.
UL — universally ground single bearing, light preload when paired in any arrangement.
Dynamic Load Rating: 19,600 N. Static Load Rating: 11,900 N. Limiting Speed: 19,000 rpm grease; 30,000 rpm oil.
Preload Force: Light, 89 N (Schaeffler FV L). Operating Temperature: -30 to 100 °C. Item Weight: 0.127 kg (0.28 lb).
Bore Diameter: 50 mm. Outside Diameter: 72 mm. Width: 12 mm. Shaft Shoulder Diameter: 55 mm. Housing Shoulder Diameter: 67.5 mm.
Closest first, 15° P4 universal light-preload types in the 50 x 72 x 12 mm size: RHP 7910CTSULP4 (phenolic cage), Fafnir 2MM9310WI CR SUL (phenolic outer-land-riding cage), SKF 71910 CD/P4A (light preload) and NSK 7910CTYNSULP4 (TYN polyamide cage). MPN Variants: 71910TGP4, 71910-TG-P4, B71910-C-T-P4S-UL, B71910C, 7910C, 7910.
Bore Diameter is 50 mm, Outside Diameter is 72 mm and Width is 12 mm.
Contact Angle is 15°, Precision Class is ABEC 7 / P4 and the cage is machined phenolic, outer-ring land riding.
Limiting Speed is 19,000 rpm with grease and 30,000 rpm with oil. Preload is Light, 89 N, as a universally ground single bearing.
