Availability:
1 in stock

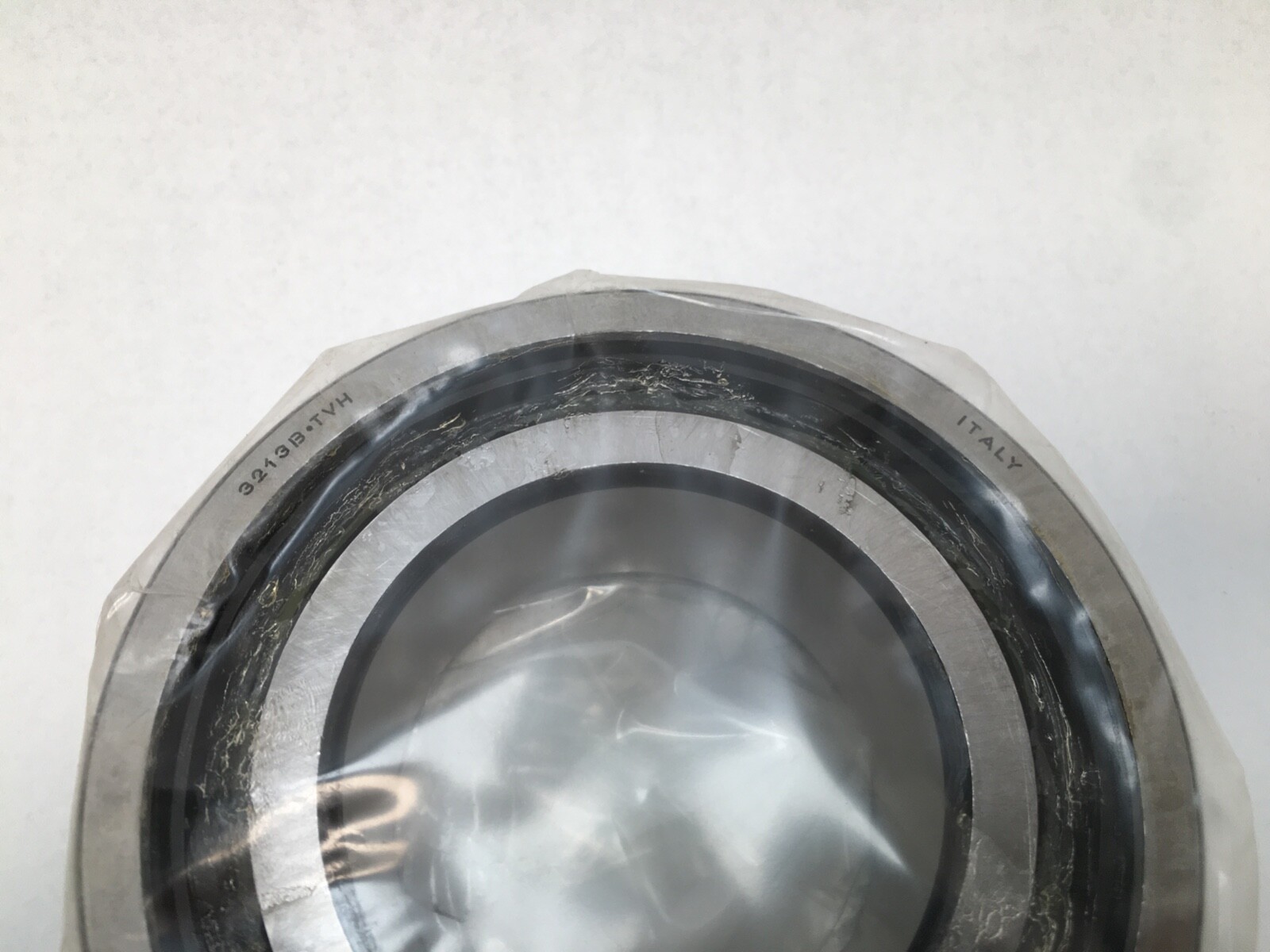

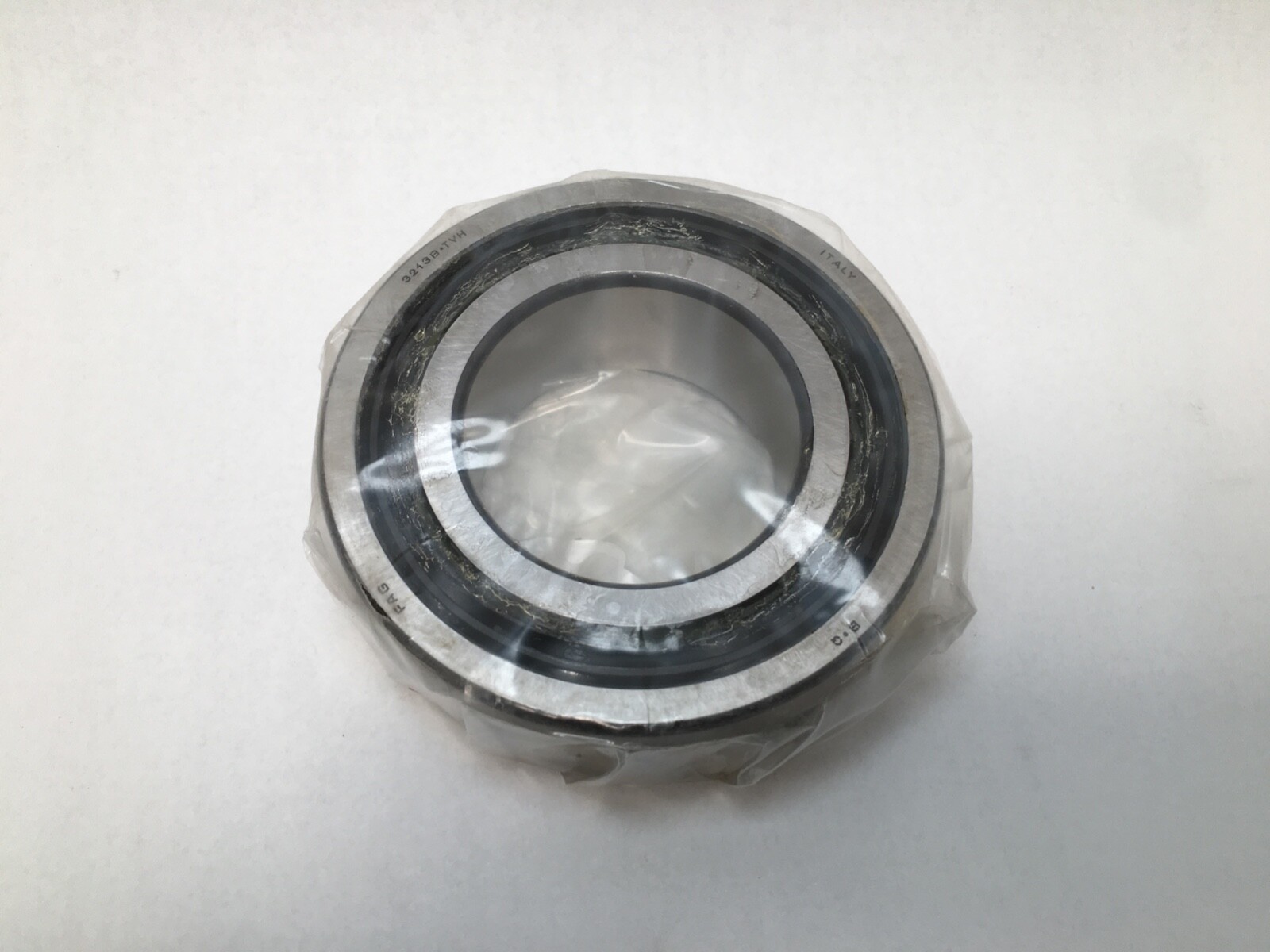

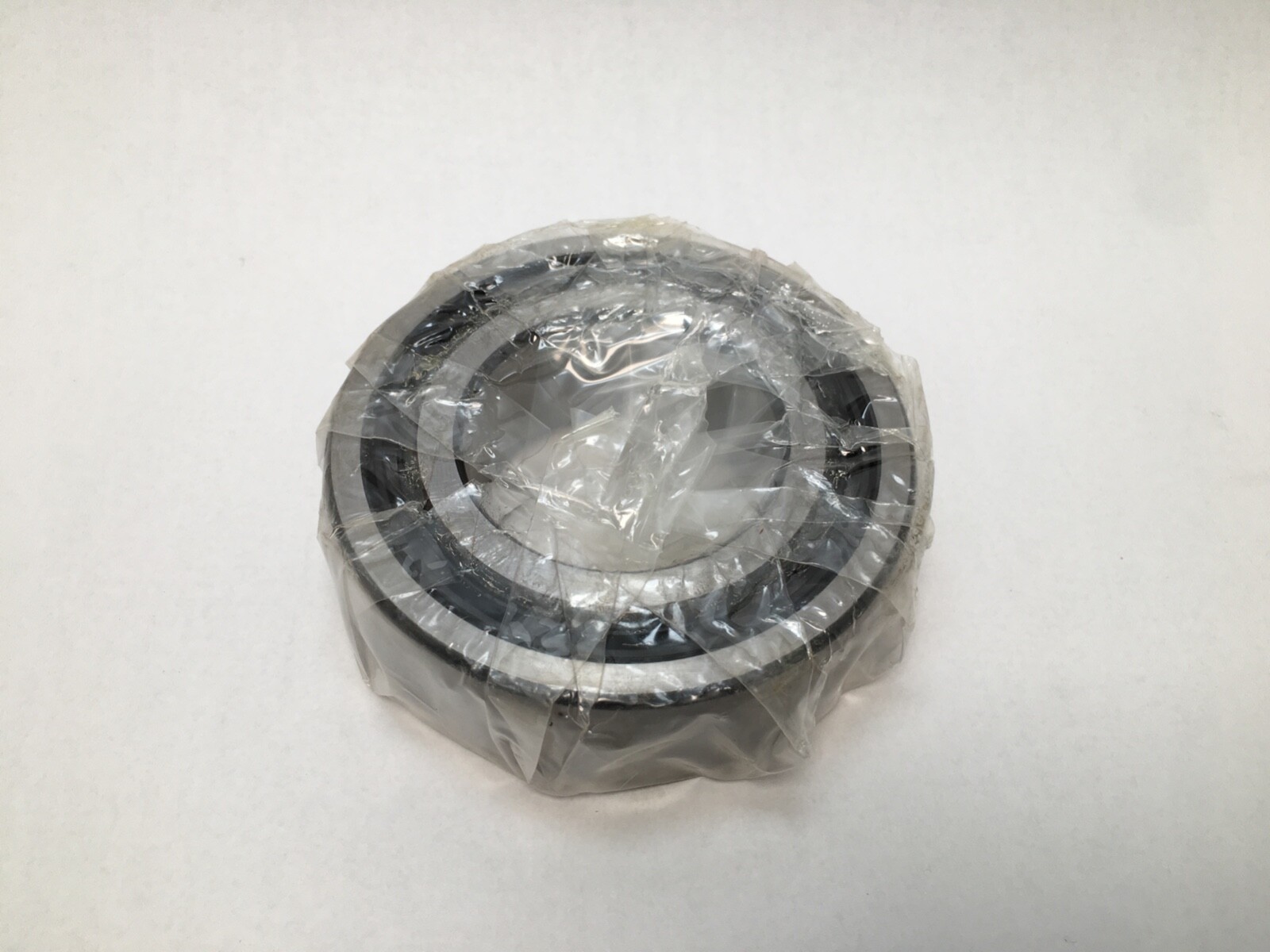

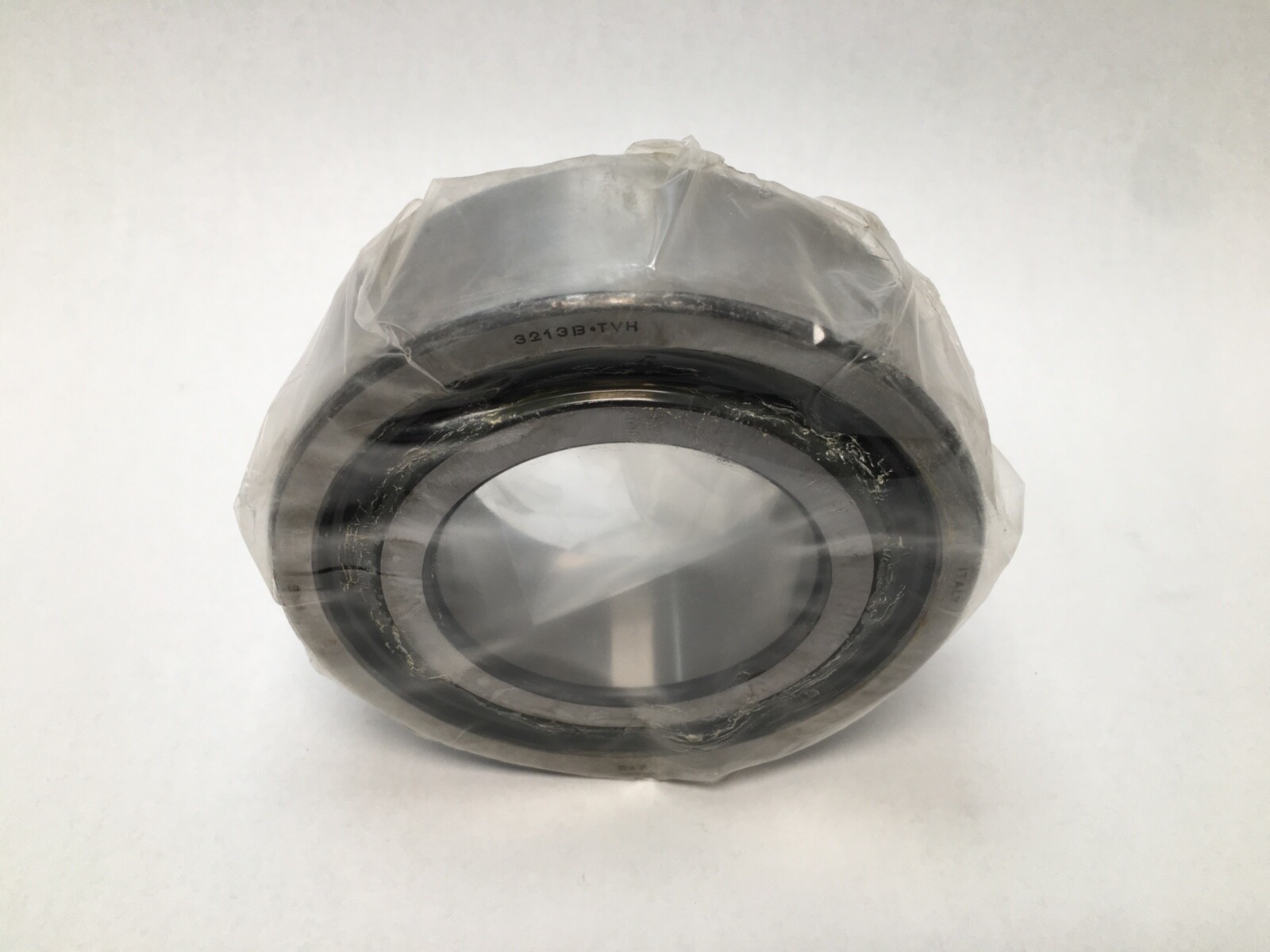

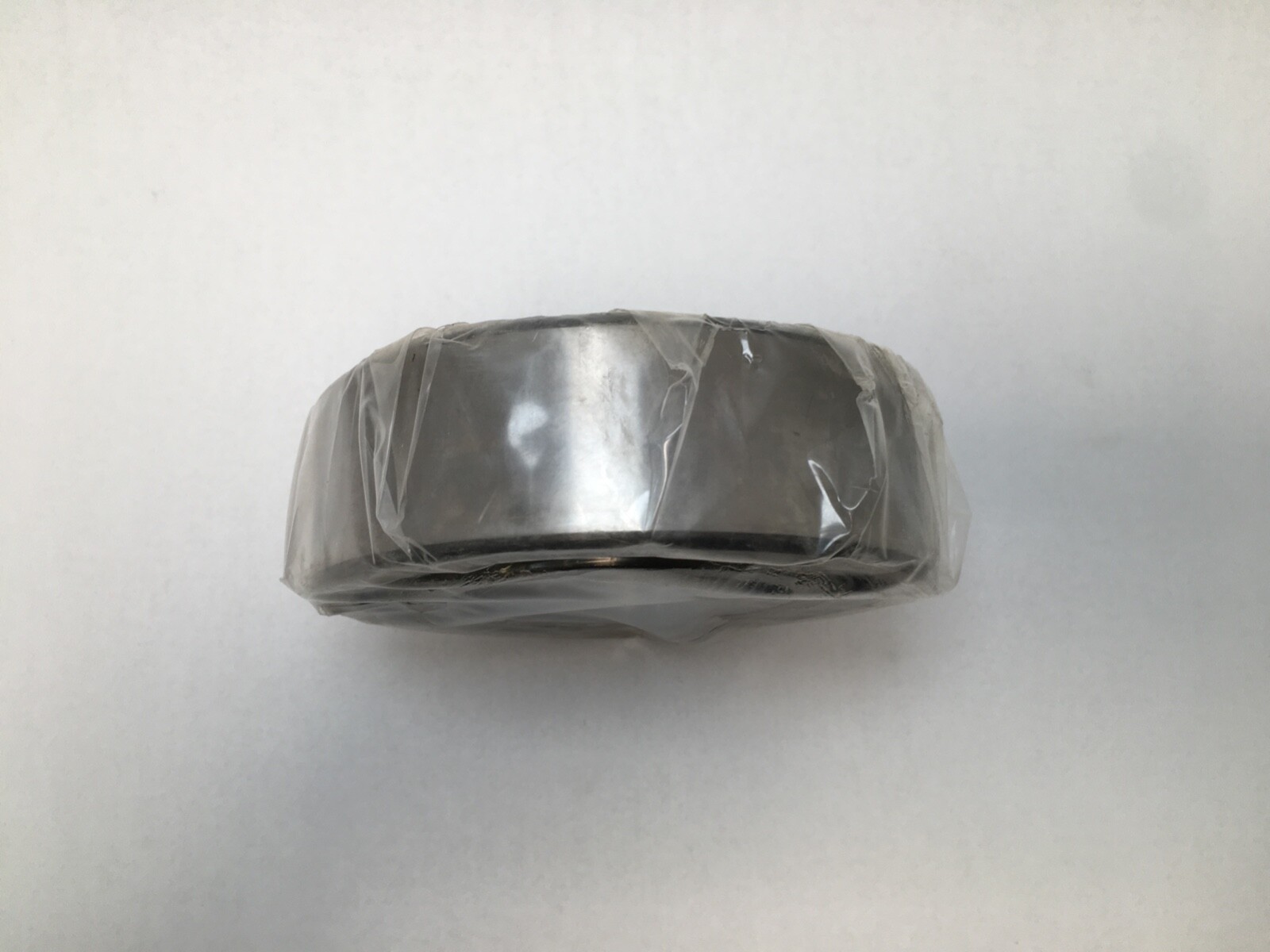

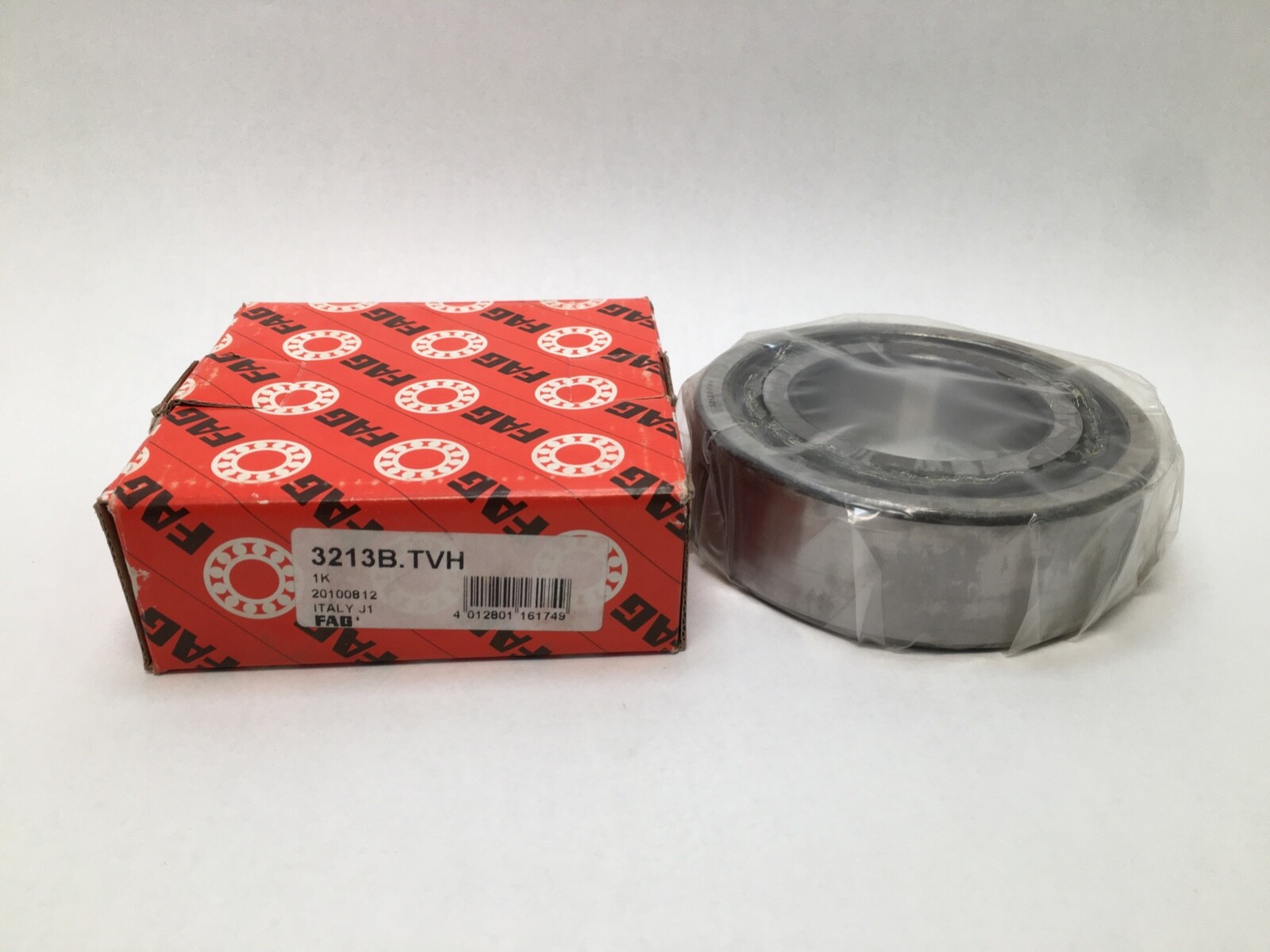

Double-row angular contact ball bearing, 65 x 120 x 38.1 mm (1-1/2 in wide), open, glass-fibre polyamide cage, CN clearance. Interchanges with 5213 and 3213 A.
List Price
$55.77
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 3213BTVH |
| Model | 3213B.TVH |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 38.1 mm (1-1/2 in) |
| Common Misspellings | 3213 BTVH, 3213B-TVH |
|---|---|
| Overall Width | 38.1 mm (1-1/2 in) |
| Mpn Variants | 3213B.TVH, 3213-B-TVH, 3213BTVH, 3213B TVH, 3213-BD-TVH, 3213-BD-XL-TVH |
| Compatible With Replaces | Successor: FAG 3213-BD-XL-TVH |
| Additional Attributes | Successor 3213-BD-XL-TVH data: Dynamic Load Rating 86,000 N; Static Load Rating 77,000 N; Limiting Speed 5,700 rpm; Reference Speed 6,000 rpm; Mass 1.6 kg (3.527 lb); Contact Angle 30°; Precision P6; Operating temperature -30 to +120 °C; da min 74 mm; Da max 111 mm; r min 1.5 mm |
| Series | 3200 |
| Rolling Elements | Ball |
| Cage Material | Glass-fibre reinforced polyamide PA66 |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 3213 A |
|---|---|
| Cross Reference 2 | NSK 5213 |
| Cross Reference 3 | MRC 5213 |
| Cross Reference 4 | NTN 5213 |
FAG 3213B.TVH double-row angular contact ball bearing, open design. Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 38.1 mm (1-1/2 in). Number Of Rows: 2. Rolling Elements: Ball. Closure Type: Open.
32 — double-row angular contact ball bearing, dimension series 32.
13 — bore code, 65 mm bore.
TVH — solid window cage in glass-fibre reinforced polyamide PA66. Cage Material: Glass-fibre reinforced polyamide PA66.
No clearance suffix — normal internal clearance. Internal Clearance: CN.
Successor 3213-BD-XL-TVH data: Dynamic Load Rating: 86,000 N. Static Load Rating: 77,000 N. Contact Angle: 30°. Limiting Speed: 5,700 rpm. Reference Speed: 6,000 rpm. Mass: 1.6 kg (3.527 lb).
Successor 3213-BD-XL-TVH data: Precision Class: P6. Operating Temperature: -30 °C to +120 °C. Supplied ungreased.
Successor 3213-BD-XL-TVH data: Abutment diameter da min: 74 mm. Abutment diameter Da max: 111 mm. Chamfer r min: 1.5 mm.
Same 65 x 120 x 38.1 mm open double-row envelope: SKF 3213 A, NSK 5213, MRC 5213, NTN 5213. Current Schaeffler designation: 3213-BD-XL-TVH.
$111.47
35 in stock
