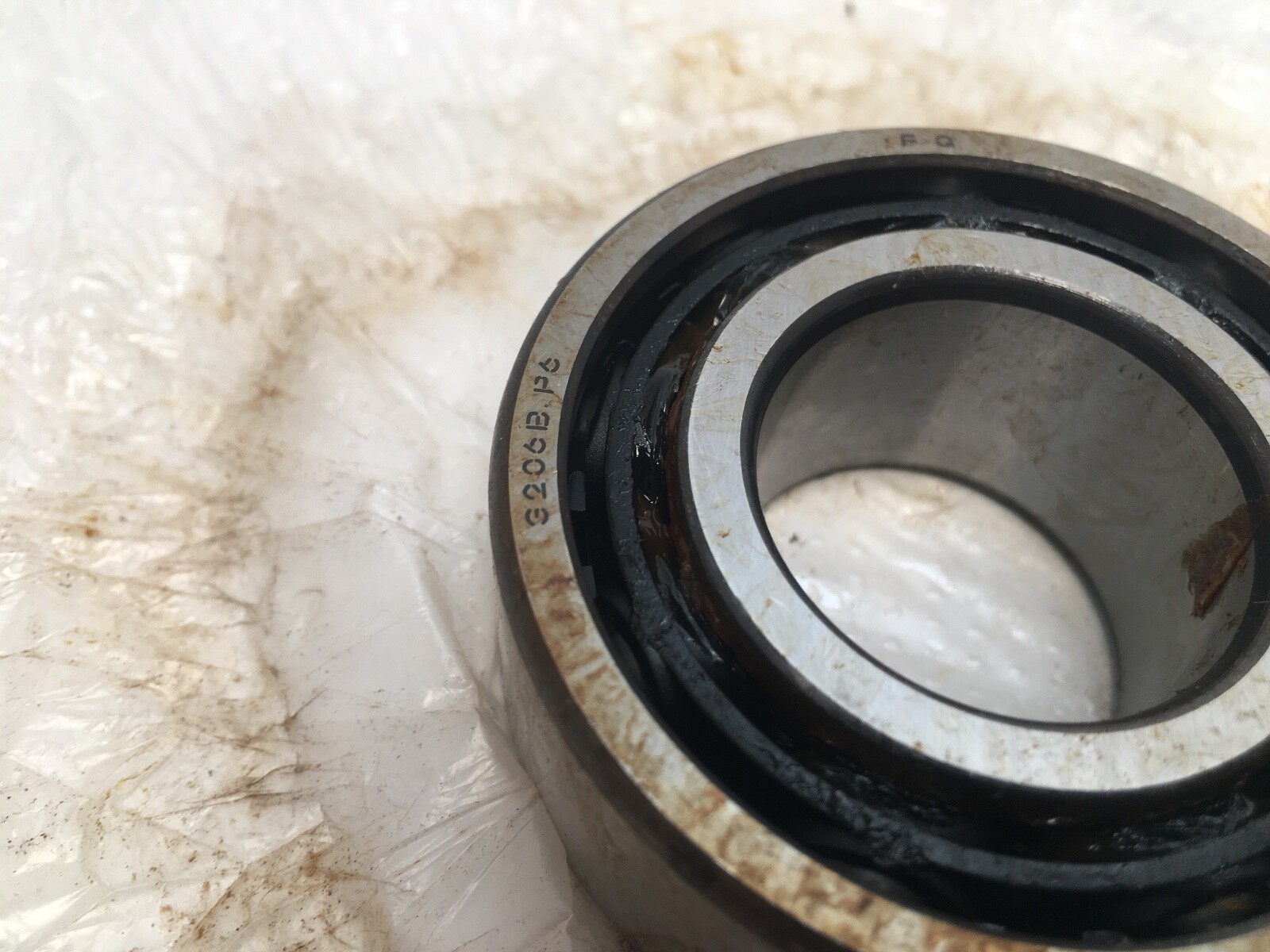

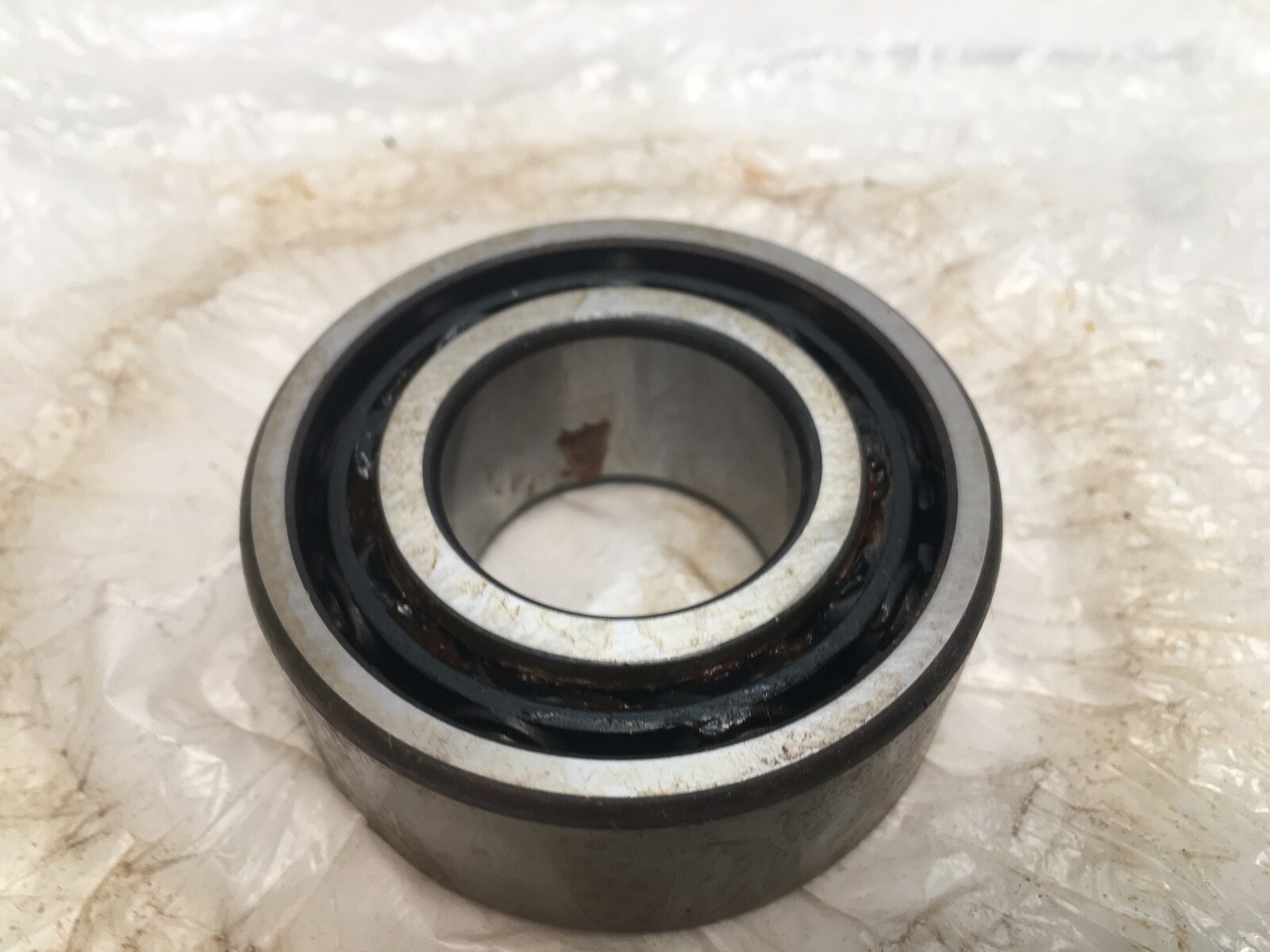

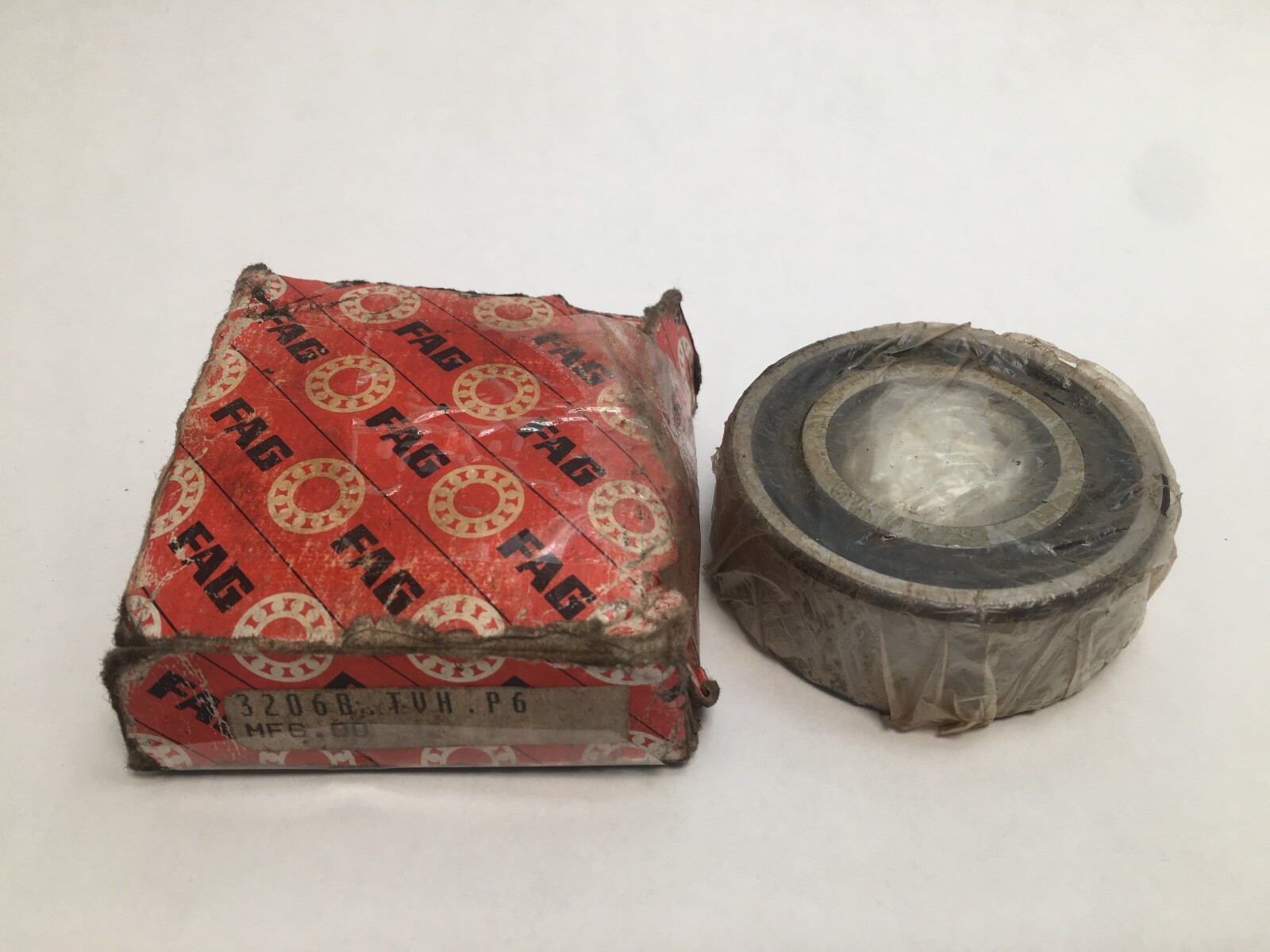

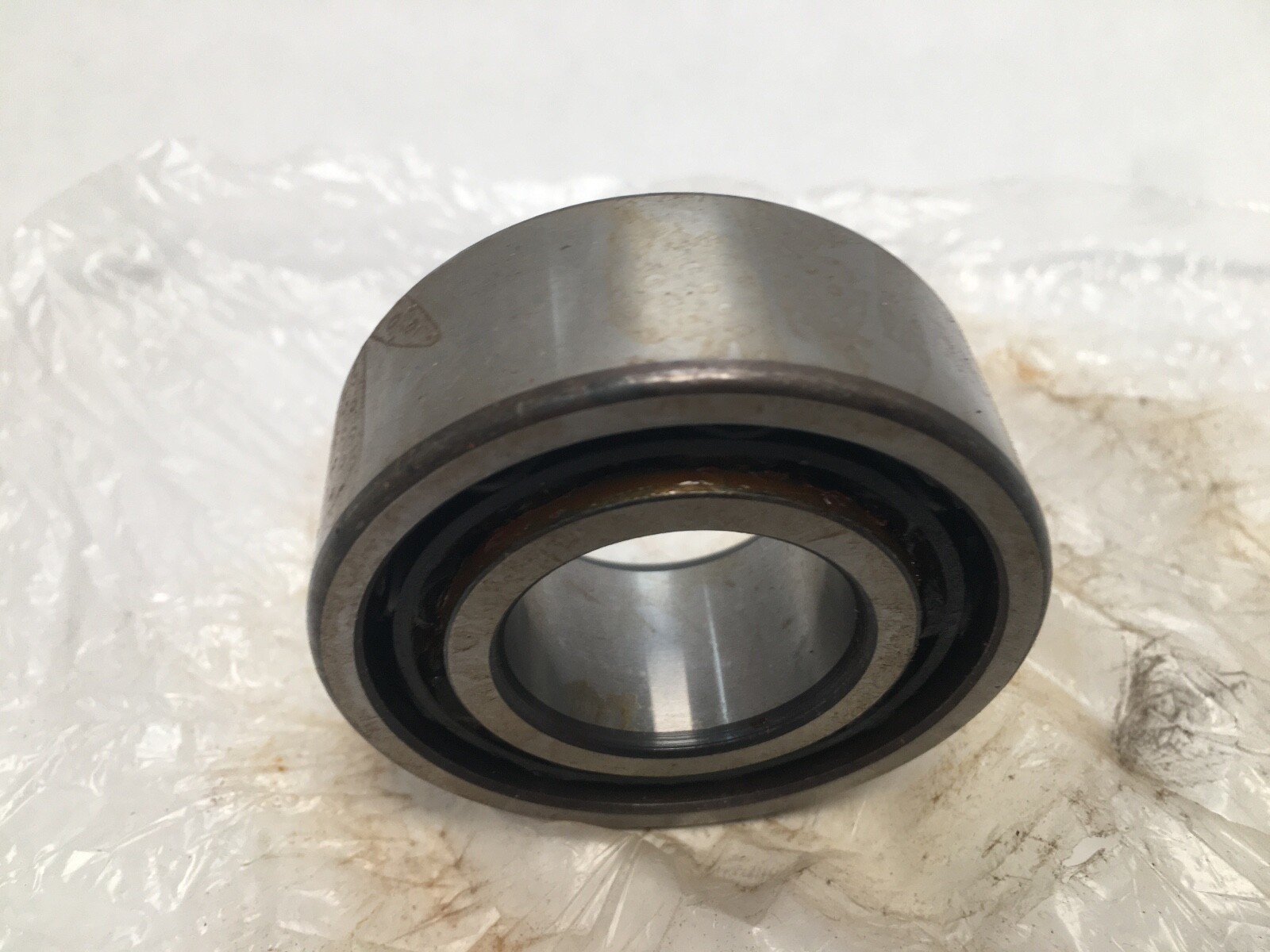

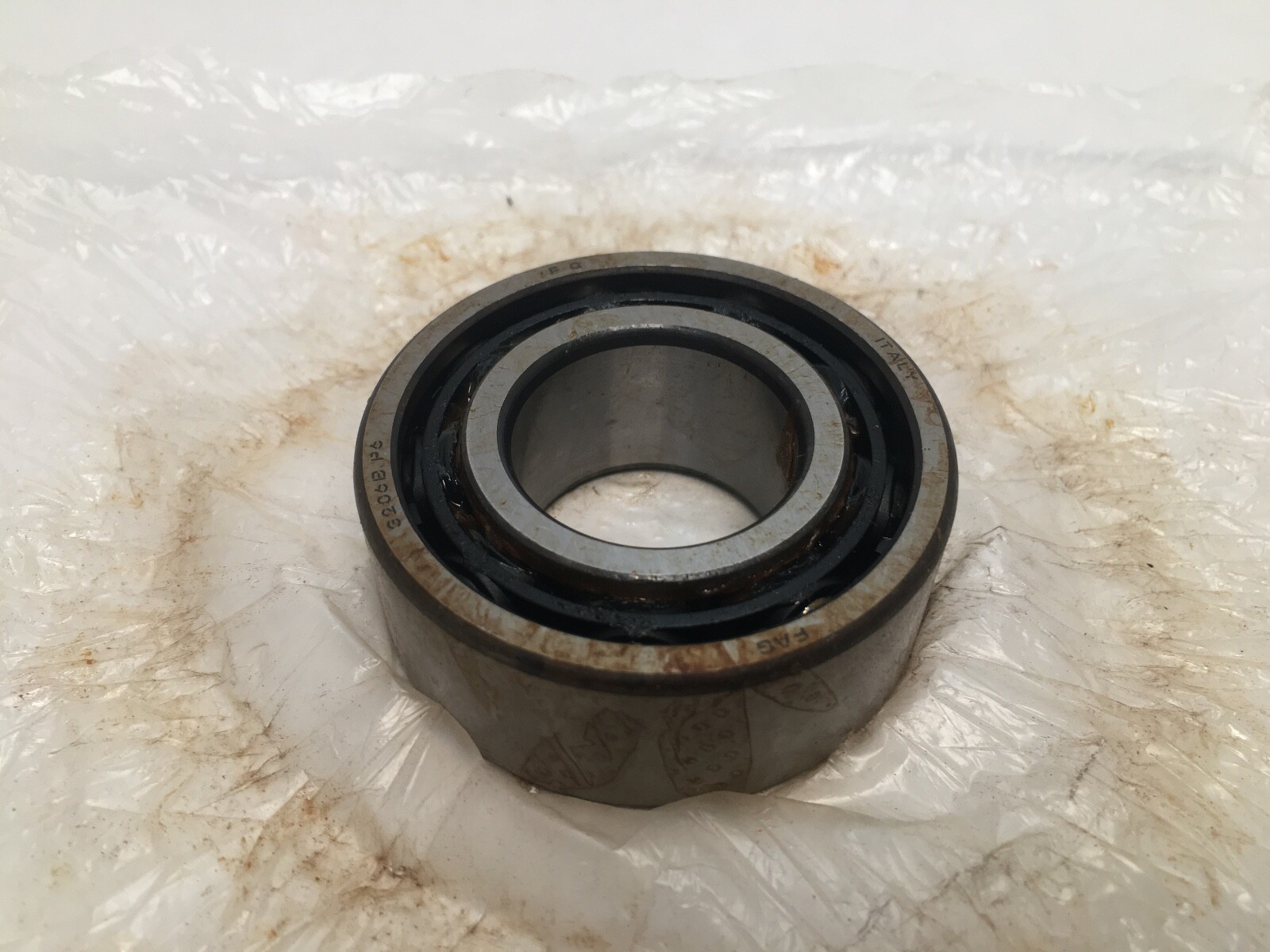

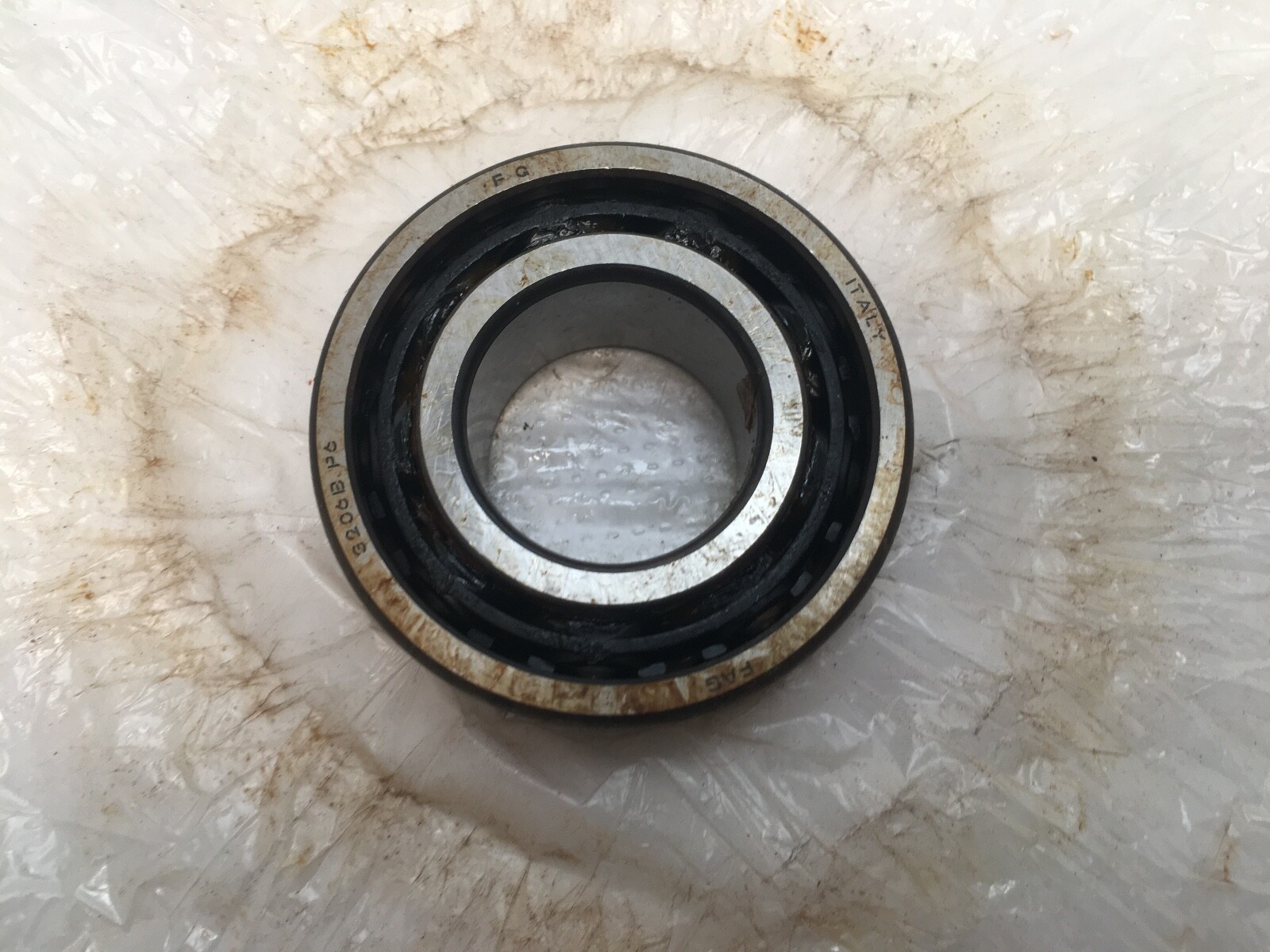

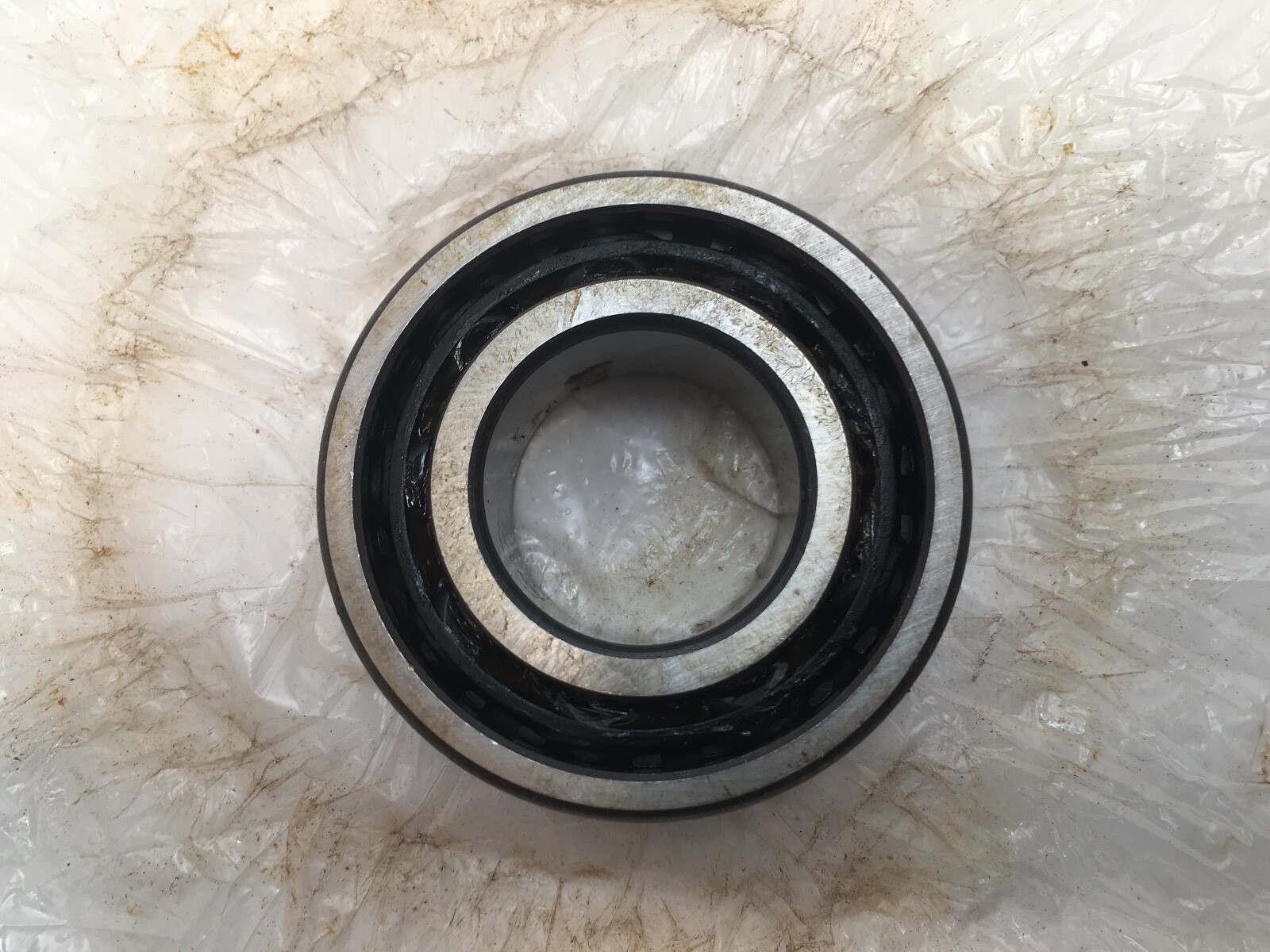

Double-row angular contact ball bearing, 30 x 62 x 23.8 mm, 30° contact angle, open, glass-fibre polyamide cage, P6 precision. FAG 3206B.TVH.P6.
List Price
$33.53
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 3206B.TVH.P6 |
| Model | 3206 B TVH P6 5206B |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 30 mm |
| OD | 62 mm |
| Base Number | 3206 |
|---|---|
| Overall Width | 23.8 mm |
| Mpn Variants | 3206B.TVH.P6; 3206-B-TVH-P6; 3206BTVHP6; 3206B; 3206-BD-TVH; 3206-BD-XL-TVH; 5206 |
| Precision Class | ABEC 3 / P6 |
| Precision Rating | ABEC 3 / P6 |
| Series | 32 |
| Rolling Elements | Ball |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Contact Angle | 30° |
| Bearing Material | Chrome steel |
| Industry Terms | double row angular contact bearing; 30x62x23.8 bearing; 5206 bearing; double row ball bearing; P6 angular contact bearing |
| Common Misspellings | FAG 3206 B TVH P6; FAG 3206BTVH P6; FGA 3206B.TVH.P6; Fag 3206-B-TVH-P6; FAG 5206 |
| Application Types | Pumps; Gearboxes; Compressors; Machine tool auxiliary drives; Industrial machinery |
| Cross Reference 1 | SKF 3206 A |
|---|---|
| Cross Reference 2 | FAG 3206-BD-XL-TVH - X-life, newer design |
FAG 3206B.TVH.P6 double-row angular contact ball bearing. Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 23.8 mm (0.9375 in). Two ball rows sit back to back in one pair of rings, so a single bearing takes radial load plus thrust in both directions. Contact Angle: 30°. Cage Material: Polyamide. Precision Class: ABEC 3 / P6. Closure Type: Open. Unit Quantity: 1 Pc.
32 — ISO double-row angular contact ball bearing series, dimension series 32.
06 — bore code; 30 mm bore.
B — the 30° double-row design.
TVH — glass-fibre reinforced polyamide cage, one piece.
P6 — tolerance class P6, equivalent to ABEC 3.
5206 — the older ISO designation for the same envelope, still carried on many cartons and parts lists.
Bearing Type: Double row angular contact ball bearing. Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 23.8 mm. Contact Angle: 30°. Precision Class: ABEC 3 / P6. Cage Material: Polyamide. Rolling Elements: Ball. Number Of Rows: 2. Bore Type: Straight. Closure Type: Open. Bearing Material: Chrome steel. Series: 32. Base Number: 3206. Unit Quantity: 1 Pc.
Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 23.8 mm (0.9375 in).
Cross-references: SKF 3206 A; FAG 3206-BD-XL-TVH (X-life design, newer series). Designation variants: 3206B.TVH.P6, 3206-B-TVH-P6, 3206BTVHP6, 3206B, 3206-BD-TVH, 5206.
30 mm bore, 62 mm outside diameter, 23.8 mm (0.9375 in) wide.
A glass-fibre reinforced polyamide cage, one piece.
30°. The double-row design takes thrust in both directions.
