Matched duplex pair of super-precision angular contact ball bearings, 1-3/4 in bore, 3 in OD, 5/8 in wide. ABEC 7 / P4, heavy preload, inch series.
List Price
$300.89
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Double-Row Angular Contact Ball Bearing, Open, 25 x 62 x 25.4 mm, 20 Degree Contact Angle, Nylon Cage$25.49
Double Row Angular Contact Ball Bearing, 45 mm Bore x 85 mm OD x 30.17 mm Wide, 30 Degree Contact Angle, Snap-In Cage$37.37
Double Row Angular Contact Ball Bearing – 55 mm ID, 120 mm OD, 49.22 mm Width, Open, 20° Contact Angle$93.05
Super-Precision Angular Contact Ball Bearing Matched Pair - Straight Bore, 17 mm ID, 40 mm OD, 12 mm Width, Open, 25° Contact Angle, Light Preload, Machined Phenolic Cage.$93.59| MFR / Brand | Fafnir |
|---|---|
| MPN | MM9311WI-3DUH |
| Model | MM 9311 WI 3 DUH |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 1.7500 in (44.450 mm) |
| OD | 3.0000 in (76.200 mm) |
| Base Number | MM9311WI |
|---|---|
| Industry Terms | Super-precision angular contact bearing, Machine tool spindle bearing set, Matched duplex pair, Inch series spindle bearing |
| Application Types | Machine tool spindles, High-speed precision spindles, Grinding spindles |
| Overall Width | 0.6250 in (15.875 mm) |
| Mpn Variants | MM9311WI-3-DUH, MM-9311-WI-3-DUH, MM9311WI-3DUH, MM 9311 WI 3 DUH, MM9311WI3DUH, MM9311WI |
| Arrangement Configuration | Matched duplex pair, universally ground |
| Precision Class | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Preload | Heavy |
| Mounting Arrangement | Universal |
| Design Units | Inch |
| Bearing Material | Steel |

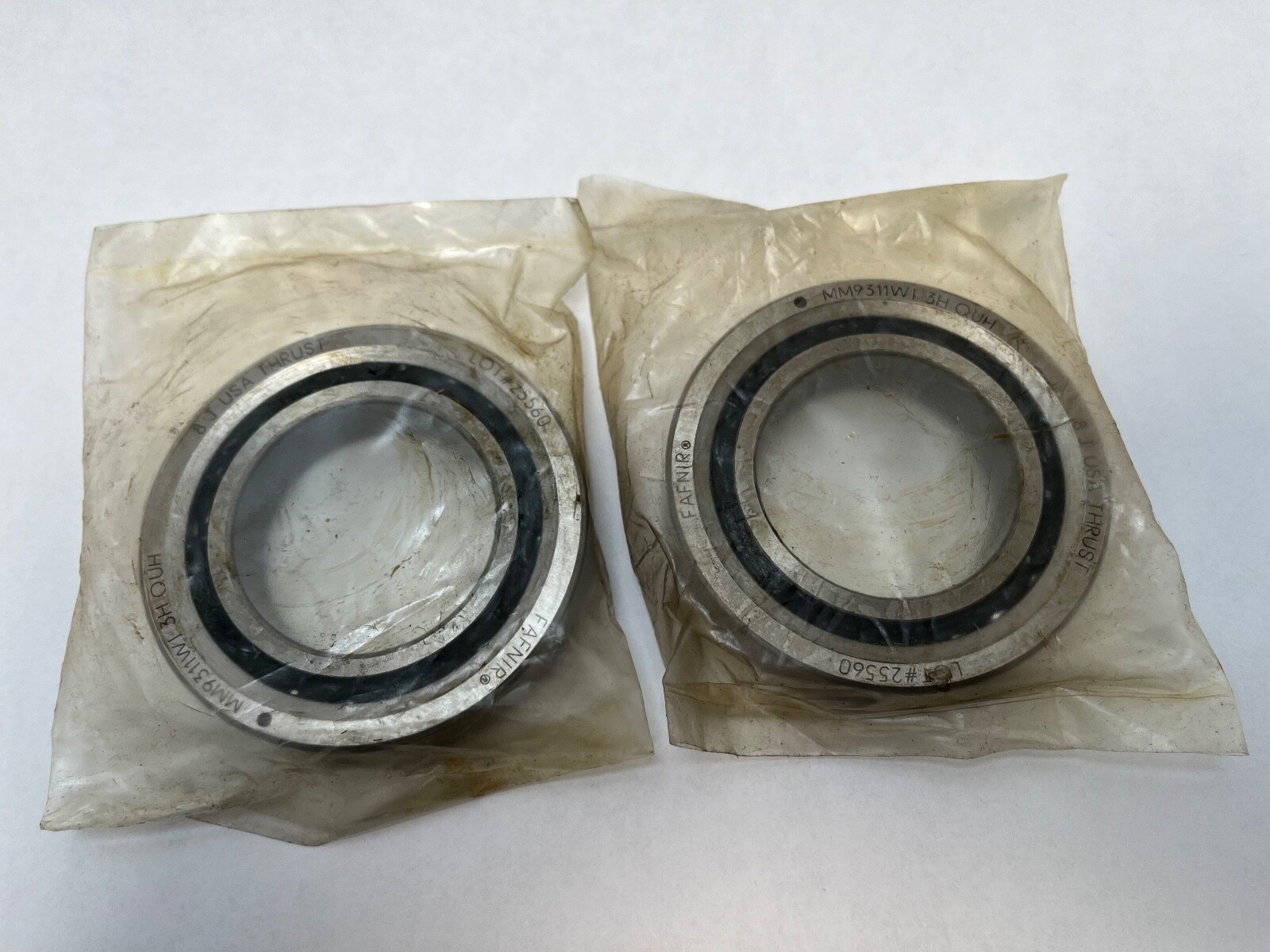

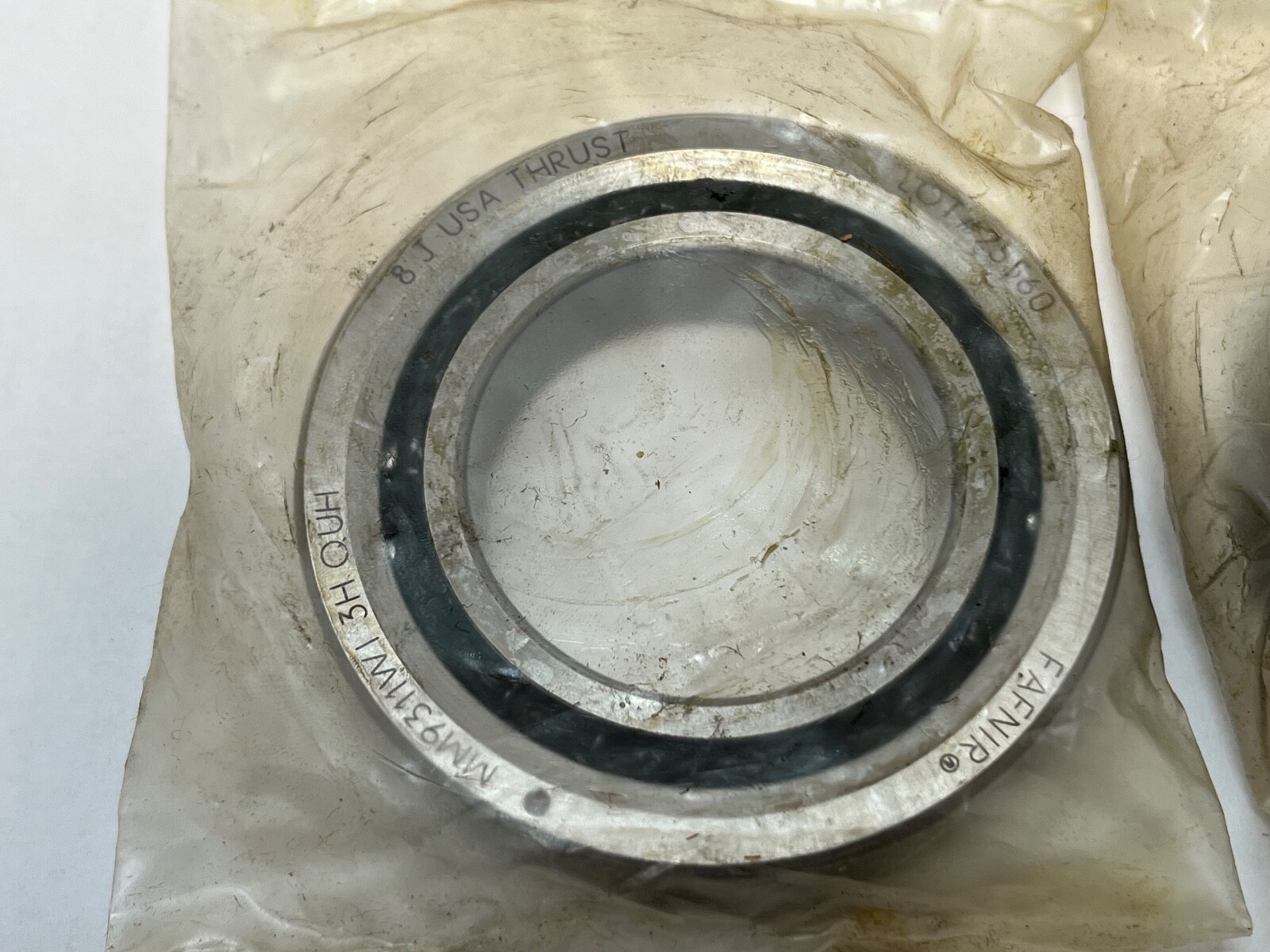

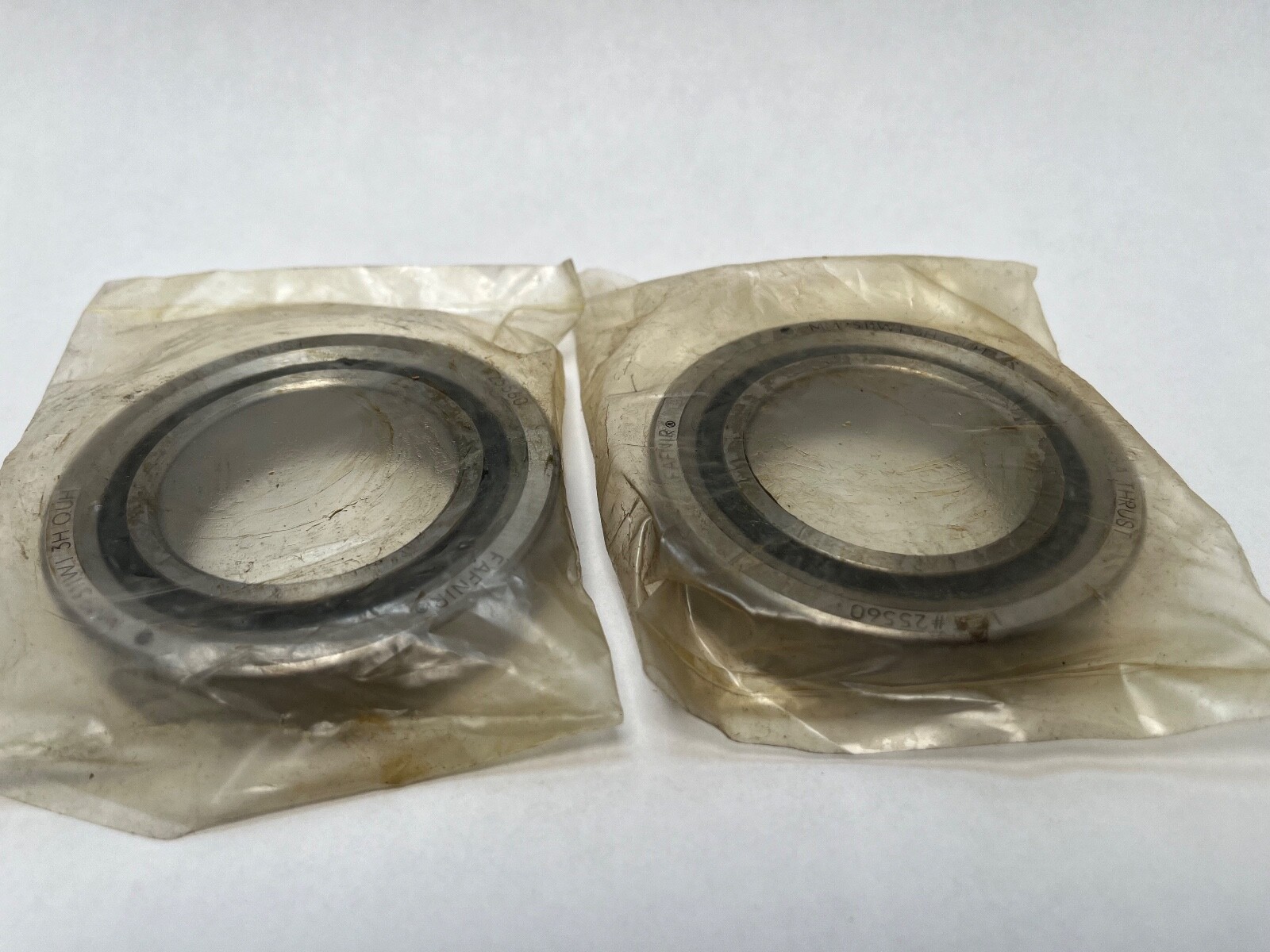

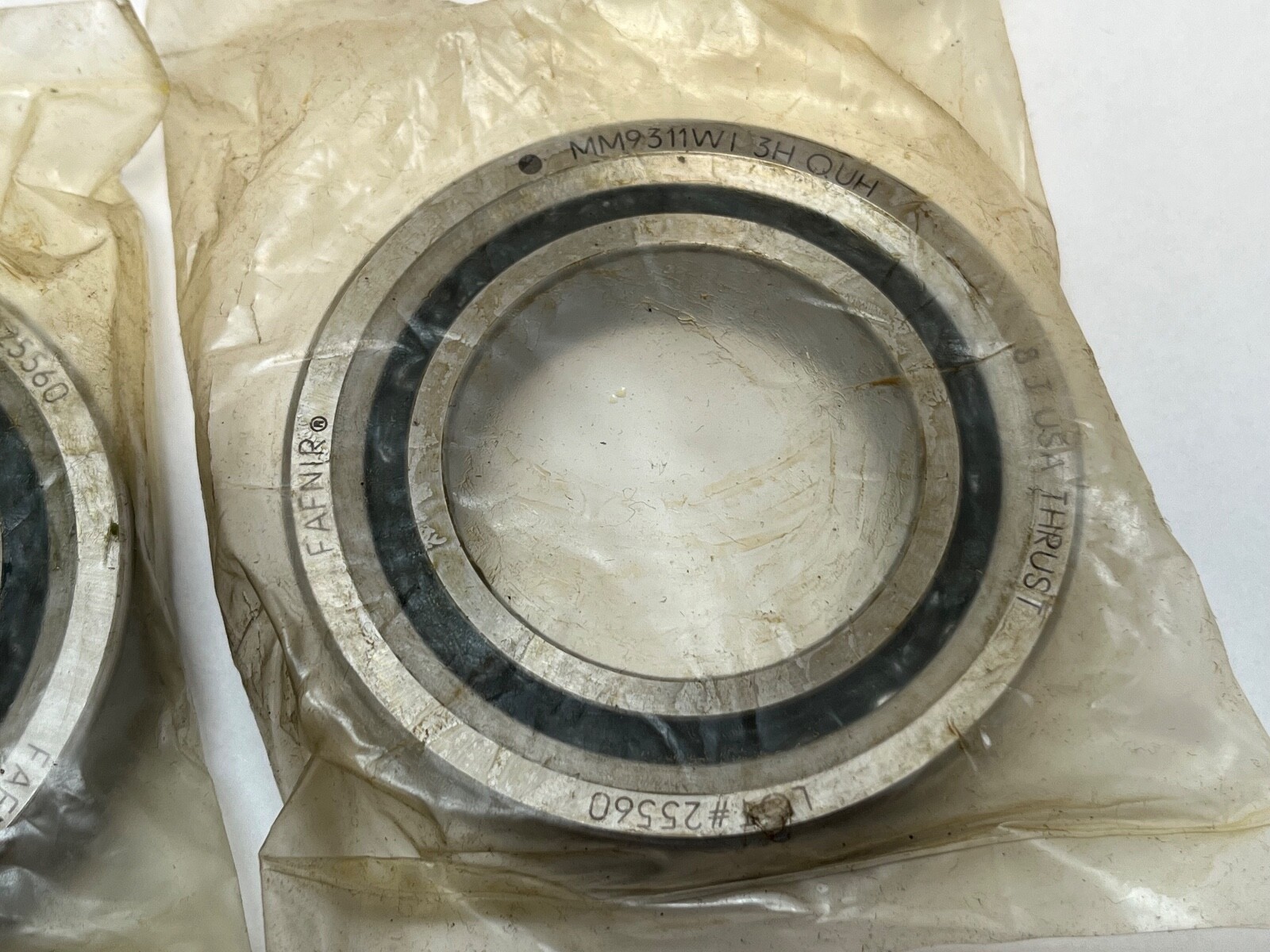

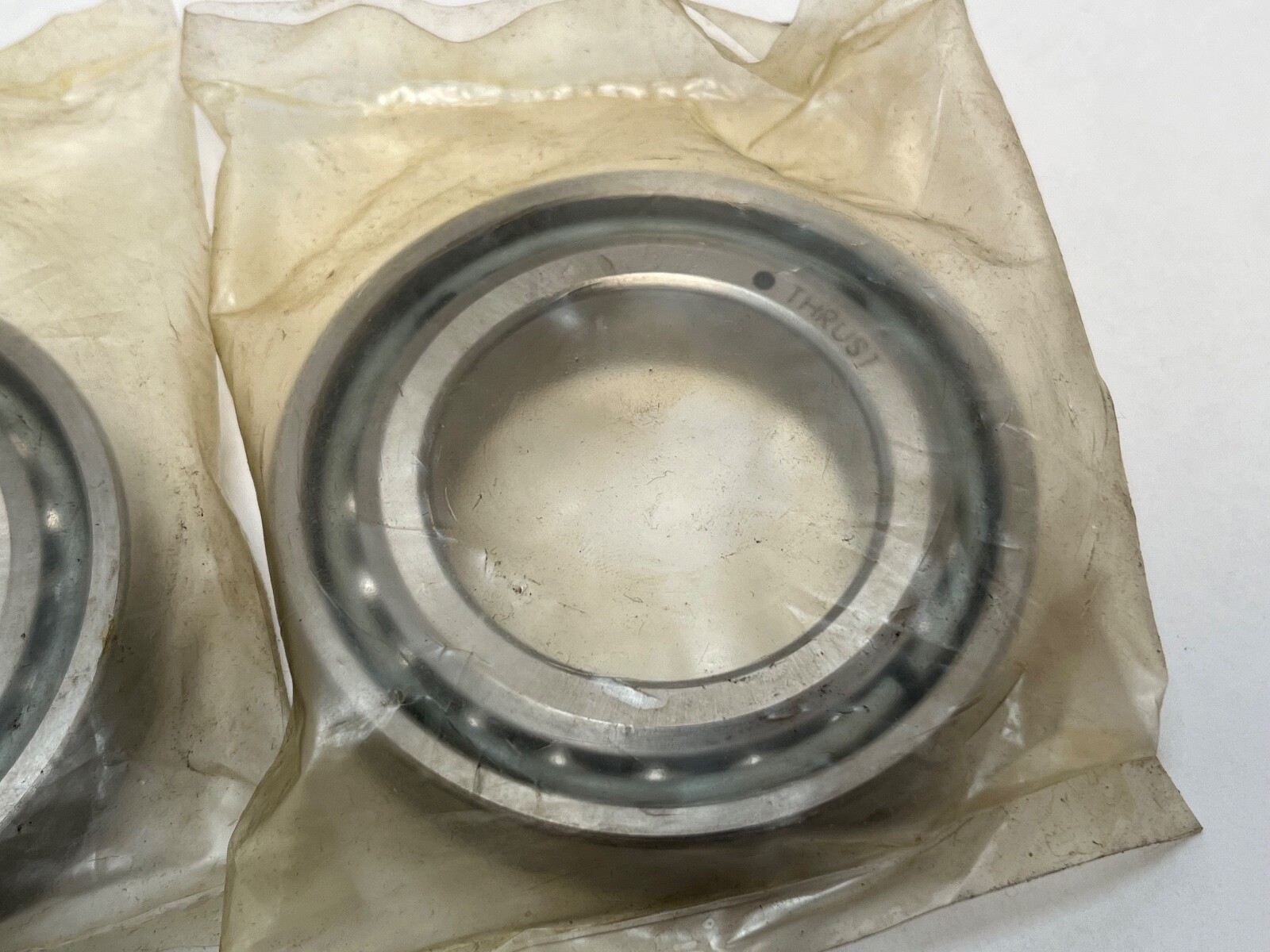

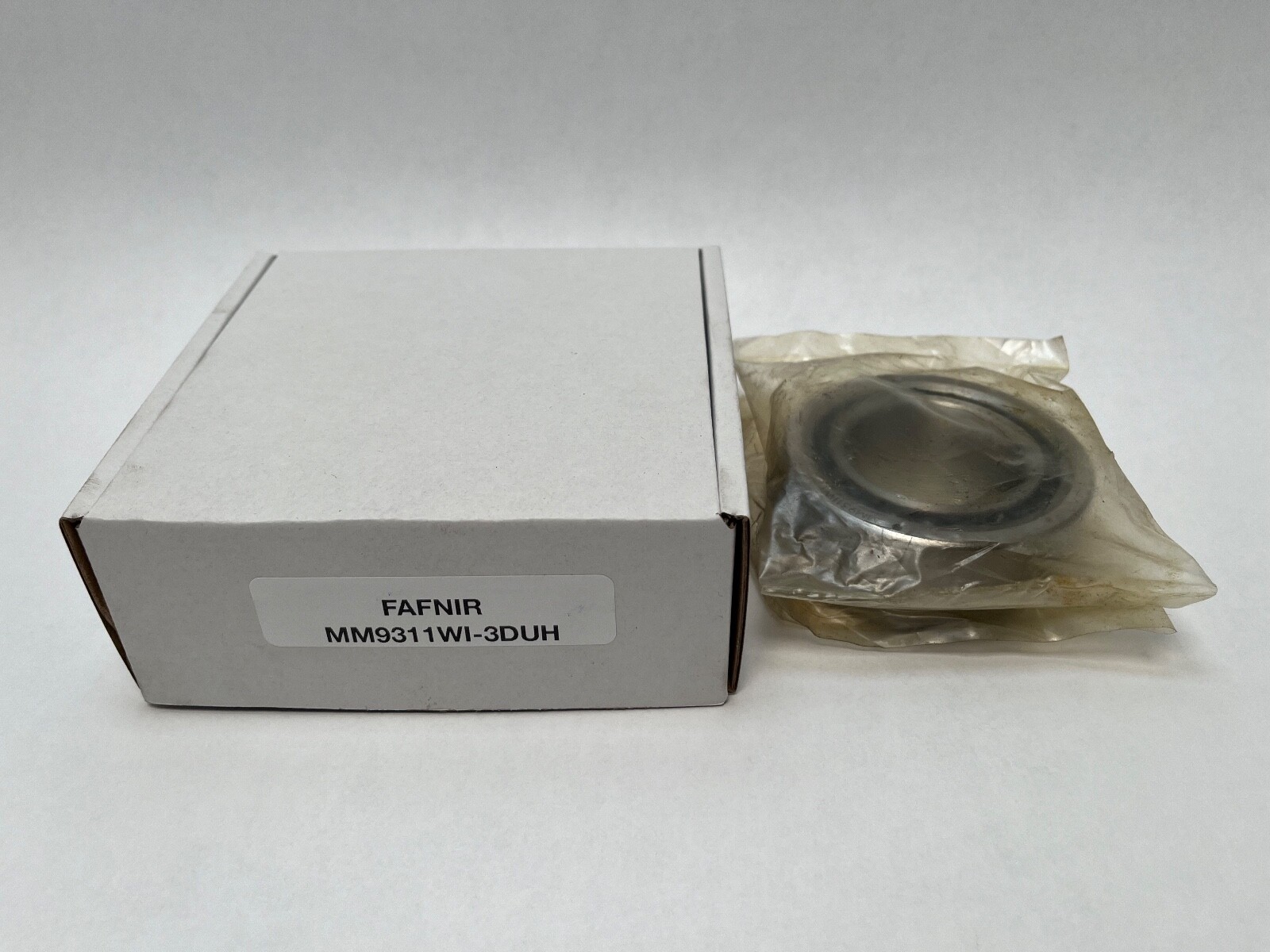

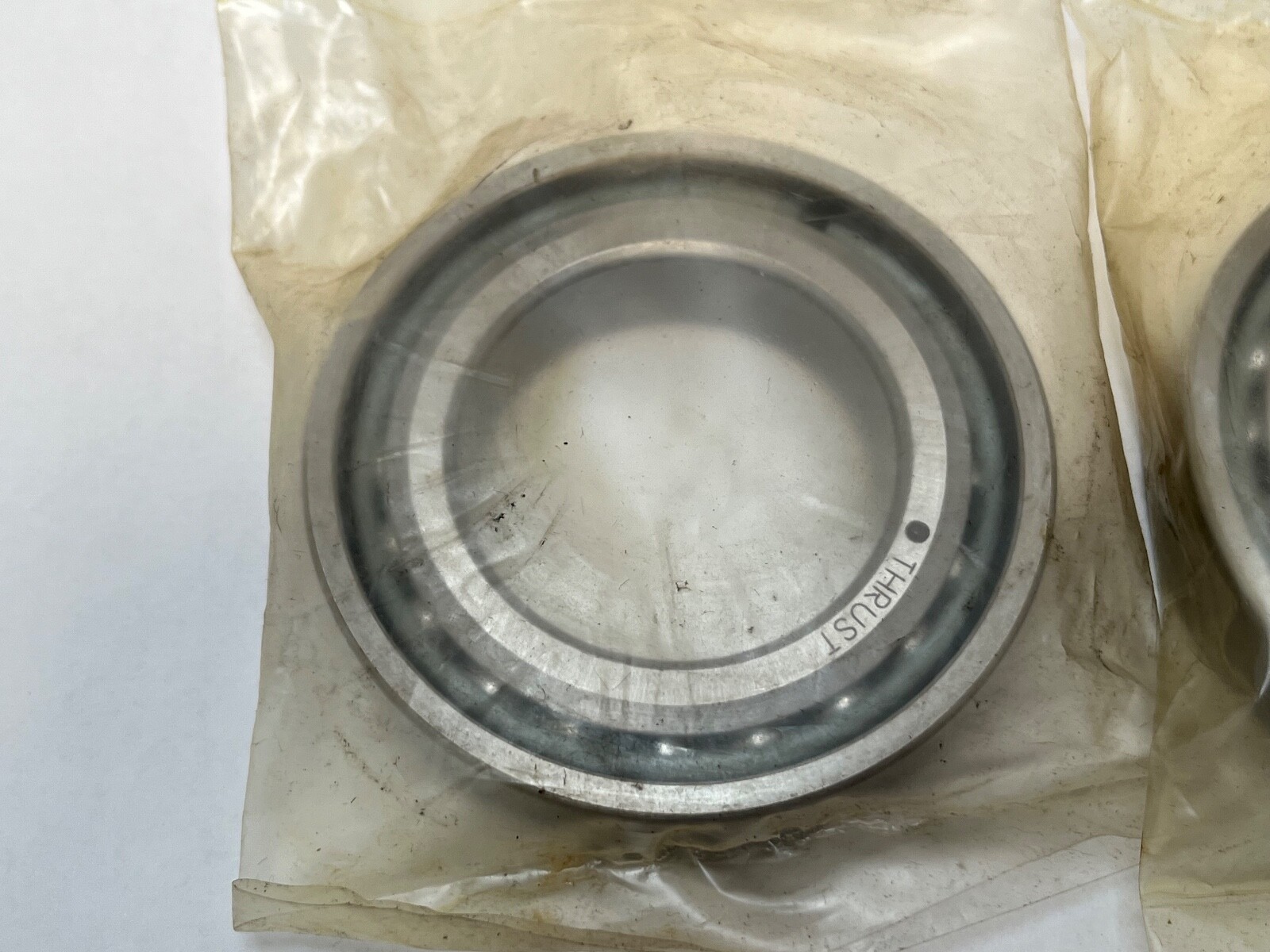

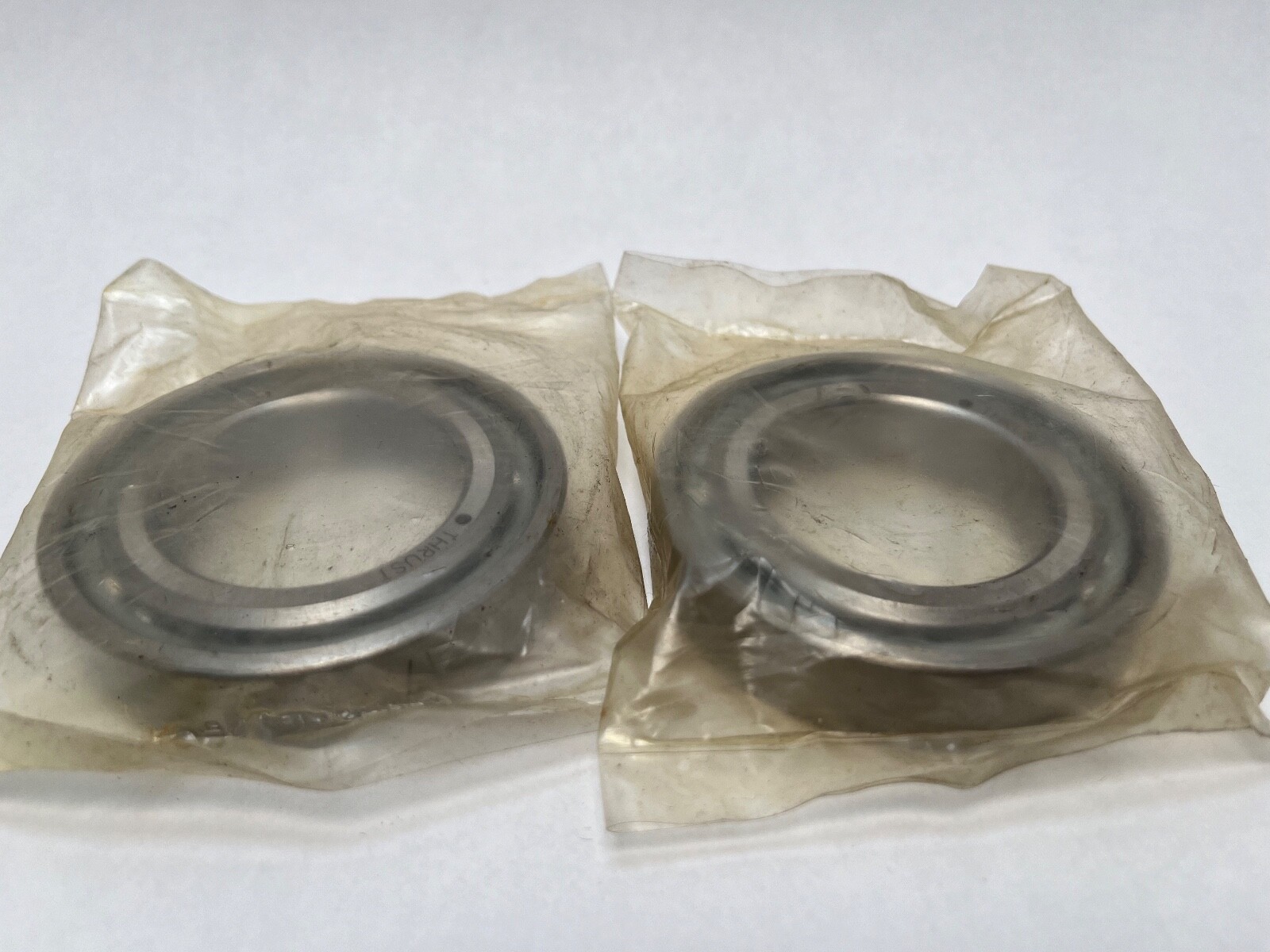

Fafnir MM9311WI-3 DUH matched duplex pair of super-precision angular contact ball bearings on an inch envelope. Bore Diameter: 1.7500 in (44.450 mm). Outside Diameter: 3.0000 in (76.200 mm). Overall Width: 0.6250 in (15.875 mm) per bearing. Precision Class: ABEC 7 / P4. Preload: Heavy. Unit Quantity: 2 Pcs.
MM — Timken/Fafnir super-precision class, ISO P4 / ABEC 7.
9311 — the Fafnir number for this inch envelope: 1-3/4 in bore, 3 in outside diameter, 5/8 in width.
WI — low shoulder on both rings, the ground duplex form.
DUH — duplex universally ground, heavy preload. The two bearings are ground as one matched pair and mount back-to-back, face-to-face or in tandem.
Preload: Heavy. A heavy preload raises axial and radial stiffness and holds running accuracy under load, and it raises running torque and operating temperature.
Mounting Arrangement: Universal. Rolling Elements: Ball. Number Of Rows: 1 per bearing. Bore Type: Straight. Closure Type: Open. Bearing Material: Steel. Design Units: Inch.
Unit Quantity: 2 Pcs. Arrangement / Configuration: matched duplex pair, universally ground, heavy preload.
This is an inch-series envelope: 1-3/4 in bore, 3 in outside diameter, 5/8 in width. The interchange runs within the Fafnir/Timken MM9311WI inch range.
