Super-precision angular contact ball bearing, 70 mm bore, 125 mm outside diameter, 24 mm width. 25 degree contact angle, ABEC 7, light preload, universally ground. Sold as 3 Pcs.
List Price
$315.53
4 in stock
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Fafnir |
|---|---|
| MPN | 3MM214WITUL |
| Model | 3 MM 214 WI TUL / 7214 A/A5/ACD/E T TUL P4 / B7214E |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 200 |
| Condition | New – Open box |
| Preload | Light Preload |
| Base Number | 3MM214WI |
| Industry Terms | super precision spindle bearing; machine tool bearing; angular contact ball bearing; universally ground single; light preload bearing |
| Common Misspellings | Fafnier; Faffnir; 3MM214W1; 3MM214WI TUI |
| Application Types | Machine tool spindles; grinding spindles; high-speed gearboxes; precision rotary tables |
| Condition Note | Made In USA, New, Grease Stains |
| Bore Shaft Size | 70 mm (2.7559 in) |
| Mpn Variants | 3MM214WI-TUL; 3MM214WITUL; 3 MM 214 WI TUL; 3MM214WI TUL |
| Distributor Stock Numbers | 3MM214WI-TUL |
| Manufacturer Status | Fafnir is a Timken brand |
| Arrangement Configuration | Single universally ground (U); stackable back-to-back, face-to-face or tandem |
| Precision Class | ABEC 7 (Fafnir P4S) |
| Cage Type | Window |
| Dynamic Load Rating | 62.4 kN / 14030 lbf |
| Static Load Rating | 55.2 kN / 12410 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 2.45 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 11000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25 degrees |
| Mounting Arrangement | Universal |
| Design Units | Metric |
| Bearing Material | Steel rings, steel balls |
| Part Number | 3MM214WI-TUL |
| Cross Reference 1 | 7214AC (ISO angle-designated equivalent) |
|---|---|
| Cross Reference 2 | 7214 (ISO base number) |

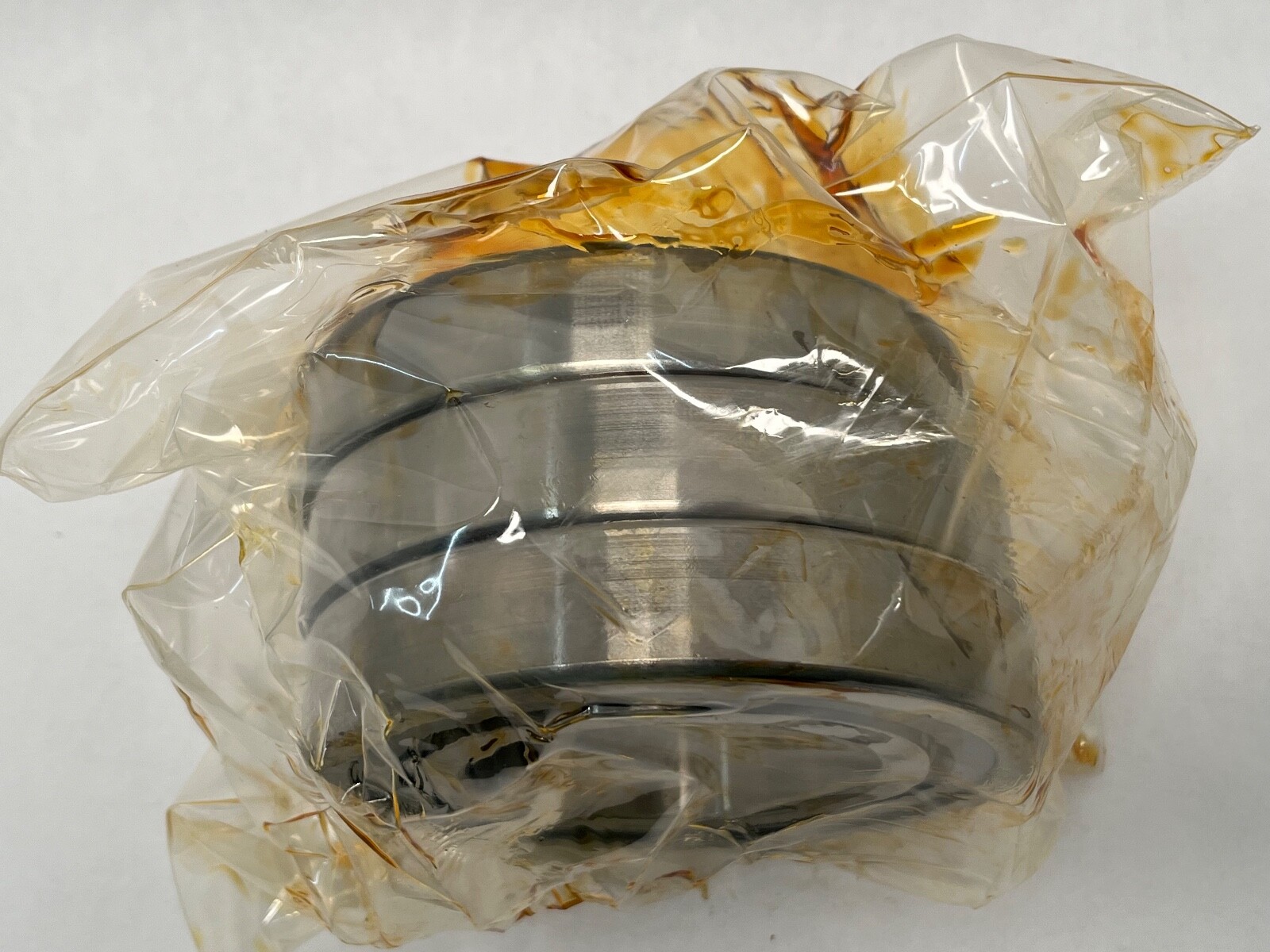

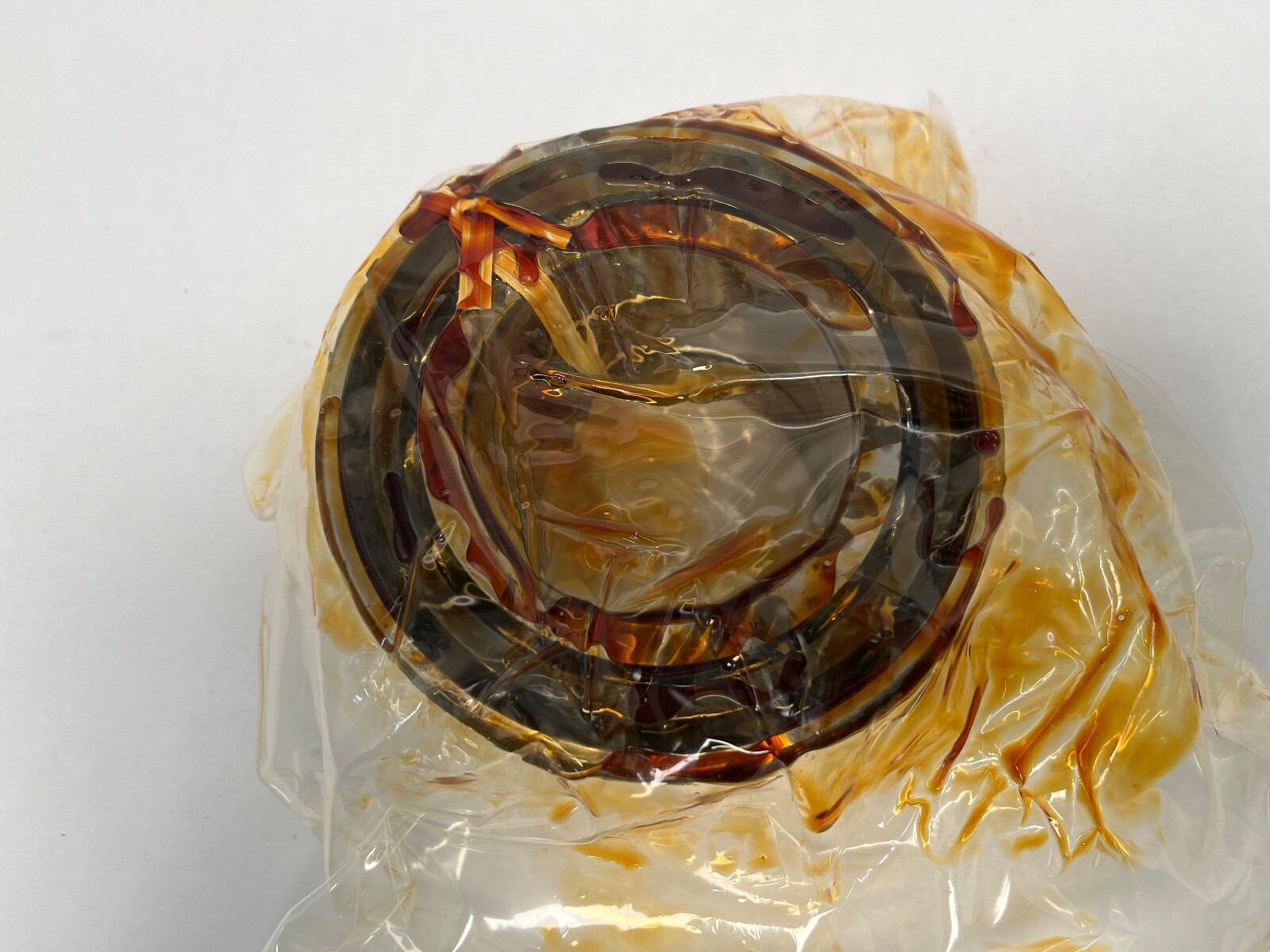

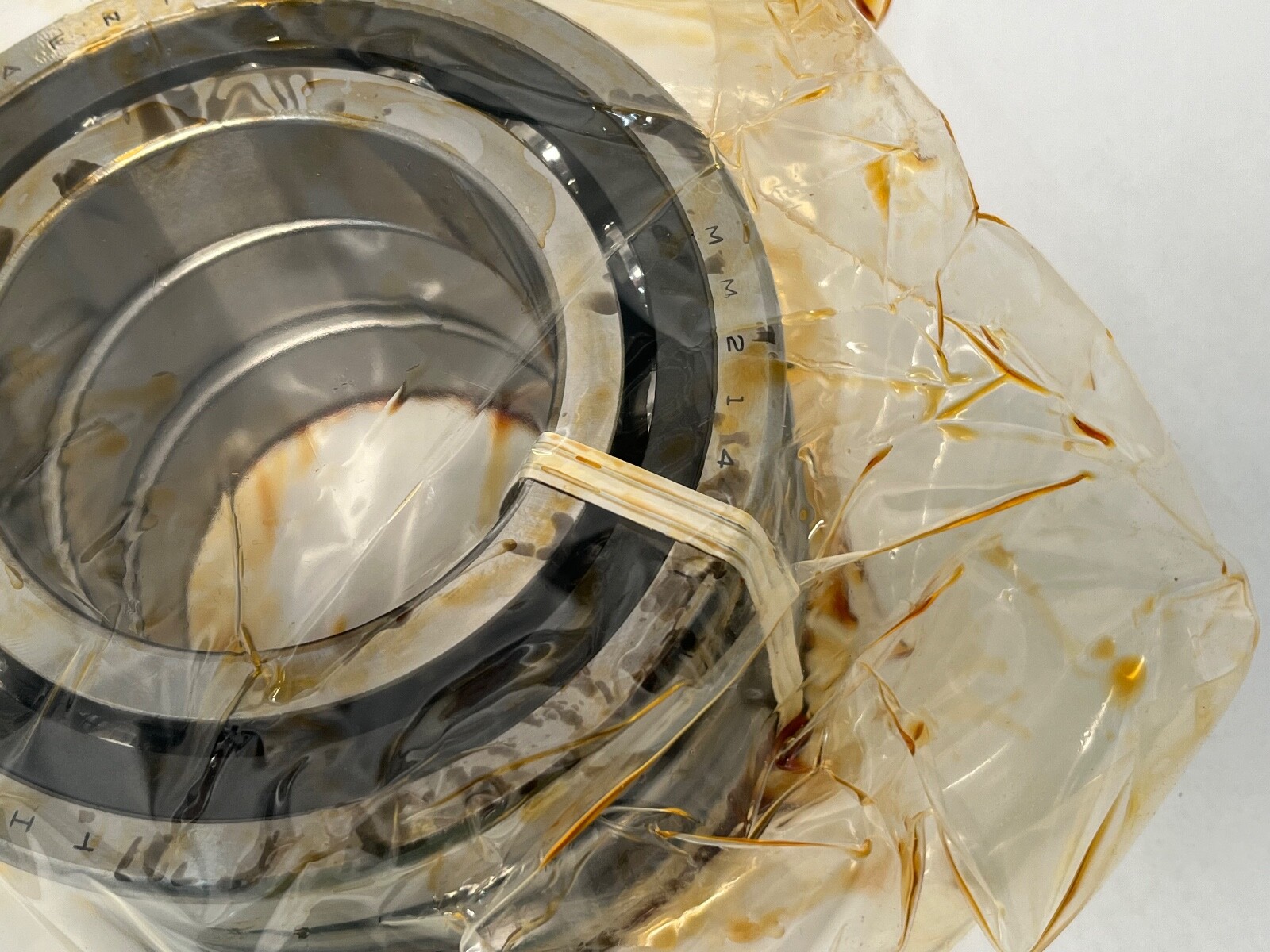

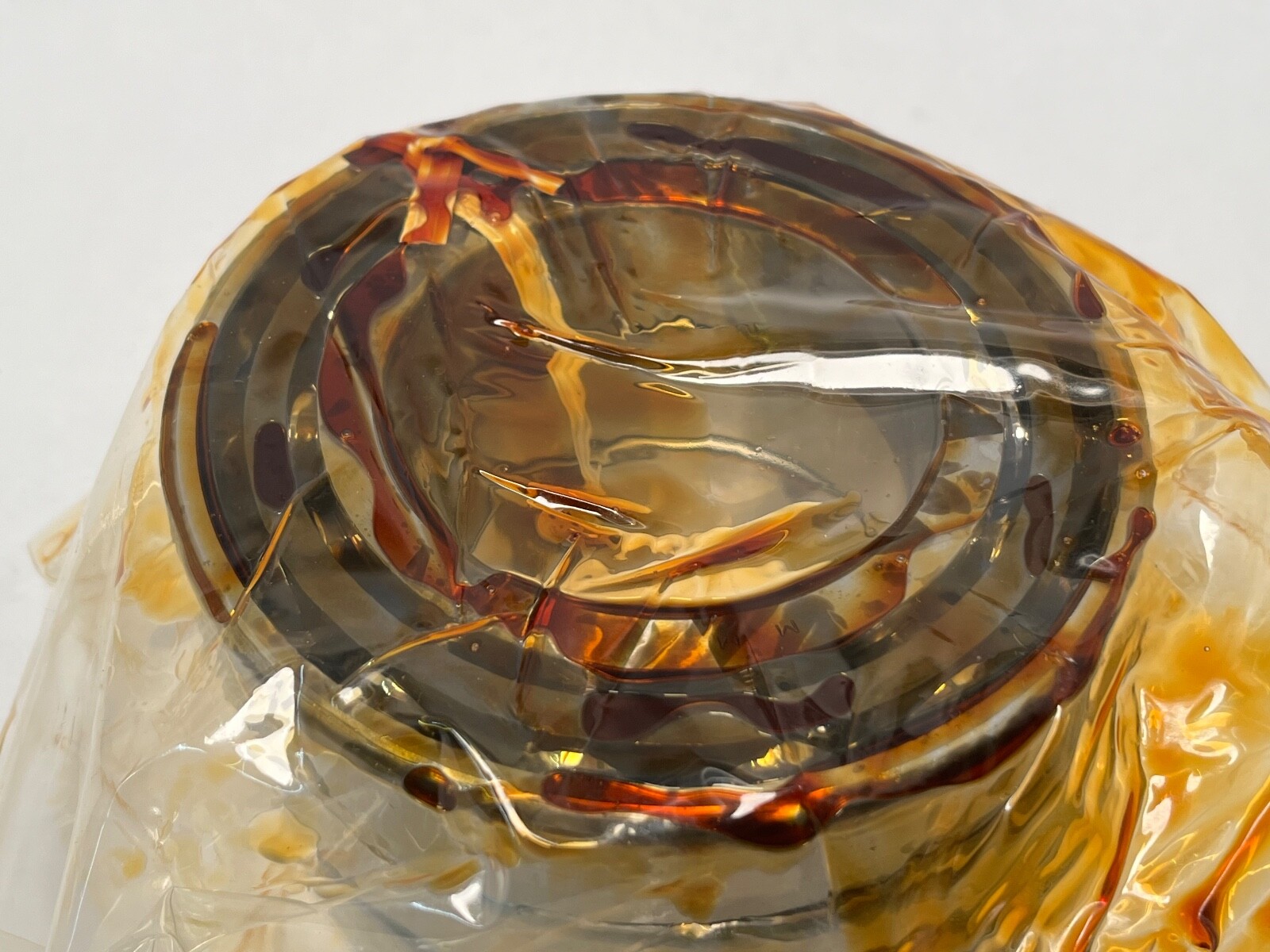

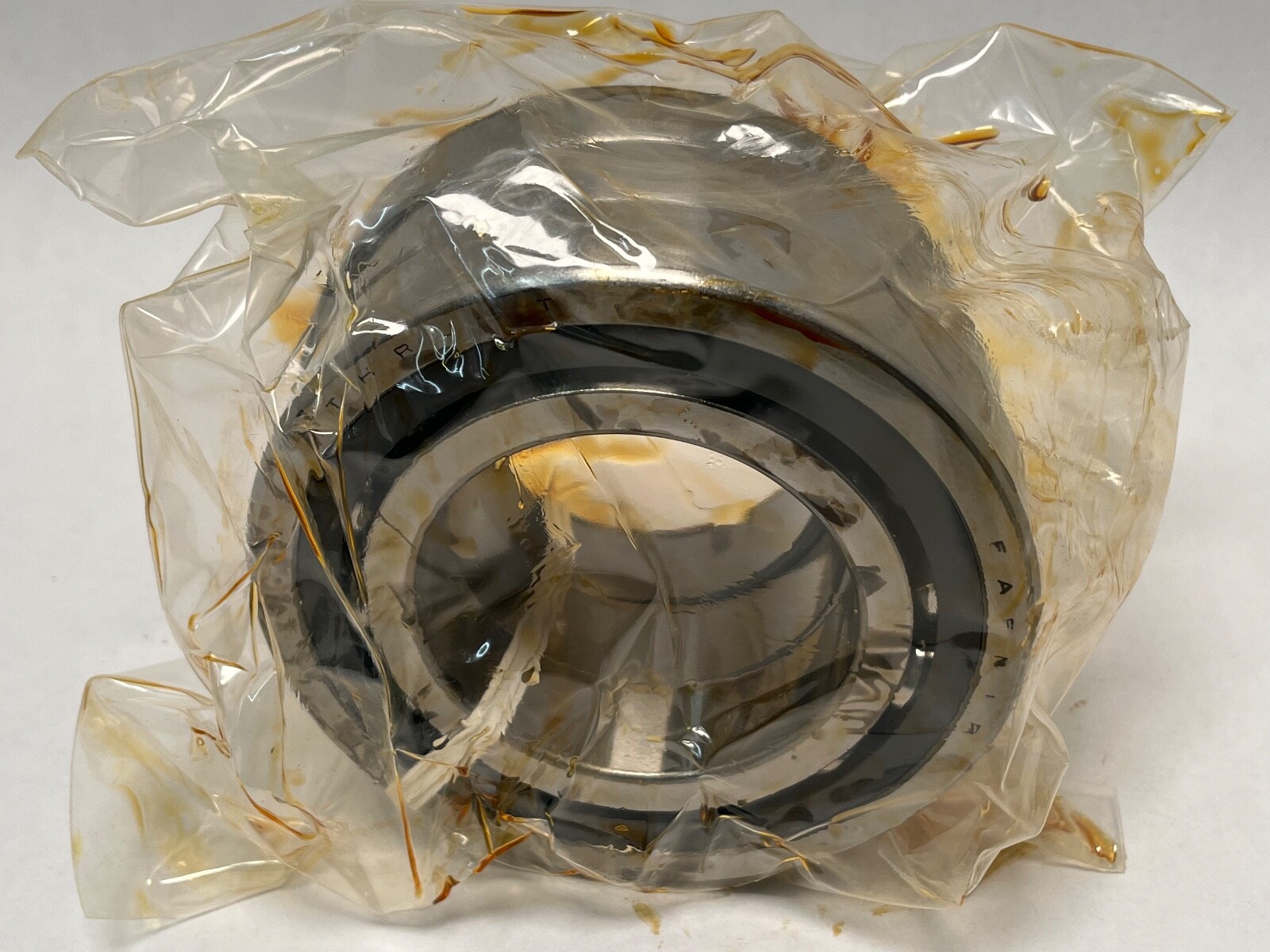

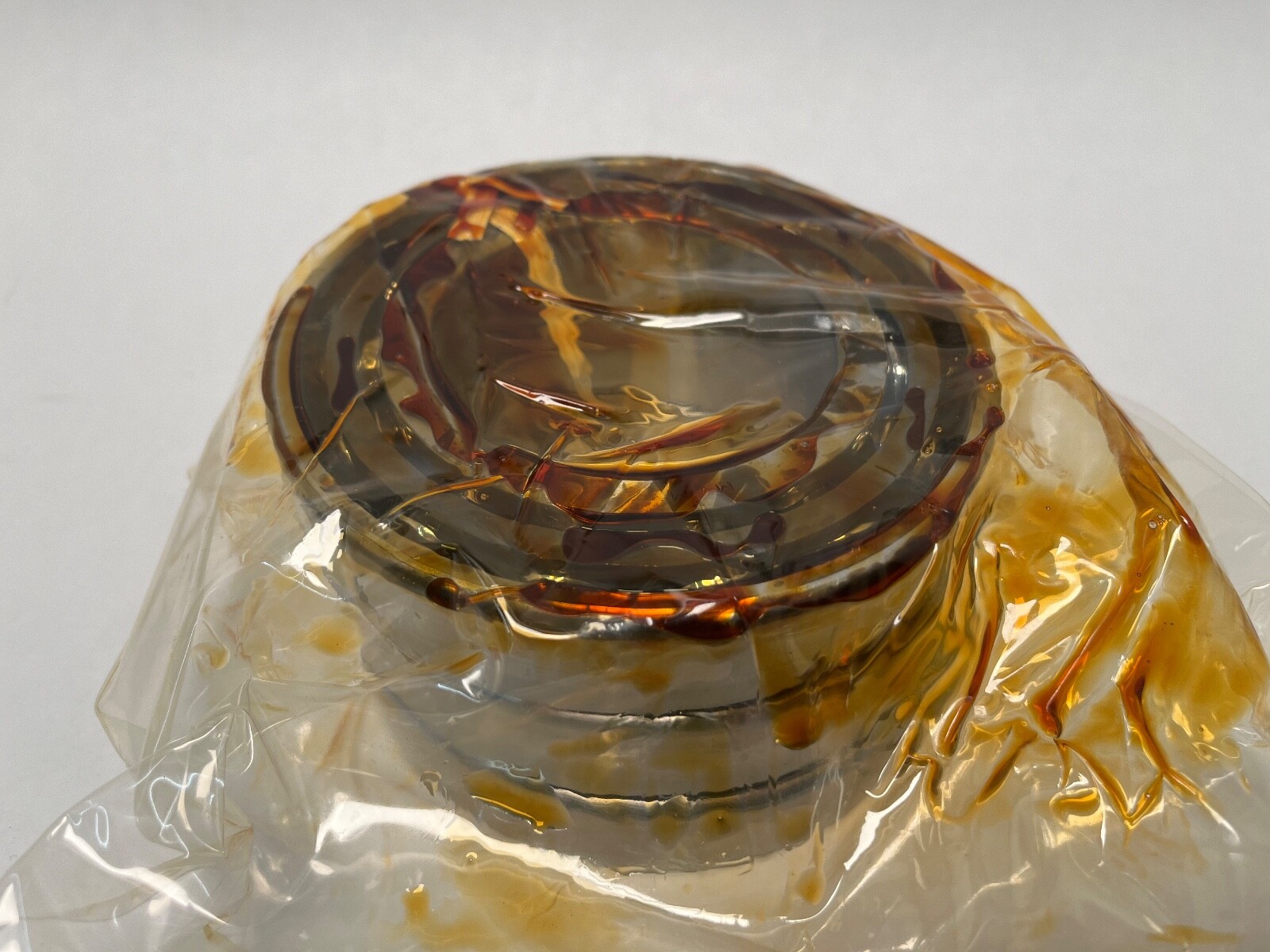

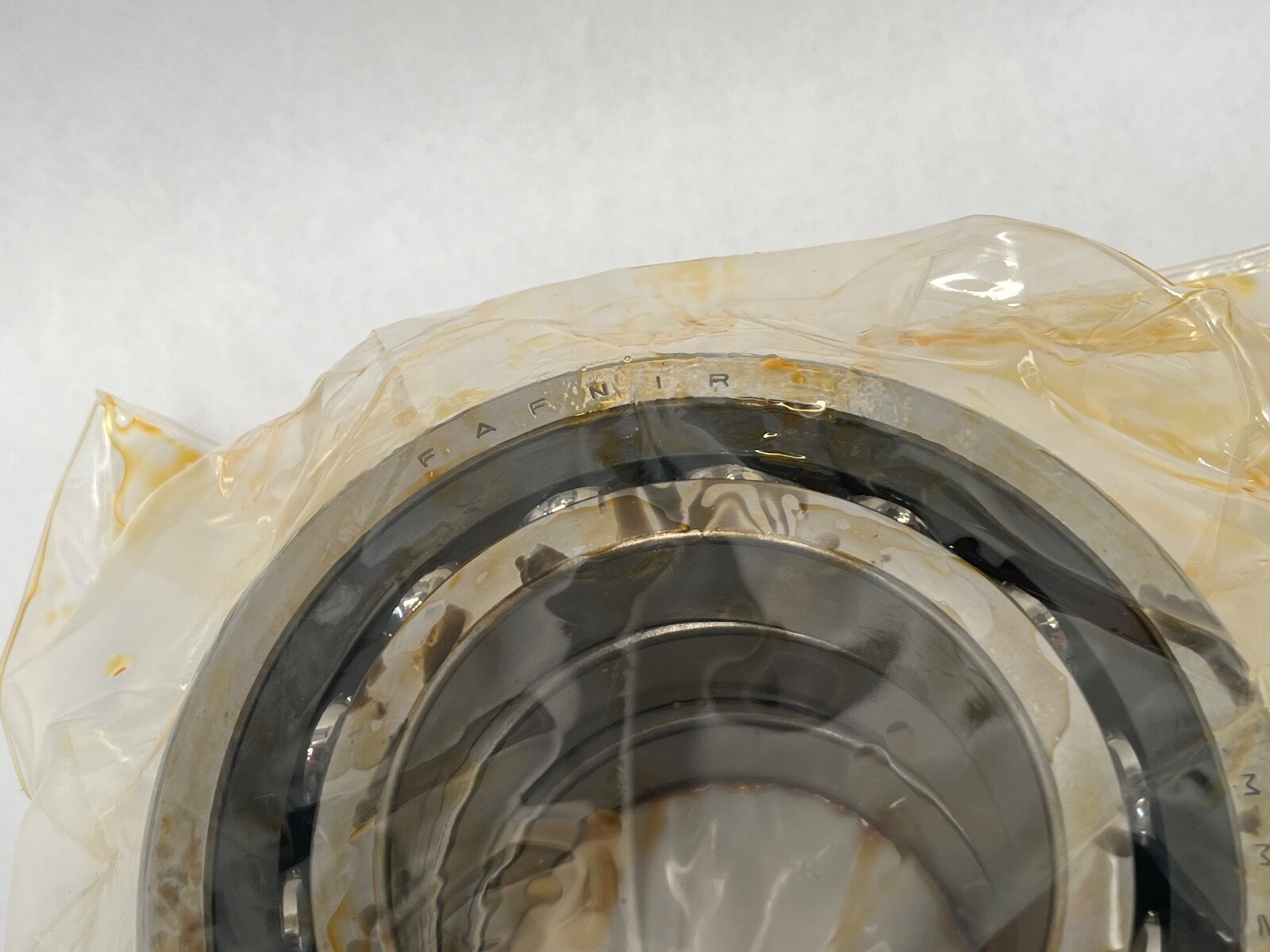

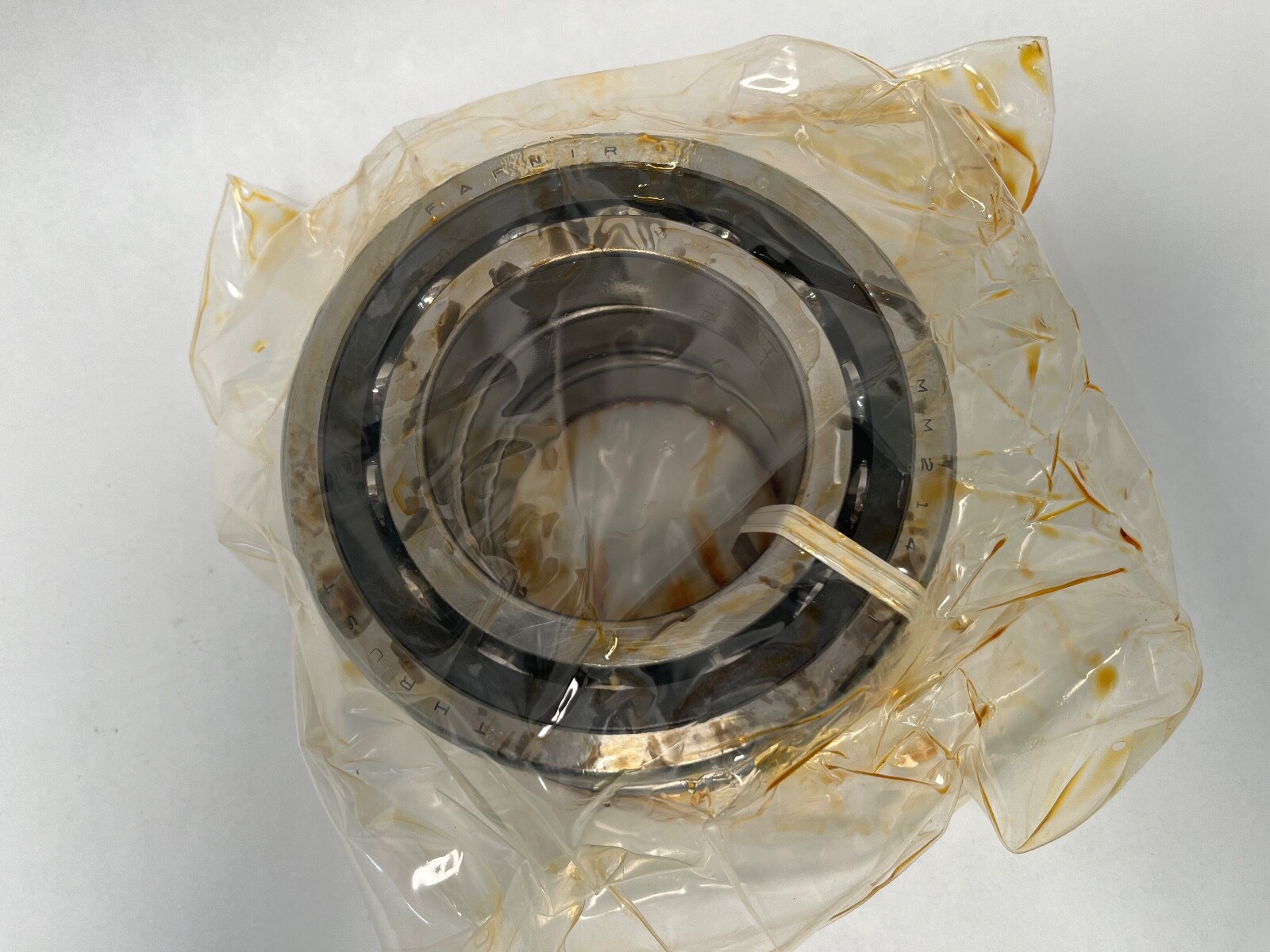

A Fafnir 3MM214WI-TUL super-precision angular contact ball bearing, single row, universally ground, from the WI machine-tool spindle series. Steel rings, steel balls, phenolic cage, open on both faces.
3MM — 25° contact angle.
214 — ISO 72 dimension series, bore code 14, giving a 70 mm bore. ISO equivalent 7214AC.
WI — Fafnir ground super-precision spindle series.
T — phenolic cage.
U — single universally ground.
L — light preload.
A 25° contact angle carries more thrust and less speed than a 15° ring of the same envelope, which suits a spindle whose axial cutting load dominates. Light preload keeps the running temperature and the frictional torque down at the cost of some axial stiffness. Universal grinding means the faces are flush-ground so any two rings of this designation seat together back-to-back, face-to-face or in tandem and arrive at the marked preload with no shims.
Bore: 70 mm (2.7559 in)
Outside diameter: 125 mm (4.9213 in)
Width: 24 mm (0.9449 in)
Contact angle: 25°
Precision class: ABEC 7 (P4S)
Preload: light
Cage: phenolic
Rolling elements: steel balls, single row
Closure: open both faces

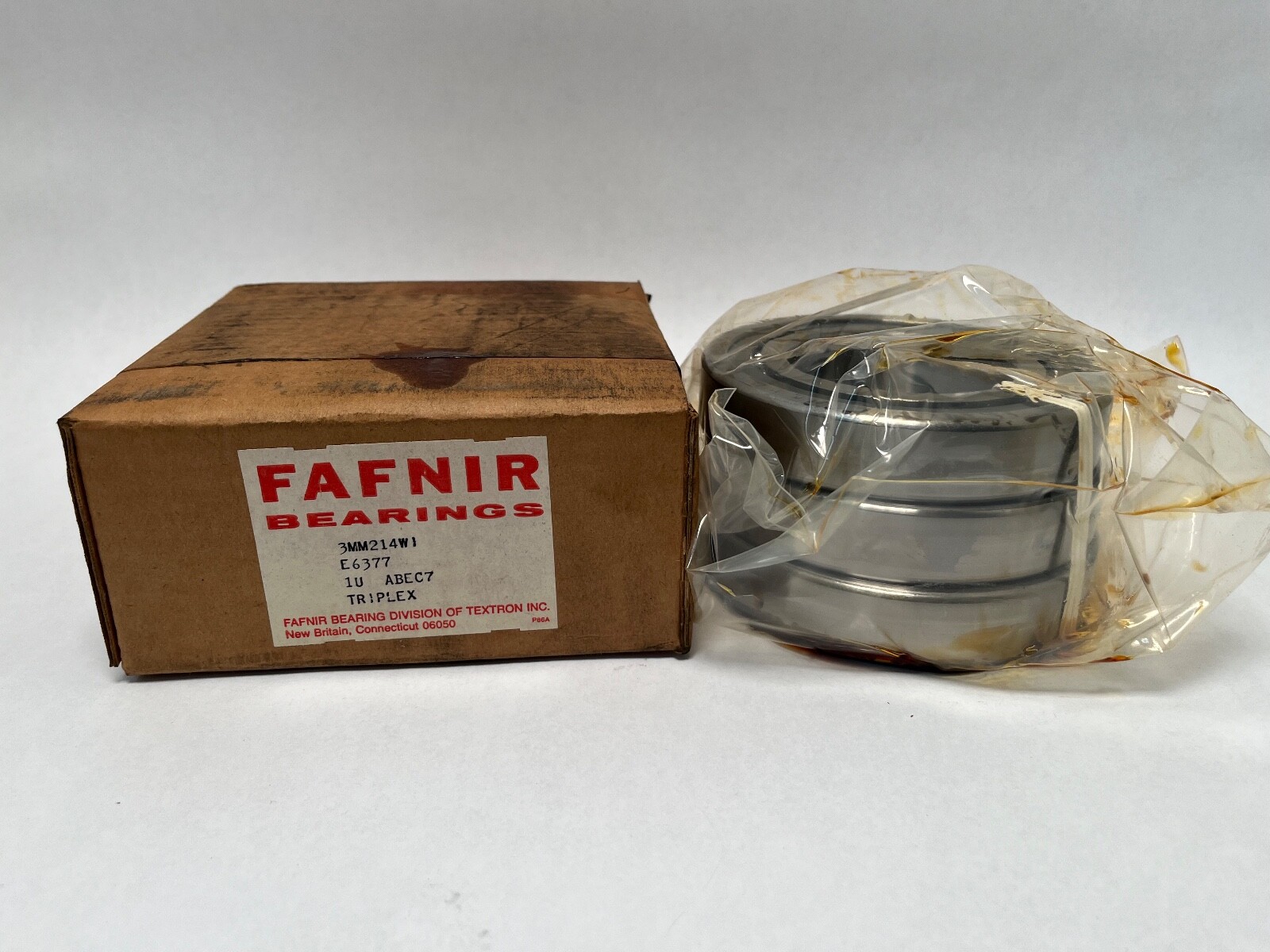

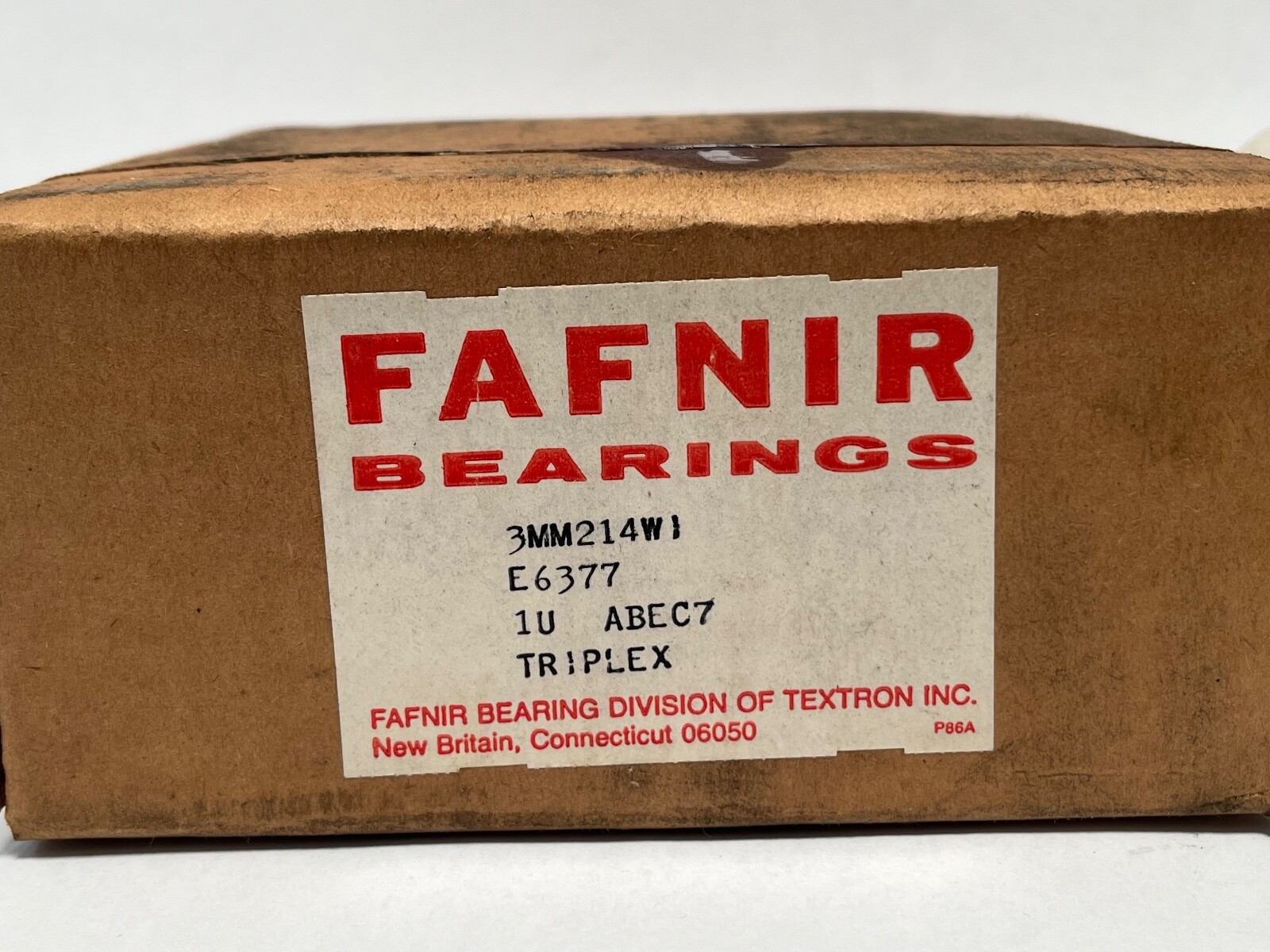

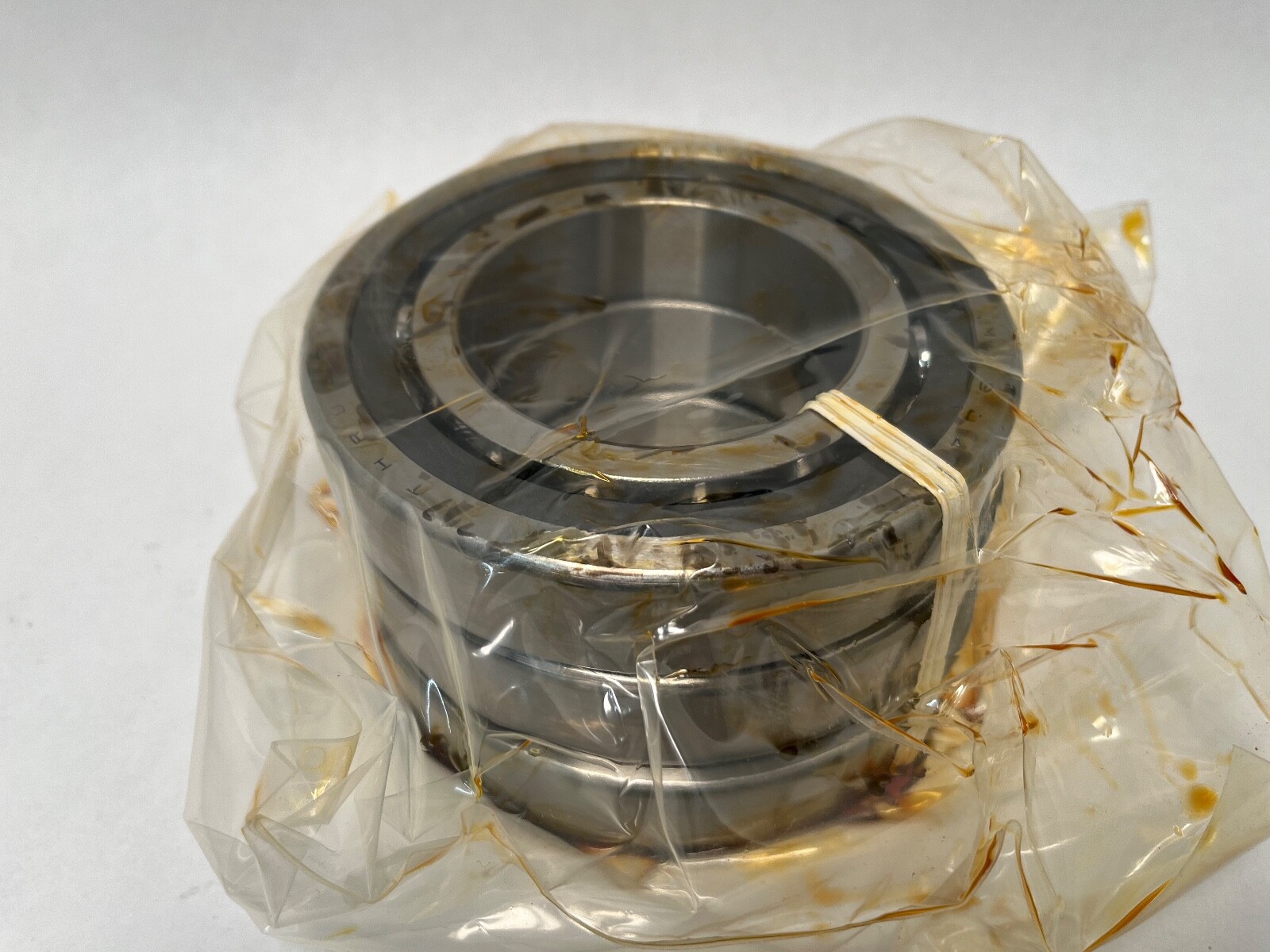

3 Pcs, each a universally ground single. All three carry the same 3MM214WI-TUL designation.
ISO base number 7214, angle-designated 7214AC. Searchable forms are 3MM214WI-TUL, 3MM214WITUL and 3 MM 214 WI TUL. A 2MM214WI ring is the 15° version of the same envelope and is a related size, not an interchange; TUM and TUH are the medium and heavy preload grades and are likewise related sizes.
