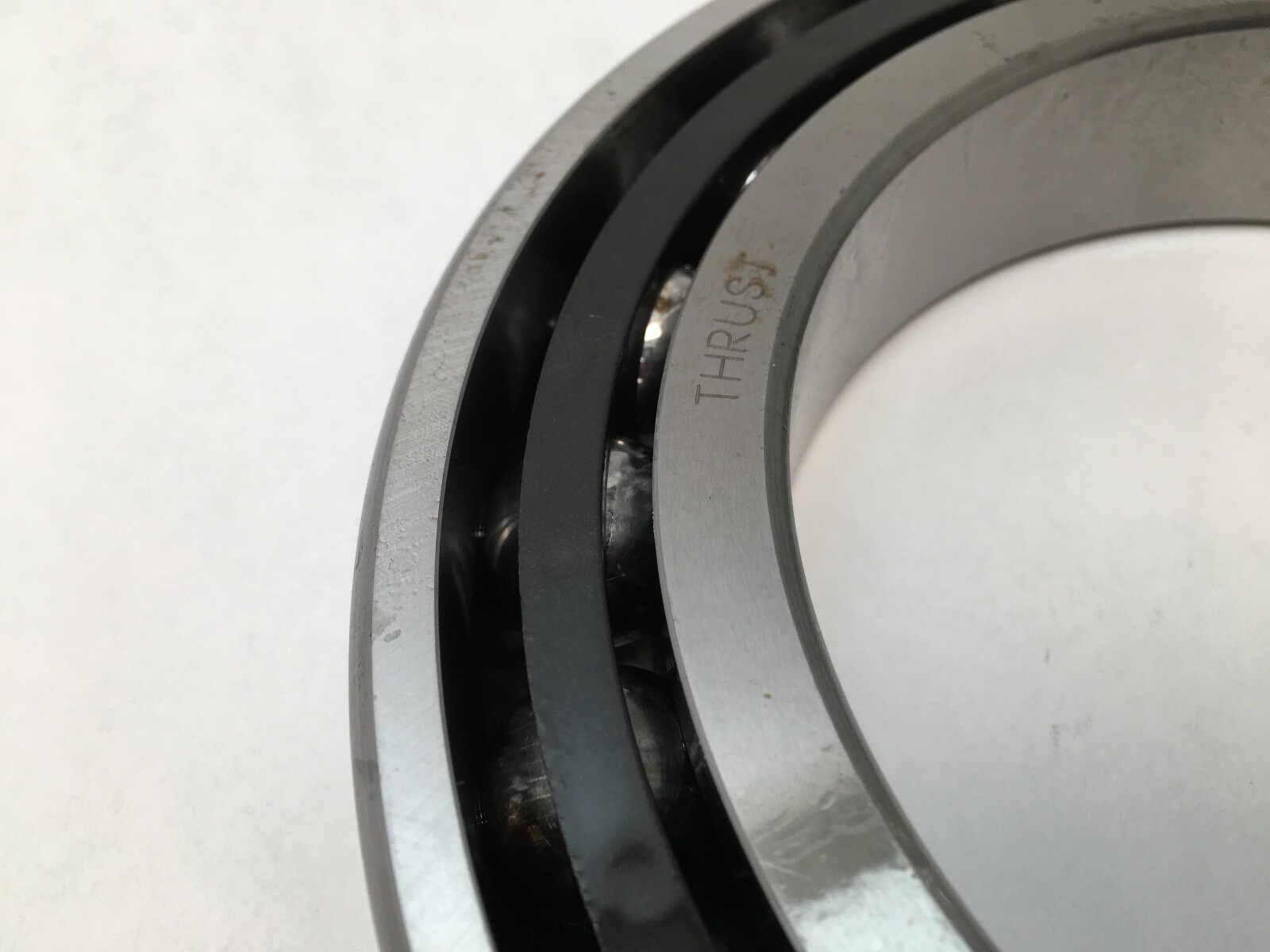

Super-precision angular contact ball bearing, 130 x 200 x 33 mm, 15° contact angle, open, machined phenolic cage, heavy preload, duplex ground.
List Price
$606.52
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9126WI DUH |
| Model | 7026C 2MM 9126 WI DUH |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 130 mm |
| OD | 200 mm |
| Width | 33 mm |
| Material | Bearing Steel |
|---|---|
| Series | 9100 |
| Base Number | 2MM9126WI |
| Industry Terms | Machine tool spindle bearing; super precision angular contact; precision spindle bearing; phenolic cage bearing |
| Common Misspellings | Fafner; Fafnier; 2MM 9126 WI; 2MM9126W1; Timkin |
| Application Types | Machine tool spindles; grinding spindles; high-speed rotary tables; precision gearboxes |
| Bore Shaft Size | 130 mm (5.1181 in) |
| Mpn Variants | 2MM9126WIDUH; 2MM9126WI DUH; 2MM-9126-WI-DUH; 2MM9126WICRDUH; 2MM9126WI-CR-DUH; 2MM9126WISUH |
| Closure Type | Open |
| Rolling Elements | Balls |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | 2MM9126WIDUH |
| Cross Reference 6 | 7026A5 (related size, 25° contact angle) |
|---|

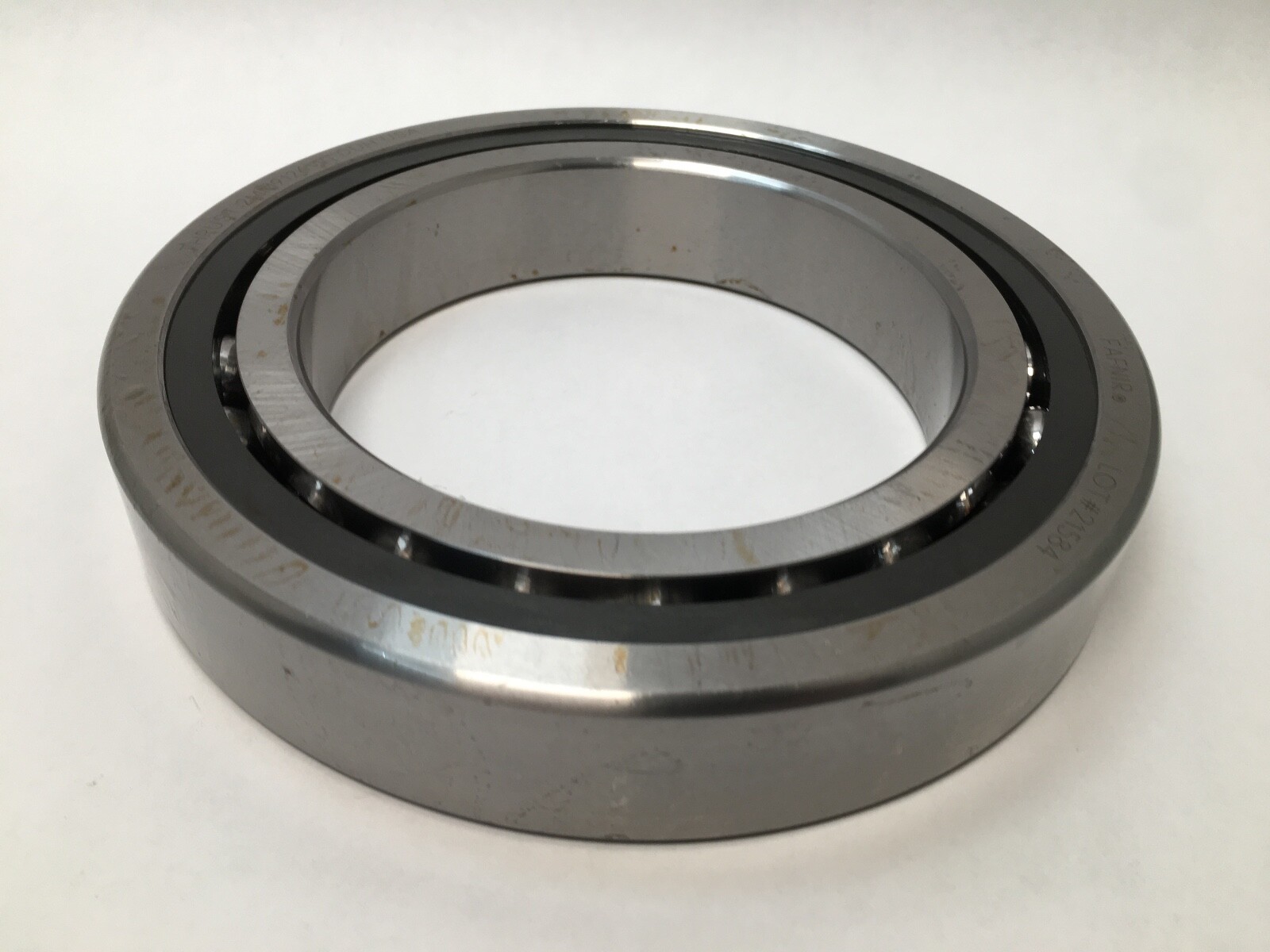

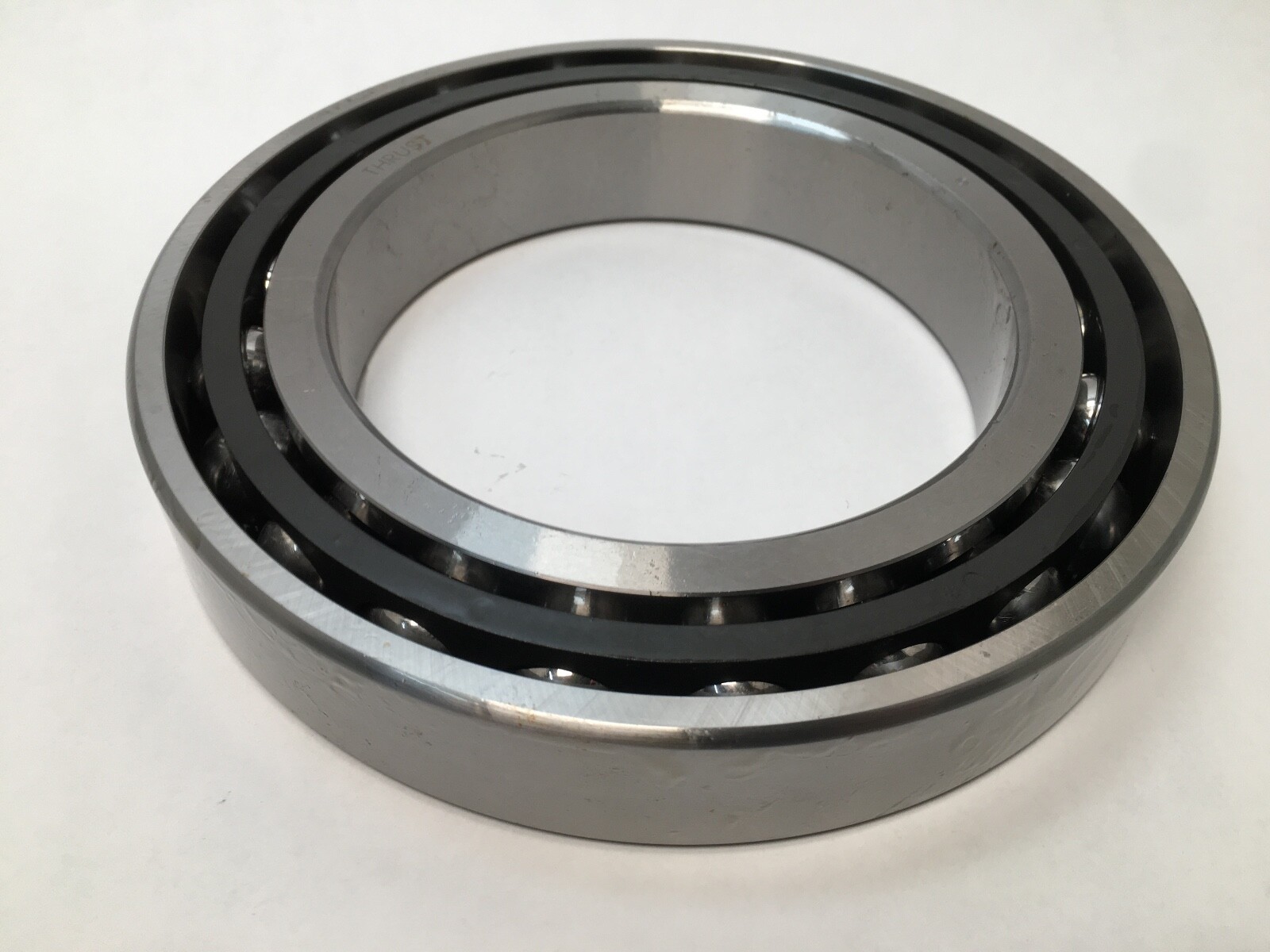

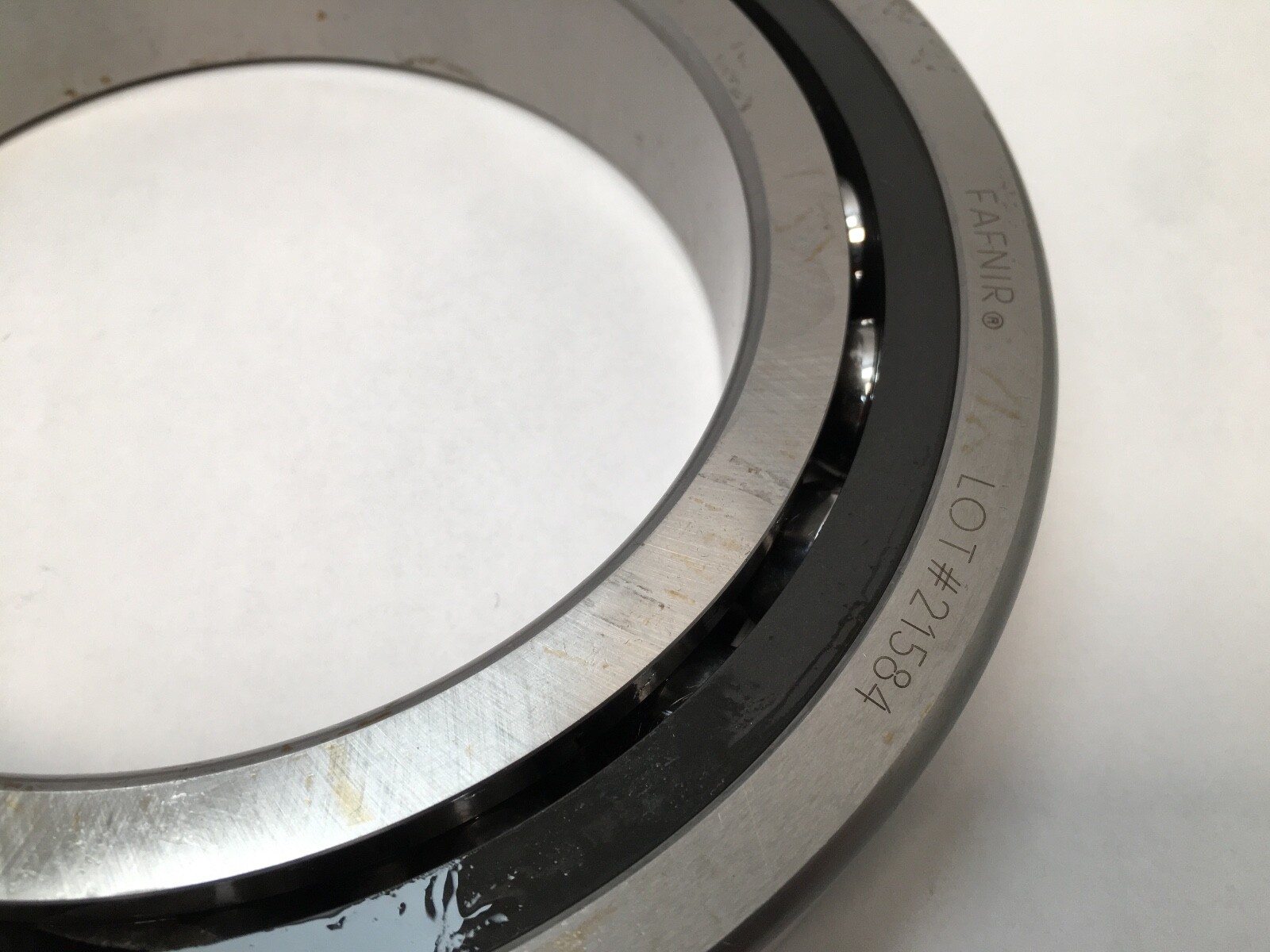

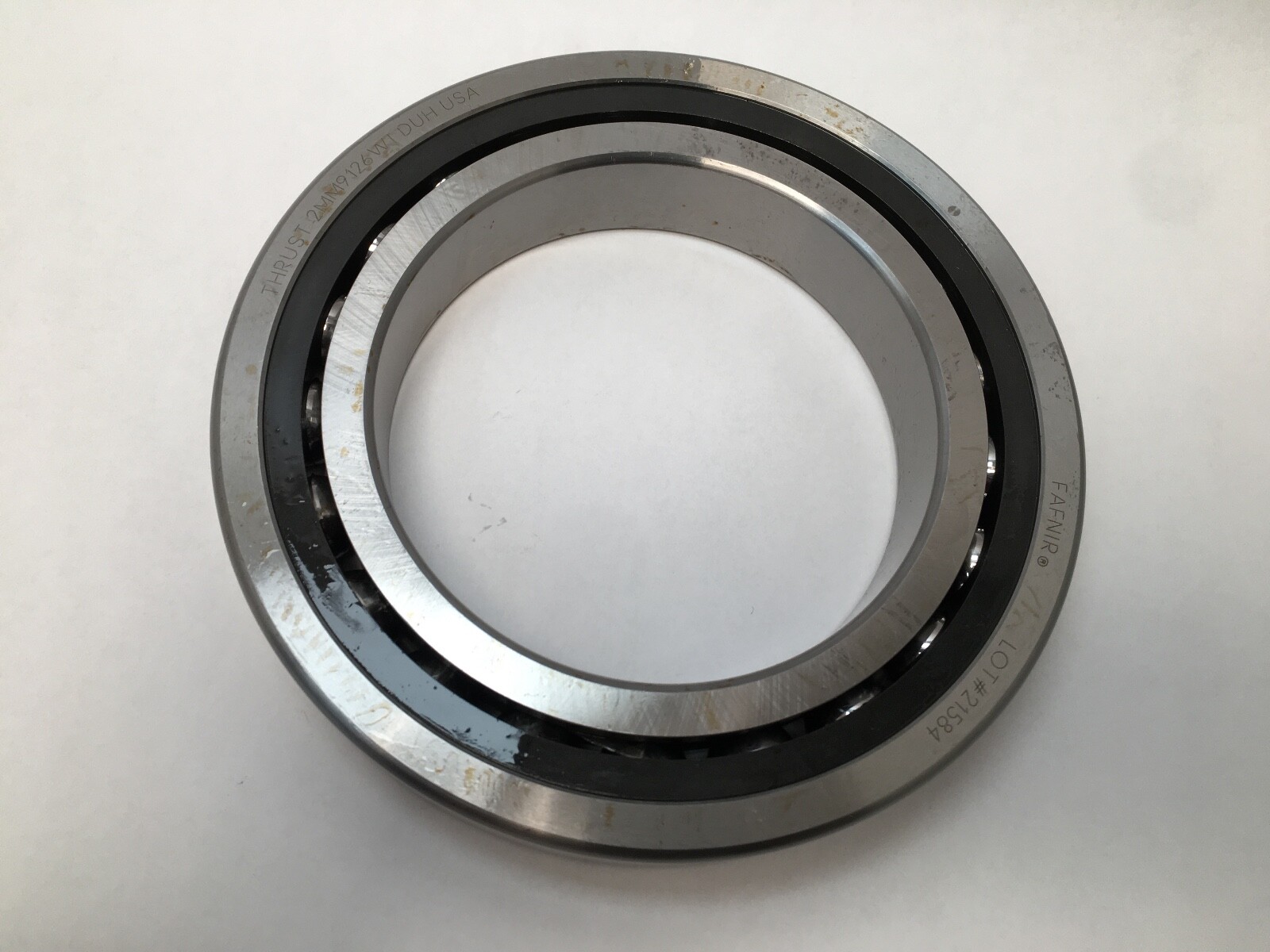

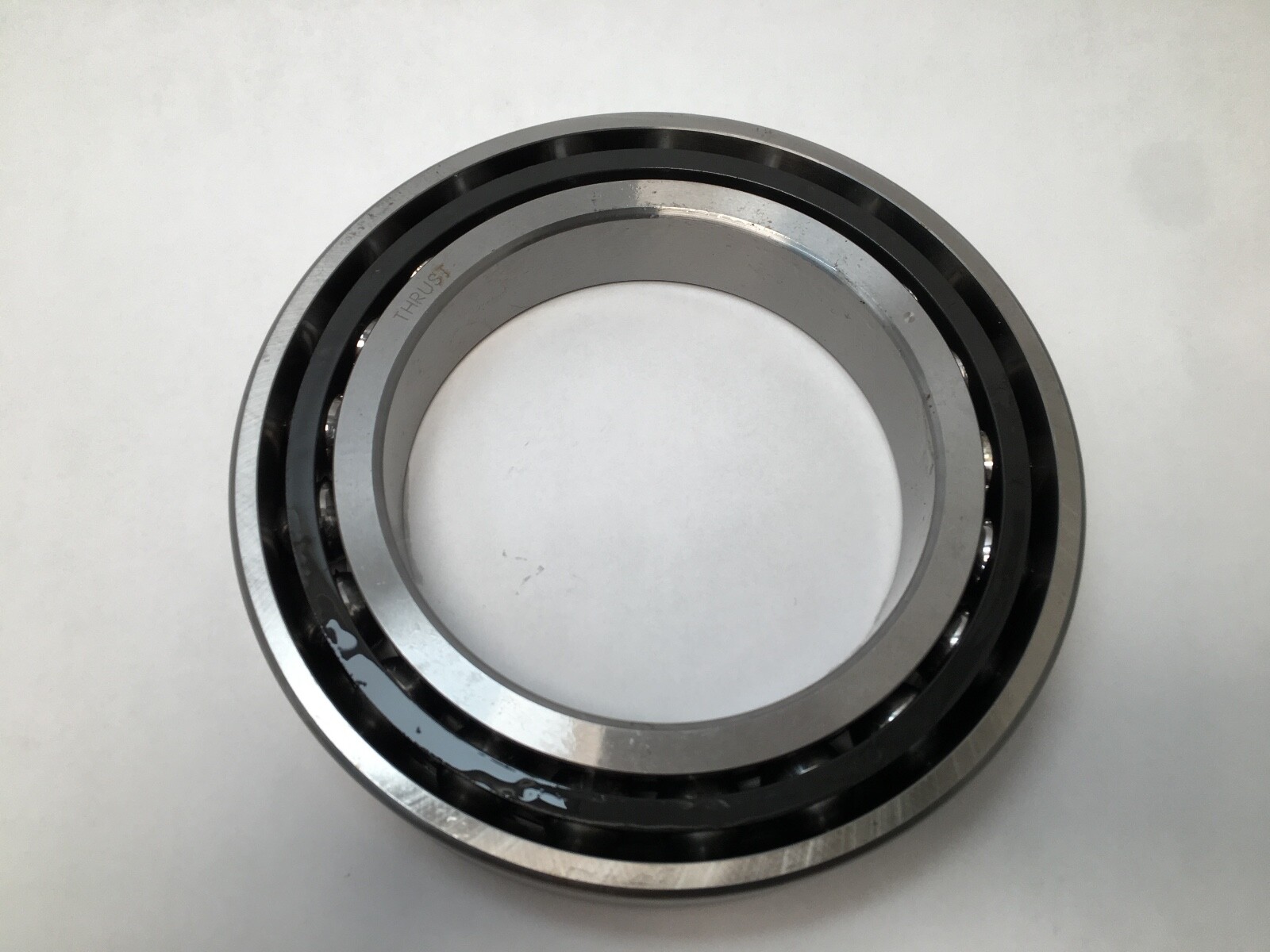

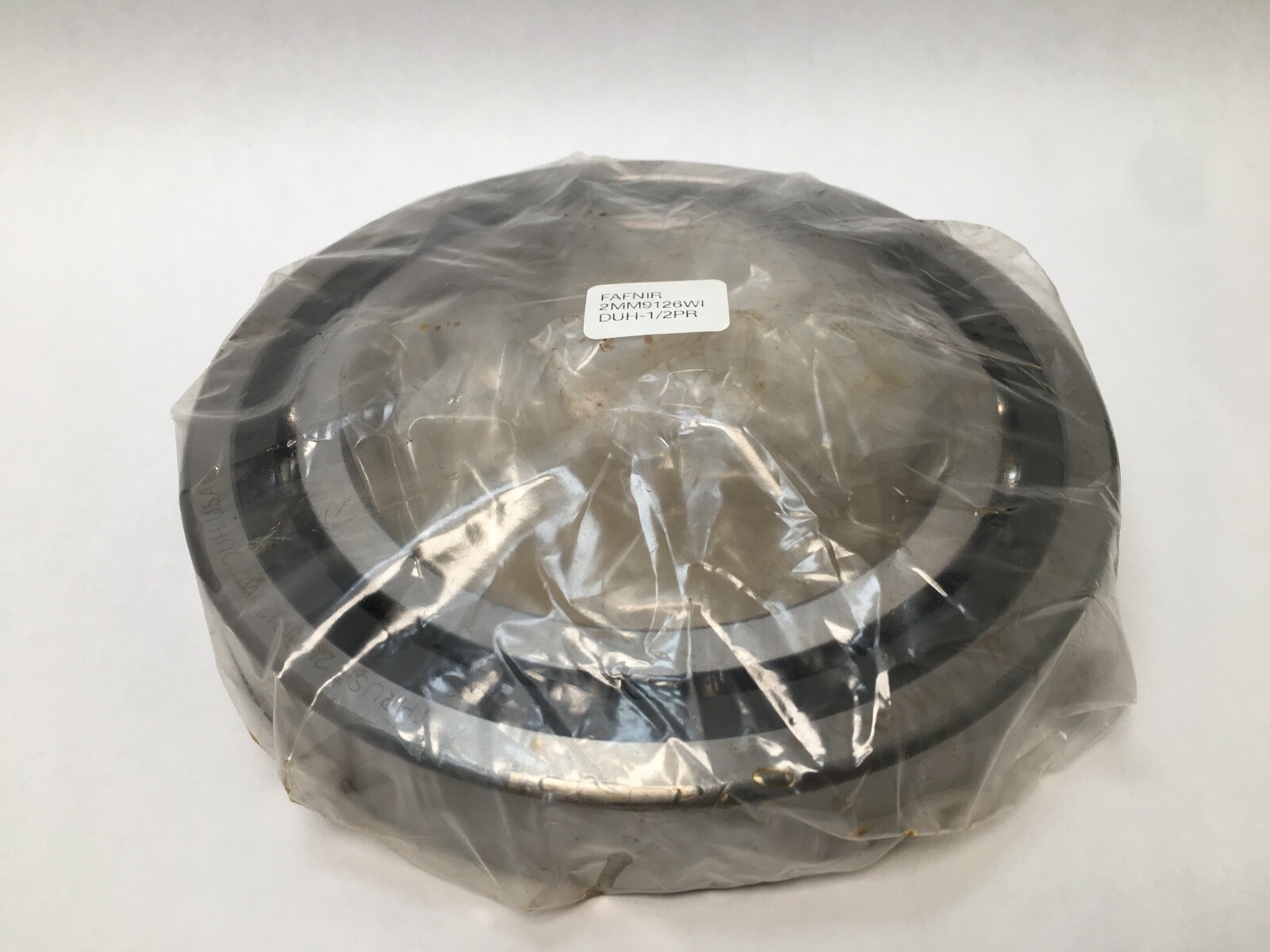

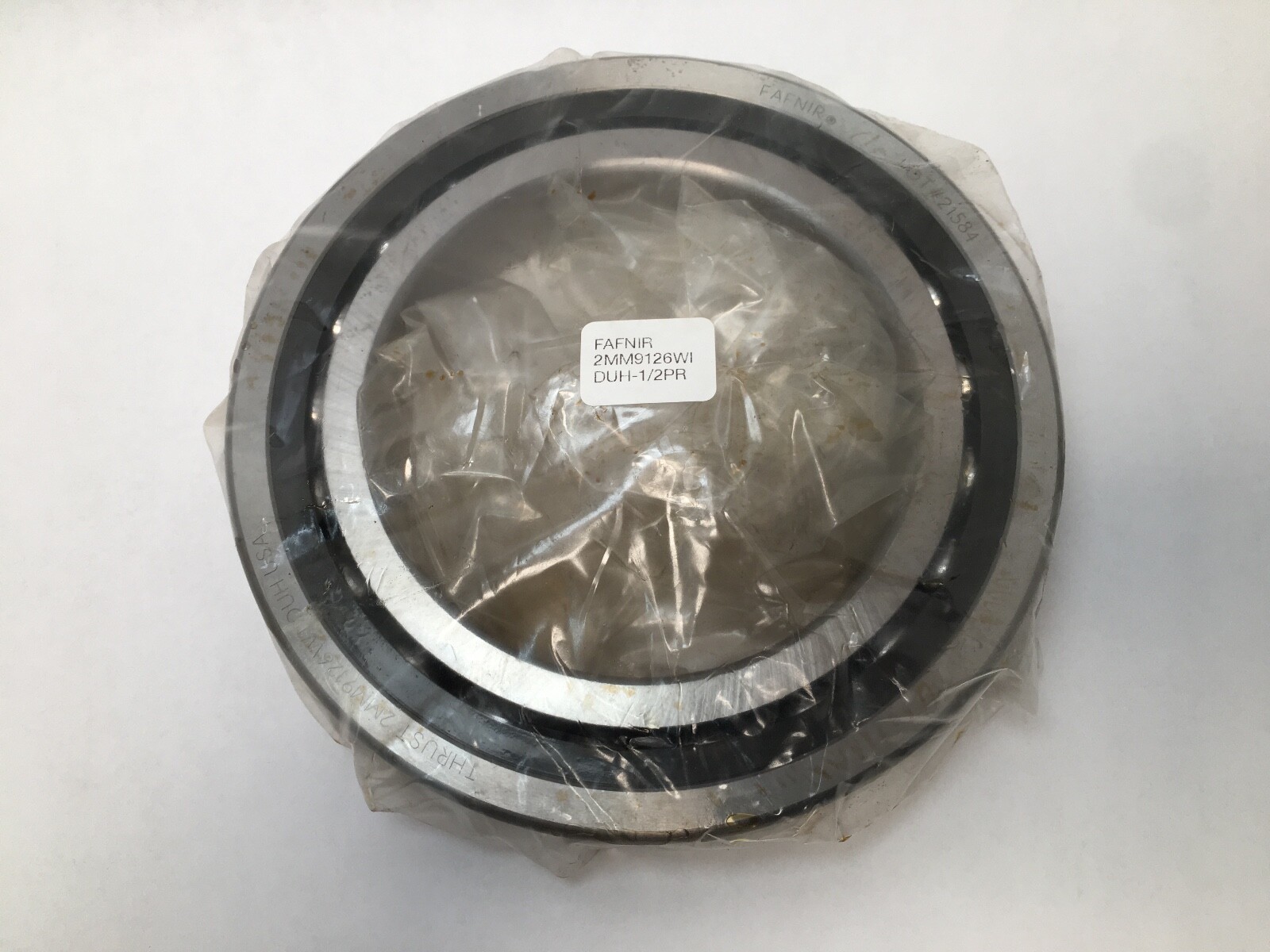

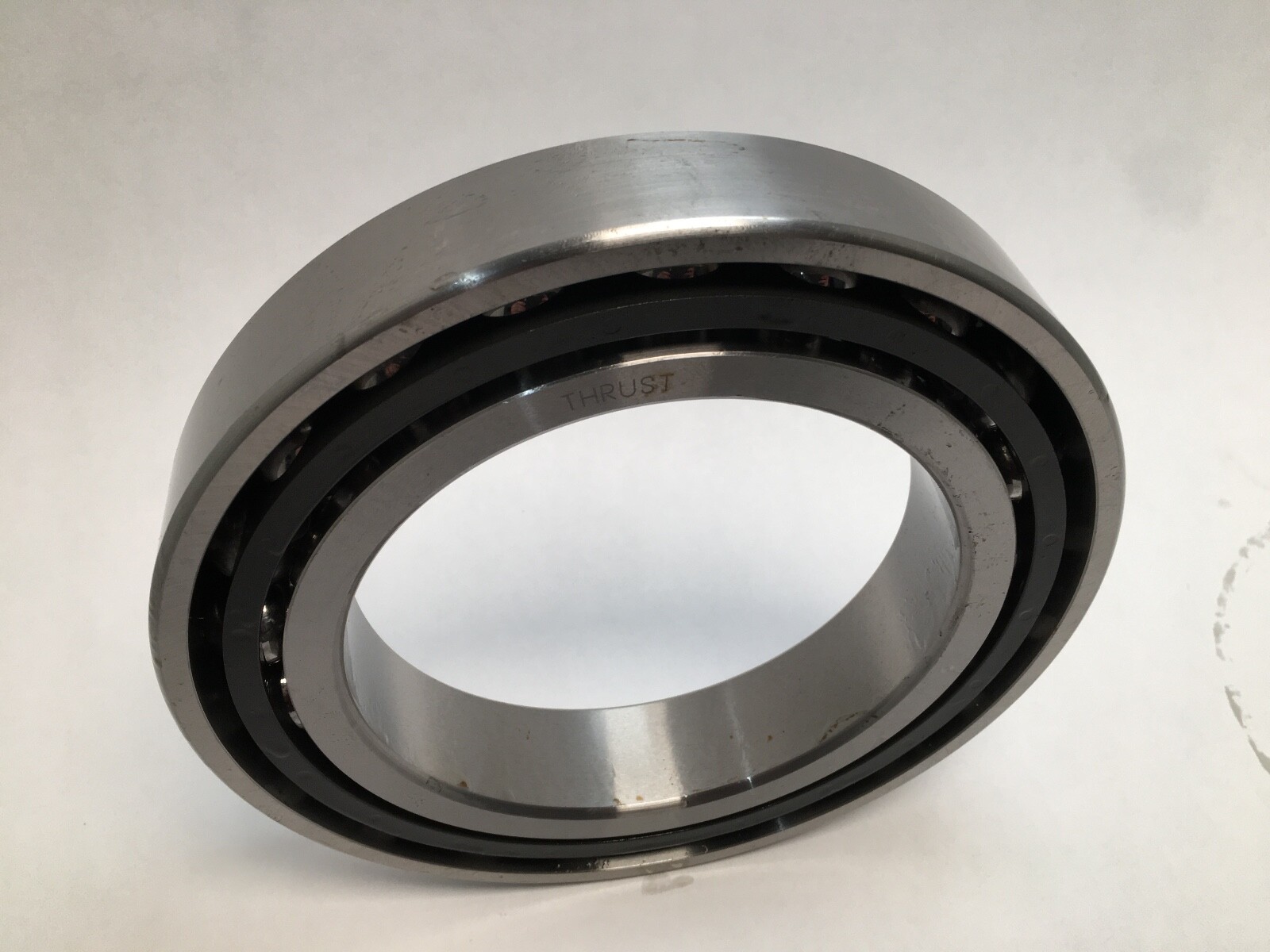

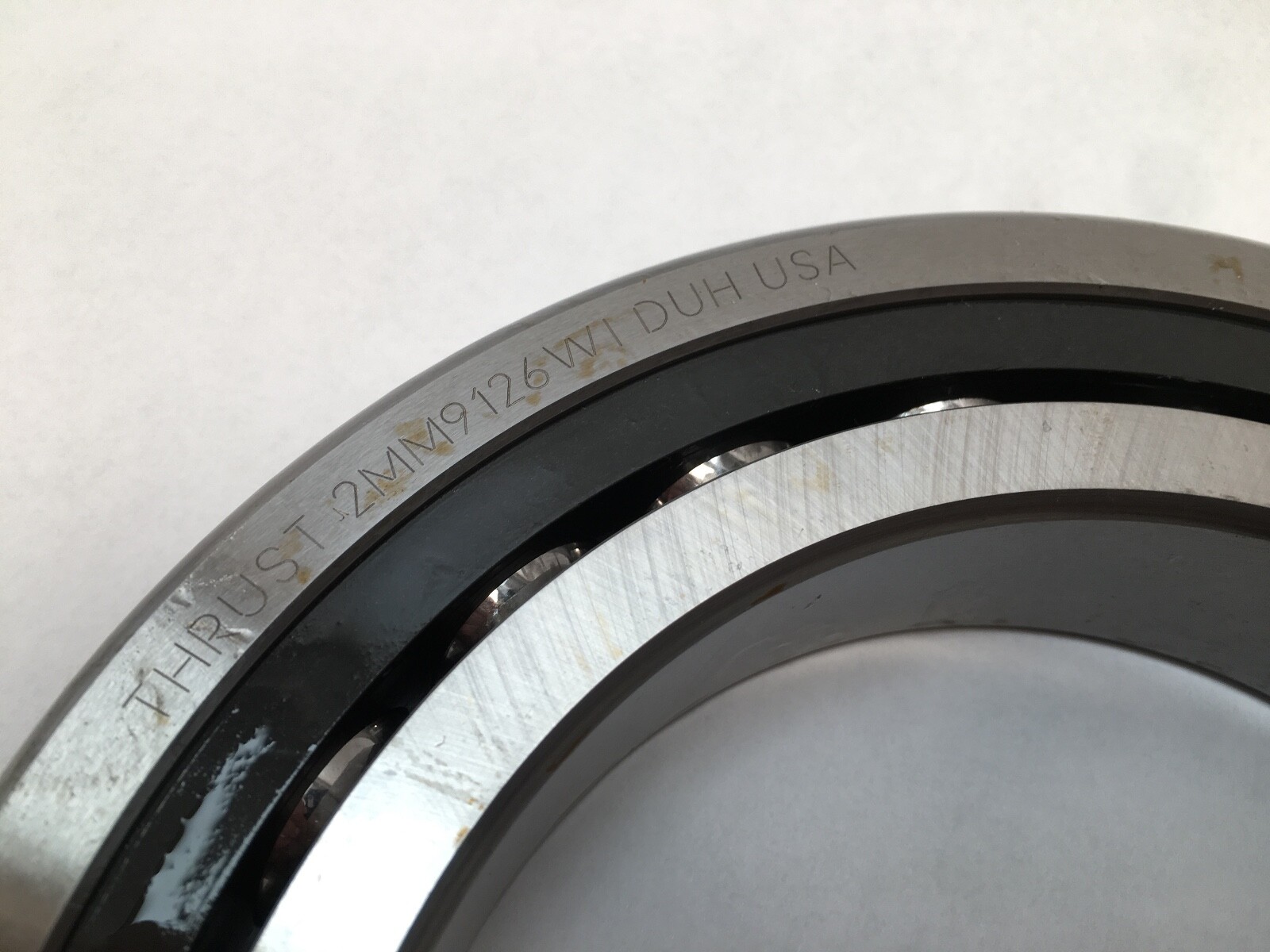

Fafnir 2MM9126WI-DUH super-precision angular contact ball bearing, 130 mm bore, 200 mm outside diameter, 33 mm width per bearing. Single row, open on both faces, machined phenolic outer-land-riding cage. ISO base number 7026.
In the Fafnir WI super-precision scheme the leading 2MM sets a 15° contact angle, and the MM prefix carries P4S precision — ABEC 7 bore and outside diameter tolerances with ABEC 9 running accuracy. The leading 9 of 9126 places the bearing in the ISO 70 light dimension series. WI identifies the ground spindle-bearing execution, CR the phenolic outer-land-riding cage, and DUH a duplex arrangement at heavy preload.
A 15° contact angle favours speed and radial stiffness over thrust capacity; a 25° bearing of the same envelope carries more axial load and runs slower. The phenolic cage is light and self-lubricating, which suits high spindle speeds and grease or oil-mist lubrication. Heavy preload raises axial and radial stiffness and reduces running accuracy scatter, at the cost of higher operating temperature.
One bearing. Universally ground faces allow assembly in duplex back-to-back, face-to-face or tandem sets with a matching bearing of the same designation.
Straight bore, mounted on an interference fit to the spindle journal. Faces are ground for stack assembly, so bearings are installed with the marked faces oriented per the chosen duplex arrangement. Clean, filtered lubricant is standard practice for a phenolic-caged super-precision bearing.
Same-envelope 15° super-precision equivalents include the SKF 7026 CD/P4A, FAG B7026-C-T-P4S and NSK 7026CTYNSULP4. A 7026A5 or 7026-E variant of the same size is a 25° bearing and a related size rather than a substitution.
