Availability:
5 in stock
Angular contact ball bearing pair, 10 x 26 x 8 mm, 15° contact angle, ABEC 7 / P4, Light preload. Fafnir 2MM9100WI-DUL duplex set, ISO 7000 size.
List Price
$90.71
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9100WIDUL |
| GTIN | 087796071803 |
| Model | 2 MM 9100 WI DUL / 7000C T DUL P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 10 mm |
| OD | 26 mm |
| Width | 8 mm |
| Material | Chrome Steel |
|---|---|
| Series | 2MM9100WI |
| Lubricant | Oil |
| Preload | Light |
| Mpn Variants | 2MM9100WI-DUL, 2MM9100WIDUL, 2MM9100WICRDUL, 2MM-9100-WI-CR-DUL, 7000-C |
| Precision Class | ABEC 7 / P4 |
| Dynamic Load Rating | 5,410 N |
| Static Load Rating | 2,200 N |
| Rolling Elements | Ball |
| Item Weight | 0.036 kg (0.08 lb) pair |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 68,500 rpm grease; 137,000 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Duplex universal (DB, DF or DT) |
| Cross Reference 1 | NSK 7000CTRDULP4 |
|---|---|
| Cross Reference 2 | FAG B7000-C-T-P4S-DUL |
| Cross Reference 3 | SKF 7000 CD/P4ADGA - extra light preload |

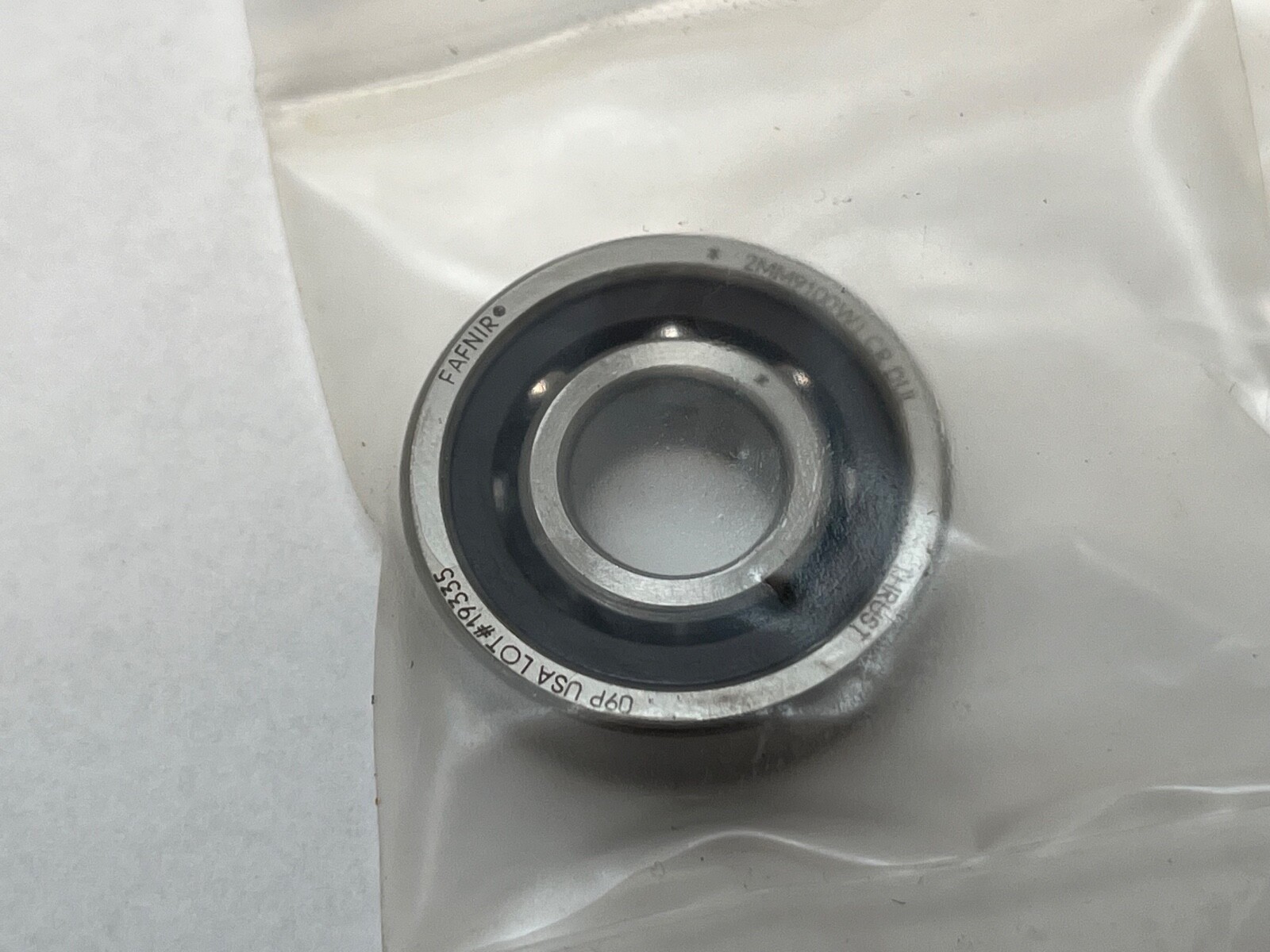

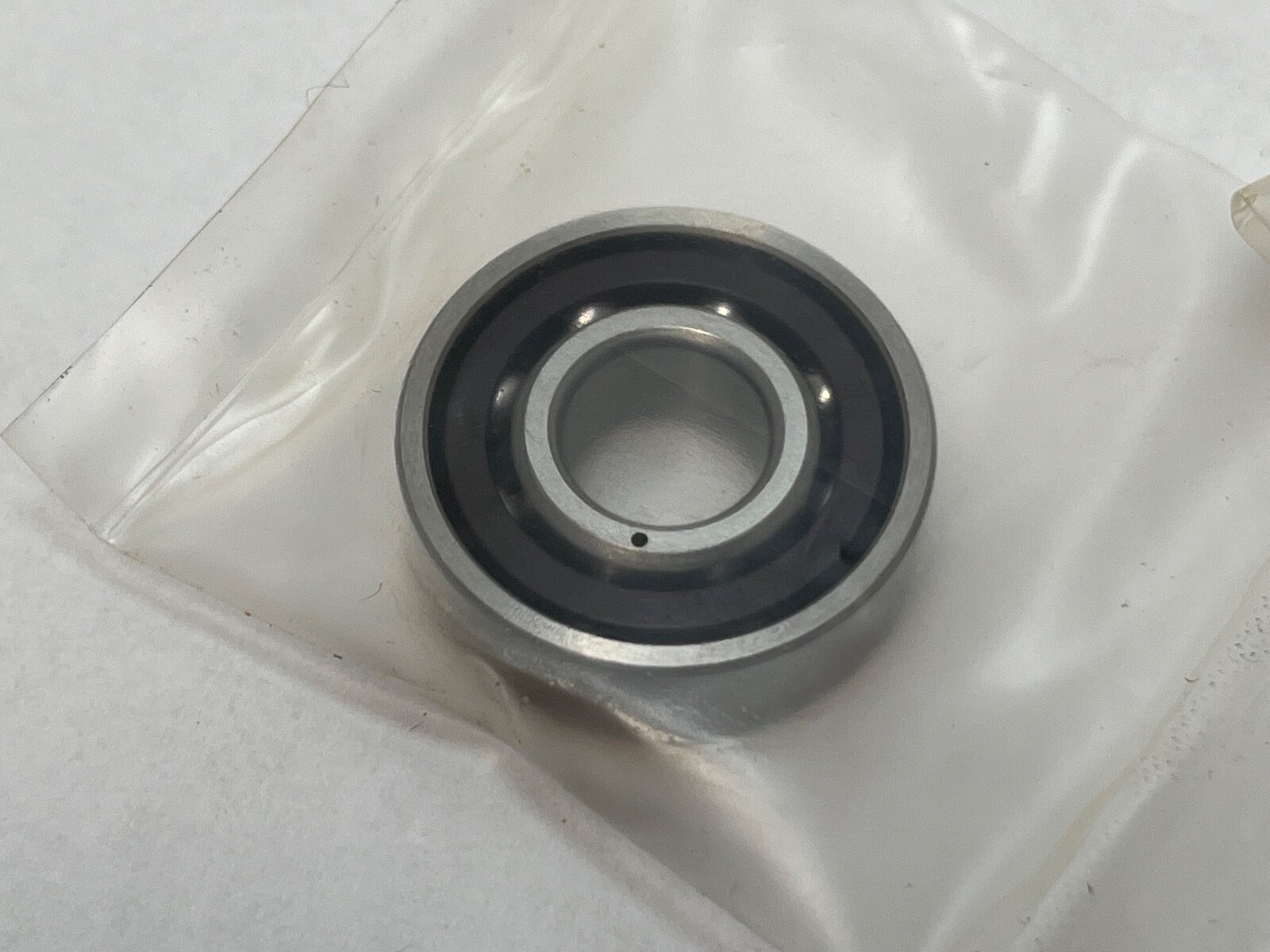

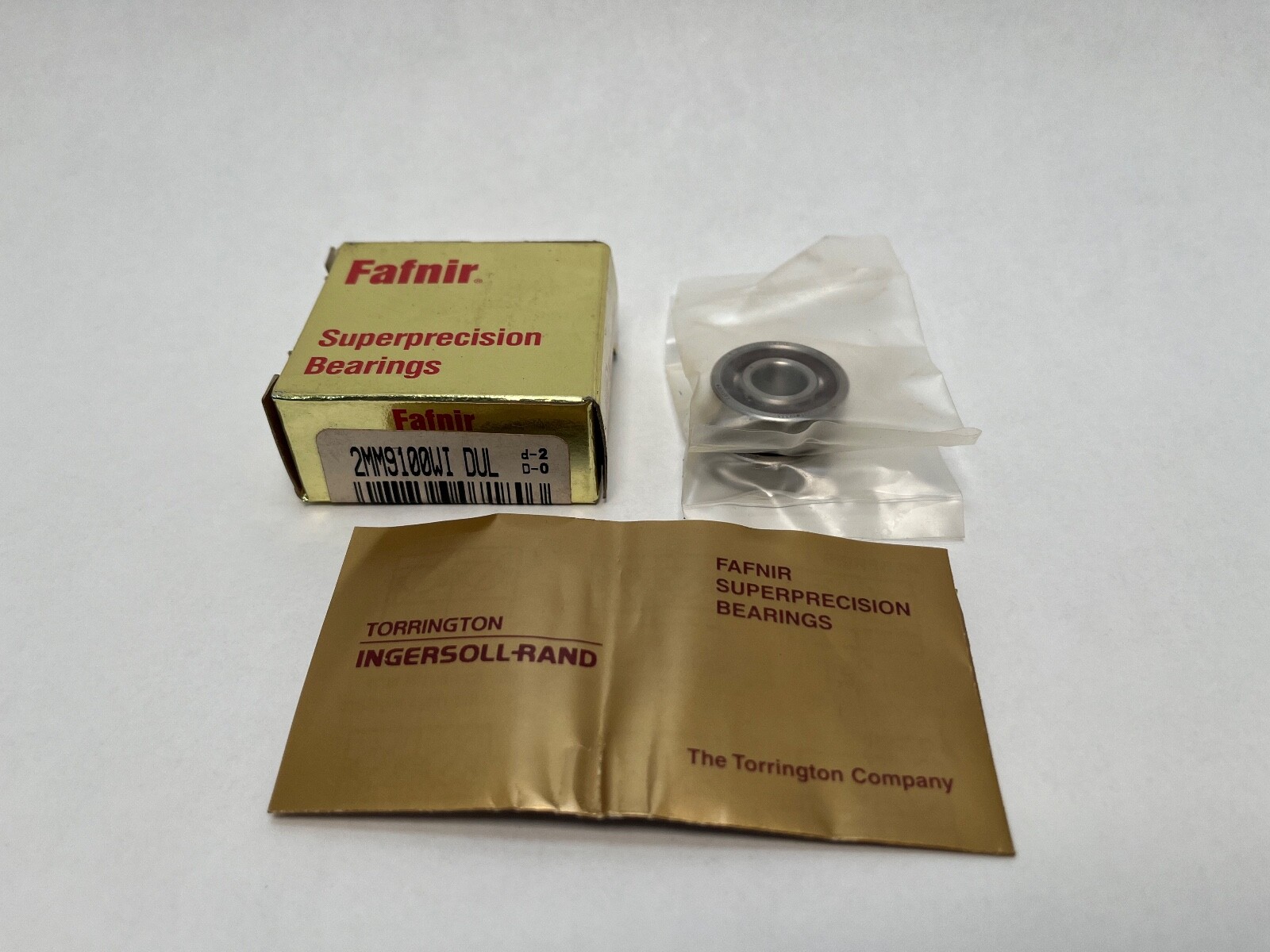

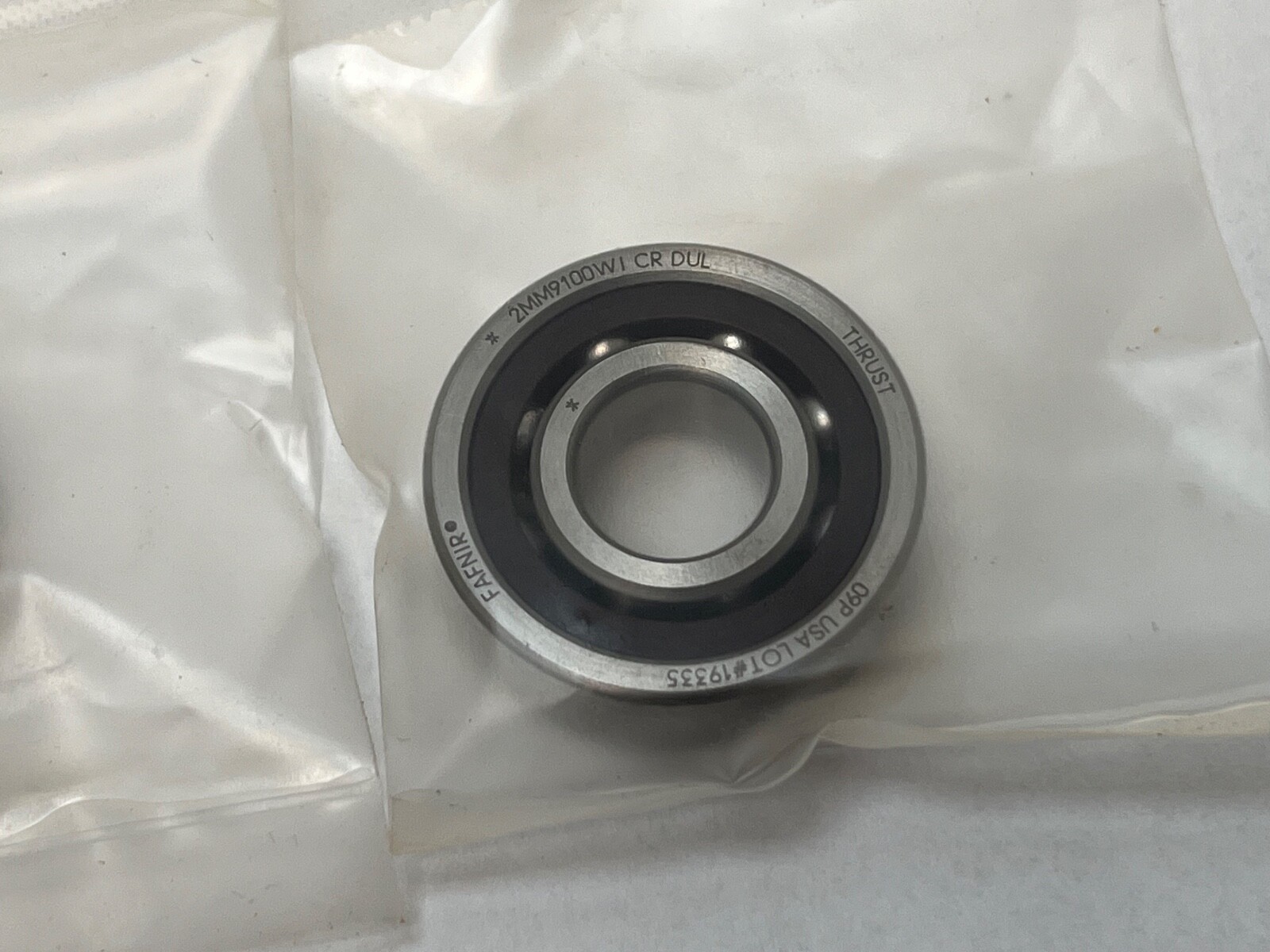

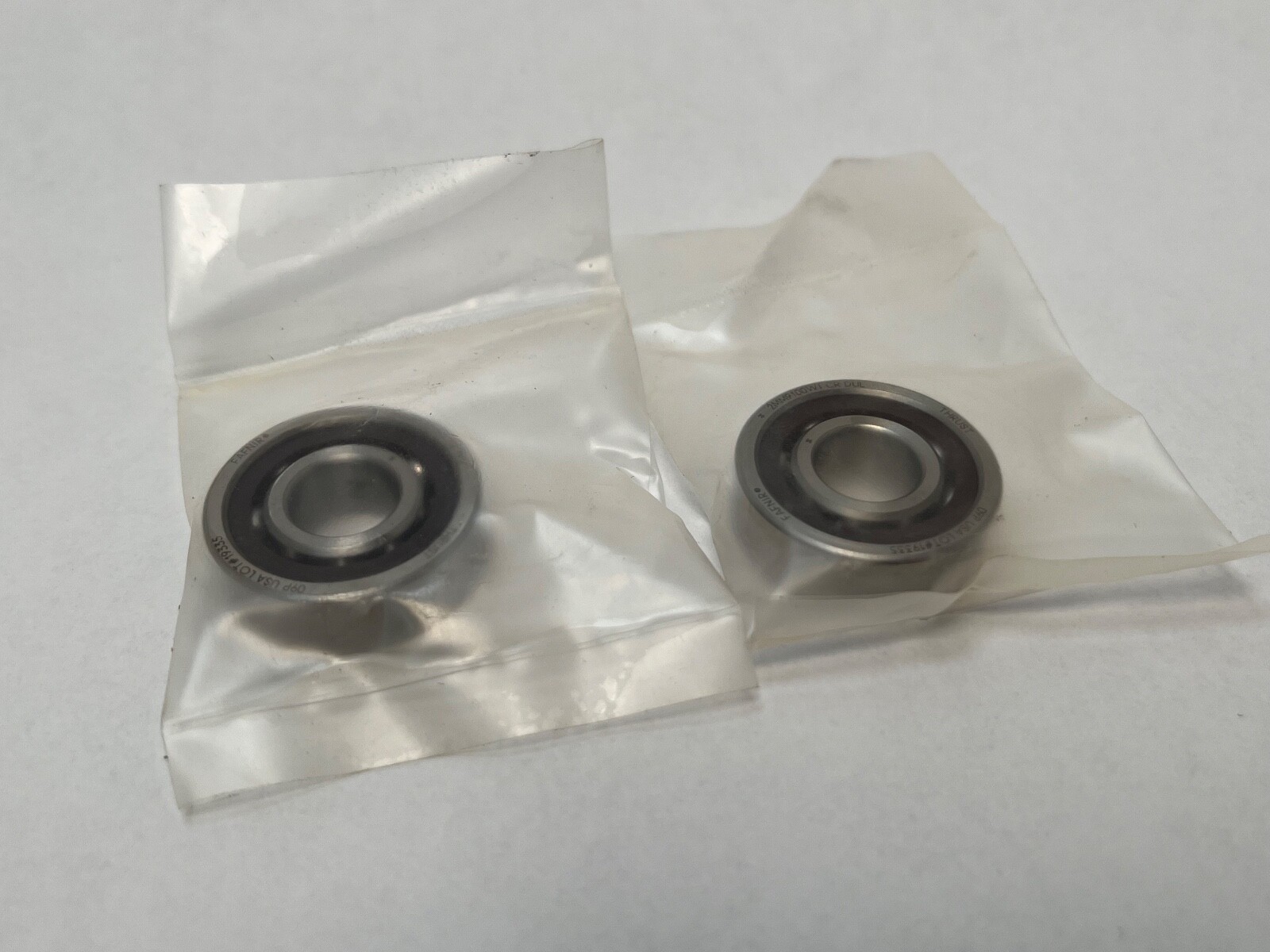

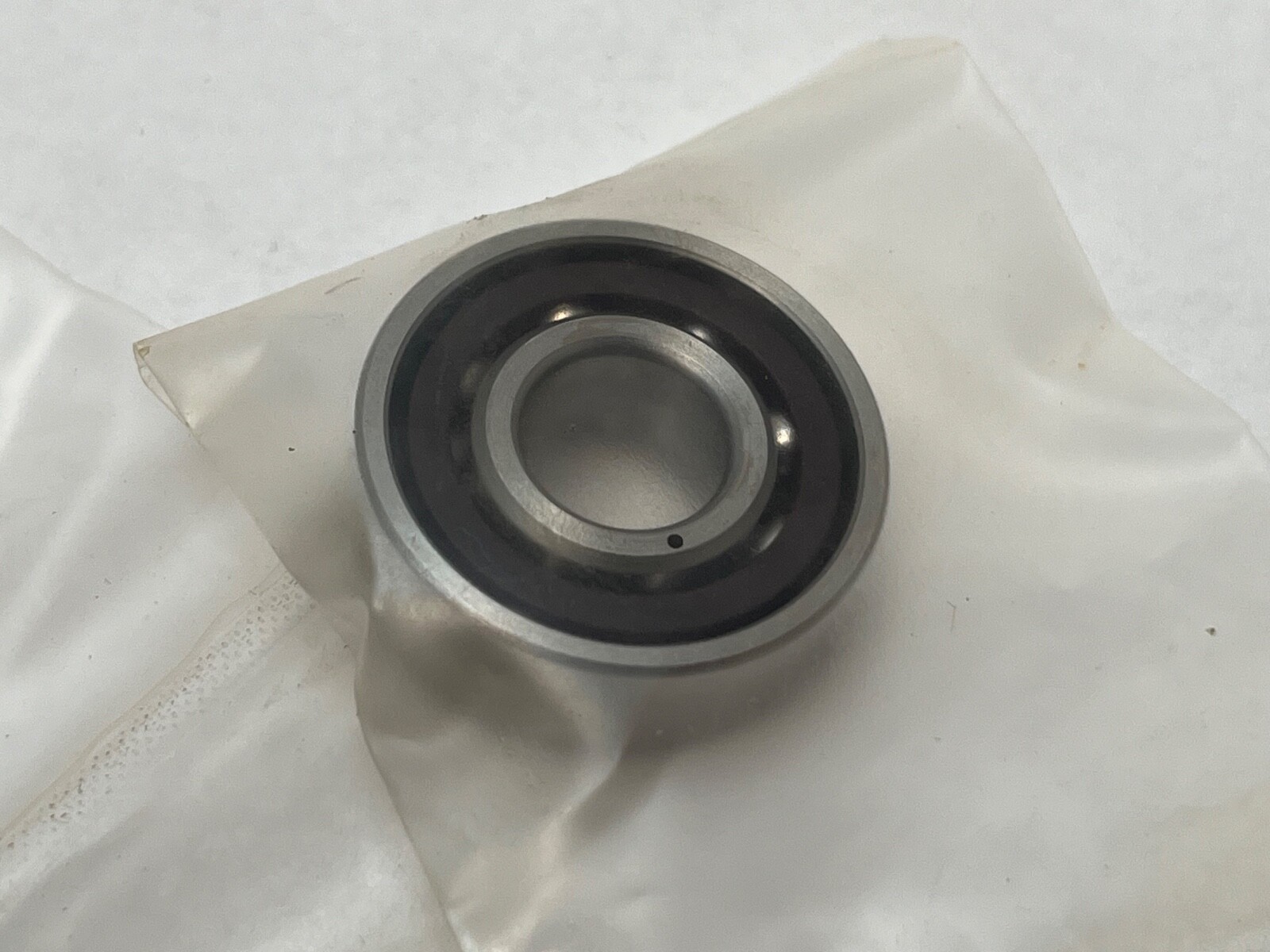

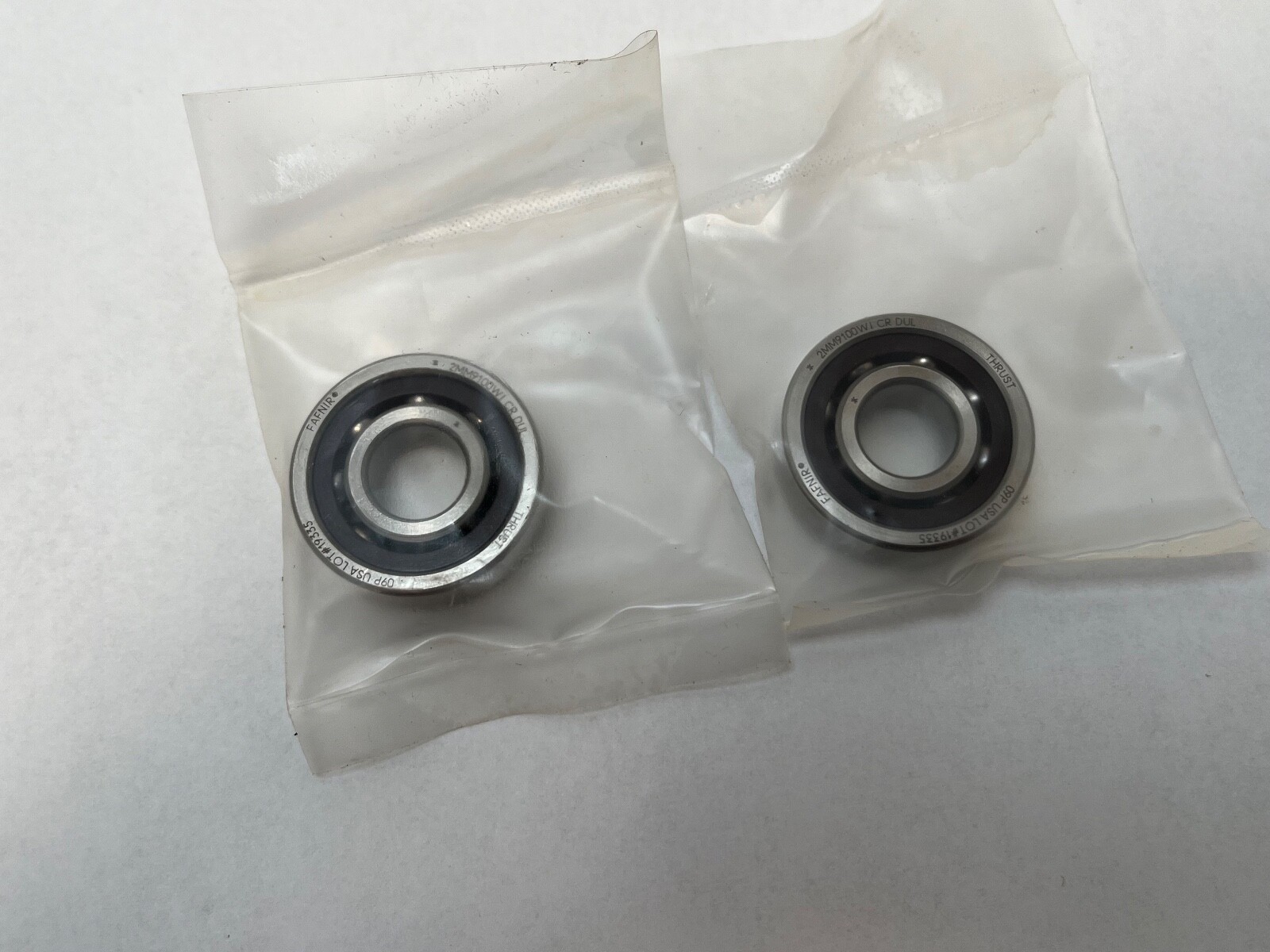

Fafnir 2MM9100WI-DUL is a matched pair of super-precision angular contact ball bearings, universally ground for duplex mounting with Light preload. Bore Diameter: 10 mm. Outside Diameter: 26 mm. Width: 8 mm per bearing. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light. Cage Material: Phenolic. Closure Type: Open. Rolling Elements: Ball. Item Weight: 0.036 kg (0.08 lb) for the pair.
2MM — Fafnir super-precision angular contact, 15° contact angle, ABEC 7 / ISO P4 tolerances.
9100 — 9100 extra-light series, ISO 7000 size, 10 x 26 x 8 mm.
WI — low shoulder on both rings, the duplex construction.
CR — phenolic cage.
DU — duplex universal: two bearings flush-ground to mount back-to-back, face-to-face or tandem.
L — Light preload.
Dynamic Load Rating: 5,410 N (1,210 lbf) per bearing, Timken C1. Static Load Rating: 2,200 N (490 lbf) per bearing. Limiting Speed: 68,500 rpm grease; 137,000 rpm oil. A small, high-speed spindle bearing for grinding and precision spindles.
Max Fillet Radius (mating part): 0.3 mm (0.012 in). Shaft Backing Shoulder Diameter: 13.3 mm (0.530 in). Housing Backing Shoulder Diameter: 23.2 mm (0.920 in).
Unit Quantity: 2 Pcs, one matched duplex pair. GTIN: 0087796071803.
ISO 7000 15° super-precision light-preload duplex pairs: NSK 7000CTRDULP4, FAG B7000-C-T-P4S-DUL. SKF 7000 CD/P4ADGA is the SKF form at extra light preload.
