Super precision spindle angular contact ball bearing, 70 x 125 x 24 mm, 15° contact angle, phenolic cage, light preload, universally ground.
List Price
$197.73
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM214WI CR SUL |
| GTIN | 087796323278 |
| Model | 2MM 214 WI CR DUL / 7214 C T DUL P4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 2MM200 |
| Preload | Light |
| Base Number | 2MM214WI |
| Overall Width | 24 mm |
| Mpn Variants | 2MM214WICRSUL / 2MM-214-WI-CR-SUL / 2MM 214 WI CR SUL / 7214C-T-P4S-SUL |
| Arrangement Configuration | Single bearing (SUL), universally ground |
| Precision Class | ABEC 7/9 / P4S |
| Dynamic Load Rating C1 | 84,200 N |
| Dynamic Load Rating | 84,200 N |
| Static Load Rating | 60,000 N |
| Precision Rating | ABEC 7/9 / P4S |
| Rolling Elements | Ball |
| Item Weight | 1.07 kg (2.37 lb) |
| Cage Material | Phenolic |
| Limiting Speed | 11,400 rpm grease; 22,800 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Lubricant | grease or oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Design Units | Metric |
| Bearing Material | Bearing Steel |
| Cross Reference 1 | SKF 7214 CD/P4A |
|---|---|
| Cross Reference 2 | FAG B7214-C-T-P4S-UL |
| Cross Reference 3 | NSK 7214CTRSULP4 |
| Cross Reference 4 | NTN 7214UCG/GNP4 |
| Cross Reference 5 | RHP 7214CTSULP4 |
| Cross Reference 6 | IBC 7214-C-TPA-P4-UL |
| Cross Reference 7 | Koyo 7214CTRSULP4 |

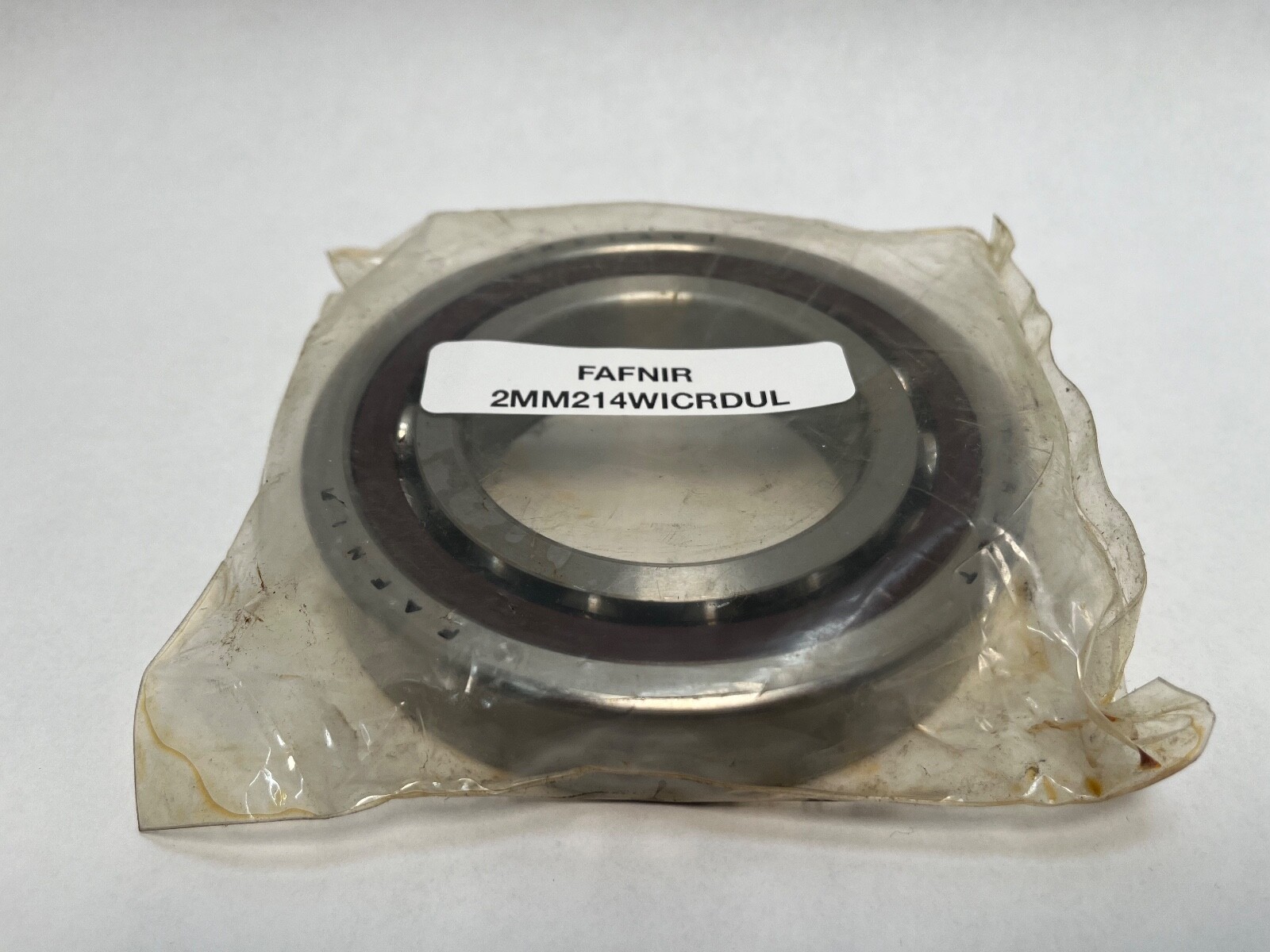

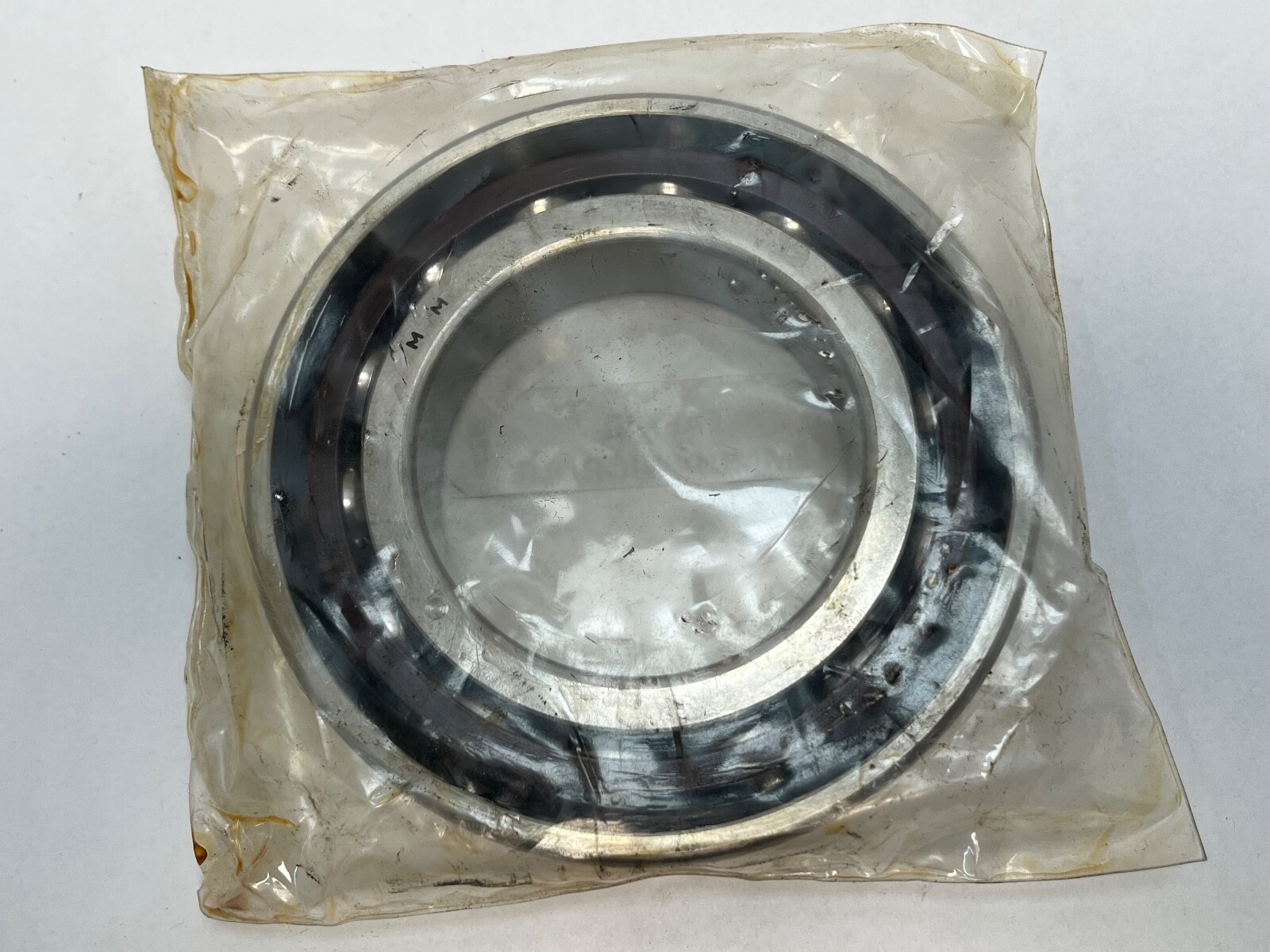

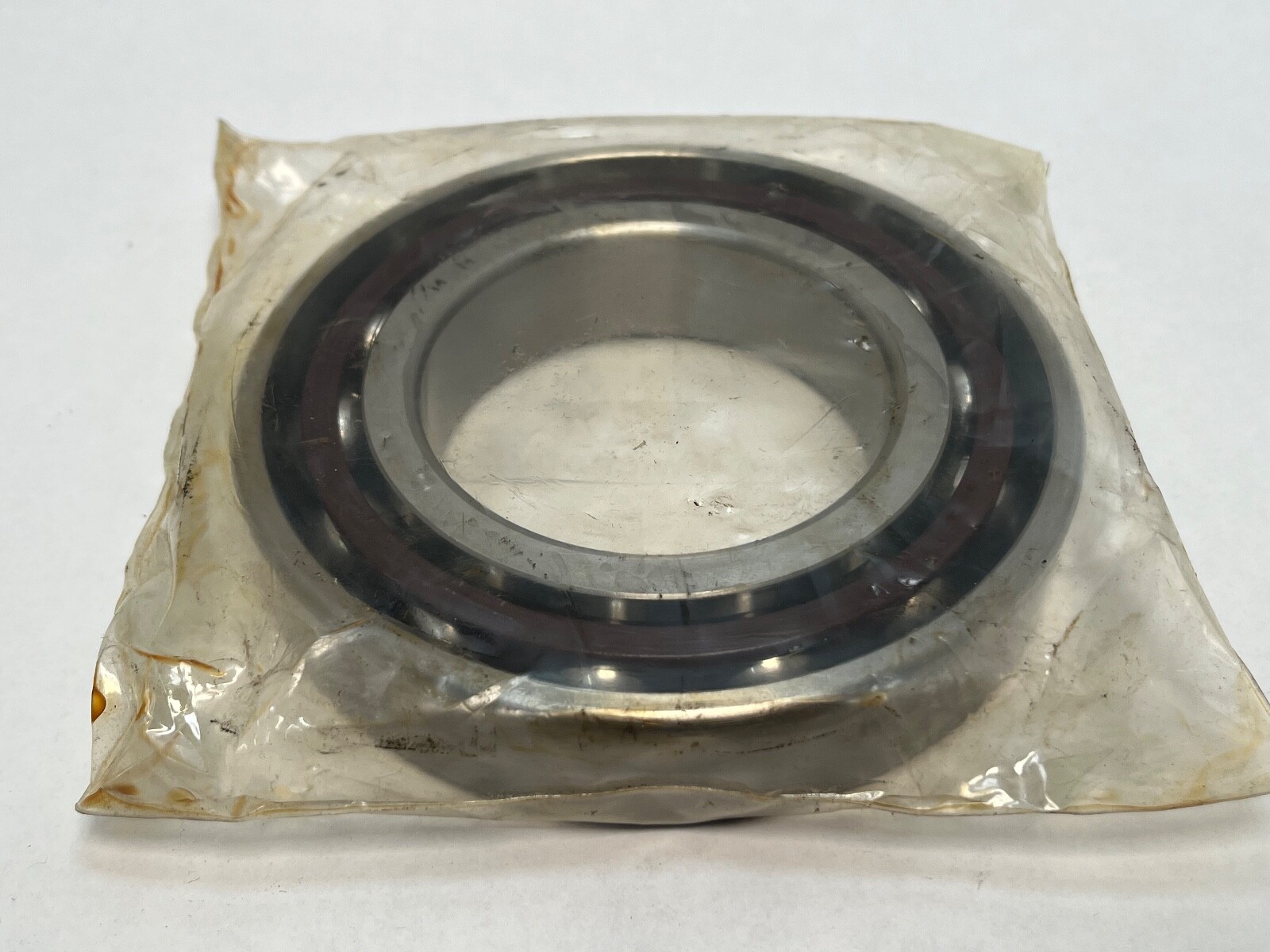

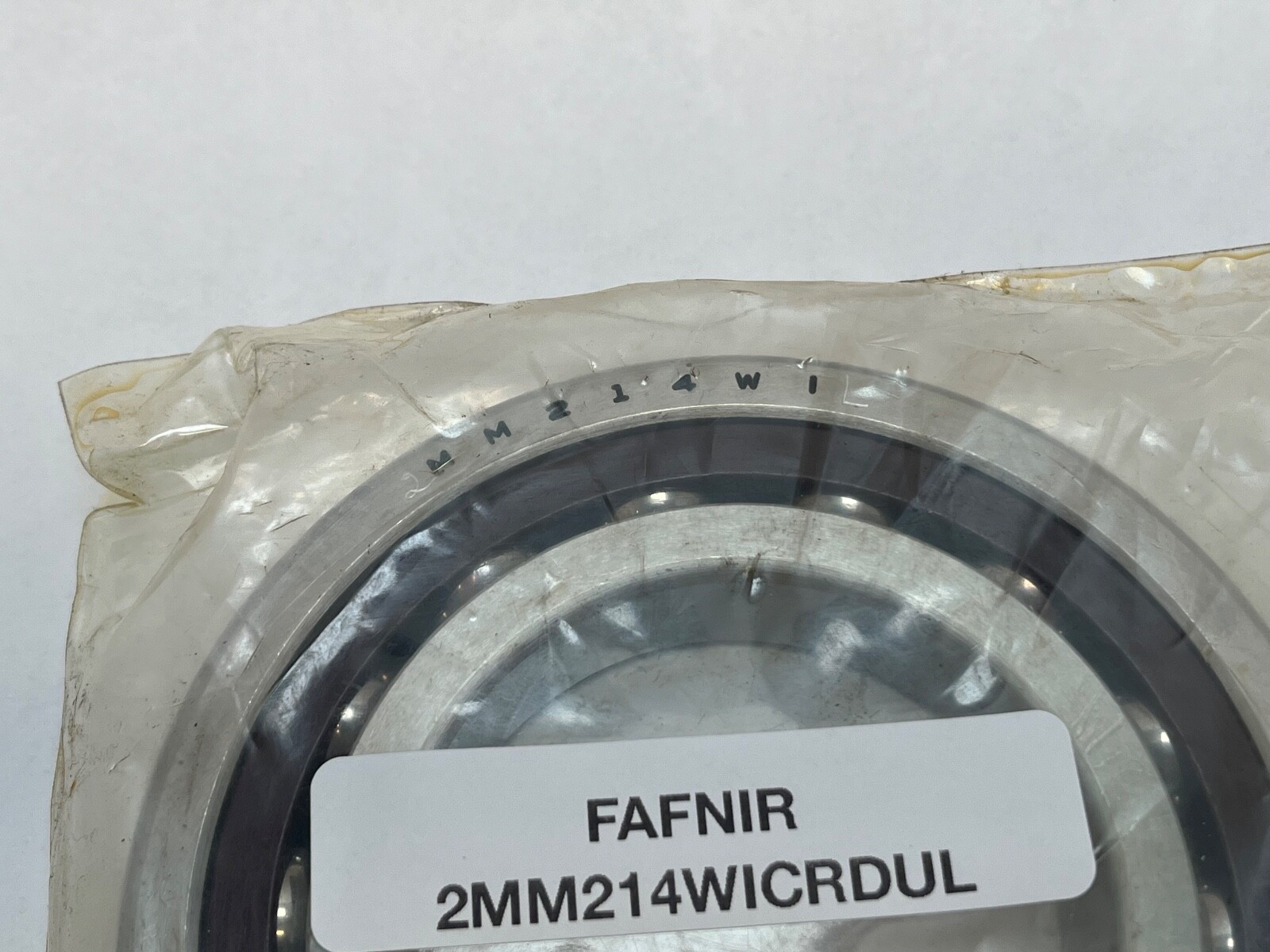

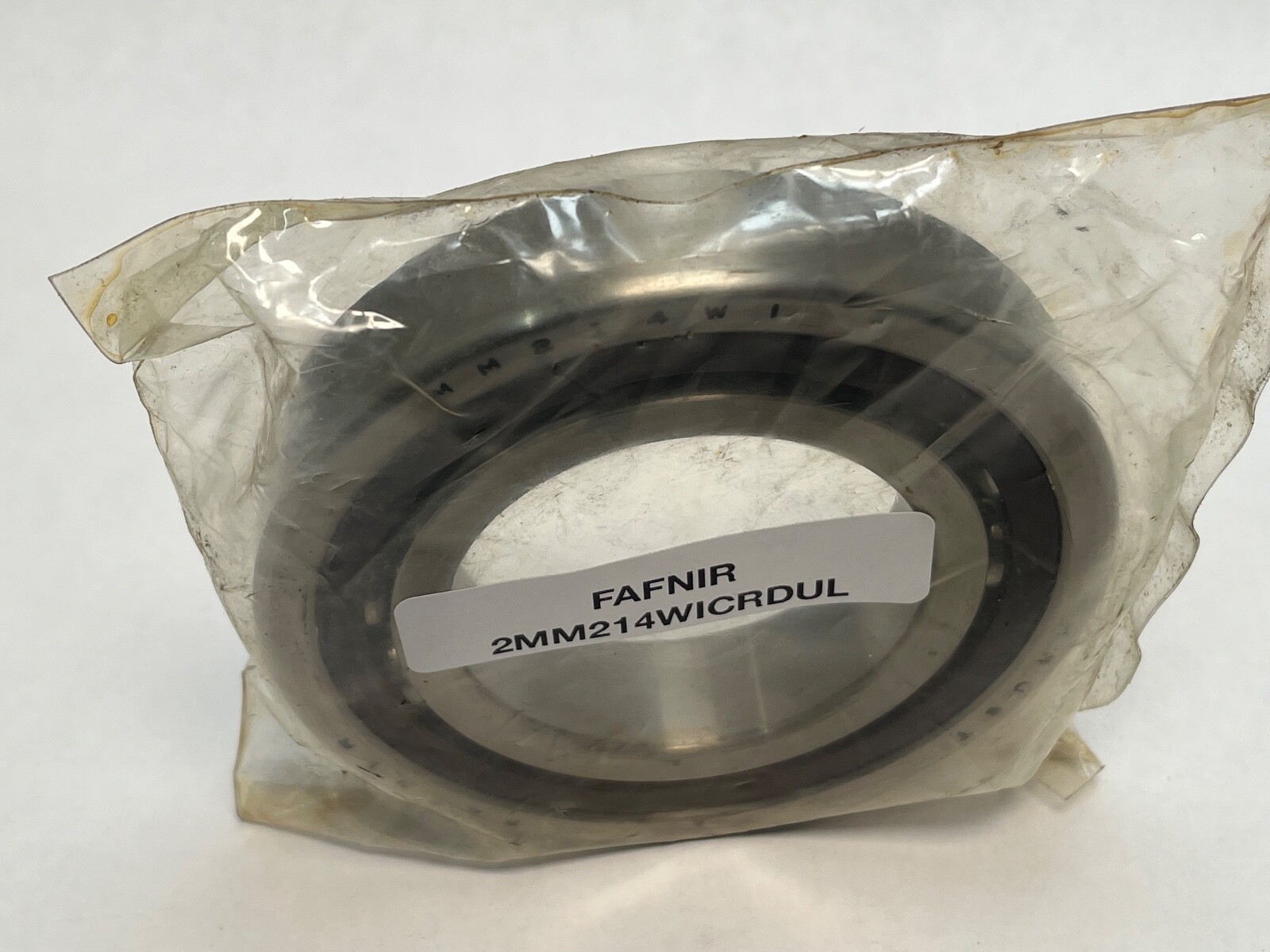

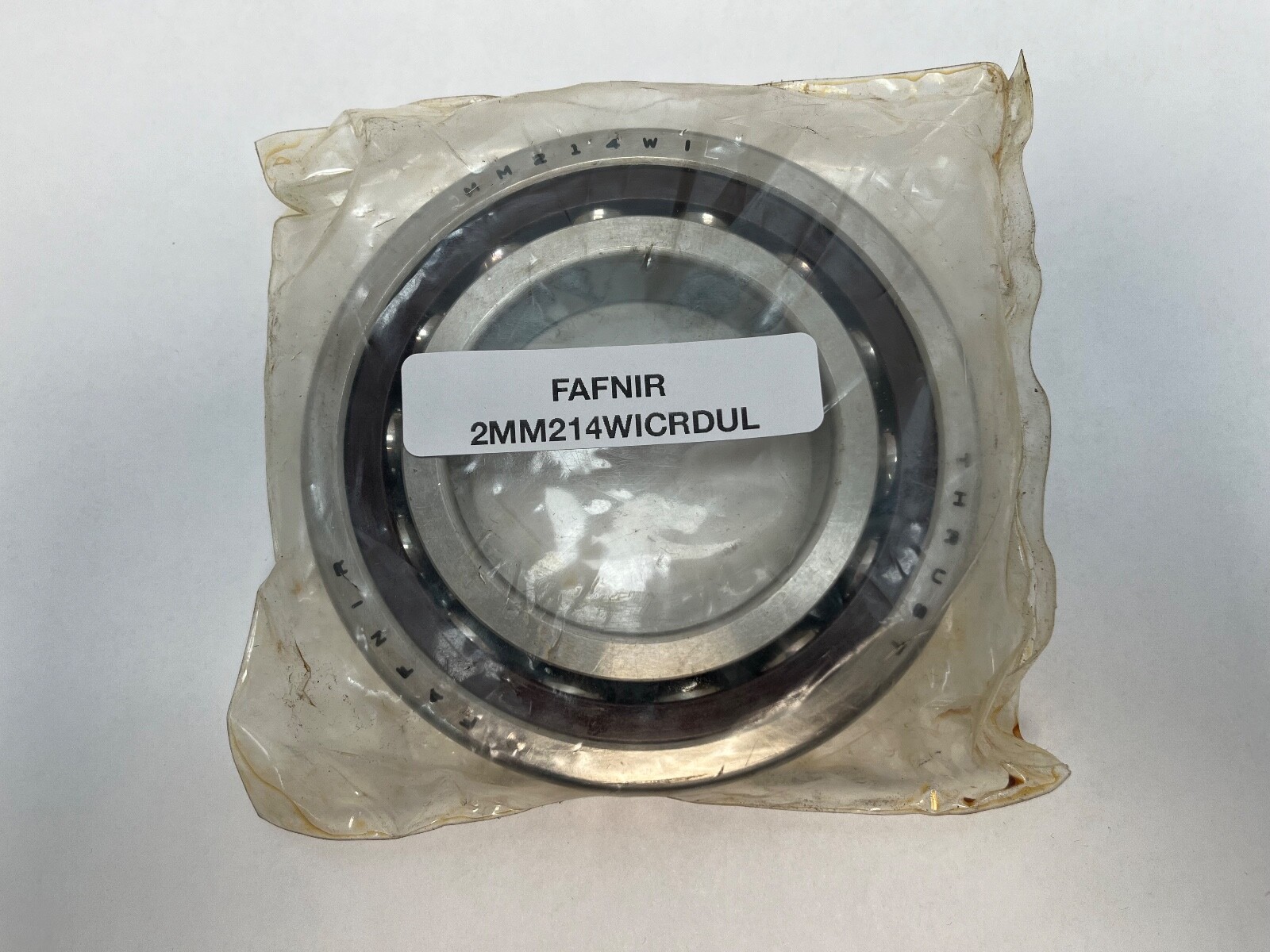

Fafnir 2MM214WI-CR-SUL super precision spindle angular contact ball bearing, a single universally ground bearing. Unit Quantity: 1 Pc.
2MM — 15° contact angle, Fafnir super precision range.
214 — 200WI series, ISO 72-series envelope, 70 mm bore, giving the 7214 boundary dimensions.
WI — low shoulder on both rings.
CR — phenolic cage.
SU — single bearing, universally ground.
L — light preload when mounted as a set.
Bearing Type: Angular Contact Ball Bearing, super precision. Series: 2MM200. Base Number: 2MM214WI. Contact Angle: 15°. Precision Class: ABEC 7/9 / P4S. Preload: Light. Cage Material: Phenolic. Rolling Elements: Ball. Bearing Material: Bearing Steel. Bore Type: Straight. Closure Type: Open. Number Of Rows: 1. Dynamic Load Rating: 84,200 N. Static Load Rating: 60,000 N. Limiting Speed: 11,400 rpm grease; 22,800 rpm oil. Lubricant: grease or oil. Item Weight: 1.074 kg (2.37 lb). GTIN: 087796323278.
Bore Diameter: 70 mm. Outside Diameter: 125 mm. Overall Width: 24 mm. Shaft Backing Shoulder Diameter: 80.3 mm (3.160 in). Housing Backing Shoulder Diameter: 115.8 mm (4.560 in). Maximum Housing Fillet Radius: 1.5 mm (0.059 in). Universally ground with flush faces: it stacks against another SUL bearing back-to-back, face-to-face or in tandem.
SKF 7214 CD/P4A, FAG B7214-C-T-P4S-UL, NSK 7214CTRSULP4, NTN 7214UCG/GNP4, RHP 7214CTSULP4, IBC 7214-C-TPA-P4-UL and Koyo 7214CTRSULP4 are 70 x 125 x 24 mm super precision executions at 15°. Timken world part number: 7214C-T-P4S-SUL. Searchable forms of the Fafnir number: 2MM214WICRSUL, 2MM-214-WI-CR-SUL, 2MM 214 WI CR SUL.
15°, from the 2MM prefix.
Dynamic Load Rating: 84,200 N. Static Load Rating: 60,000 N.
11,400 rpm grease; 22,800 rpm oil.
