Availability:
1 in stock

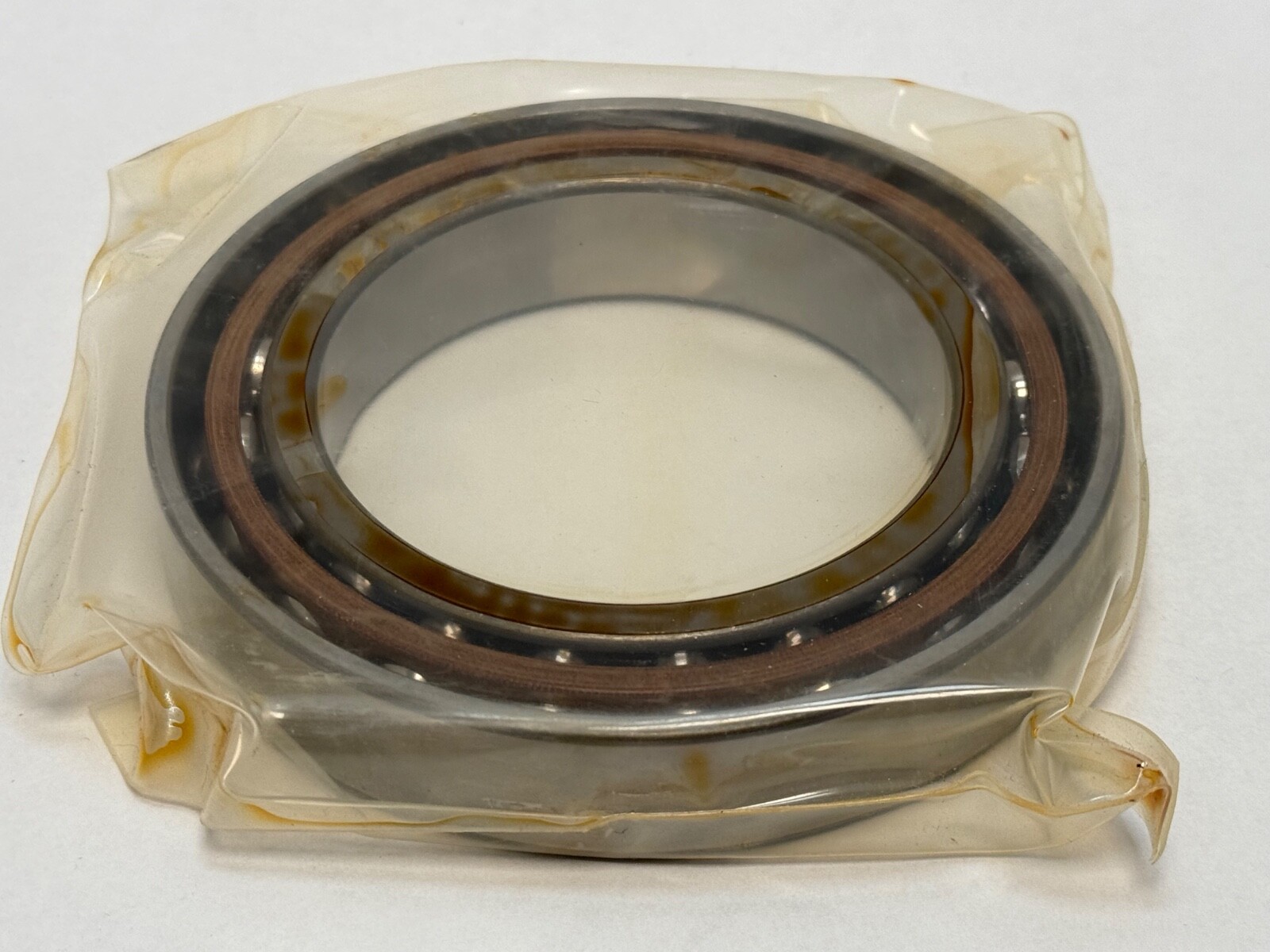

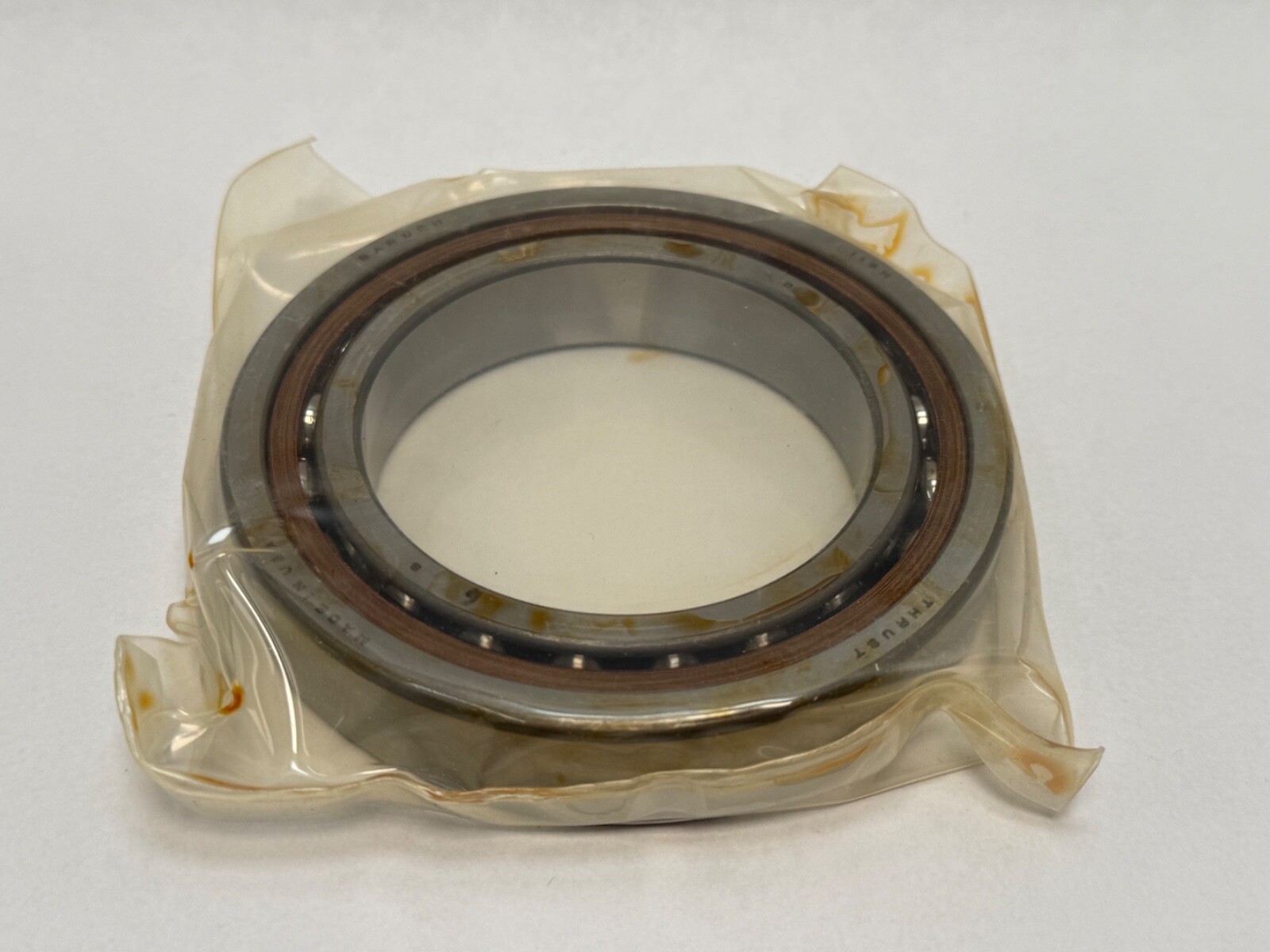

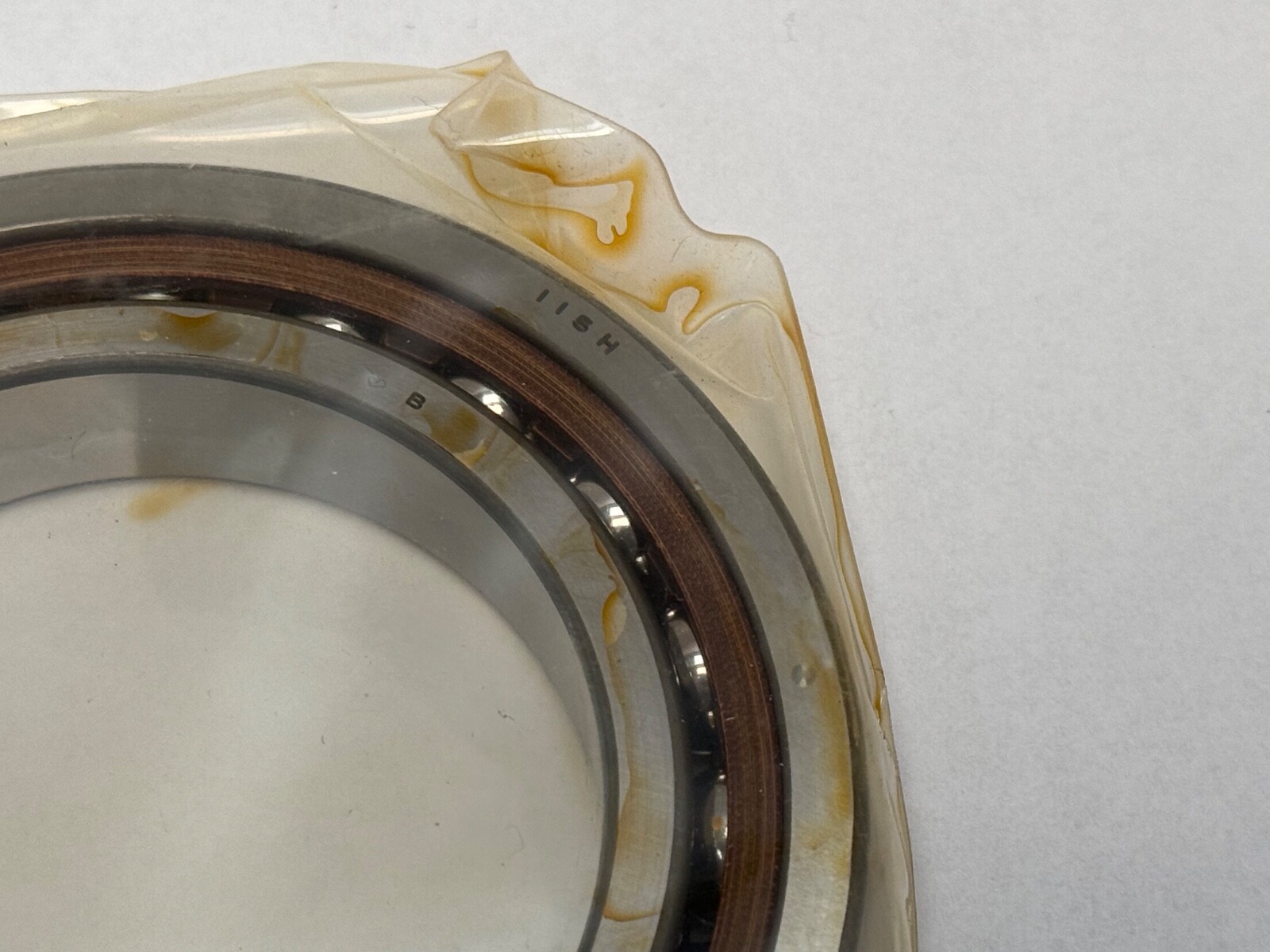

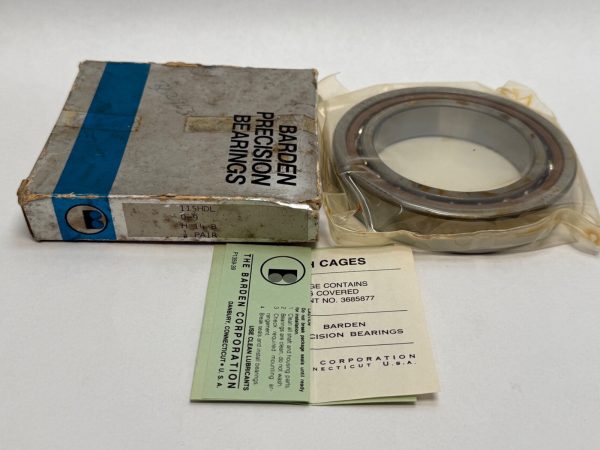

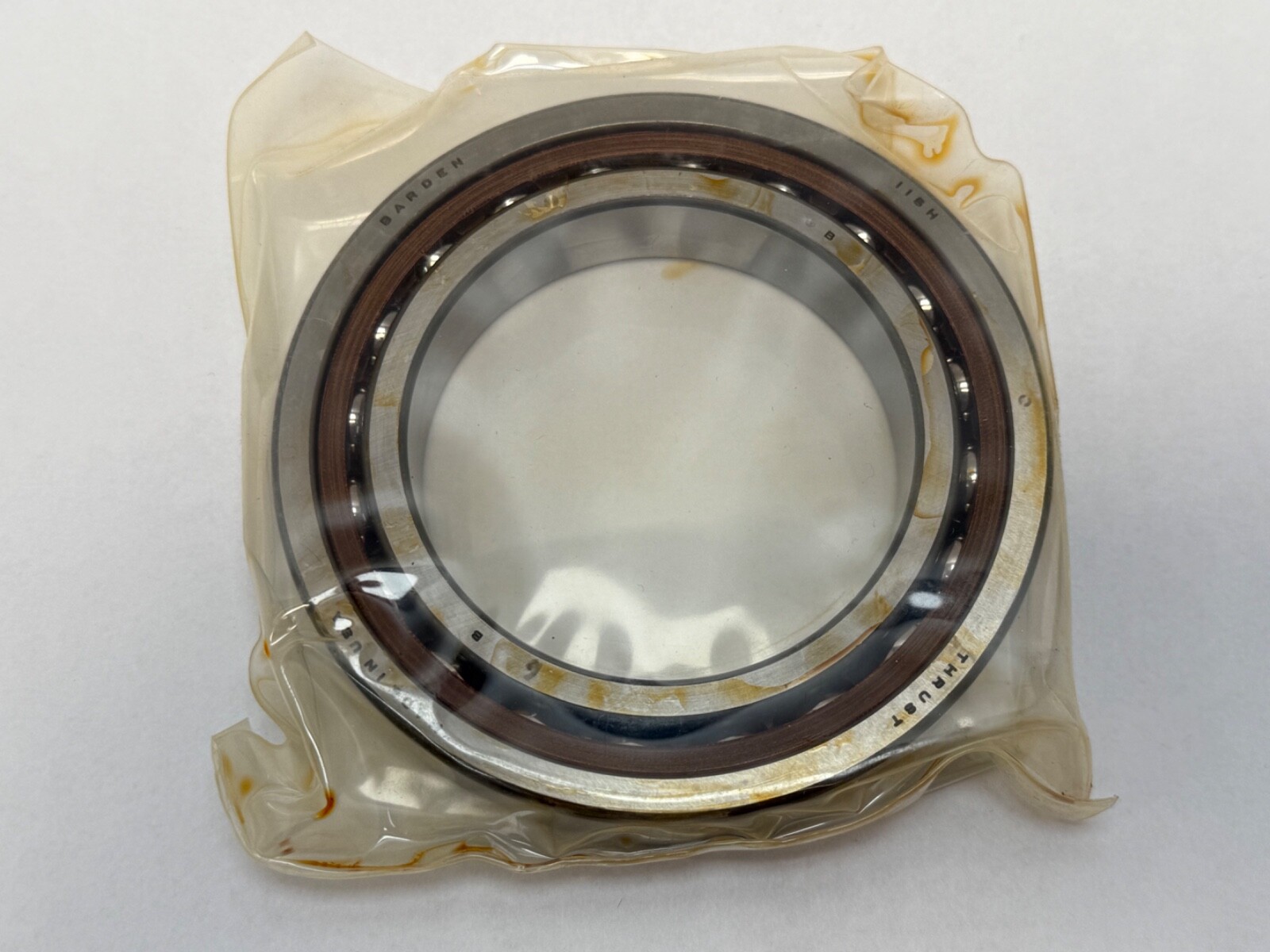

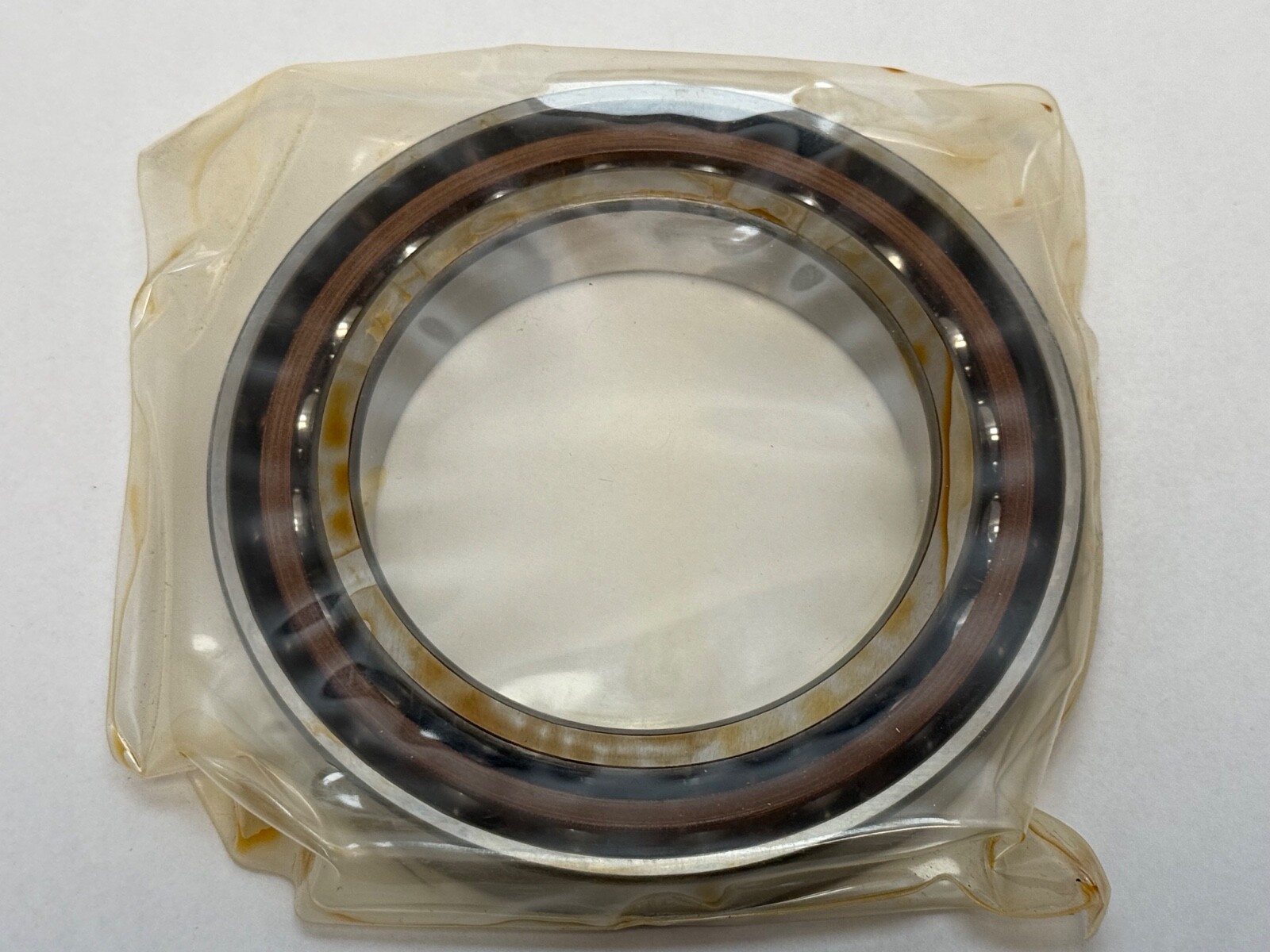

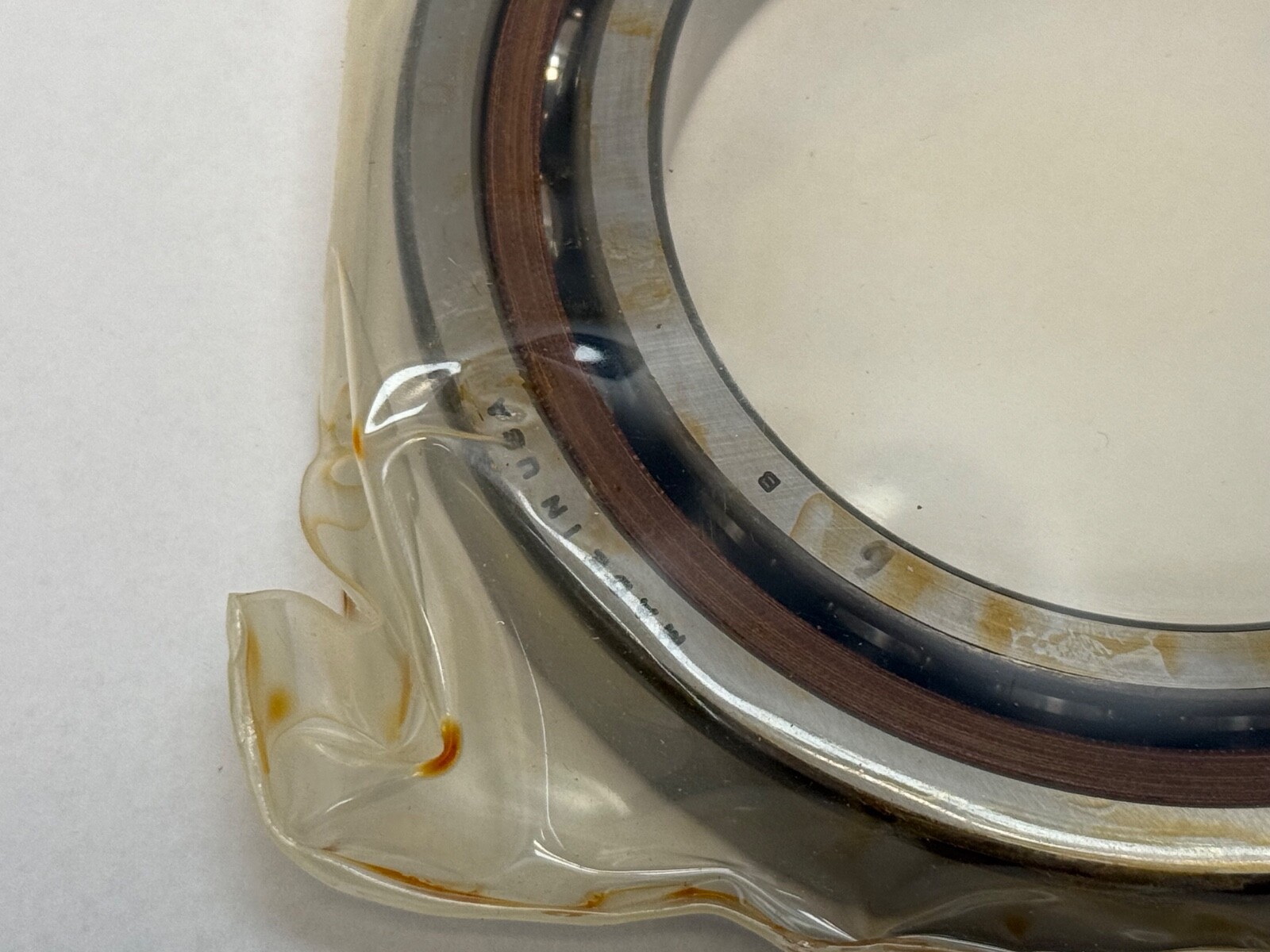

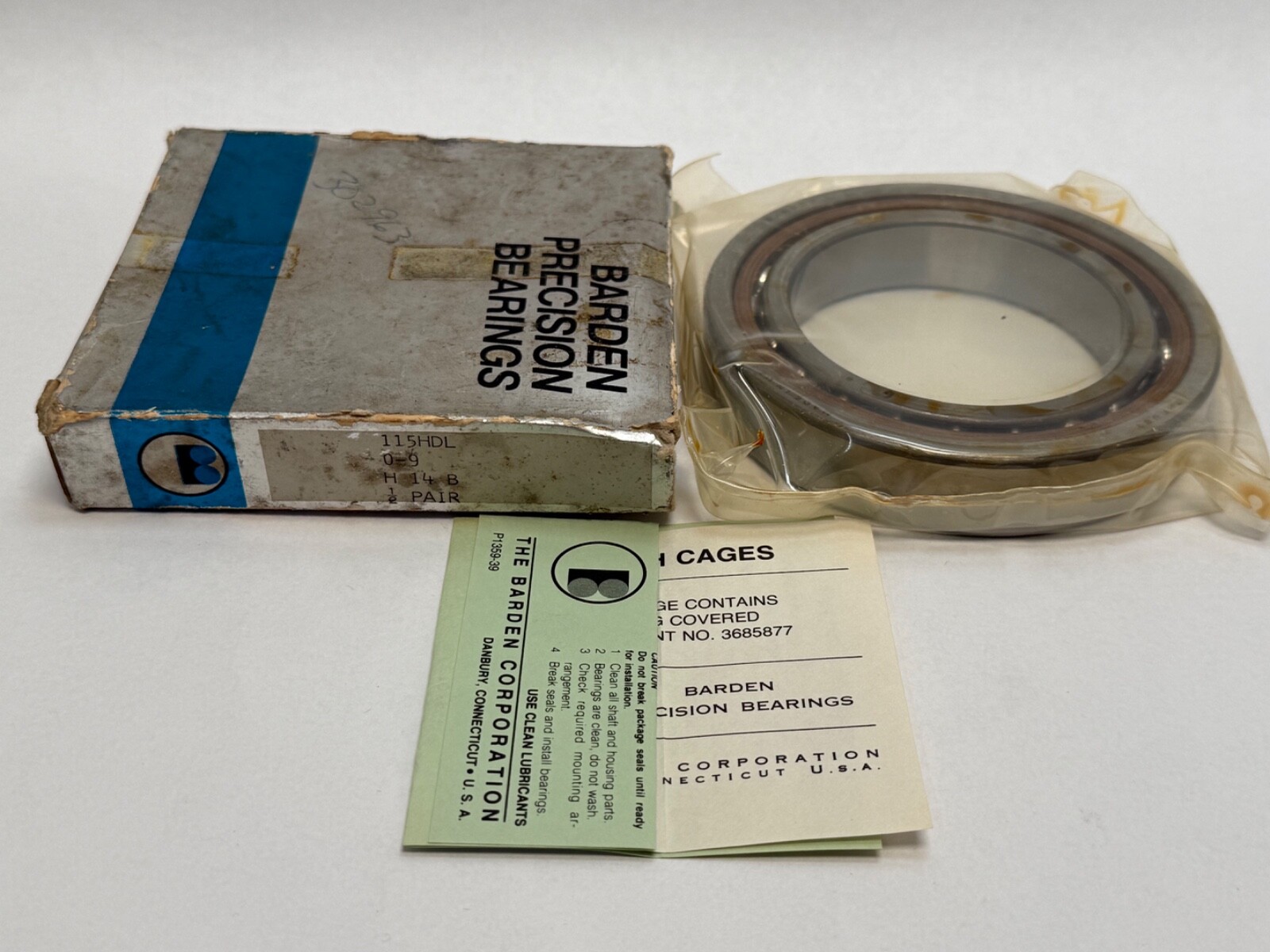

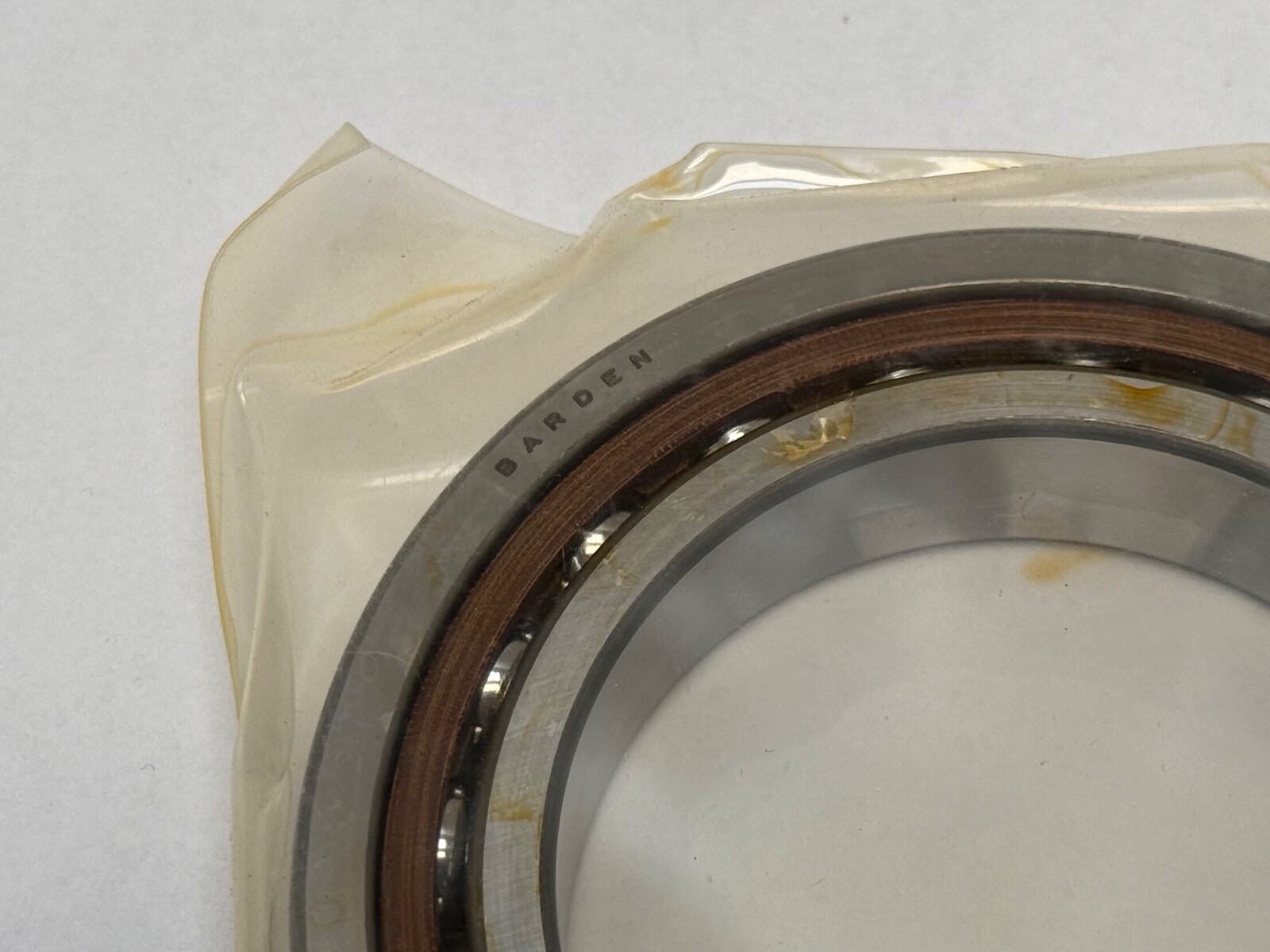

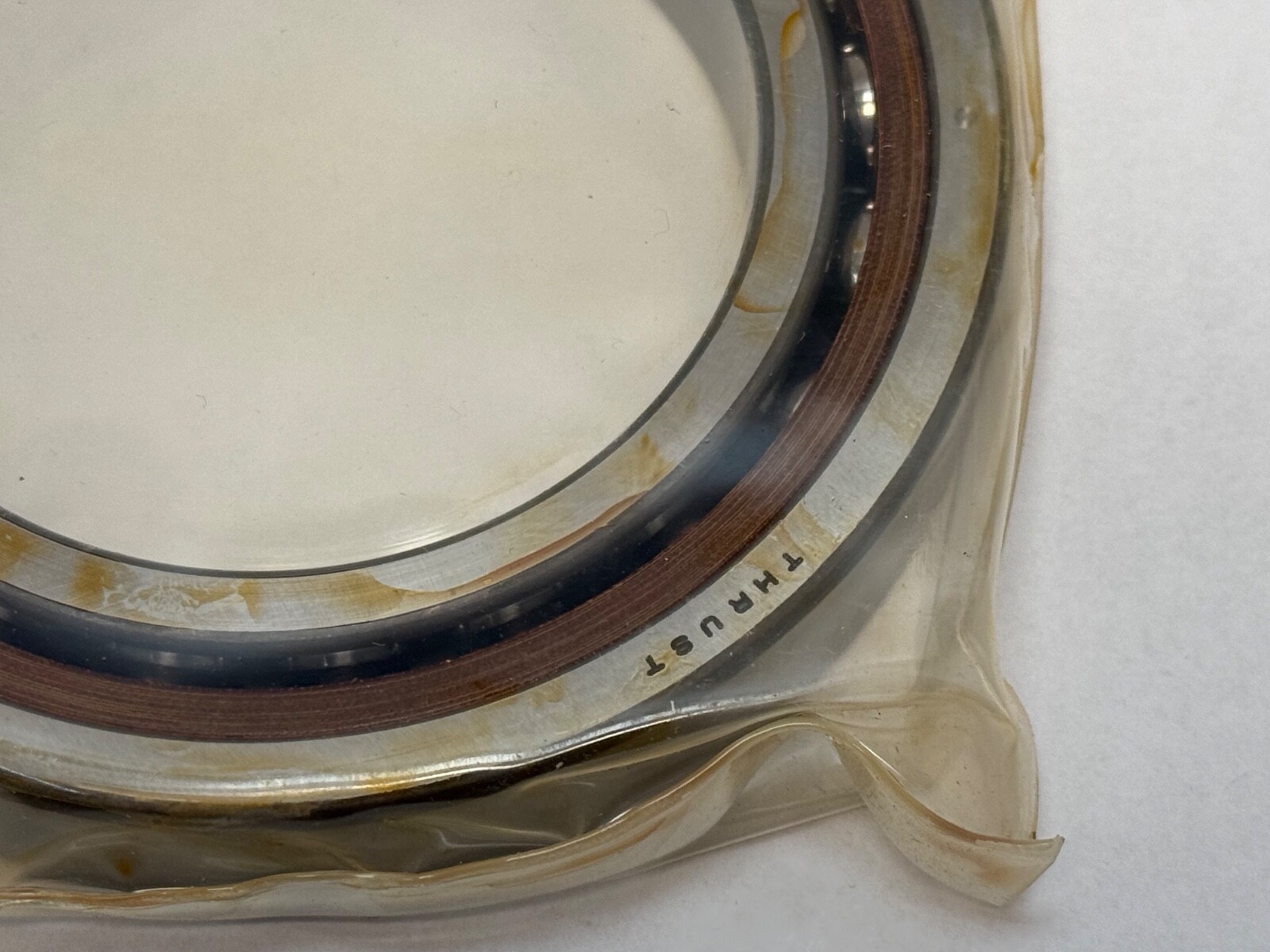

Barden 115HDL angular contact ball bearing pair, 75 x 115 x 20 mm, 15° contact angle, P4S precision, universal duplex set with light preload.
List Price
$124.84
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Barden |
|---|---|
| MPN | 115HDL |
| Model | 115HDL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 115 mm |
| Width | 20 mm |
| Material | 100Cr6 steel |
|---|---|
| Preload | Light (310 N) |
| Mpn Variants | 115HDL, 115-HDL, 115 HDL, 115H |
| Compatible With Replaces | Barden 115H (single bearing) |
| Precision Class | P4S |
| Additional Attributes | Radius r1 max: 1.00 mm; Radius r2 max (non-thrust side): 0.50 mm; Preload Medium: 755 N; Preload Heavy (Barden S): 1,510 N; Axial rigidity L/M/S: 87.02 / 128.44 / 179.07 N/µm; Unloading force L/M/S: 972.77 / 2,526.29 / 5,401.78 N |
| Closure Type | Open |
| Cage Type | One-piece halo |
| Dynamic Load Rating | 50,686 N |
| Static Load Rating | 52,998 N |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 13,000 rpm grease; 19,000 rpm oil |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal duplex (DB, DF or DT) |
| Bearing Material | 100Cr6 steel rings, steel balls |
| Cross Reference 1 | FAG B7015-C-T-P4S-DUL |
|---|---|
| Cross Reference 2 | SKF 7015 CD/P4ADGA |
| Cross Reference 3 | NSK 7015CTRDULP4 |
| Cross Reference 4 | Fafnir 2MM9115WI DUL |
Barden 115HDL is a super precision angular contact ball bearing set in the ISO 7015 envelope, supplied as a universal duplex pair with light preload. Bore Diameter: 75 mm. Outside Diameter: 115 mm. Overall Width: 20 mm per bearing. Contact Angle: 15°. Precision Class: P4S.
115 — Barden 100-series bore code 15, 75 mm bore, ISO 70 dimension series.
H — Barden H spindle bearing design with a one-piece phenolic halo cage, 15° contact angle.
D — universal duplex matching; the pair mounts back-to-back, face-to-face or tandem.
L — light preload, 310 N per Barden.
Dynamic Load Rating: 50,686 N. Static Load Rating: 52,998 N. Limiting Speed: 13,000 rpm grease; 19,000 rpm oil. Cage Material: Phenolic. Cage Type: One-piece halo. Closure Type: Open. Bearing Material: 100Cr6 steel rings, steel balls. Preload: Light (310 N). Axial rigidity at light preload: 87.02 N/µm. Unloading force at light preload: 972.77 N. The 15° angle favours speed and radial stiffness in machine tool spindles.
Radius r1 max: 1.00 mm. Radius r2 max, non-thrust side: 0.50 mm. Barden preload levels for this size: Light 310 N, Medium 755 N, Heavy (Barden S) 1,510 N.
Unit Quantity: 2 Pcs, a matched universal duplex pair.
Same envelope, angle and class: FAG B7015-C-T-P4S-DUL, SKF 7015 CD/P4ADGA, NSK 7015CTRDULP4, Fafnir 2MM9115WI DUL.
