Super-precision angular contact ball bearing, 65 x 100 x 18 mm, 15° contact angle, light preload, phenolic outer-land-riding cage, ABEC 7/9.
List Price
$302.06
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9113WICRDUL |
| GTIN | 087796072640 |
| Model | 7013C-T-P4S-DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 100 mm |
| Width | 18 mm |
| Material | Chrome steel |
|---|---|
| Series | 9100 |
| Preload | Light |
| Cage Type | CR - Phenolic Outer Land Riding Cage |
| Dynamic Load Rating | 39,800 N per bearing |
| Static Load Rating | 32,600 N per bearing |
| Precision Rating | ISO P4S (ABEC 7/9) |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Limiting Speed | 12,700 rpm grease; 25,400 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Base Number | 2MM9113WI |
| Total Width | 36 mm |
| Bore Shaft Size | 65 mm |
| Mpn Variants | 2MM9113WI-DUL, 2MM9113WIDUL, 2MM9113WICRDUL, 2MM-9113-WI-CR-DUL, 2MM9113WI DUL, 7013C-T-P4S-DUL |
| Arrangement Configuration | Universally ground duplex pair |
| Precision Class | ABEC 7/9 (ISO P4S) |
| Dynamic Load Rating C1 | 39,800 N per bearing |
| Additional Attributes | Ball type: steel. Shaft backing shoulder diameter: 72.1 mm. Housing backing shoulder diameter: 93.2 mm. Maximum shaft fillet radius: 1 mm. Outer ring to-clear radius: 1 mm. ISO dynamic radial rating per row: 36,200 N. |
| Lubricant | Grease or oil |
| Mounting Arrangement | Universal duplex - back-to-back, face-to-face or tandem |
| Bearing Material | Chrome steel |
| Industry Terms | Machine tool spindle bearing; super precision angular contact; precision spindle bearing; duplex bearing pair |
| Common Misspellings | Fafner; Fafnier; Timkin; 2MM 9113 WI; 2MM9113W1 |
| Application Types | Machine tool spindles; grinding spindles; high-speed rotary tables |
| Closure Type | Open |
| Cross Reference 1 | Timken world PN 7013C-T-P4S-DUL |
|---|

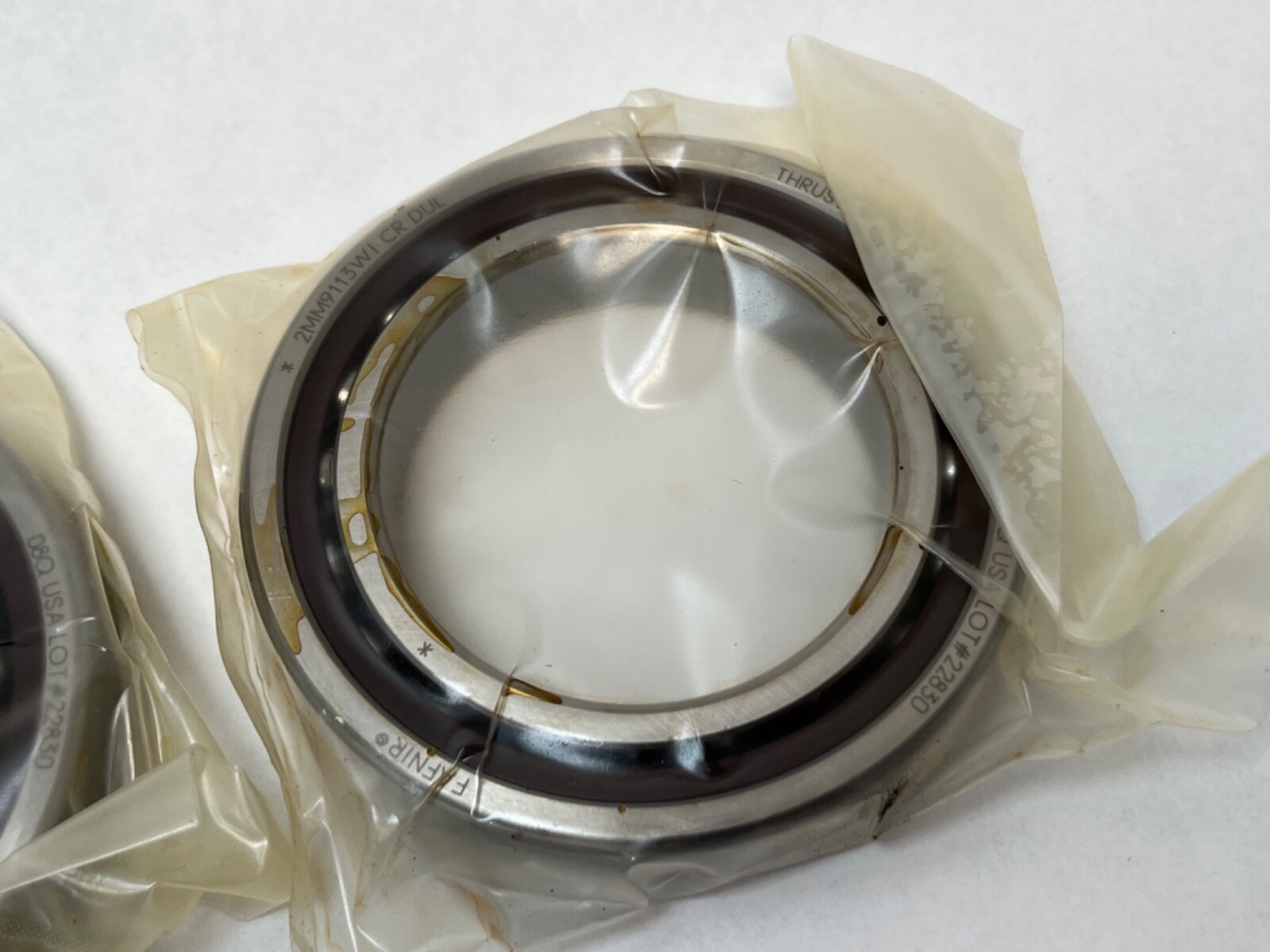

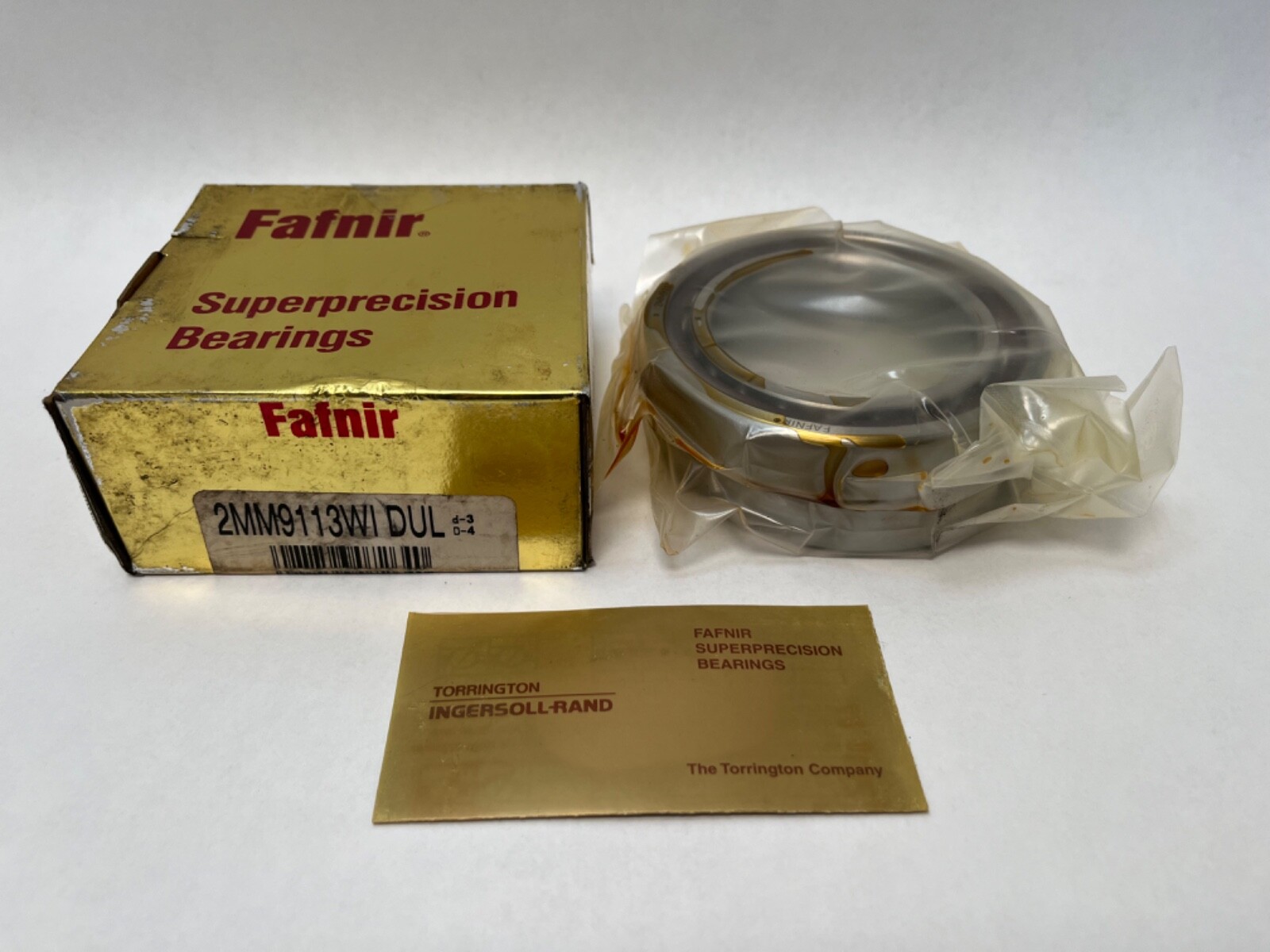

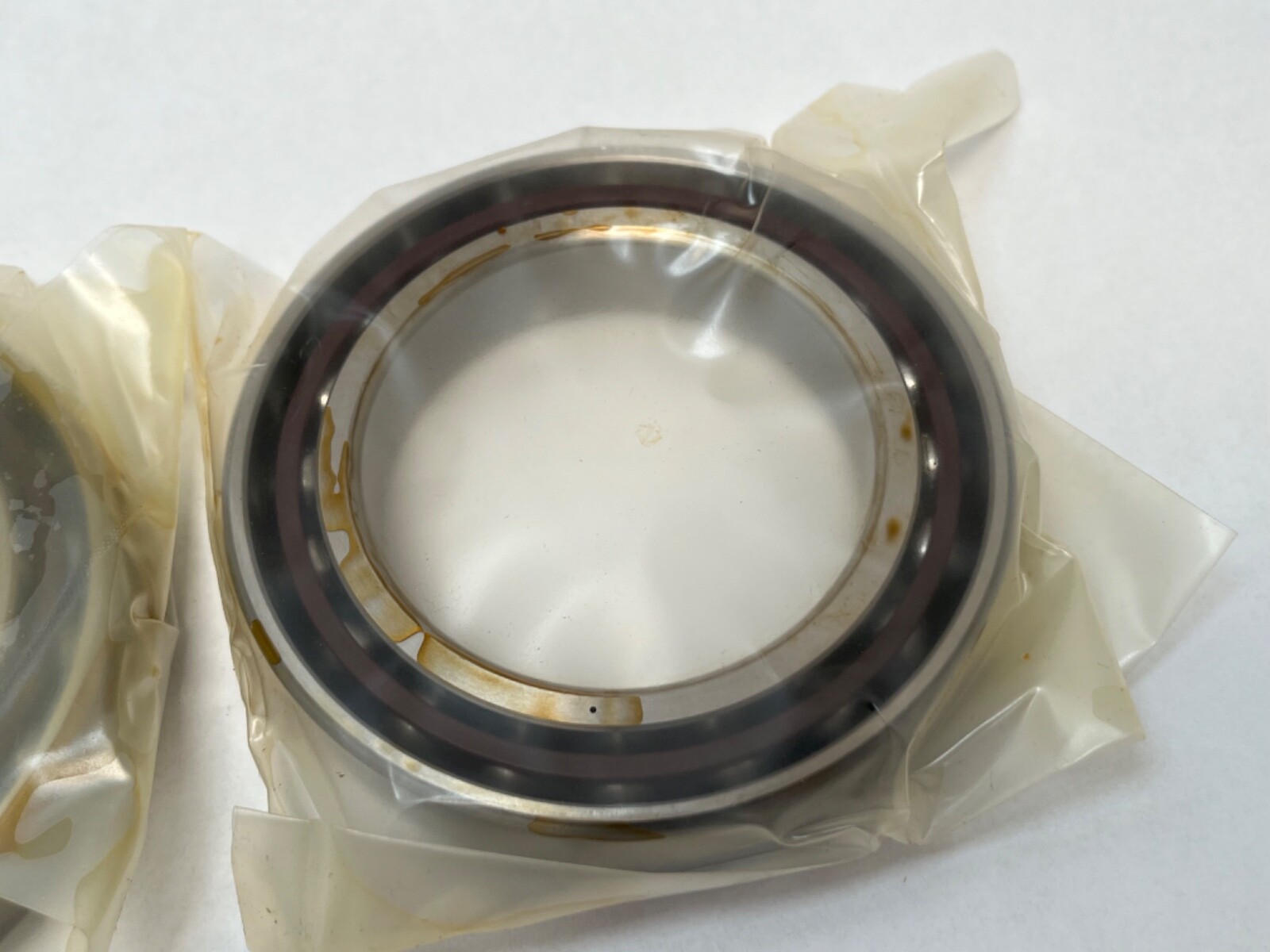

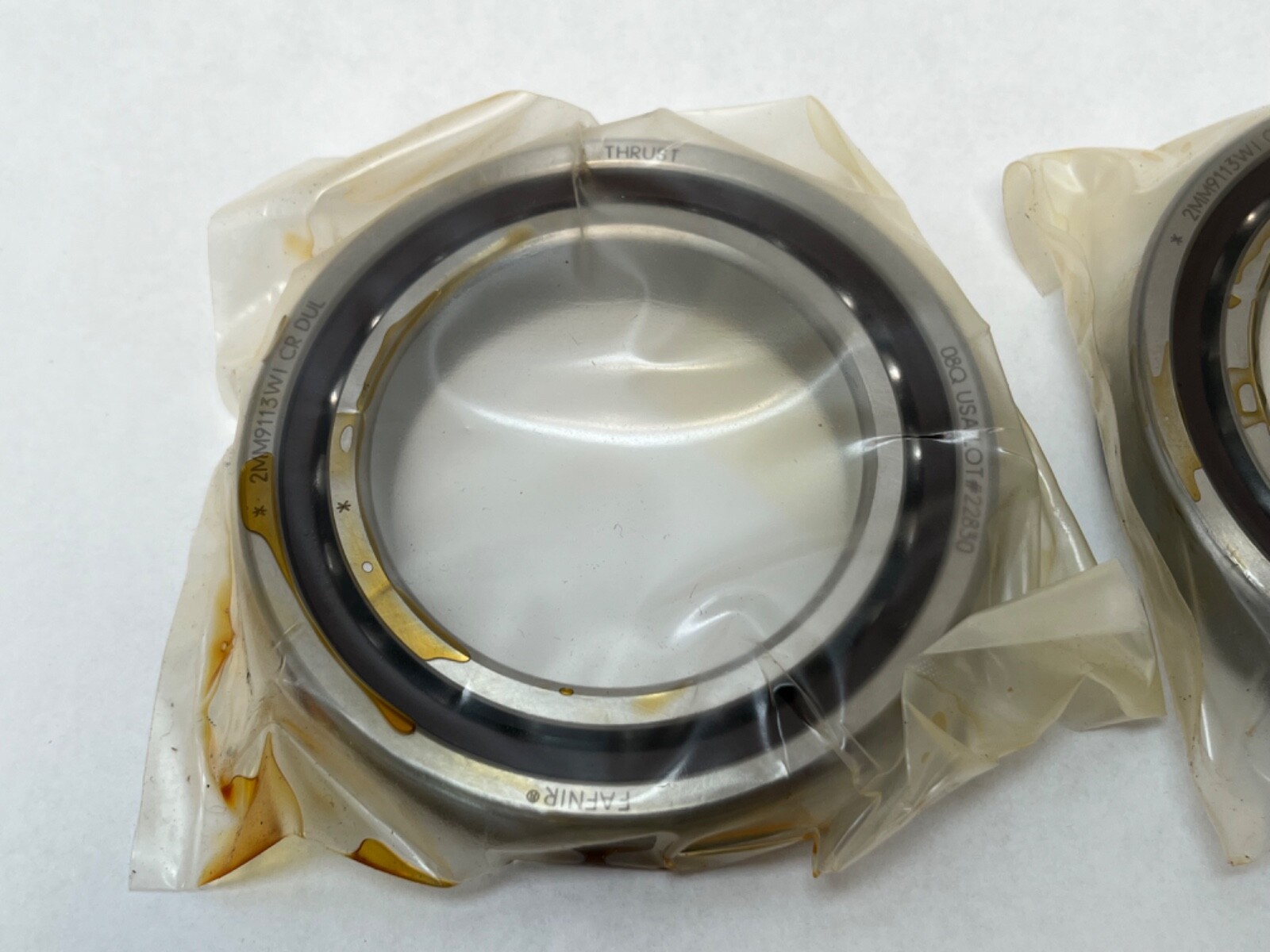

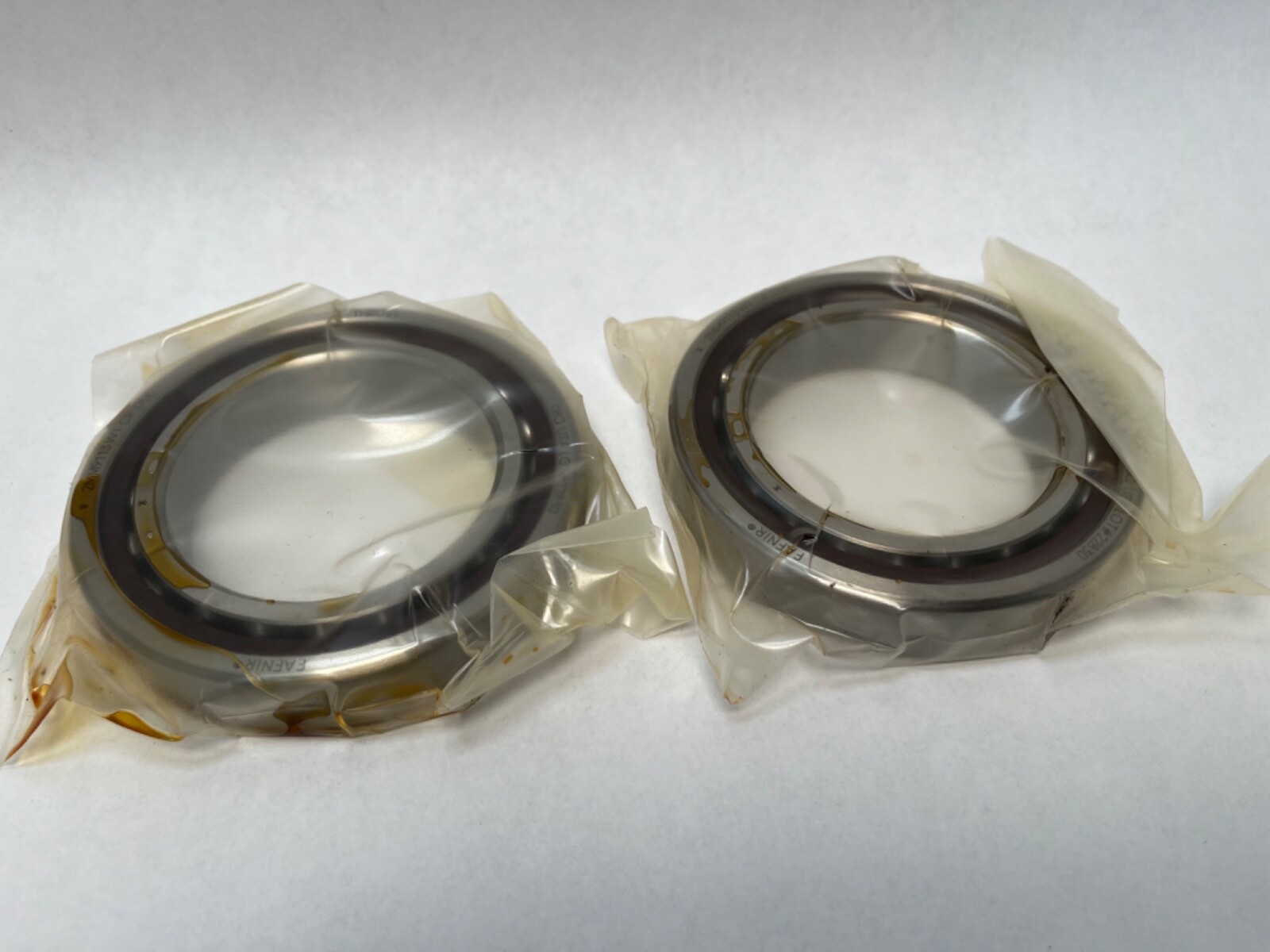

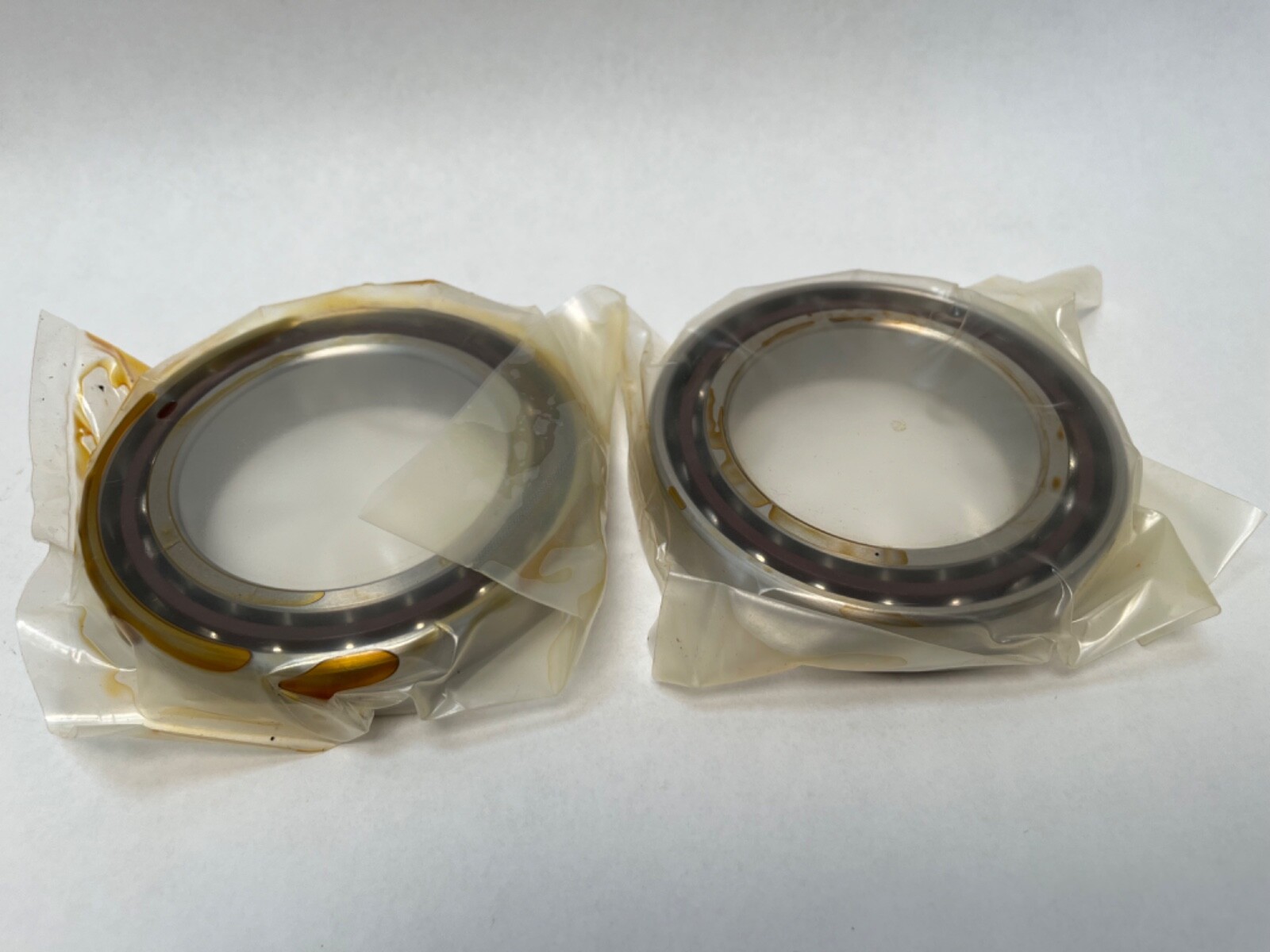

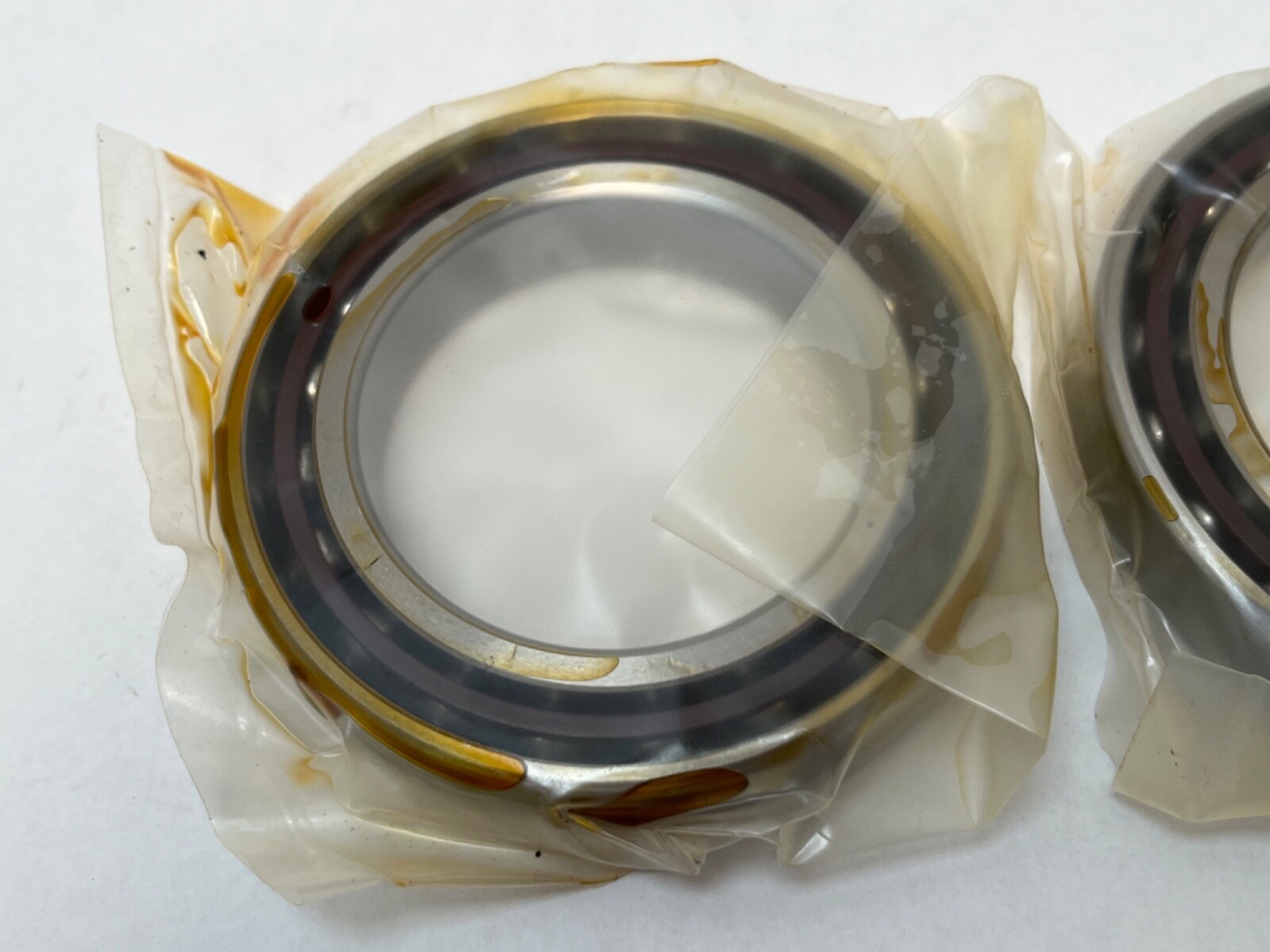

Fafnir 2MM9113WICRDUL super-precision angular contact ball bearing, built by Timken, supplied as a universally ground duplex pair. Unit Quantity: 2 Pcs. Bore Diameter: 65 mm. Outside Diameter: 100 mm. Width: 18 mm per bearing. Total Width: 36 mm. Contact Angle: 15°. Series: 9100WI. Timken world part number: 7013C-T-P4S-DUL.
2MM — Fafnir super-precision prefix; 15° contact angle, precision ISO P4S (ABEC 7/9).
9113 — 9100WI series size, ISO 7013, 65 x 100 x 18 mm.
WI — low shoulder on both rings.
CR — phenolic outer-land-riding cage.
DU — universally ground duplex pair.
L — light preload.
Dynamic Radial Load Rating (C1): 39,800 N per bearing. Static Radial Load Rating (C0): 32,600 N per bearing. ISO Dynamic Radial Rating per row: 36,200 N. Limiting Speed: 12,700 rpm grease; 25,400 rpm oil. Precision Class: ISO P4S (ABEC 7/9). Preload: Light. Cage Type: CR – Phenolic Outer Land Riding Cage. Cage Material: Phenolic. Rolling Elements: Steel balls. Number Of Rows: 1. Closure Type: Open. Lubricant: grease or oil.
Bore Type: Straight. Shaft Backing Shoulder Diameter: 72.1 mm. Housing Backing Shoulder Diameter: 93.2 mm. Maximum Shaft Fillet Radius: 1 mm. Outer Ring To-Clear Radius: 1 mm. Universally ground pair, mountable back-to-back, face-to-face or tandem.
Timken world part number: 7013C-T-P4S-DUL. Manufacturing part number: 2MM9113WI DUL. Number forms: 2MM9113WIDUL, 2MM-9113-WI-CR-DUL, 2MM9113WICRDUL.
Each bearing is 65 mm bore, 100 mm outside diameter and 18 mm wide, with a 15° contact angle.
DU is a universally ground duplex pair, supplied as 2 Pcs, and L is light preload.
Dynamic radial rating C1 is 39,800 N per bearing, static radial rating C0 is 32,600 N per bearing, and limiting speed is 12,700 rpm on grease and 25,400 rpm on oil.
