RHP7003CTDULP4VSuper-Precision Angular Contact Ball Bearing – 17 mm ID, 35 mm OD, 10 mm Width, Open, 15° Contact Angle, Light Preload, ABEC 7

Product Description

What this part is

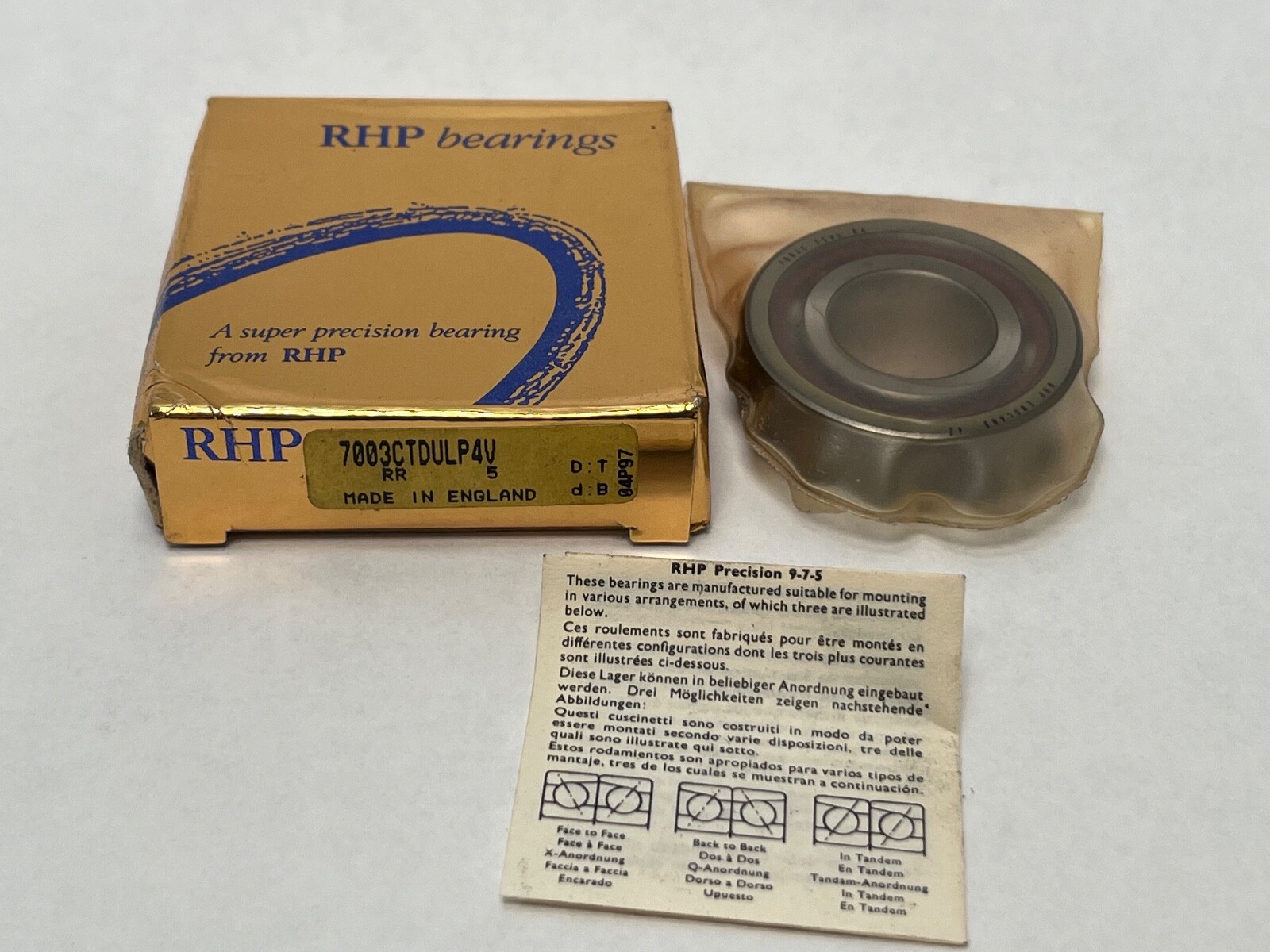

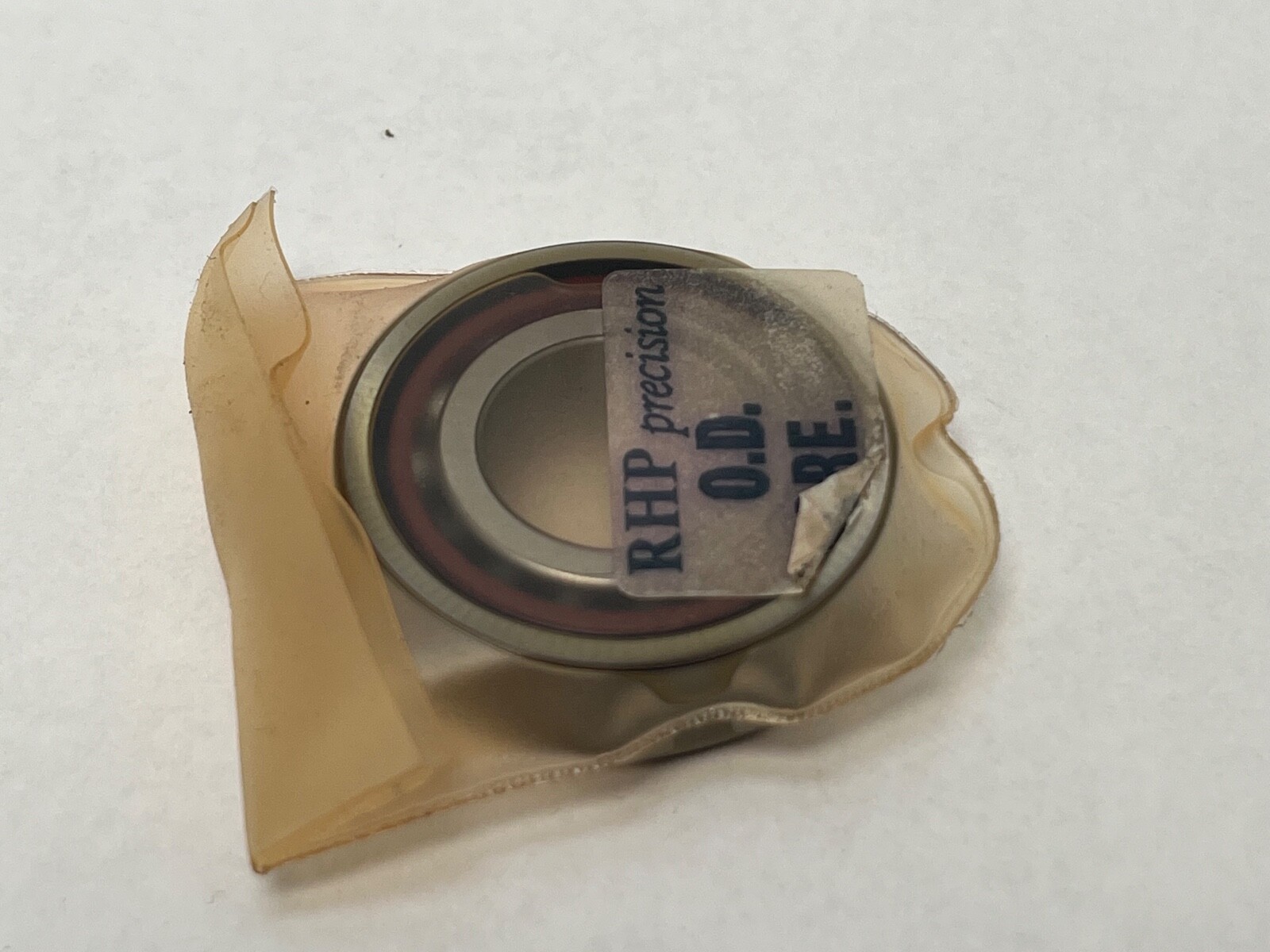

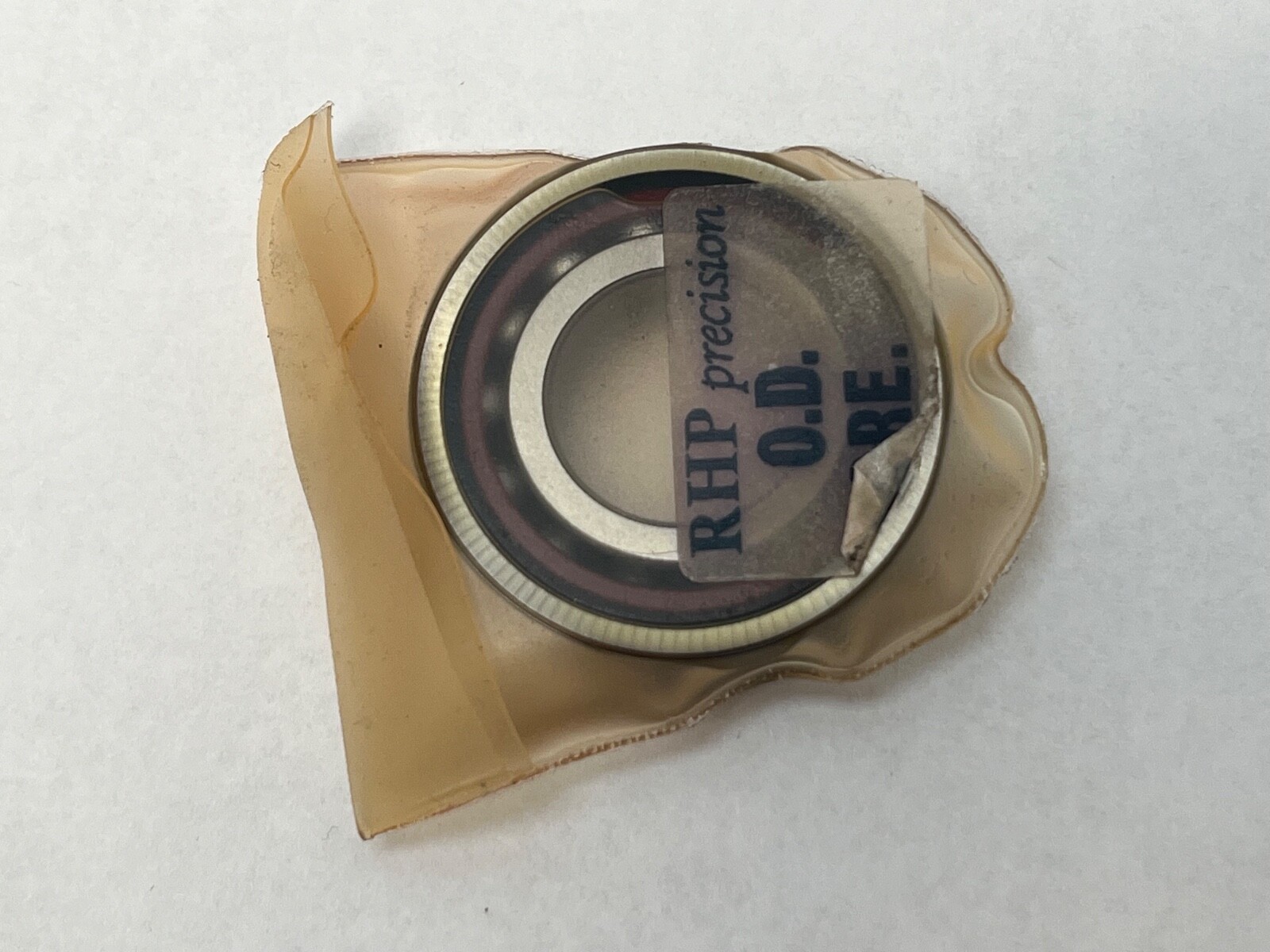

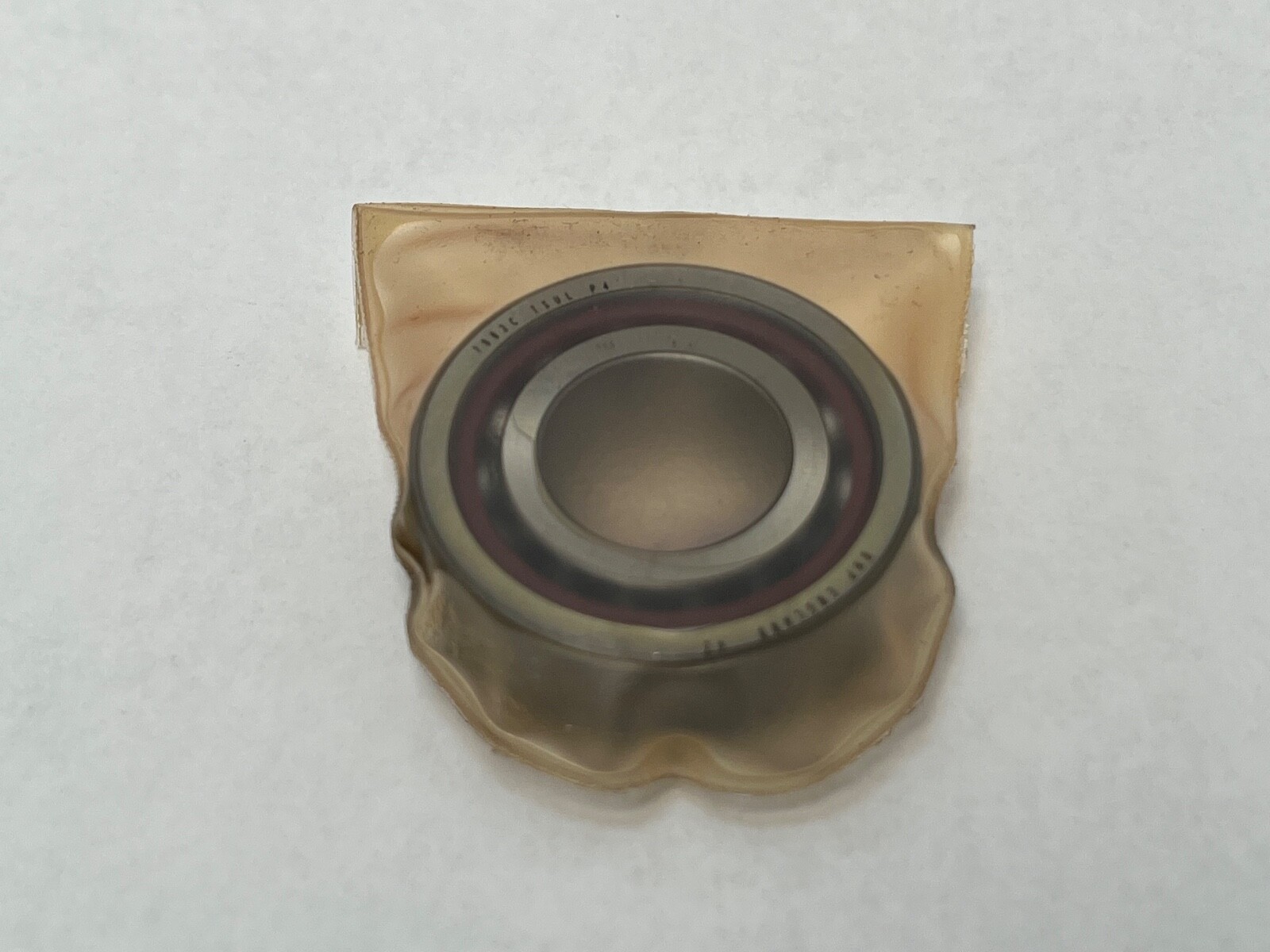

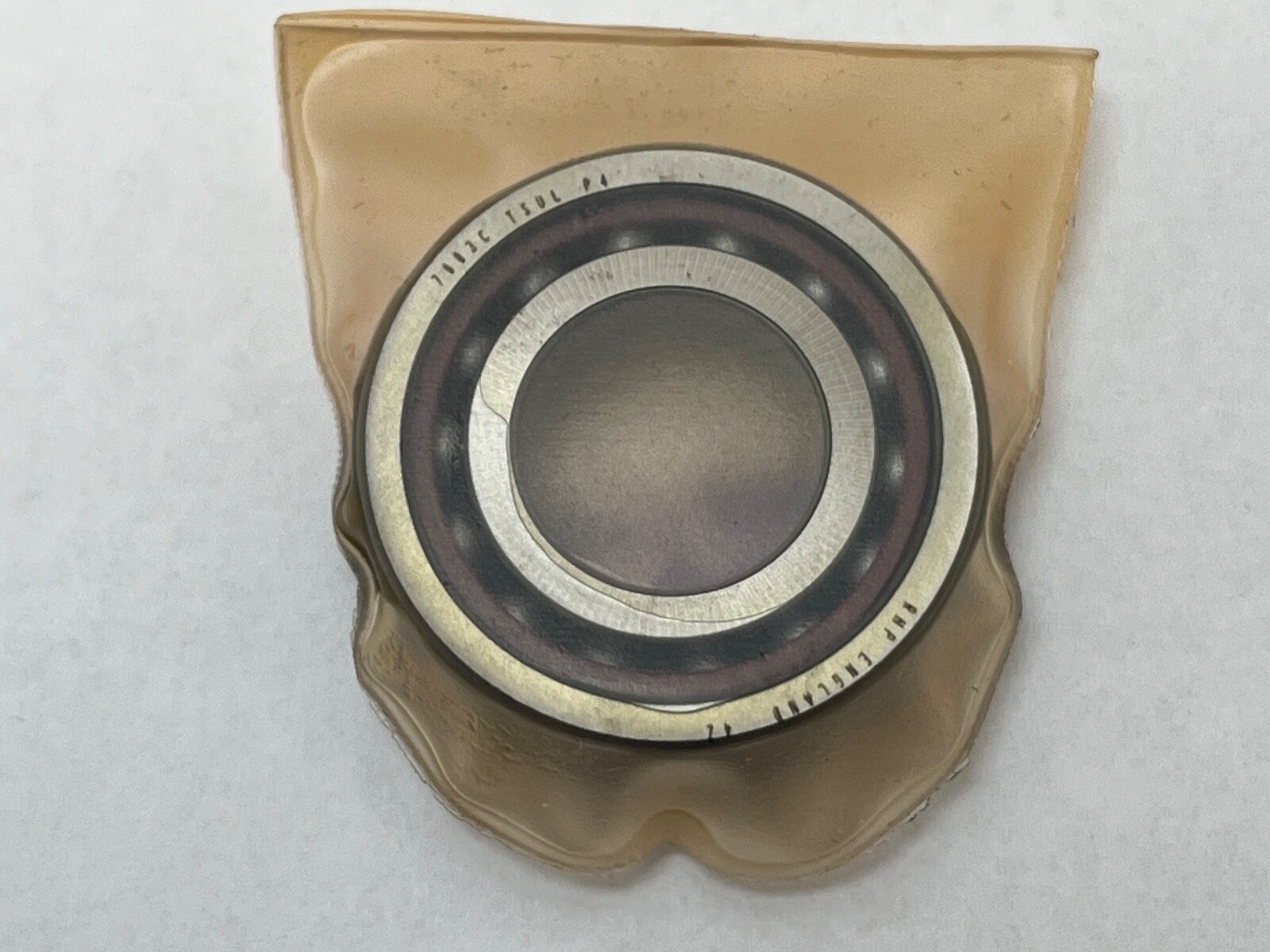

RHP 7003CTSULP4V super-precision single-row angular contact ball bearing with a 15° contact angle, light preload, universal ground faces and a machined phenolic cage. Unit Quantity: 1 Pc.

Decoding the designation

7003 — ISO size code. Bore 17 mm, outside diameter 35 mm, width 10 mm, ISO dimension series 10.

CT — Contact angle 15°, laminated phenolic resin cage.

SUL — Single universal bearing, light preload. Inner and outer rings are the same width and flush ground, so any two bearings pair back-to-back, face-to-face or in tandem at the rated preload.

P4 — Precision Class: P4, equivalent to BS292 EP7, ABEC 7 and ISO Class 4.

Specifications

Bore Diameter: 17 mm. Outside Diameter: 35 mm. Overall Width: 10 mm. Contact Angle: 15°. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Bearing Material: carbon chrome bearing steel to SAE 52100, through hardened and heat treated. Cage Material: laminated phenolic resin. Cage Type: machined, outer-ring guided. Series: 7000. Base Number: 7003. Preload: light. Precision Class: P4. Running Accuracy – Radial And Axial Runout: P4. Lubricant: grease or oil. Item Weight: 0.040 kg (0.09 lb).

Dynamic Load Rating: 6.6 kN (1,484 lbf). Static Load Rating: 3.8 kN (854 lbf). Limiting Speed: 64,100 rev/min on oil/air lubrication and 39,600 rev/min on grease. Effective load centre: 8.5 mm. Maximum Operating Temperature: 120 °C. Light preload develops 29 N of axial preload and 21 N/µm of axial stiffness in a back-to-back pair. P4 accuracy holds inner ring radial runout to 2.5 µm.

Dimensions and mounting

Shaft abutment diameter d1 min: 19.5 mm. Housing abutment diameter D1 max: 32.5 mm. Housing abutment D2 max: 33.8 mm. Bearing fillet radius r min: 0.3 mm. Fillet radius r1 min: 0.15 mm. Internal free volume: 1.9 cm³. Pitch circle diameter for lubrication jets: 23.5 mm.

Compatibility and replacement

Same-envelope 15° super-precision executions in other schemes: SKF 7003 CD/P4A, Fafnir 2MM9103WI and NSK 7003CTRSU. Searchable forms of the number: 7003CTSULP4V, 7003CTDULP4V, 7003-C-T-DUL-P4V, 7003 C T DUL P4V, 7003C.

Frequently asked questions

What are the size and contact angle?17 mm bore, 35 mm outside diameter, 10 mm width, with a 15° contact angle.

What are the speed limits?Limiting speed is 64,100 rev/min on oil/air lubrication and 39,600 rev/min on grease.

What are the load ratings?Dynamic load rating 6.6 kN (1,484 lbf); static load rating 3.8 kN (854 lbf).
