Angular contact ball bearing, 60 x 110 x 22 mm, 25° contact angle, machined bronze cage, straight bore, three-piece universally ground set.
List Price
$266.95
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing – 60 mm ID x 110 mm OD x 22 mm, 40° Contact Angle, Maximum Capacity, Pressed Brass Cage$49.69
Angular Contact Ball Bearing – 60 mm ID, 110 mm OD, 22 mm Width, Open, 40° Contact Angle, Pressed Brass Cage, Maximum Capacity$59.07
Angular Contact Ball Bearing - 60 mm ID, 110 mm OD, 22 mm Width, Open, 40° Contact Angle, Pressed Brass Cage, Universal Matching$73.20
Super Precision Angular Contact Ball Bearing - 60 mm ID, 110 mm OD, 22 mm Width, Open, 15° Contact Angle, Medium Preload, ABEC 7 / P4$73.64| MFR / Brand | Fafnir |
|---|---|
| MPN | 3M212WIMBR |
| Model | 3M212 WI MBR TRI / ABEC3 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Lubricant | Oil/Grease |
| Base Number | 3M212WI |
| Overall Width | 22 mm |
| Mpn Variants | 3M212WIMBR / 3-M-212-WI-MBR / 3M212 WI MBR / 3M212WI MBR TRI |
| Arrangement Configuration | Triple set (TRI), universally ground, stackable DB / DF / DT |
| Precision Class | ABEC 3 / P6 |
| Cage Type | Machined |
| Precision Rating | ABEC 3 / P6 |
| Rolling Elements | Ball |
| Cage Material | Bronze |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Design Units | Metric |
| Bearing Material | Bearing Steel |

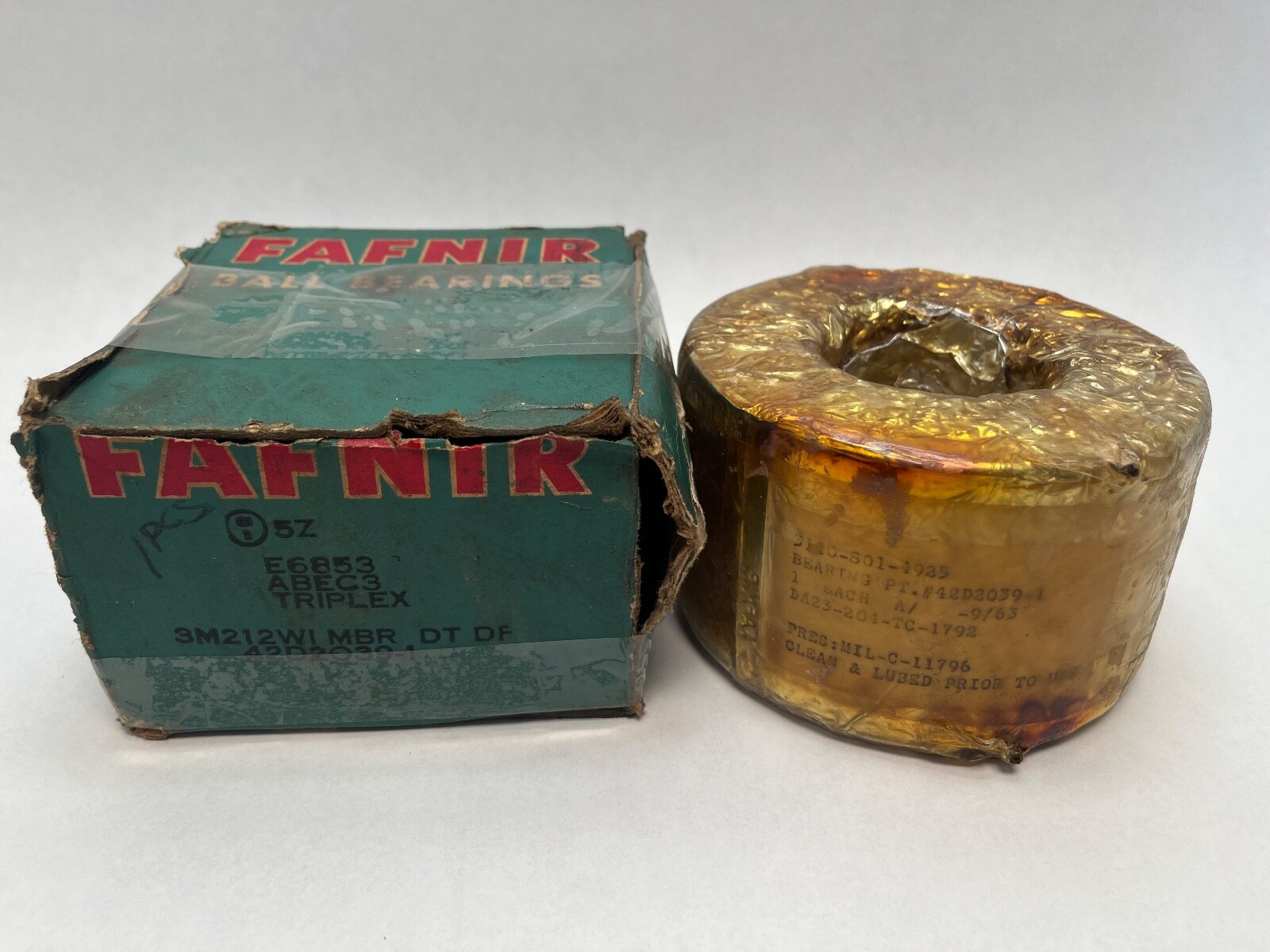

Fafnir 3M212WI-MBR angular contact ball bearing with a machined bronze cage, supplied as a three-piece universally ground set. Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm. Contact Angle: 25°. Precision Class: ABEC 3 / P6. Cage Material: Bronze. Cage Type: Machined. Rolling Elements: Ball. Bearing Material: Bearing Steel. Bore Type: Straight. Closure Type: Open. Number Of Rows: 1. Design Units: Metric. Series: 200WI. Base Number: 3M212WI.
3 — 25° contact angle on the Fafnir angular contact scheme.
212 — 200WI series, ISO 72-series envelope, 60 mm bore, giving the 7212 boundary dimensions.
WI — low shoulder on both rings.
MBR — machined bronze cage.
TRI — triple set, universally ground so the faces are flush.
Contact Angle: 25°. A 25° angle carries more thrust per row than a 15° execution on the same 60 x 110 x 22 mm envelope, and suits spindles where axial stiffness is the governing requirement.
Cage Material: Bronze. Cage Type: Machined. A machined bronze cage tolerates higher operating temperature and marginal lubrication than a polymer or phenolic cage, and holds its pocket geometry under thermal cycling. It is the execution reached for on hot spindles and on oil-mist and circulating-oil systems.
Precision Class: ABEC 3 / P6, from the carton designation.
Unit Quantity: 3 Pcs. The three bearings are universally ground, so the set can be stacked back-to-back (DB), face-to-face (DF) or in tandem (DT) to suit the load direction, and any two faces butt flush without shimming.
The MBR machined bronze cage is a Fafnir-specific execution, so the Fafnir number is the designation to specify: 3M212WI-MBR identifies the bronze-cage build exactly. Searchable forms: 3M212WIMBR, 3-M-212-WI-MBR, 3M212 WI MBR, 3M212WI MBR TRI.
