Maximum-capacity angular contact ball bearing, 60 x 110 x 22 mm, 40 degree contact angle, open, one-piece pressed brass cage, high thrust capacity.
List Price
$59.07
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 7212WN |
| GTIN | 087796044098 |
| Model | 7212-WN |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Material | Chrome bearing steel |
|---|---|
| Series | 7200 |
| Lubricant | Grease or oil |
| Base Number | 7212 |
| Common Misspellings | 7212 W N, 7212WM, 7211W, 7212WN Fafnir bearing |
| Overall Width | 22 mm |
| Mpn Variants | 7212WN, 7212-WN, 7212 WN, 7212WNBRG |
| Dynamic Load Rating C1 | 63,000 N |
| Cage Type | One-piece, pressed, ball-piloted |
| Dynamic Load Rating | 63,000 N |
| Static Load Rating | 44,400 N |
| Rolling Elements | Ball |
| Item Weight | 0.835 kg (1.84 lb) |
| Cage Material | Brass |
| Limiting Speed | 3,500 rpm grease; 4,700 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 40° |
| Design Units | Metric |
| Bearing Material | Chrome bearing steel |
| Part Number | 7212WN |
| Closure Type | Open |
| Cross Reference 1 | SKF 7212 BECBM |
|---|---|
| Cross Reference 2 | FAG 7212-B-XL-MP |
| Cross Reference 3 | NSK 7212B |
| Cross Reference 4 | NTN 7212B |
| Cross Reference 5 | Koyo 7212B |
| Cross Reference 6 | RHP 7212 |
| Cross Reference 7 | MRC 7212P |
| Cross Reference 8 | SNR 7212B |
| Cross Reference 9 | Fafnir 7212WN MBR (same bearing, machined bronze cage execution) |

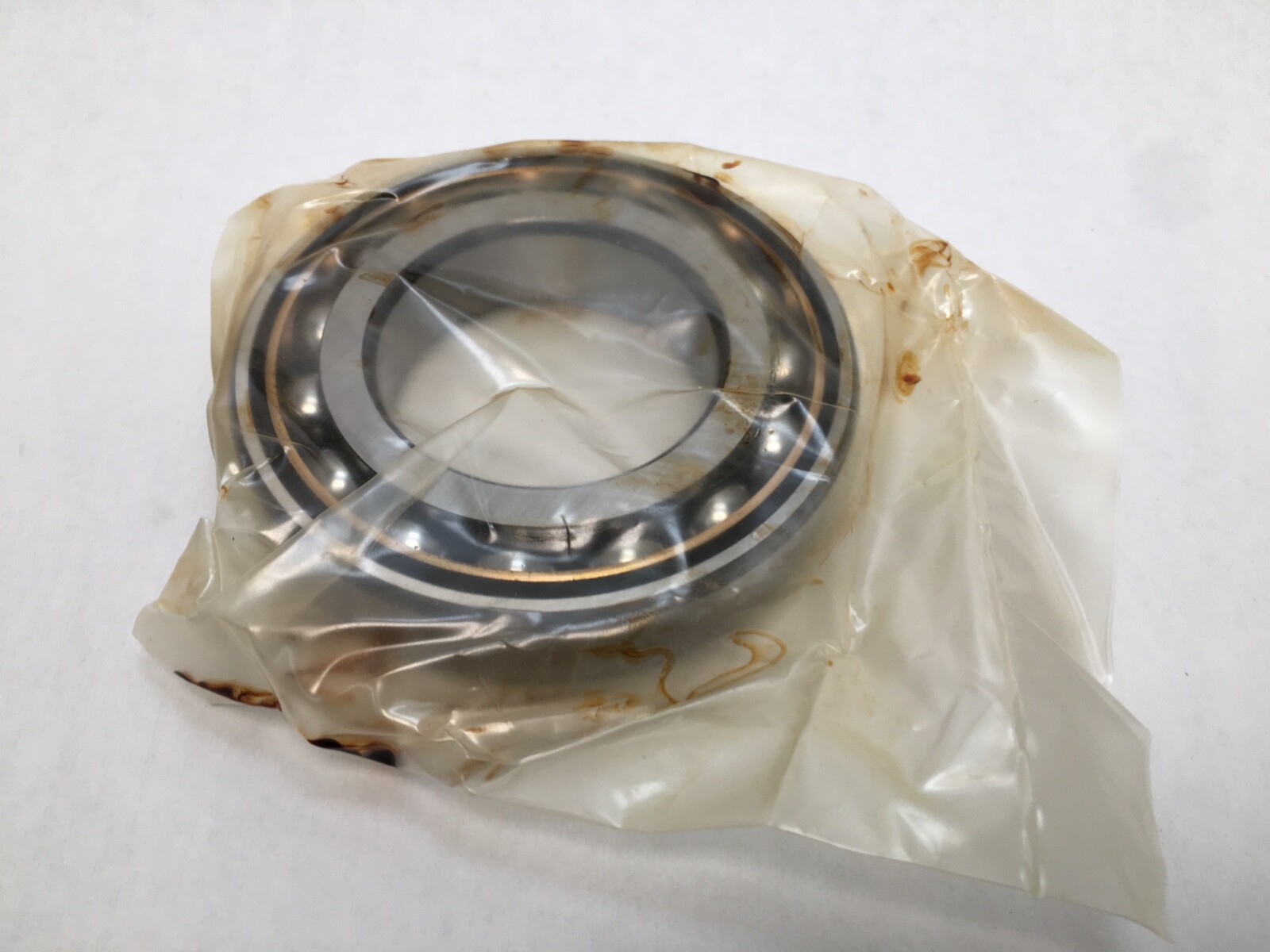

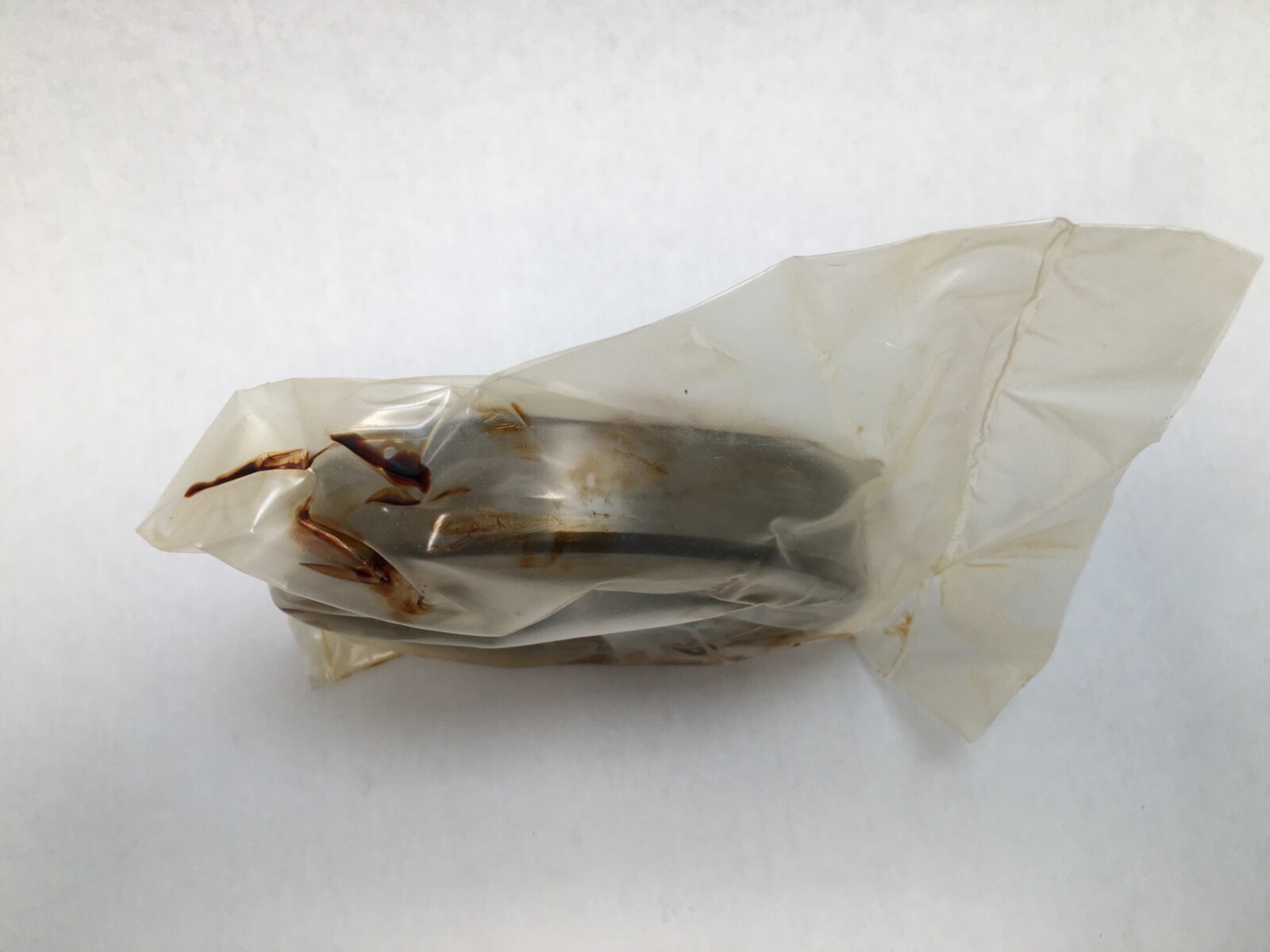

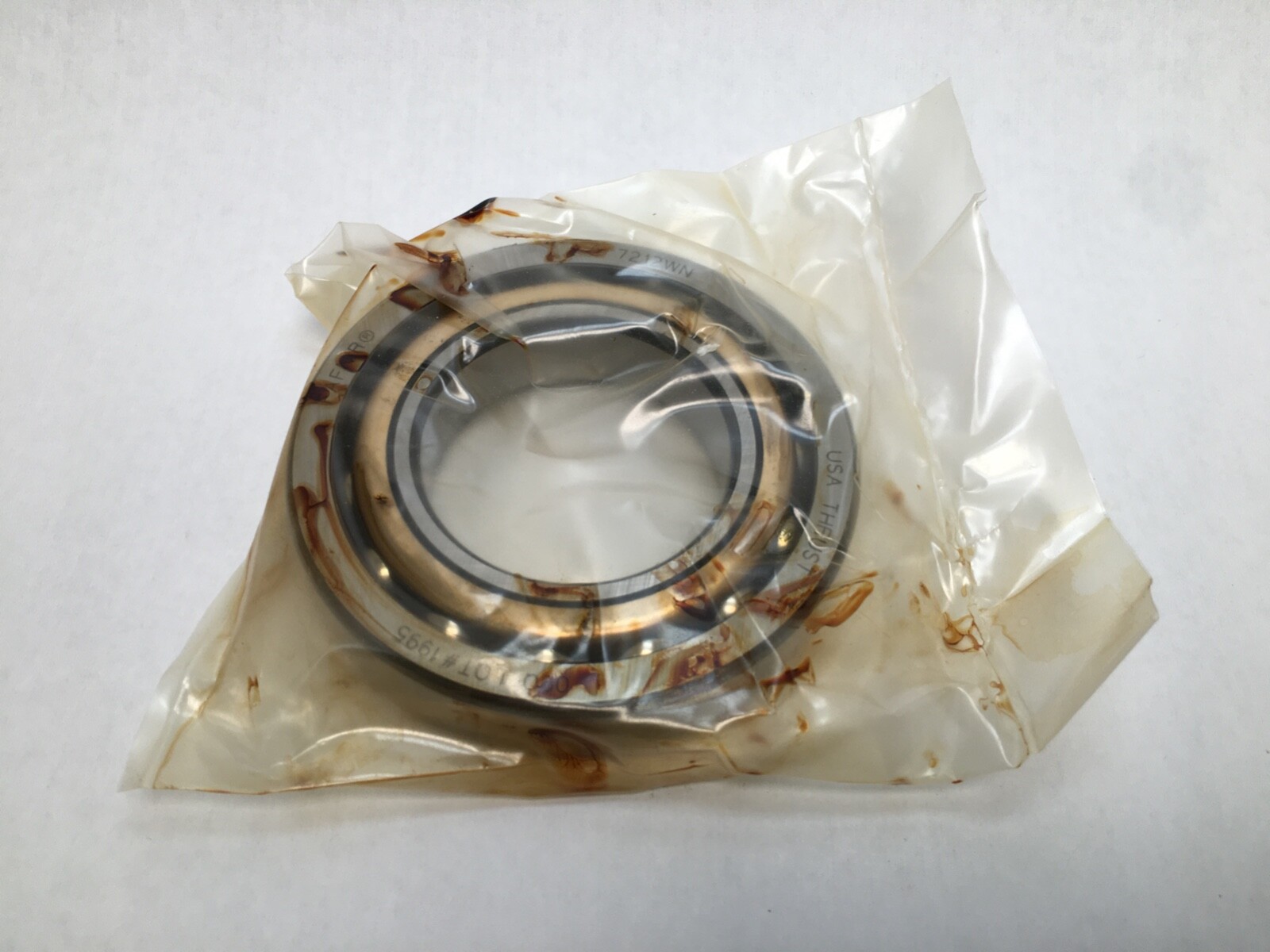

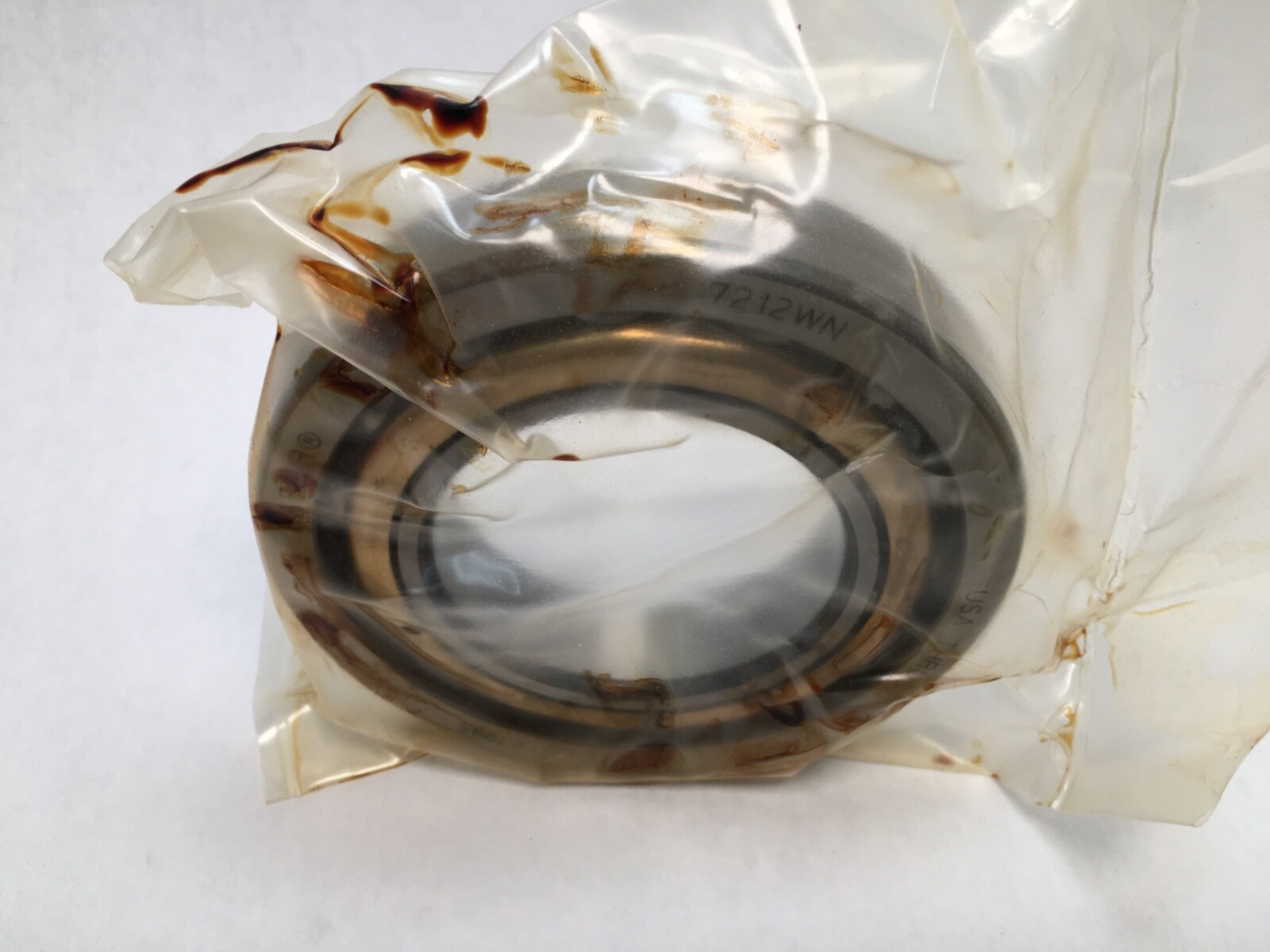

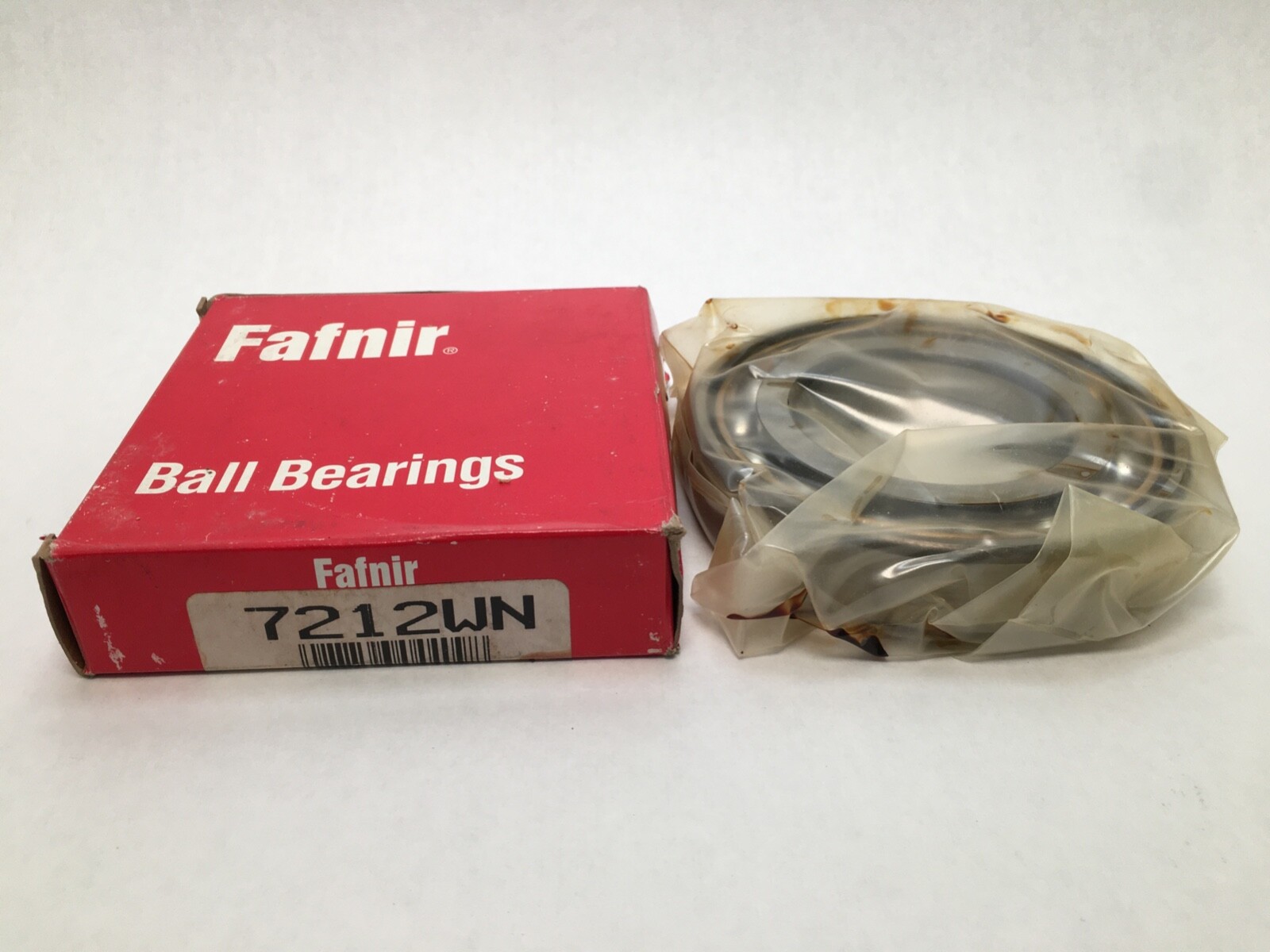

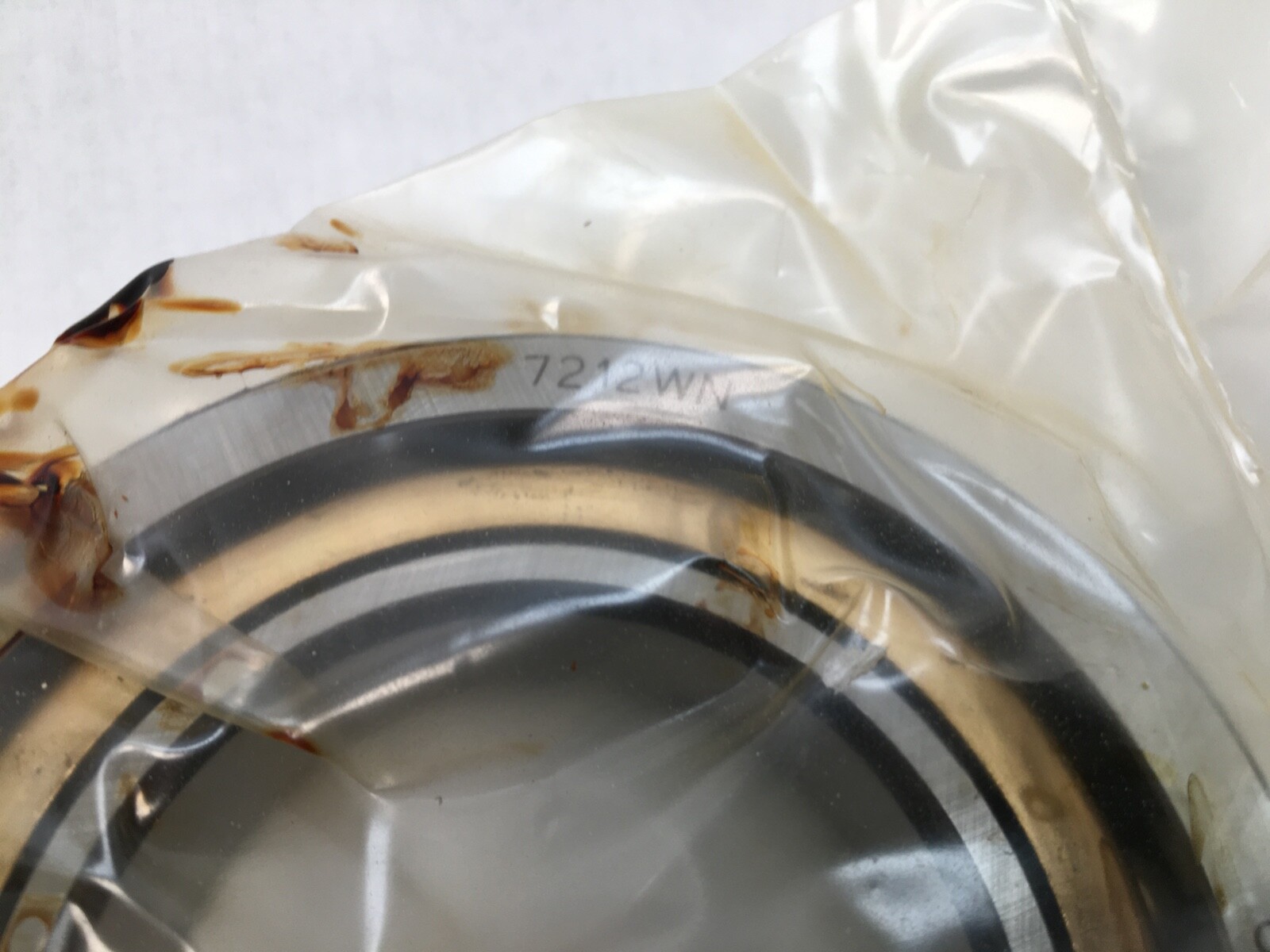

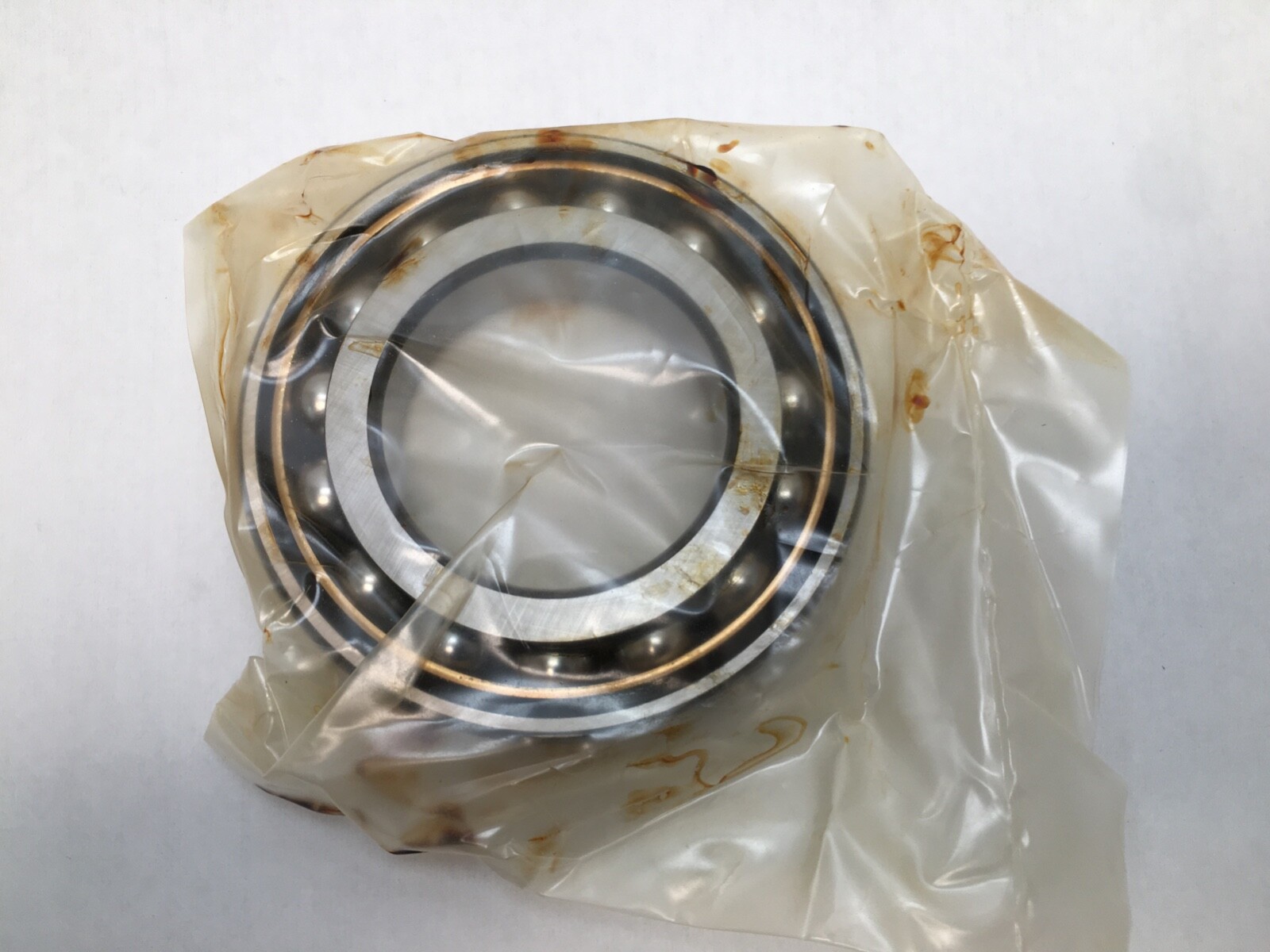

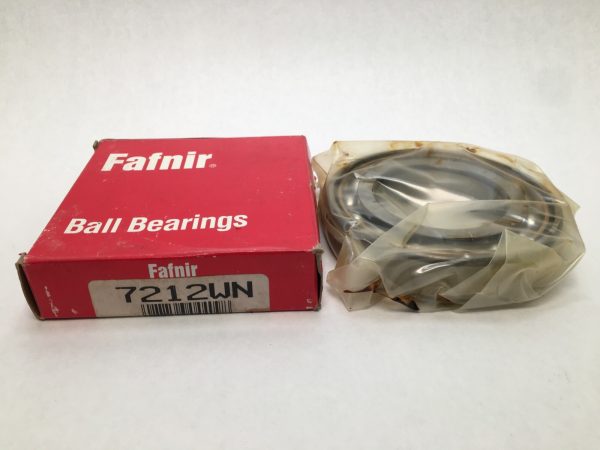

Fafnir 7212WN single-row angular contact ball bearing, 60 x 110 x 22 mm, 40° contact angle, open, one-piece pressed brass cage, maximum-capacity (filling notch) design. Built by The Timken Company. One single bearing.
7212 — 60 mm bore in the ISO 72 medium section, angular contact geometry.
WN — 40° contact angle in Timken’s Fafnir lettering system.
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm. Contact Angle: 40°. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Cage Material: Brass. Cage Type: One-piece, pressed, ball-piloted. Bearing Material: Chrome bearing steel. Series: 7200. Base Number: 7212. Dynamic Load Rating: 63,000 N (14,300 lbf). Static Load Rating: 44,400 N (10,000 lbf). Limiting Speed: 3,500 rpm grease; 4,700 rpm oil. Item Weight: 0.835 kg (1.84 lb). Lubricant: grease or oil. Unit Quantity: 1 Pc. GTIN: 087796044098.

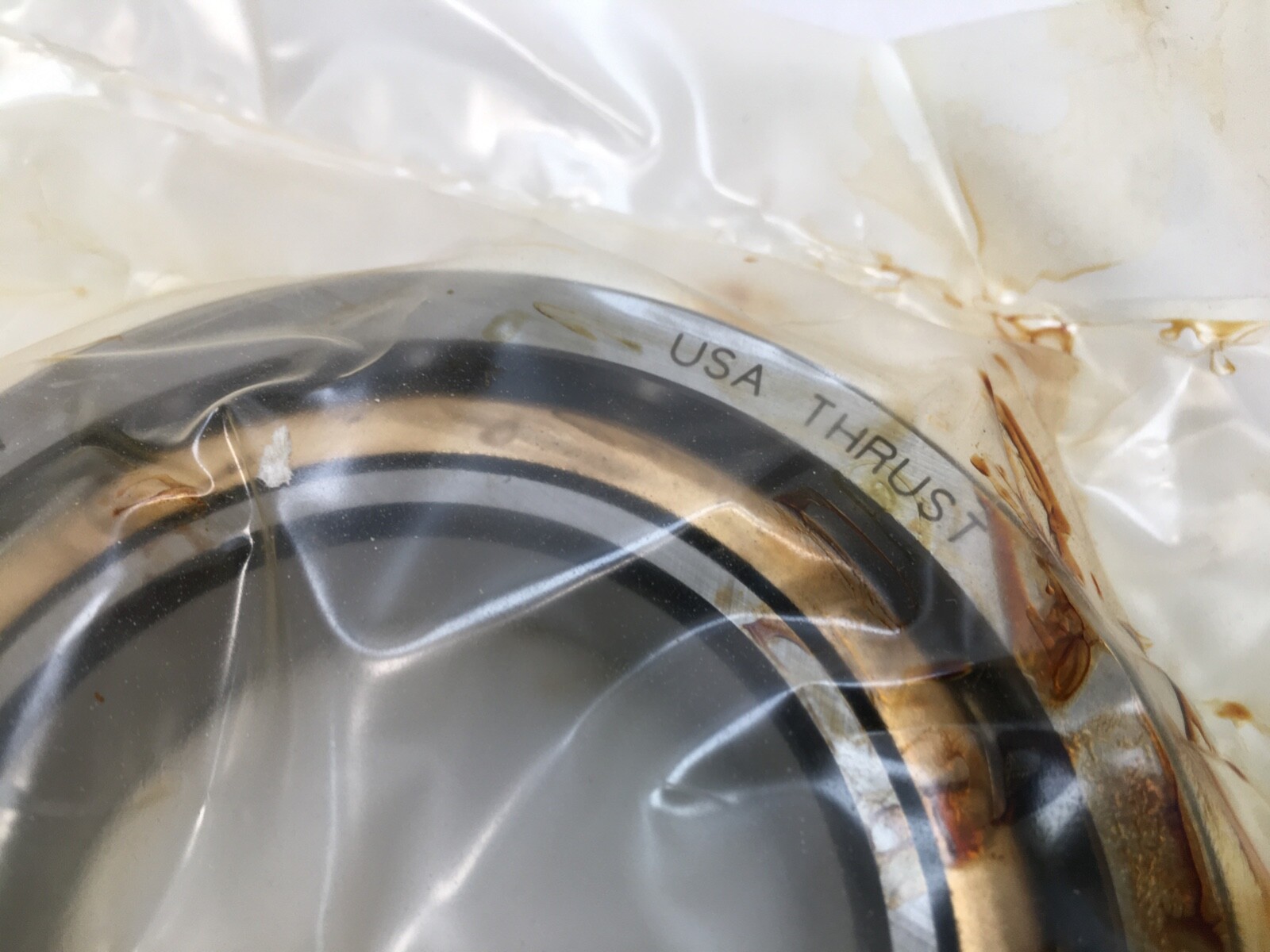

Straight bore. Maximum Shaft Fillet Radius: 1.5 mm. Shaft Backing Shoulder Diameter: 67.80 mm. Housing Backing Shoulder Diameter: 101.10 mm. The high shoulder is on the side that carries the thrust. Timken lists the 7212WN as dimensionally interchangeable with the 200 series deep groove ball bearing on the same envelope.
Same envelope and 40° contact angle: SKF 7212 BECBM, FAG 7212-B-XL-MP, NSK 7212B, NTN 7212B, Koyo 7212B, RHP 7212, MRC 7212P and SNR 7212B. The Fafnir 7212WN MBR is the same bearing with a machined bronze cage. A 6212 shares the 60 x 110 x 22 mm envelope as a Conrad-type deep groove bearing. A 2MM212WI or 3MM212WI shares the envelope at 15° and 25° in super precision.
Contact Angle: 40°, from the WN code in Timken’s Fafnir lettering system.
Dynamic Load Rating: 63,000 N. Static Load Rating: 44,400 N. Limiting Speed: 3,500 rpm grease; 4,700 rpm oil.
GTIN: 087796044098.
