Fafnir 7212WN single row angular contact ball bearing, 60 x 110 x 22 mm, 40 degree contact angle, one-piece pressed brass cage, 63,000 N dynamic load.
List Price
$49.69
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 7212WN |
| GTIN | 087796044098 |
| Model | 7212-WN |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Lubricant | Grease or oil |
| Cage Type | One-piece, ball-piloted |
| Dynamic Load Rating | 63,000 N |
| Static Load Rating | 44,400 N |
| Precision Rating | Not specified |
| Rolling Elements | Ball |
| Item Weight | 0.835 kg (1.84 lb) |
| Cage Material | Pressed brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 40° |
| Internal Clearance | CN |
| Limiting Speed | 3,500 rpm grease; 4,700 rpm oil |
| Base Number | 7212 |
| Industry Terms | maximum capacity angular contact ball bearing; 40 degree angular contact bearing; thrust ball bearing; brass cage angular contact bearing |
| Common Misspellings | Fafner 7212WN; Faffnir 7212WN; 7212 WM; 7212NW |
| Bore Shaft Size | 60 mm |
| Mpn Variants | 7212WN; 7212-WN; 7212 WN; 7212W; 7212 W N |
| Precision Class | Not specified |
| Dynamic Load Rating C1 | 63,000 N |
| Additional Attributes | Maximum Shaft Fillet Radius: 1.5 mm; Shaft Backing Shoulder Diameter: 67.8 mm; Housing Backing Shoulder Diameter: 101.1 mm; maximum capacity design; enhanced raceway finish; refined bore diameter tolerance |
| Design Units | Metric |
| Bearing Material | Chrome steel |
| Part Number | 7212WN |
| Closure Type | Open |
| Cross Reference 1 | SKF 7212 BECBM |
|---|---|
| Cross Reference 2 | FAG 7212-B-XL-MP |
| Cross Reference 3 | NSK 7212B |
| Cross Reference 4 | NTN 7212B |
| Cross Reference 5 | Koyo 7212B |
| Cross Reference 6 | RHP 7212 |
| Cross Reference 7 | MRC 7212P |
| Cross Reference 8 | SNR 7212B |
| Cross Reference 9 | 6212 - deep groove Conrad type, not angular contact |

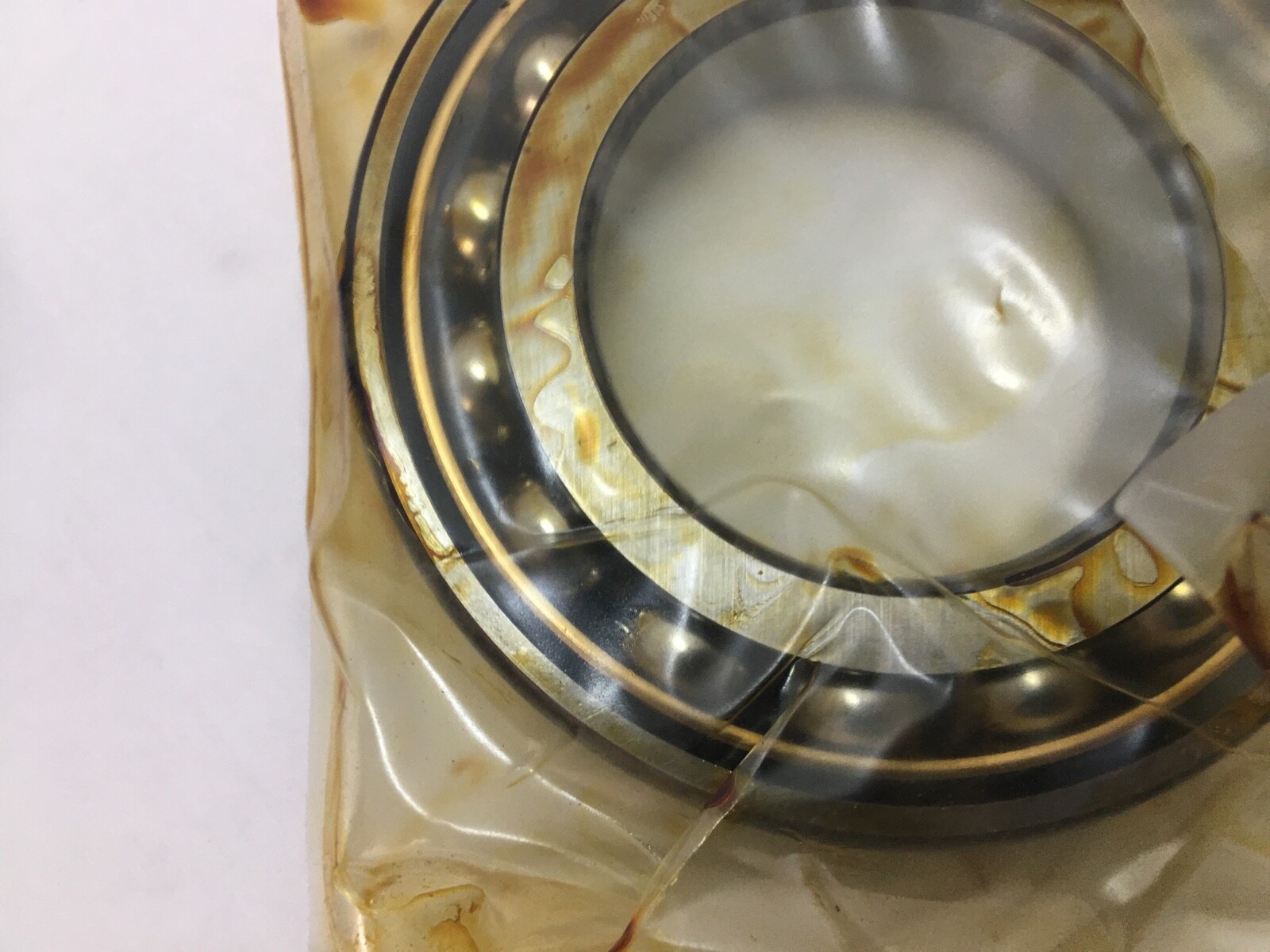

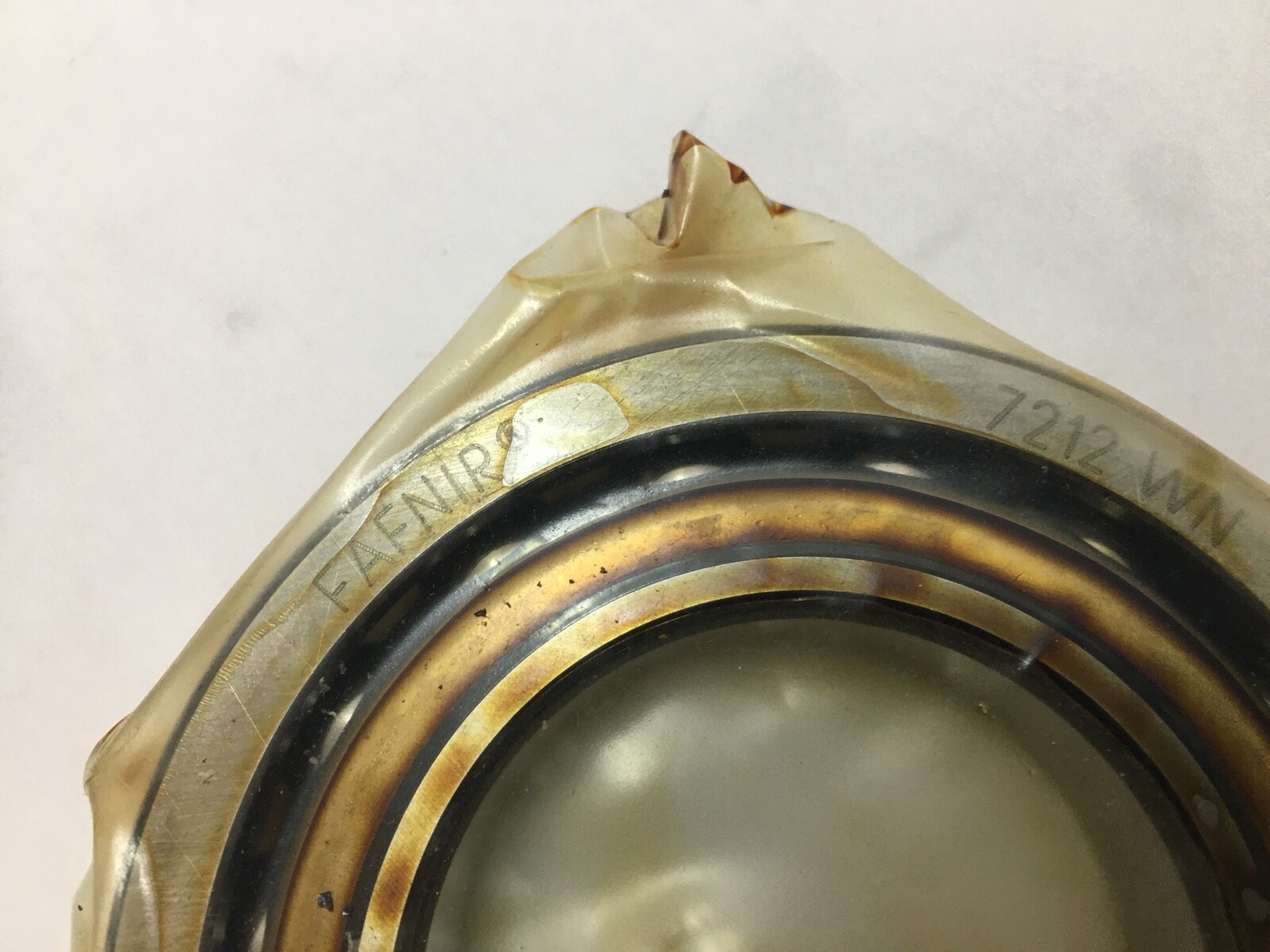

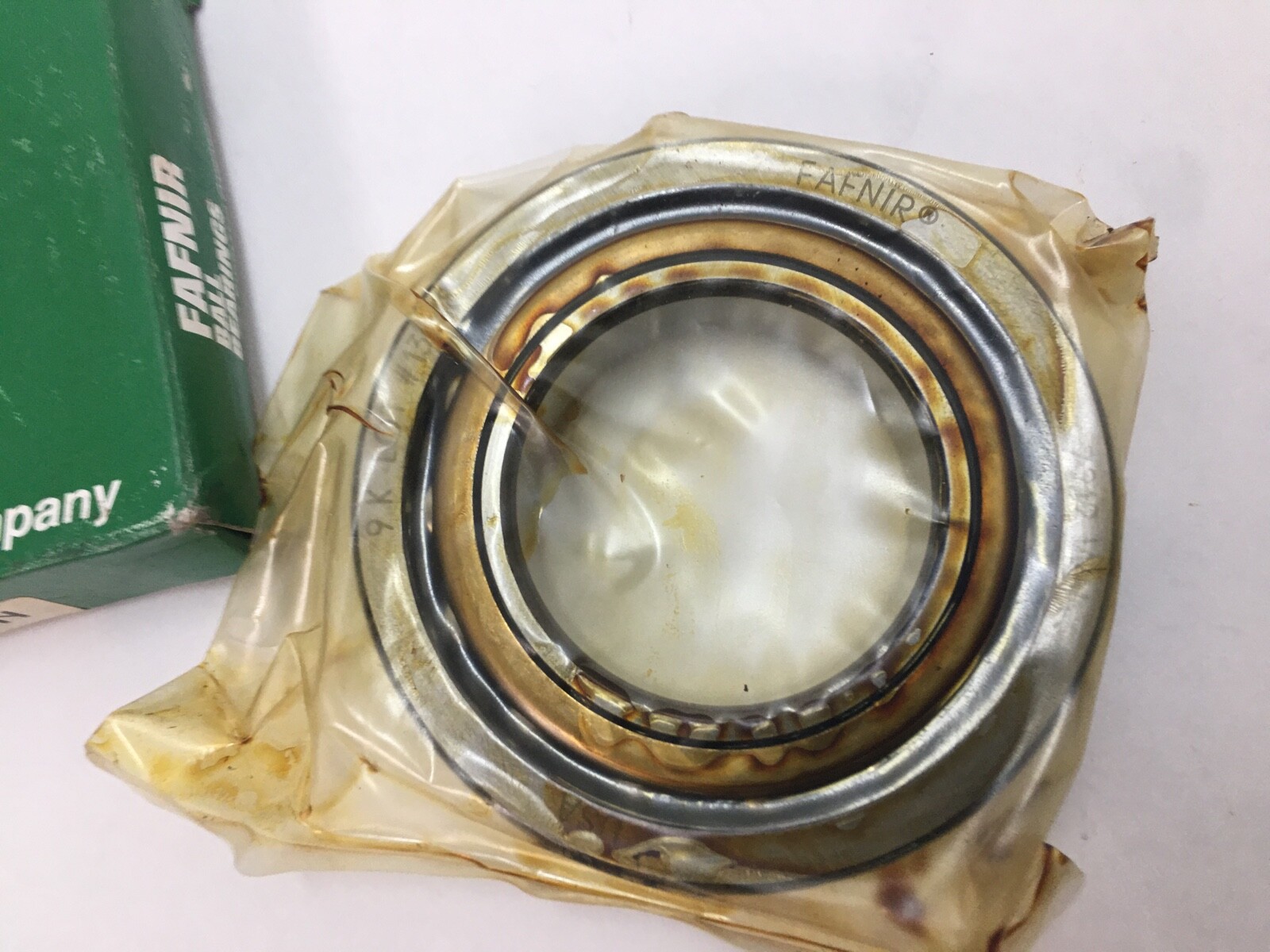

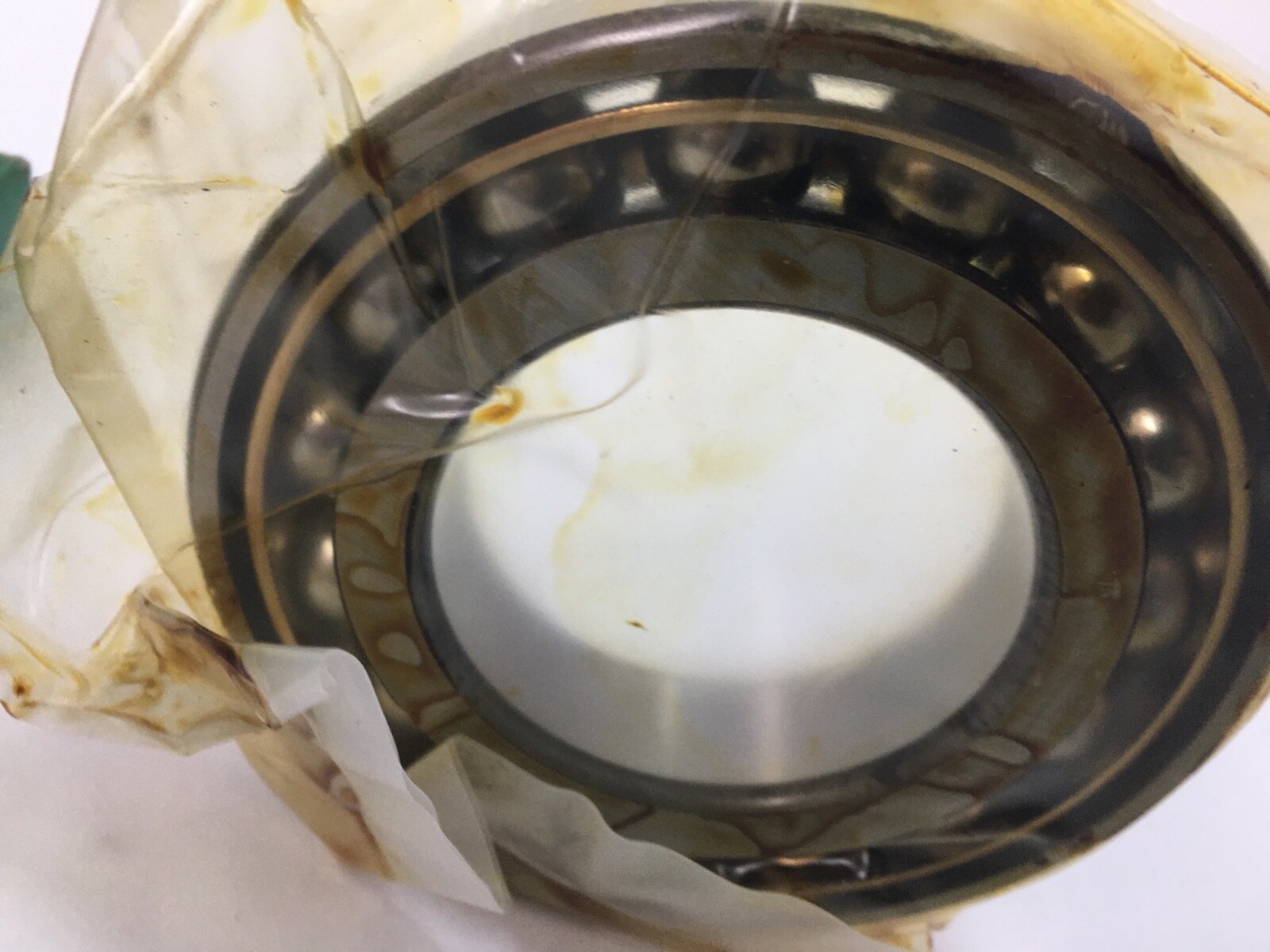

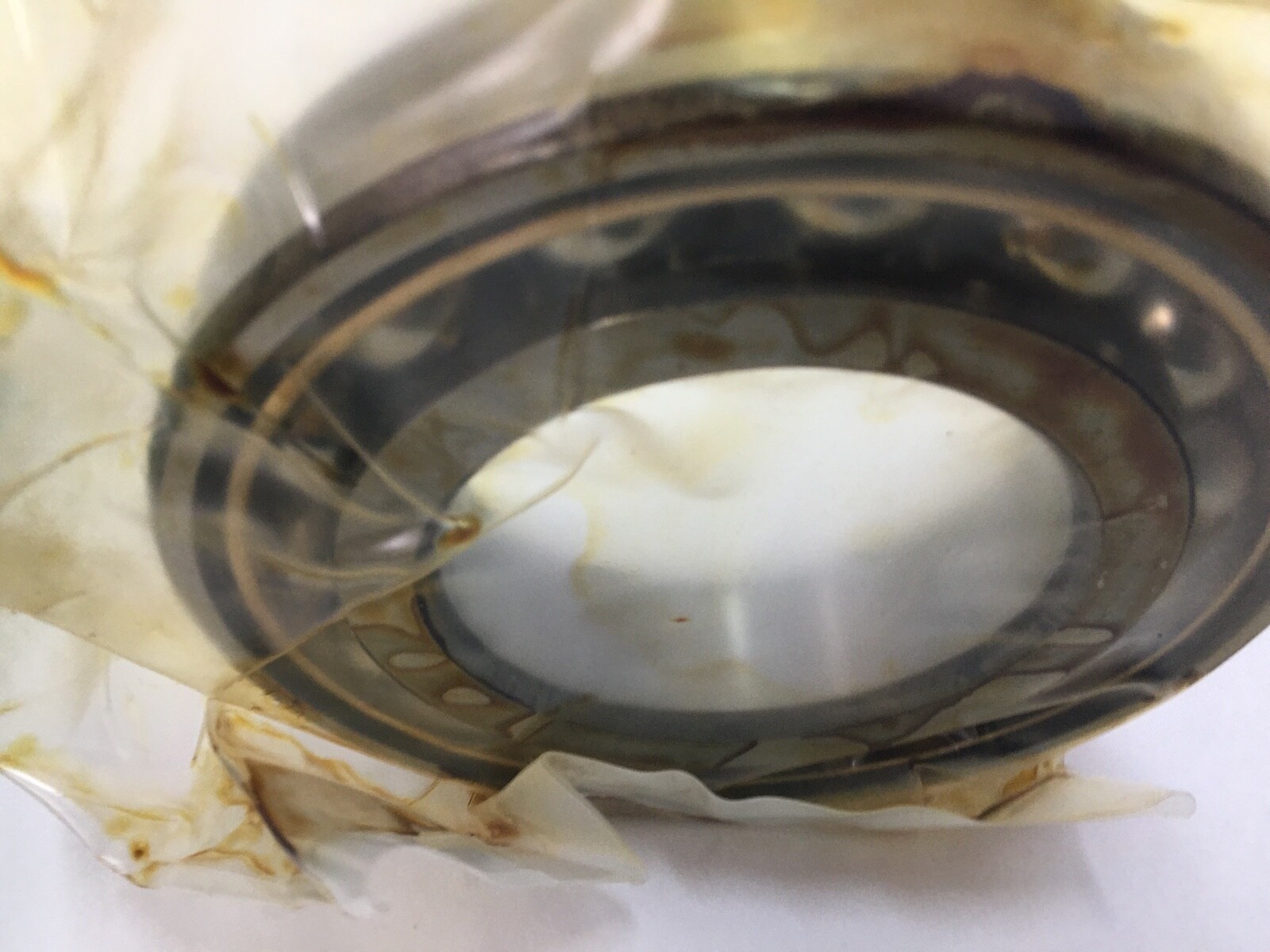

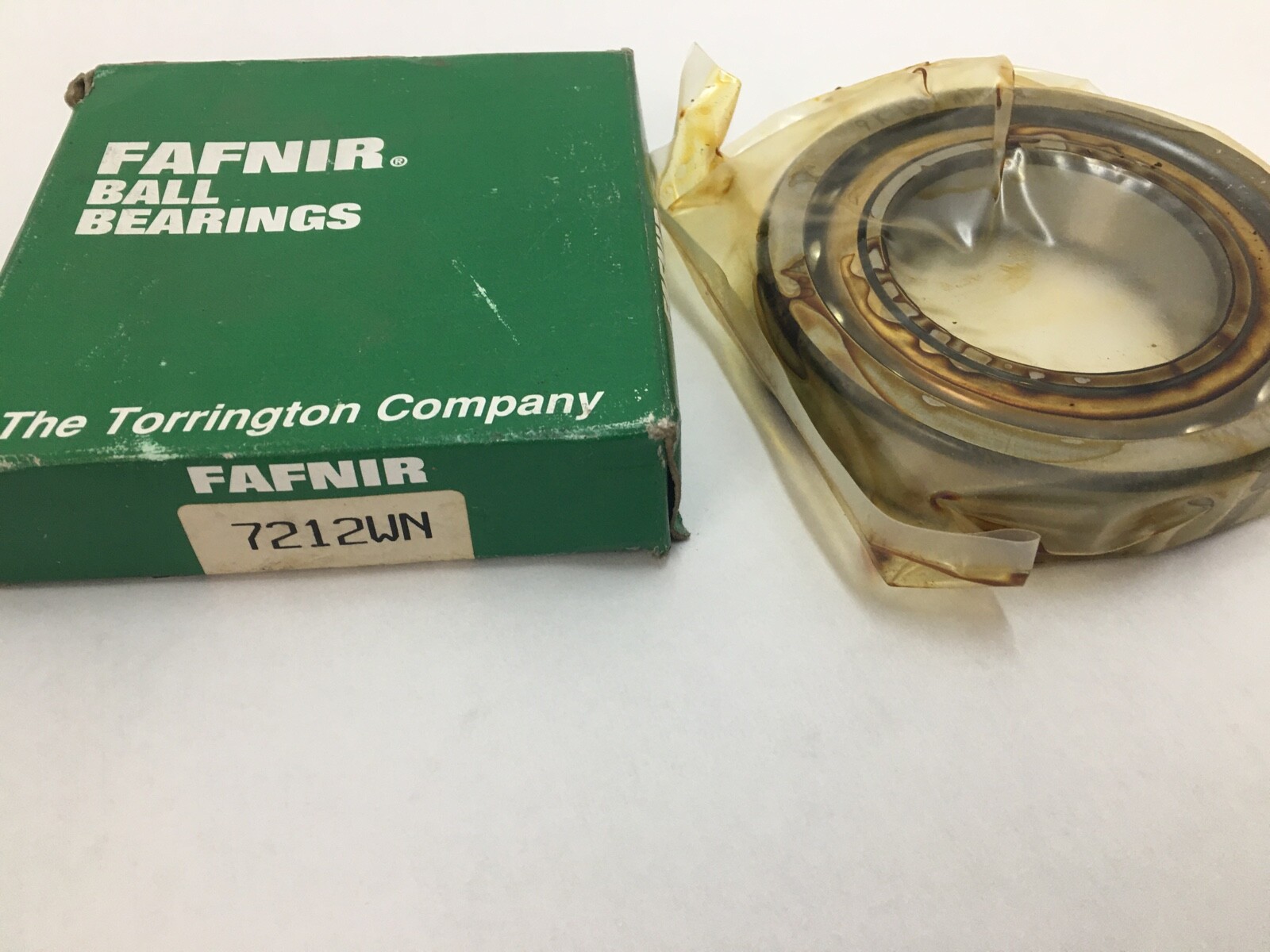

The Fafnir 7212WN is a single row angular contact ball bearing, 60 mm bore, 110 mm outside diameter, 22 mm width, with a 40° contact angle and a one-piece pressed brass cage. Open design. Unit Quantity: 1 Pc. Made in USA, new old stock.
7212 — the 7200 light angular contact series, 60 mm bore.
W — the Fafnir maximum-capacity angular contact design, with a low outer ring shoulder that lets the full ball complement be loaded.
N — 40° contact angle.
Series: 7200. Base Number: 7212. Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm. Bore Type: Straight. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Contact Angle: 40°. Bearing Material: Chrome steel.
Cage Material: Pressed brass. Cage Type: One-piece, ball-piloted. Internal Clearance: CN. Dynamic Load Rating: 63,000 N. Static Load Rating: 44,400 N. Limiting Speed: 3,500 rpm grease; 4,700 rpm oil. Lubricant: grease or oil. Item Weight: 0.835 kg (1.84 lb). Design Units: Metric.
GTIN: 087796044098. Country of Origin: United States.
Maximum Shaft Fillet Radius: 1.5 mm. Shaft Backing Shoulder Diameter: 67.8 mm. Housing Backing Shoulder Diameter: 101.1 mm. A single row angular contact bearing carries thrust in one direction and is normally opposed by a second bearing.
Cross-references on the 60 x 110 x 22 mm envelope: SKF 7212 BECBM, FAG 7212-B-XL-MP, NSK 7212B, NTN 7212B, Koyo 7212B, RHP 7212, MRC 7212P, SNR 7212B. Timken states the 7212WN is dimensionally interchangeable with the 200 series deep groove ball bearing; the 6212 shares the envelope but is a Conrad-type radial bearing, not an angular contact bearing. Other designations: 7212WN, 7212-WN, 7212 WN, 7212W.
CAD model and data sheet: available from Timken (cad.timken.com).
40°. The N in the designation denotes the 40° contact angle.
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Width: 22 mm.
Dynamic Load Rating: 63,000 N. Static Load Rating: 44,400 N. The cage is a one-piece, ball-piloted pressed brass cage.
