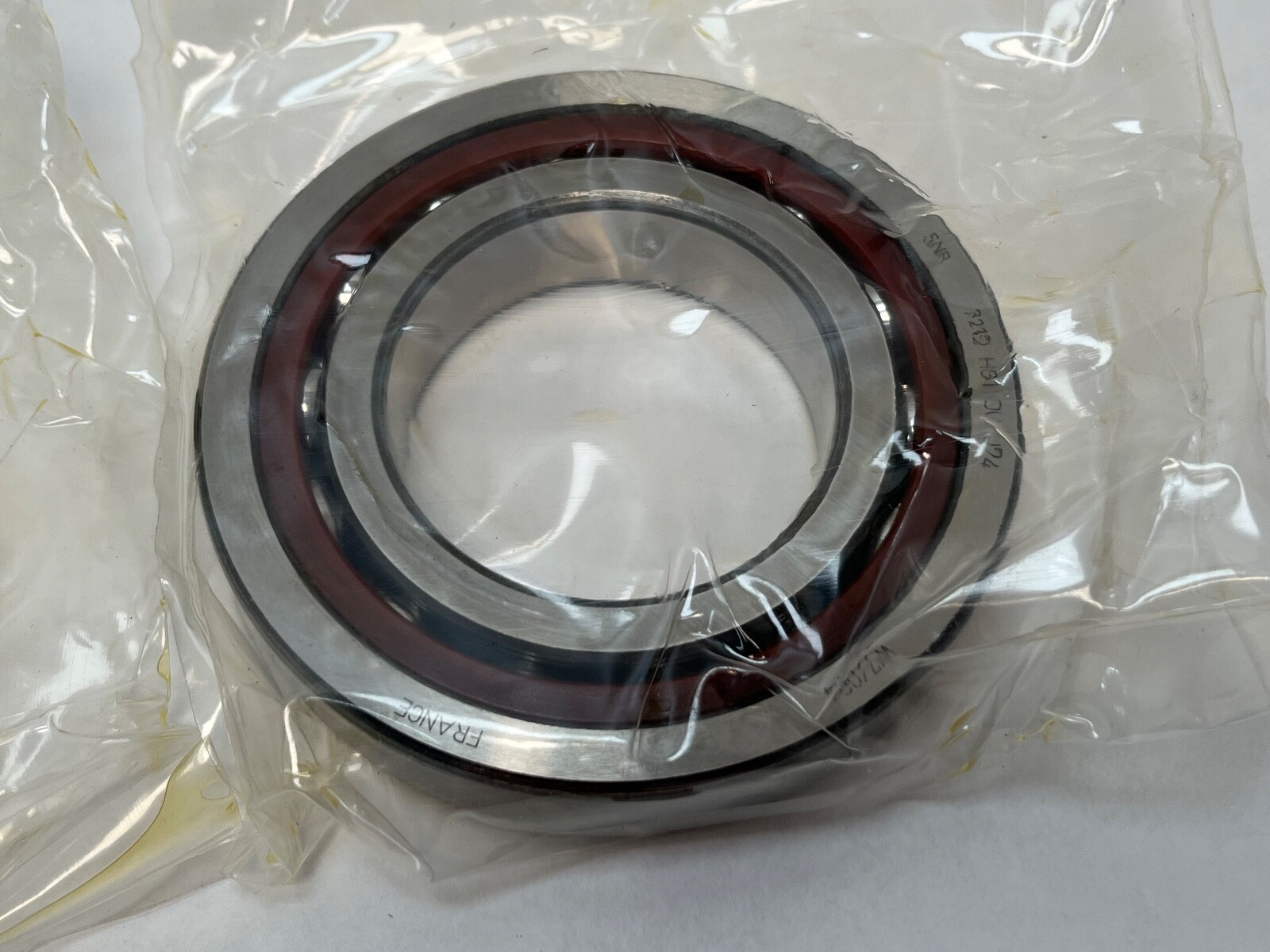

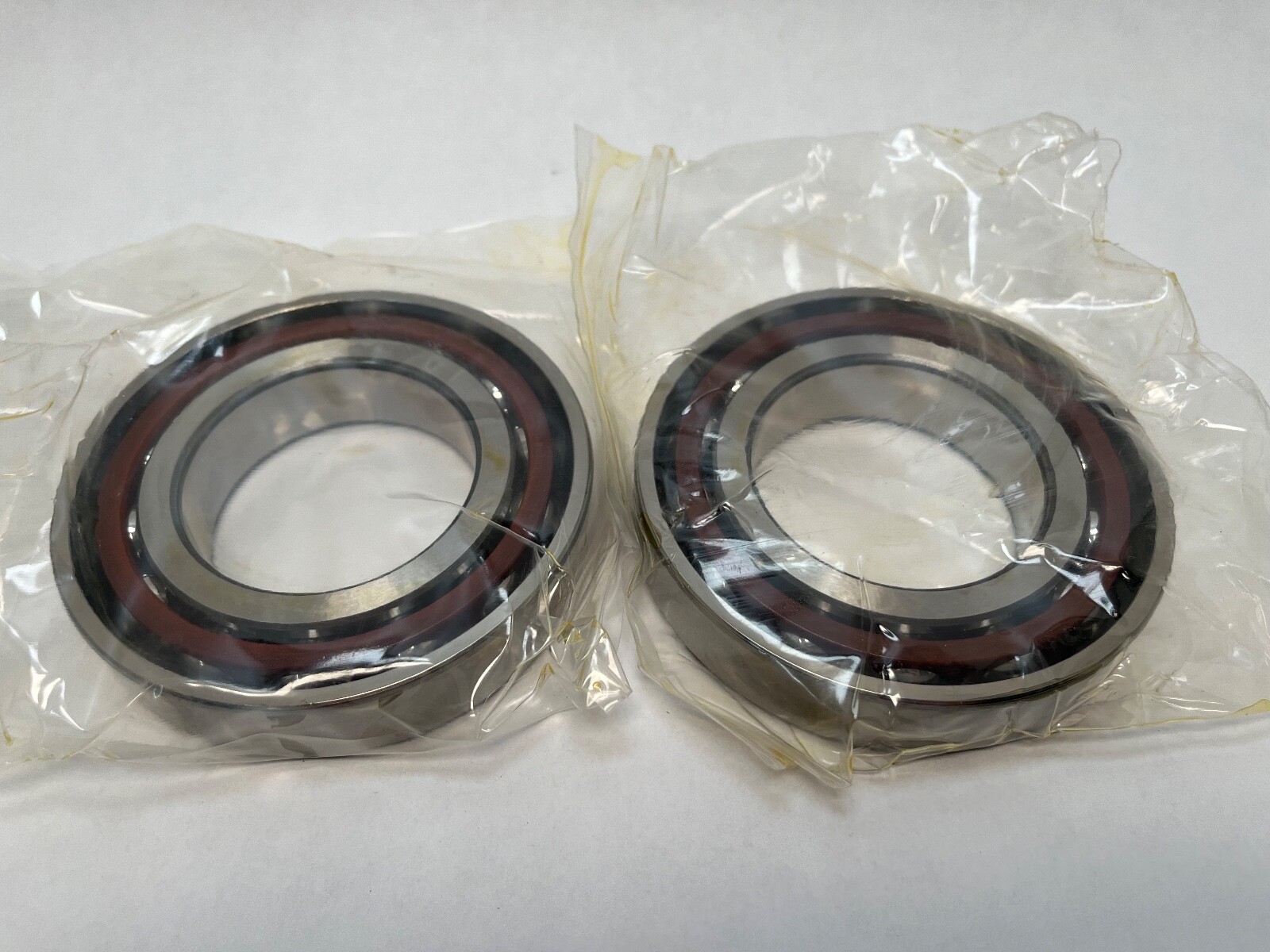

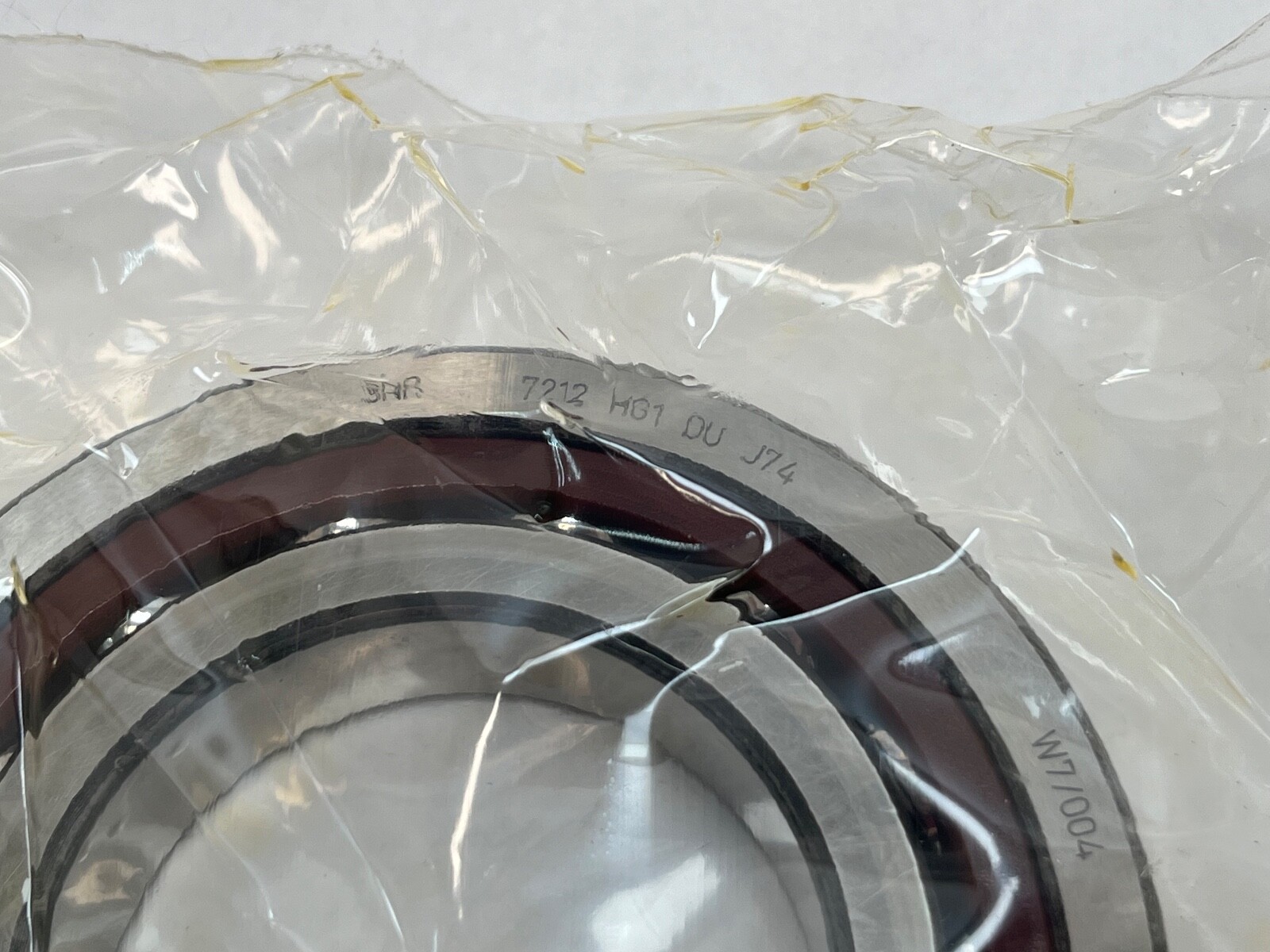

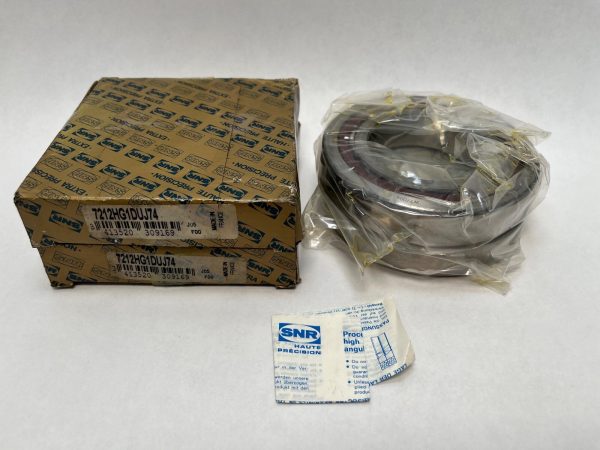

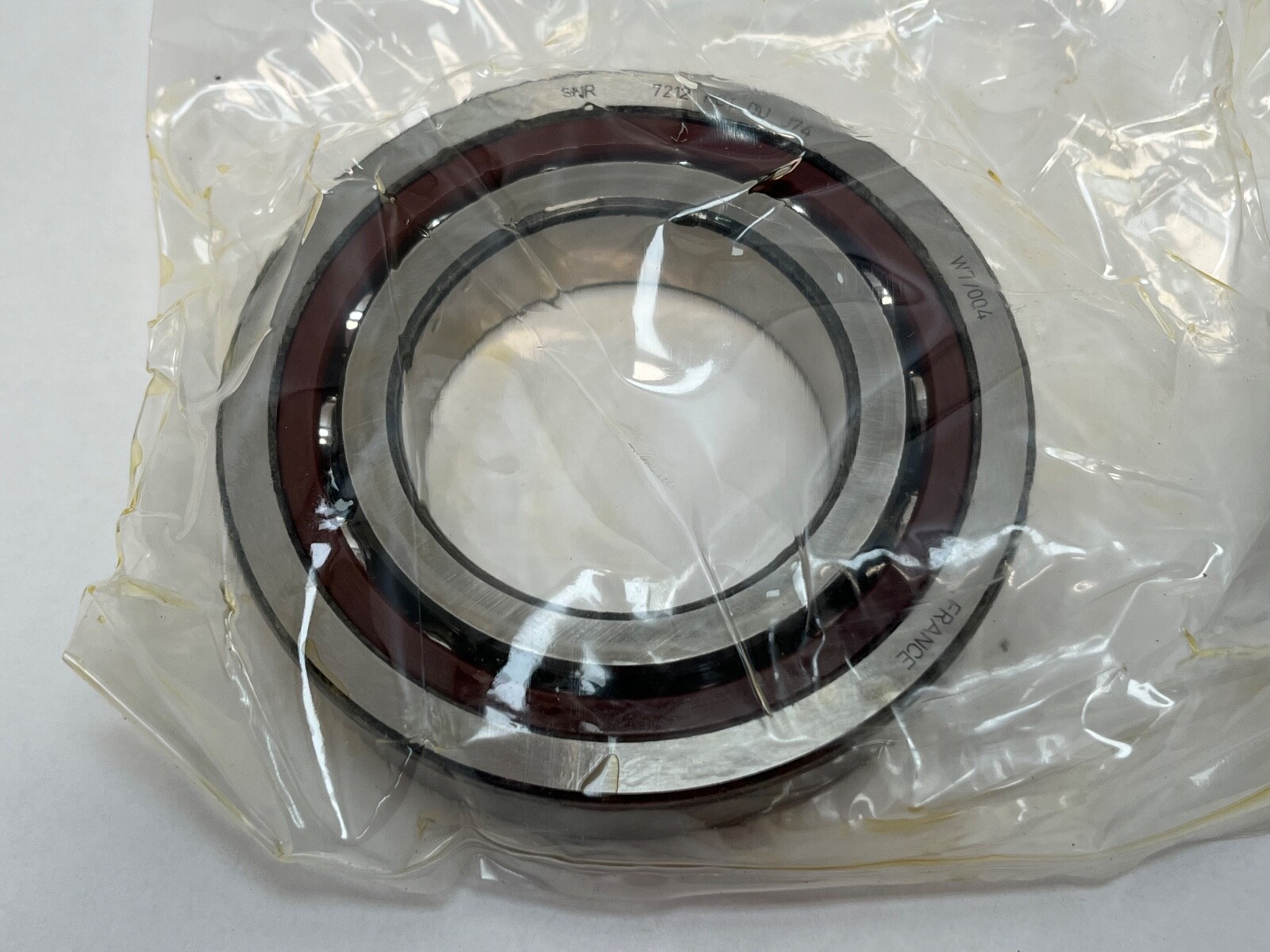

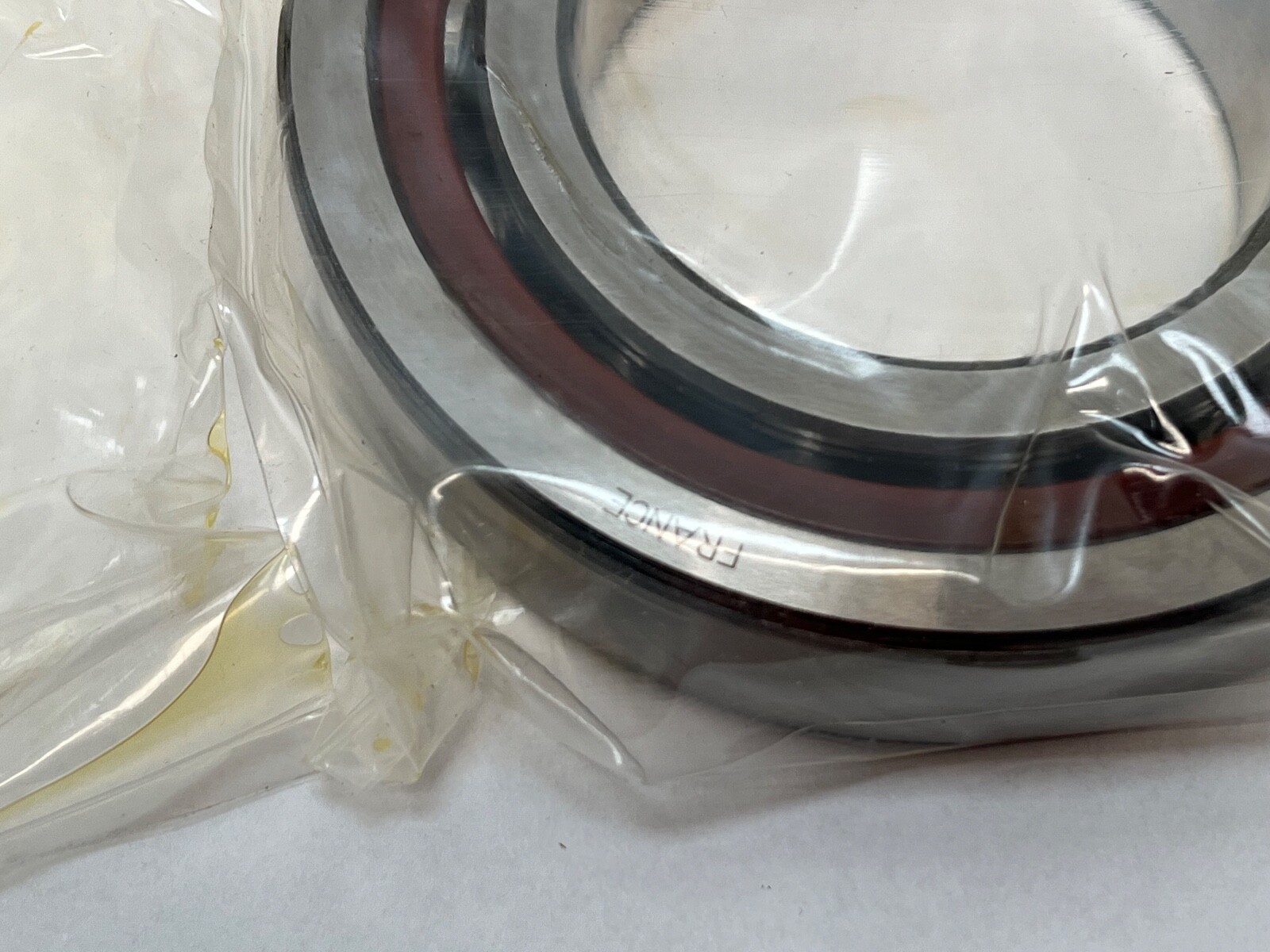

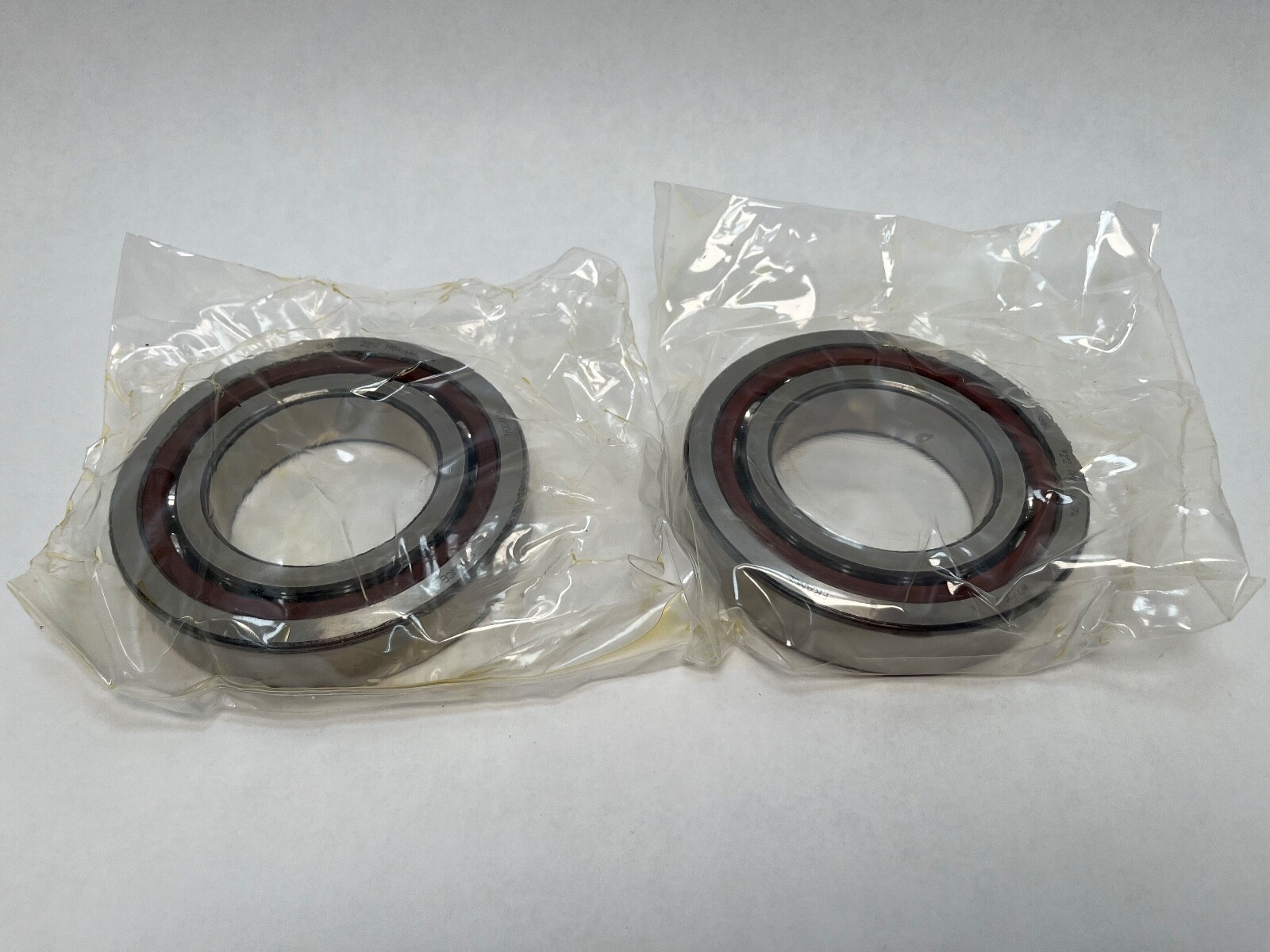

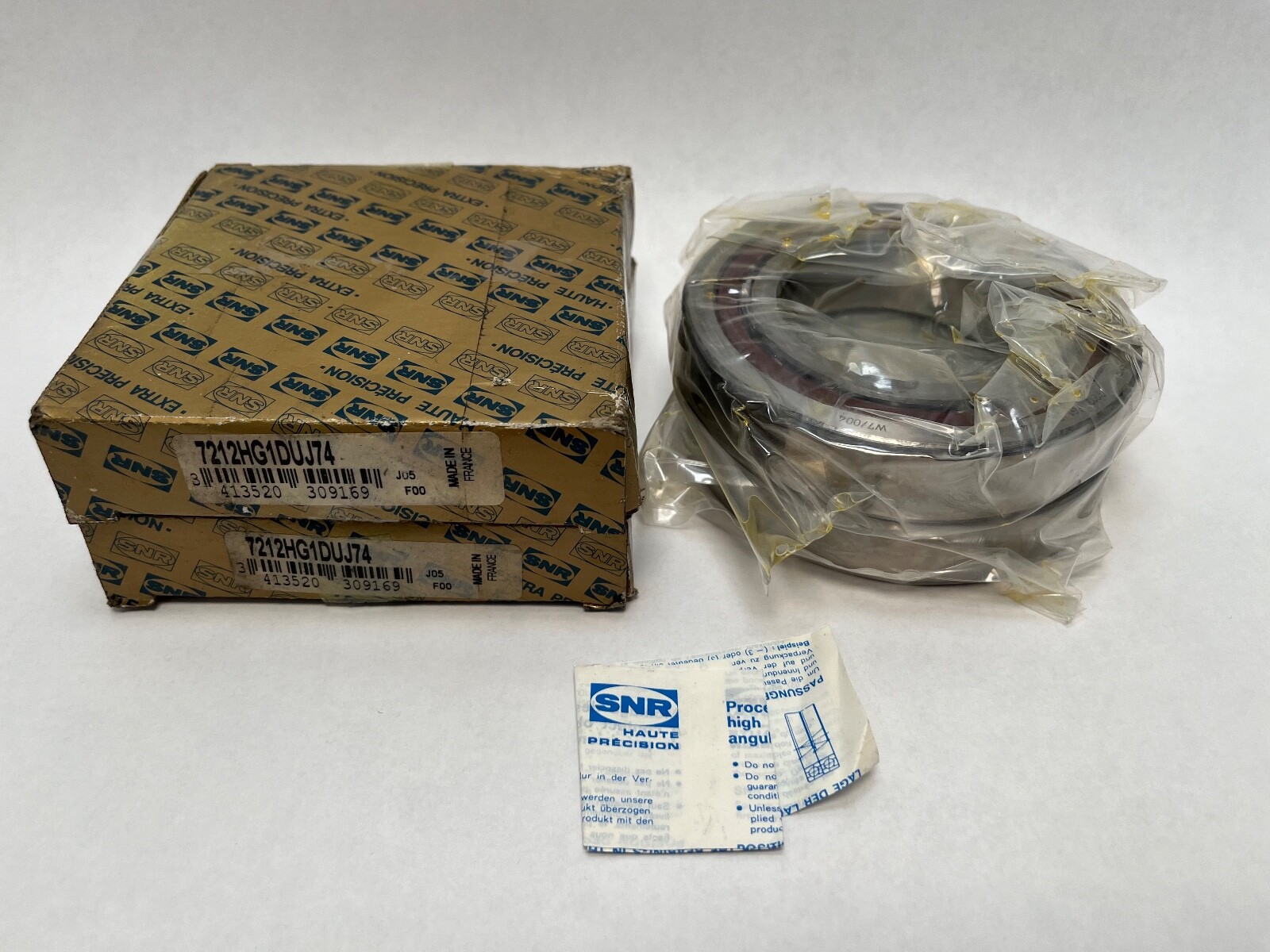

SNR 7212HG1DUJ74 angular contact ball bearing, 60 x 110 x 22 mm, 25° contact angle, light preload, phenolic cage, ABEC 7 / P4. Unit Quantity: 2 pieces.
List Price
$281.09
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 7212HG1DUJ74 |
| Model | 7212A 7212 E T DUL P4 / 3MM212WI CR DUL / 7212 H G1 DU J74 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Material | High Carbon Chromium Steel |
|---|---|
| Series | 7200 (ISO 72) |
| Preload | Light |
| Base Number | 7212 |
| Industry Terms | Super-precision angular contact ball bearing; spindle bearing; matched duplex pair |
| Bore Shaft Size | 60 mm |
| Mpn Variants | 7212HG1DUJ74; 7212 H G1 DU J74; 7212-H-G1-J74; 7212HG1DU J74; 7212A |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Outer-ring centred |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Part Number | 7212HG1DUJ74 |
| Closure Type | Open |
| Cross Reference 1 | SKF 7212 ACD/P4ADGA |
|---|---|
| Cross Reference 2 | FAG B7212E.T.P4S.DUL |
| Cross Reference 3 | Fafnir 3MM212WICRDUL |
SNR 7212HG1DUJ74 single-row angular contact ball bearing, ISO 72 series, 60 x 110 x 22 mm, open. Unit Quantity: 2 Pcs.
7212 — ISO 72 series angular contact ball bearing with a 60 mm bore.
H — 25° contact angle in the SNR super-precision scheme.
G1 — laminated phenolic cage, centred on the outer ring.
J74 — light preload; the second digit 4 is ISO precision Class 4 (ABEC 7 / P4).
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm. Contact Angle: 25°. Cage Material: Phenolic. Cage Type: Outer-ring centred. Preload: Light. Precision Class: ABEC 7 / P4. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Series: 7200 (ISO 72). Base Number: 7212.
Envelope: 60 x 110 x 22 mm. Bore Type: Straight. Closure Type: Open.
Cross-references at 25° and ABEC 7 on the 60 x 110 x 22 mm envelope: SKF 7212 ACD/P4ADGA, FAG B7212E.T.P4S.DUL, Fafnir 3MM212WICRDUL. MPN variants: 7212HG1DUJ74, 7212 H G1 DU J74, 7212-H-G1-J74, 7212HG1DU J74, 7212A.
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm.
Contact Angle: 25°, from the H code. Preload: Light, from the J74 code.
A laminated phenolic cage centred on the outer ring, from the G1 code.
