Super-Precision Angular Contact Ball Bearing Duplex Pair – Straight Bore, 50 mm ID, 80 mm OD, 16 mm Width, Open, 25° Contact Angle, ABEC 7, Medium Preload$59.10
Angular Contact Ball Bearing, Super-Precision, 50x80x16 mm, 25° Contact Angle, Universal Single, Medium Preload — NSK 7010A5TYSUMPA7$73.06
Angular Contact Ball Bearing - 50 mm ID, 80 mm OD, 16 mm Width, 25° Contact Angle, P4, Medium Preload, Open$202.70

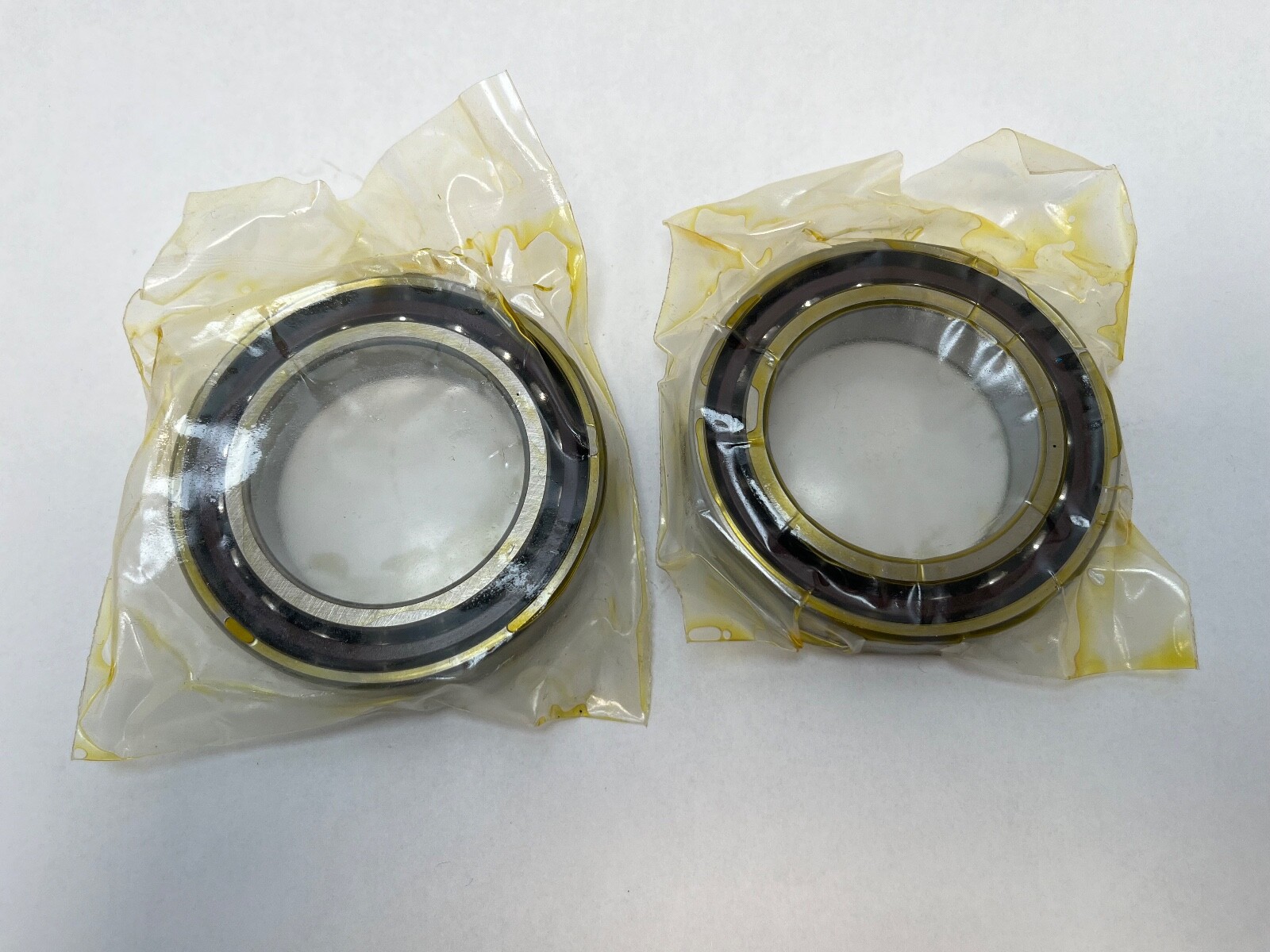

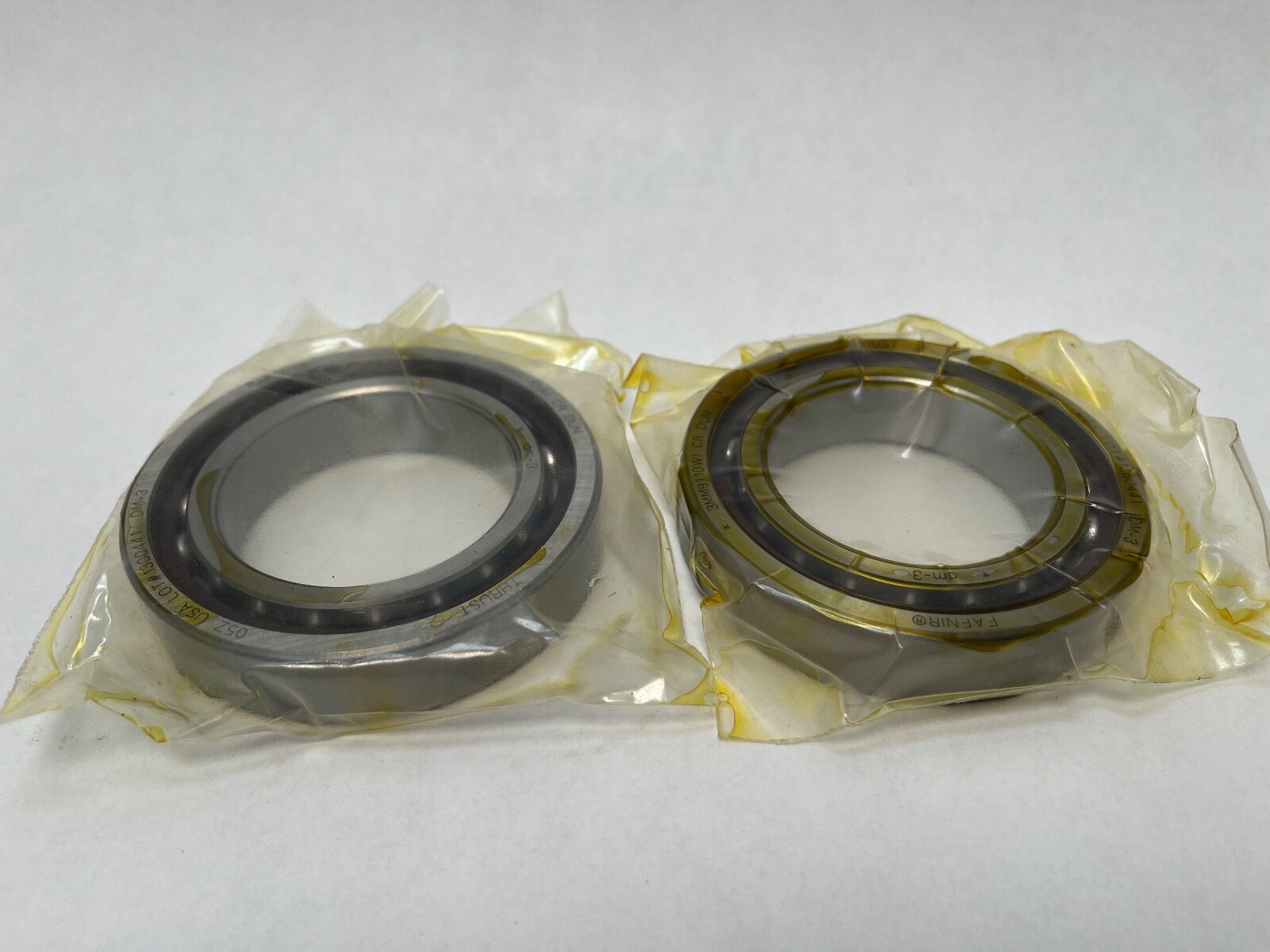

Angular Contact Ball Bearing Duplex Set – 50 x 80 x 16 mm, 25° Contact Angle, Medium Preload, Ball-Guided Cage, Open$223.18| MFR / Brand | Fafnir |
|---|---|
| MPN | 3MM9110WIDUM |
| Model | 7010A5 T DUM P4 / 3 MM 9110 WI CR DUM / 7010A / 7010AC / B7010E |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 80 mm |
| Width | 16 mm |
| Material | Bearing Steel |
|---|---|
| Series | 3MM9100 |
| Preload | Medium |
| Min Temp | -40 °C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 22 kN |
| Static Load Rating | 15.3 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.57 lbs |
| Cage Material | Phenolic Resin |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25 °C |
| Mounting Arrangement | Universal |
| Internal Clearance | CN |
| Limiting Speed | 20000 rpm |
| Cross Reference 1 | SKF 7010 ACD/P4ADGB |
|---|---|
| Cross Reference 2 | NSK 7010A5TYNDUMP4 |
| Cross Reference 3 | FAG B7010-E-T-P4S-DUM |
