RHP7018CTSUMP2Super Precision Angular Contact Ball Bearing – Straight Bore, 90 mm ID, 140 mm OD, 24 mm Width, Open, 15 Degree Contact Angle, ABEC 9, Medium Preload, Phenolic Cage

Product Description

What this part is

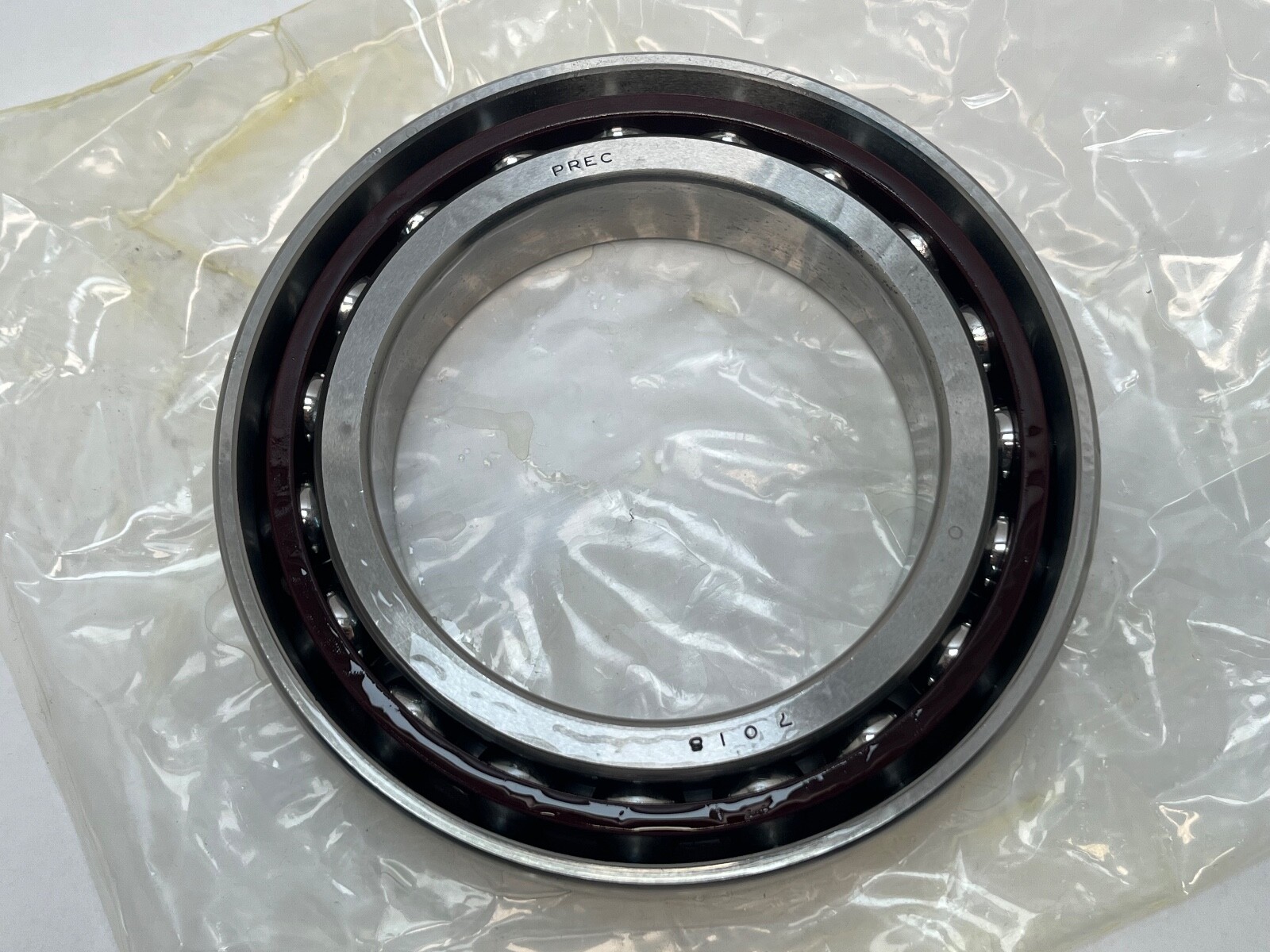

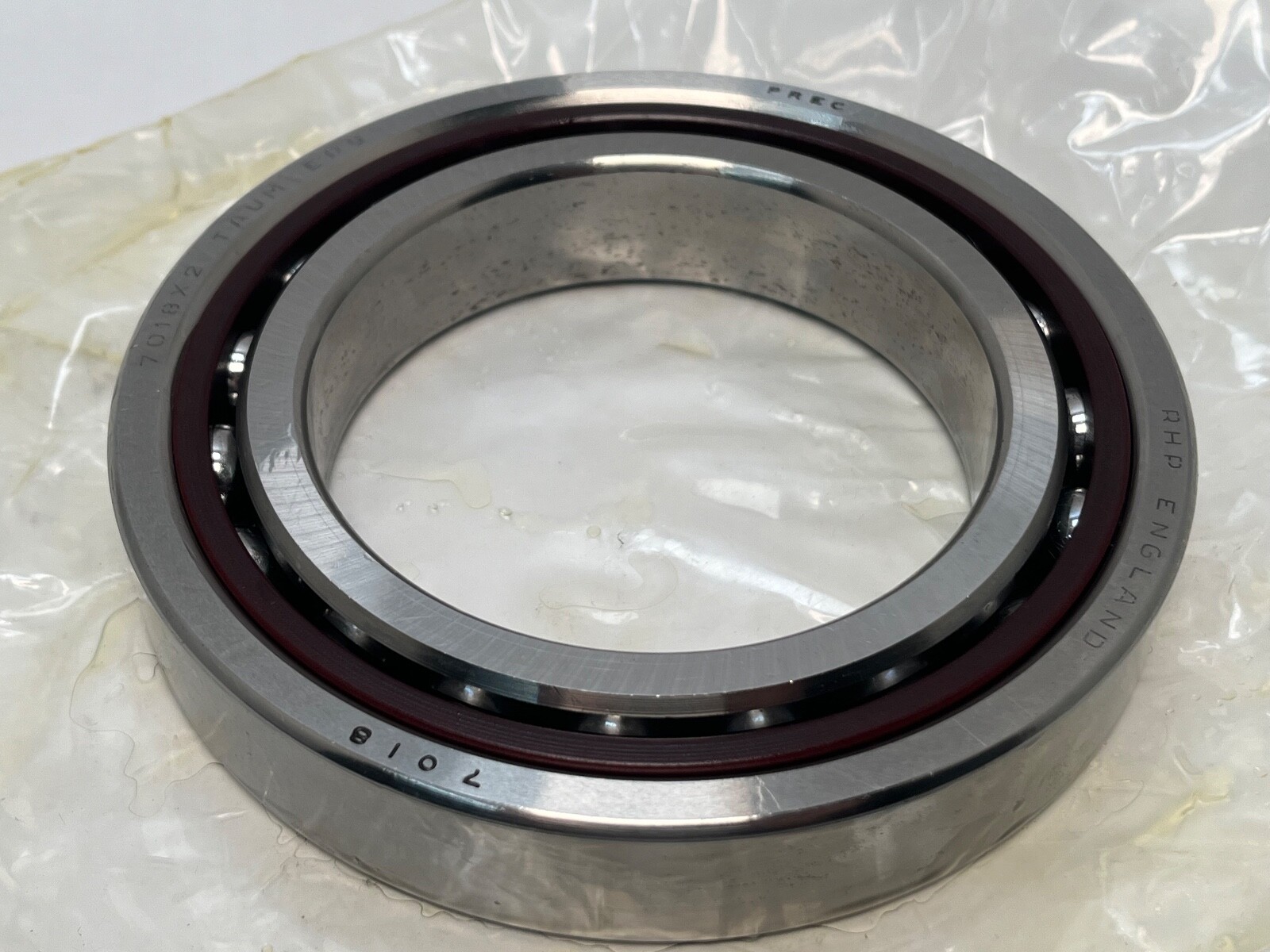

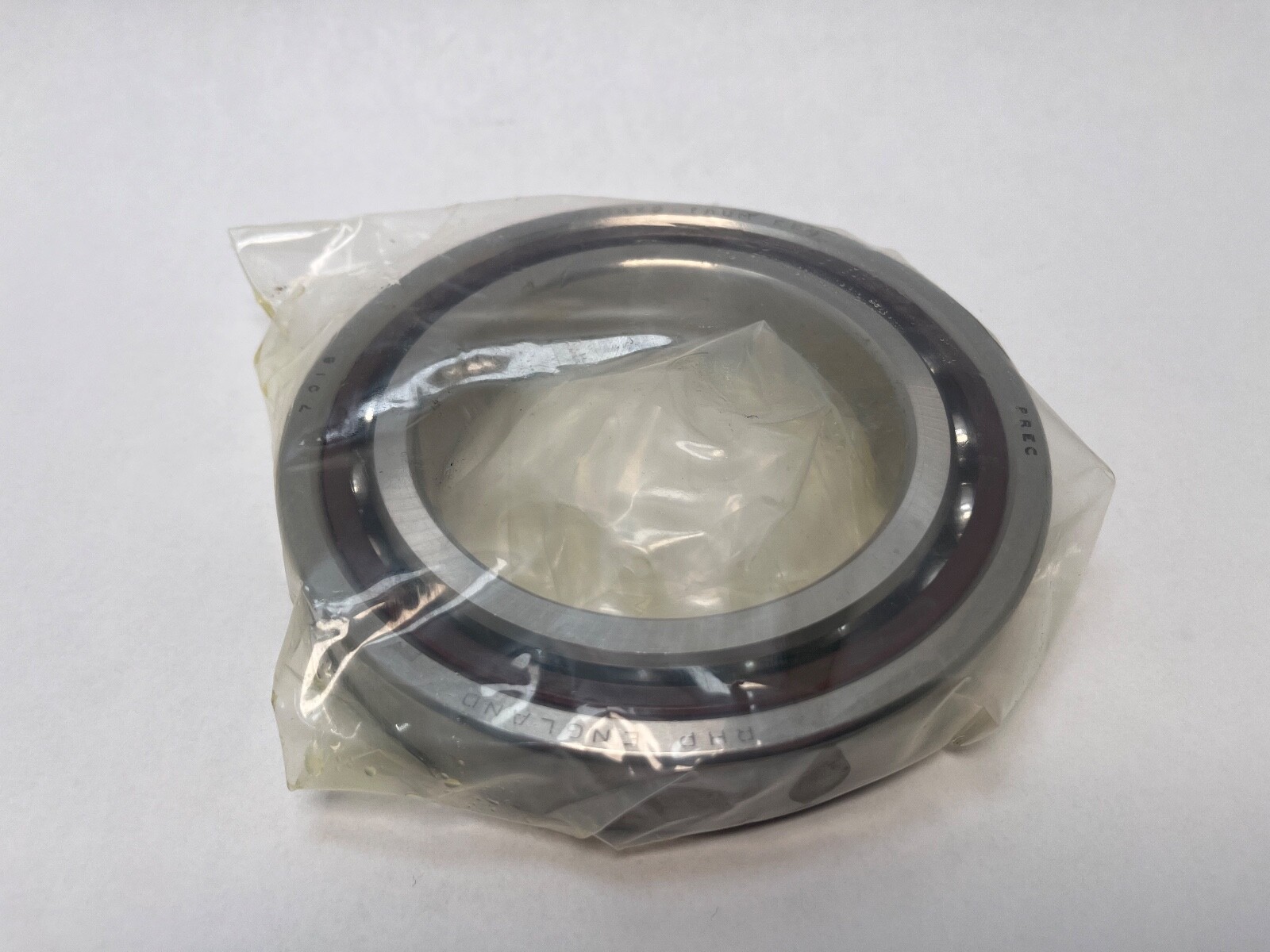

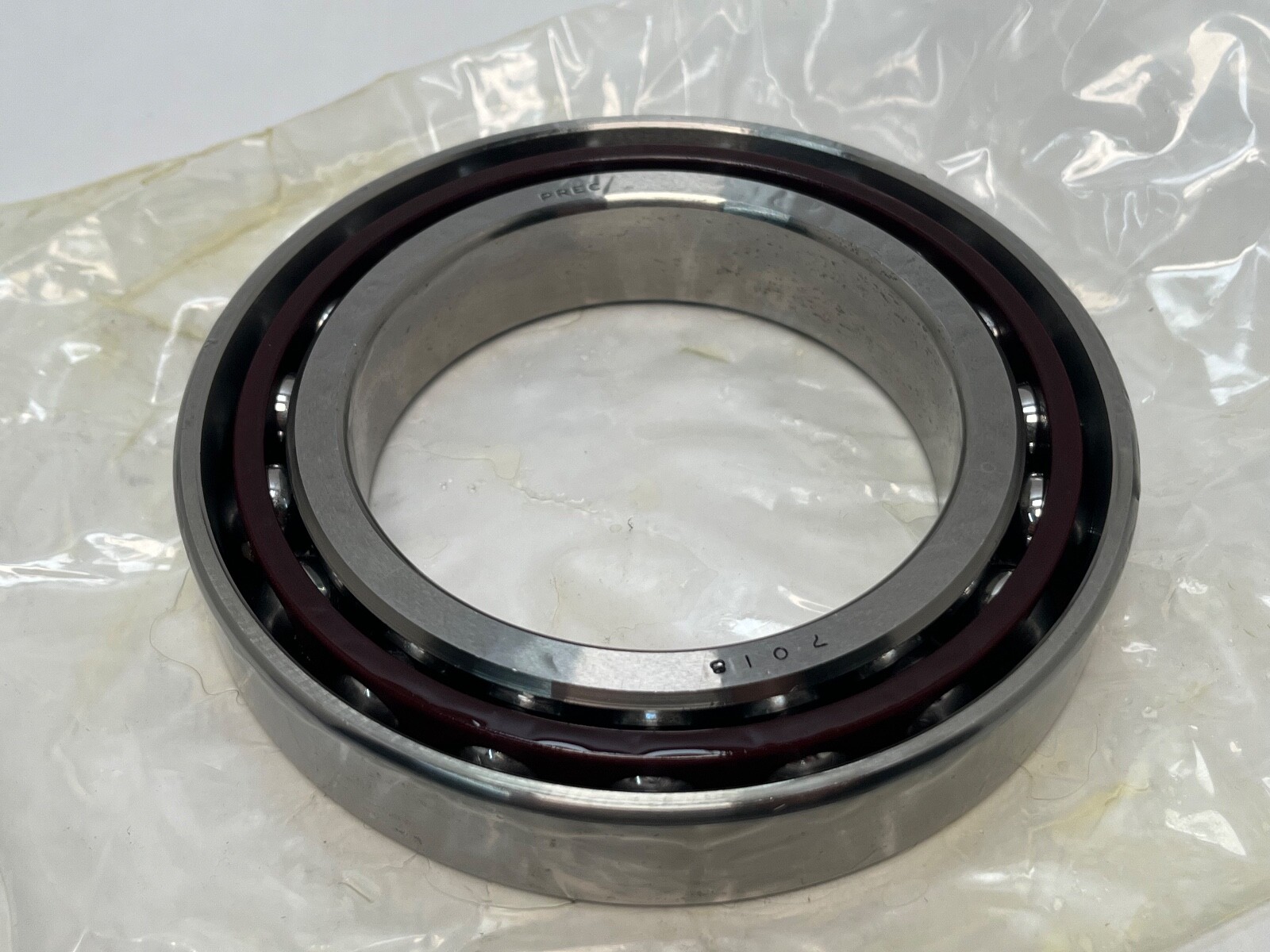

RHP 7018CTSUMP2 super-precision angular contact ball bearing, 90 mm bore, 140 mm outside diameter, 24 mm width. The inner and outer raceways are offset so the ball contact line runs at an angle across the bearing, which is what lets an angular contact bearing carry thrust in one direction alongside its radial load.

Decoding the designation

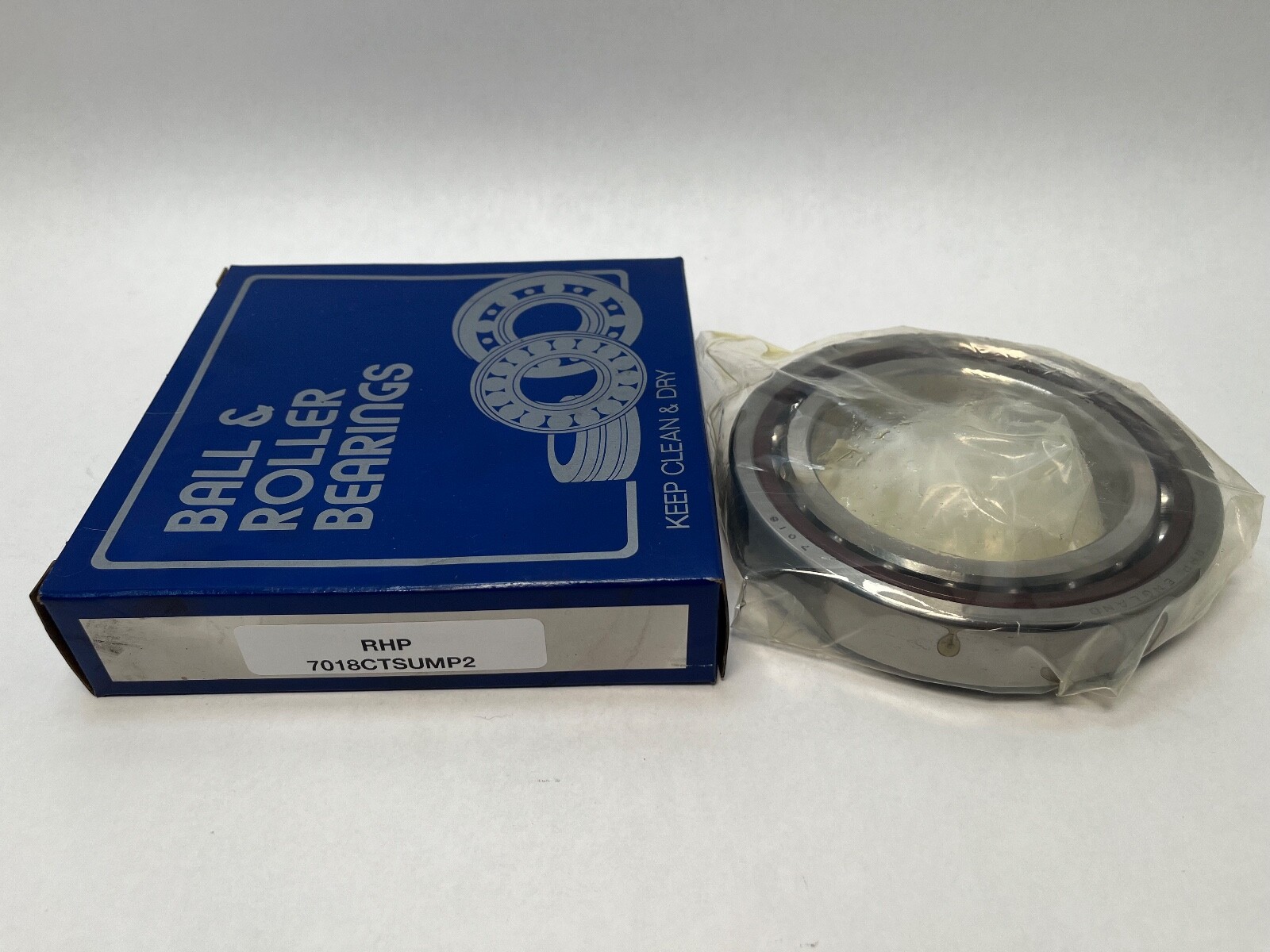

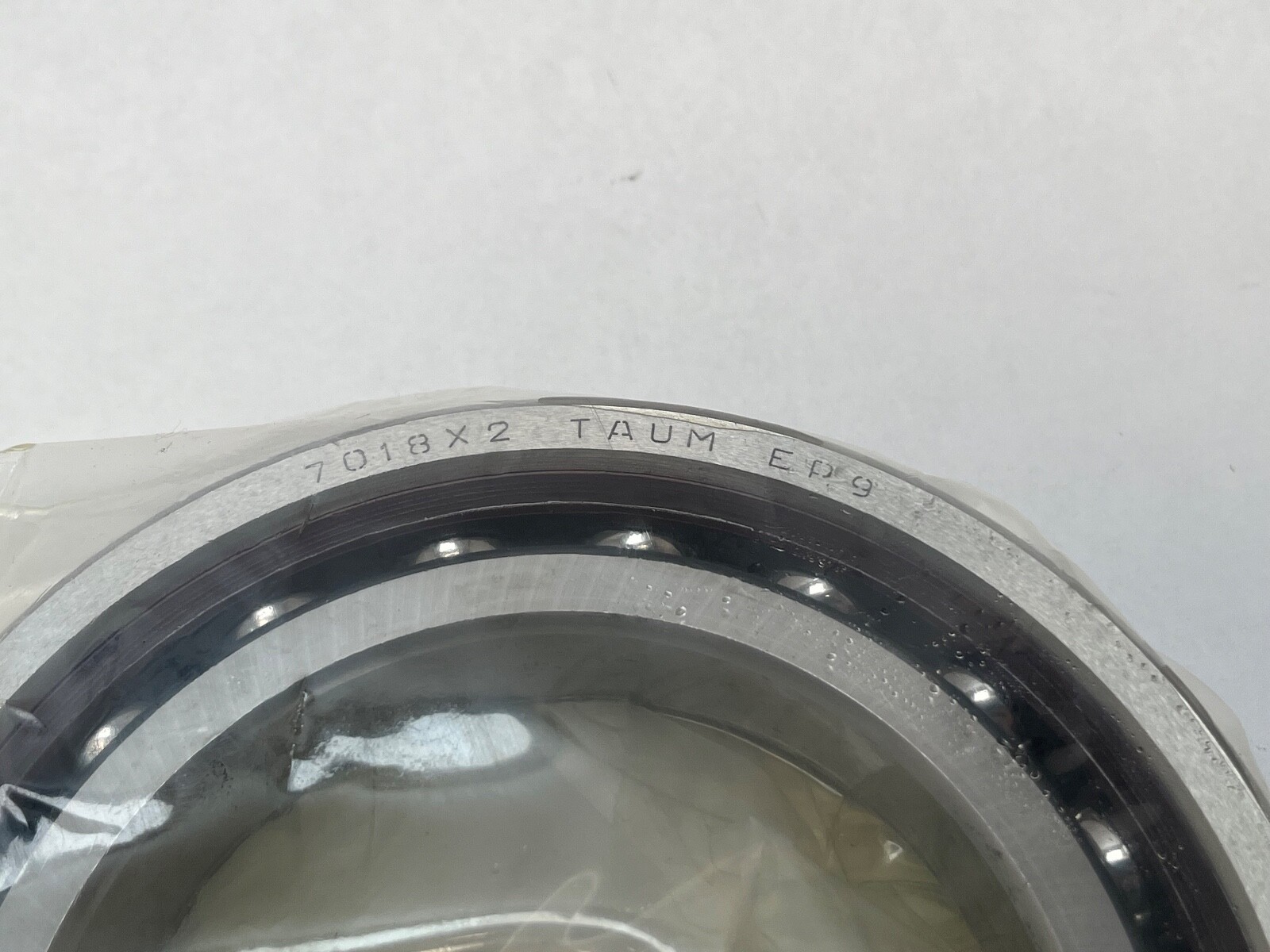

Three designations appear on the carton and all three agree on the contact angle. 7018-C-T-SUM-P2 is the RHP form: C gives a 15° contact angle, T a fabric-base laminate phenolic cage, SUM a single universally ground bearing at medium preload and P2 the ABEC 9 precision grade. 2MMV9118WI-CR-SUM is the Fafnir equivalent, where 2MM confirms 15°, CR marks a phenolic outer-land-riding cage and the 9118 series number corresponds to the ISO 7018 designation. B7018-X2-TADUL-EP9 is the RHP B-series form, where X2 is again 15° and EP9 again ABEC 9.

What these specs mean in practice

A 15° contact angle is the high-speed end of the angular contact range. The shallow contact line keeps ball spin and heat generation low, which is what buys the speed, and the trade is thrust capacity: a 25° or 40° bearing in the same envelope carries substantially more axial load. ABEC 9 is the tightest commonly specified running accuracy grade, which places this execution on precision grinding and high-speed spindle work. Medium preload sits between the light setting chosen for maximum speed and the heavy setting chosen for maximum stiffness. Basic dynamic capacity is 76 kN and basic static capacity 85 kN, with a limiting speed of 11,000 rpm.

Preload and clearance

This bearing is preload-set rather than clearance-set. Internal geometry is fixed by the axial force applied through the ground faces, so radial internal clearance is not a parameter for it and no clearance class applies.

Quantity and configuration

One bearing, 24 mm wide, straight bore, open on both faces, no snap ring groove. Universal grinding means the faces are ground so bearings from the series can be mounted together back-to-back, face-to-face or in tandem, with the medium preload established on clamp-up.

Interchange guidance

The 90 × 140 × 24 mm envelope is the ISO 7018 size. Same-angle, same-preload equivalents include SKF 7018 CDGB/P2A, FAG B7018-C-T-P2S-UM, NSK 7018CTYNSUMP2 and Fafnir 2MMV9118WI CR SUM. On SKF and FAG designations the DGA, DGB and DGC suffixes denote preload magnitude rather than a mounting direction. The 7018E and 3MMV9118WI executions occupy the same envelope at 25°, so they are related sizes rather than interchanges.
