SNR7020CVDUJ94Super Precision Angular Contact Ball Bearing – Straight Bore, 100 mm ID, 150 mm OD, 24 mm Width, Open, 15° Contact Angle, Universal Heavy Preload

Product Description

What this part is

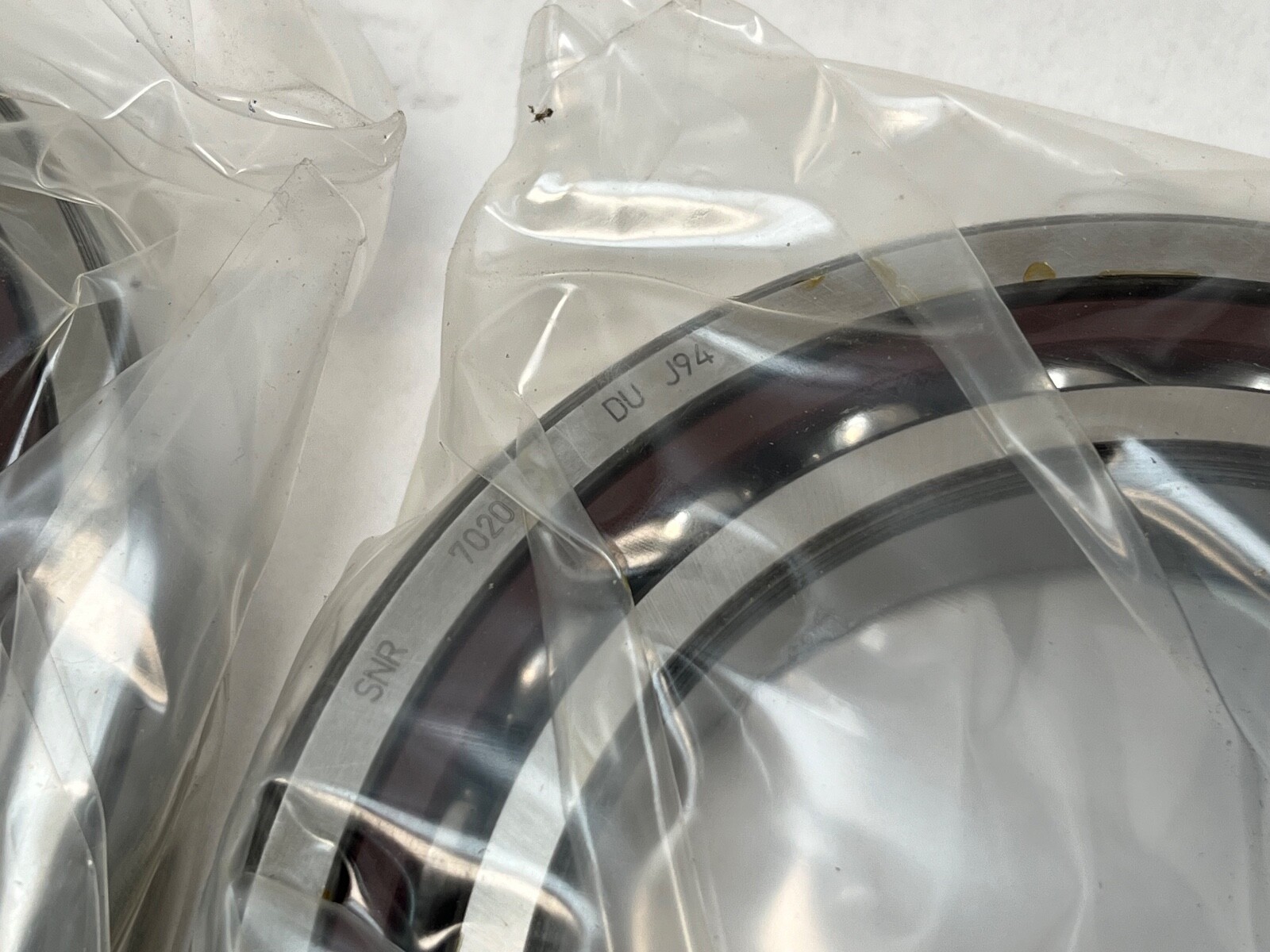

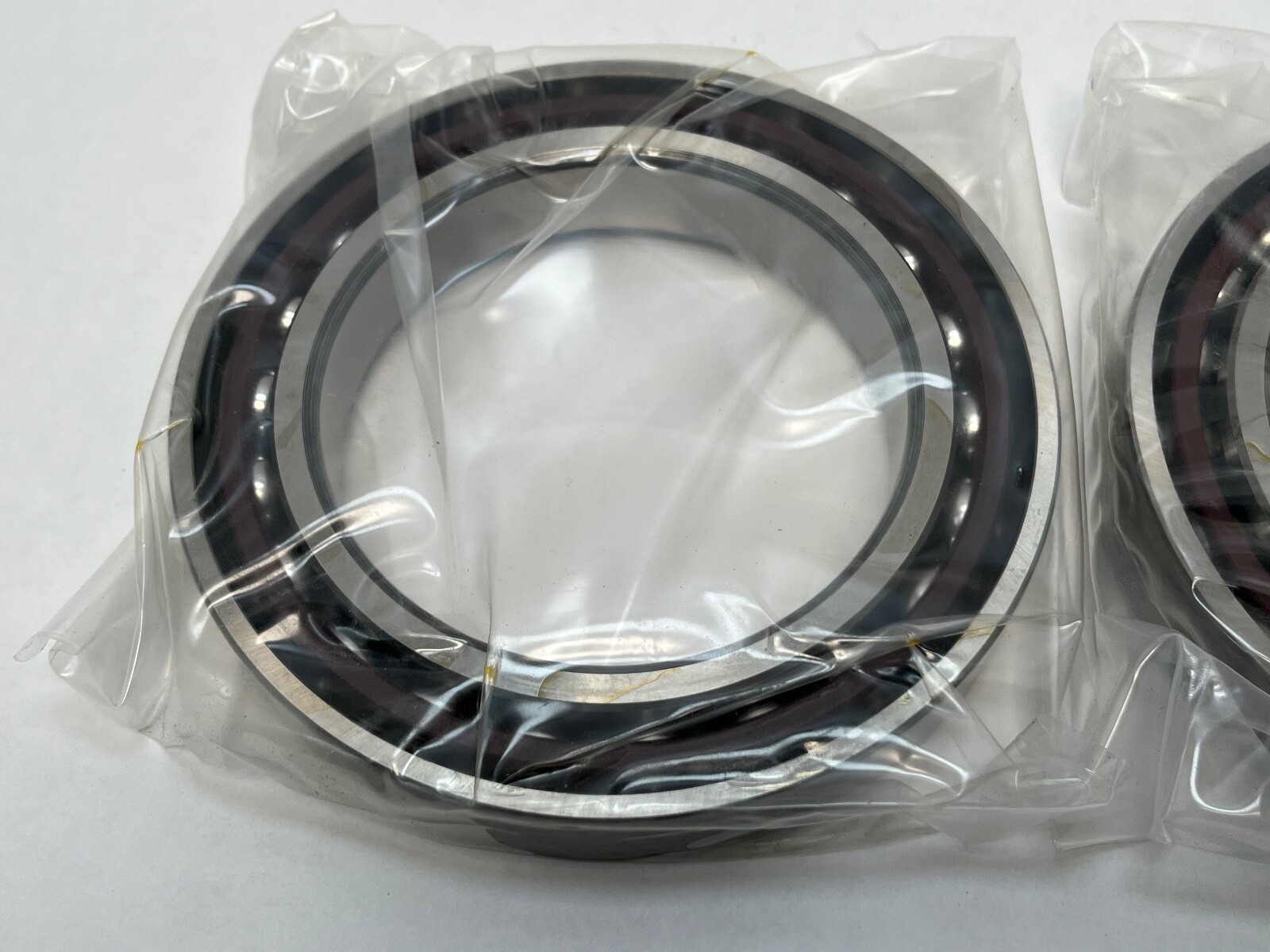

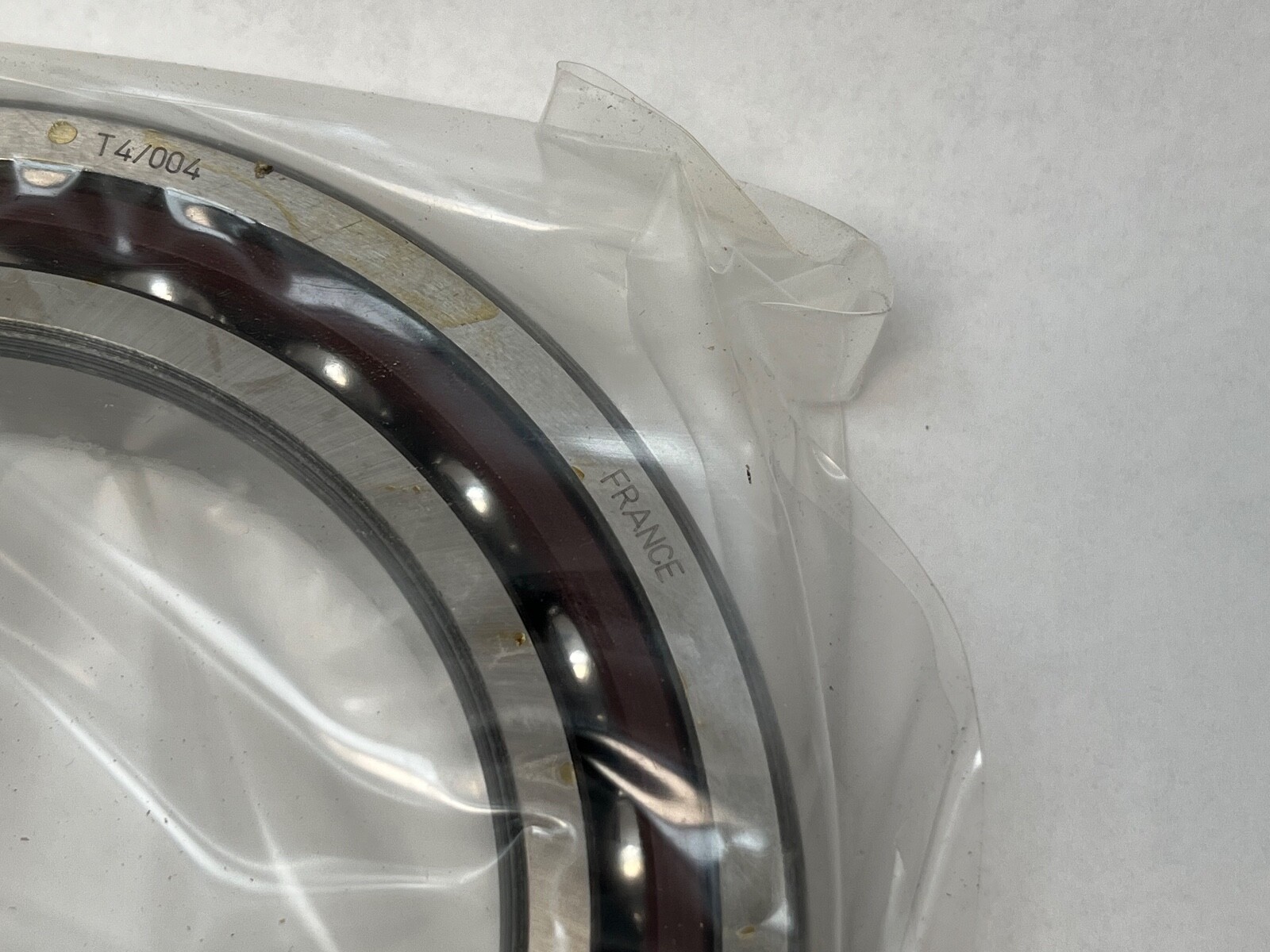

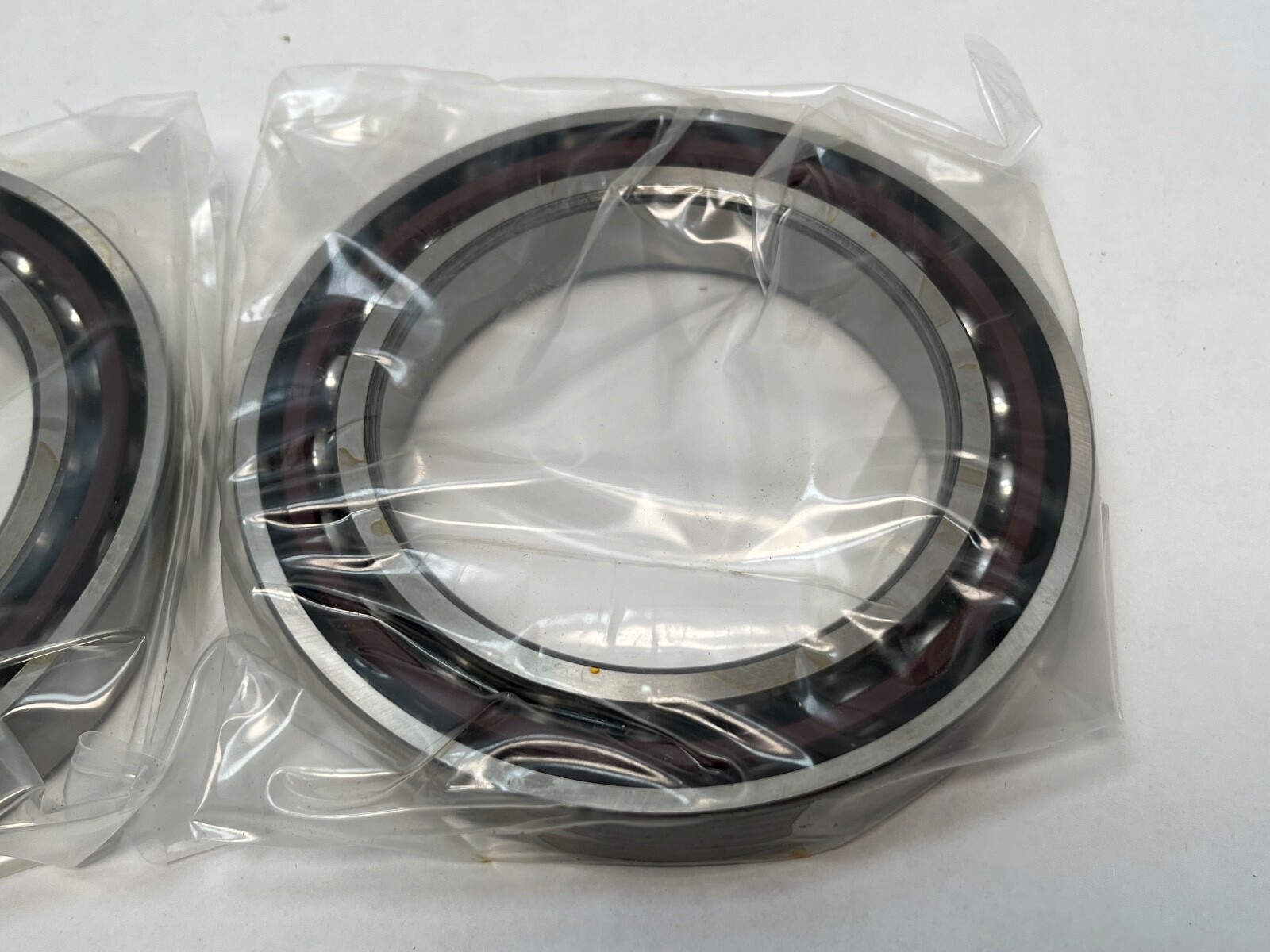

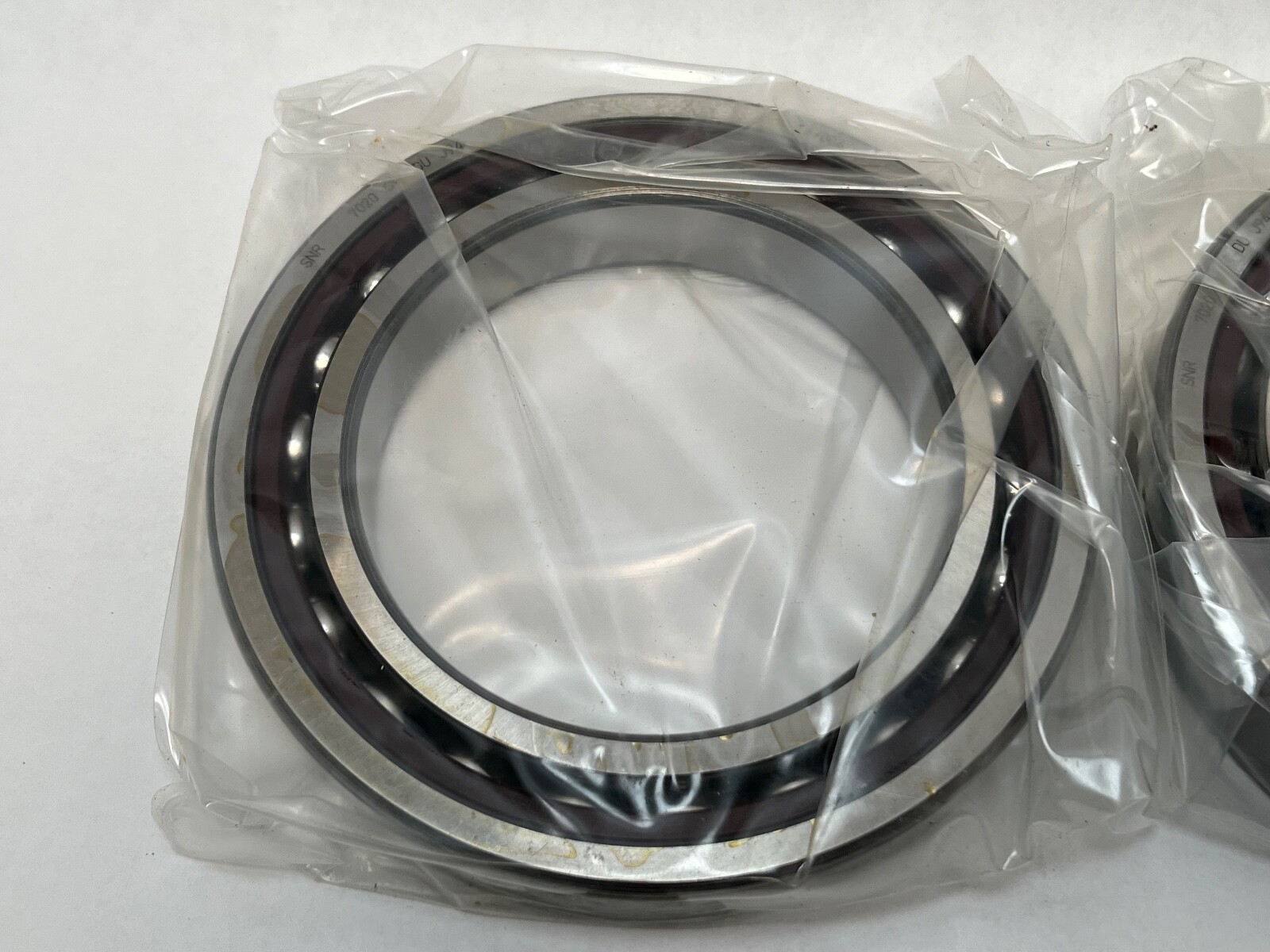

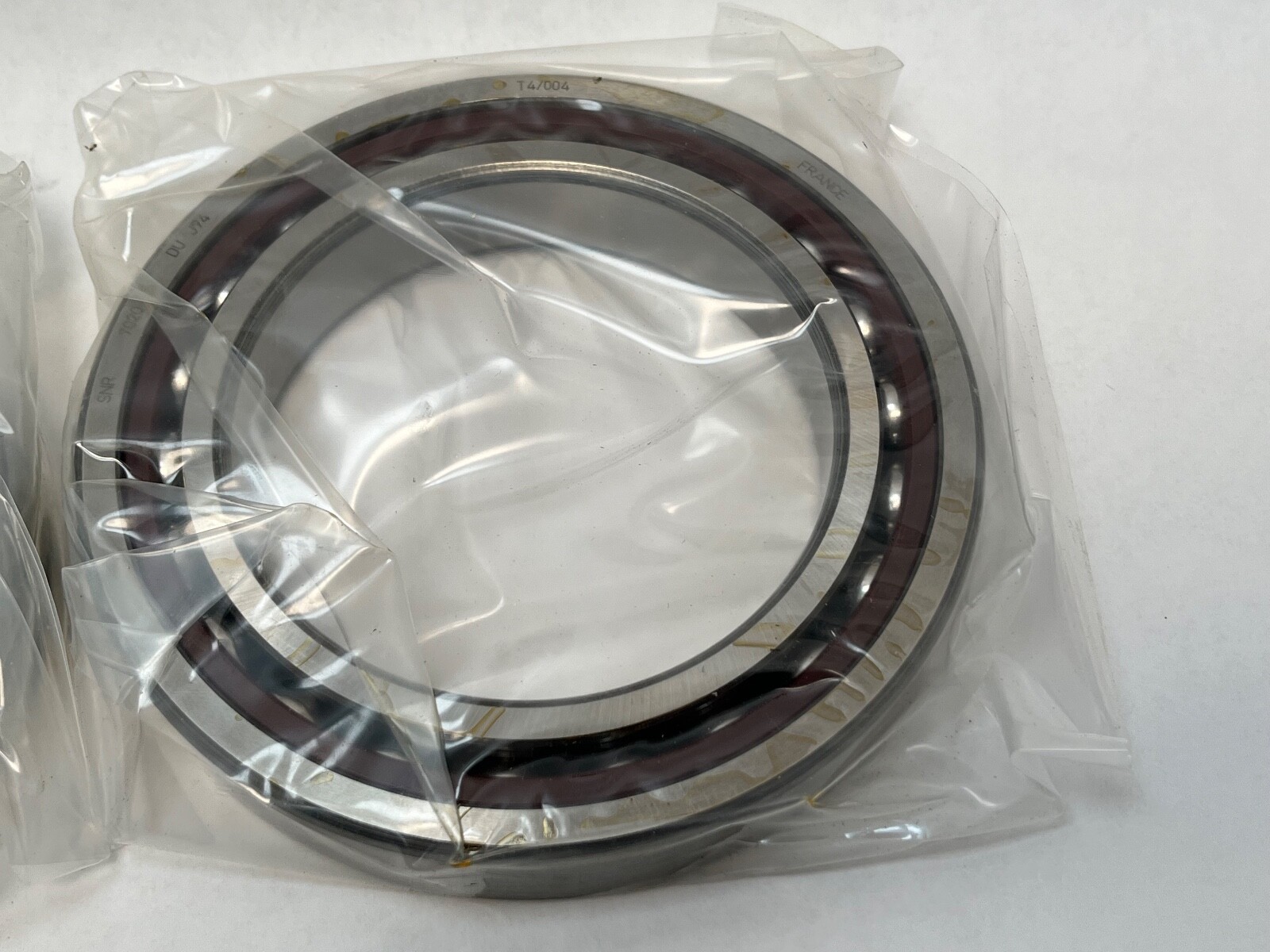

SNR 7020CVDUJ94 super-precision angular contact ball bearing. Bore: 100 mm. Outside Diameter: 150 mm. Overall Width: 24 mm. Series: 7000. Number Of Rows: 1. Rolling Elements: Ball. Bearing Material: Bearing steel. Closure Type: Open. Bore Type: Straight.

Decoding the designation

Contact Angle: 15°. Preload: Heavy. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Machined, outer-ring land-riding. Mounting Arrangement: Universal. Base Number: 7020. Part Number: 7020CVDUJ94.

What these specs mean in practice

Dynamic Load Rating: 74.0 kN. Static Load Rating: 80.0 kN. Limiting Speed: 9000 rpm. A 15° contact angle favours speed and radial rigidity over thrust capacity. Heavy preload gives the stiffest shaft location and the tightest running accuracy of the preload ladder, at the cost of higher running heat and a lower speed ceiling than a light-preload set. Internal Clearance: N/A — the bearing is set by preload.

Cage and lubrication

The machined phenolic cage is guided on the outer-ring land, which keeps it stable at speed and gives it low mass. Lubricant: grease or oil. Max Temp: 100°C. Min Temp: -30°C. Item Weight: 2.56 lbs.

Quantity and configuration

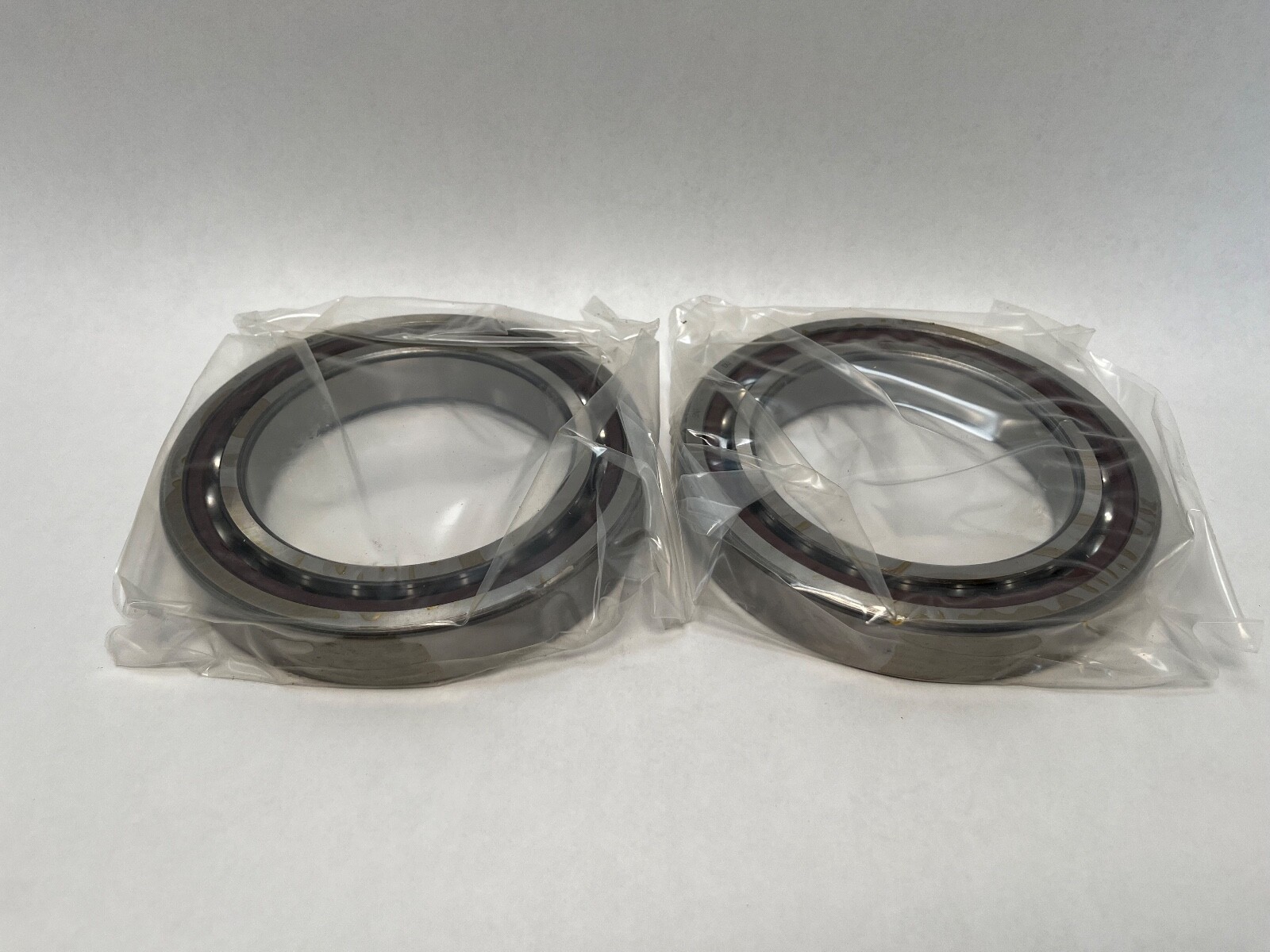

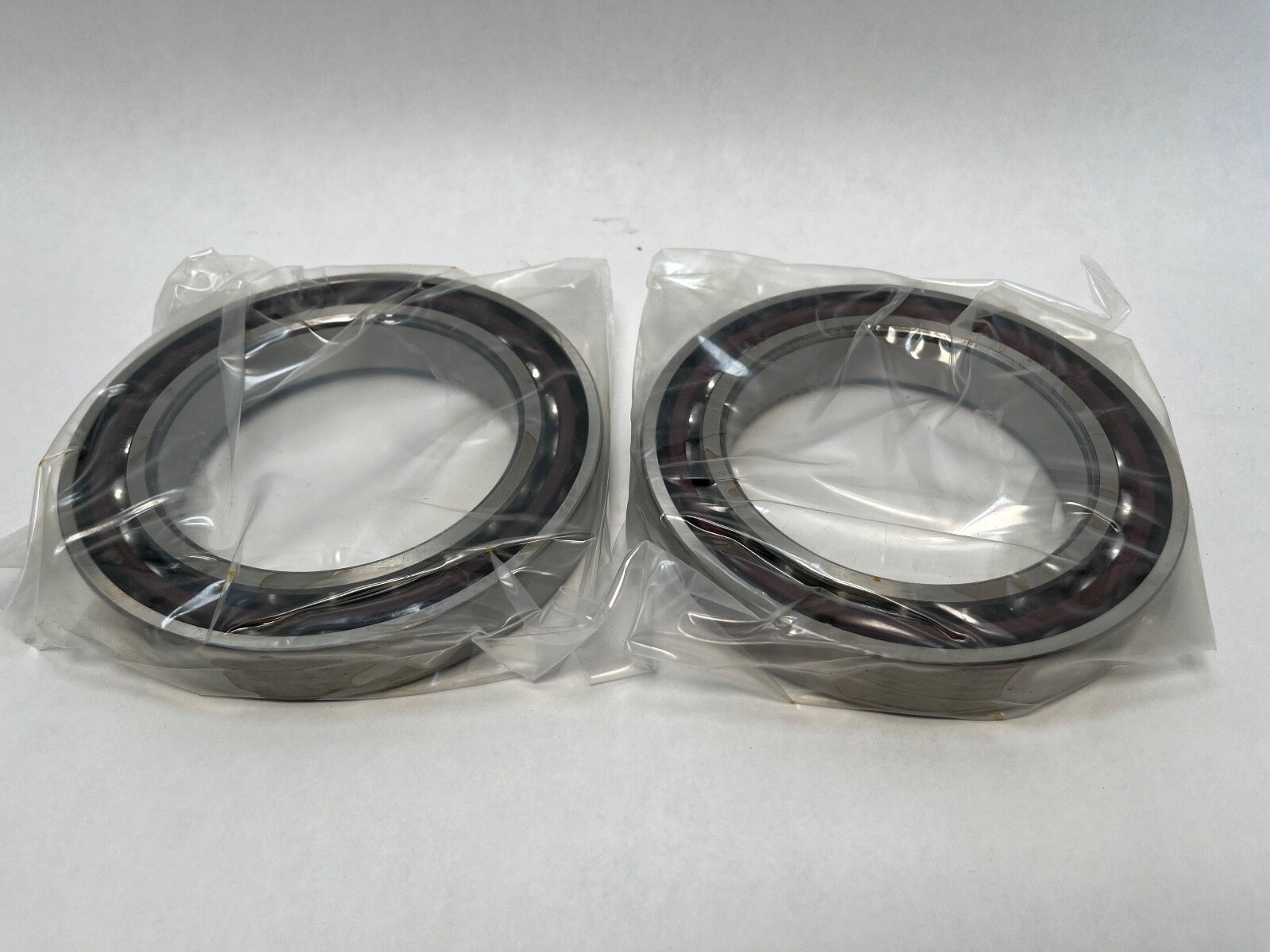

Unit Quantity: 2 Pcs. A universally ground matched pair at heavy preload, which can be set back-to-back, face-to-face or in tandem.

Interchange guidance

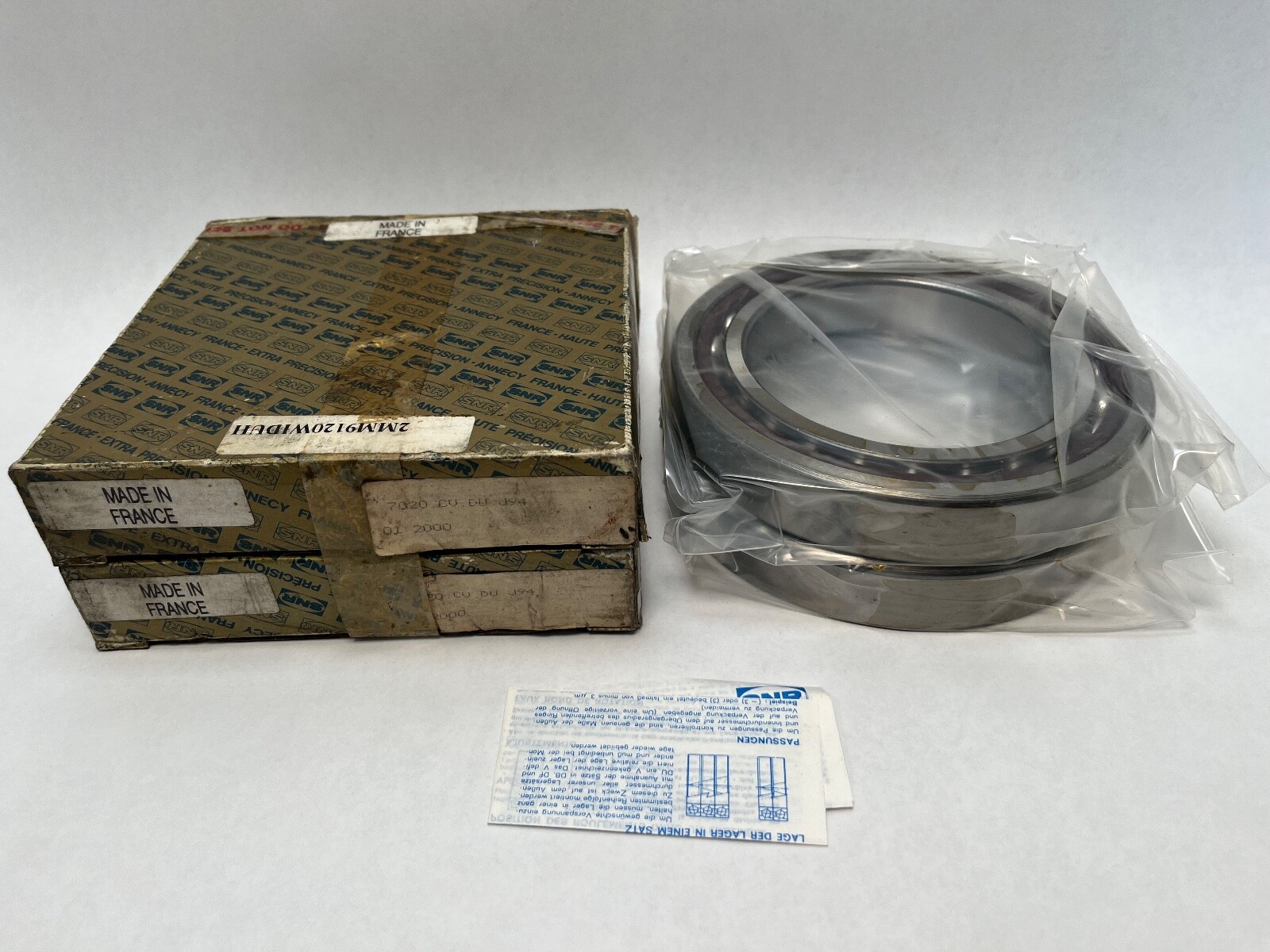

Cross-Reference 1: SKF 7020 CD/P4ADGC. Cross-Reference 2: FAG B7020-C-T-P4S-DUH. Cross-Reference 3: Fafnir 2MM9120WI-DUH. Cross-Reference 4: RHP 7020CTDUHP4. All four are 15° super-precision duplex executions at heavy preload on the same 100 x 150 x 24 mm envelope. MPN Variants: 7020C-T-DUH-P4, 7020-C-V-DU-J94, 2MM9120WI CR DUH. Harmonization Code: 8482.10.50.
