RHPBSB093SUHP3Ball Screw Support Bearing – 23.838 mm (15/16 in) ID, 62 mm OD, 15.875 mm (5/8 in) Width, Open, 60° Contact Angle, Heavy Preload

Product Description

What this part is:

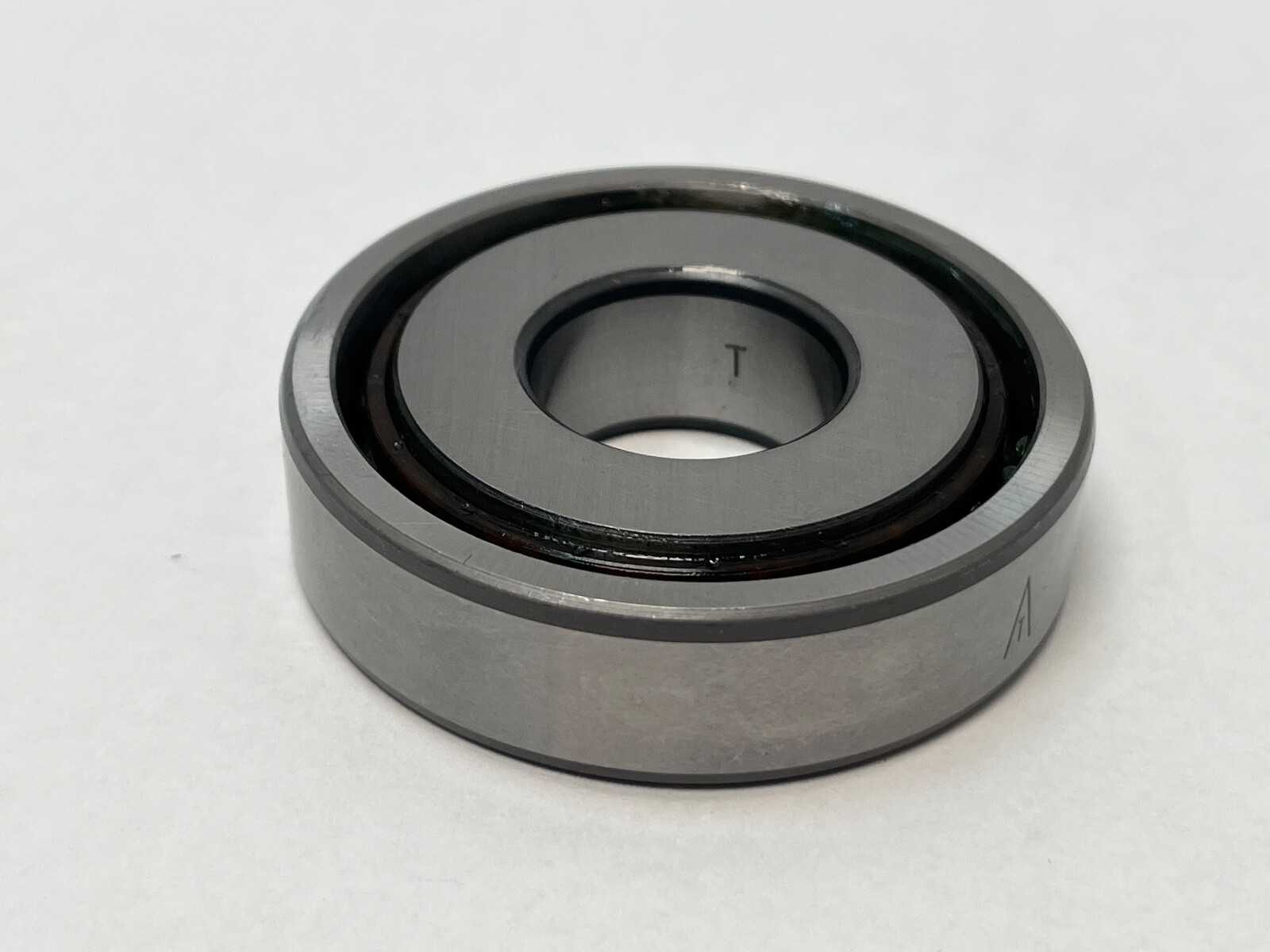

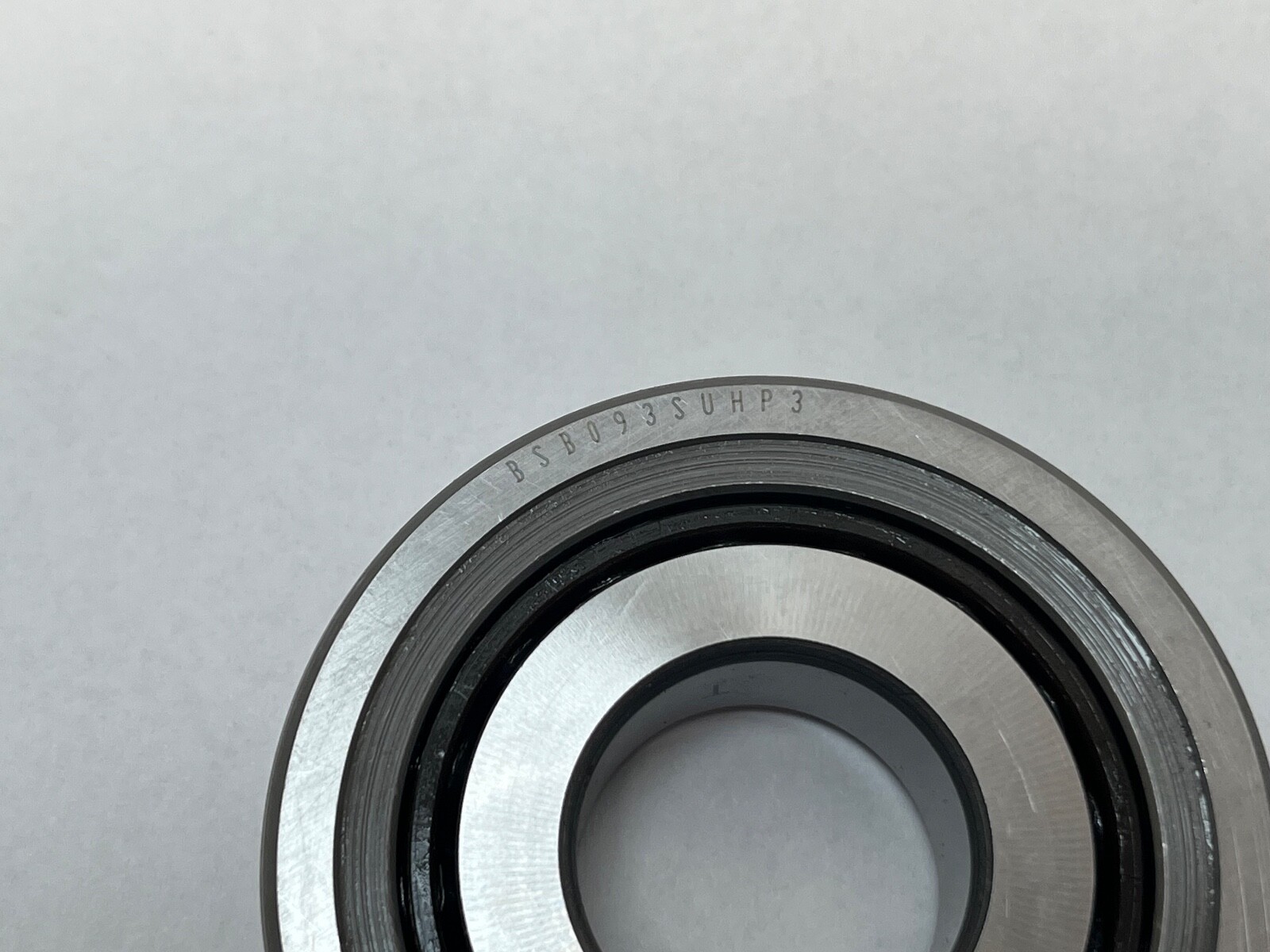

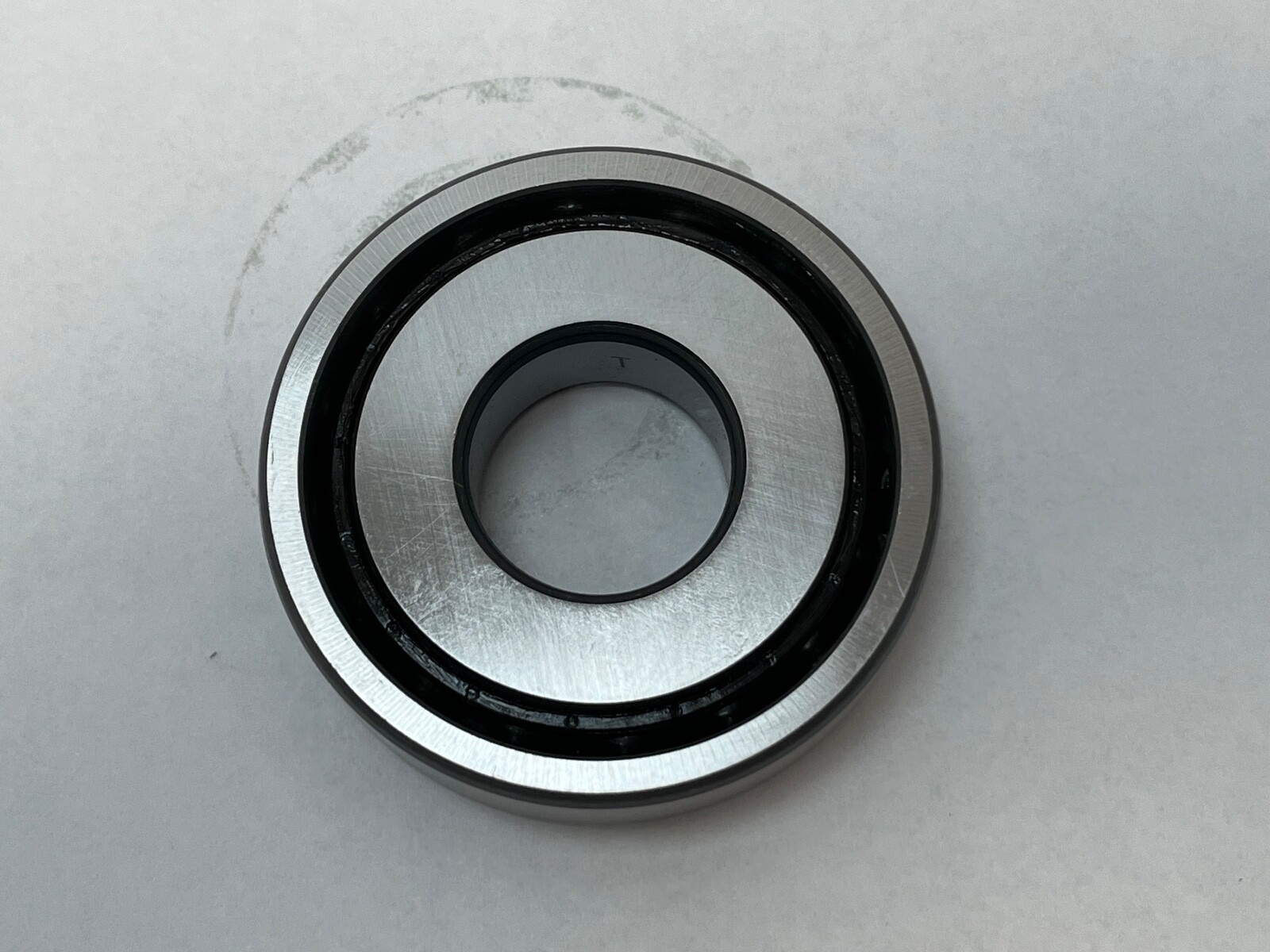

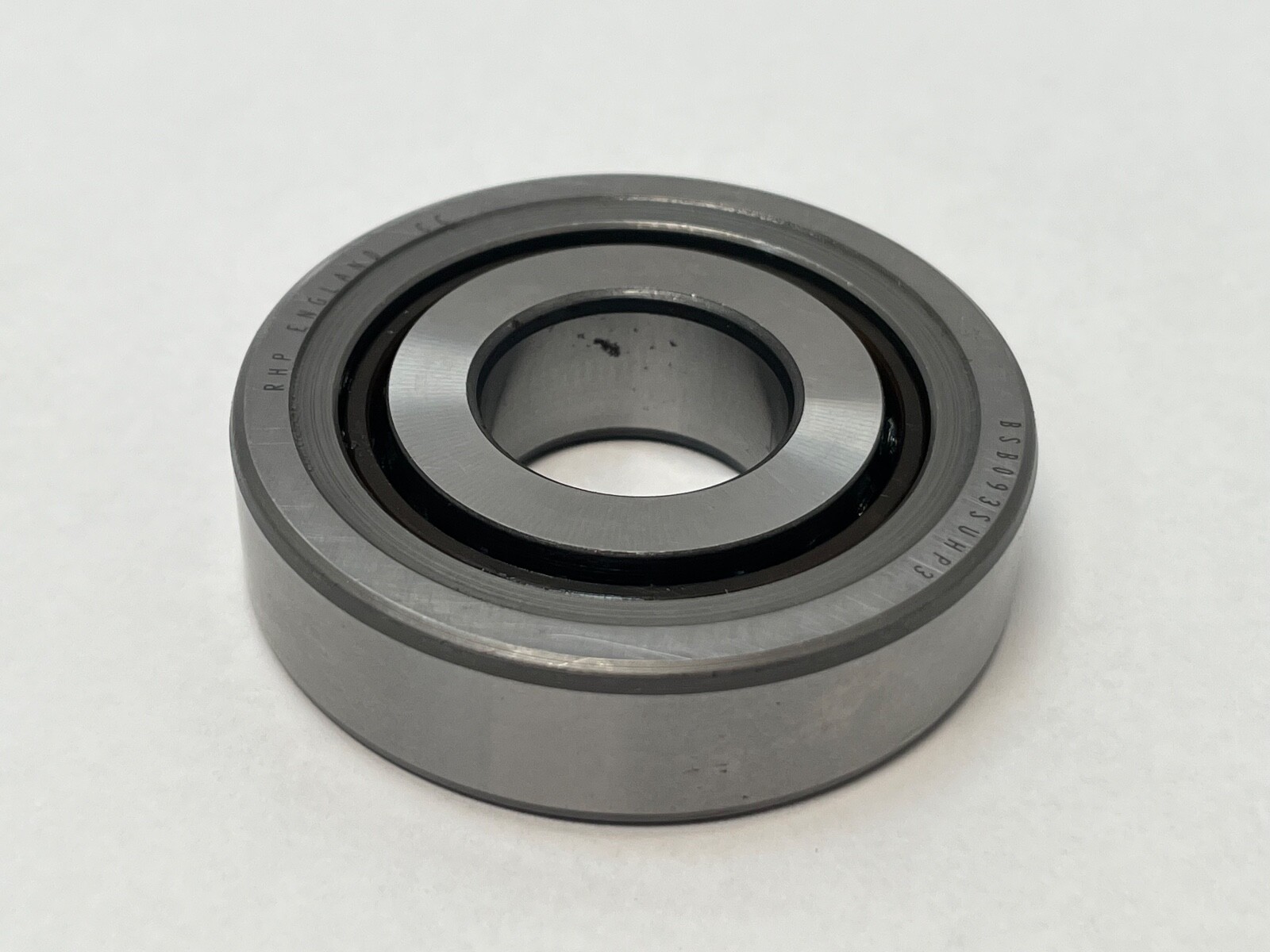

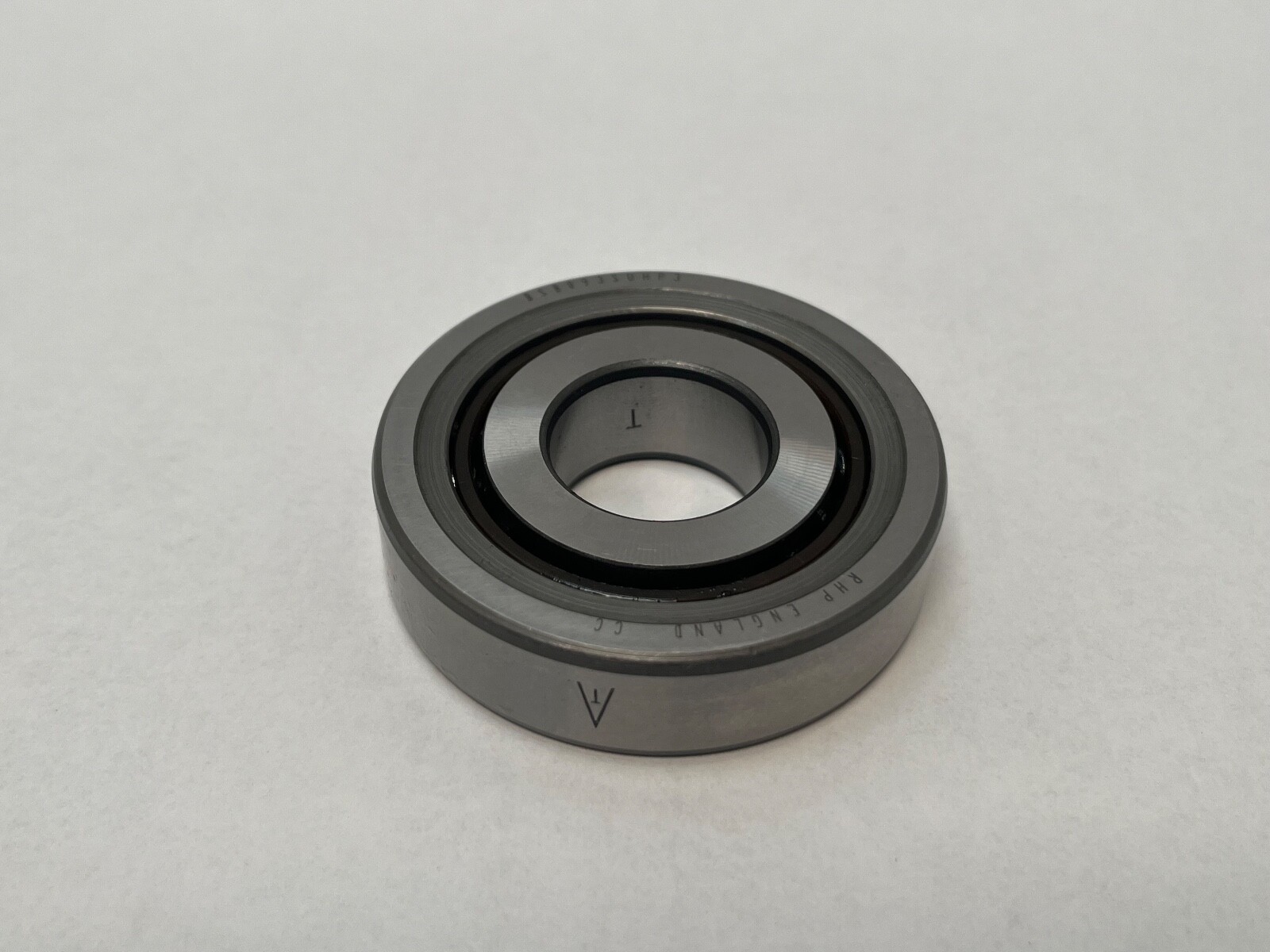

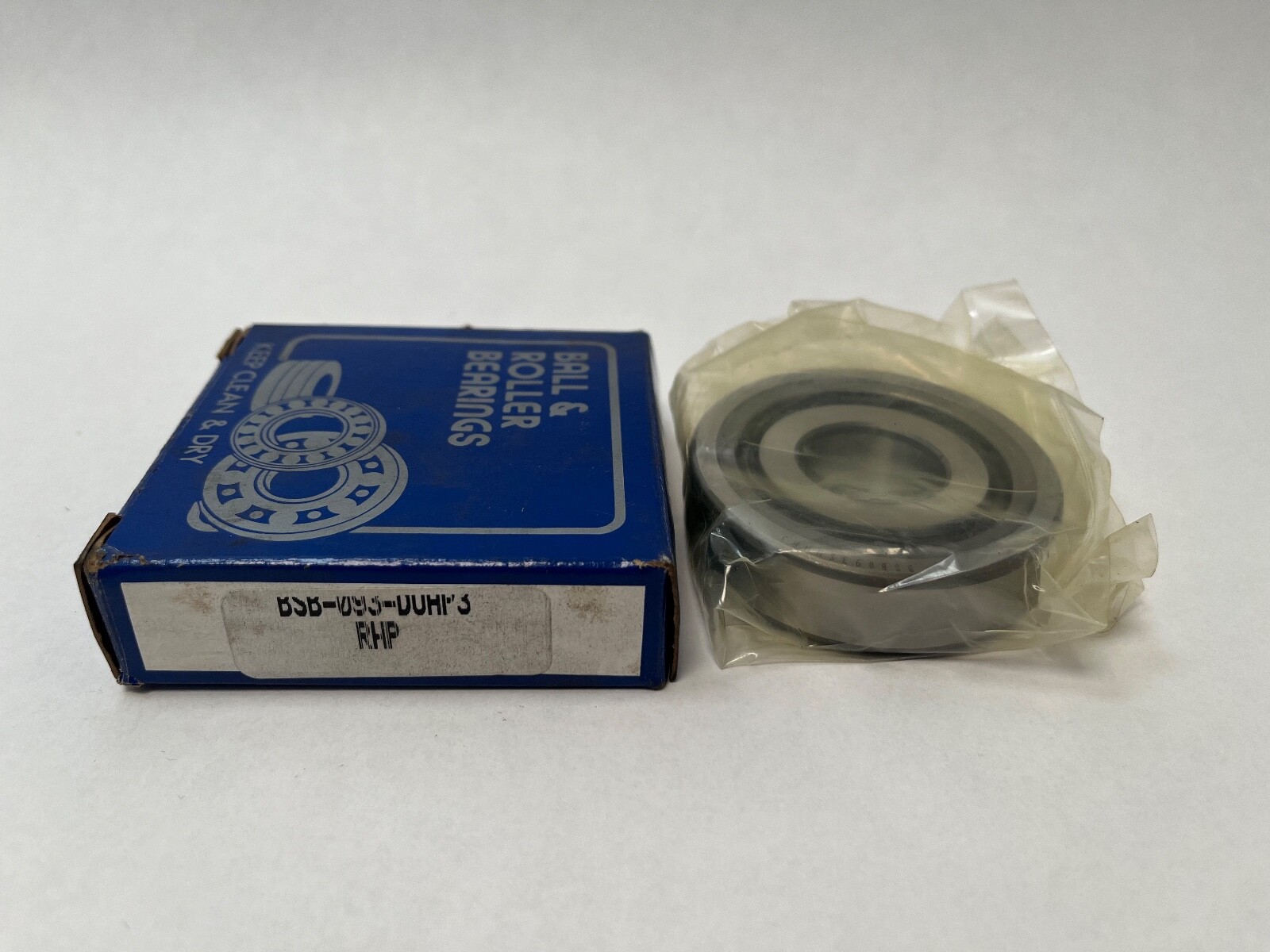

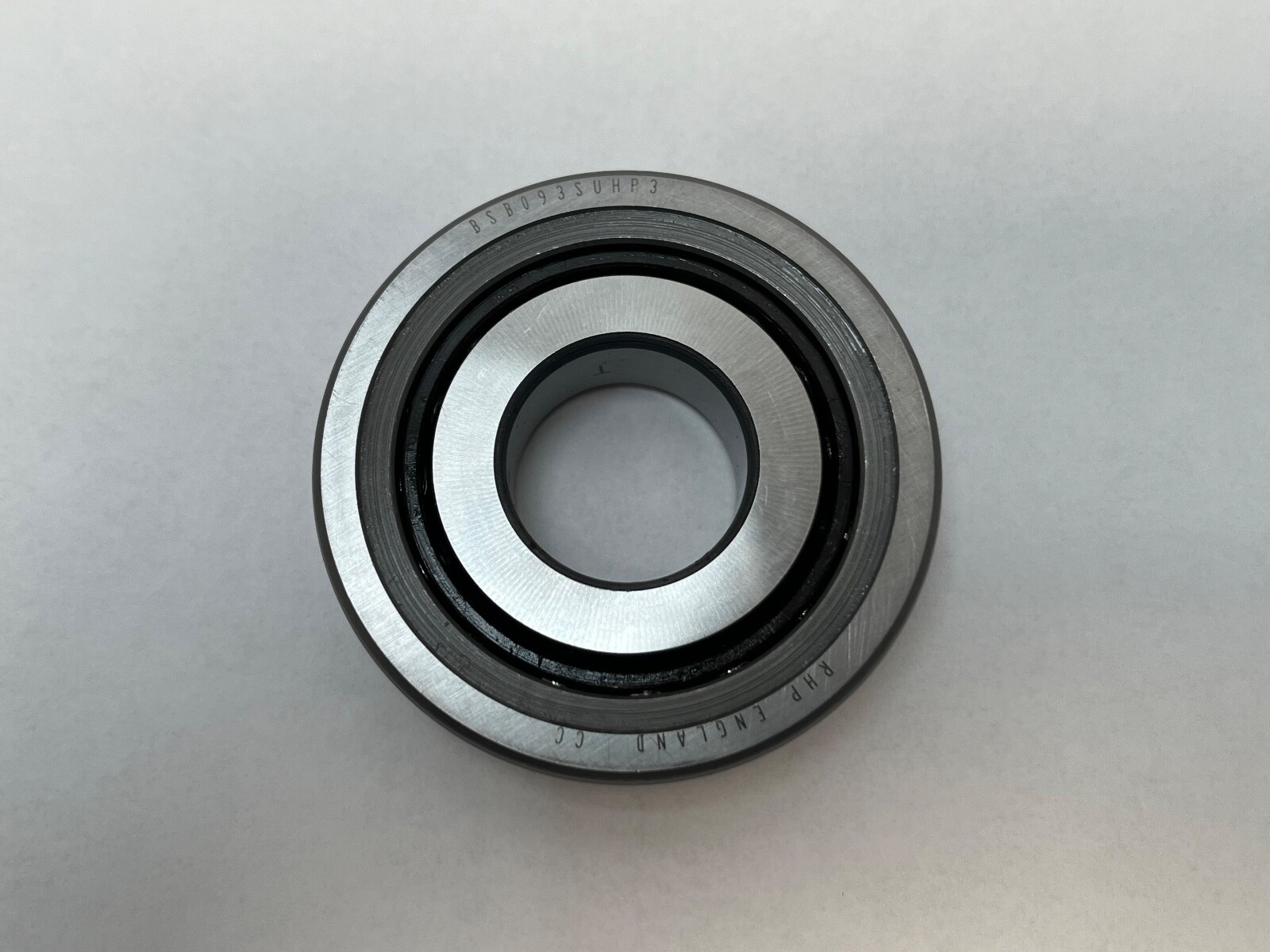

RHP BSB093SUHP3 single-row ball screw support bearing, open, 23.838 mm (15/16 in) bore, 62 mm (2-7/16 in) outside diameter, 15.875 mm (5/8 in) wide, 60° contact angle, heavy preload, single universal grind. Unit Quantity: 1 Pc.

Decoding the designation:

BSB — ball screw support bearing, RHP’s 60° thrust-optimised angular contact family.

093 — inch-series size code, 15/16 in bore.

SU — single universally ground.

H — heavy preload.

P3 — RHP precision class code.

Specifications:

Bore Diameter: 23.838 mm (15/16 in). Outside Diameter: 62 mm (2-7/16 in). Overall Width: 15.875 mm (5/8 in). Contact Angle: 60°. Number Of Rows: 1. Rolling Elements: Steel balls. Closure Type: Open. Bore Type: Straight. Series: RHP BSB inch series. Base Number: BSB093. Preload: Heavy (H). Precision Class: P3. Bearing Material: Bearing steel. Bearing Type: Ball screw support bearing.

Dimensions and mounting:

Envelope: 23.838 x 62 x 15.875 mm, an inch bore and width with a metric outside diameter, as on the RHP inch BSB series. Mounting Arrangement: single universally ground bearing; two or three stack back-to-back, face-to-face or in tandem with like bearings and reach the catalogue preload with no shims.

Compatibility and replacement:

The duplex execution on the same 23.838 x 62 x 15.875 mm section is RHP BSB093DUHP3, a universally matched pair catalogued at 26.5 kN dynamic and 47.5 kN static with a 2,300 rpm limiting speed. Other makers’ 60° ball screw support families: NSK BSBD and TAC series, FAG 7602 series, NTN BST series. Written forms in circulation: BSB093SUHP3, BSB-093-SUH-P3, BSB 093 SUH P3, BSB093-SUH-P3.

Frequently asked questions:

What size and contact angle is the RHP BSB093SUHP3?

23.838 mm (15/16 in) bore, 62 mm outside diameter, 15.875 mm (5/8 in) width, 60° contact angle.

What preload does it have?

Heavy preload (H), single universal grind (SU).

What does BSB mean?

RHP’s ball screw support bearing family, a 60° thrust-optimised angular contact design.
