Single-Row Angular Contact Ball Bearing - 85 mm Bore, 150 mm OD, 28 mm Width, Open, 40° Contact Angle, Machined Brass Cage$74.70| MFR / Brand | SNFA |
|---|---|

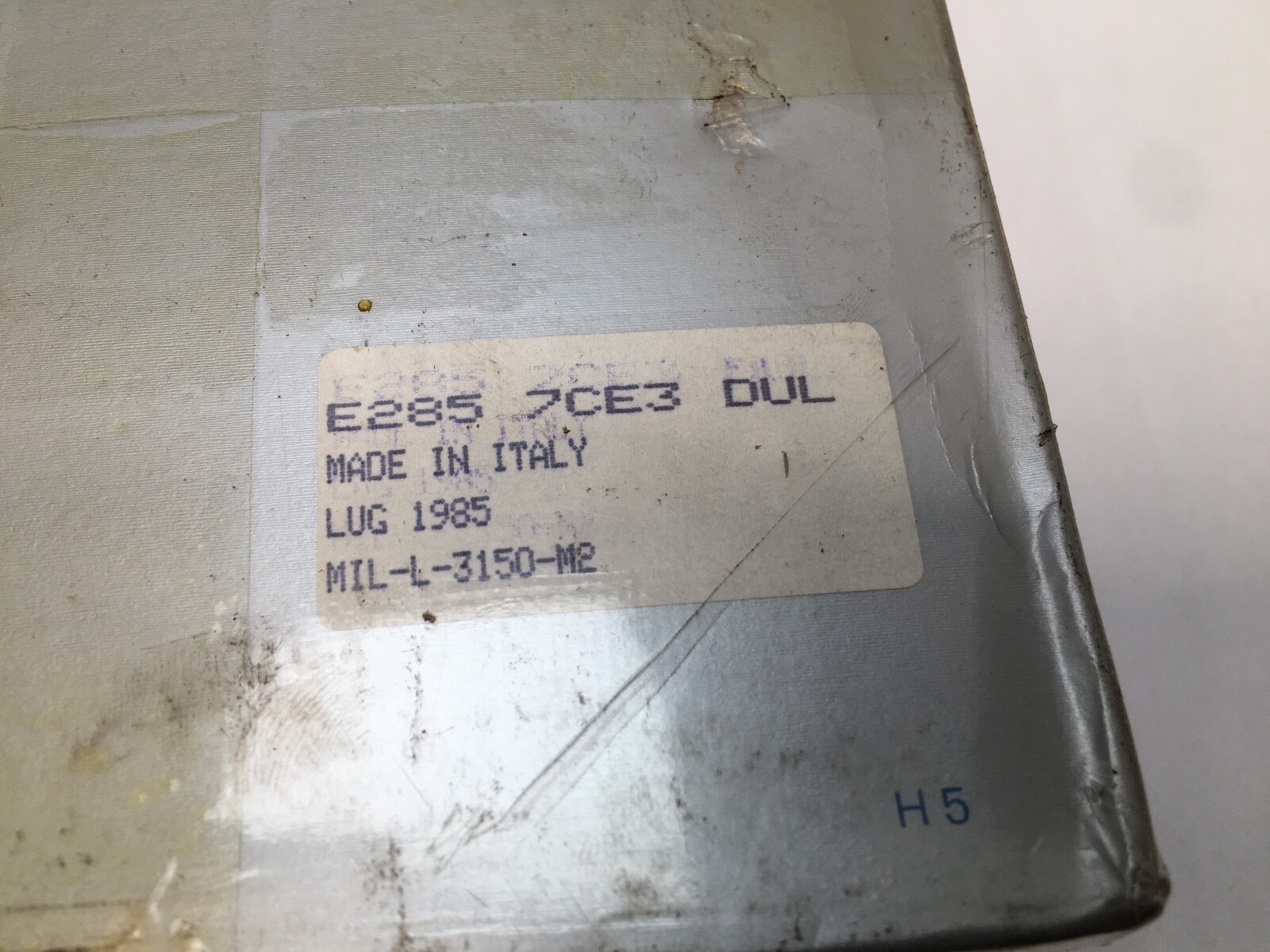

| MPN | E285-7CE3DUL |
| Model | 3MM-217 DUL / 7217A P4 DUL / E 285-7 CE 3 DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 85 mm |
| OD | 150 mm |
| Width | 28 mm |
| Material | Bearing Steel |
|---|---|
| Series | 72 Series |
| Condition | New |
| Lubricant | Preserved |
| Preload | Light Preload |
| Min Temp | -30°C |
| Dynamic Load Rating | 85 kN / 19108 lbf |
| Static Load Rating | 83 kN / 18659 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 100°C |
| Item Weight | 3.60 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 12000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Running Accuracy | P4 |
| Running Accuracy Radial And Axial Runout | P4 |
| Cross Reference 1 | SKF 7217ACD/P4ADGA |
|---|---|
| Cross Reference 2 | FAG B7217E.T.P4S.DUL |

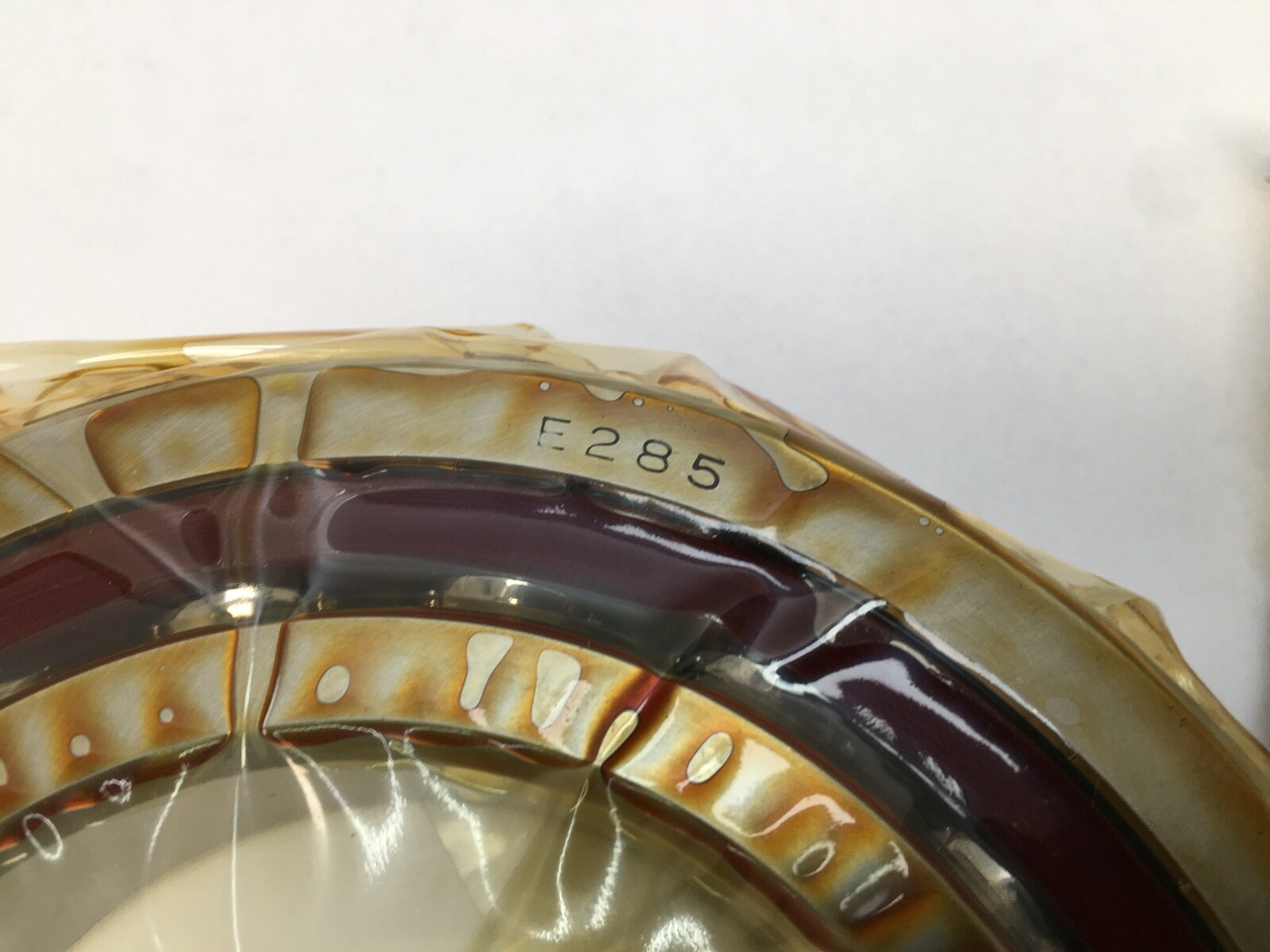

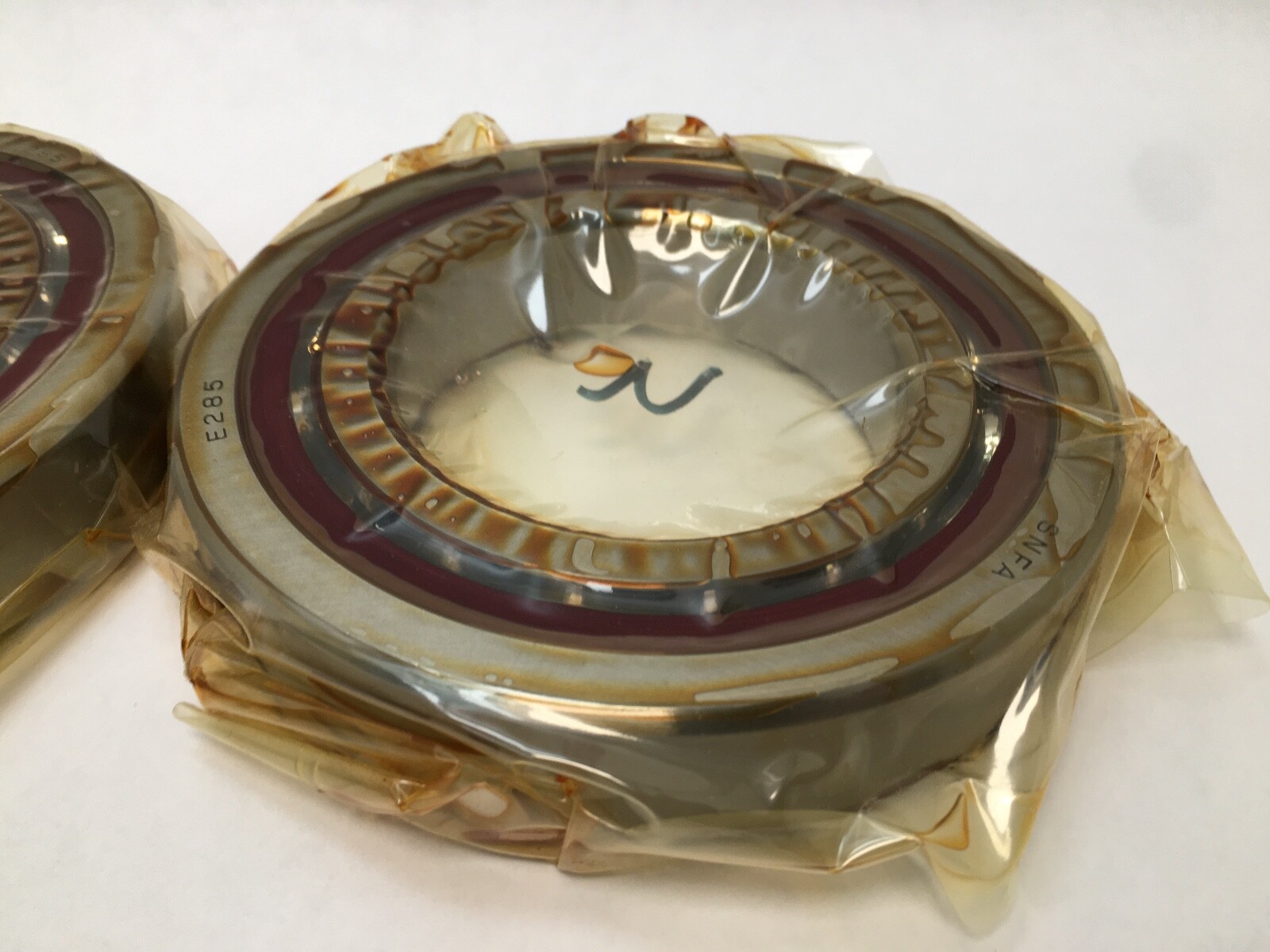

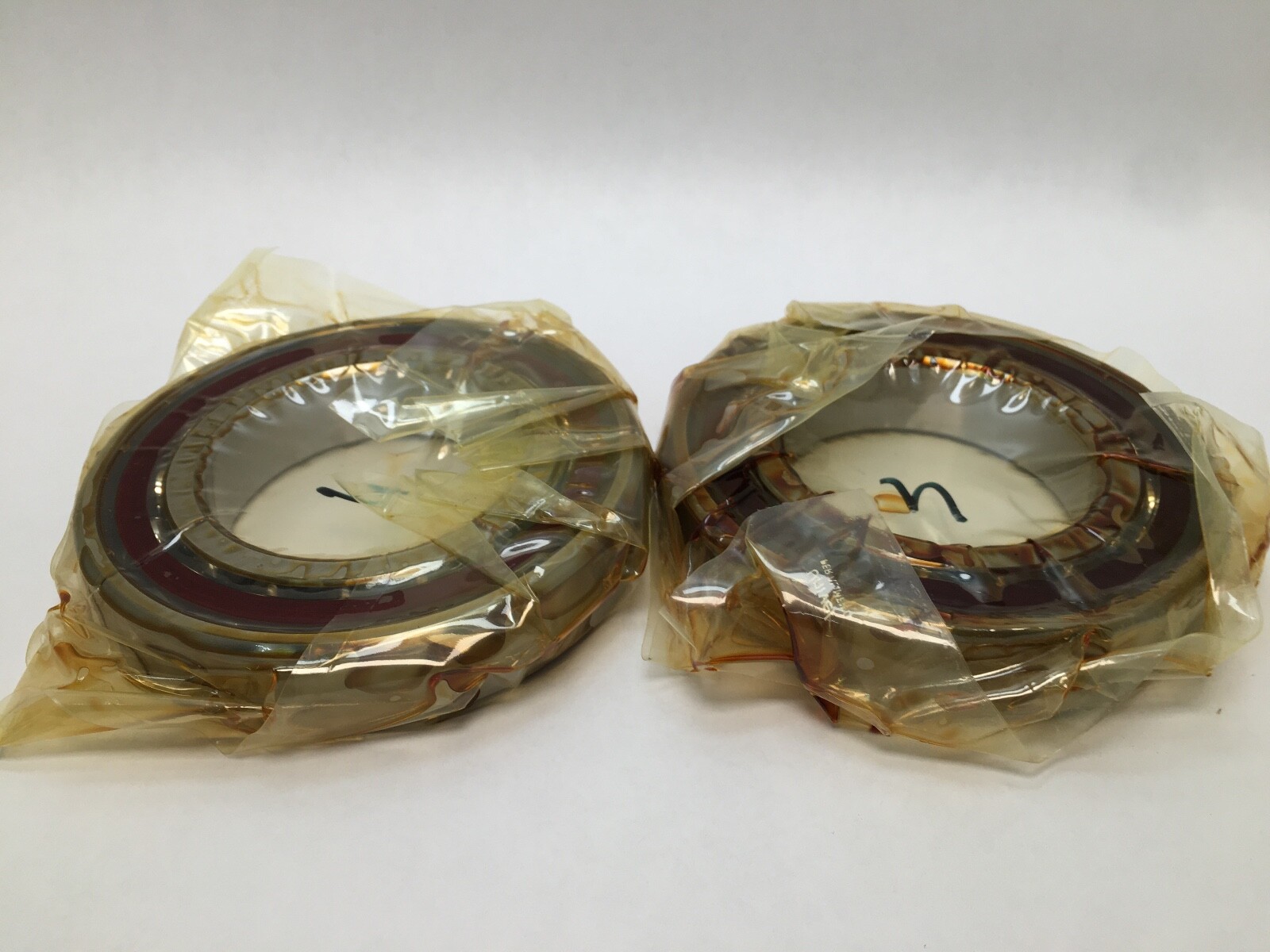

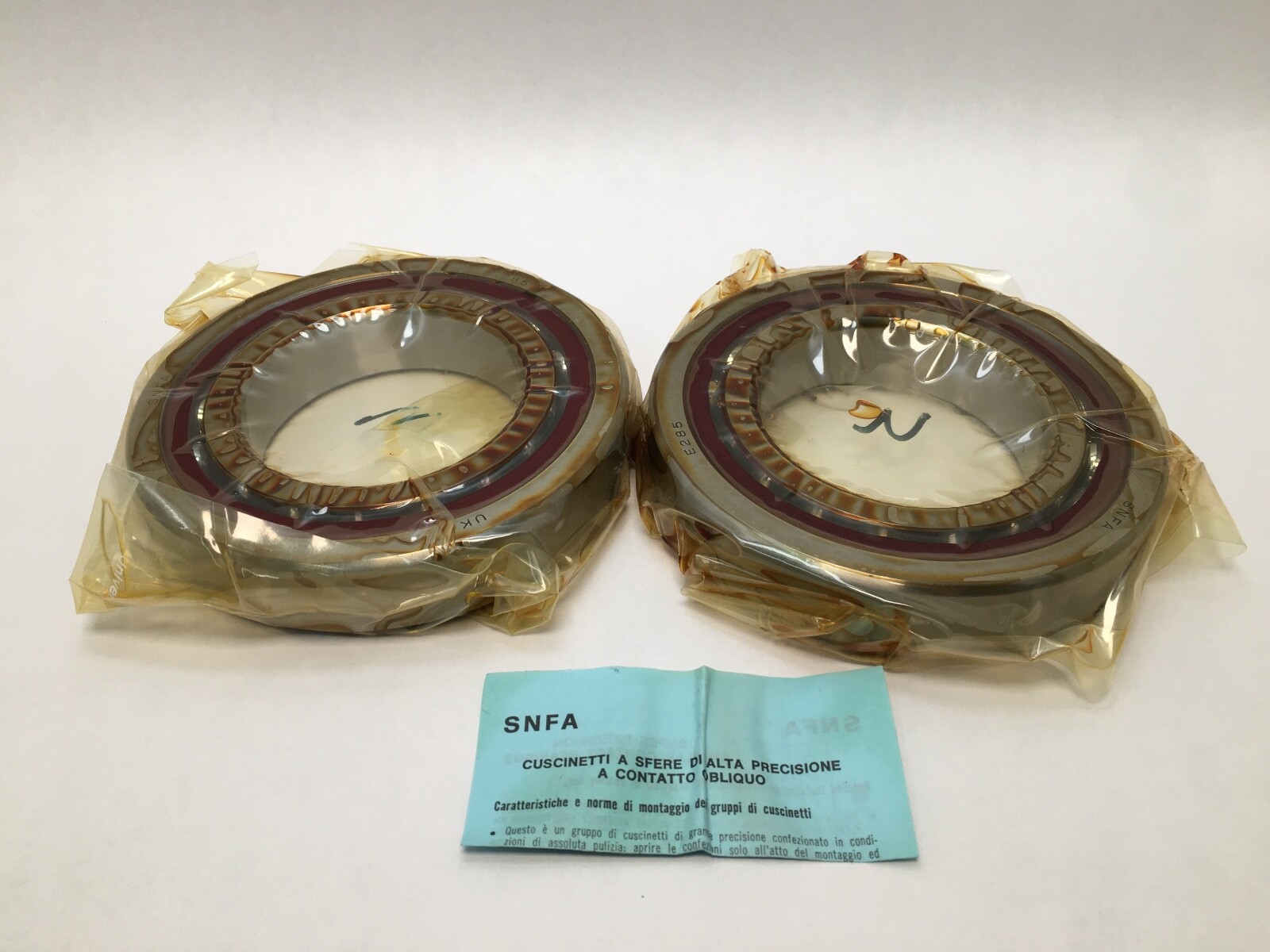

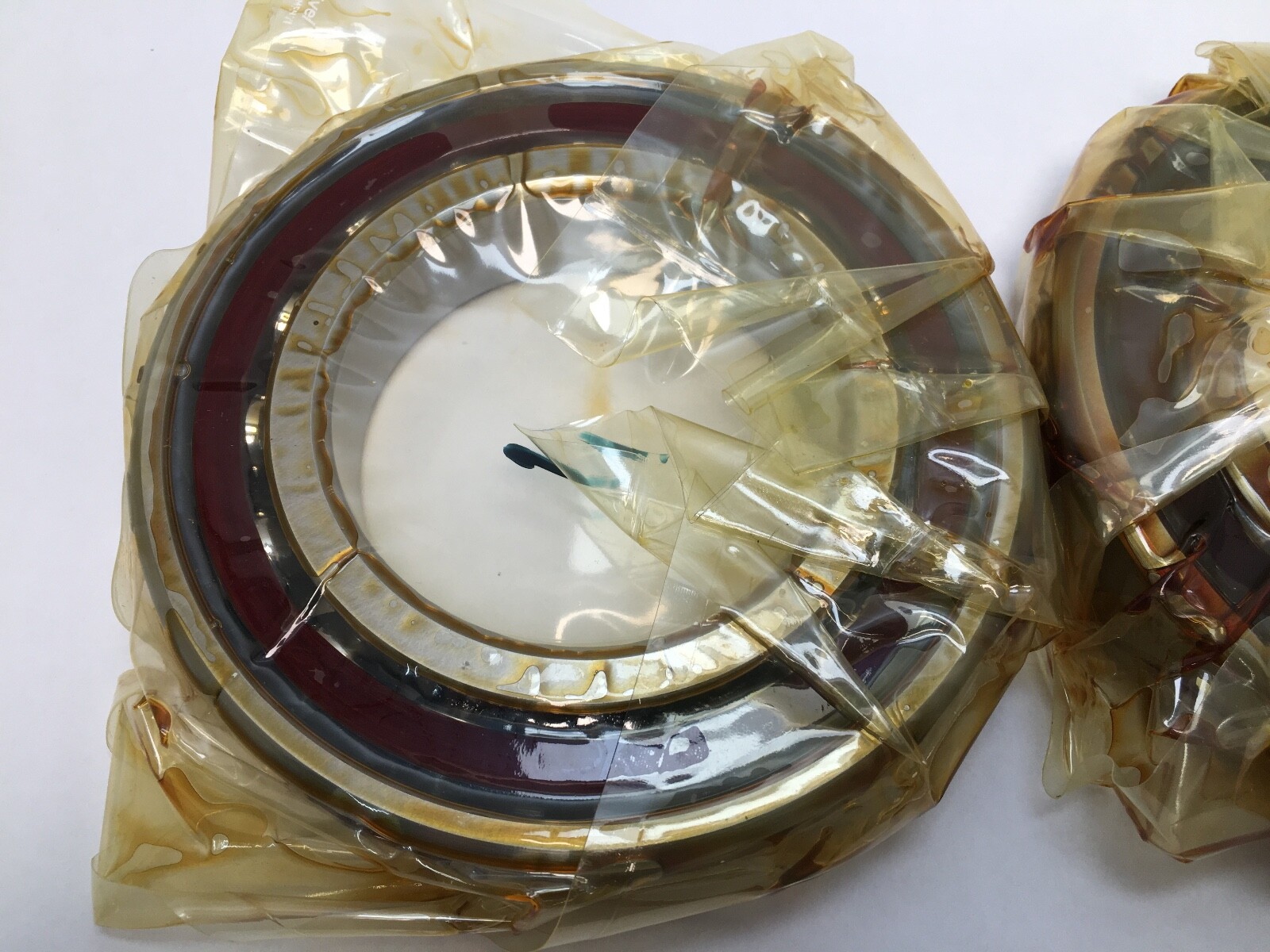

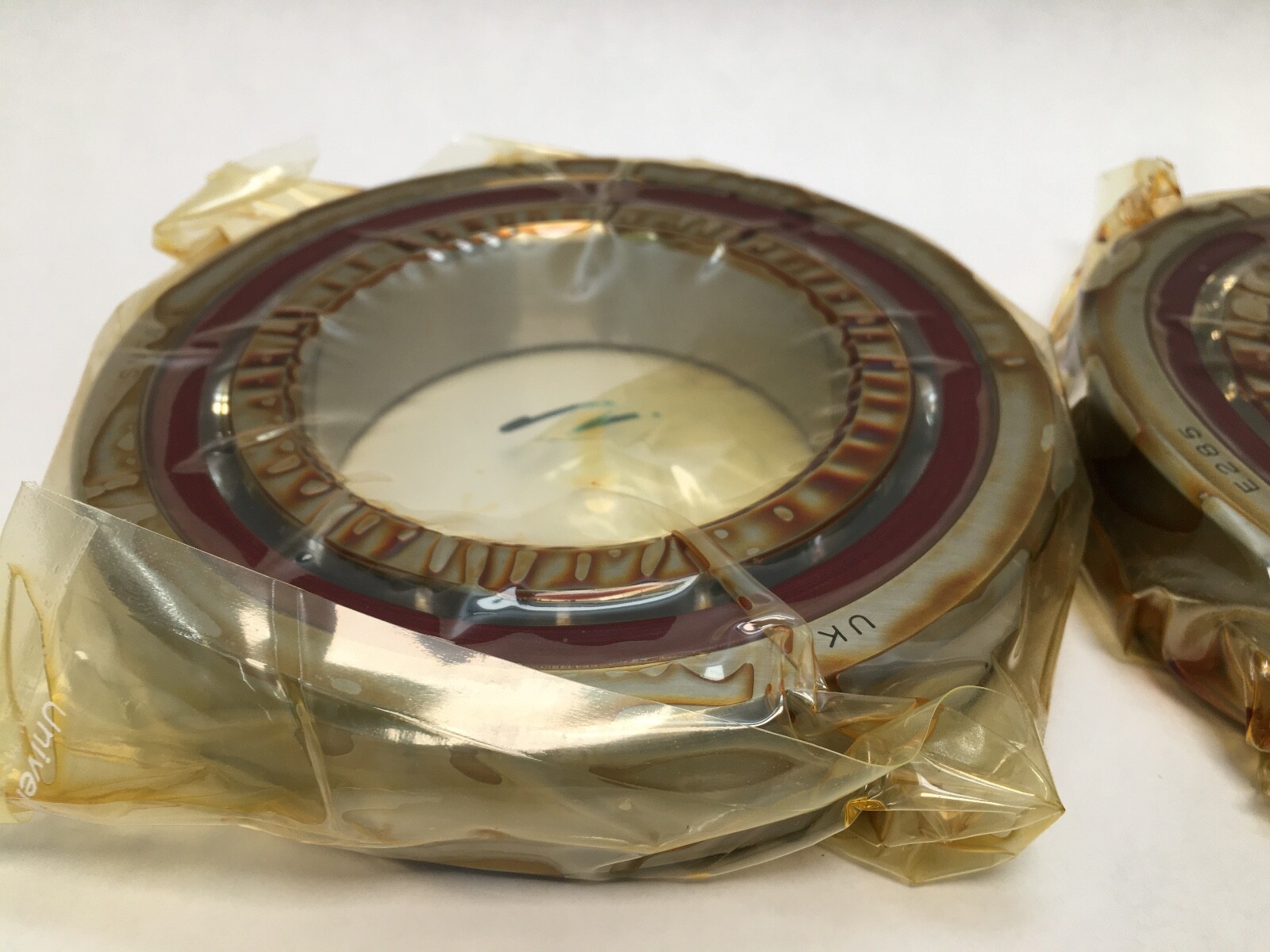

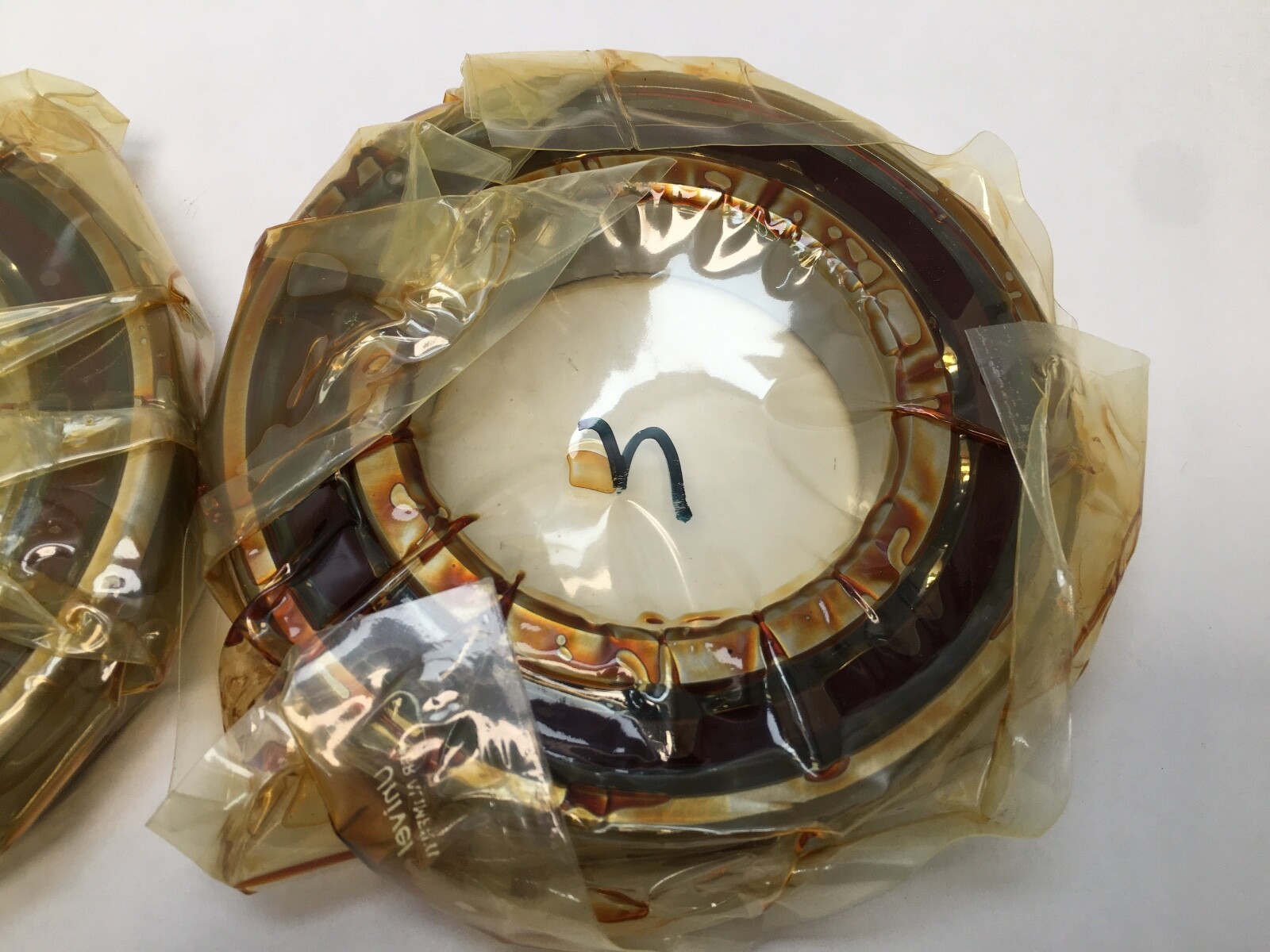

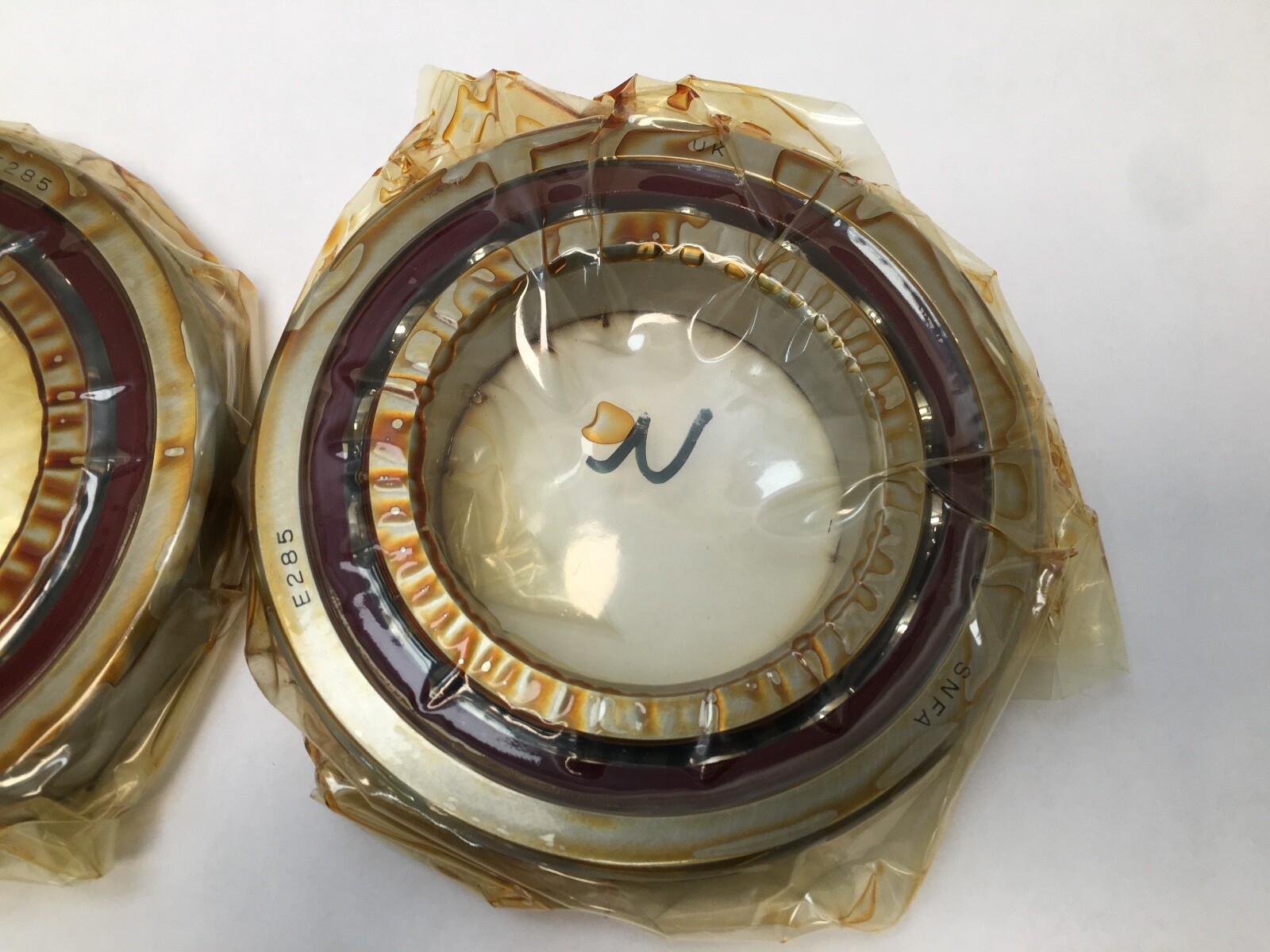

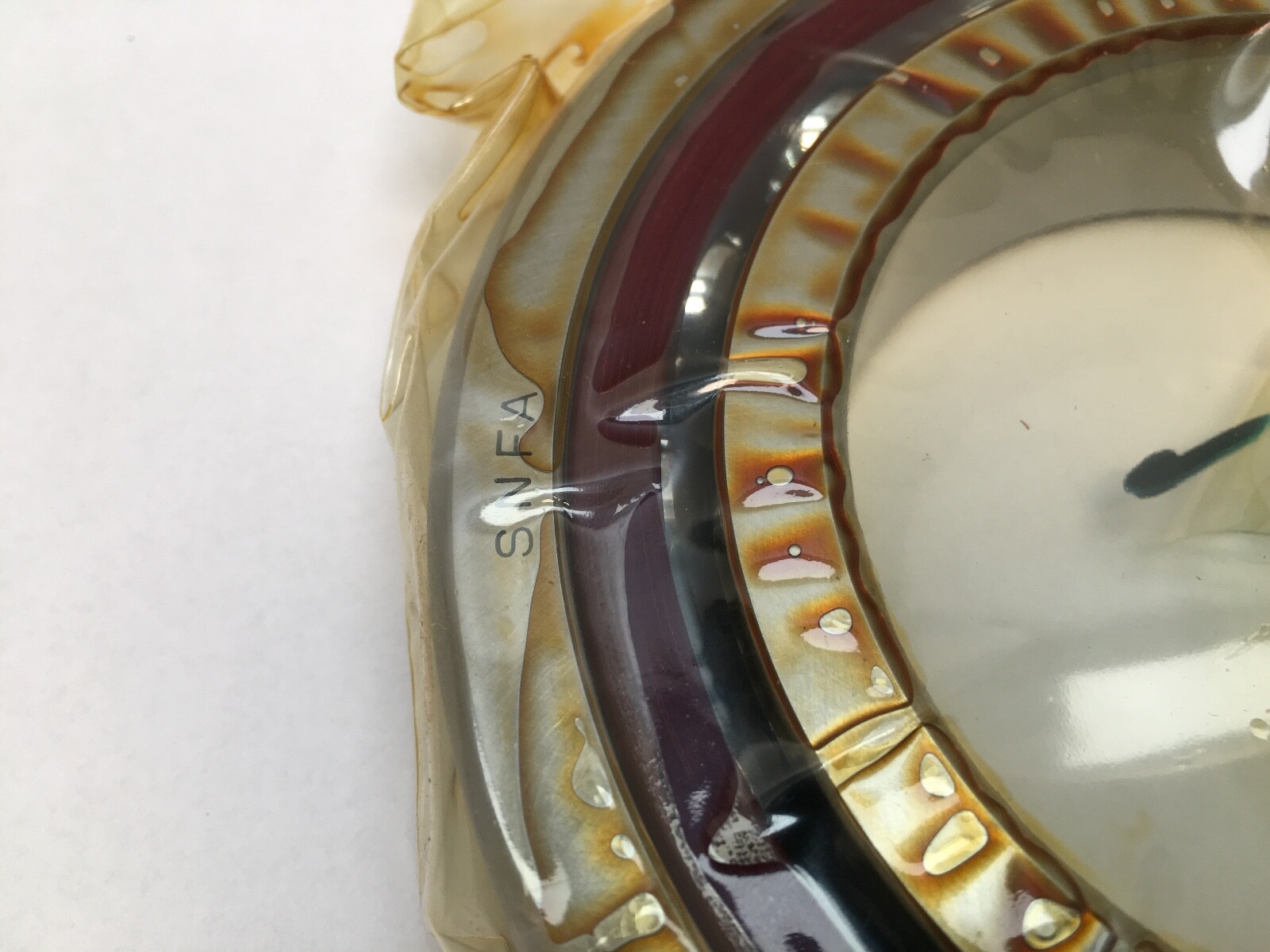

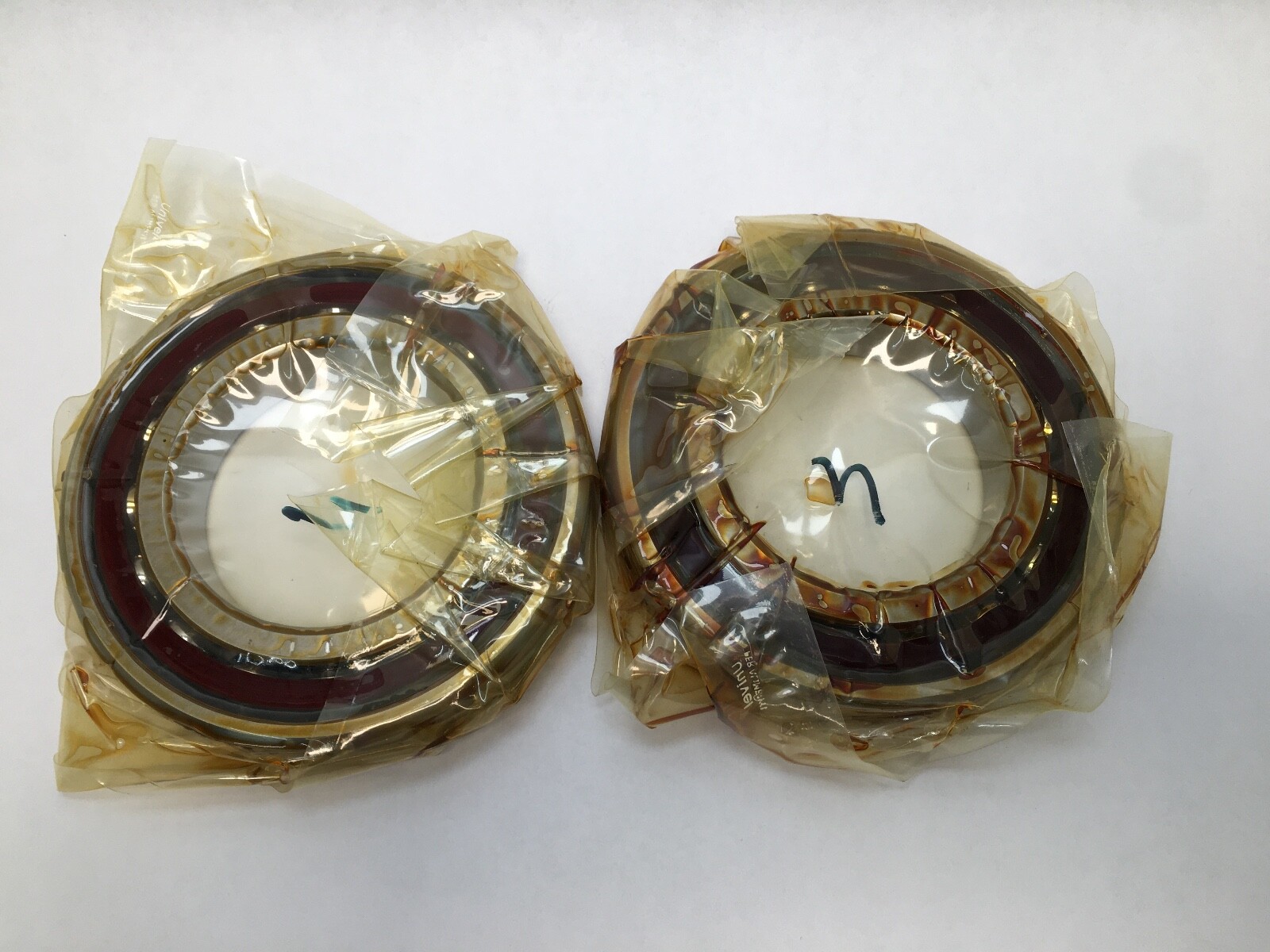

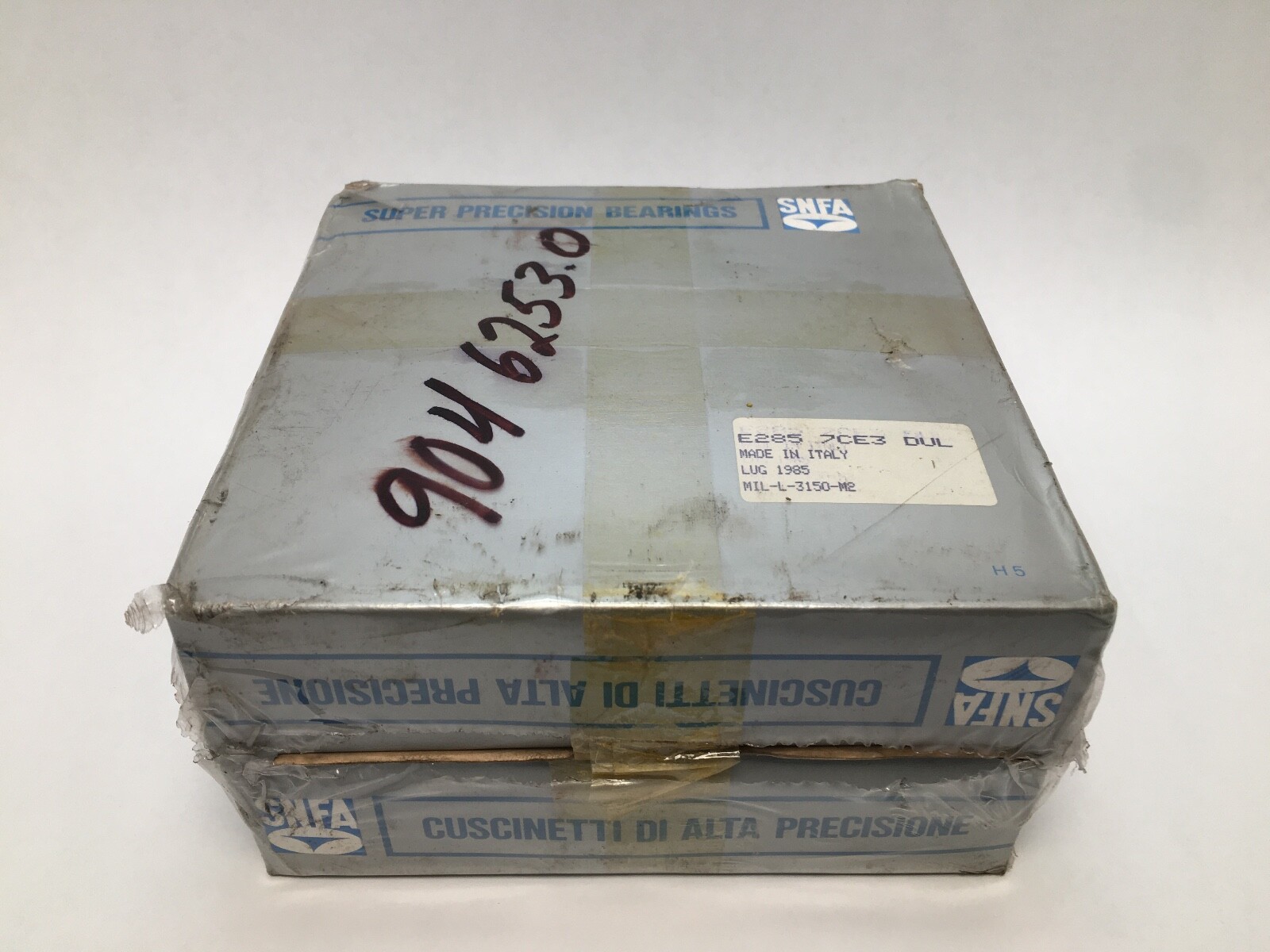

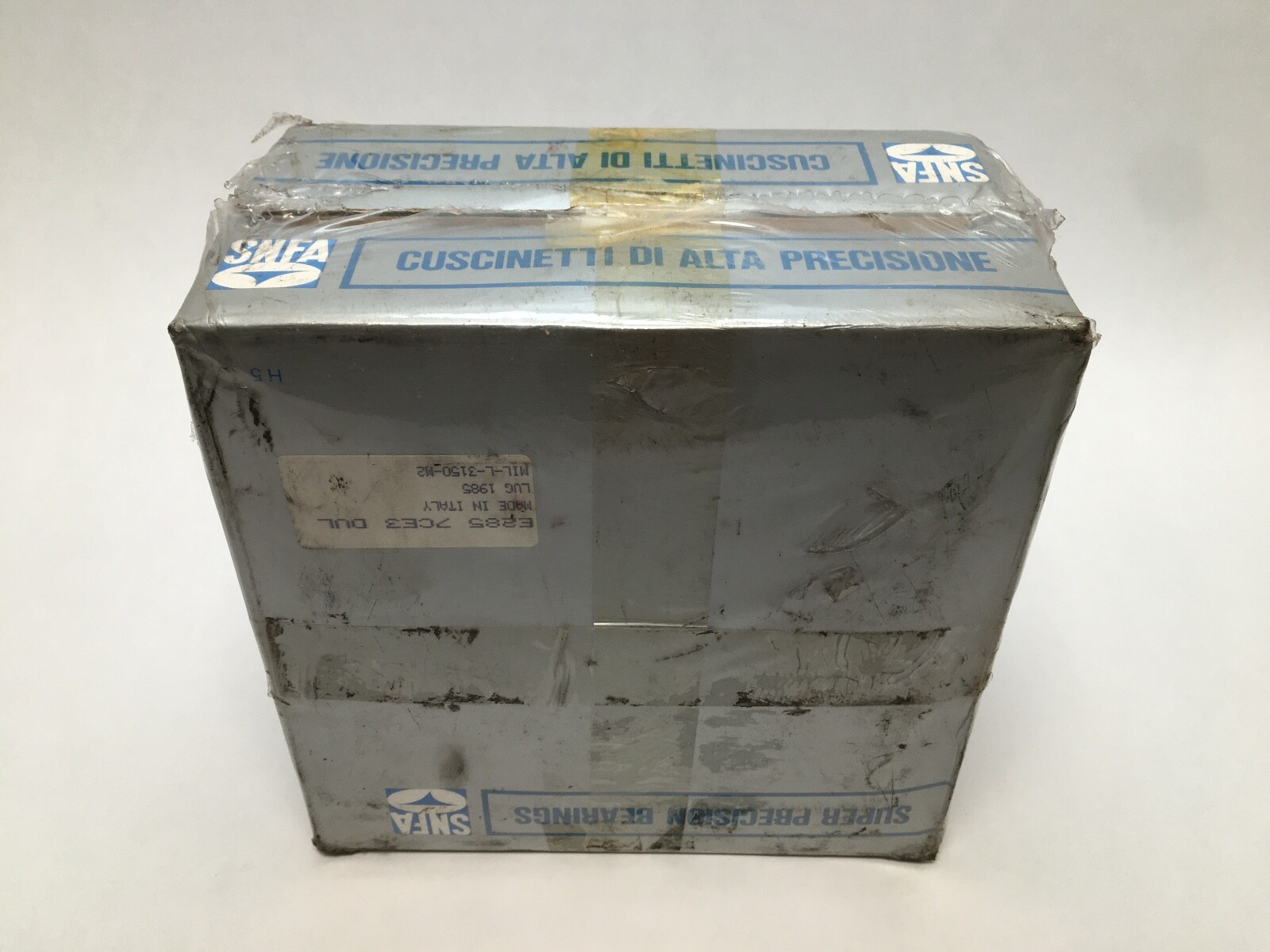

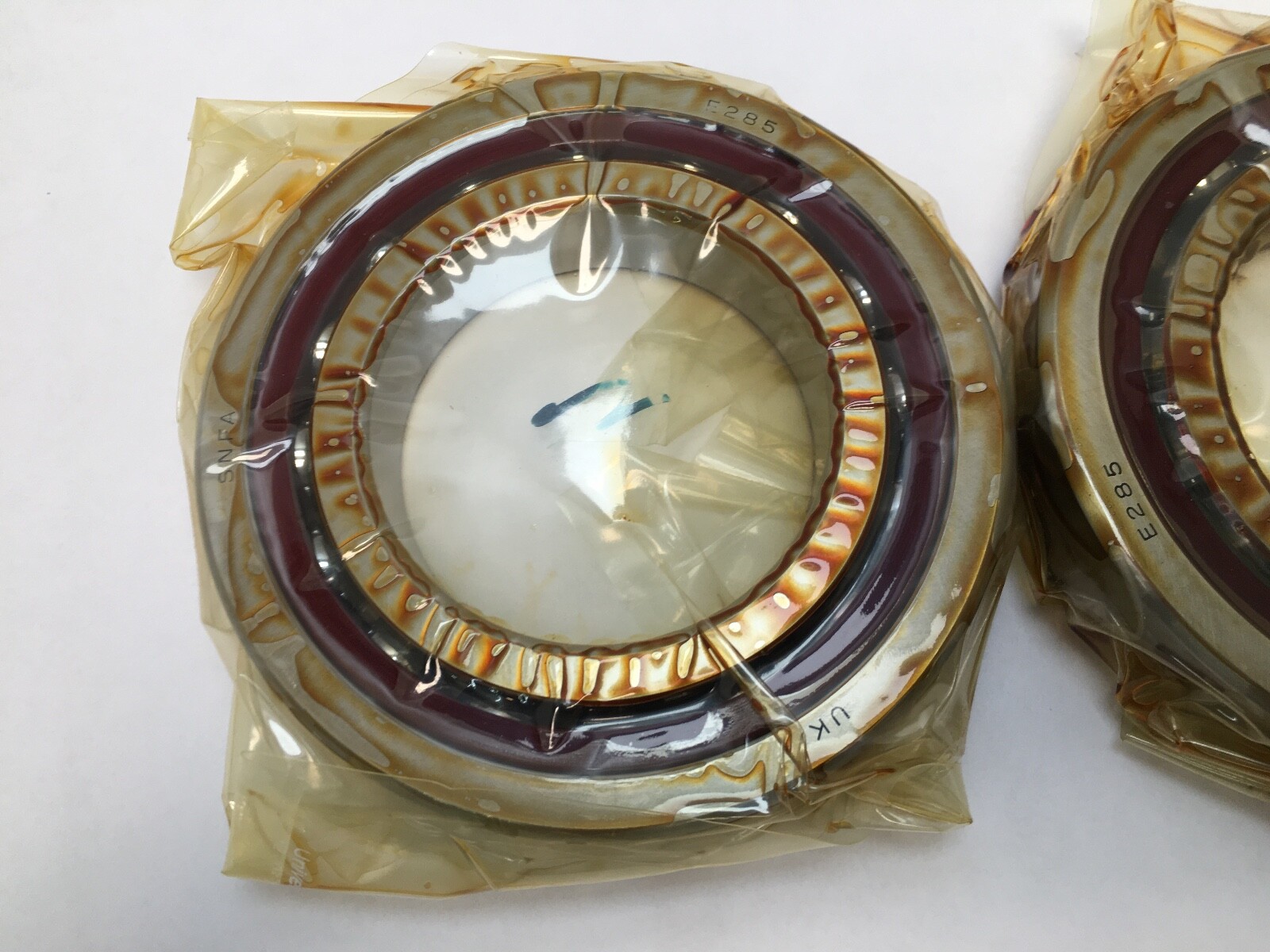

Introducing the SNFA E285-7CE3DUL Bearing, a premium-grade angular contact ball bearing expertly engineered for optimal performance in a variety of industrial applications. With precise dimensions of 85 mm bore diameter, 150 mm outside diameter, and a width of 28 mm, this bearing is crafted from high-quality steel, ensuring exceptional durability and reliability in even the most demanding conditions.
What distinguishes the SNFA E285-7CE3DUL is its ABEC7 rating, which signifies extraordinary precision and minimized friction, leading to enhanced operational efficiency. This makes it an ideal choice for mechanical power transmission systems and industrial automation, where every detail significantly impacts performance.
The renowned SNFA brand is synonymous with excellence, and this bearing model consistently delivers unparalleled support and performance, essential for maintaining seamless operations within your facility. Whether you are looking to upgrade your machinery or seeking a high-performance solution, the SNFA E285-7CE3DUL Bearing emerges as your go-to choice for reliability and quality.
Upgrade your operations with the best in precision engineering, and experience the difference it can make.
