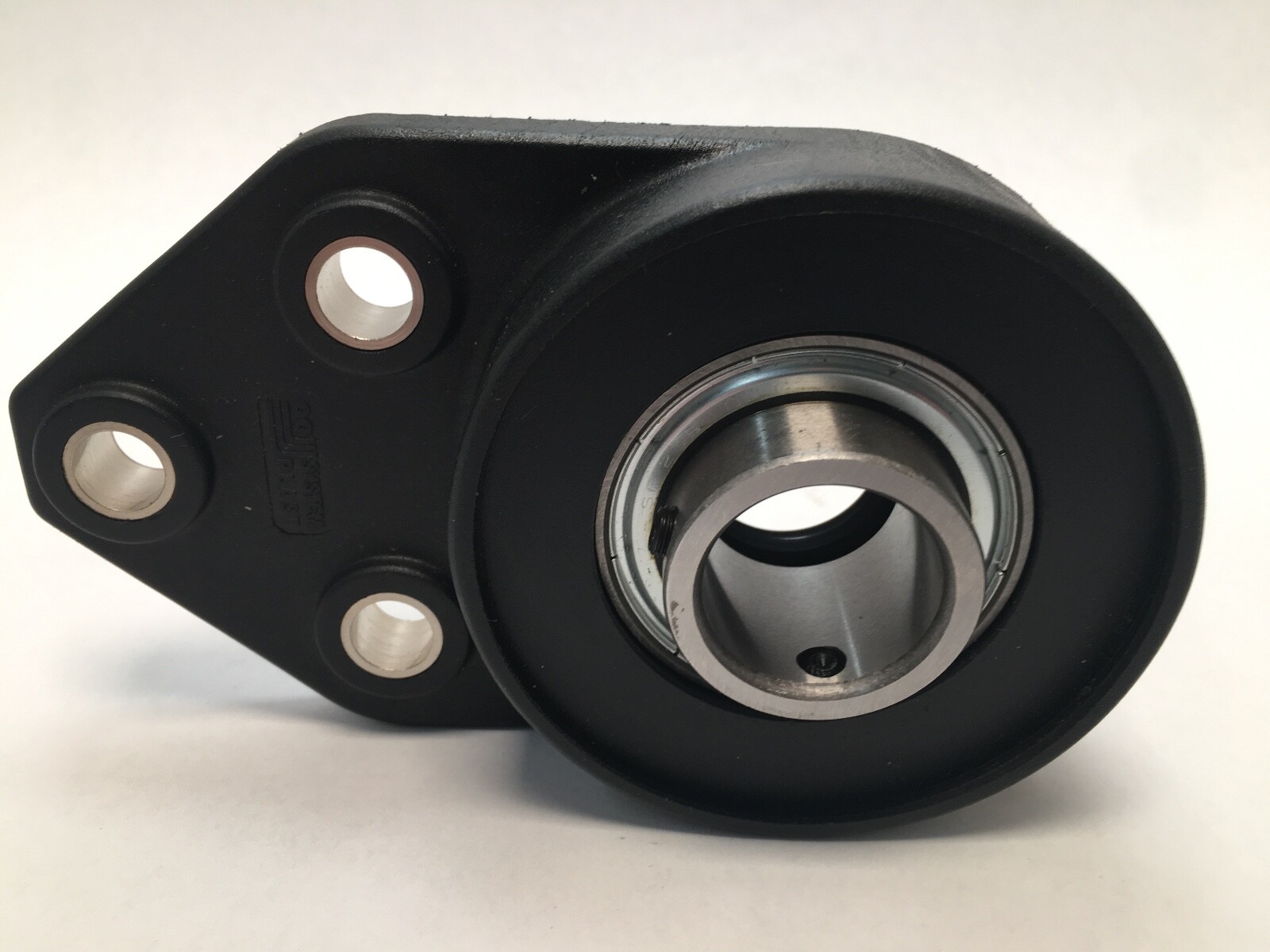

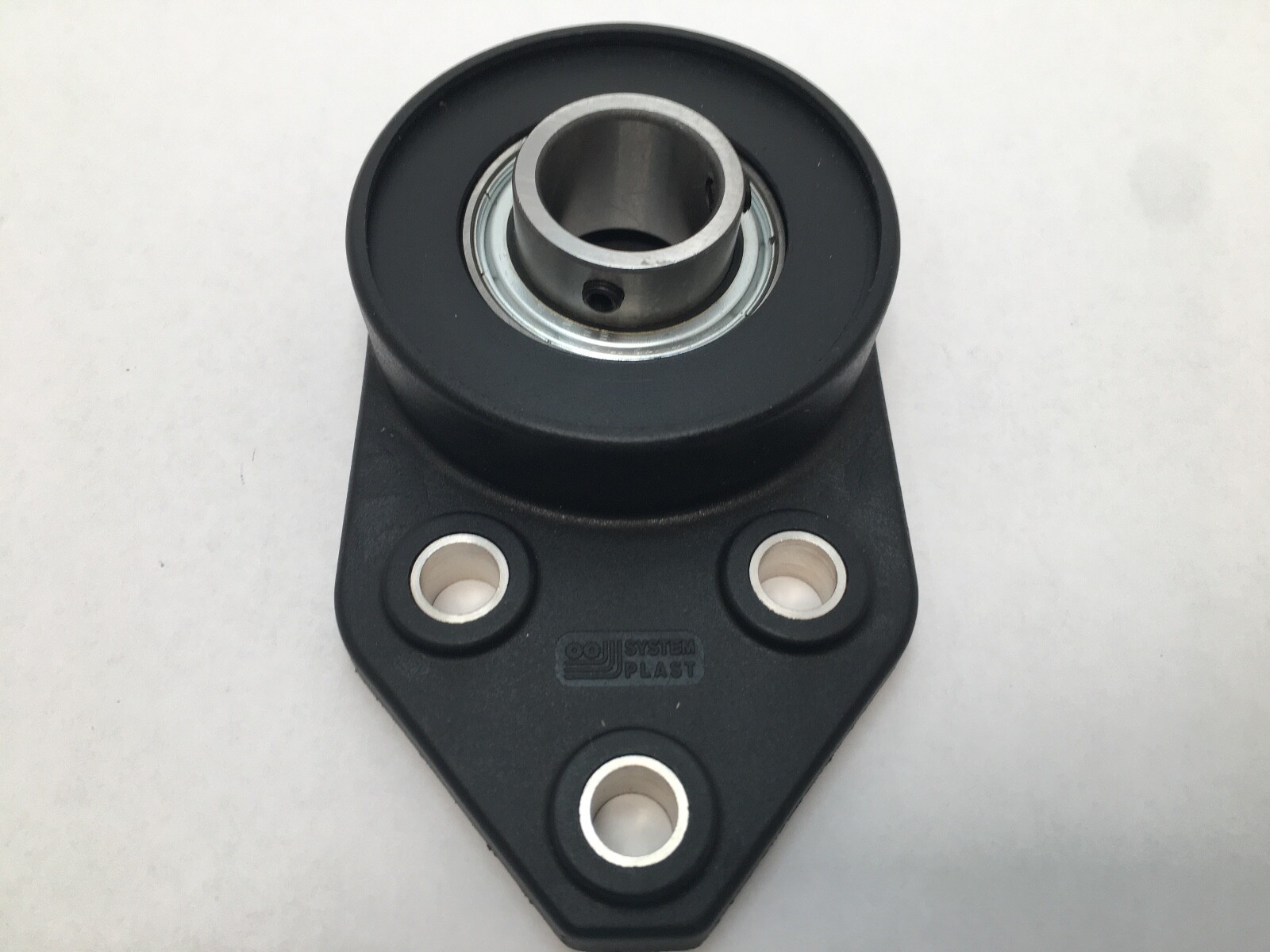

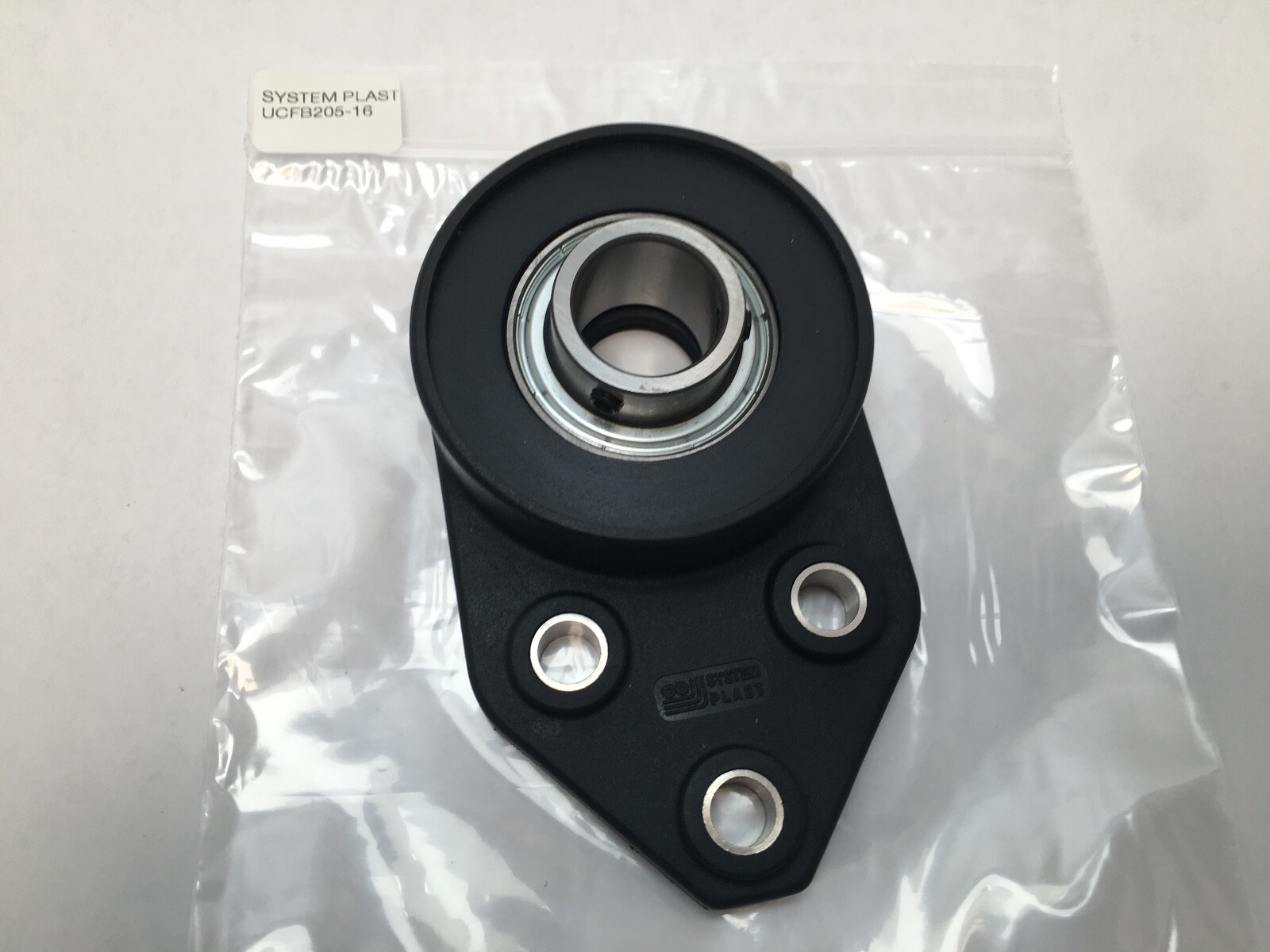

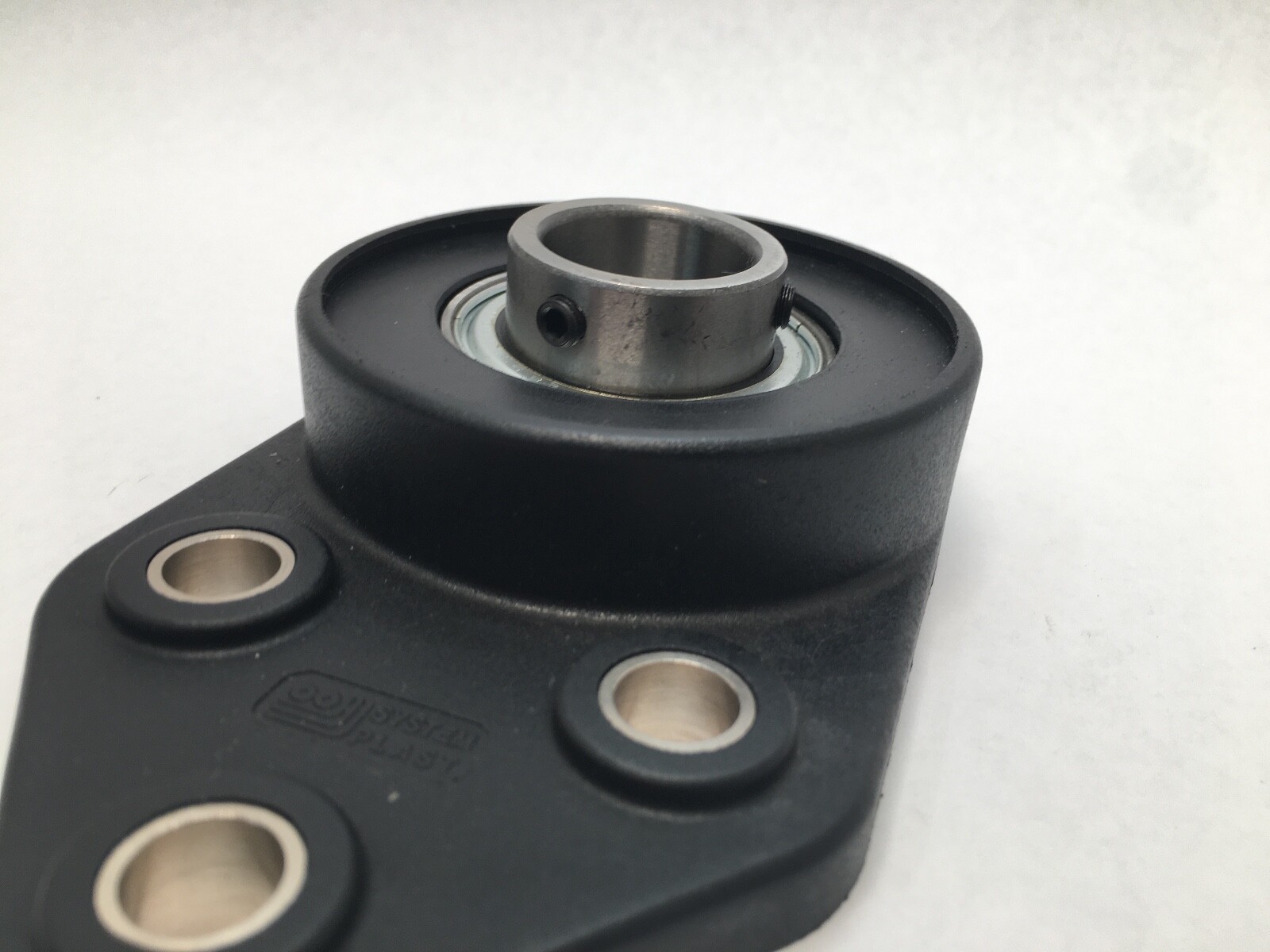

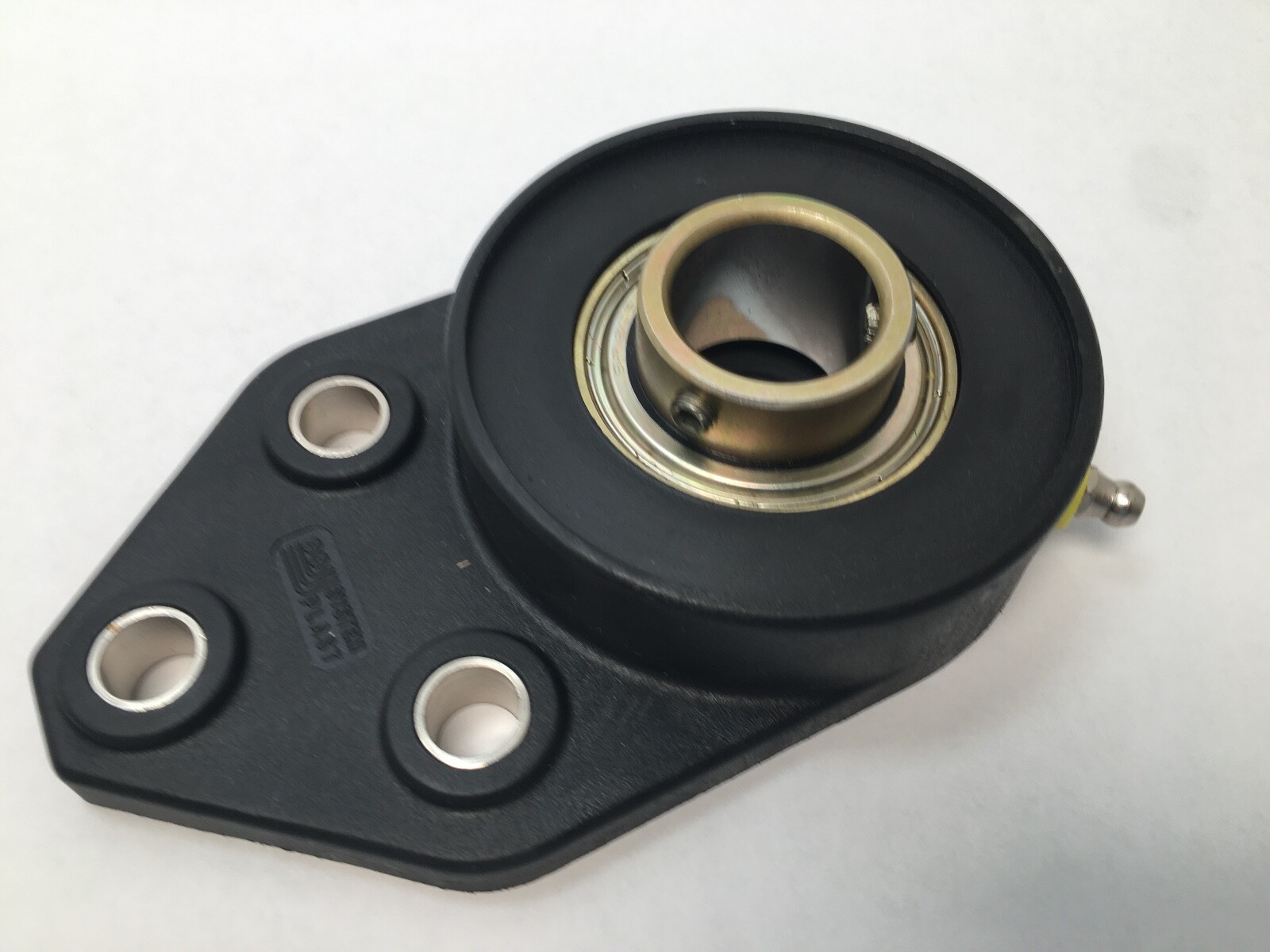

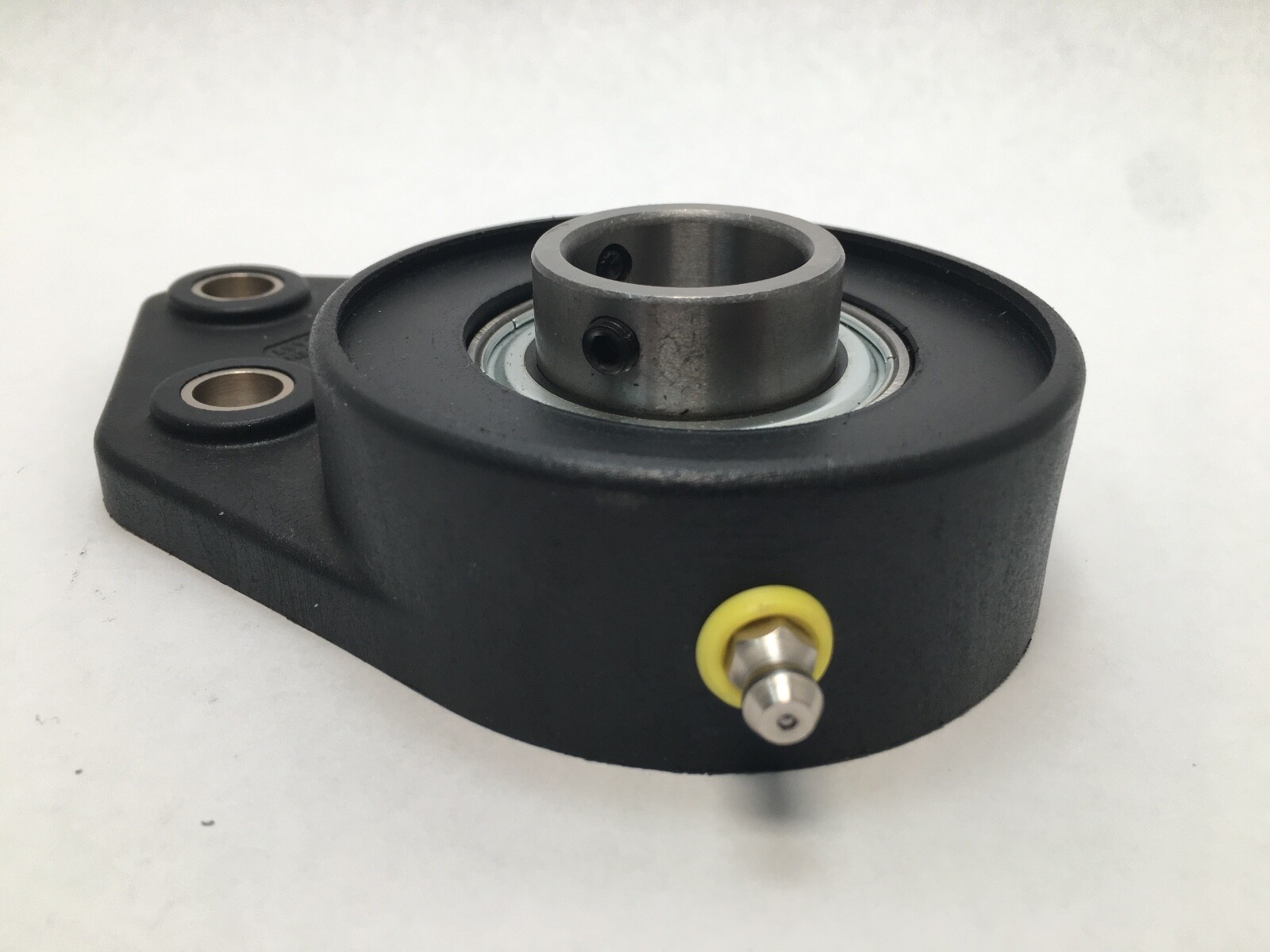

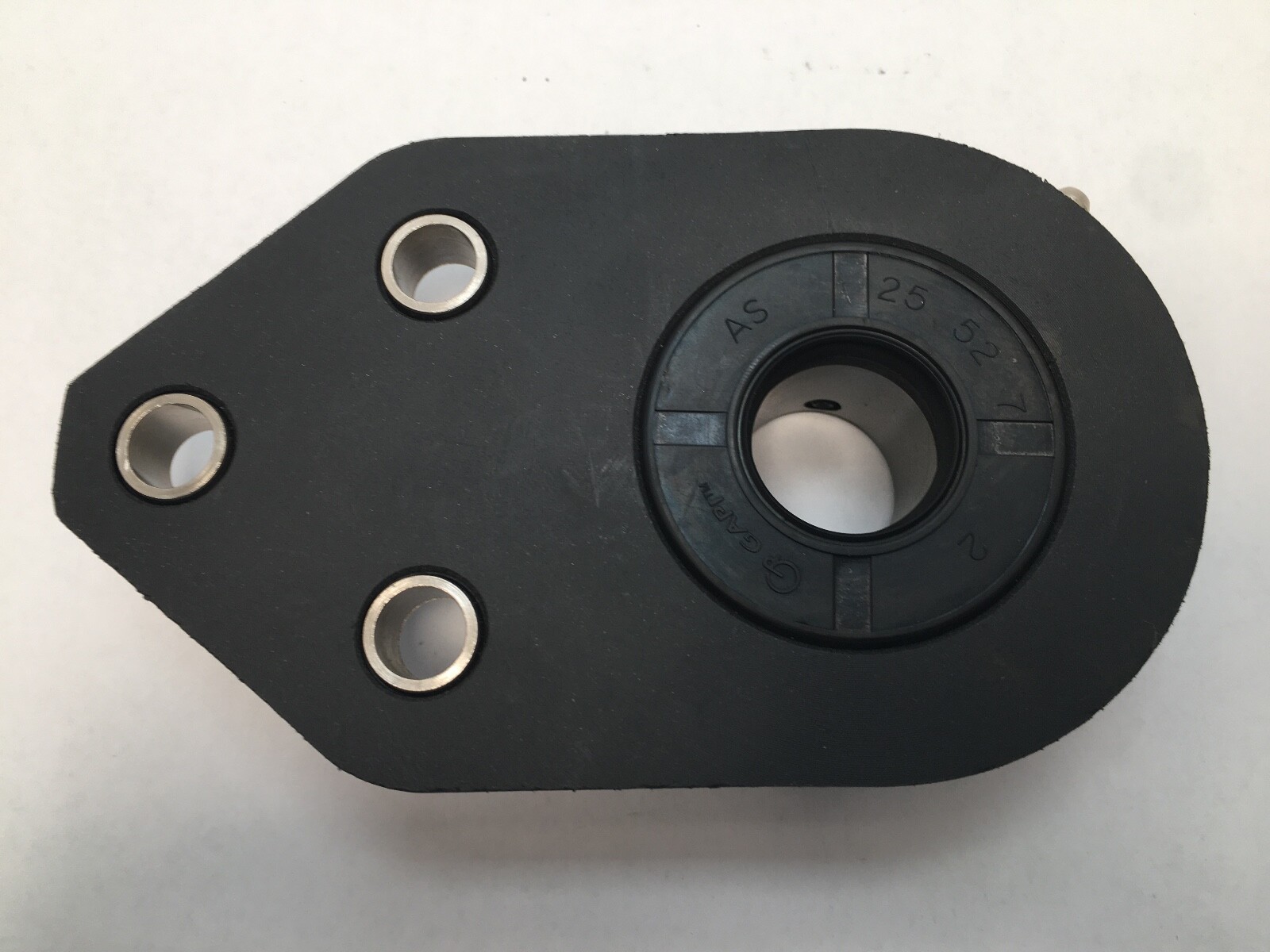

Name: System-Plast UCFB205-16 Flange Mount Bearing Unit 1" ID UCFB 205-16 SP-205
Brand: System Plast
SKU: CF2#BH2H5K
Price: 29.55 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	System Plast
MPN	UCFB205-16
Model	UCFB20516
ID	1.000 in

Specifications

Material	Reinforced Polyamide
Series	UCFB
Condition	New – Open box
Type	Flanged Mount Bearing
Lubricant	Grease
Number Of Bolt Holes	3
Number Of Bolt Holes For Fasteners	3
Min Temp	-20 °C
Dynamic Load Rating	14 kN / 3147 lbf
Static Load Rating	7.8 kN / 1754 lbf
Precision Rating	ABEC 1 / P0
Rolling Elements	Ball
Max Temp	100 °C
Bearing Type	Flange Unit
Item Weight	1.10 lbs
Limiting Speed	5000 rpm
Bore Type	Straight
Snap Ring Included	No
Duty Type	Standard Duty
Locking Device	Set Screw
Insert Outer Ring	Spherical
Relubrication Feature	Yes
Harmonization Code	8483.20.40.40
Housing Material	Polyamide
Expansion Type	Non-Expanding
