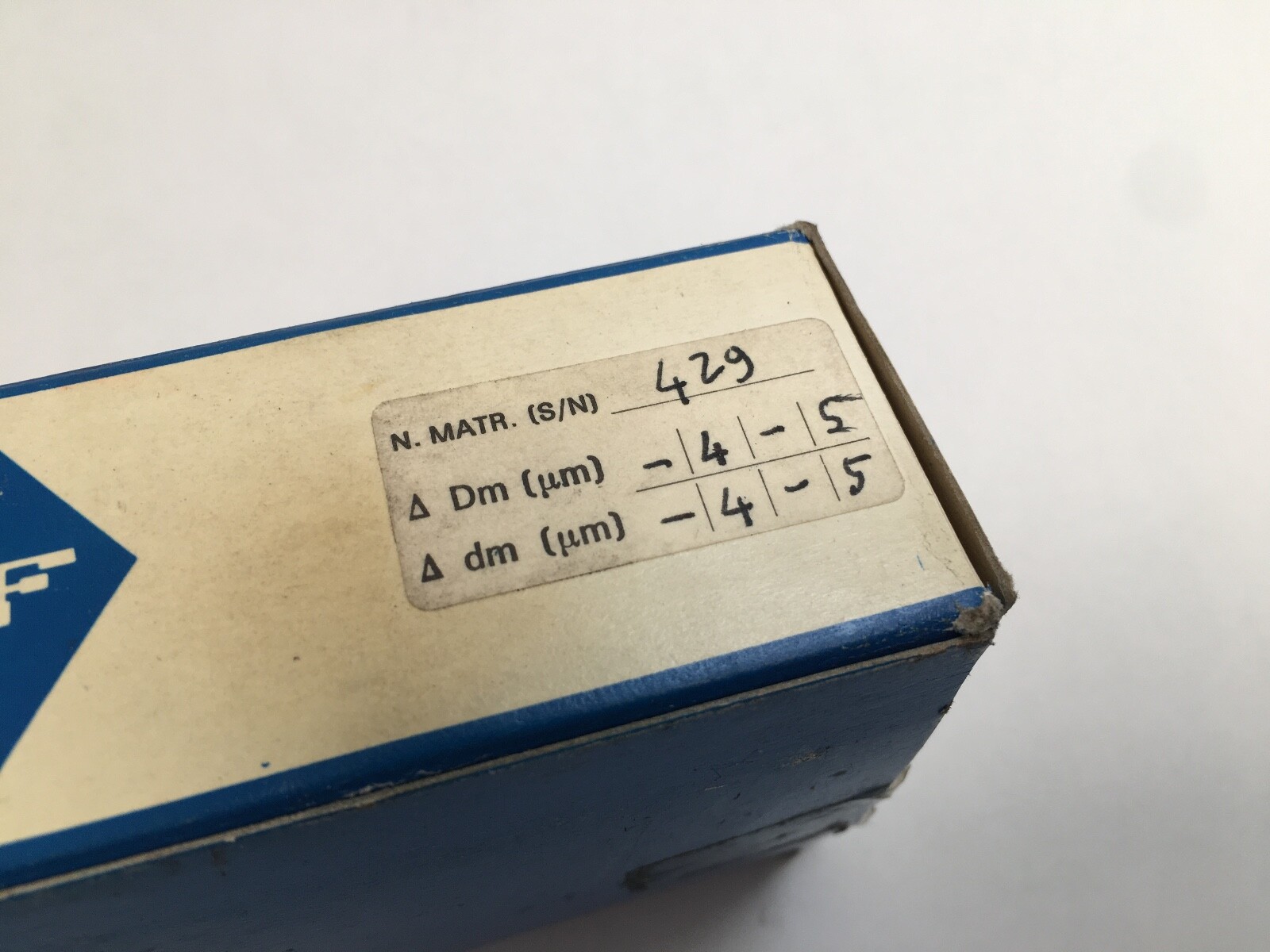

Photo may not represent actual item. Refer to name and product specs for all details.
Availability:
51 in stock
List Price
$227.83
51 in stock
51 in stock
Get Estimated Arrival Date

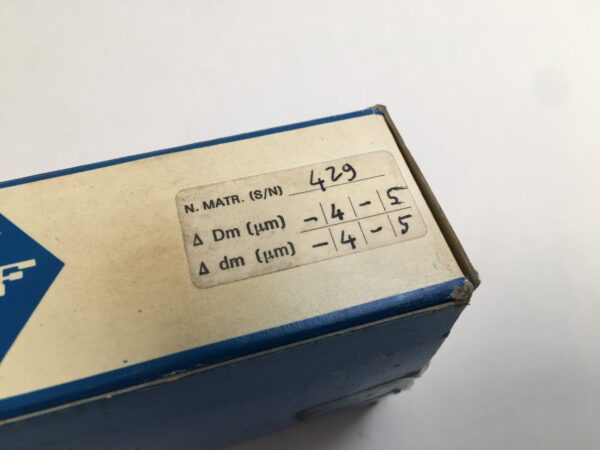

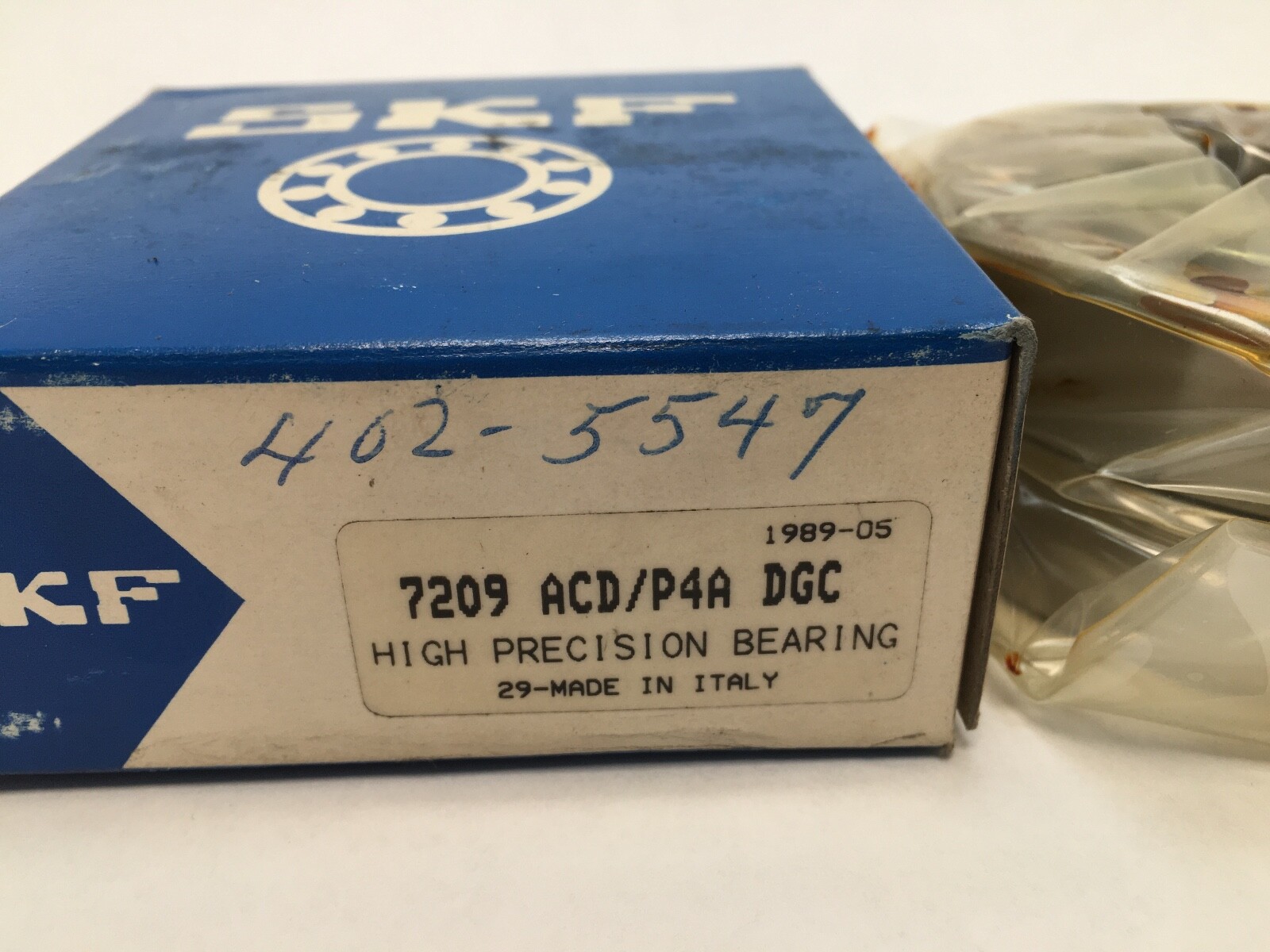

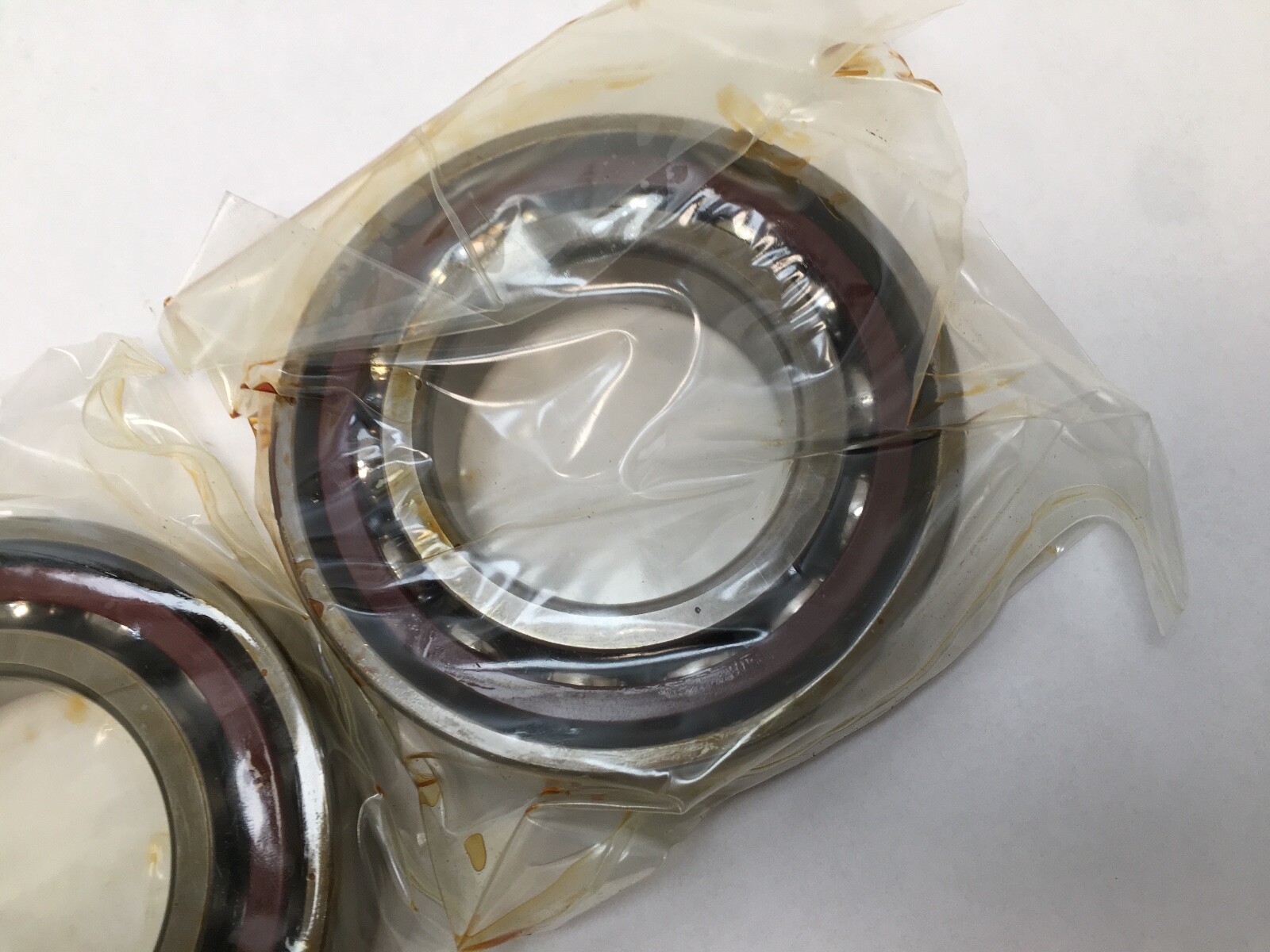

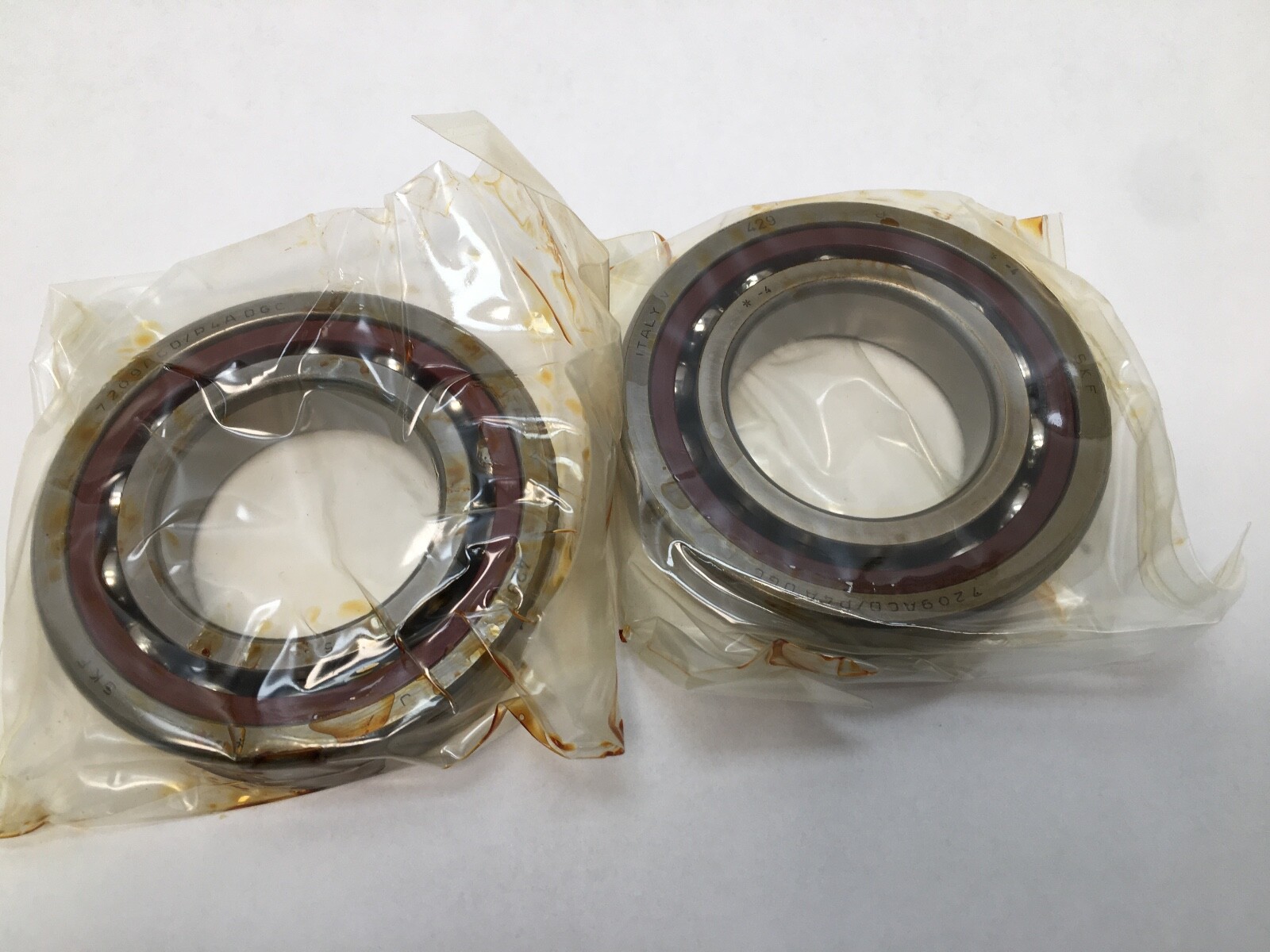

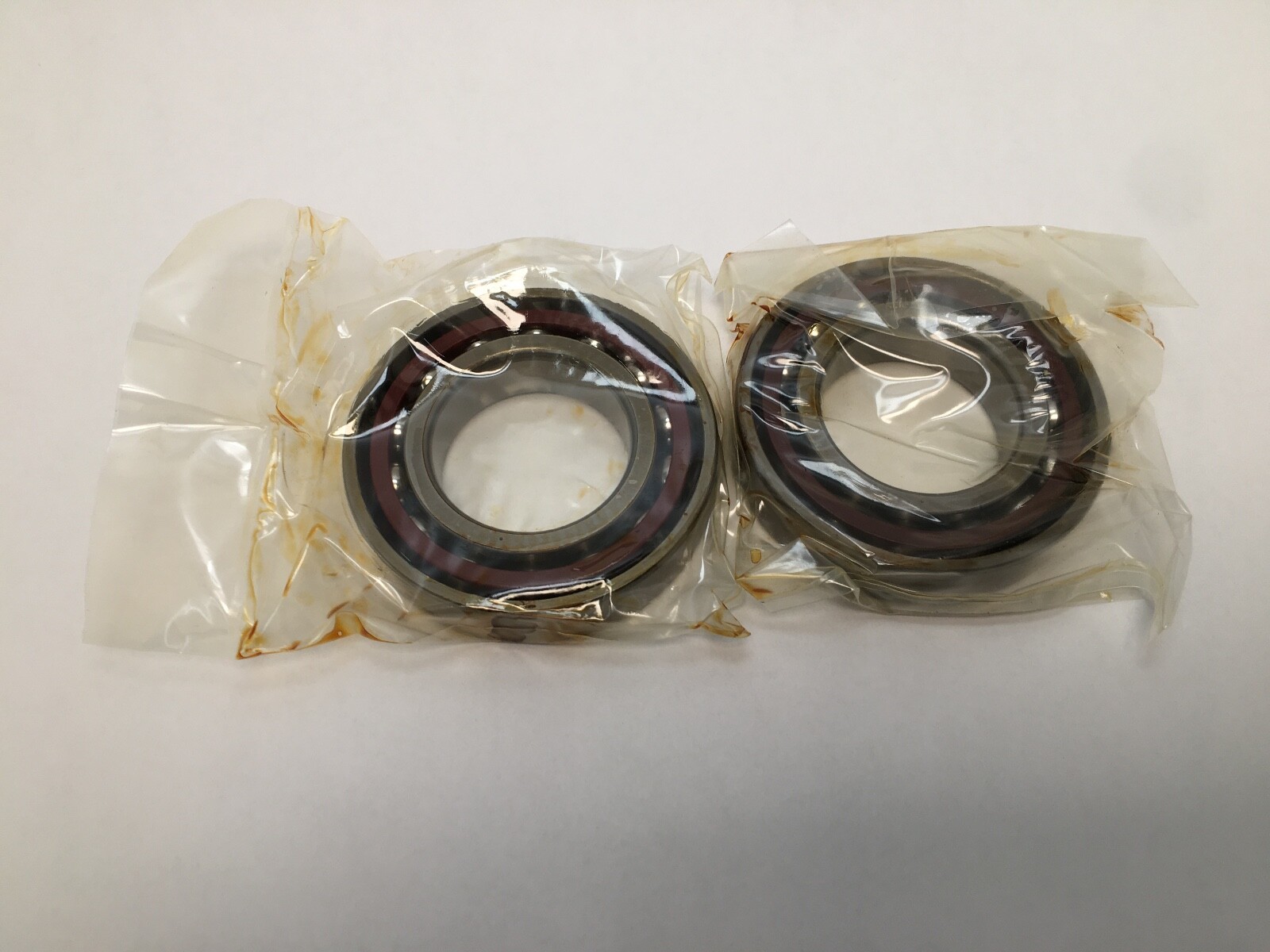

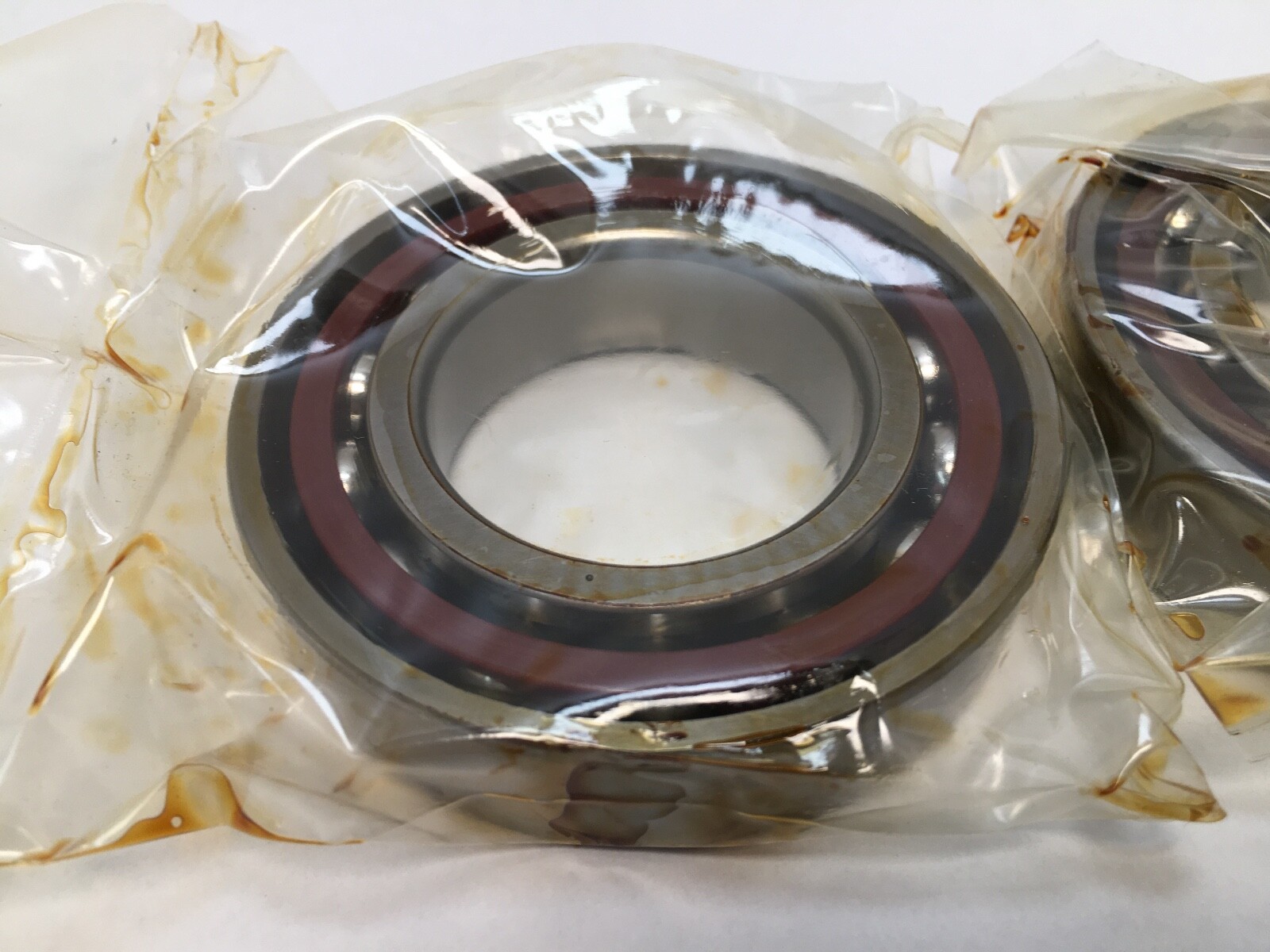

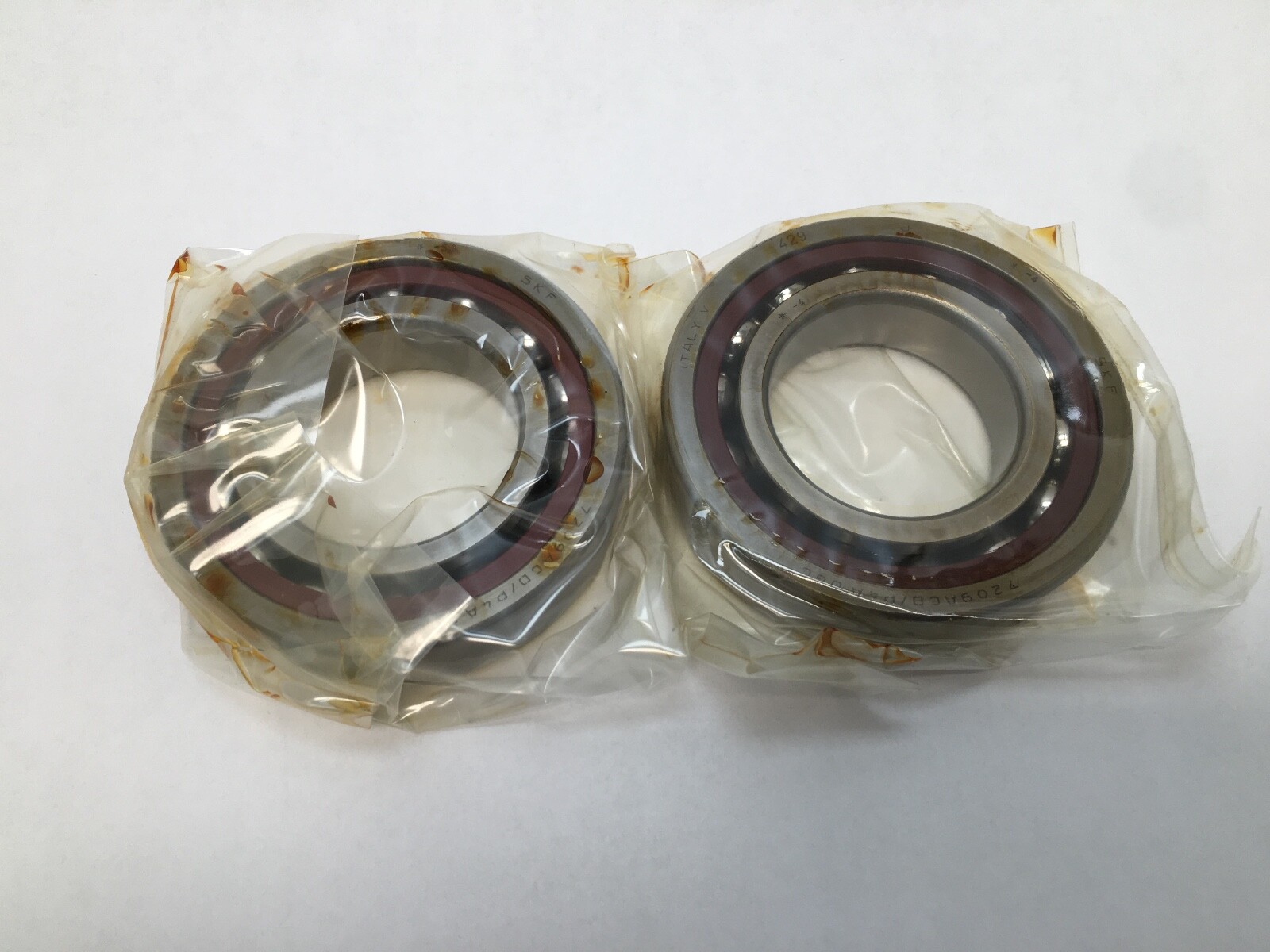

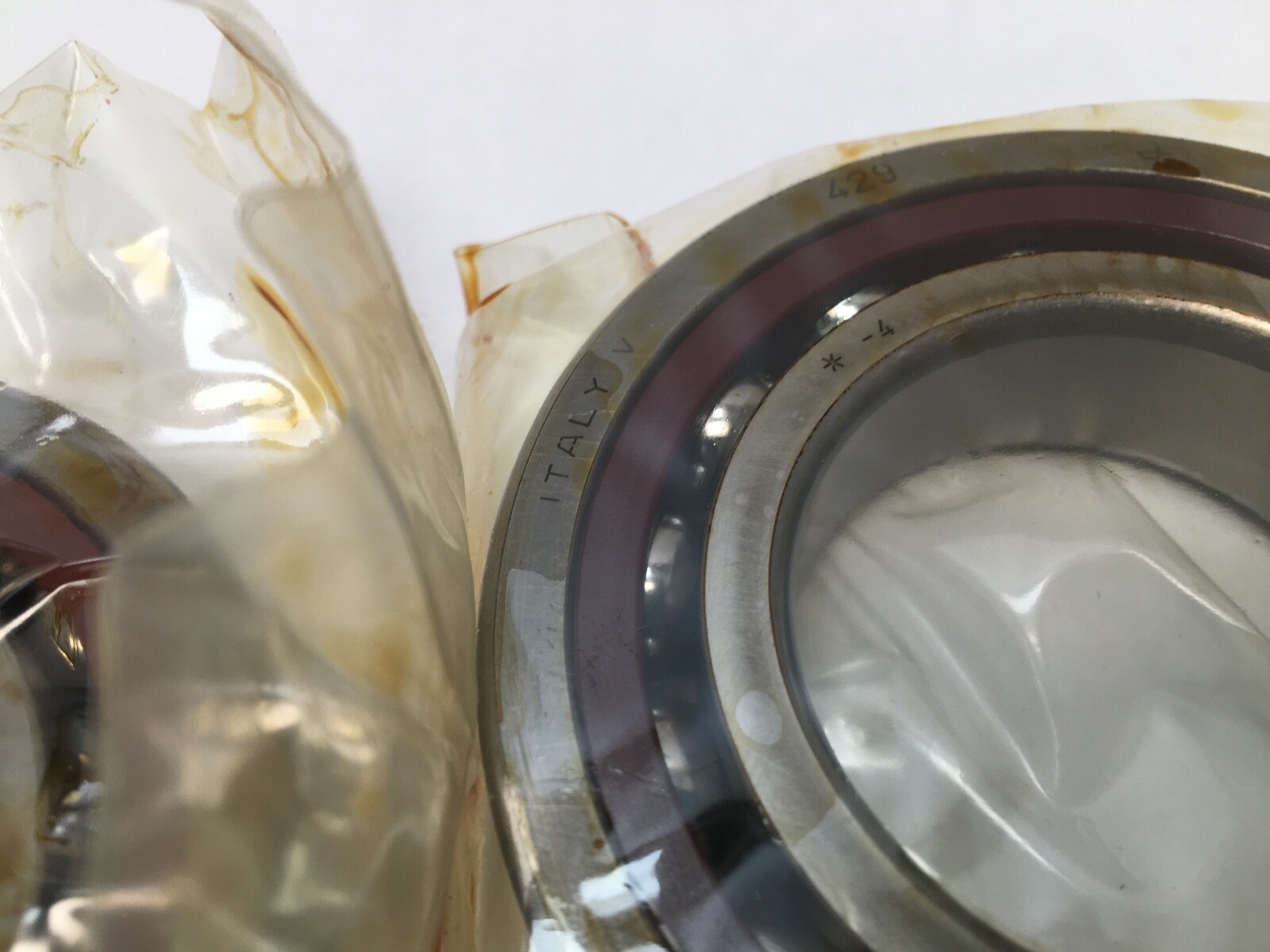

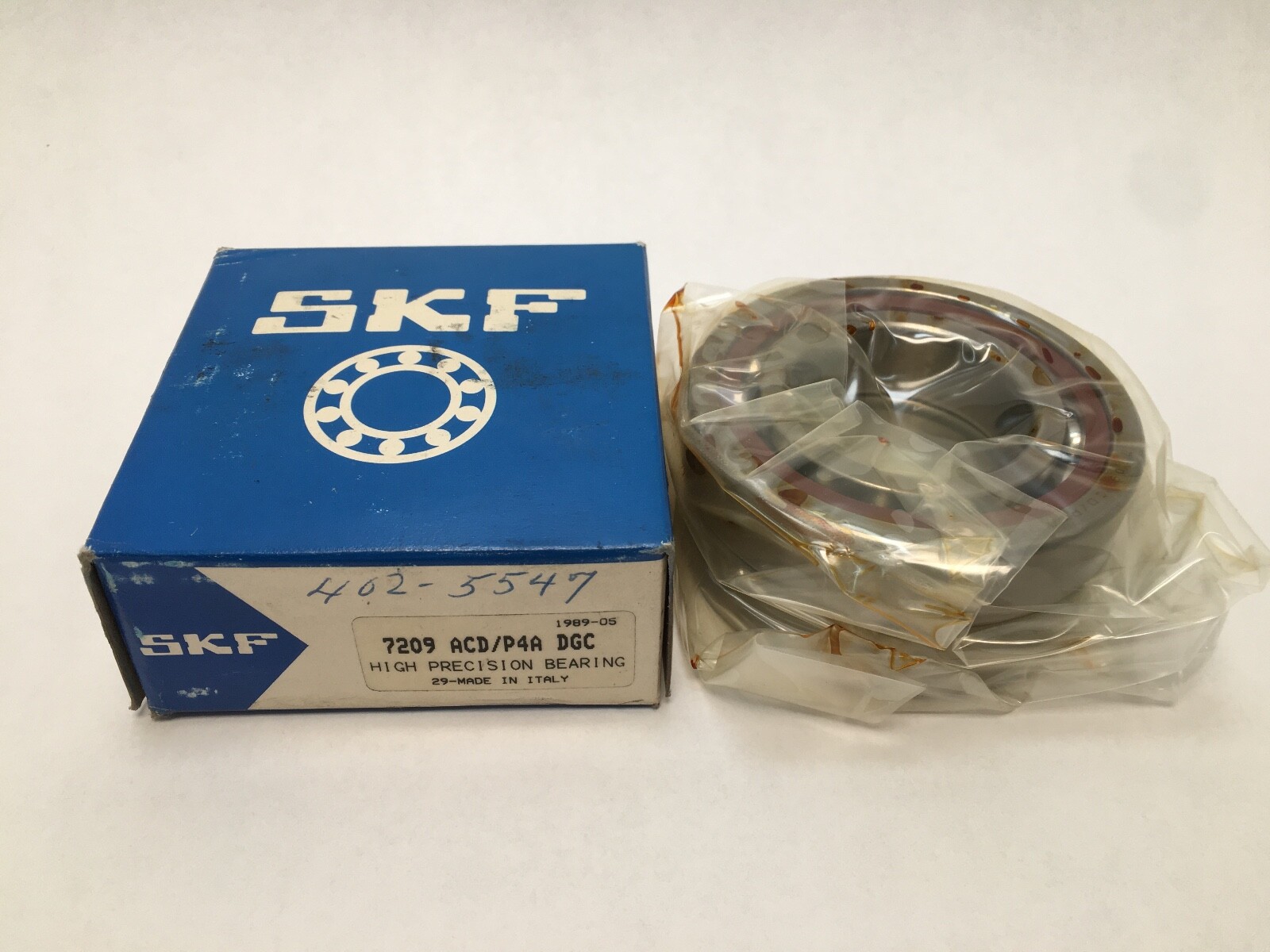

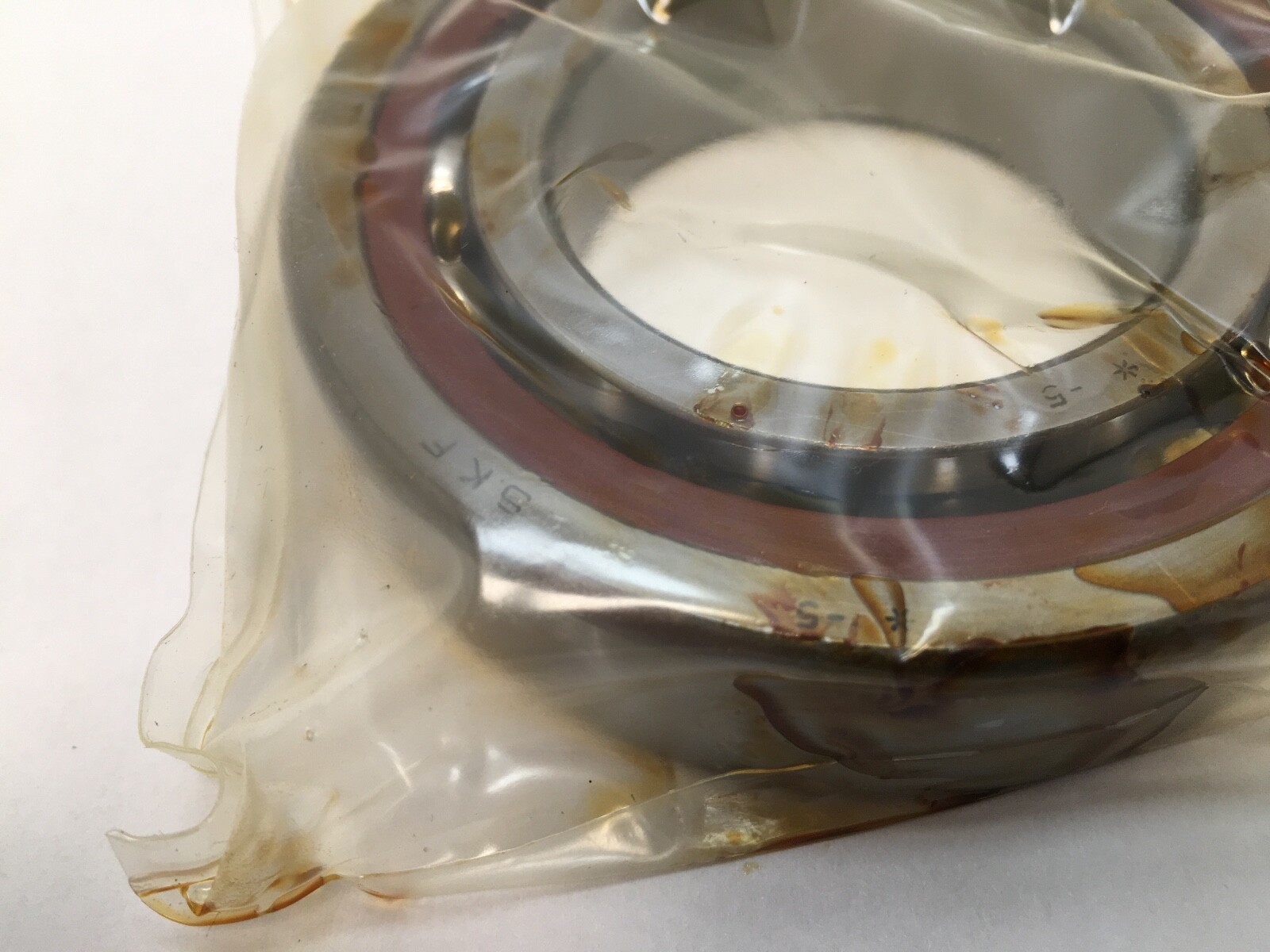

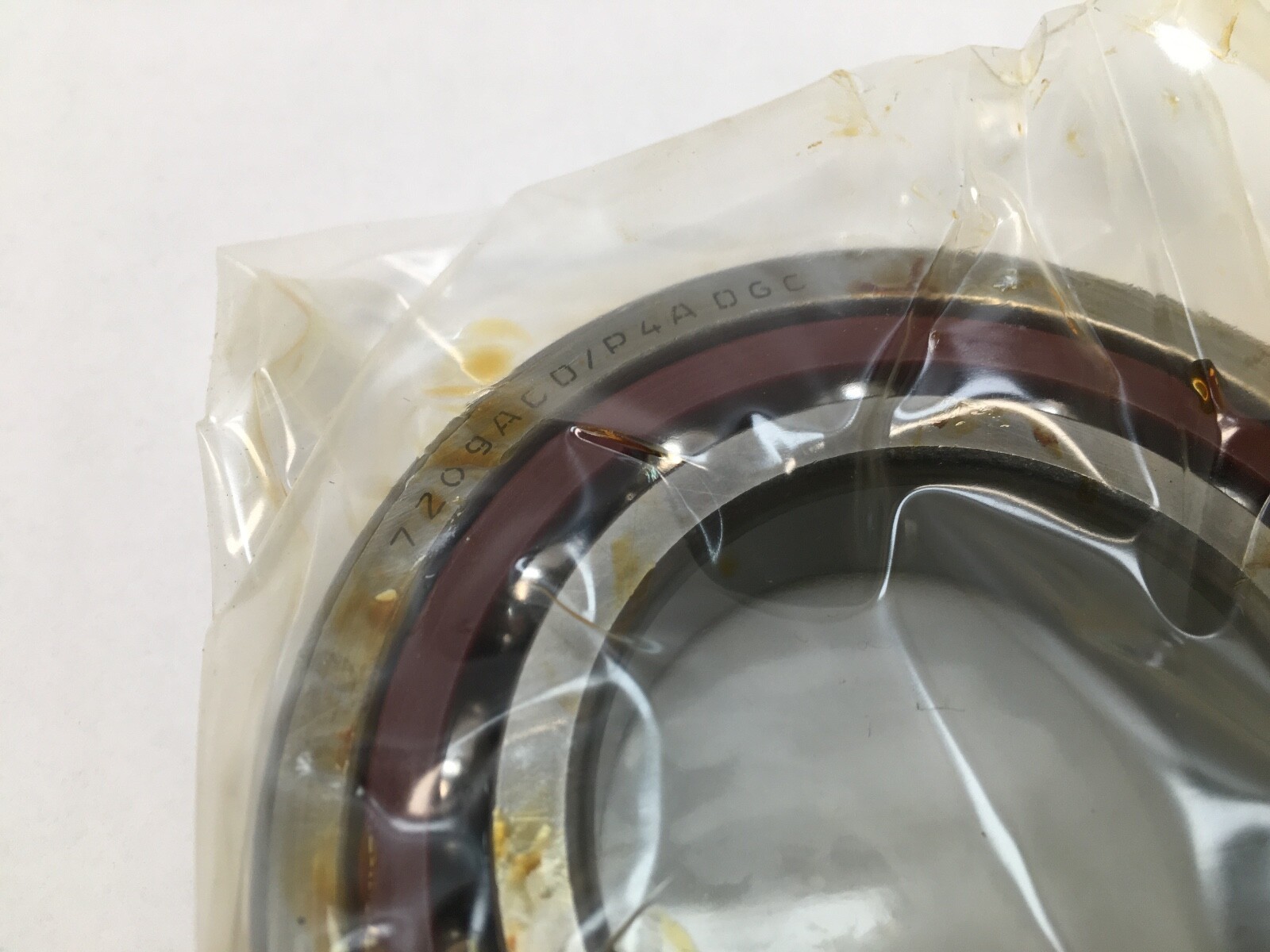

The product is a set of two SKF 7209-ACD/P4A-DGC Angular Contact Ball Bearings. These bearings have a bore diameter of 45 mm, an outside diameter of 85 mm, and a width of 19 mm. Made of steel and manufactured in Italy, these bearings are designed for high precision and performance in industrial automation and motion control applications. The model numbers include 7209ACD/P4A DGC, 3MM209WI CR DUH, 7209 E T DUH P4, and 7209 A5.
| MFR / Brand | SKF |
|---|---|
| MPN | 7209-ACD/P4A-DGC |
| Model | 7209ACD/P4A DGC / 3MM209WI CR DUH / 7209 E T DUH P4 / 7209 A5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Material | Ultra Clean Steel |
|---|---|
| Unit Type | Unit |
| Cage Type | Window |
| Dynamic Load Rating | 41 kN / 9220 lbf |
| Static Load Rating | 30 kN / 6740 lbf |
| Precision Rating | ABEC 7 / P4 |
| Series | 7200 |
| Rolling Elements | Ball |
| Max Temp | 150 °C |
| Condition | New |
| Item Weight | 0.90 lbs |
| Cage Material | Phenolic Resin |
| Limiting Speed | 15000 rpm |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Preload | Light Preload |
| Mounting Arrangement | Universal |
| Cross Reference 1 | FAG B7209-E-T-P4S-DUH |
|---|---|
| Cross Reference 2 | SNR 7209HVUJ94 |
