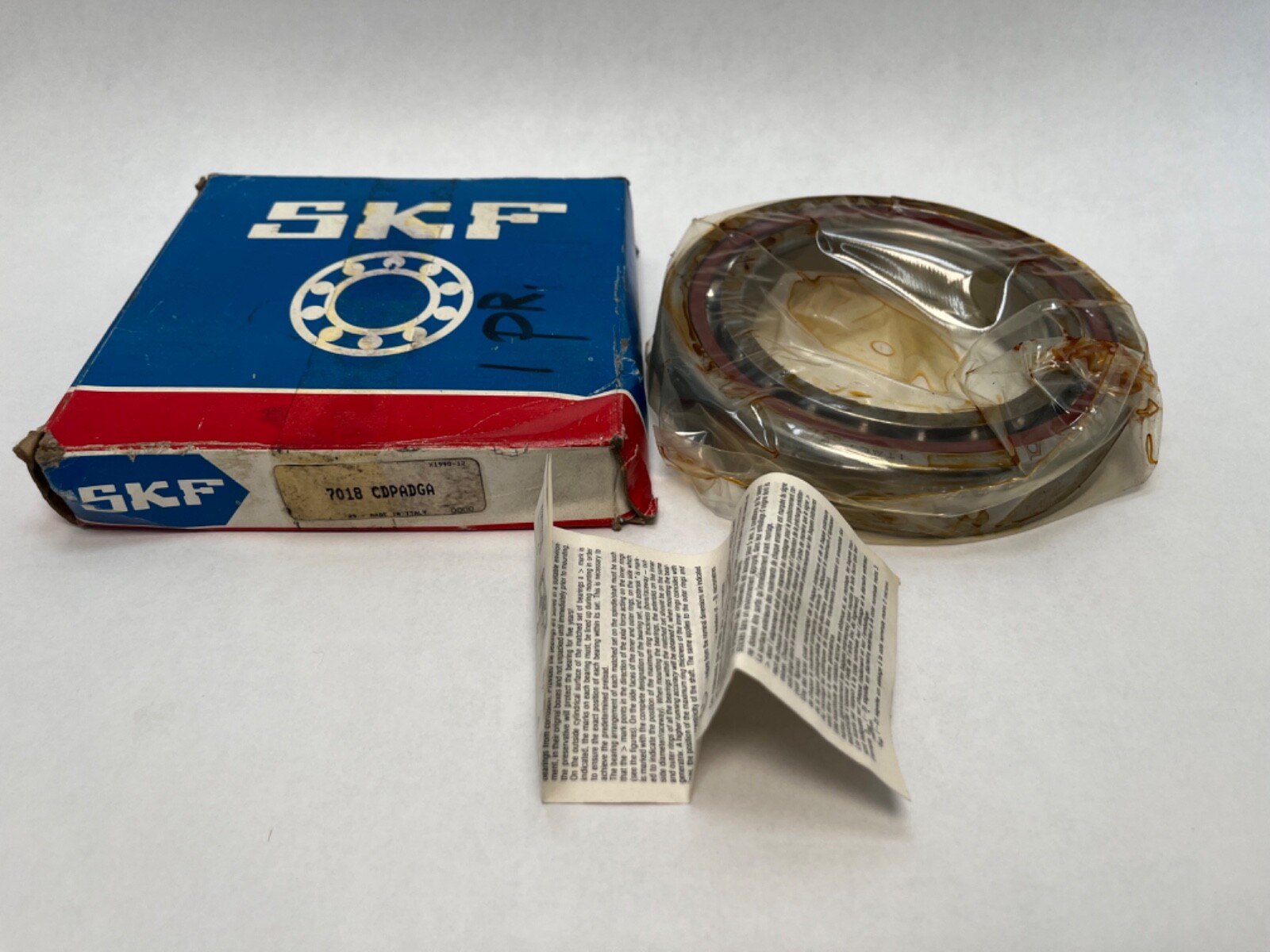

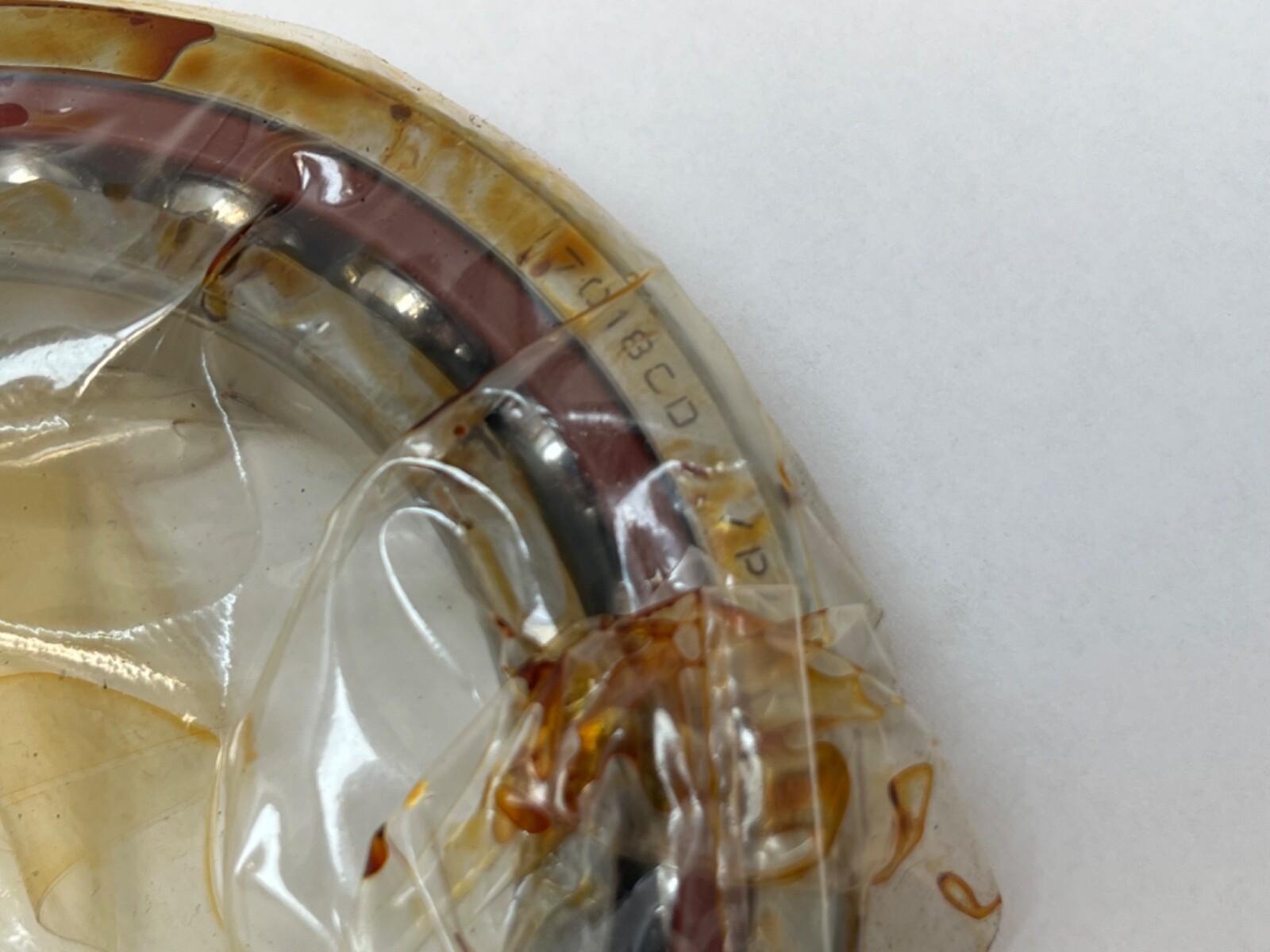

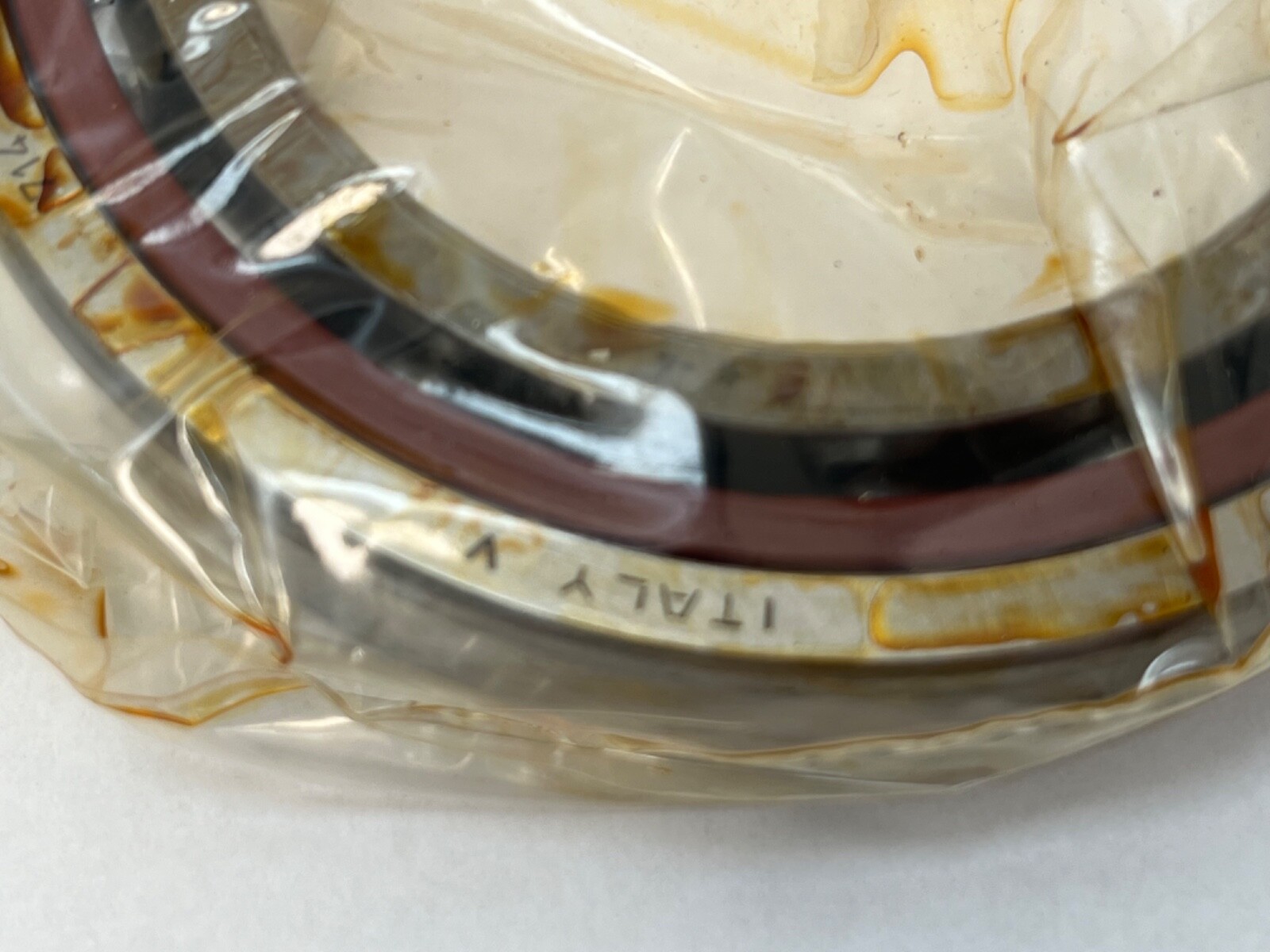

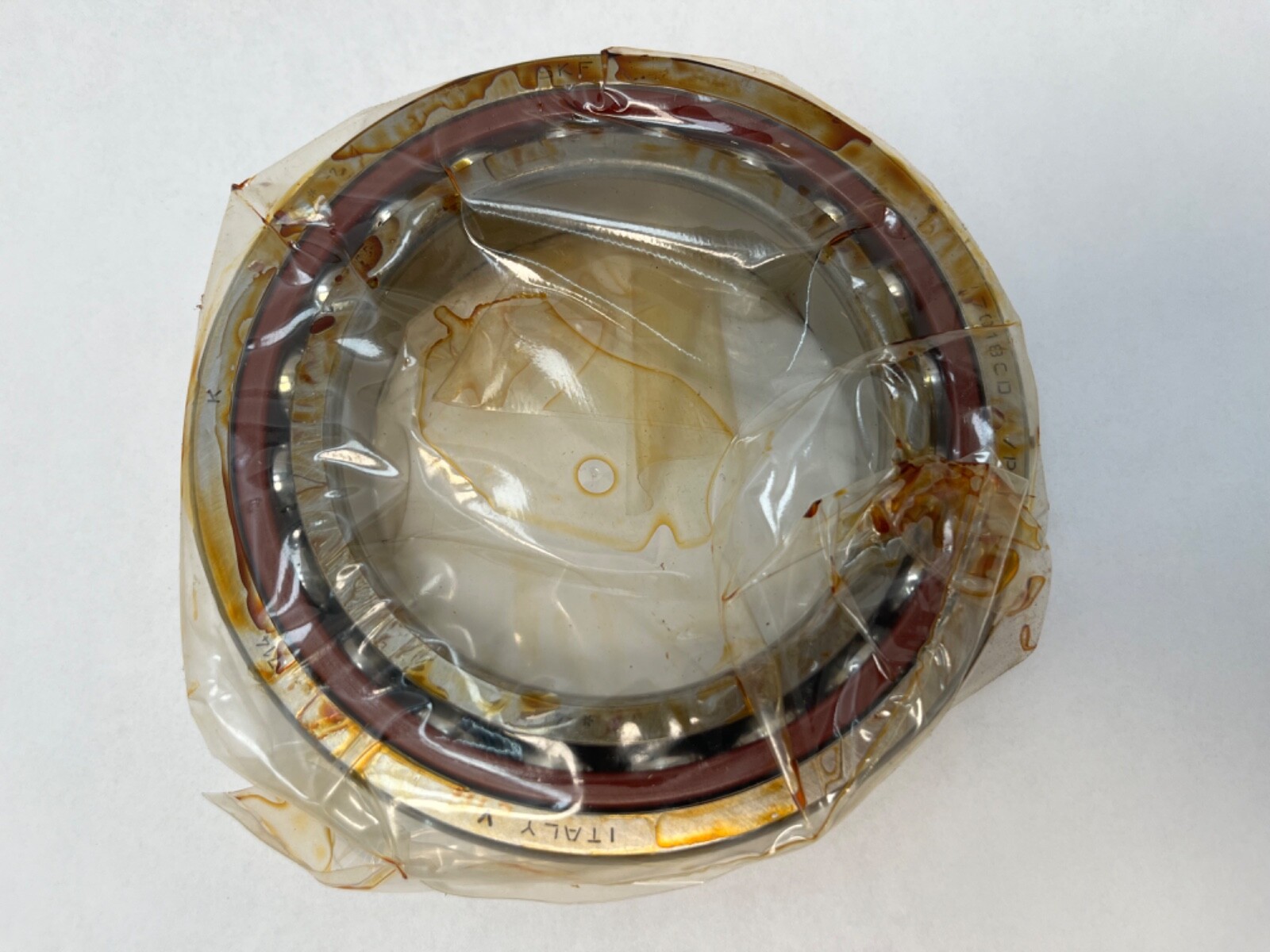

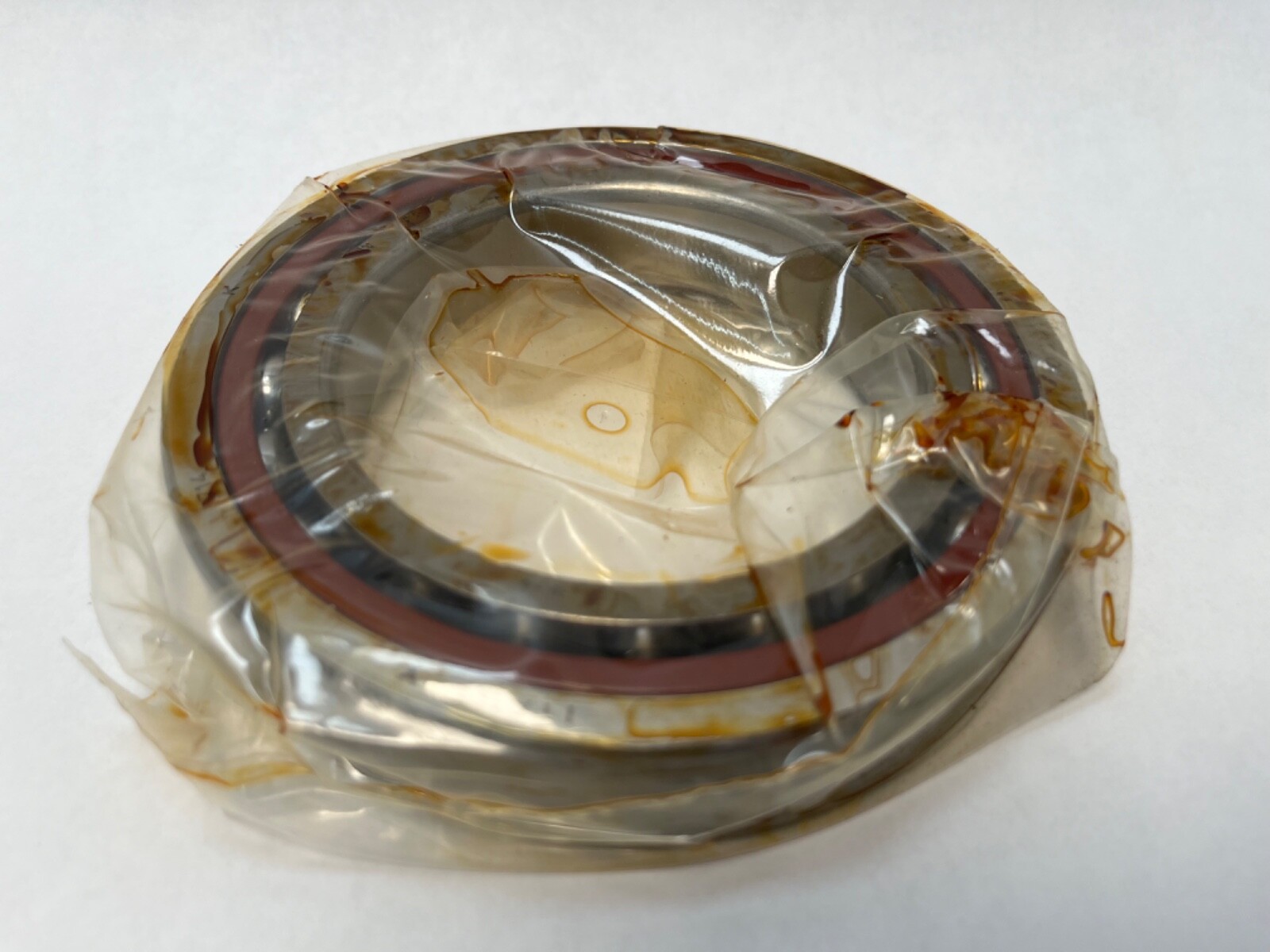

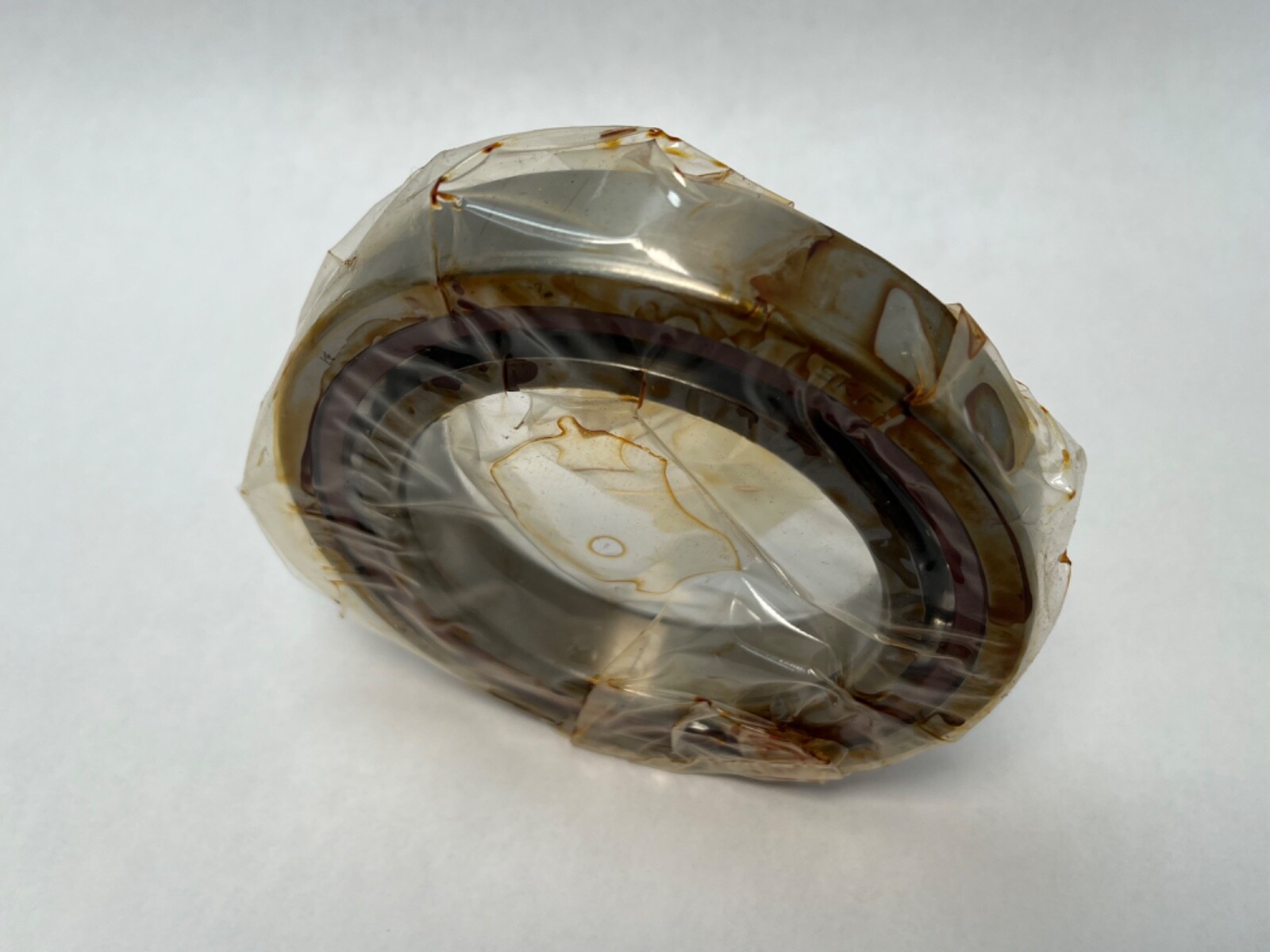

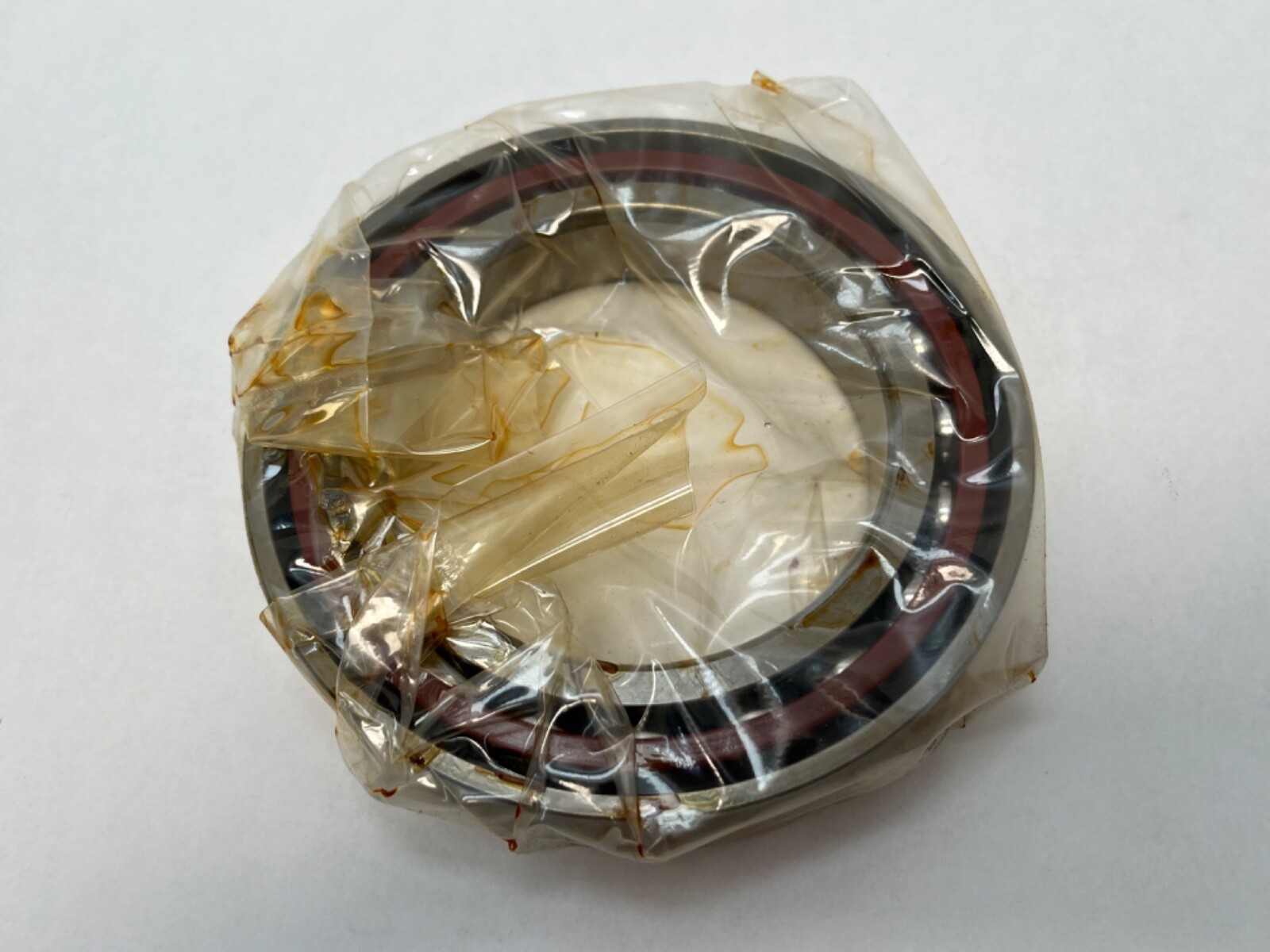

Name: Super Precision Angular Contact Ball Bearing - Straight Bore, 90 mm ID, 140 mm OD, 24 mm Width, Open, 15° Contact Angle.
Brand: SKF
SKU: B-FD1#LB8RIQ
Price: 318.15 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	SKF
MPN	7018CDP4ADGA
Model	7018 CD P4A DGA / 2MM9118WI CR DUL
Bearing Type	Angular Contact Ball Bearing, Open
ID	90 mm
OD	140 mm
Width	24 mm

Specifications

Advertise	1
Material	Bearing Steel
Series	7000
Condition	New
Lubricant	Oil/Grease
Preload	Light
Min Temp	-30 °C
Cage Type	Phenolic
Dynamic Load Rating	79.0 kN
Static Load Rating	81.0 kN
Precision Rating	ABEC 7 / P4
Rolling Elements	Ball
Max Temp	120 °C
Item Weight	2.55 lbs
Cage Material	Phenolic
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Harmonization Code	8482.10.50
Contact Angle	15 °
Mounting Arrangement	Universal

Cross-References

Cross Reference 1	FAG B7018-C-T-P4S-UL
Cross Reference 2	NSK 7018CTYNSULP4
