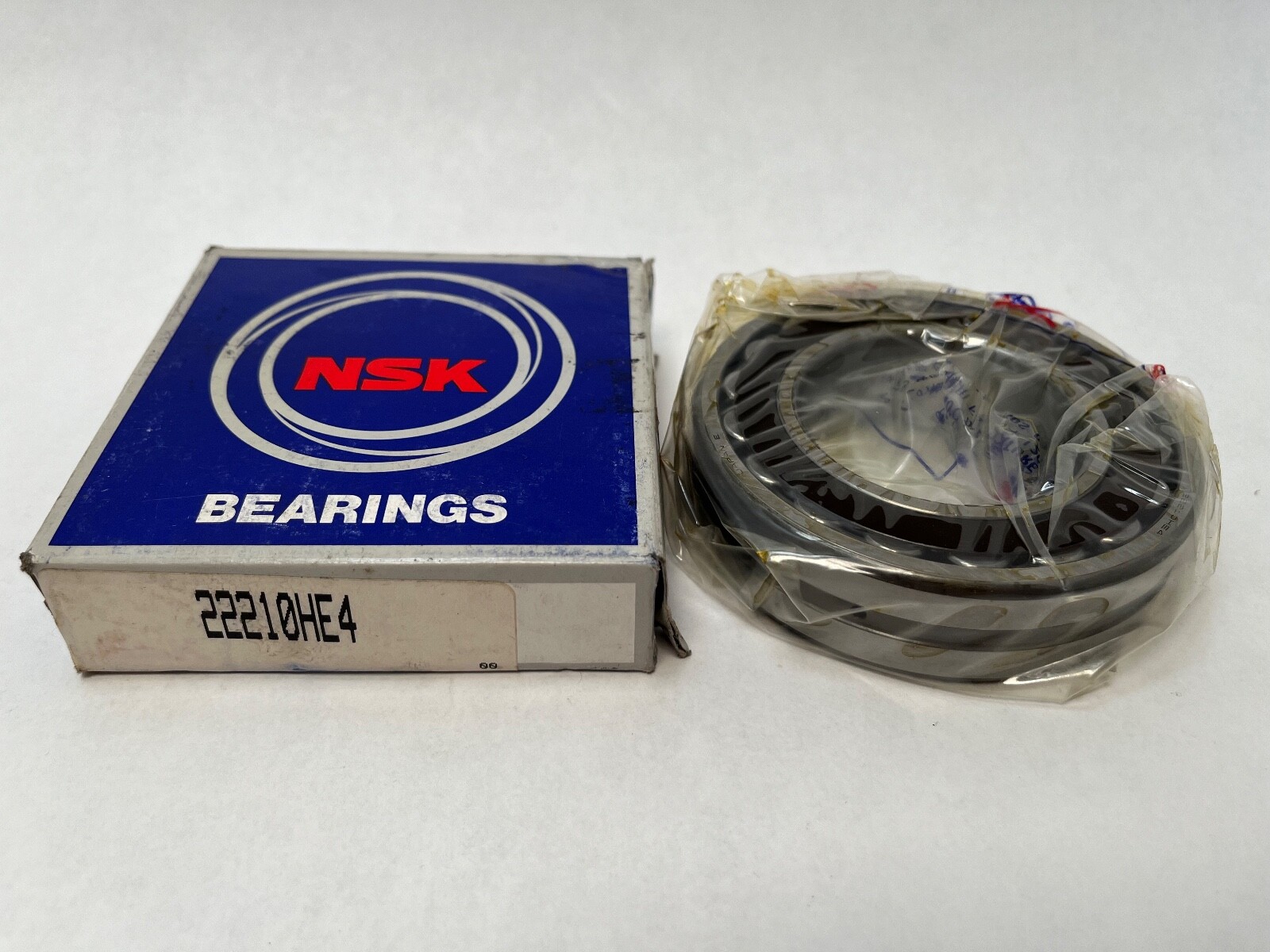

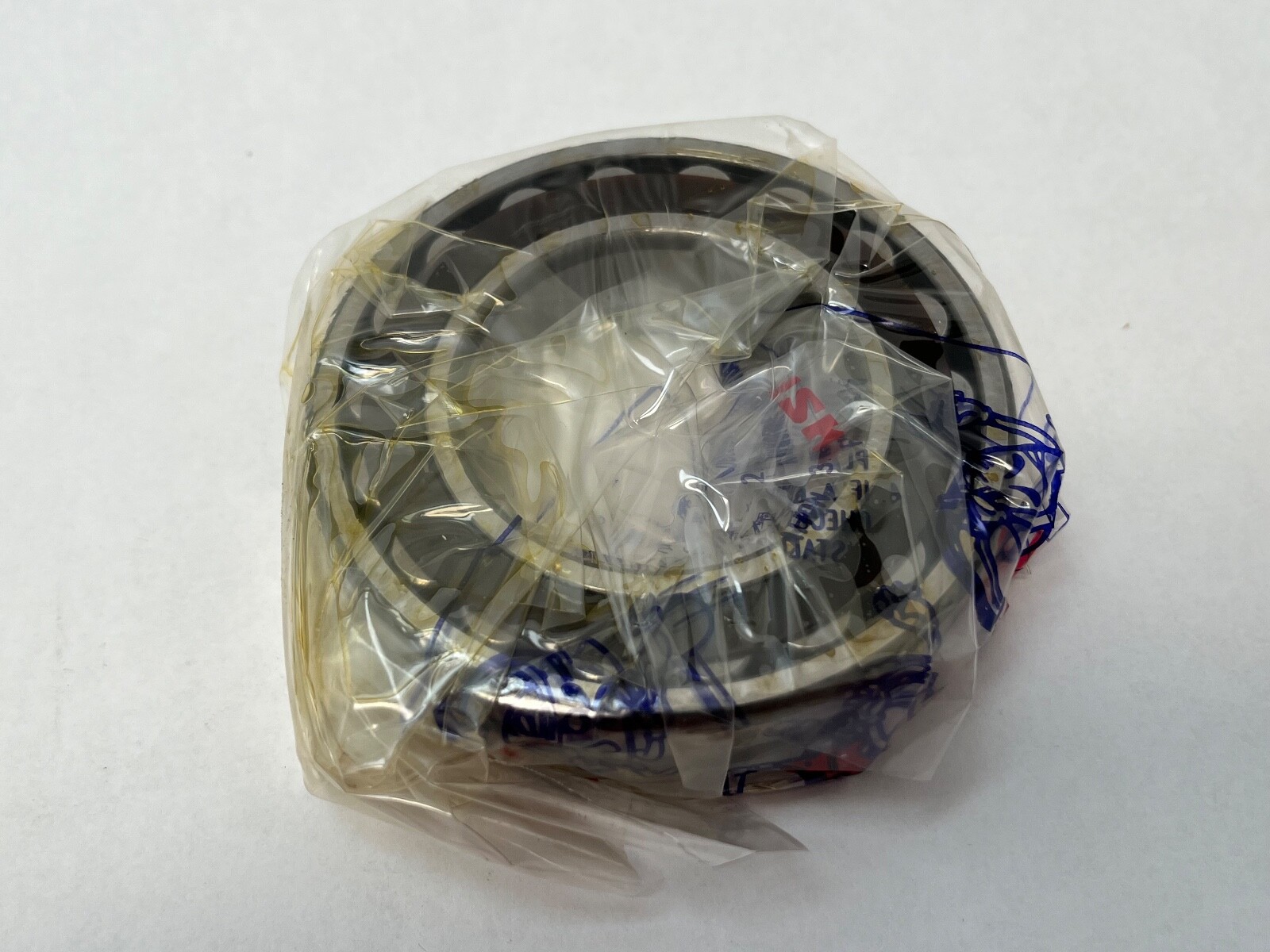

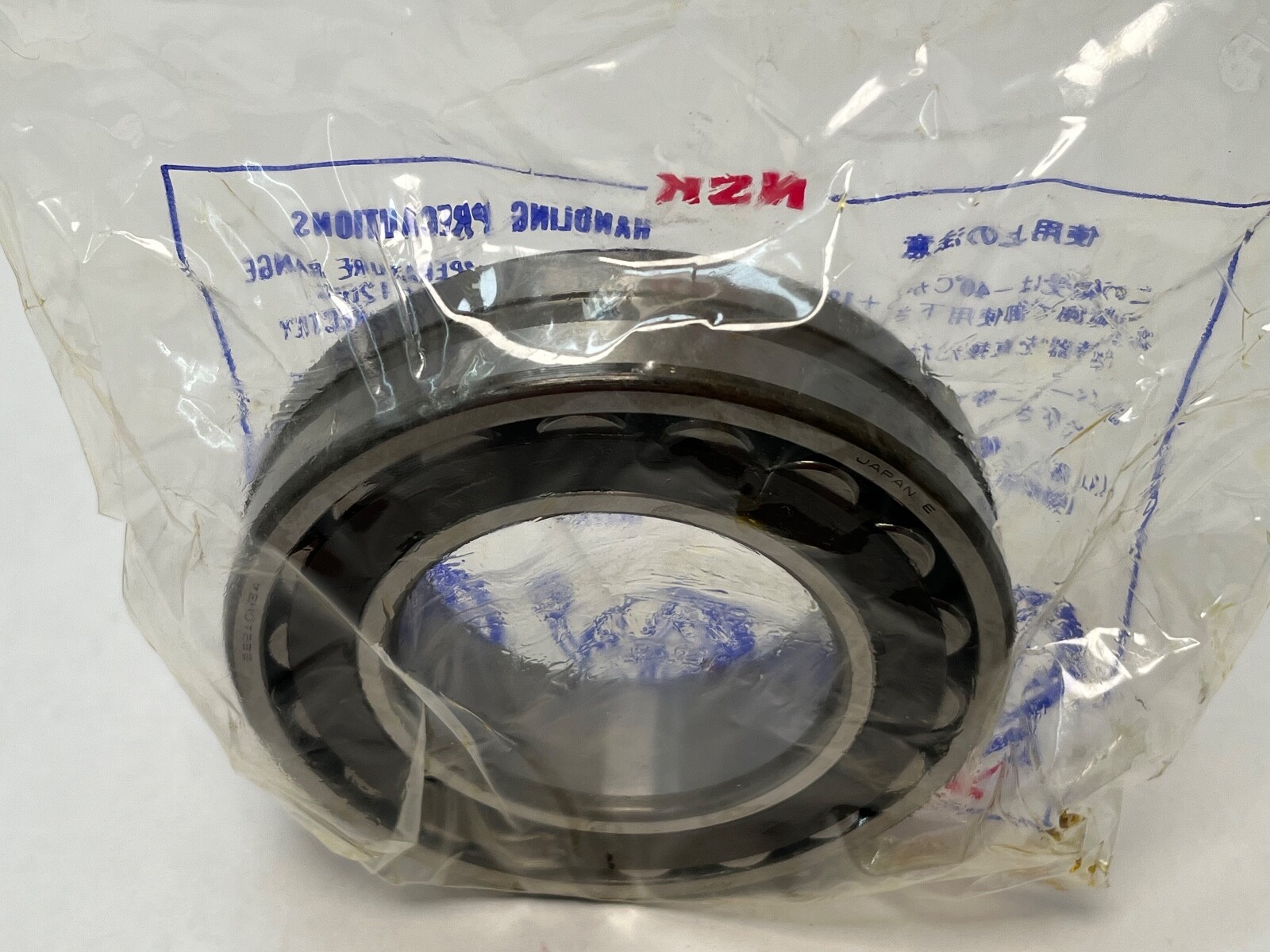

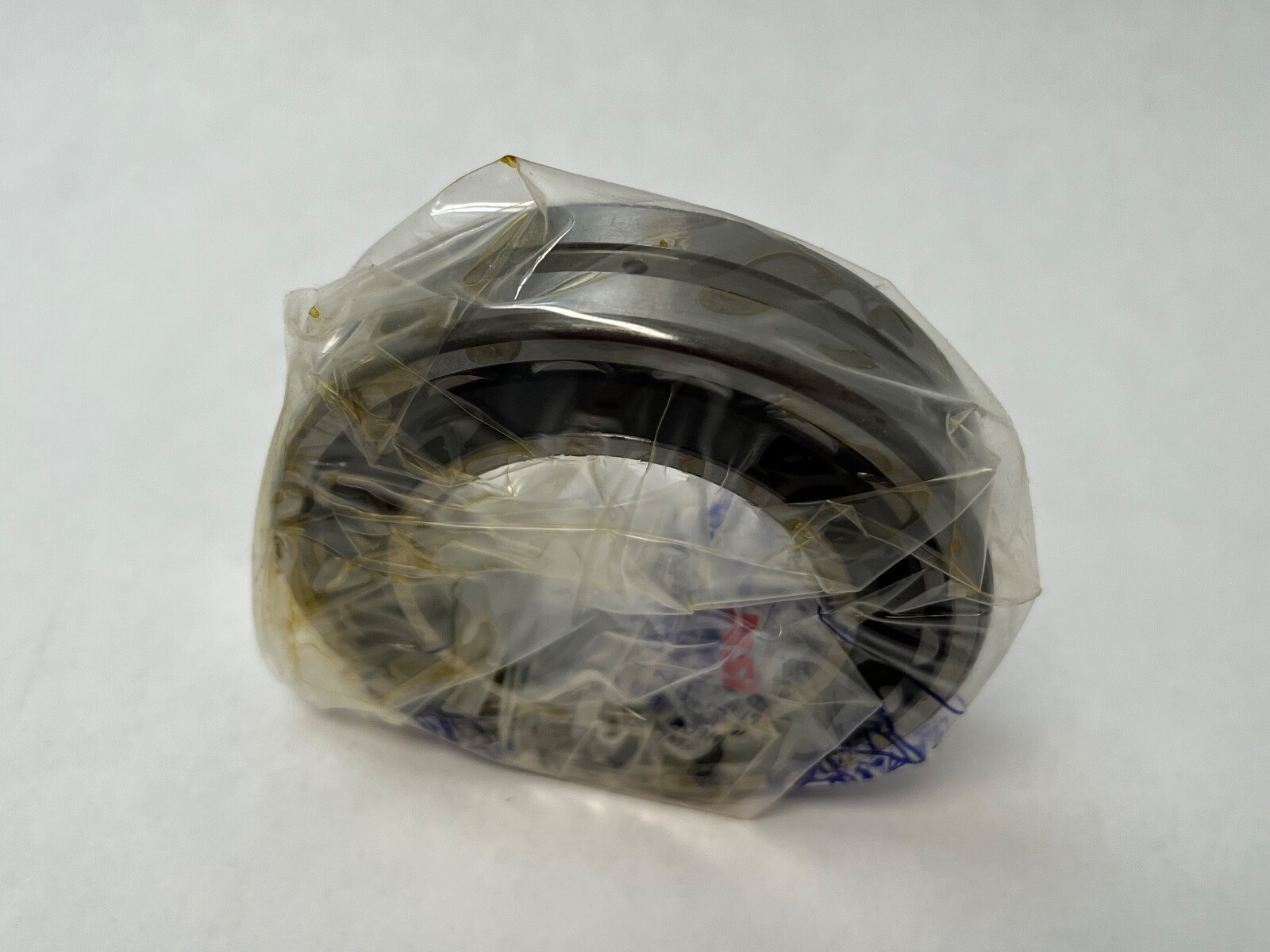

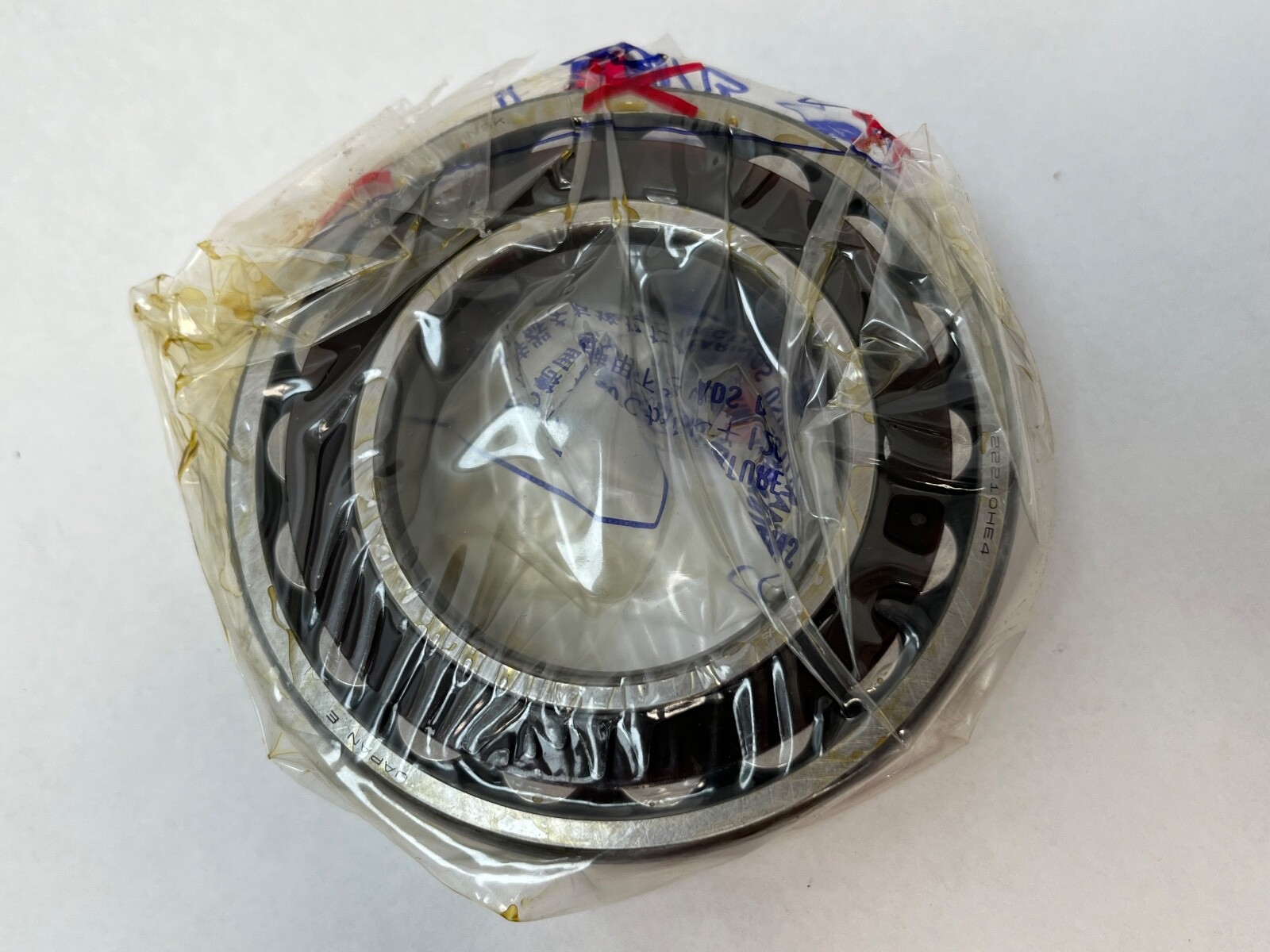

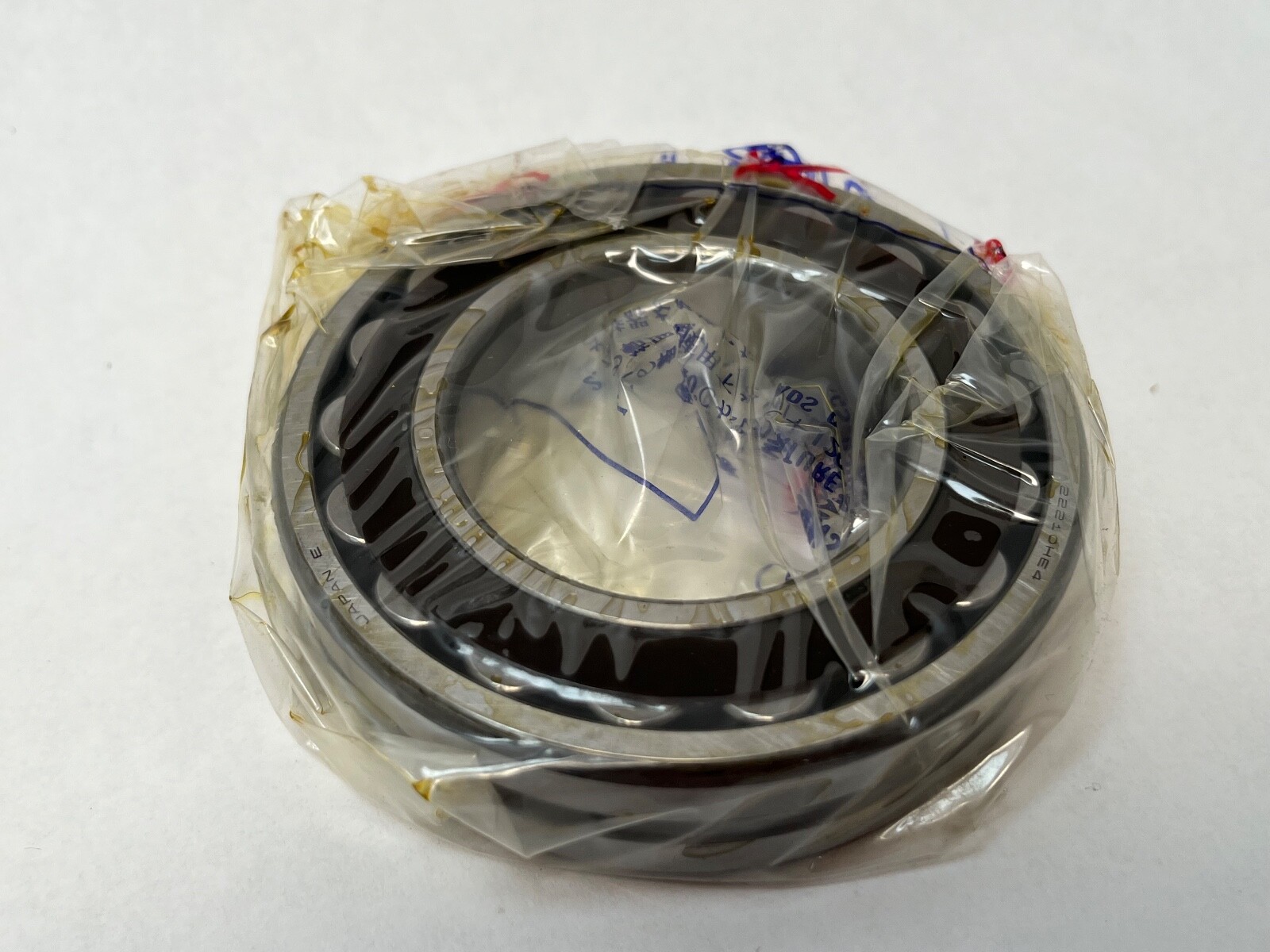

Name: Spherical Roller Bearing - Straight Bore, 50 mm ID, 90 mm OD, 23 mm Width, Open, CN Internal clearance.
Brand: NSK
SKU: B-AB4B4#UOW9CC
Price: 45.41 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	NSK
MPN	22210HE4
Model	22210TVPBW33 / 22210 H E4
Bearing Type	Spherical Roller Bearing, Open
ID	50 mm
OD	90 mm
Width	23 mm

Specifications

Advertise	1
Material	High Carbon Chrome Steel
Series	22200
Condition	New
Lubricant	Oil
Min Temp	-30°C
Cage Type	Stamped
Dynamic Load Rating	104 kN / 23380 lbf
Static Load Rating	108 kN / 24279 lbf
Precision Rating	ABEC 1 / P0
Rolling Elements	Ball
Max Temp	200°C
Item Weight	1.45 lbs
Cage Material	Steel
Limiting Speed	6700 rpm
Number Of Rows	2
Bore Type	Straight
Snap Ring Included	No
Relubrication Feature	Yes
Harmonization Code	8482.30.00
Internal Clearance	CN

Cross-References

Cross Reference 1	SKF 22210 E
Cross Reference 2	FAG 22210-E1
