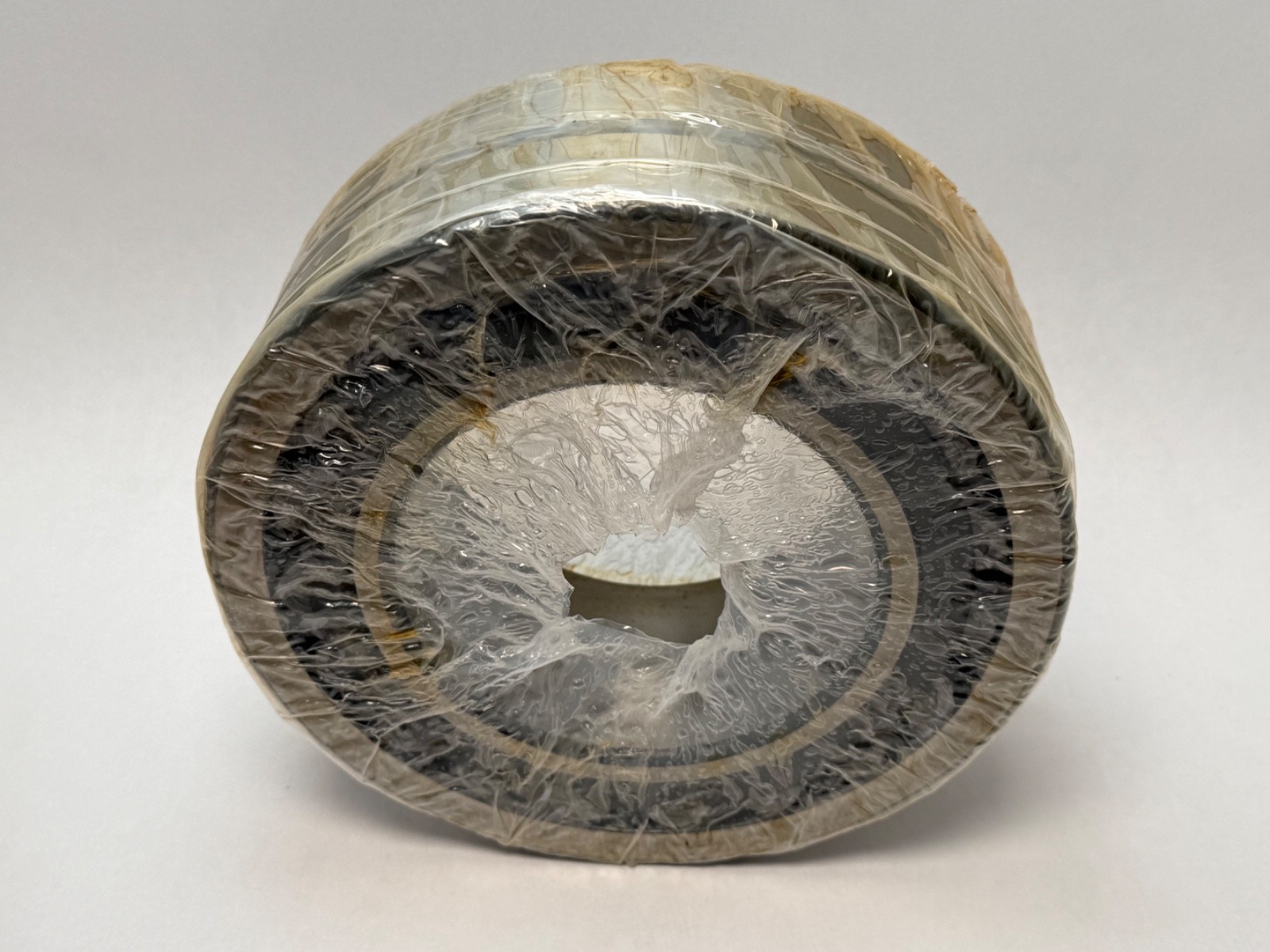

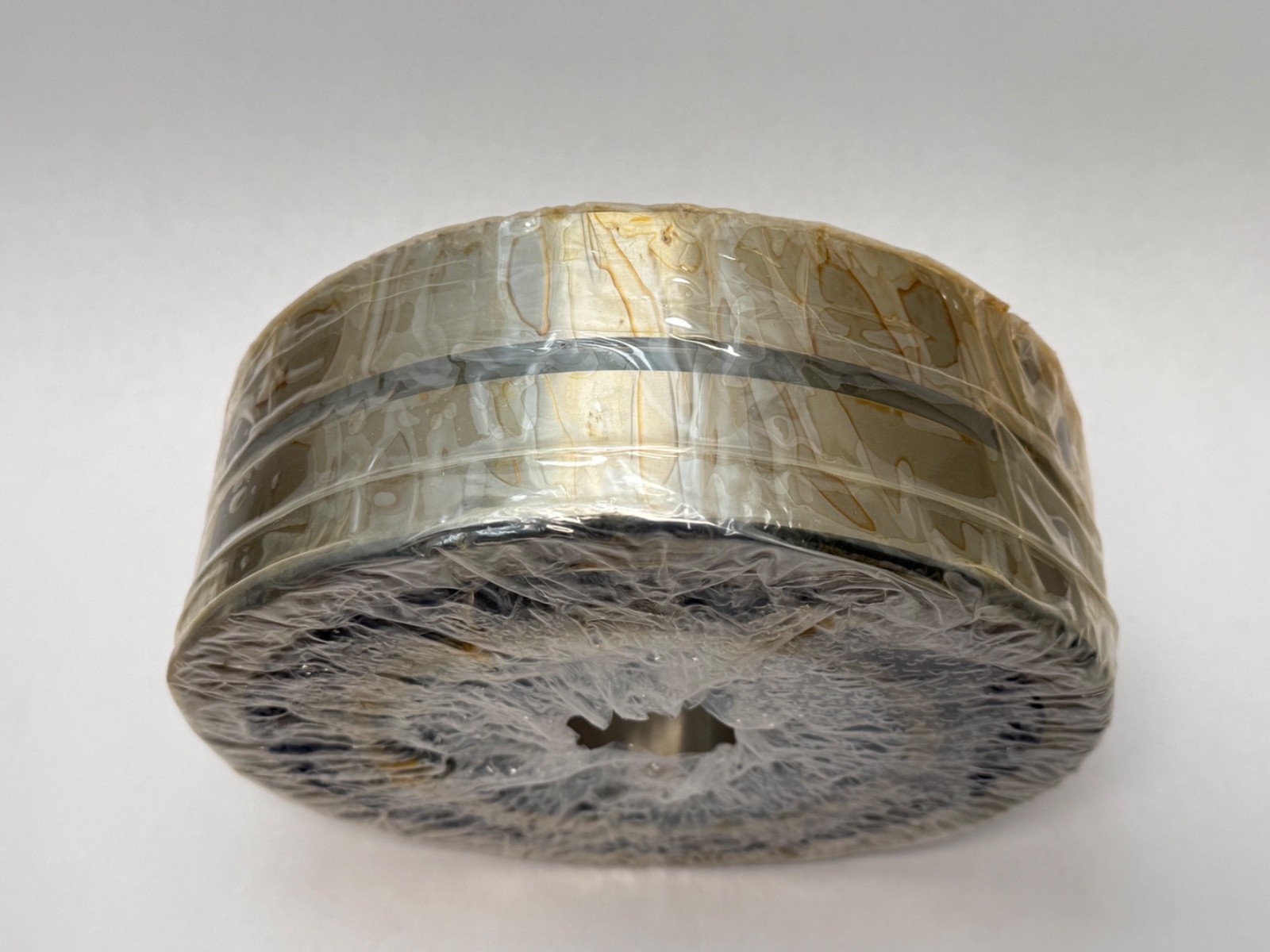

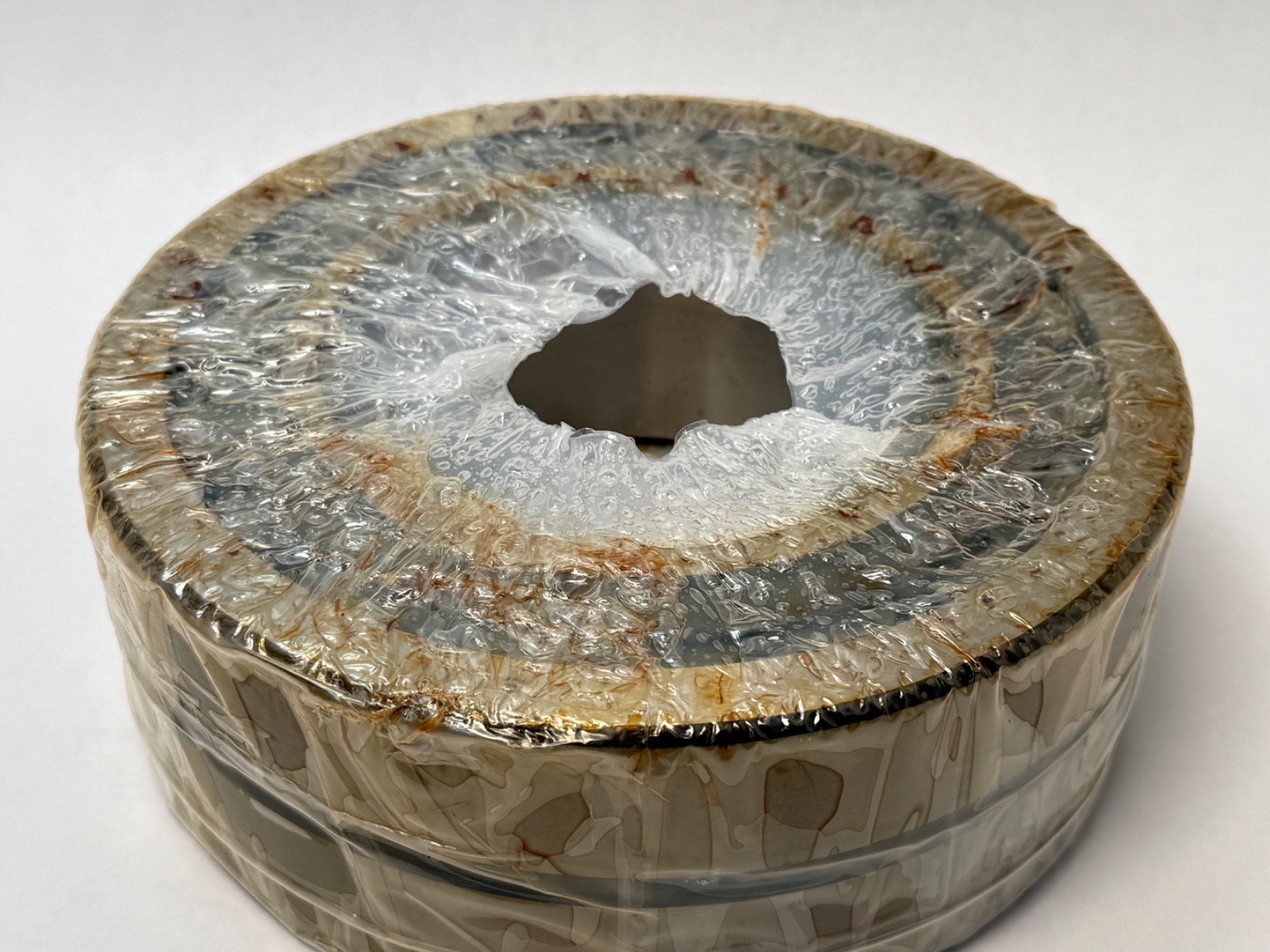

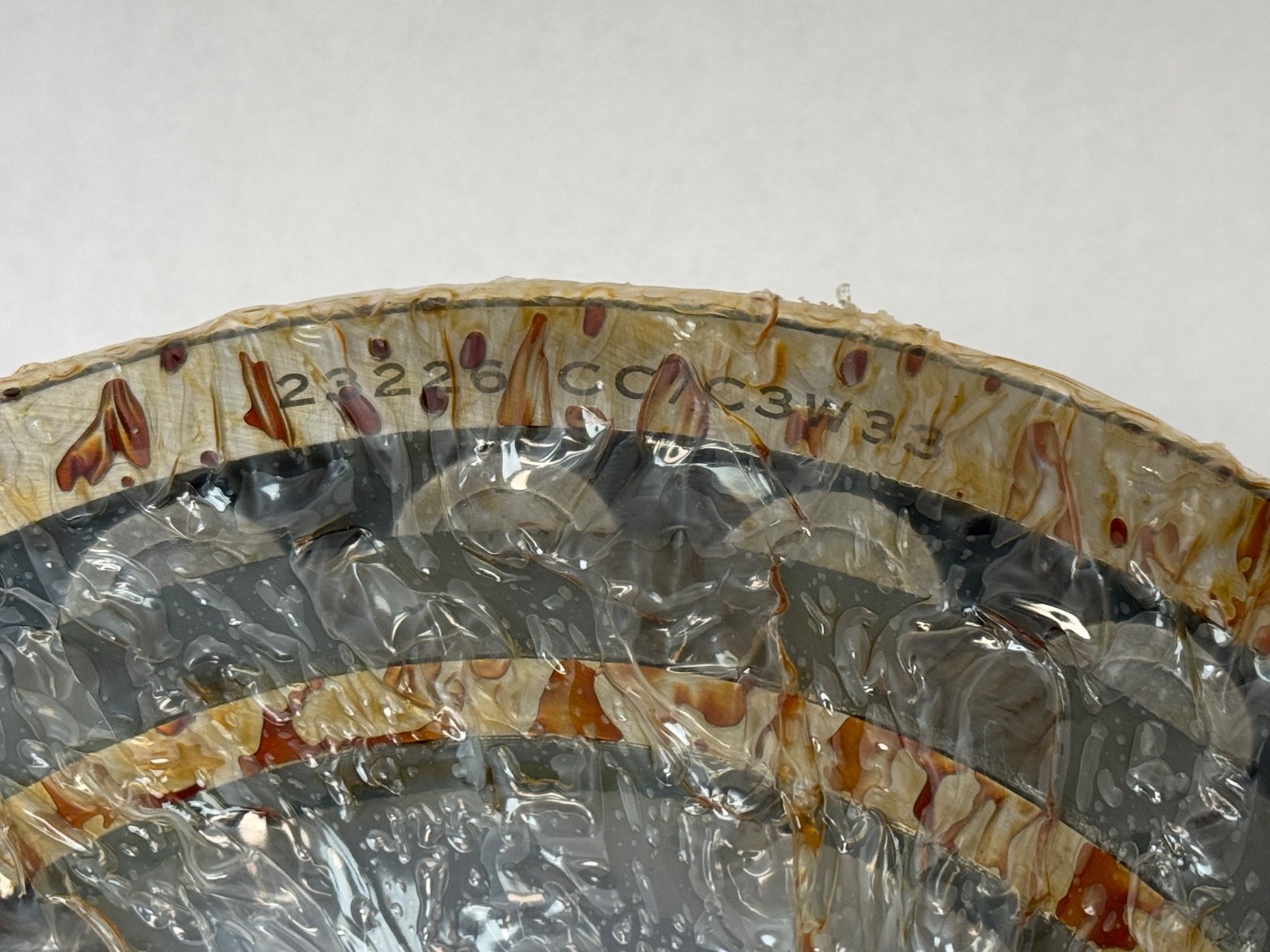

SKF 23226 CC/C3W33 double-row spherical roller bearing, 130 x 230 x 80 mm, cylindrical bore, C3 clearance, W33 groove, 826 kN dynamic load rating.
List Price
$271.71
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 23226 CC/C3W33 |
| GTIN | 7316576600470 |
| Model | 23226 CC C3 W33 23226 CJ 23226 CCJ 23226 CCC3W33 |
| Bearing Type | Spherical Roller Bearing |
| ID | 130 mm |
| OD | 230 mm |
| Width | 80 mm |
| Material | Bearing Steel |
|---|---|
| Bore | Straight Bore |
| Lubricant | Grease or oil |
| Base Number | 23226 |
| Common Misspellings | 23226CC C3 W33; 23226 CC/C3/W33; 23226CCW33C3; 23226 C3W33; 22326; 23226CC3W33; 2322 6 CC; spherical roler bearing; sperical roller bearing; self alligning |
| Bore Shaft Size | 130 mm — cylindrical / straight bore |
| Mpn Variants | 23226 CC/C3W33; 23226-CC/C3W33; 23226CC/C3W33; 23226 CC C3 W33; 23226CCC3W33; 23226 CCJ/C3W33; 23226 CJ/C3W33; 23226CC/C3/W33 |
| Manufacturer Status | SKF active brand. C and CC internal designs largely superseded by SKF's E design (23226 E) on the same boundary dimensions; CC/C3W33 remains catalogued and stocked. |
| Dynamic Load Rating | 826,000 N |
| Static Load Rating | 1,060,000 N |
| Series | 232 — heavy, wide spherical roller dimension series |
| Item Weight | 14 kg (31 lb) |
| Cage Material | Pressed sheet steel |
| Number Of Rows | 2 |
| Limiting Speed | 2,600 rpm |
| Internal Clearance | C3 |
| Part Number | 23226 CC/C3W33 |
| Relubrication Feature | W33 |
| Cross Reference 1 | SKF 23226 CC/W33 – Normal clearance vs C3 |
|---|---|
| Cross Reference 2 | SKF 23226 CCK/C3W33 – 1:12 tapered bore vs straight |

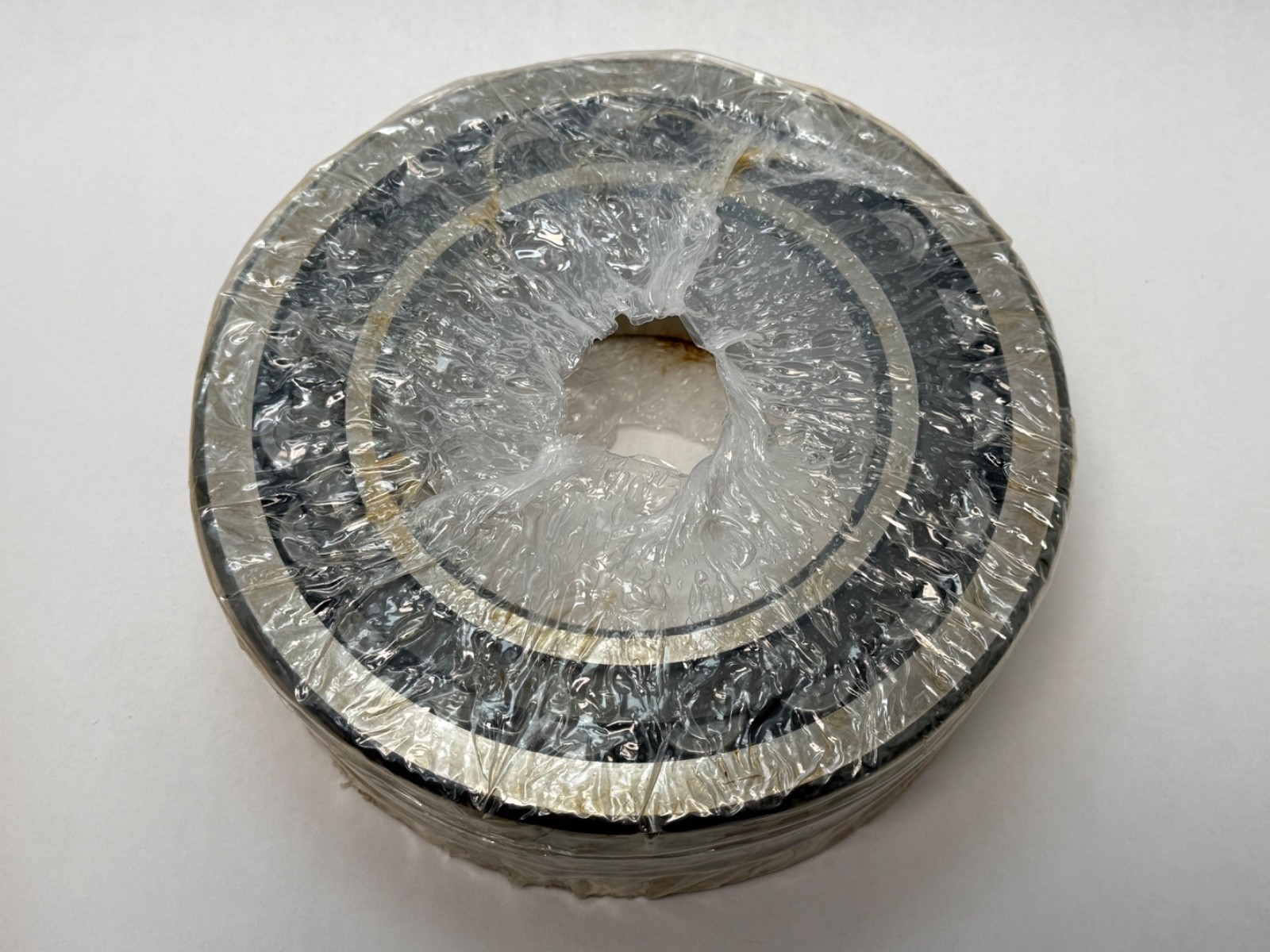

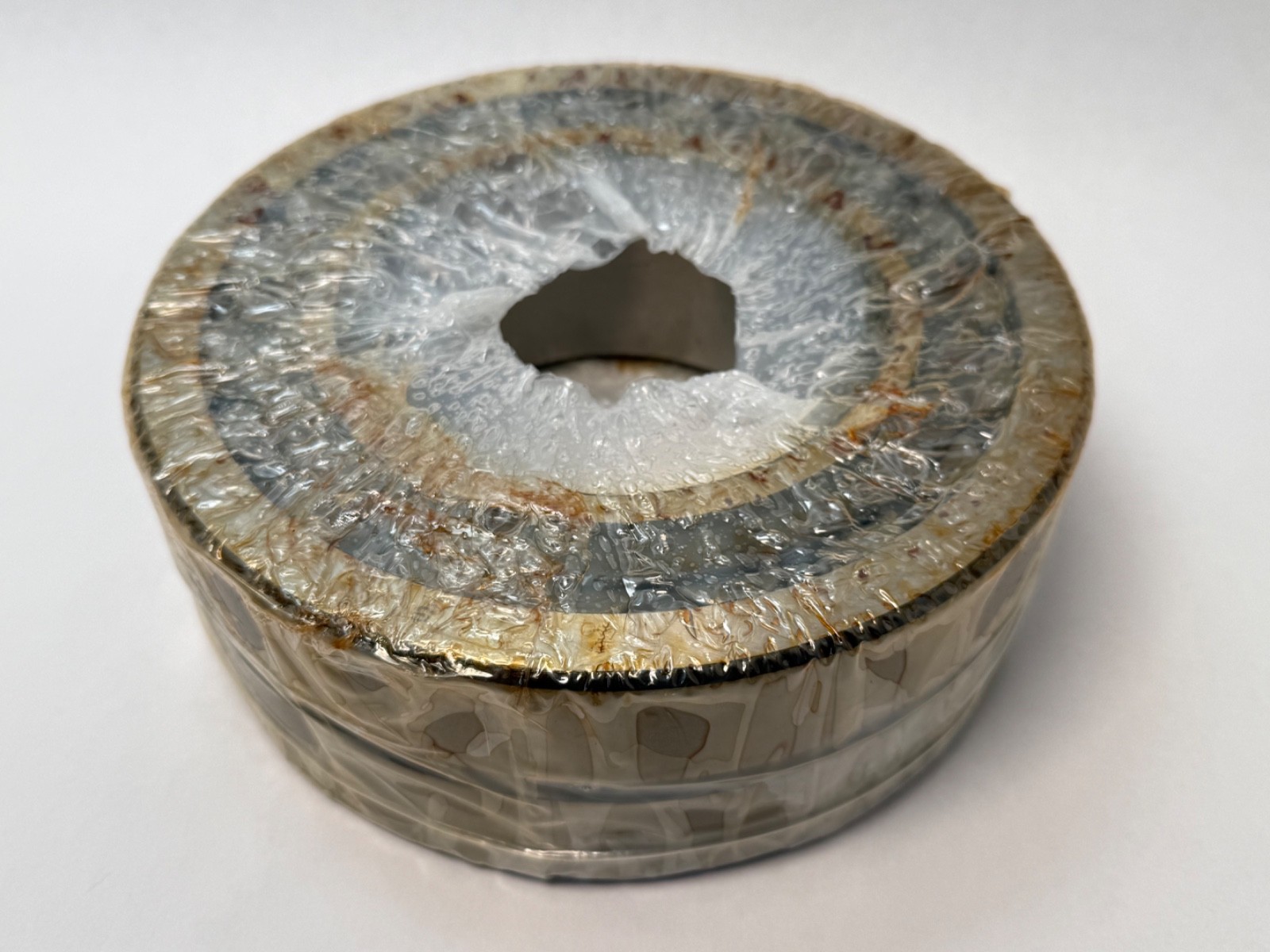

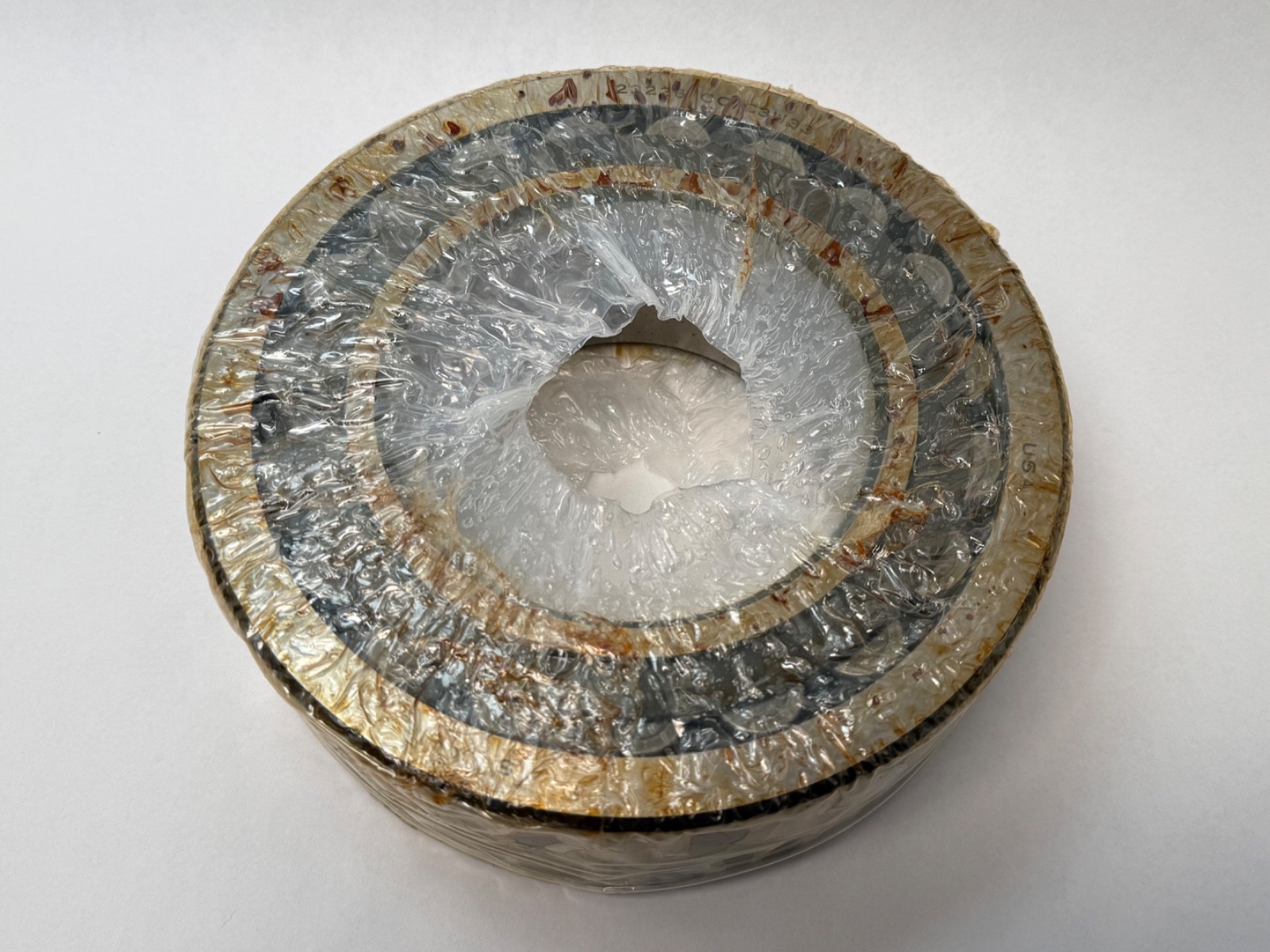

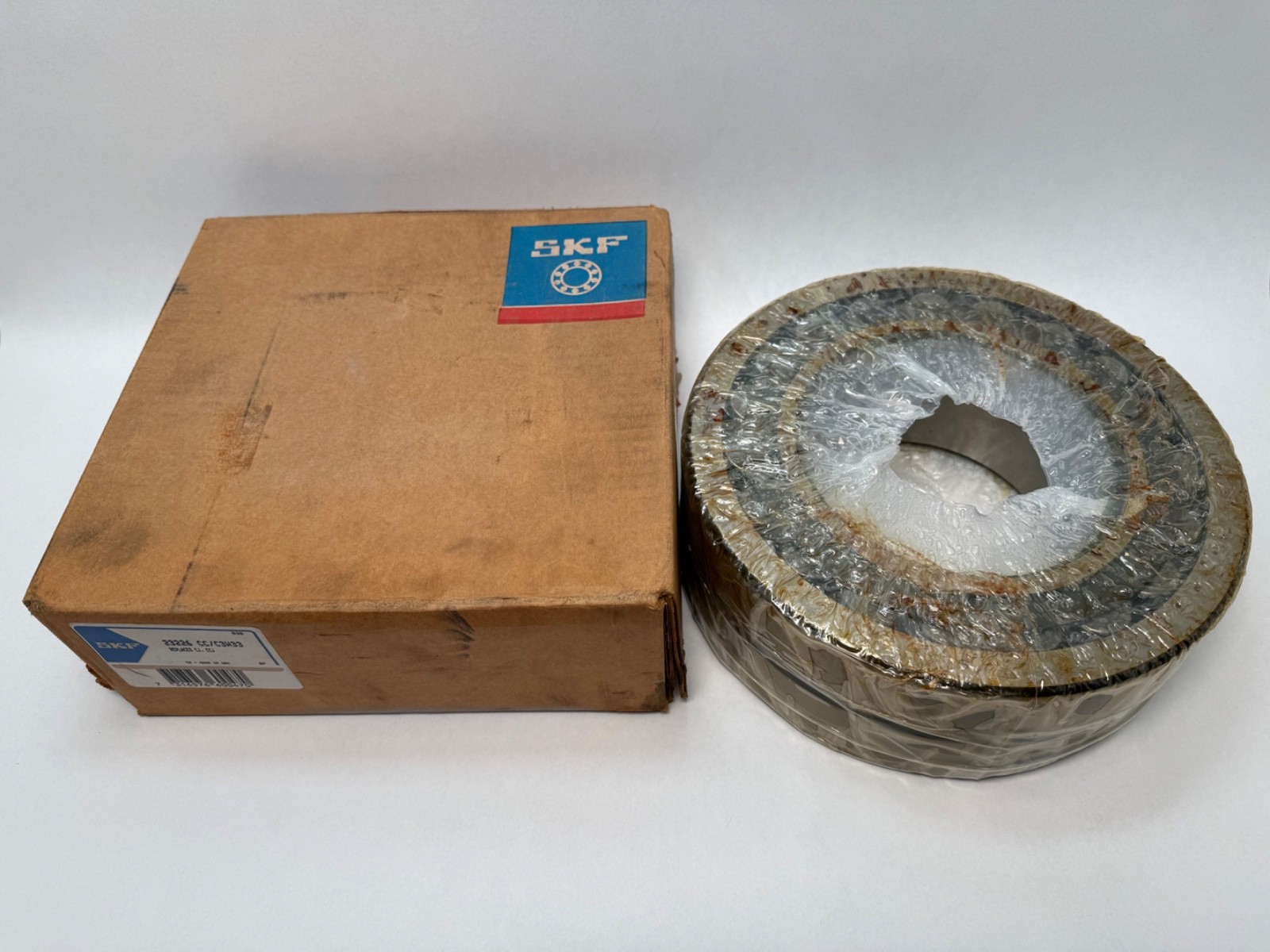

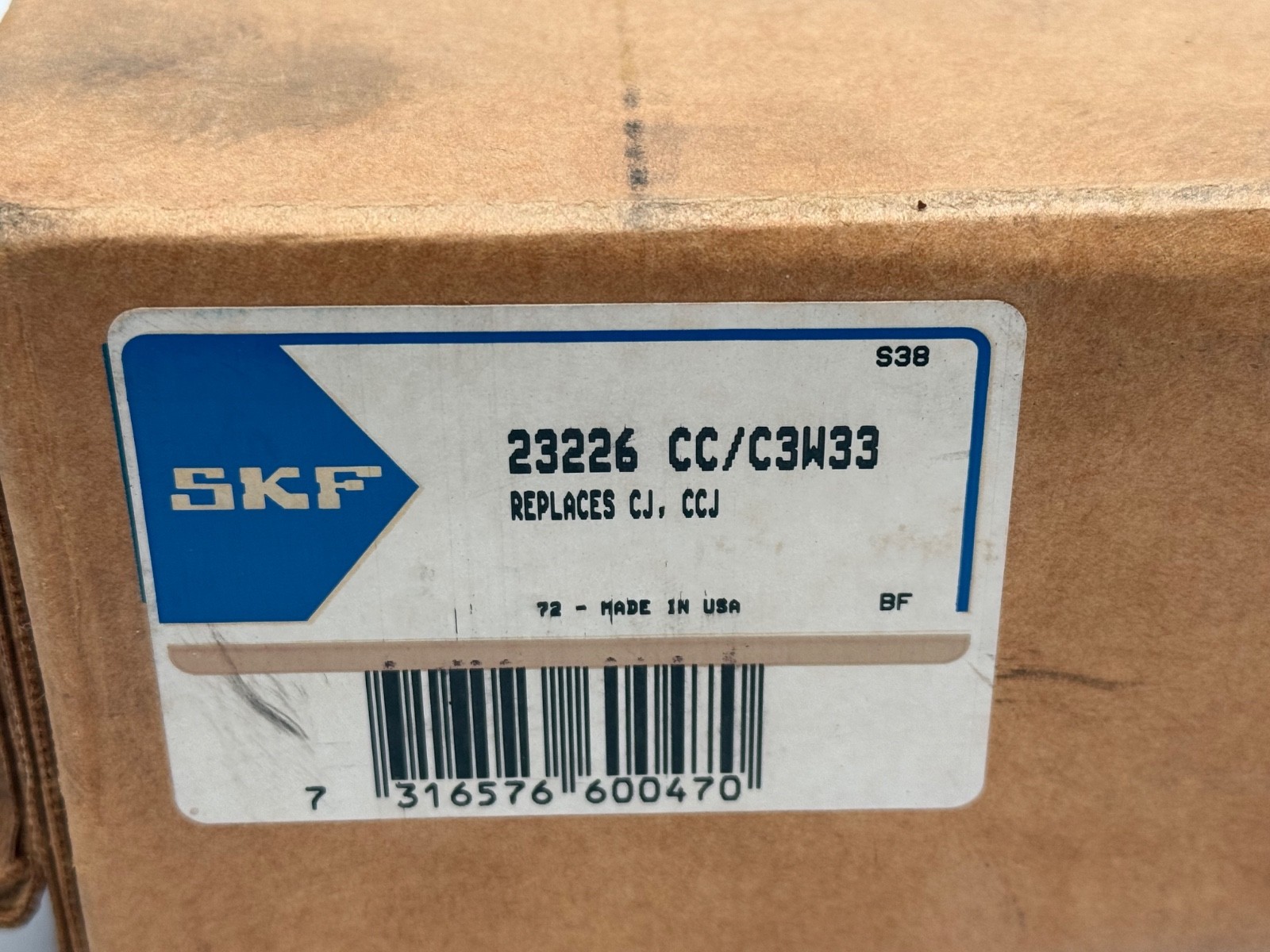

SKF 23226 CC/C3W33 is a double-row spherical roller bearing, 130 x 230 x 80 mm, with a cylindrical bore, C3 radial internal clearance and a W33 lubrication groove with three radial holes. Two rows of rollers run on a common sphered outer raceway, so the inner ring and roller assembly swivels inside the outer ring. Unit Quantity: 1 Pc. One complete bearing: inner ring, both roller rows, both cages, guide ring and outer ring as a non-separable assembly. GTIN: 7316576600470.
232 — SKF heavy, wide spherical roller dimension series.
26 — bore code; 26 x 5 = 130 mm bore.
CC — two window-type pressed sheet-steel cages with a loose guide ring centred on a flangeless inner ring.
C3 — radial internal clearance greater than Normal.

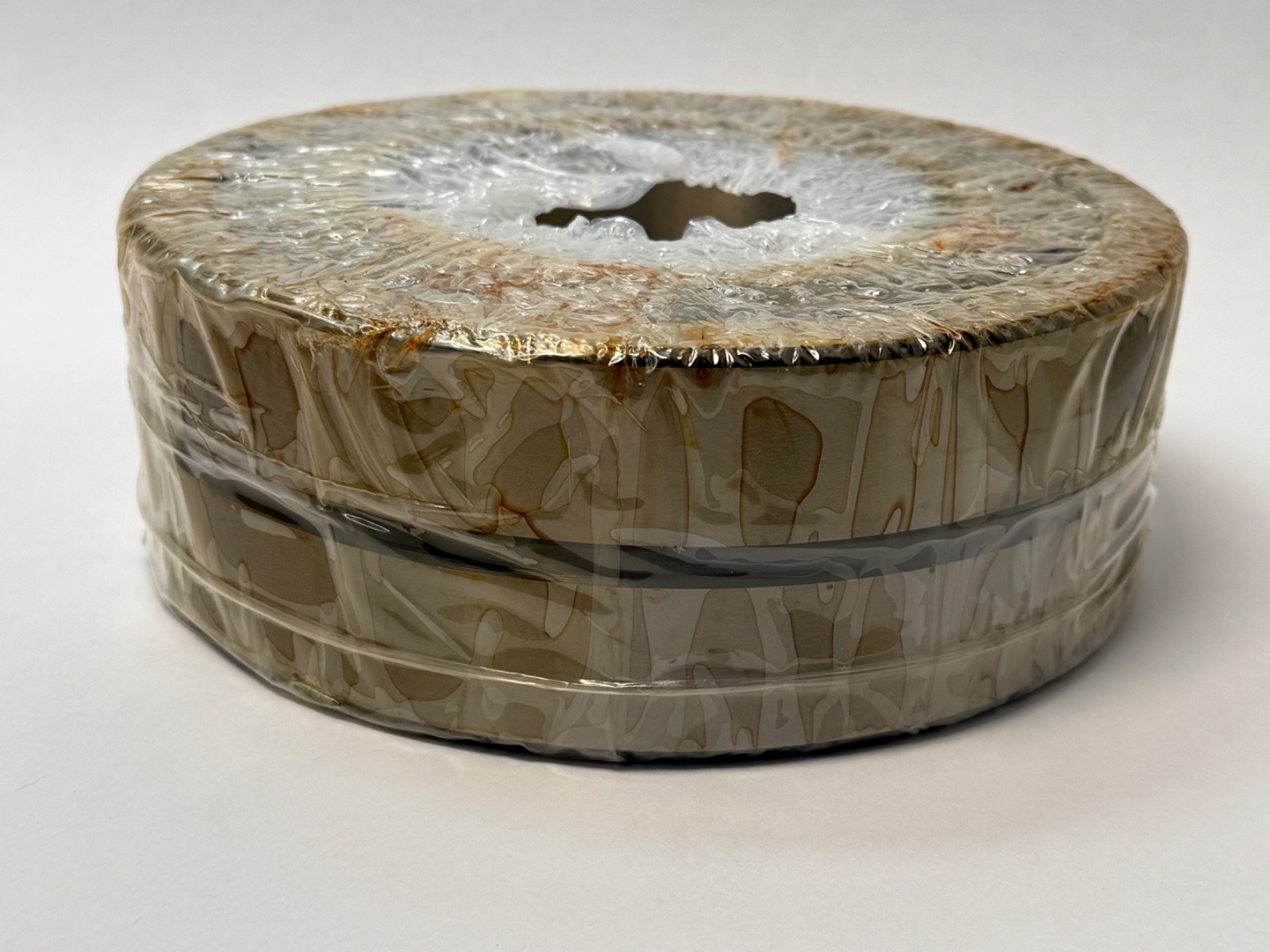

W33 — annular lubrication groove in the outer ring outside diameter with three radial lubrication holes; lubricant: grease or oil.
No K suffix — cylindrical (straight) bore.
Bore Diameter: 130 mm.
Outside Diameter: 230 mm.
Width: 80 mm.
Basic Dynamic Load Rating C: 826 kN (185,692 lbf).
Basic Static Load Rating C0: 1,060 kN (238,297 lbf).
Fatigue Load Limit Pu: 104 kN.
Limiting Speed: 2,600 r/min.
Reference Speed: 1,900 r/min.
Radial Internal Clearance: C3.
Cage Material: Pressed sheet steel.
Closure Type: Open.
Tolerance Class: Normal, ABEC 1.
Permissible Operating Temperature: −30°C to +200°C.
Mass: 14 kg (31 lb).
Fillet Radius (r1,2 min): 3 mm. Abutment Dimensions: da min 144 mm, Da max 216 mm, ra max 2.5 mm. The bearing carries axial load in both directions because the two roller rows are inclined toward each other.
Cross-references: SKF 23226 CC/W33 — Normal clearance instead of C3. SKF 23226 CCK/C3W33 — 1:12 tapered bore instead of straight. SKF 23226 E shares the 130 x 230 x 80 mm envelope with its own higher load ratings. The CJ and CCJ forms are alternate cage and guide-ring executions on the same boundary dimensions.
Bore 130 mm, outside diameter 230 mm, width 80 mm, with a cylindrical bore.
C3 is radial internal clearance greater than Normal. W33 is an outer-ring groove with three radial holes for grease or oil.
Basic dynamic load rating C is 826 kN and basic static load rating C0 is 1,060 kN.
