Availability:
2 in stock

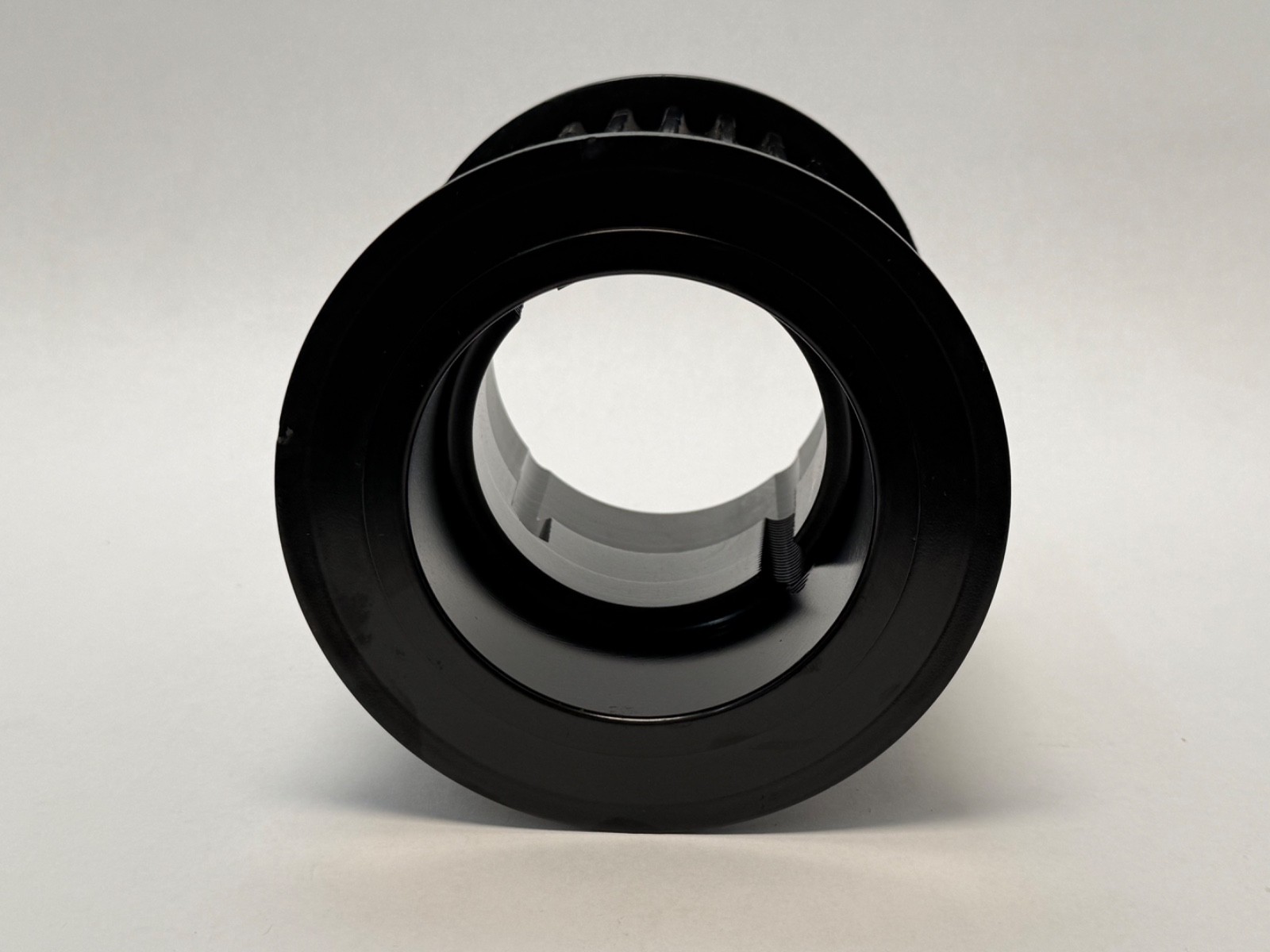

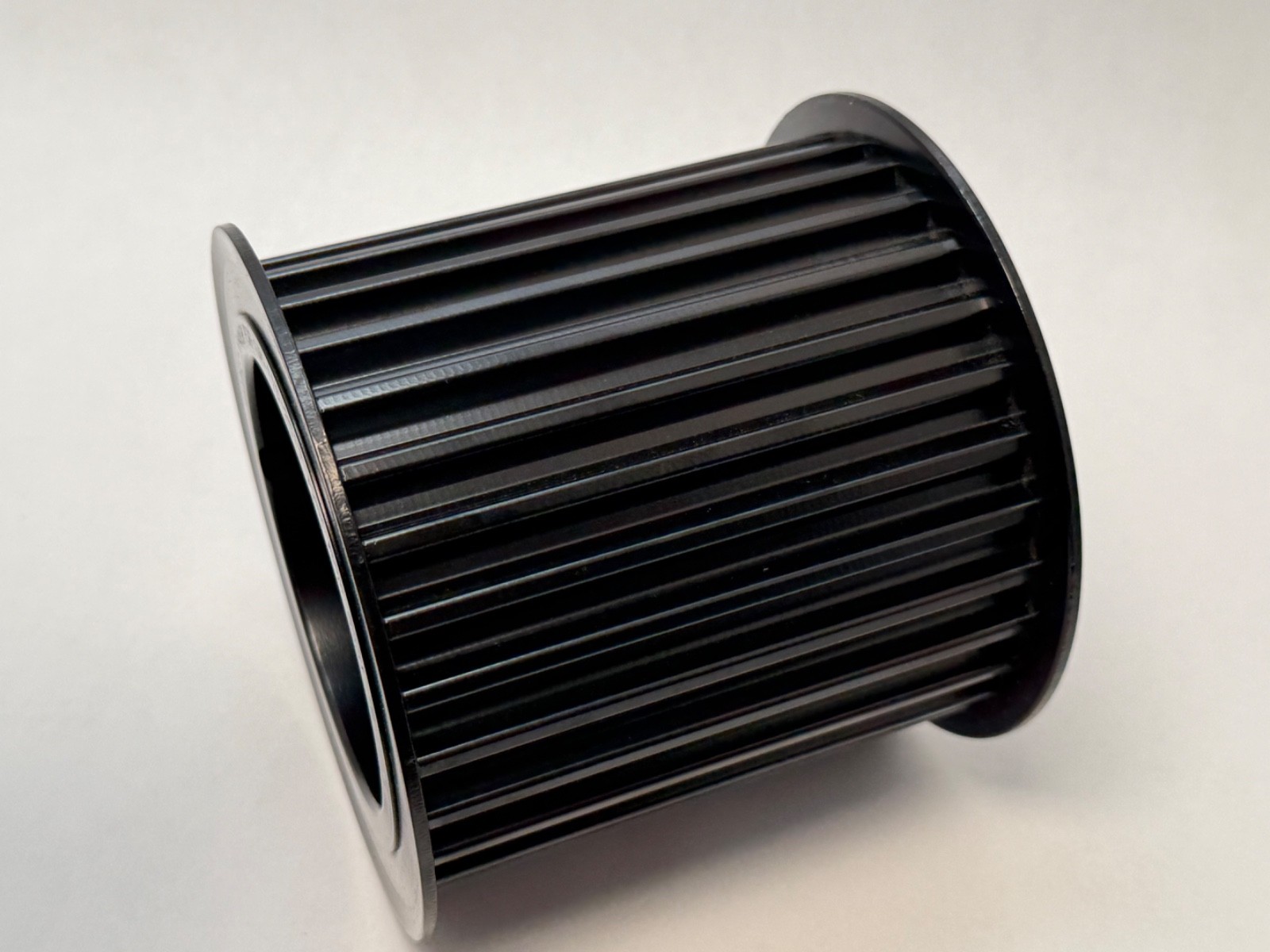

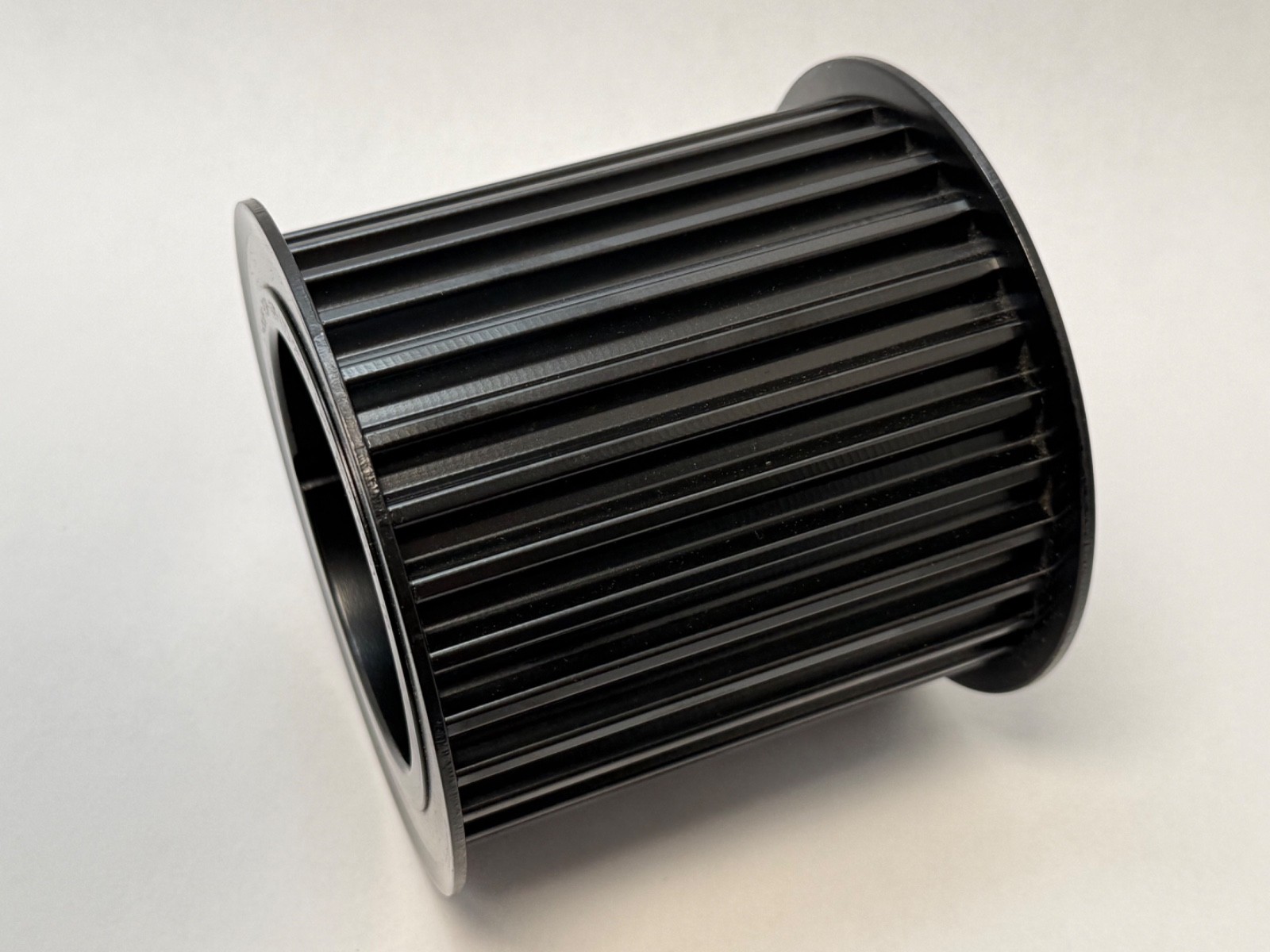

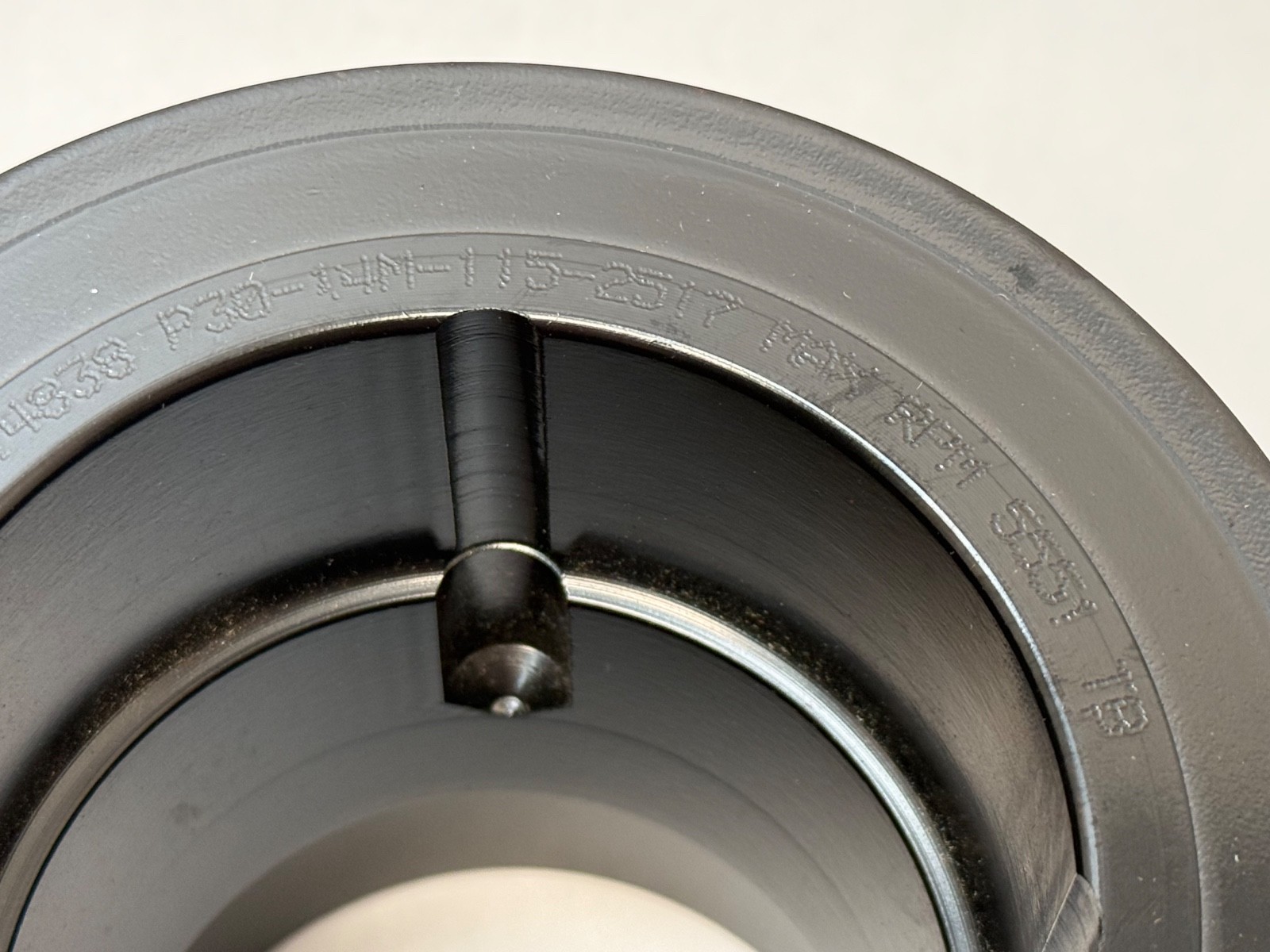

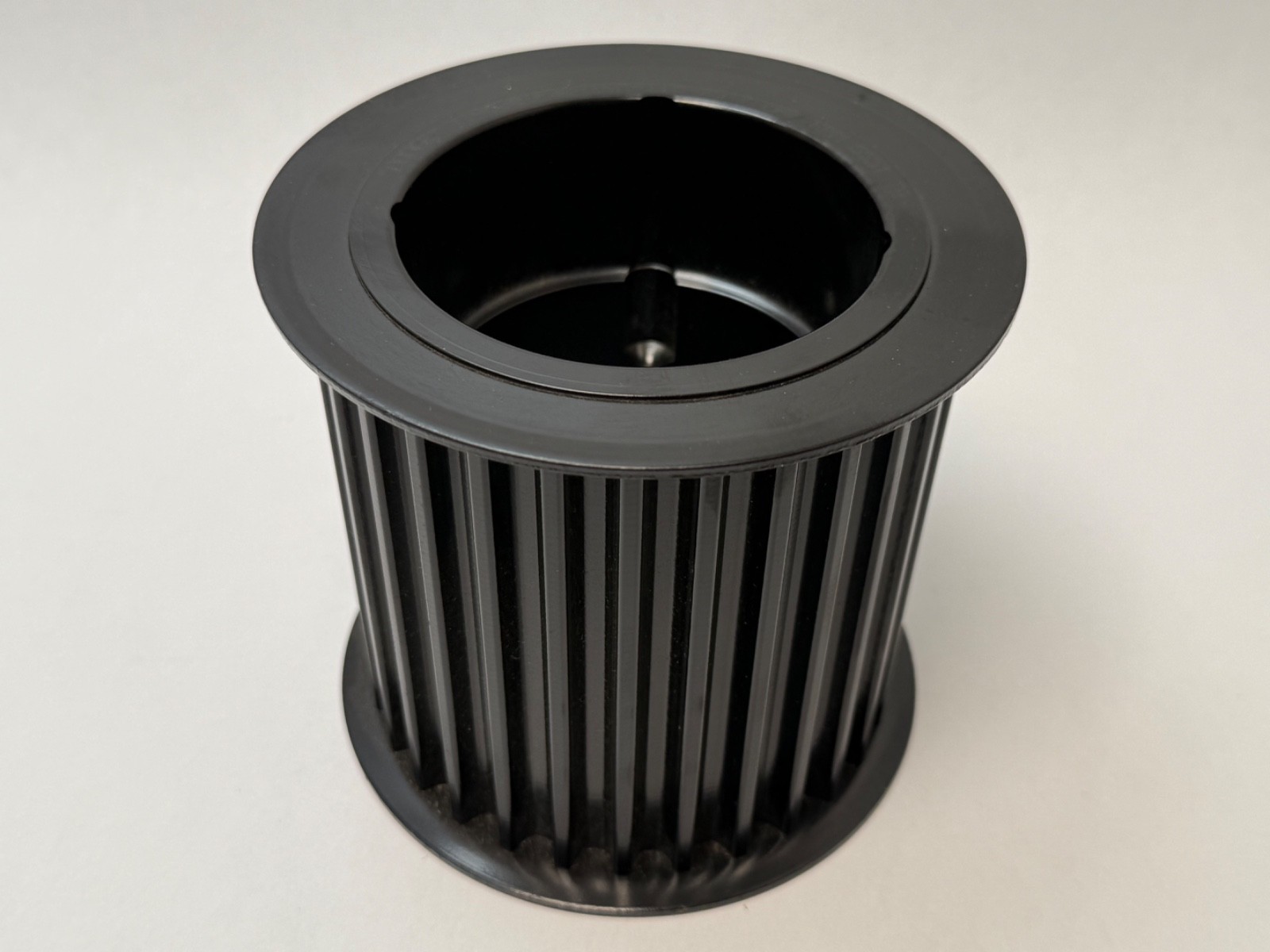

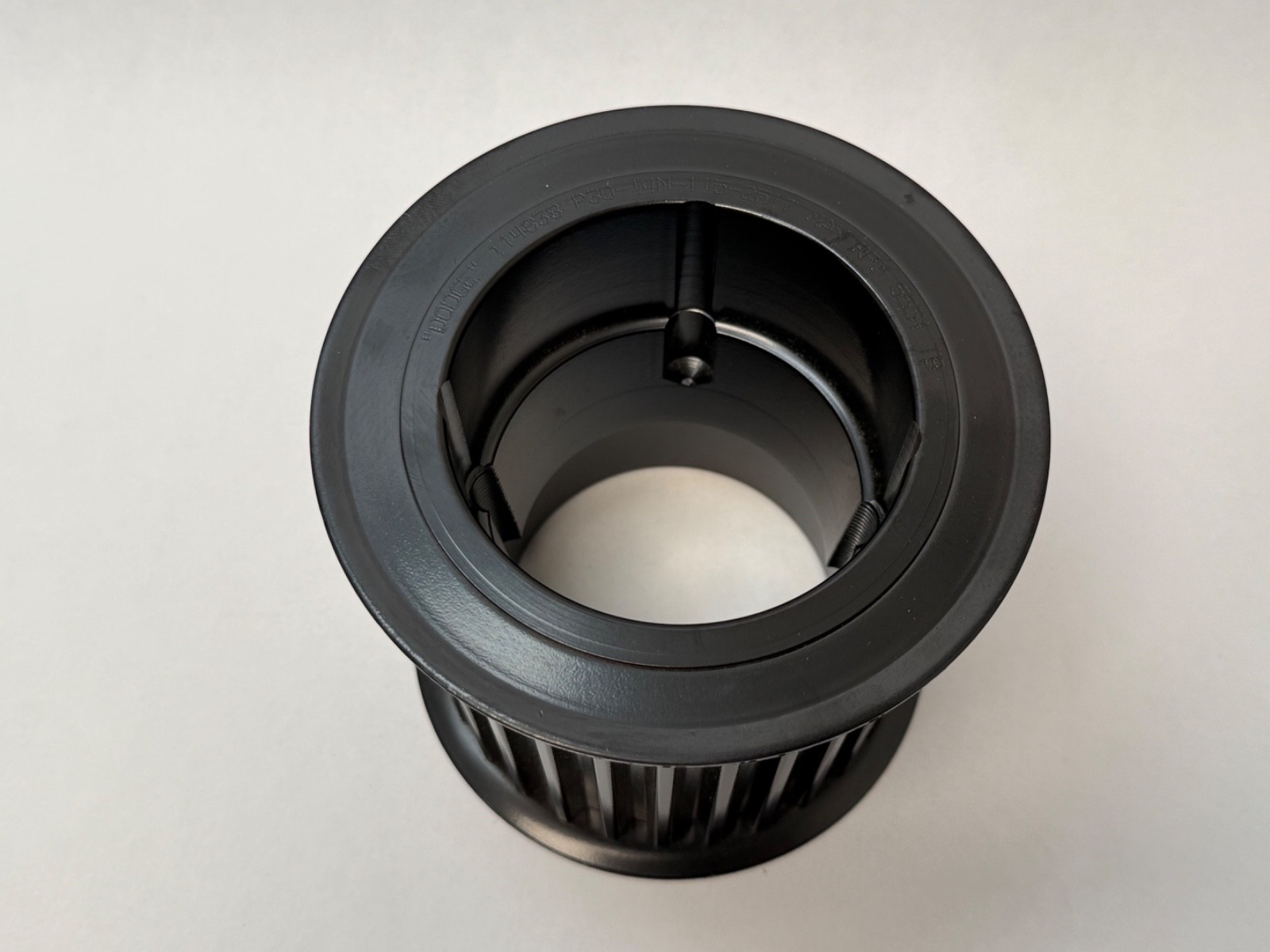

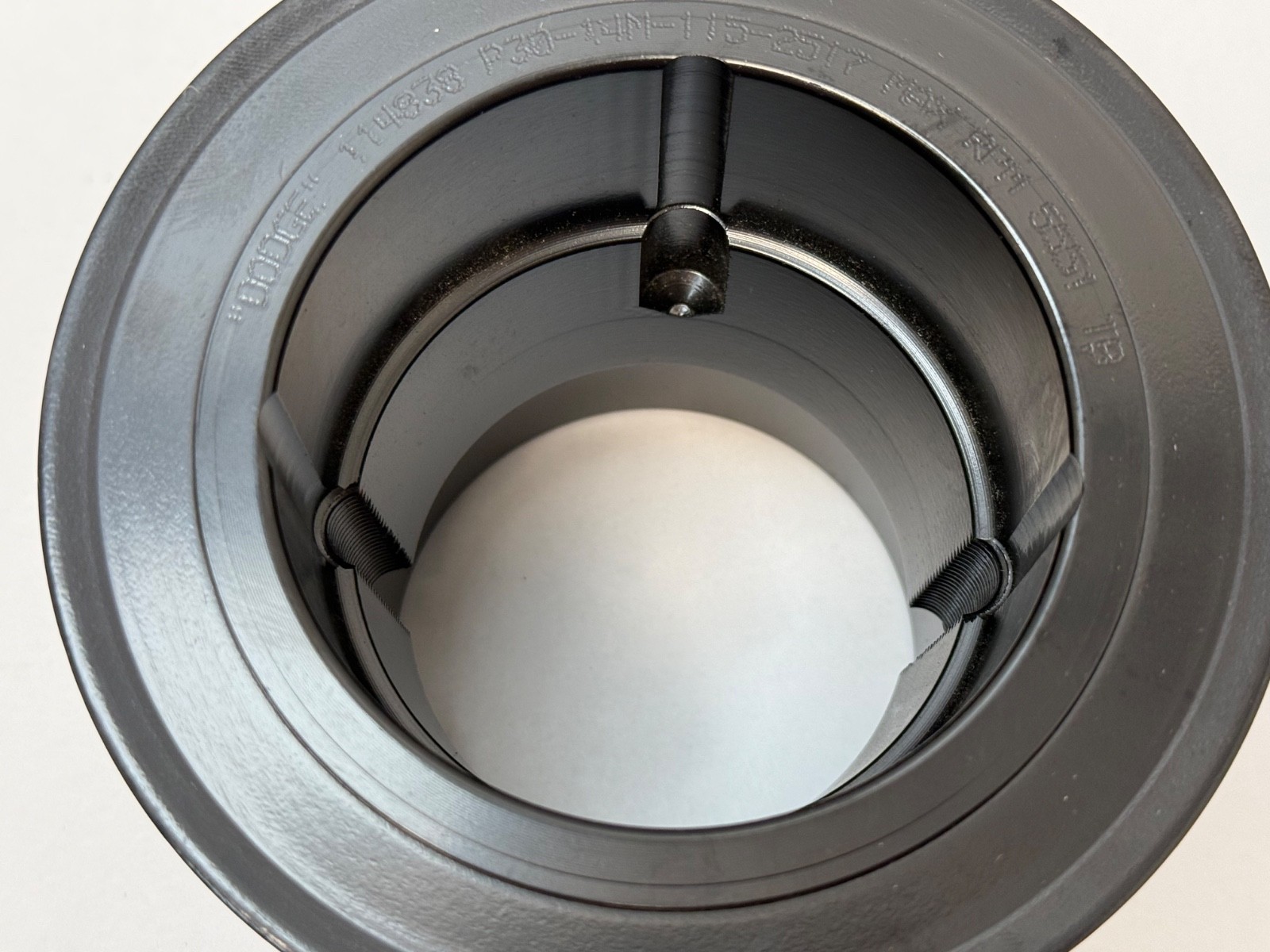

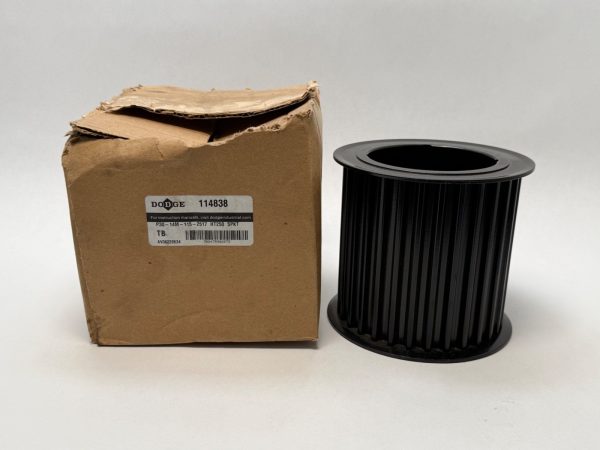

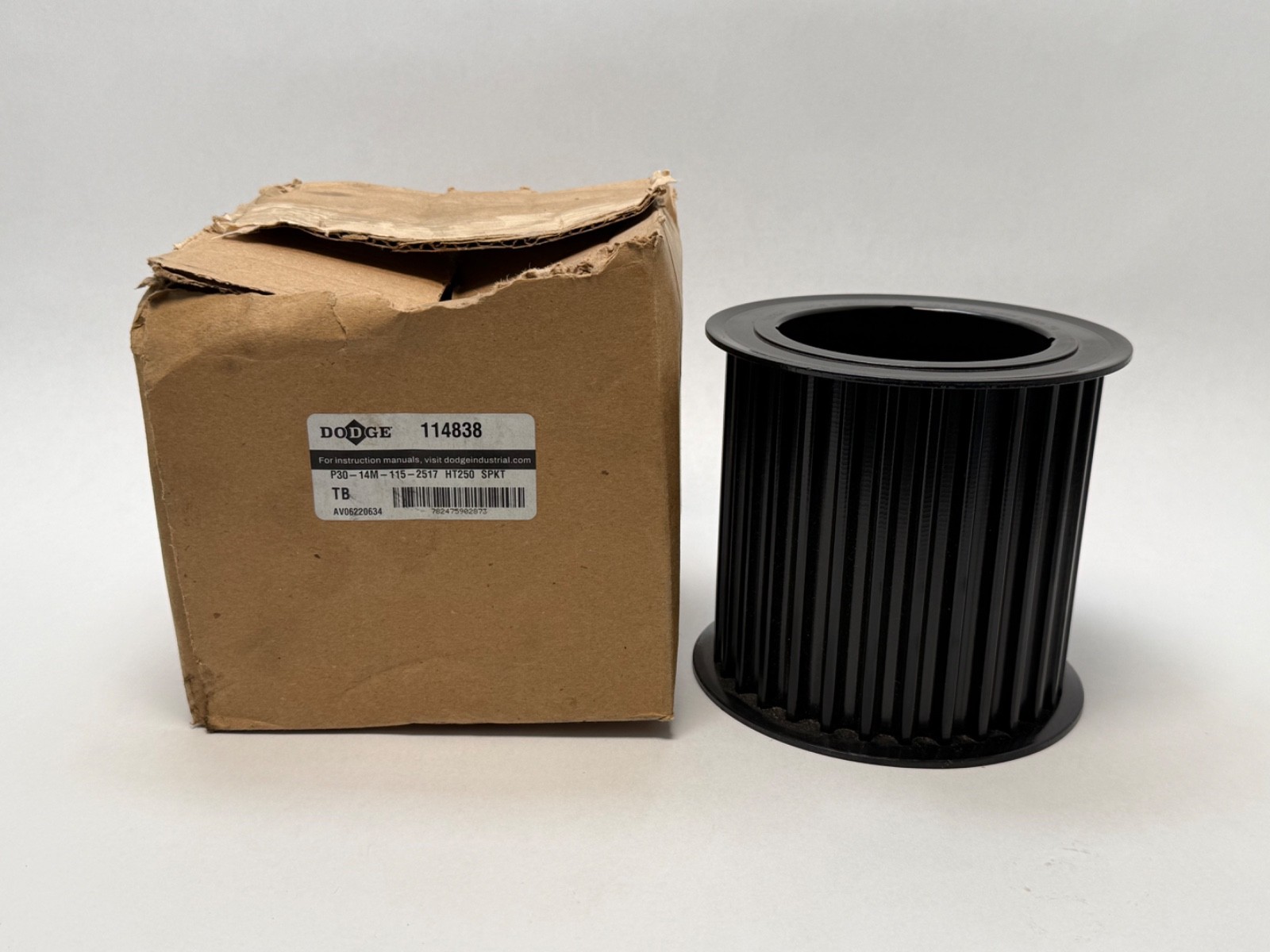

HT250 14 mm pitch HTD timing belt sprocket, 30 teeth, 115 mm belt width, 5.263 in pitch diameter, 2517 Taper-Lock bushing bore. Dodge part 114838.
List Price
$218.84
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | P30-14M-115-2517 |
| Model | P30-14M-115-2517 |
| Type | Timing Belt Sprocket |
|---|---|
| Base Number | P30-14M |
| Industry Terms | HTD sprocket; synchronous sprocket; timing belt pulley; 14M sprocket; HT250 |
| Common Misspellings | P3014M1152517; P30 14M 115 2517; 30-14M-115 |
| Application Types | Synchronous belt drives; conveyors; high torque power transmission |
| For Taper Lock Busing | 2517 |
| Bore Width | 115 mm |
| Pitch Diameter | 5.263 in (133.69 mm) |
| Mpn Variants | P30-14M-115-2517; 114838; P30-14M-115-2517 HT250 SPKT; P30-14M-115-2517HT250; DOD114838 |
| Manufacturer Status | Active |
| Compatible With Replaces | 14M HTD belts, 115 mm wide; Dodge 114838 |
| Additional Attributes | Dodge Part Number: 114838; Series: HT250; Tooth Pitch: 14 mm; Belt Width: 115 mm; Outside Diameter: 5.153 in (130.89 mm); Bore Range: 1/2 in to 2-11/16 in (2517 bushing) |
| Number Of Teeth | 30 |
| Belt Width | 115 mm |
| Belt Type | 14M HTD |

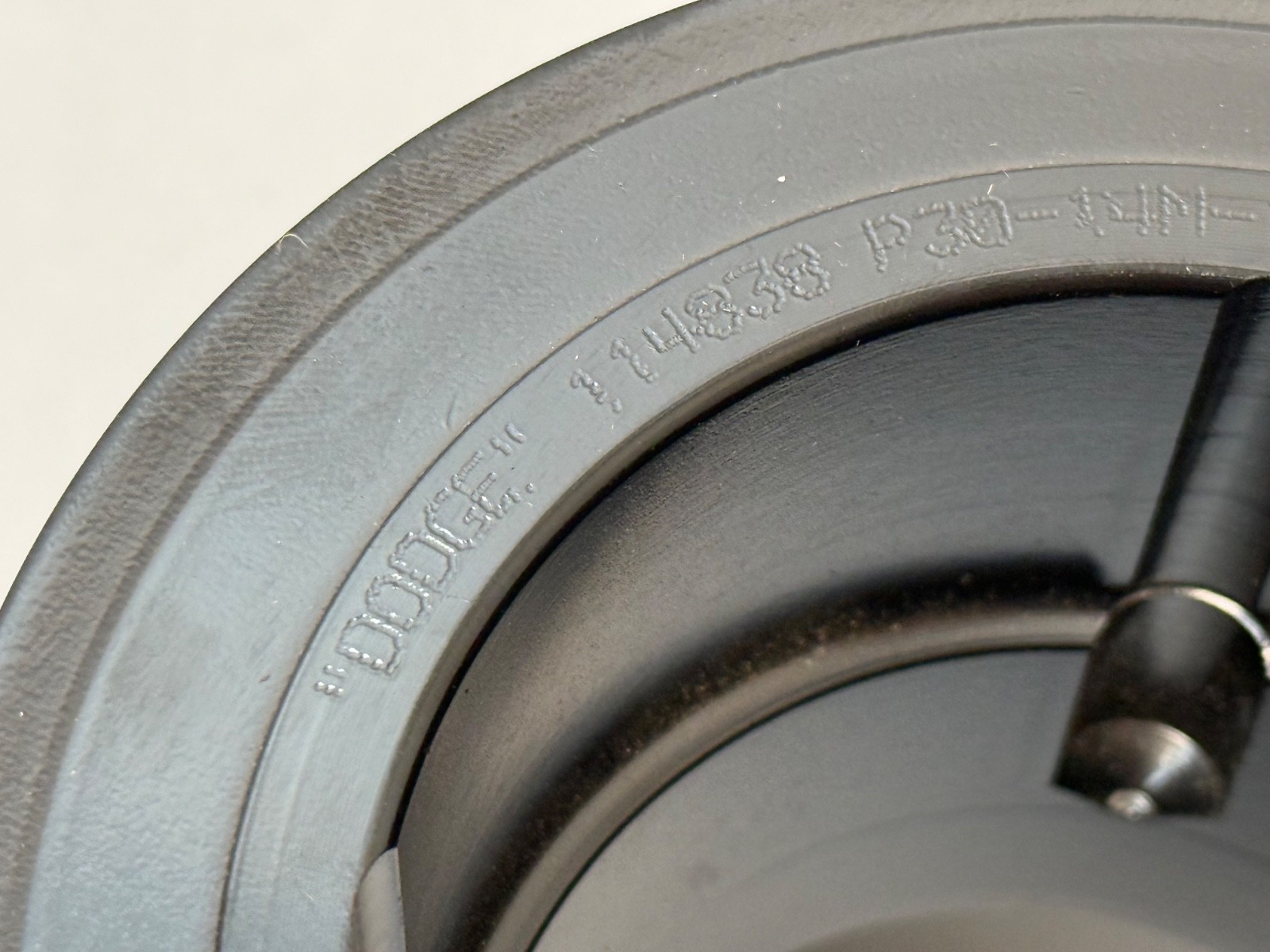

Dodge P30-14M-115-2517 HT250 sprocket, part number 114838. A high torque drive (HTD) synchronous belt sprocket for 14 mm pitch belts. Number Of Teeth: 30. Belt Type: 14M HTD. Belt Width: 115 mm.
P30 — 30-tooth sprocket.
14M — 14 mm tooth pitch.
115 — for a 115 mm wide belt.

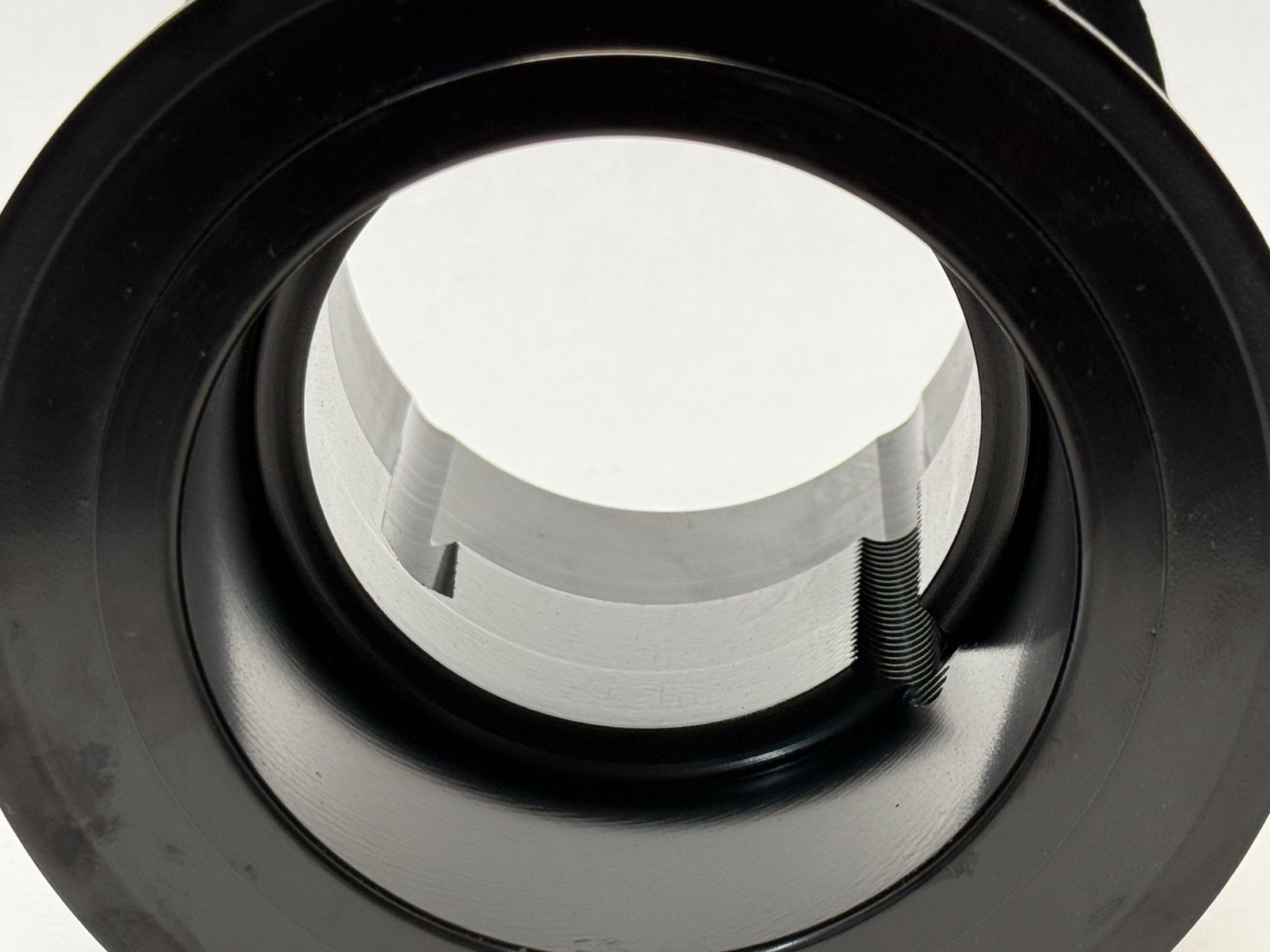

2517 — bored for a 2517 Taper-Lock bushing.
HT250 — Dodge high torque sprocket series.
Pitch Diameter: 5.263 in (133.69 mm). Outside Diameter: 5.153 in (130.89 mm). For Taper Lock Bushing: 2517. Bore range with a 2517 bushing: 1/2 in to 2-11/16 in.
Accepts 14M HTD belts 115 mm wide. Narrower 30-tooth version in the same series: Dodge P30-14M-55-2517 (114836).
