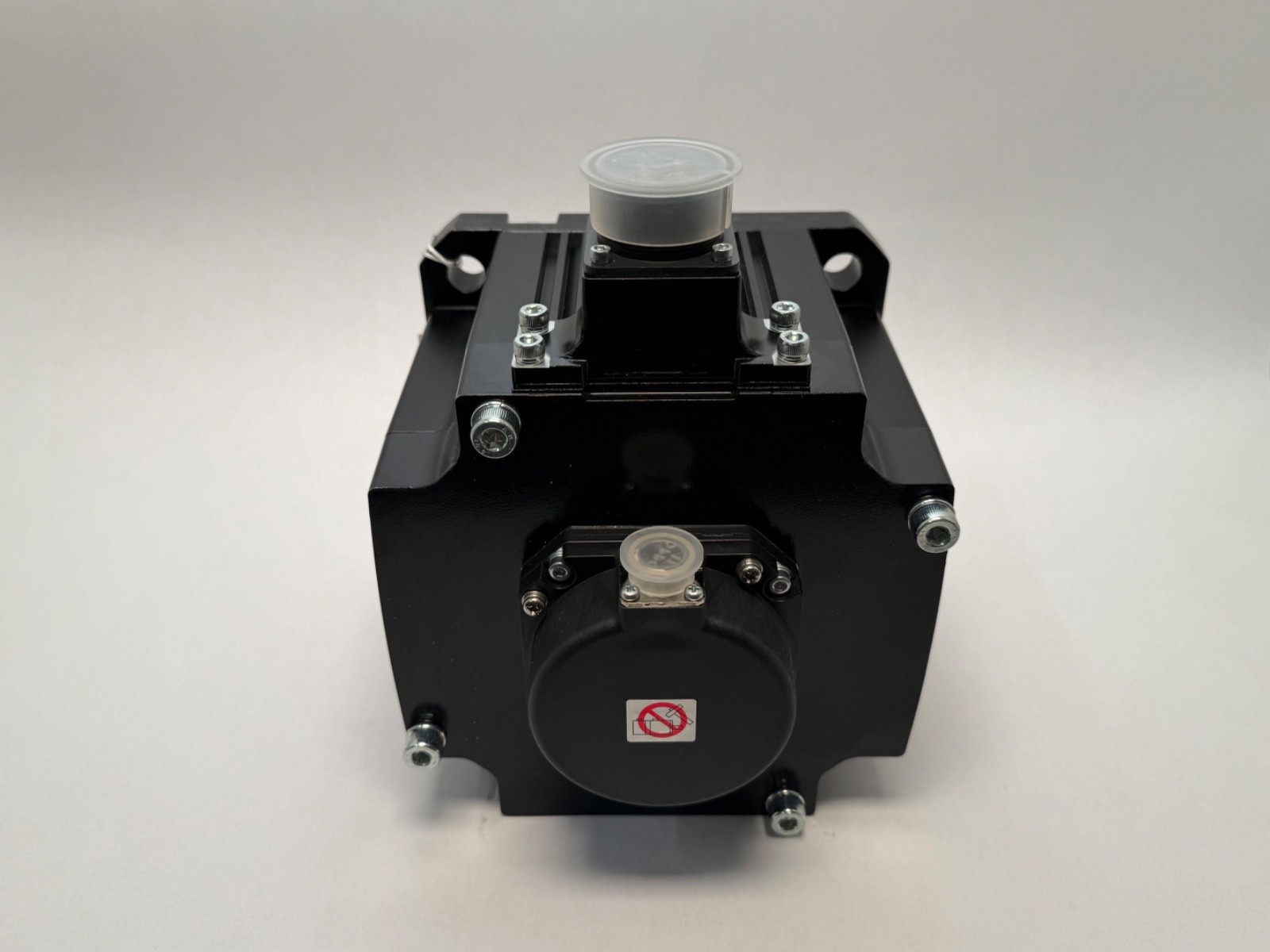

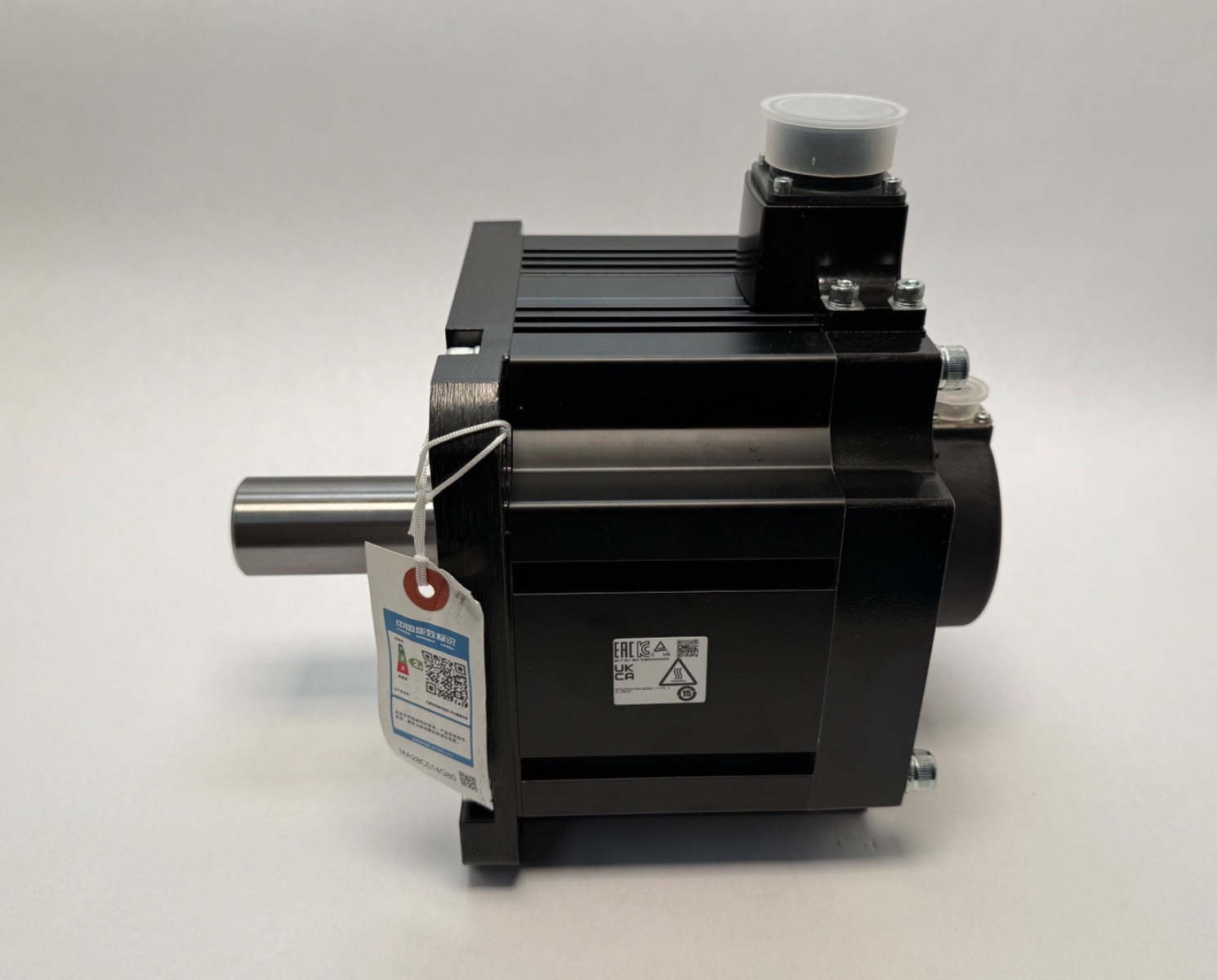

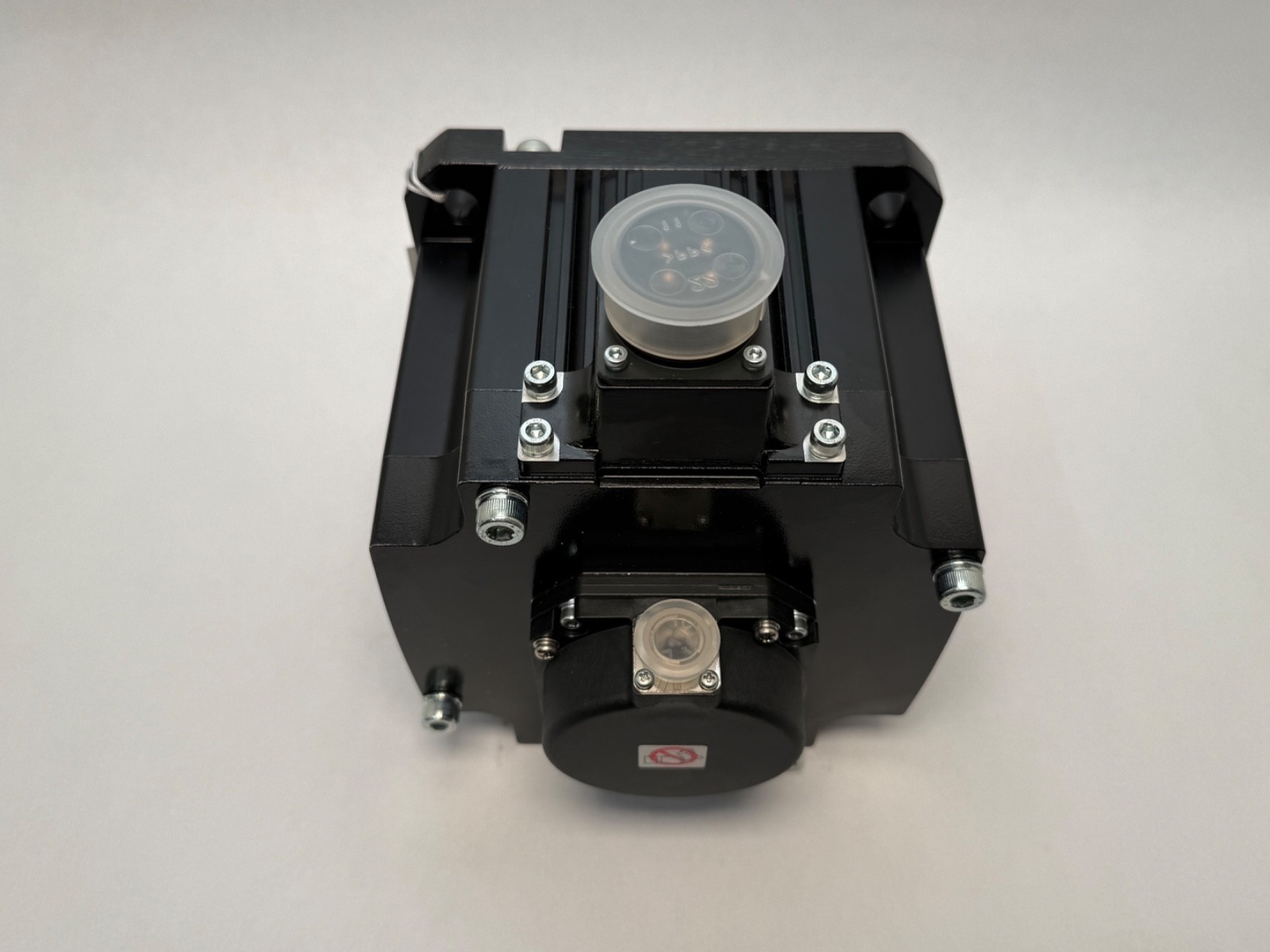

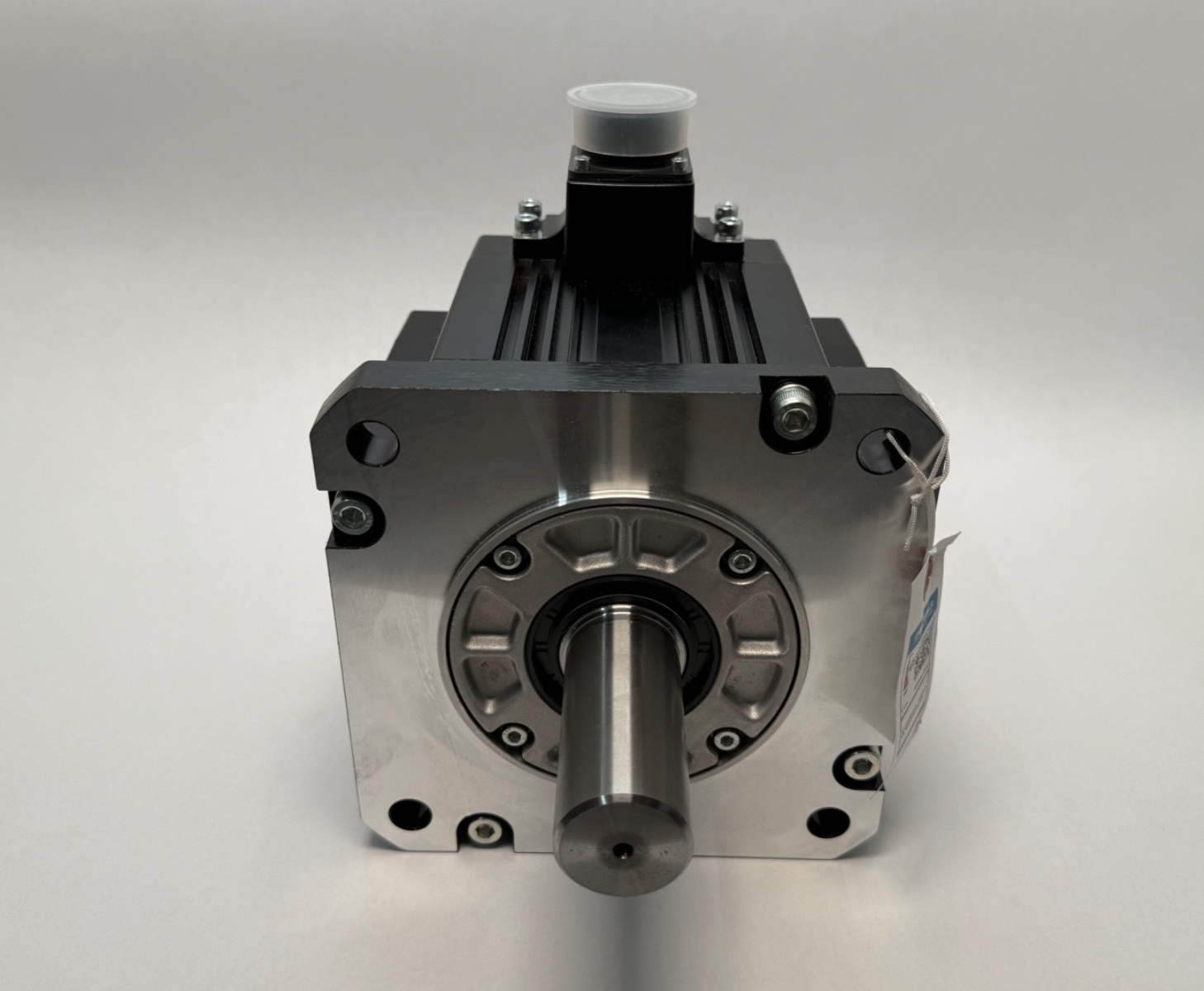

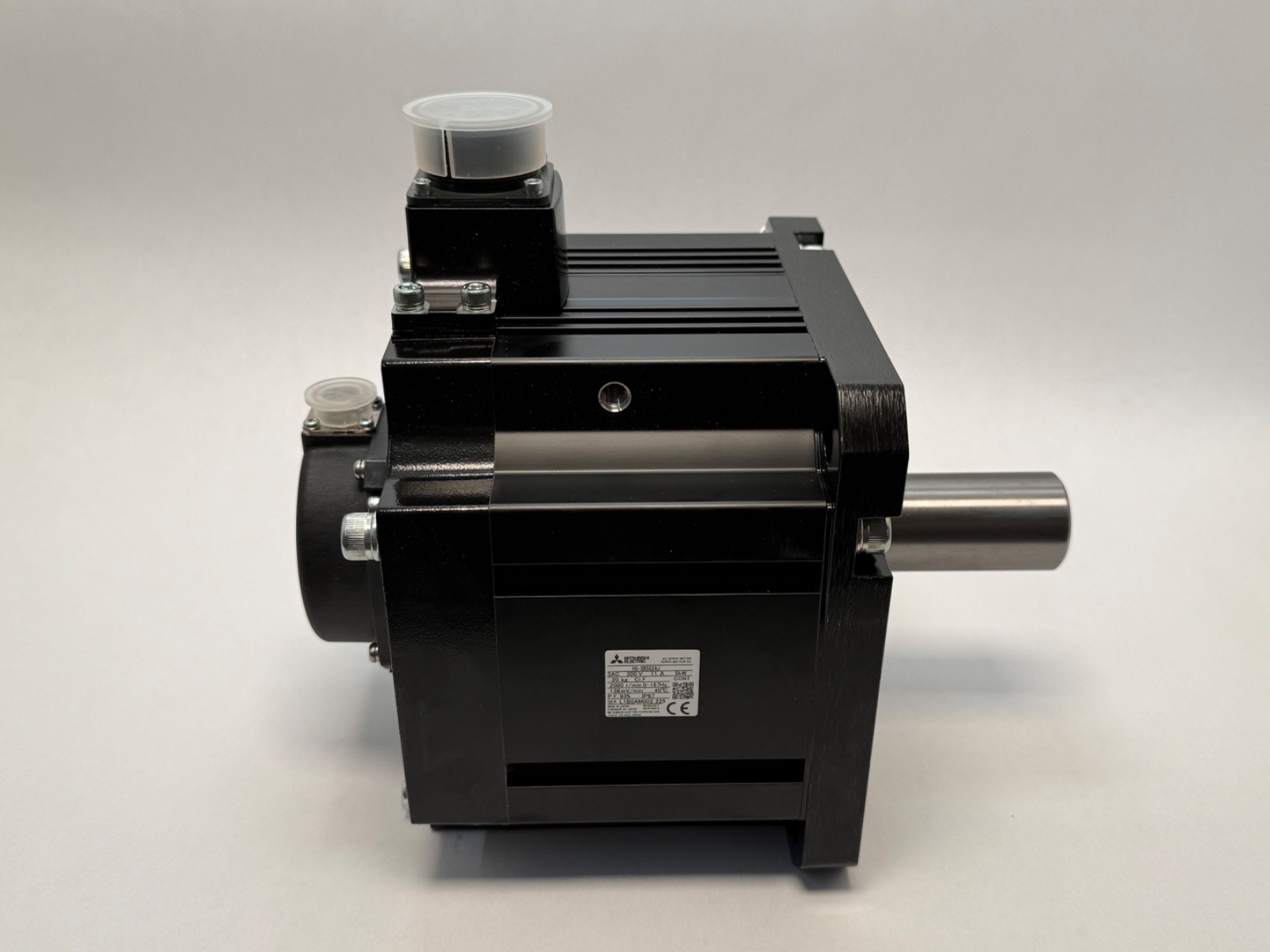

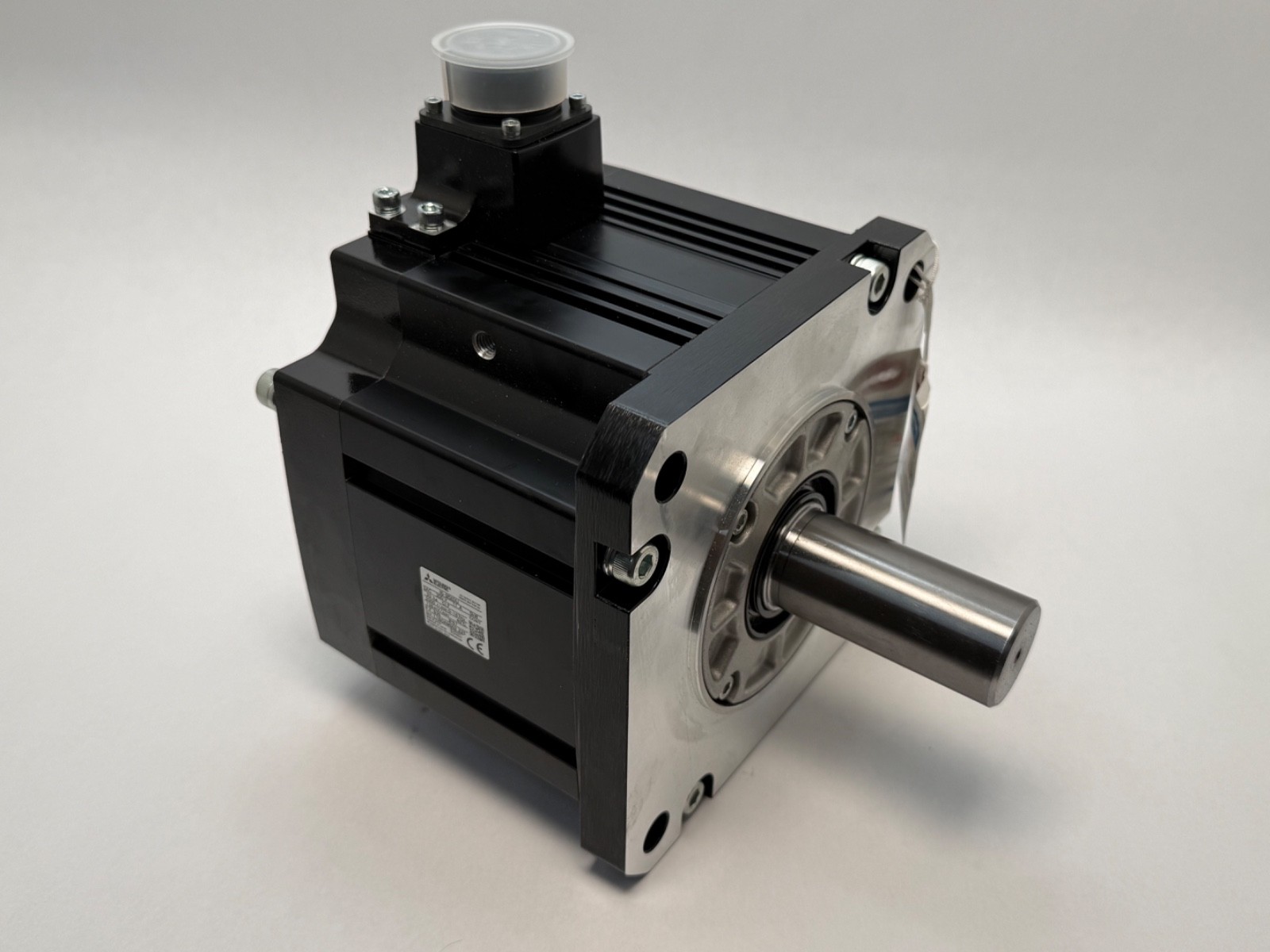

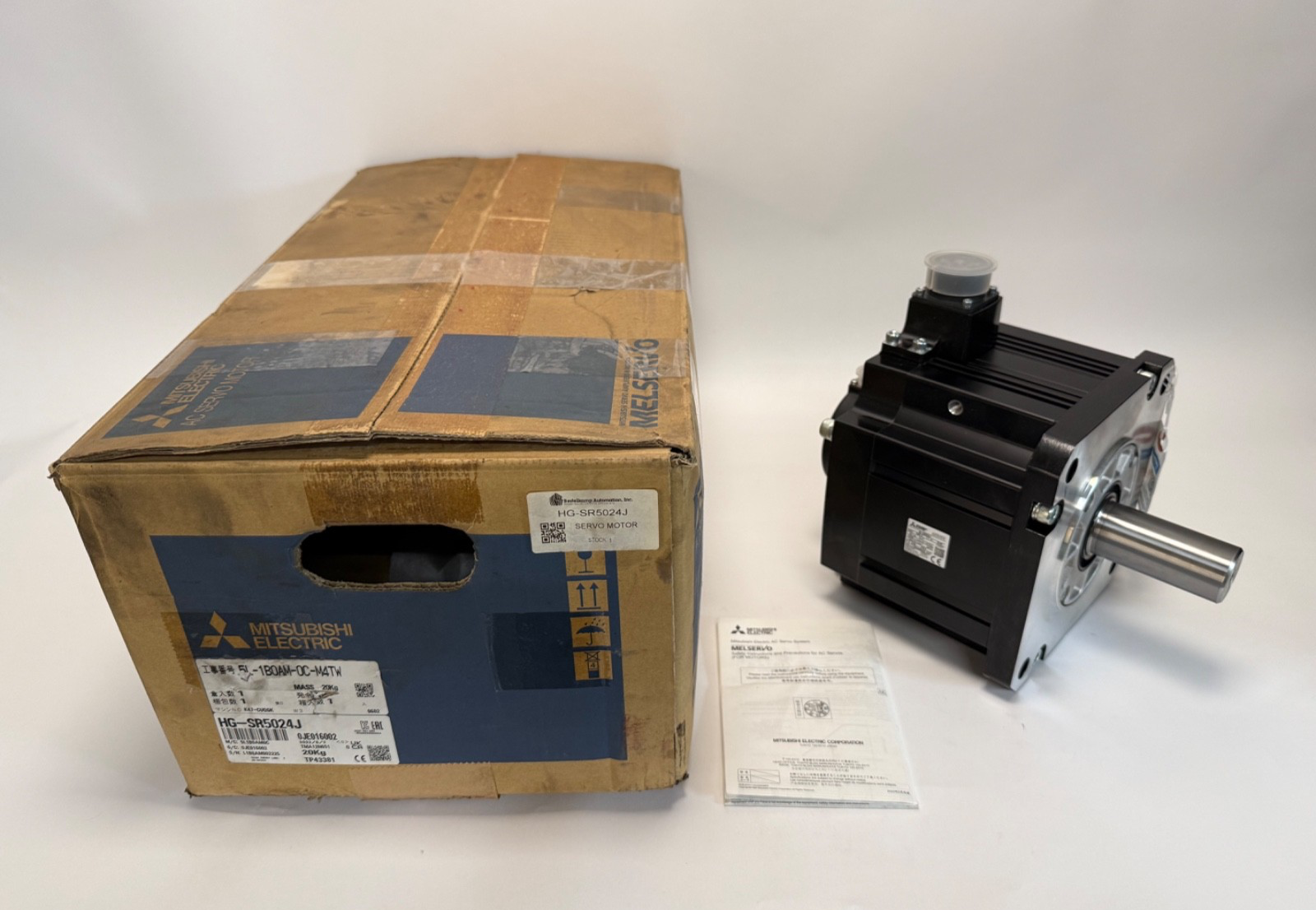

Mitsubishi HG-SR5024J AC servo motor, 5.0 kW, 23.9 N·m, 2000 r/min, 400 V class, 22-bit encoder, IP67, oil seal, no brake. MELSERVO-J4, MR-J4-500_4.
List Price
$1,614.96
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Mitsubishi |
|---|---|
| MPN | HG-SR5024J |
| Model | HGSR5024J |
| Type | AC Servo Motor |
|---|---|
| Series | HG-SR (MELSERVO-J4) |
| Base Number | HG-SR5024 |
| Industry Terms | AC servo motor; brushless servo motor; MELSERVO J4 motor; 5 kW servo motor; medium inertia servo |
| Maximum Rpm | 3000 rpm |
| Power Rating | 5.0 kW |
| Number Of Phases | 3 |
| Input Voltage | 400 V class |
| Maximum Amperage | 42 A |
| Encoding Type | 22-bit absolute/incremental, 4,194,304 pulses/rev |
| Item Width | 176 mm |
| Item Height | 228.9 mm |
| Item Length | 257.5 mm |
| Max Rpm | 3000 rpm |
| Nominal Current Rating | 11 A |
| Controller Platform | MELSERVO-J4 |
| Sealed | Yes - oil seal installed |
| Current Rating | 11 A |
| Maximum Output Torque | 71.6 N·m |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | 40 °C |
| Shaft Type | Straight |
| Insulation Class | 155 (F) |
| Voltage | 400 V |
| Mpn Variants | HG-SR5024J; HGSR5024J; HG-SR 5024J |
| Manufacturer Status | Active (Mitsubishi selling status: Standard) |
| Compatible With Replaces | Amplifiers MR-J4-500B4, MR-J4-500A4, MR-J4-500GF4, MR-J4-500TM4 (-RJ); replaces HF-SP5024 |
| Additional Attributes | Maximum Current: 42 A; Permissible Instantaneous Speed: 3450 r/min; Power Supply Capacity: 7.5 kVA; Power Rate: 57.2 kW/s; Moment of Inertia: 99.7 kg·cm²; Load to Motor Inertia Ratio: 15x or less; Permissible Radial Load: 2058 N; Permissible Thrust Load: 980 N; Vibration Rank: V10; Storage Temperature: -15 to 70 °C; Humidity: 80% RH max; Altitude: 1000 m max; Brake Version: HG-SR5024BJ |
| Enclosure Type | Totally enclosed, natural cooling |
| Base Rpm | 2000 rpm |
| Current Type | AC |
| Ip Rating | IP67 (shaft-through portion excluded) |
| Ac Phase | 3-phase |
| Item Weight | 20 kg (44.1 lb) |
| Application | Material handling systems, dedicated machines, robots, loaders/unloaders, winders and tension units, turrets, X-Y tables |
| Compatible Model | MR-J4-500B4, MR-J4-500A4, MR-J4-500GF4, MR-J4-500TM4 (-RJ) |
| Continuous Torque | 23.9 N·m |
| Power Kw | 5.0 kW |
The Mitsubishi Electric HG-SR5024J is a medium-inertia, medium-capacity AC servo motor from the HG-SR series of the MELSERVO-J4 family, built for the 400 V class. Rated Output: 5.0 kW. Rated Speed: 2000 r/min. Rated Torque: 23.9 N·m. Oil Seal: Installed. Electromagnetic Brake: None.
HG-SR — medium inertia, medium capacity servo motor series.
50 — rated output 5.0 kW.
2 — rated speed 2000 r/min.
4 — 400 V class.
No B — no electromagnetic brake. No K — standard straight shaft.

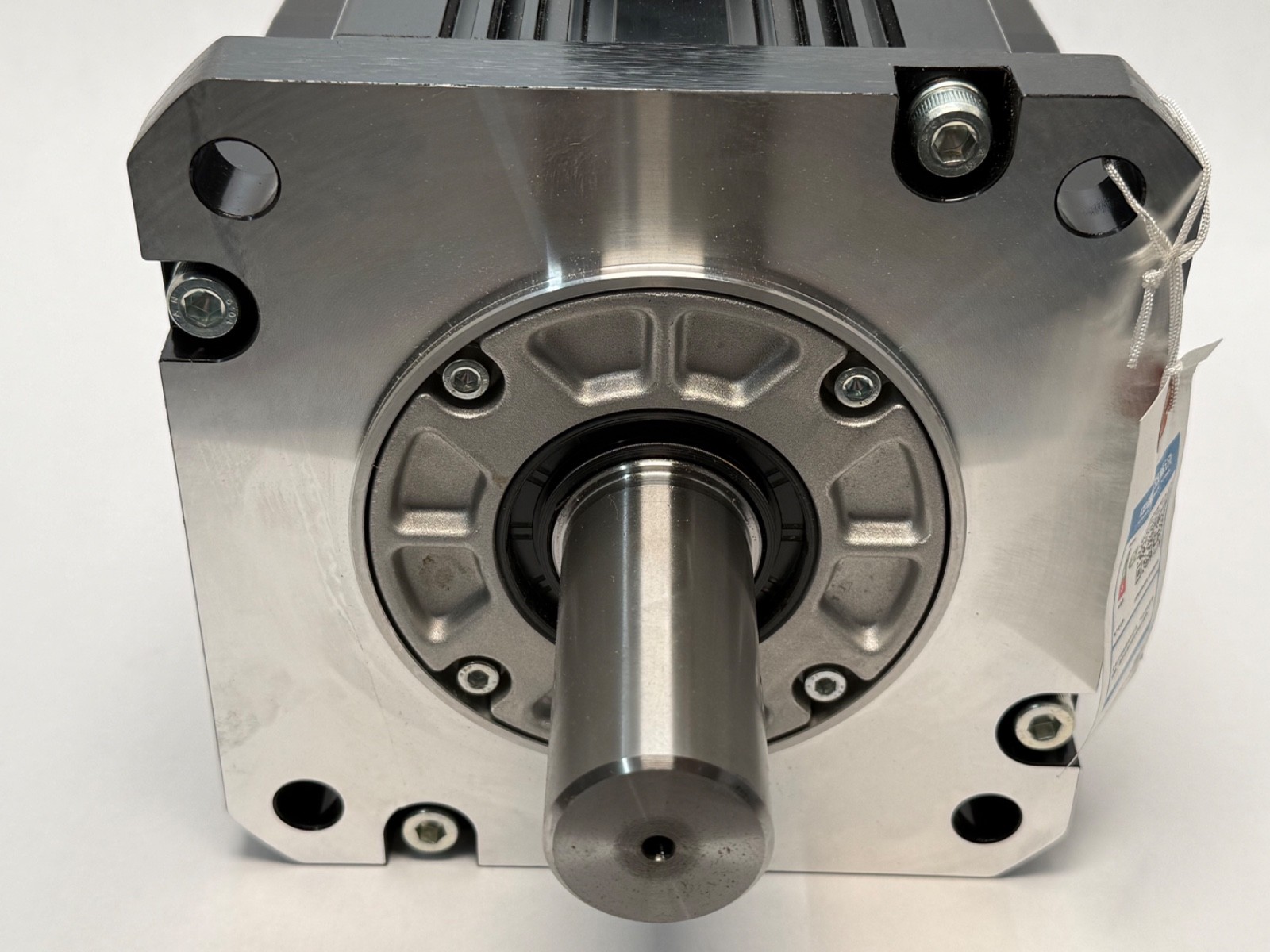

J — oil seal installed.
Rated Output: 5.0 kW. Rated Torque: 23.9 N·m. Maximum Torque: 71.6 N·m. Rated Speed: 2000 r/min. Maximum Speed: 3000 r/min. Permissible Instantaneous Speed: 3450 r/min.
Power Supply: 400 V class, 3-phase AC. Rated Current: 11 A. Maximum Current: 42 A. Power Supply Capacity: 7.5 kVA. Power Rate at Continuous Rated Torque: 57.2 kW/s.
Moment of Inertia: 99.7 kg·cm². Recommended Load to Motor Inertia Ratio: 15 times or less.
Encoder: 22-bit absolute/incremental, 4,194,304 pulses/rev. Insulation Class: 155 (F). Structure: totally enclosed, natural cooling. IP Rating: IP67, shaft-through portion excluded. Vibration Rank: V10.
Operating Temperature: 0 °C to 40 °C, non-freezing. Storage Temperature: -15 °C to 70 °C. Ambient Humidity: 80% RH maximum, non-condensing. Altitude: 1000 m or less.
Width: 176 mm. Height: 228.9 mm. Depth: 257.5 mm. Weight: 20 kg (44.1 lb). Shaft: straight. Permissible Radial Shaft Load: 2058 N. Permissible Thrust Shaft Load: 980 N.
Compatible Servo Amplifiers: Mitsubishi Electric MR-J4-500B4, MR-J4-500A4, MR-J4-500GF4 and MR-J4-500TM4, including the -RJ versions. Brake version: HG-SR5024BJ. Predecessor: HF-SP5024.
Mitsubishi lists the HG-SR series for machines with large load inertia: material handling systems, dedicated machines, robots, loaders and unloaders, winders and tension units, turrets and X-Y tables.
