Availability:
1 in stock

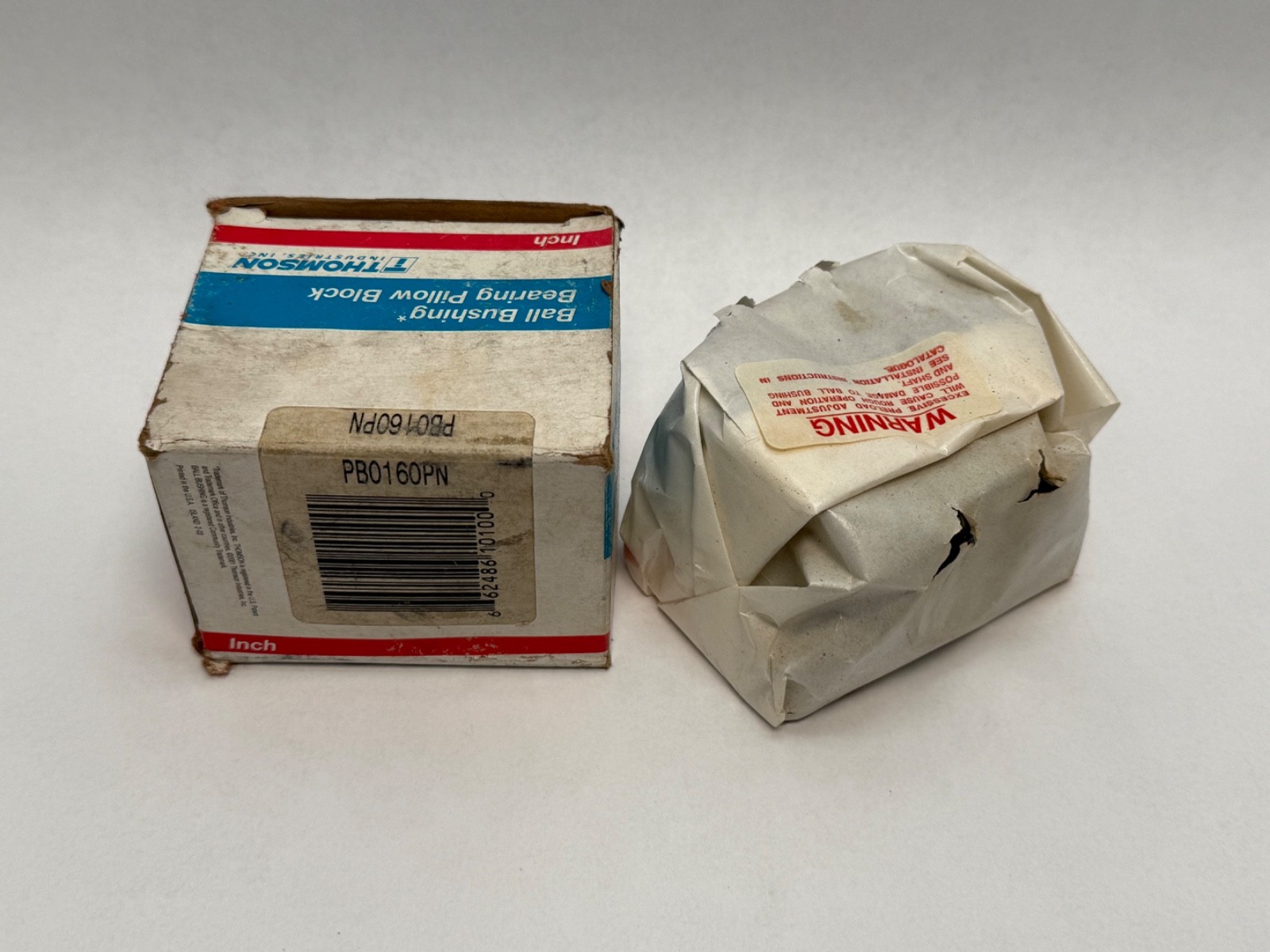

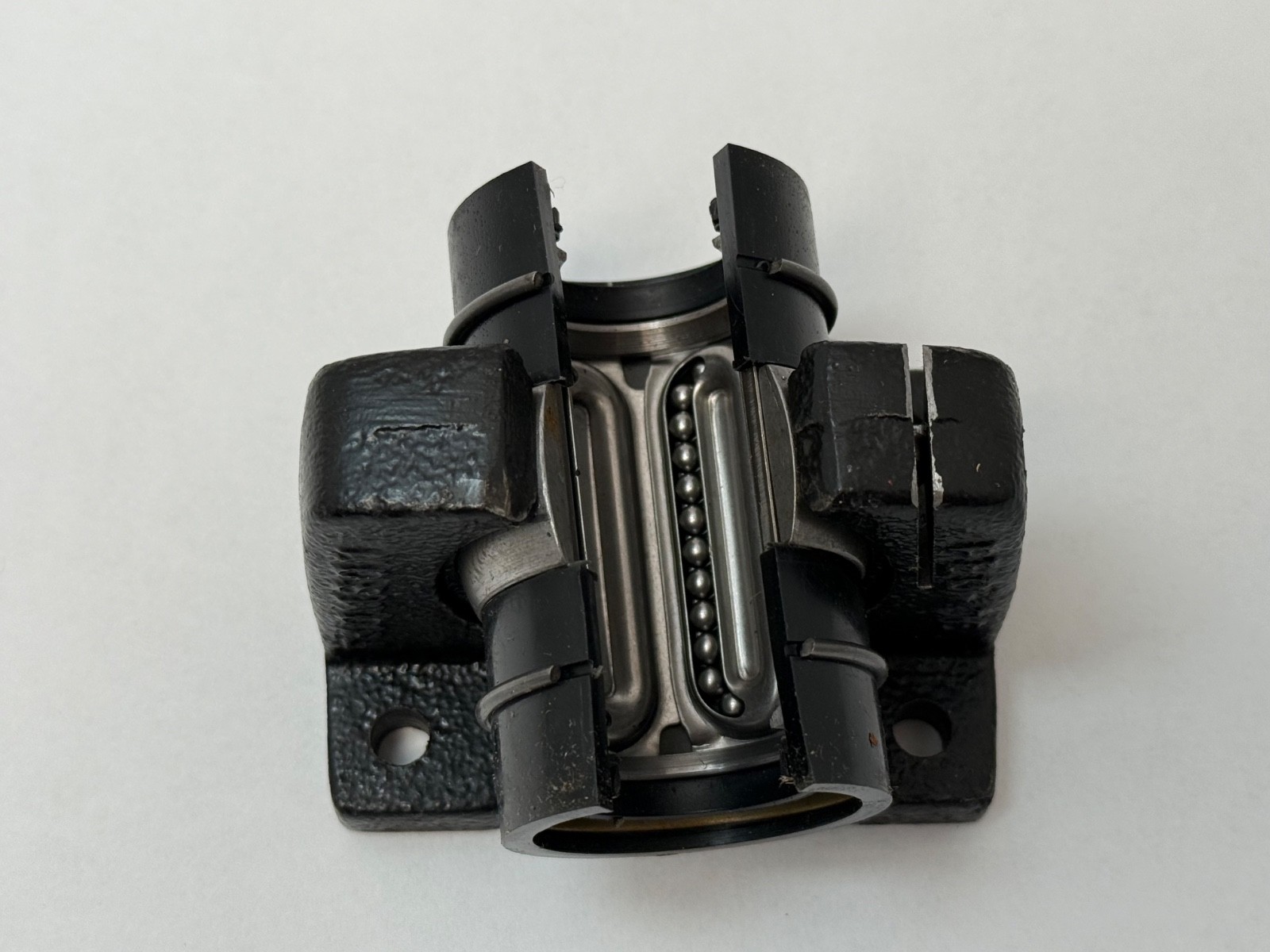

Thomson PBO16OPN open Ball Bushing pillow block for 1 in shaft, precision steel, 240 lbf dynamic load, 1.375 in centre height. New old stock linear bearing.
List Price
$101.23
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Thomson |
|---|---|
| MPN | PBO16OPN |
| GTIN | 662486101000 |
| Model | PBO16OPN |
| ID | 1.000 in (25.40 mm) |
| Type | Pillow Block Bearing |
|---|---|
| Base Number | PBO16 |
| Industry Terms | linear pillow block; open linear bearing; ball bushing block; linear bearing housing; supported shaft bearing; linear motion bearing |
| Common Misspellings | PB0160PN; PBO160PN; PB016OPN; Thompson PBO16OPN; PBO16 OPEN |
| Application Types | Supported shaft linear slides; gantries; material handling; packaging and assembly machines |
| Mpn Variants | PBO16OPN; PBO16-OPN; PBO 16 OPN; PBO-16-OPN |
| Compatible With Replaces | Fits 1 in Thomson class L shafting; sister executions PBO16OPNSS, PBO16OPN-SSLL, PBO16OPN-NBHP; accessory PBO516A |
| Additional Attributes | Style: open, single; Not self-aligning; Not adjustable; Max temperature: 85 C (185 F); Shafting class: L; Length A 3.250 in; Base width B 2.880 in; Centre height H 1.375 in; Overall height H1 2.380 in; Bolt spacing 2.500 x 2.250 in; Mounting hole 0.280 in |
| Dynamic Load Rating | 1,068 N (240 lbf) |
| Series | PBO Pillow Block Open |
| Rolling Elements | Ball |
| Item Weight | 0.816 kg (1.8 lb) |

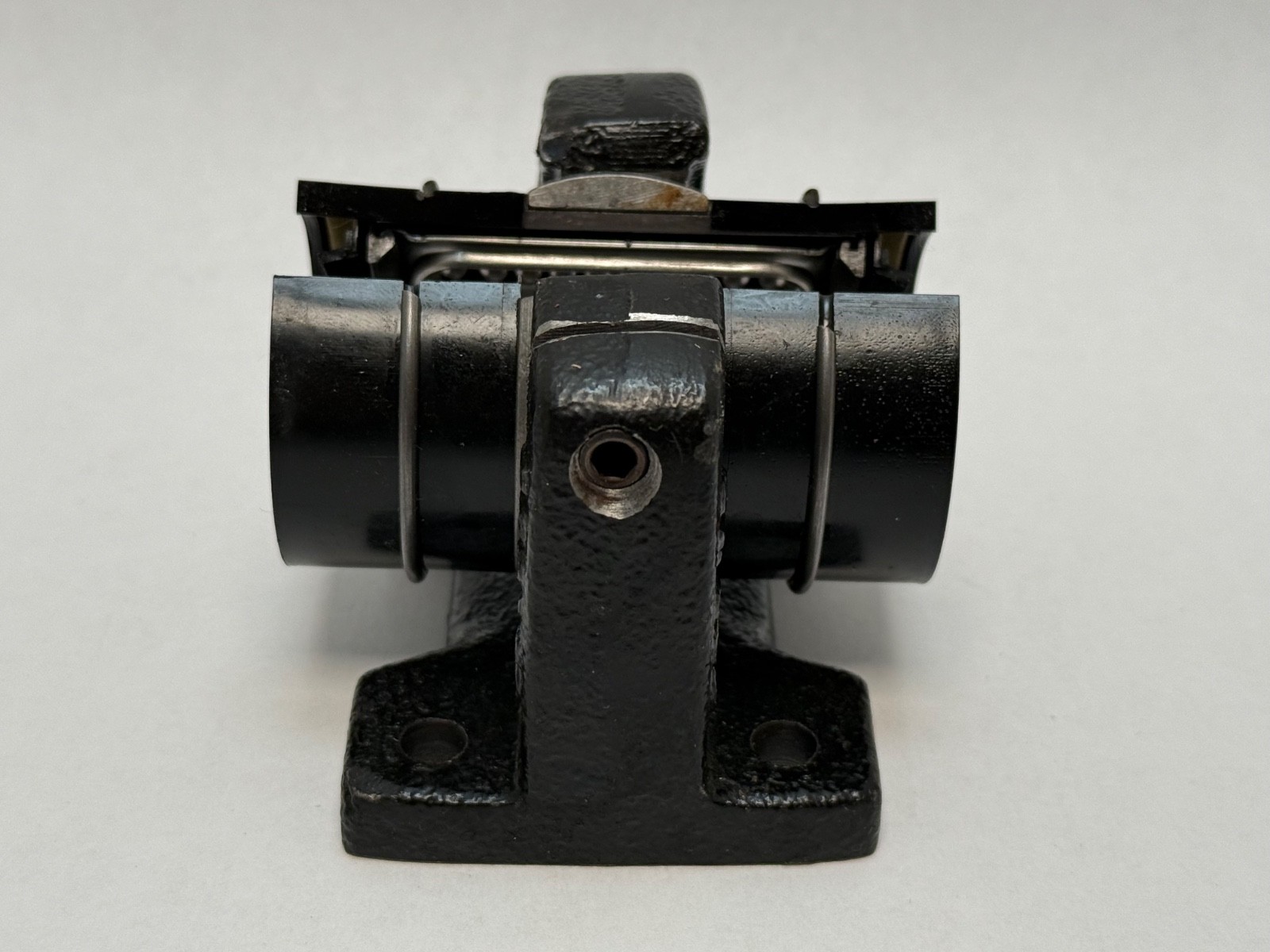

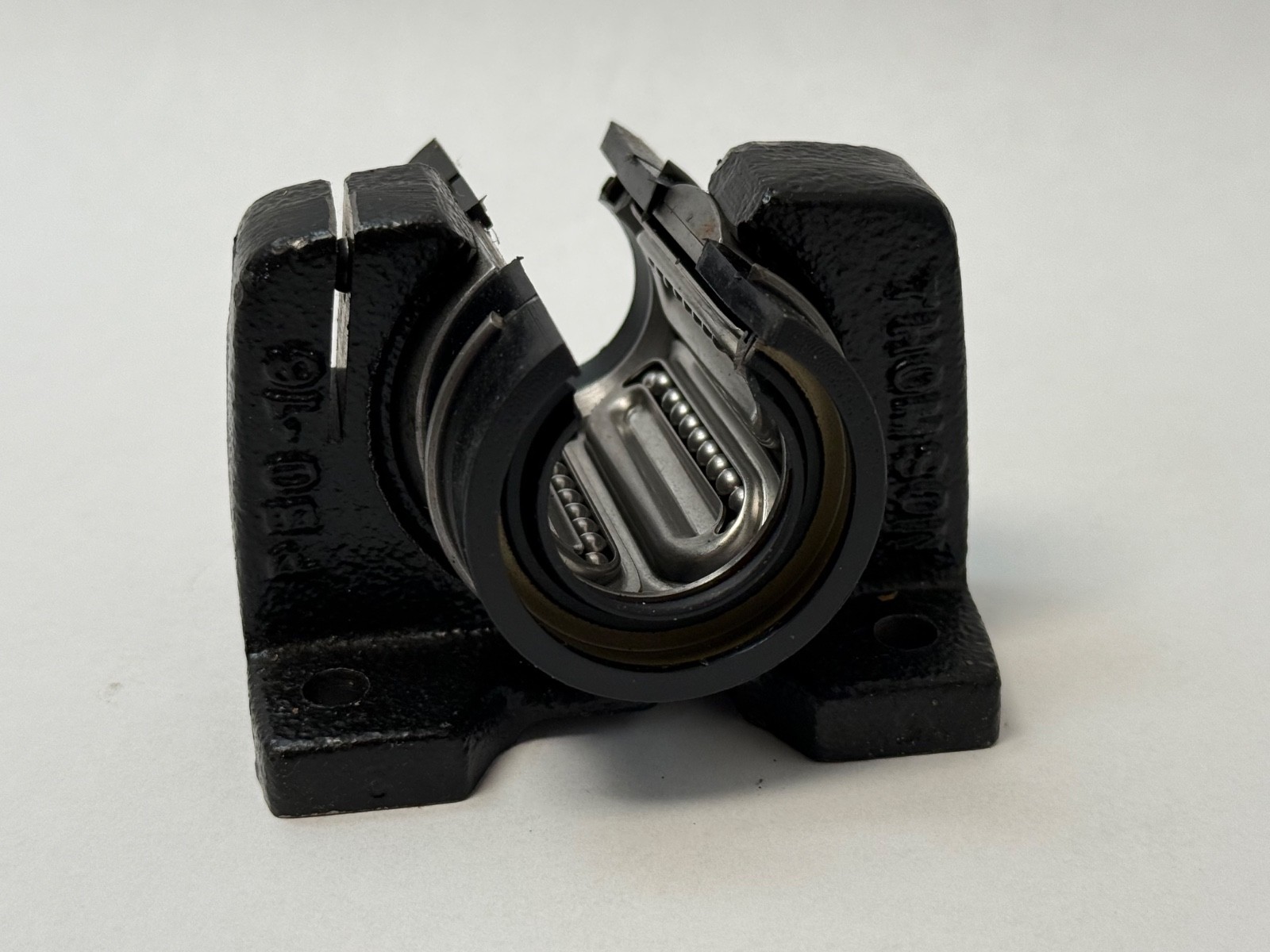

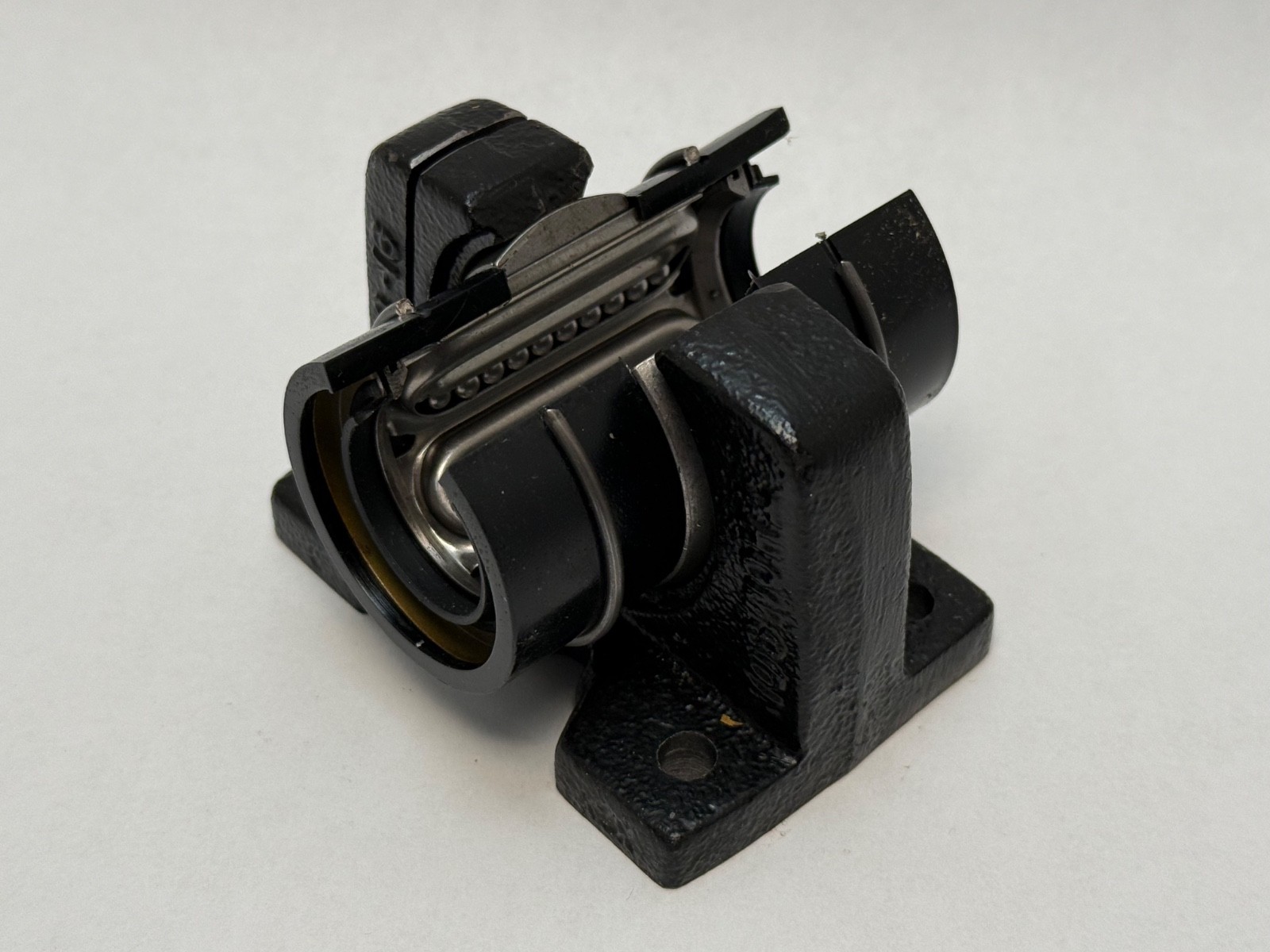

The Thomson PBO16OPN is a precision steel Ball Bushing pillow block, open type, for a 1 in shaft. The open housing clears continuously supported shaft rails. Nominal Diameter: 1.000 in (25.40 mm). Style: Open, single. Self Alignment: Not self-aligning. Adjustable: Not adjustable. Dynamic Load Capacity: 240 lbf (1,068 N). Item Weight: 0.816 kg (1.8 lb). Temperature Max: 85 °C (185 °F).
PBO — Thomson Pillow Block, Open type.
16 — nominal shaft diameter in sixteenths of an inch, 16/16 = 1 in.
OPN — open bearing for supported shaft.

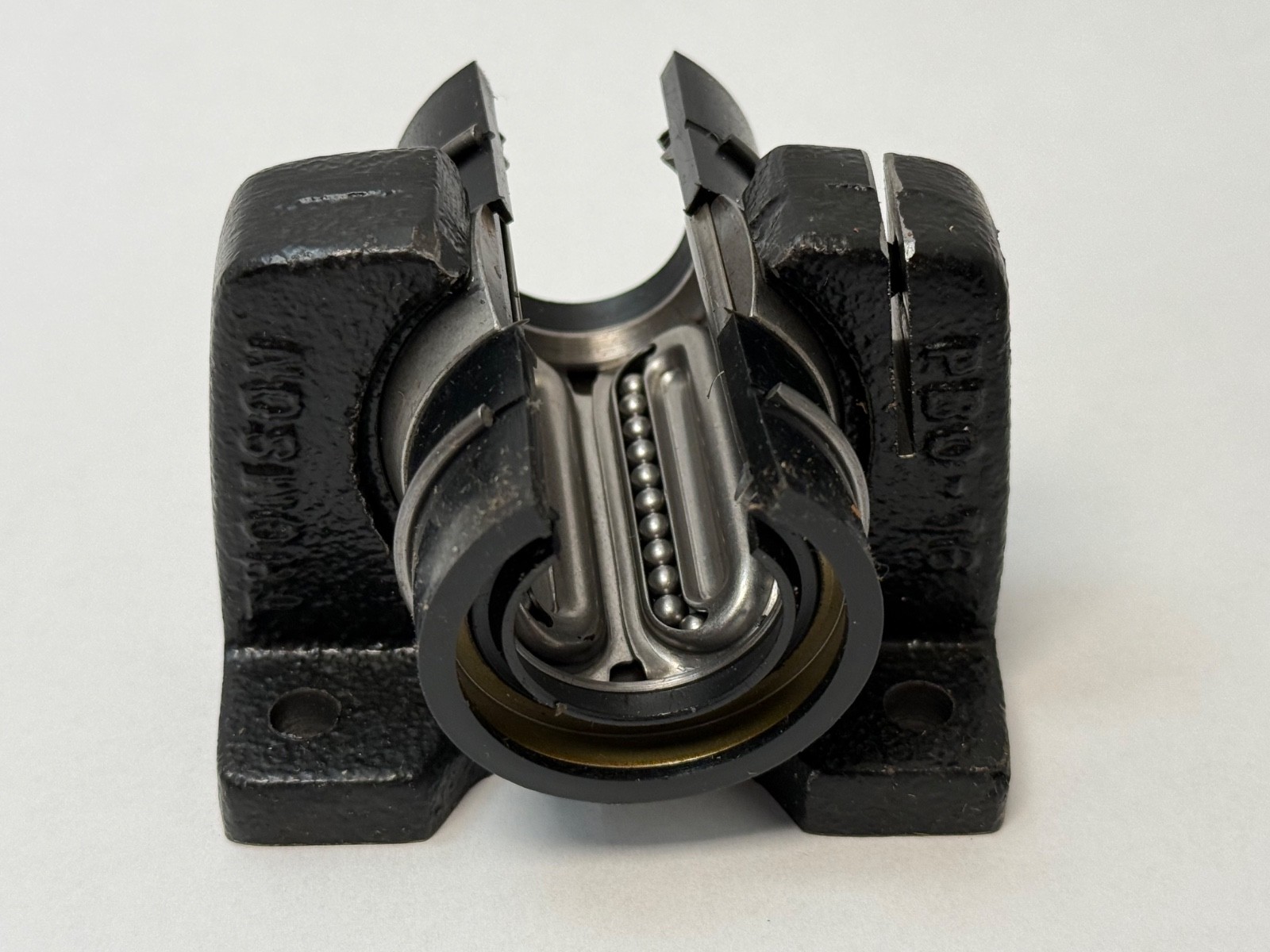

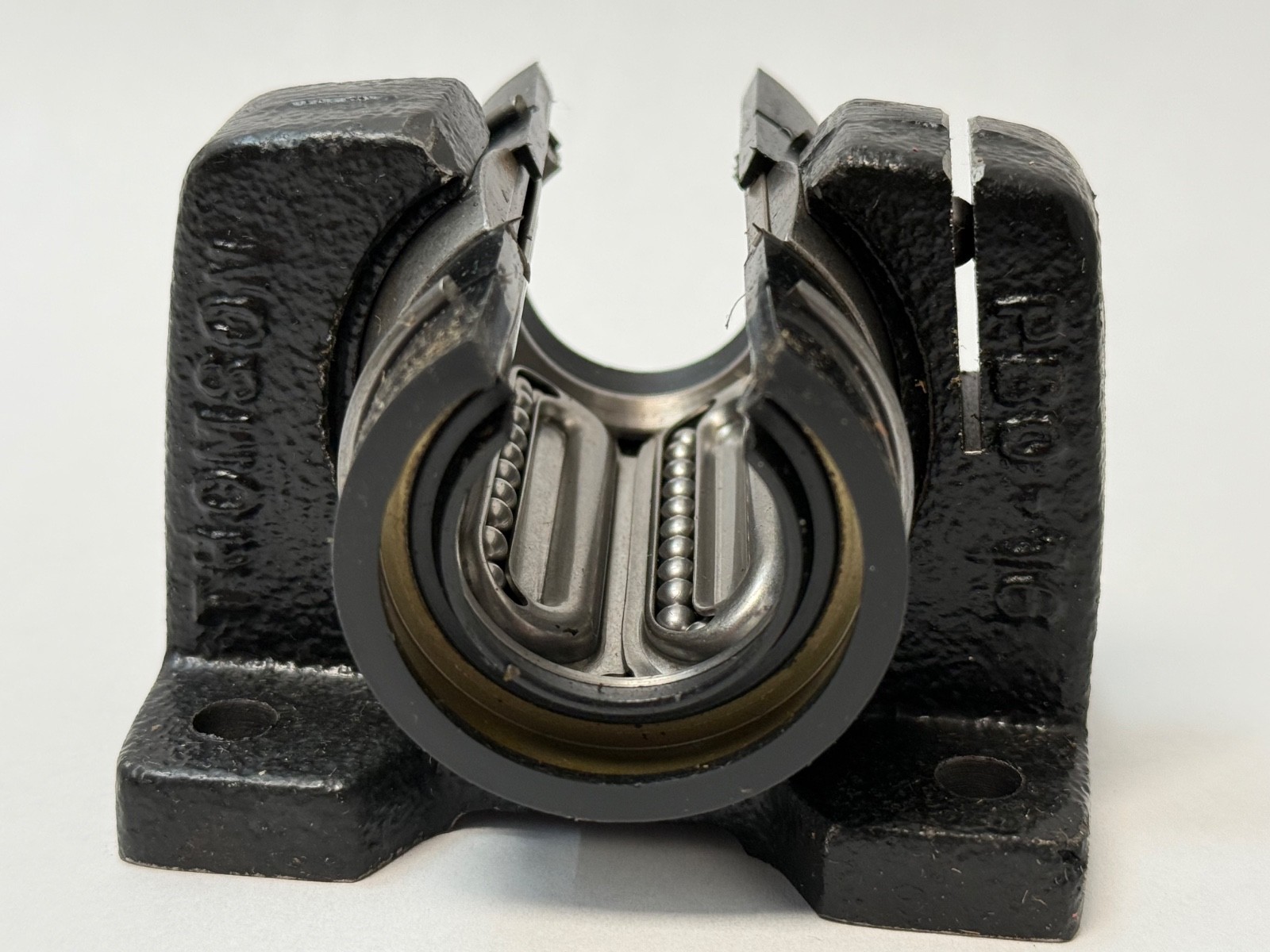

The all-steel recirculating ball bushing runs with a coefficient of friction as low as 0.001. The all-steel design suits higher-temperature duty where plastic-retainer bushings are limited. Shafting Class: Use with Thomson class L shafting.

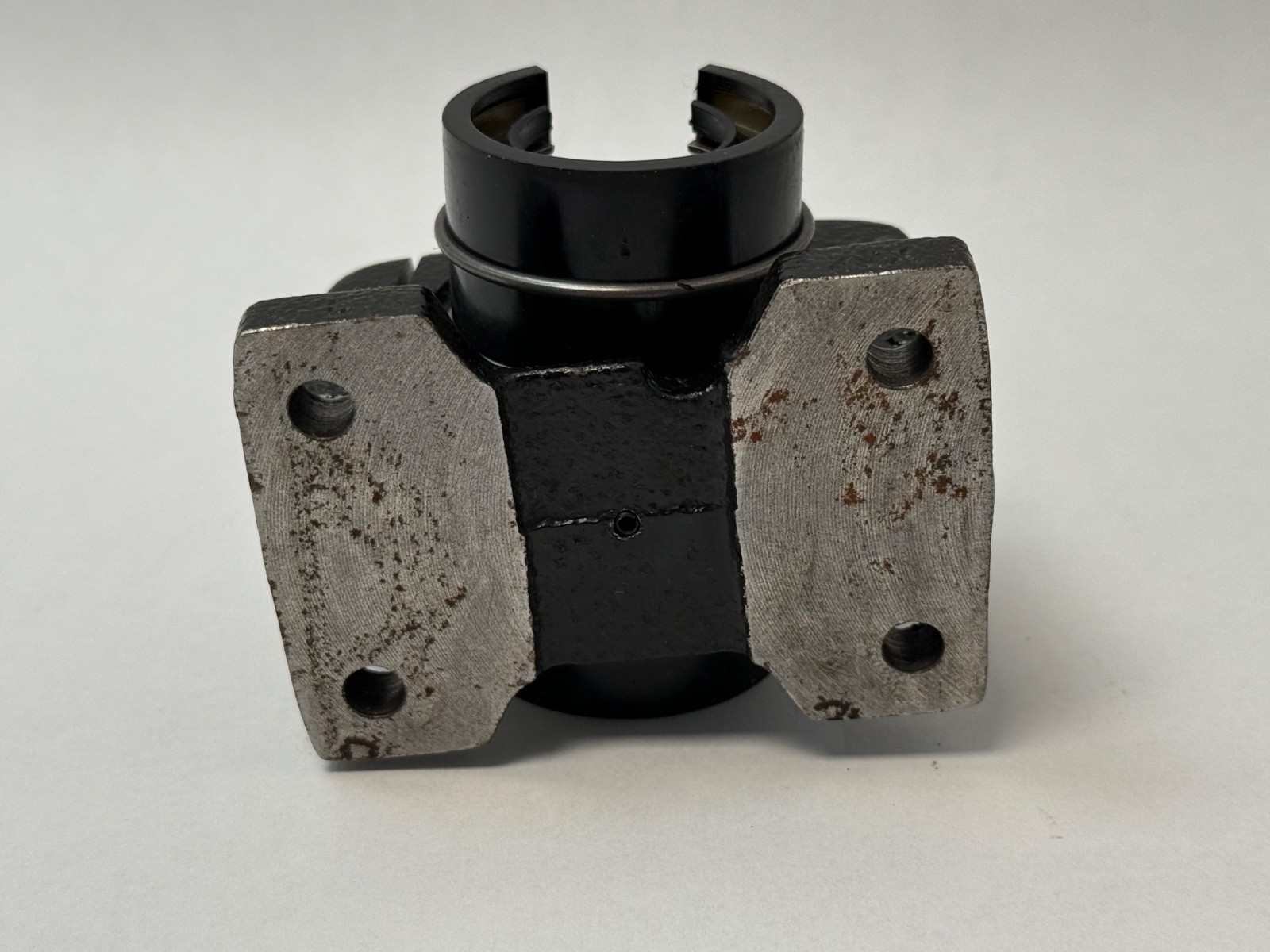

Overall Length (A): 3.250 in (82.55 mm). Base Width (B): 2.880 in (73.15 mm). Centre Height, line to base (H): 1.375 in (34.93 mm). Overall Height (H1): 2.380 in (60.45 mm). Bolt Spacing (E1 x B1): 2.500 in x 2.250 in (63.50 x 57.15 mm). Opening Angle: 60°. Mounting Hole (N): 0.280 in (7.11 mm).
Unit Quantity: 1 Pc.
Sister executions on the same envelope: PBO16OPNSS stainless steel with integral seals, PBO16OPN-SSLL and PBO16OPN-NBHP. Seal and retaining ring accessory: PBO516A.
