Availability:
1 in stock

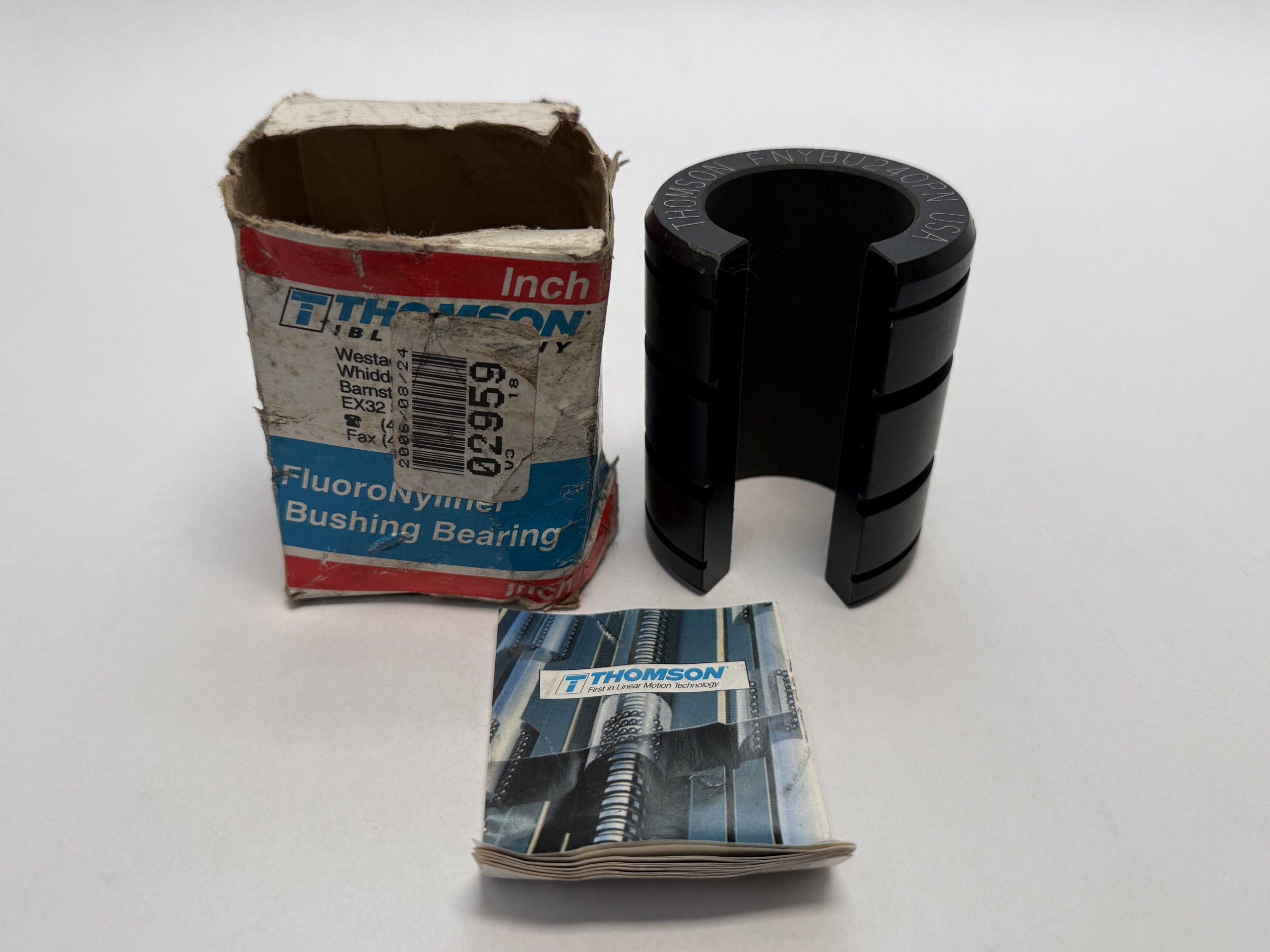

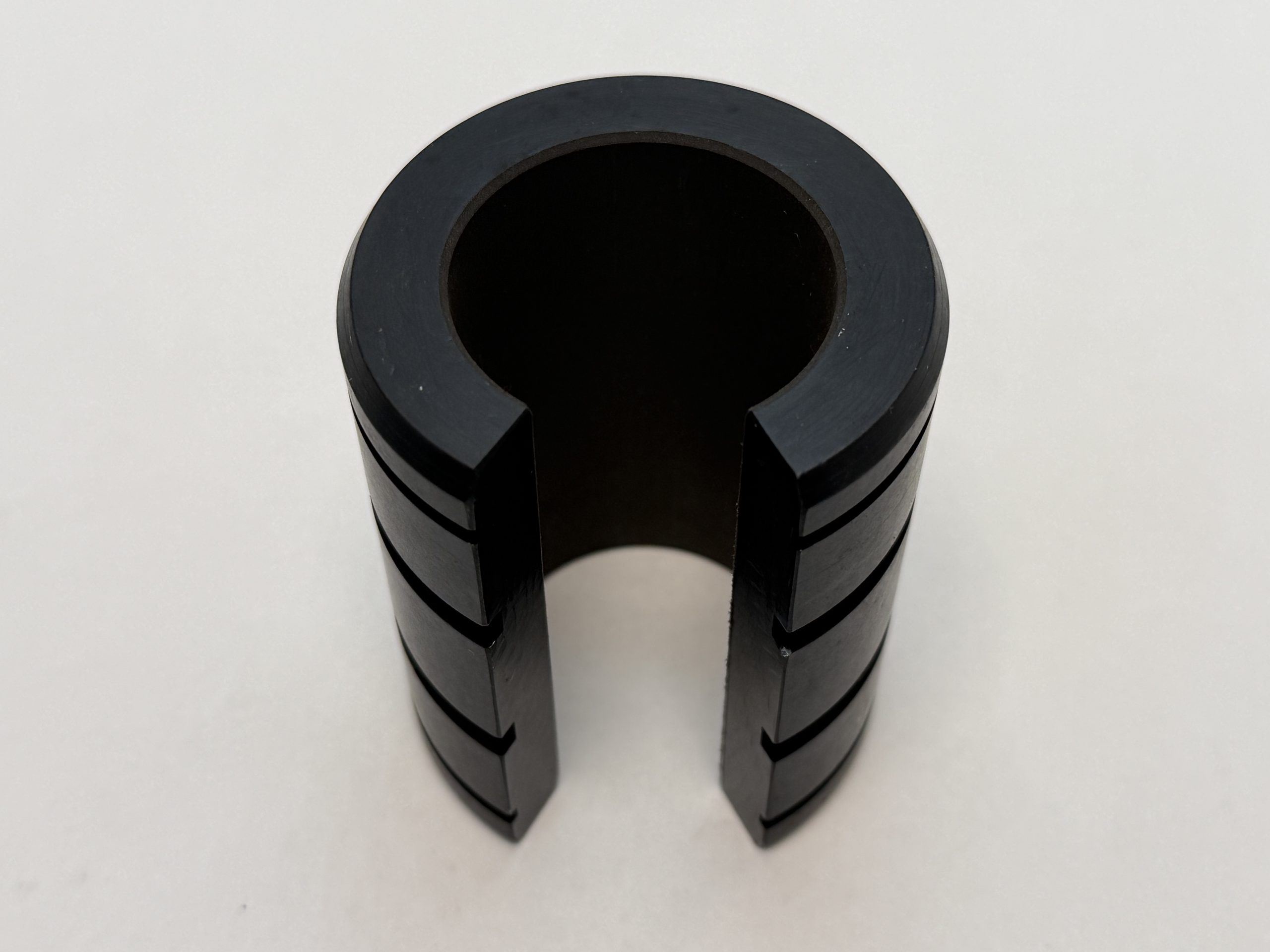

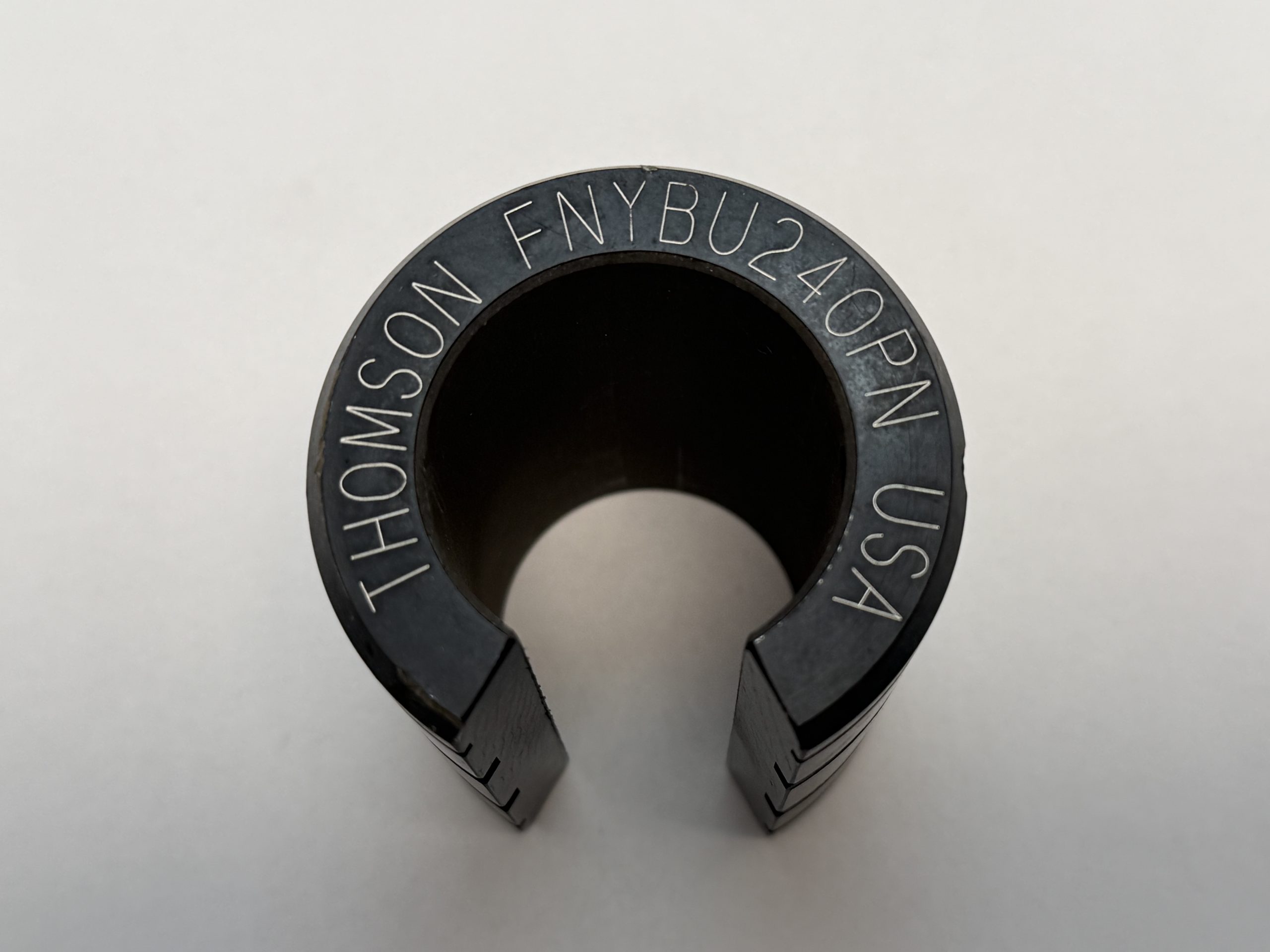

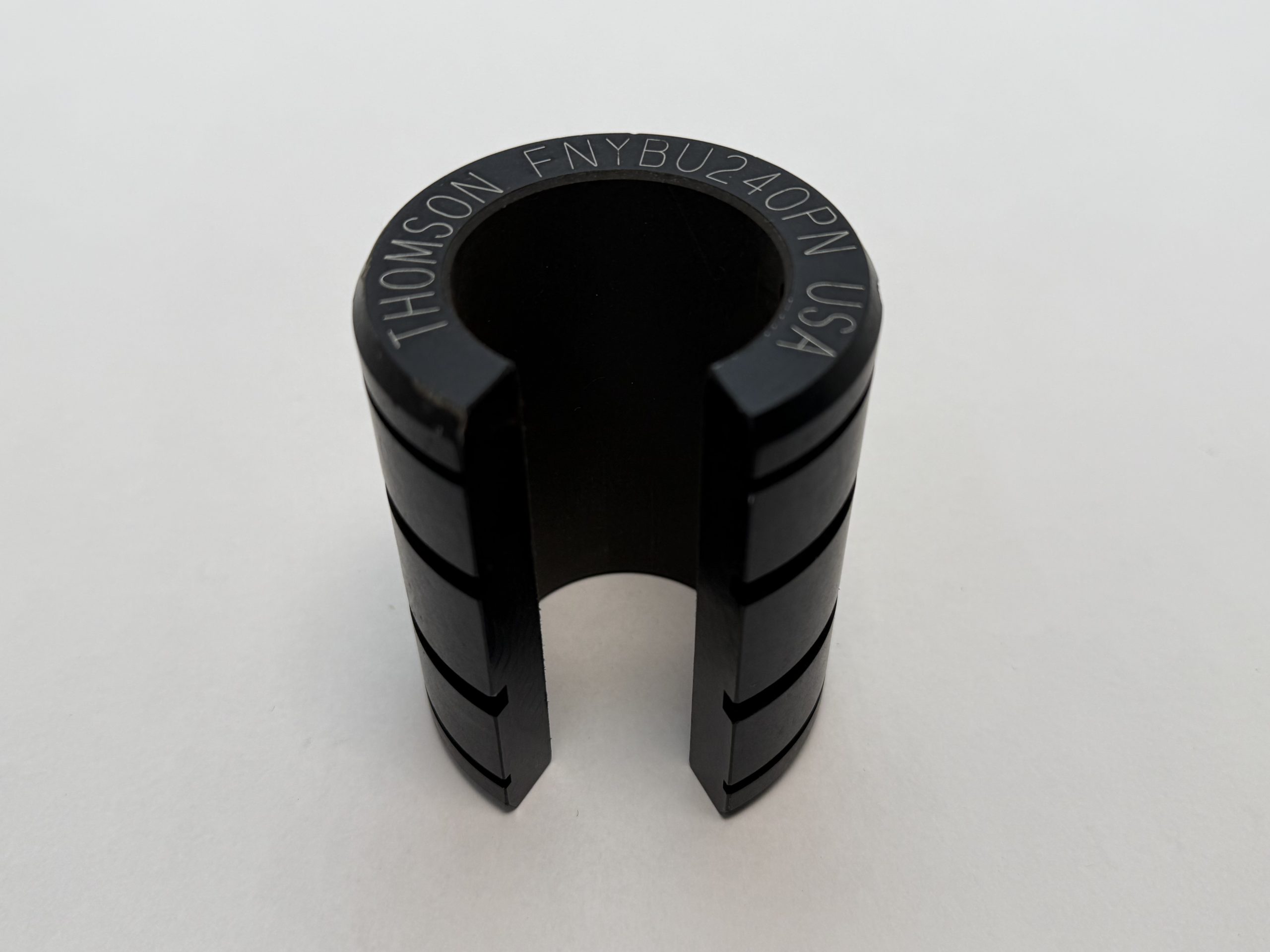

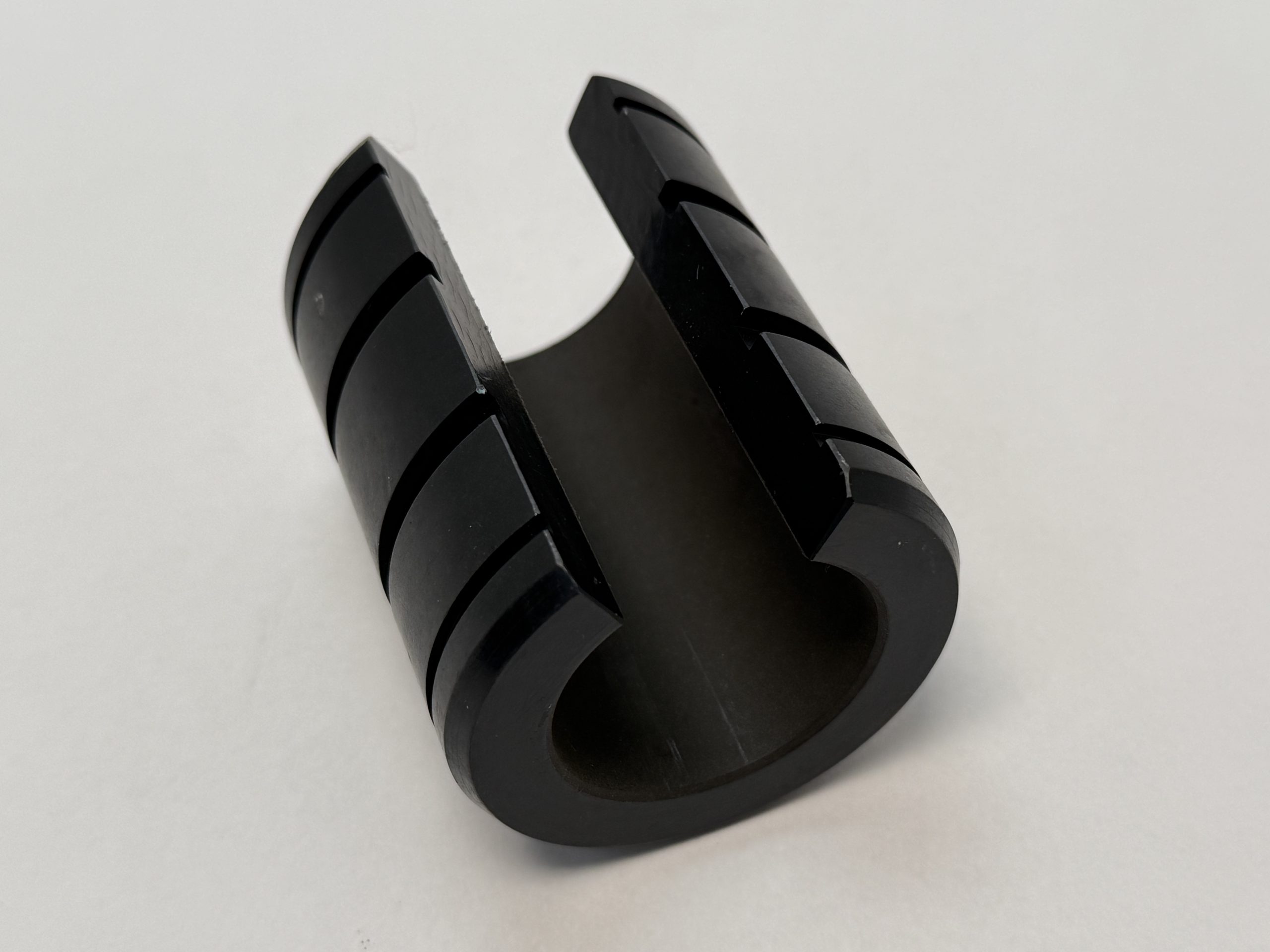

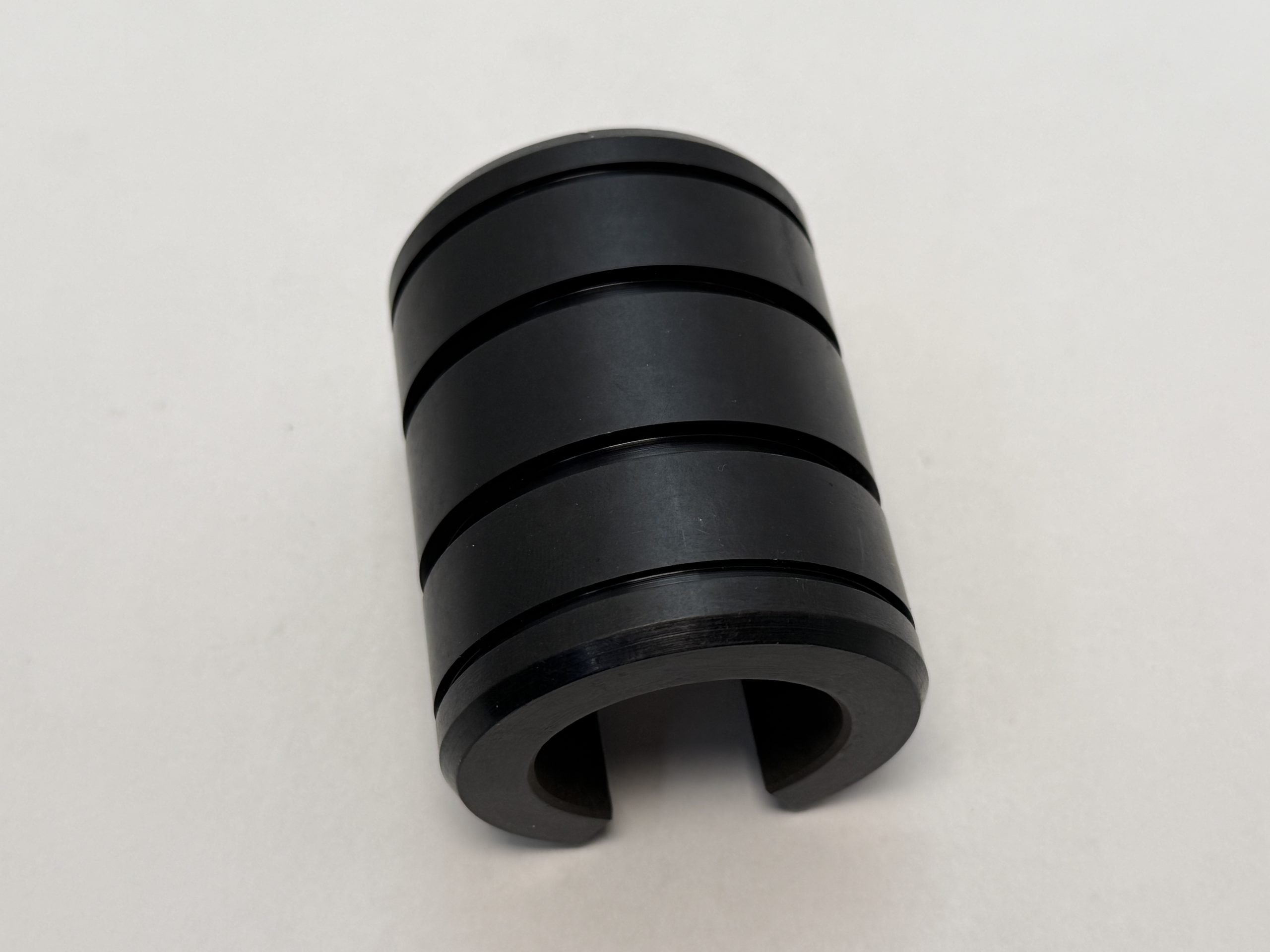

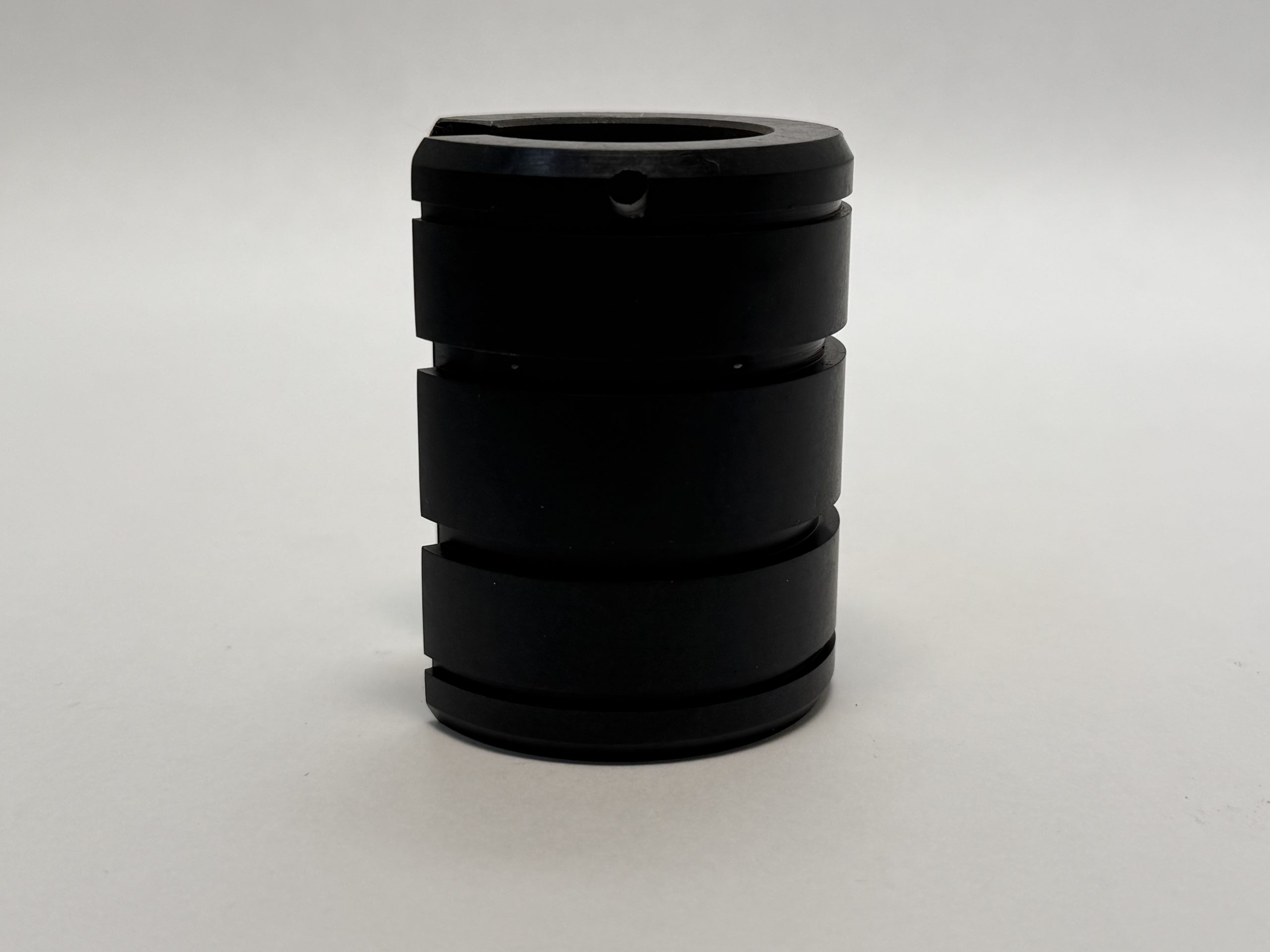

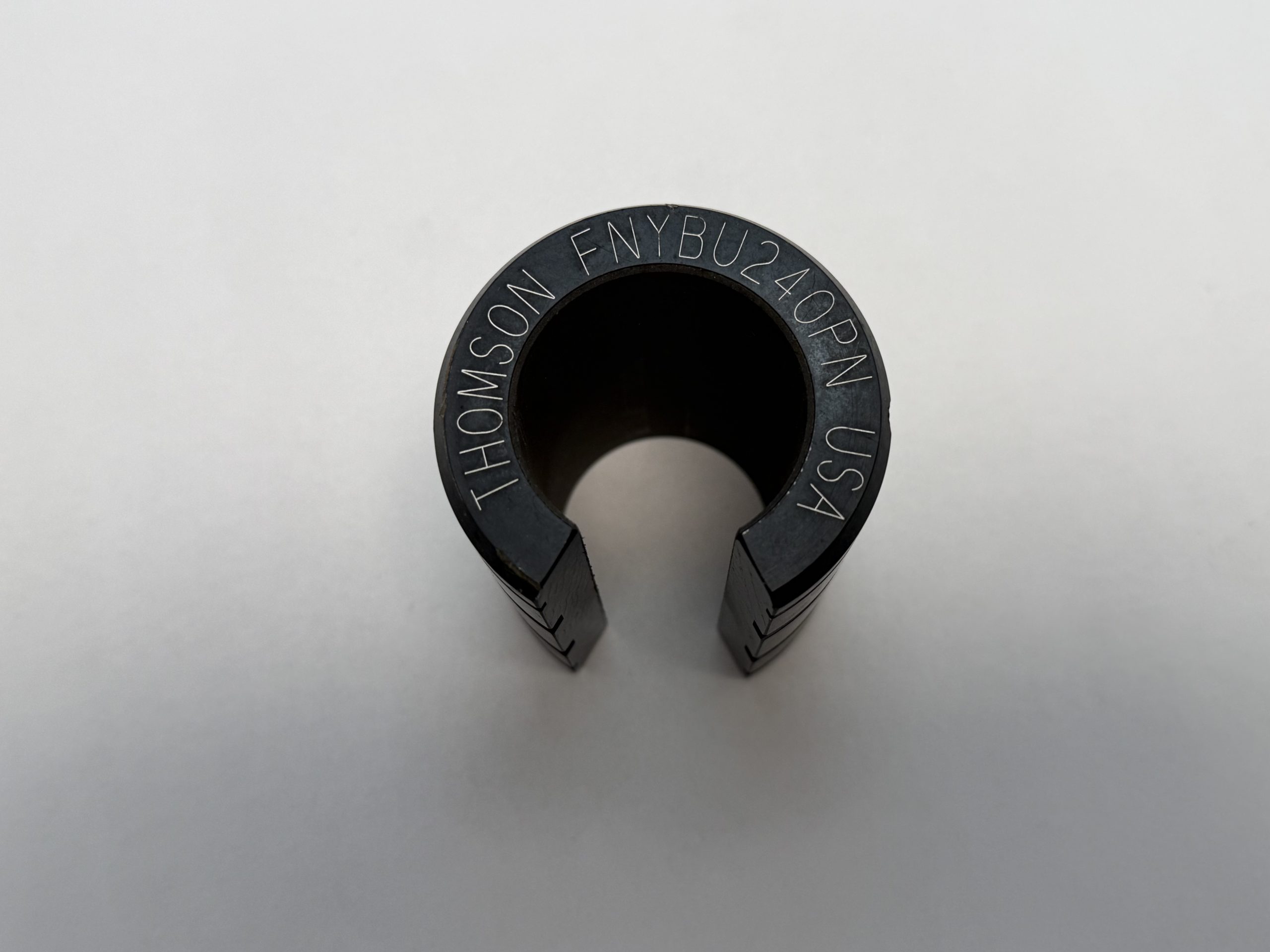

Thomson FNYBU24OPN FluoroNyliner plain linear bushing, 1-1/2 in shaft, 2.375 in OD, 3.000 in long, open type. Self-lubricating liner, 7,000 lbf static rating.
List Price
$63.74
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Thomson |
|---|---|
| MPN | FNYBU24OPN |
| Model | FNYBU-24-OPN |
| ID | 1.5000 in (38.100 mm) |
| OD | 2.3750 in (60.325 mm) |
| Inside Diameter | 1-1/2 in |
|---|---|
| Type | Linear Bearing |
| Overall Width | 3.000 in (76.20 mm) |
| Mpn Variants | FNYBU24OPN, FNYBU-24-OPN, FNYBU 24 OPN |
| Static Load Rating | 31,138 N |
| Item Weight | 0.277 kg (0.61 lb) |
Thomson FNYBU24OPN is a FluoroNyliner plain linear bushing for 1-1/2 in round shafting, open type. A self-lubricating FluoroNyliner liner slides directly on the shaft; there are no recirculating balls. It runs on unhardened and corrosion-resistant shafting, including 300-series stainless steel.
FNYBU — Thomson FluoroNyliner bushing, self-lubricating plain linear bearing.
24 — nominal shaft size in sixteenths of an inch, 24/16 = 1-1/2 in.
OPN — open type, slotted the full length to clear the support rail of a supported shaft.
Bearing Type: Plain linear bushing. Liner: FluoroNyliner, self-lubricating. Configuration: Open. Static Load Rating: 7,000 lbf (31,138 N). Maximum Operating Temperature: 500 °F (260 °C). Item Weight: 0.277 kg (0.61 lb).
Bore Diameter: 1.5000 in (38.100 mm). Outside Diameter: 2.3750 in (60.325 mm). Overall Length: 3.000 in (76.20 mm).
The closed version of the same size is the Thomson FNYBU24. The open FNYBU24OPN fits 1-1/2 in supported shaft rail.
Is the FNYBU24OPN a ball bushing?
No. It is a plain bushing with a self-lubricating FluoroNyliner liner.
What shaft does it fit?
A 1-1/2 in round shaft, including unhardened and 300-series stainless shafting.
What is the static load rating?
7,000 lbf (31,138 N).
