Availability:
1 in stock

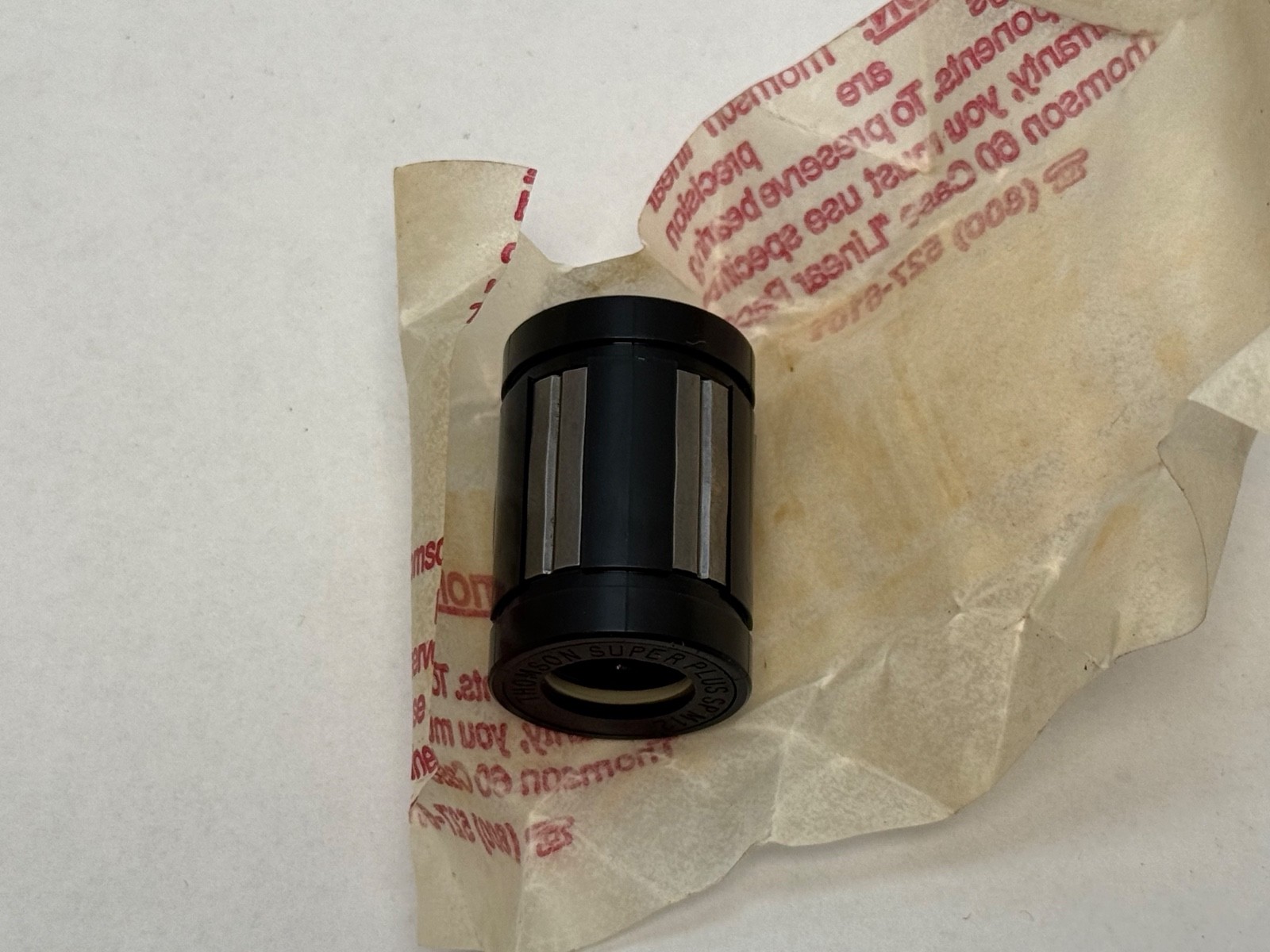

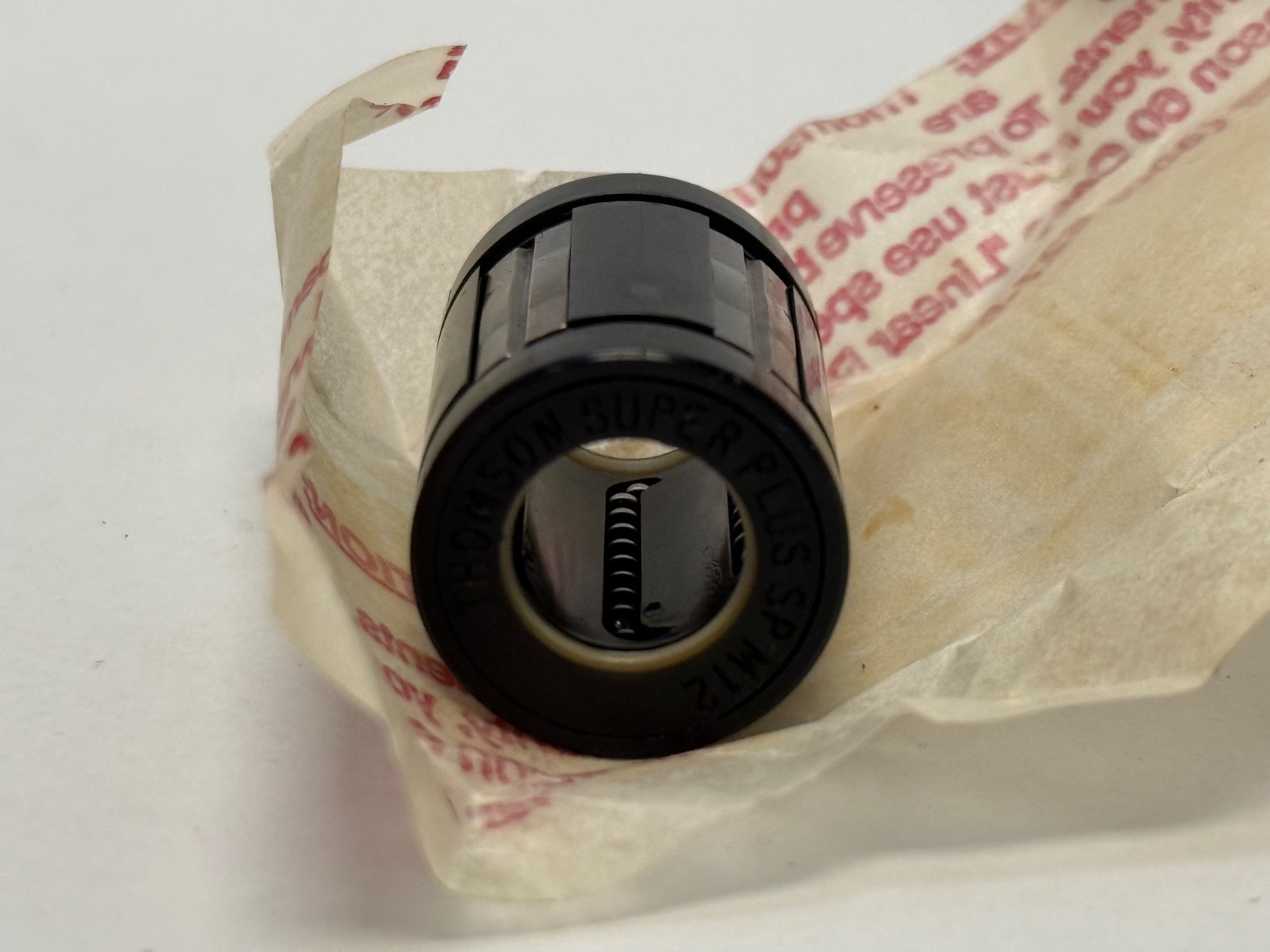

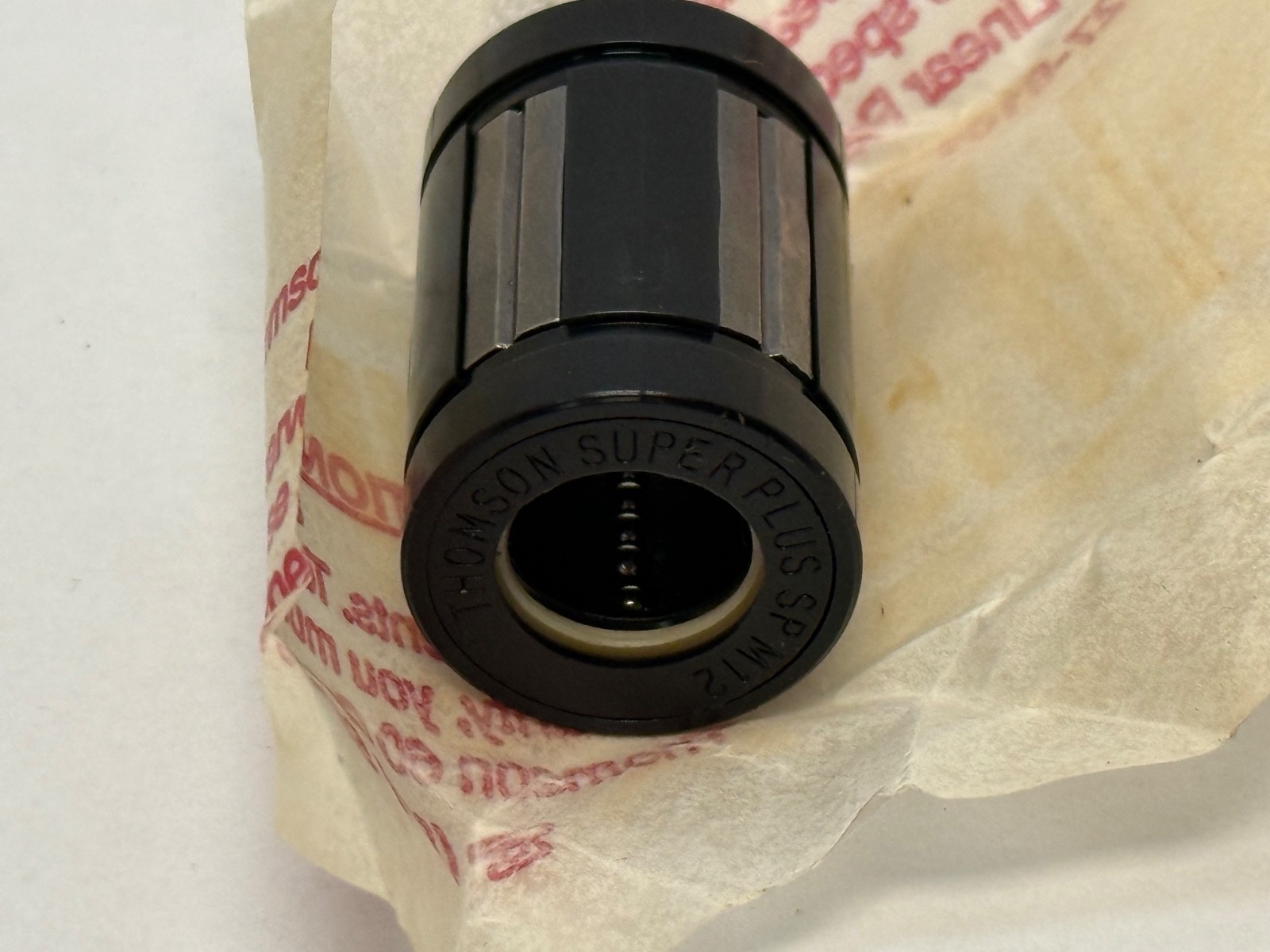

Thomson SPM12WW Super Ball Bushing linear bearing, 12 mm shaft, 22 mm OD, 32 mm long, with integral wipers both ends. Dynamic load 830 N, static 910 N.
List Price
$30.87
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Thomson |
|---|---|
| MPN | SPM12WW |
| GTIN | 662486260745 |
| Model | SPM 12 WW |
| ID | 12 mm |
| OD | 22 mm |
| Inside Diameter | 12 mm |
|---|---|
| Type | Linear Bearing |
| Additional Attributes | Ball tracks: 5; self-aligning closed; rating basis 100 km; two integral wipers; metric SPM series |
| Dynamic Load Rating | 830 N |
| Static Load Rating | 910 N |
| Max Temp | 85°C |
| Item Weight | 0.02 kg (0.04 lb) |
| Overall Width | 32 mm |
| Mpn Variants | SPM12WW, SPM-12-WW, SPM 12 WW, SP M12 WW, SPM12-WW |
| Series | Super Ball Bushing SPM |
| Rolling Elements | Ball |
| Industry Terms | linear ball bushing; linear ball bearing; closed linear bearing; metric linear bushing; 12 mm linear bearing; linear motion bearing |
| Common Misspellings | Thompson SPM12WW, Thomson SMP12WW, Thompson SPM 12 WW, Thomson ball bushing SPM12ww |
| Application Types | Linear guide systems on round shafting; automation and positioning slides; packaging and general machinery |
| Shaft Diameter | 12 mm |
| Cross Reference 1 | Bosch Rexroth R0670 212 40 |
|---|---|
| Cross Reference 2 | SKF LBCD 12 A-2LS |
| Cross Reference 3 | INA KN12-B-PP |
| Cross Reference 4 | INA KN 1232-PP (earlier designation) |
| Cross Reference 5 | NB TK 12 UU; Samick LMES 12 UU |
Thomson SPM12WW is a Super Ball Bushing linear bearing in the metric closed series, built for a 12 mm round shaft. Shaft Diameter: 12 mm. Outside Diameter: 22 mm. Length: 32 mm.
SPM — Thomson Super Ball Bushing bearing, metric closed type.
12 — nominal shaft diameter, 12 mm.
WW — integral wipers at both ends.
Dynamic Load Capacity: 830 N, based on a rated travel life of 100 km. Static Load Limit: 910 N. Number of Ball Tracks: 5. Item Weight: 0.02 kg. Maximum Temperature: 85°C (185°F). Design: self-aligning, closed, for end-supported shafts.
The bearing presses into a 22 mm housing bore and runs on a 12 mm hardened shaft. Overall length is 32 mm.

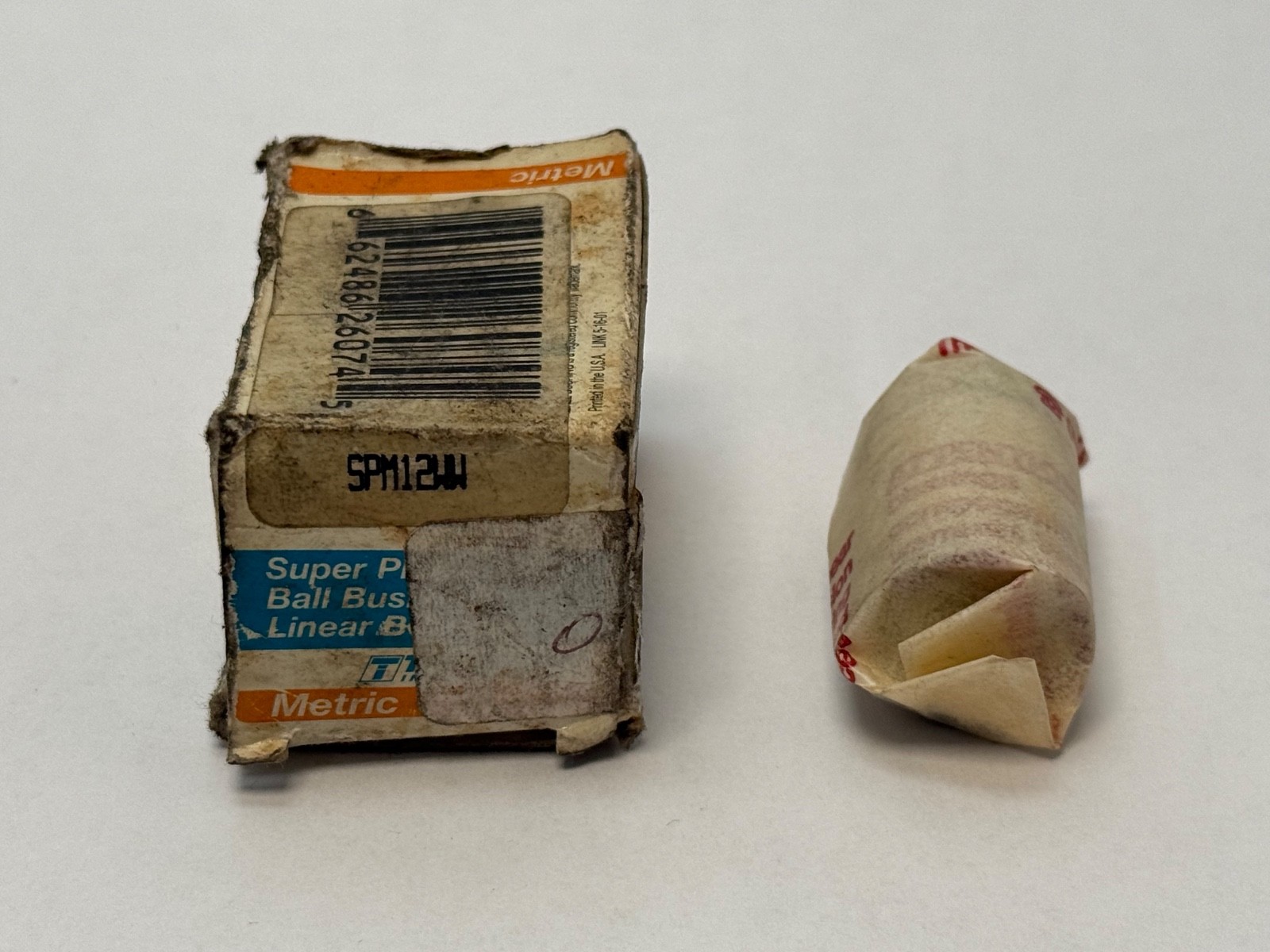

Carton form: SPM-12-WW. The Thomson SPM12 and SPM12W executions differ in seal or wiper configuration.
Thomson’s cross reference sheet lists these 12 mm closed, two-wiper bearings against the SPM12WW: Bosch Rexroth R0670 212 40, SKF LBCD 12 A-2LS, INA KN12-B-PP (earlier KN 1232-PP), NB TK 12 UU and Samick LMES 12 UU.
CAD model and data sheet: available from Thomson (thomsonlinear.com).
A 12 mm diameter round linear shaft.
Integral wipers on both ends of the bearing.
830 N at a rated travel life of 100 km, per Thomson.
