Thomson FNYBU32OPN FluoroNyliner open linear bushing bearing, 2 in shaft x 3 in OD x 4 in long, 12,500 lbf static load, self-lubricating, 500 °F max.
List Price
$127.49
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | THOMSON |
|---|---|
| MPN | FNYBU32OPN |
| Model | FNYBU32OPN |
| OD | 3 in (76.200 mm) |
| Base Number | FNYBU32 |
|---|---|
| Industry Terms | plain linear bearing, self-lubricating linear bushing, open linear bushing, Nyliner |
| Common Misspellings | Fluoronyliner, Fluoro Nyliner, FNYBU32 OPN, FNYBU32-OPN, Thompson |
| Application Types | washdown, submerged, supported-shaft linear motion, high vibration, high impact |
| Inside Diameter | 2 in (50.800 mm) |
| Item Length | 4 in (101.600 mm) |
| Mpn Variants | FNYBU32OPN, FNYBU-32-OPN, FNYBU 32 OPN |
| Additional Attributes | Type: Open; Self-Aligning: No; Adjustable: No; Shafting Class: L, SS316; Length: 4 in (101.600 mm) |

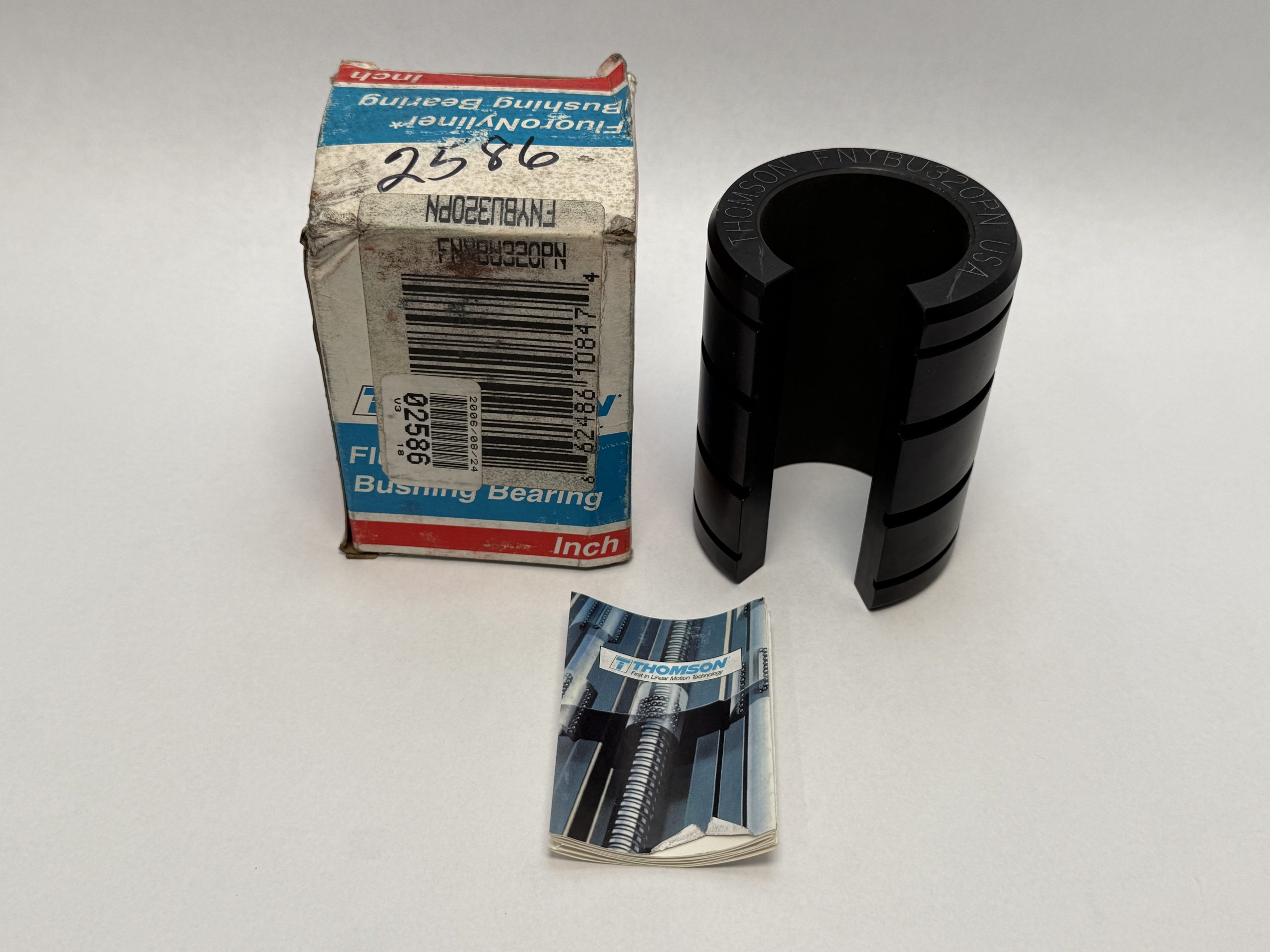

| Condition | New – Open box |
| Type | Linear Bearing |
| Item Weight | 0.558 kg (1.23 lb) |

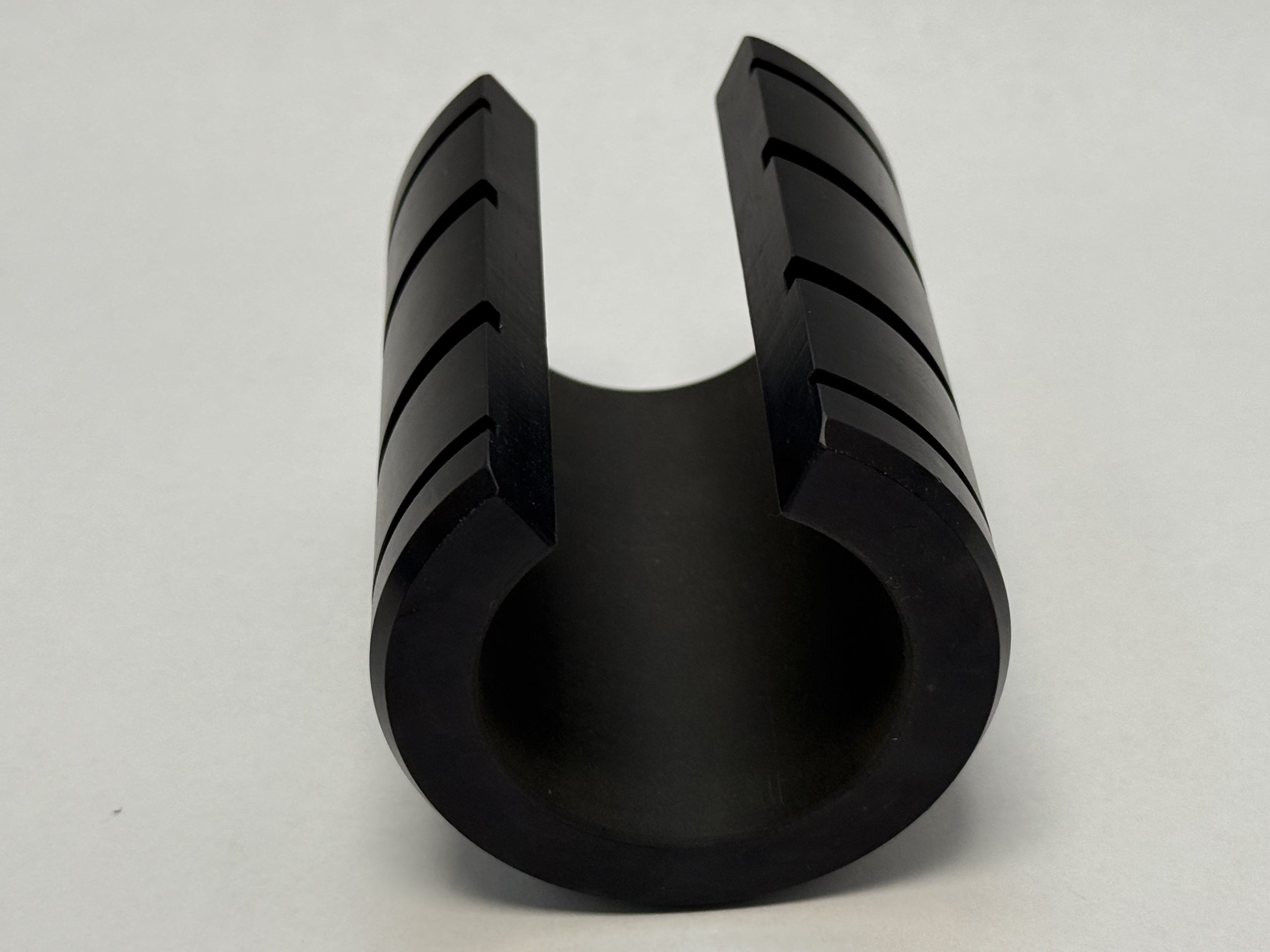

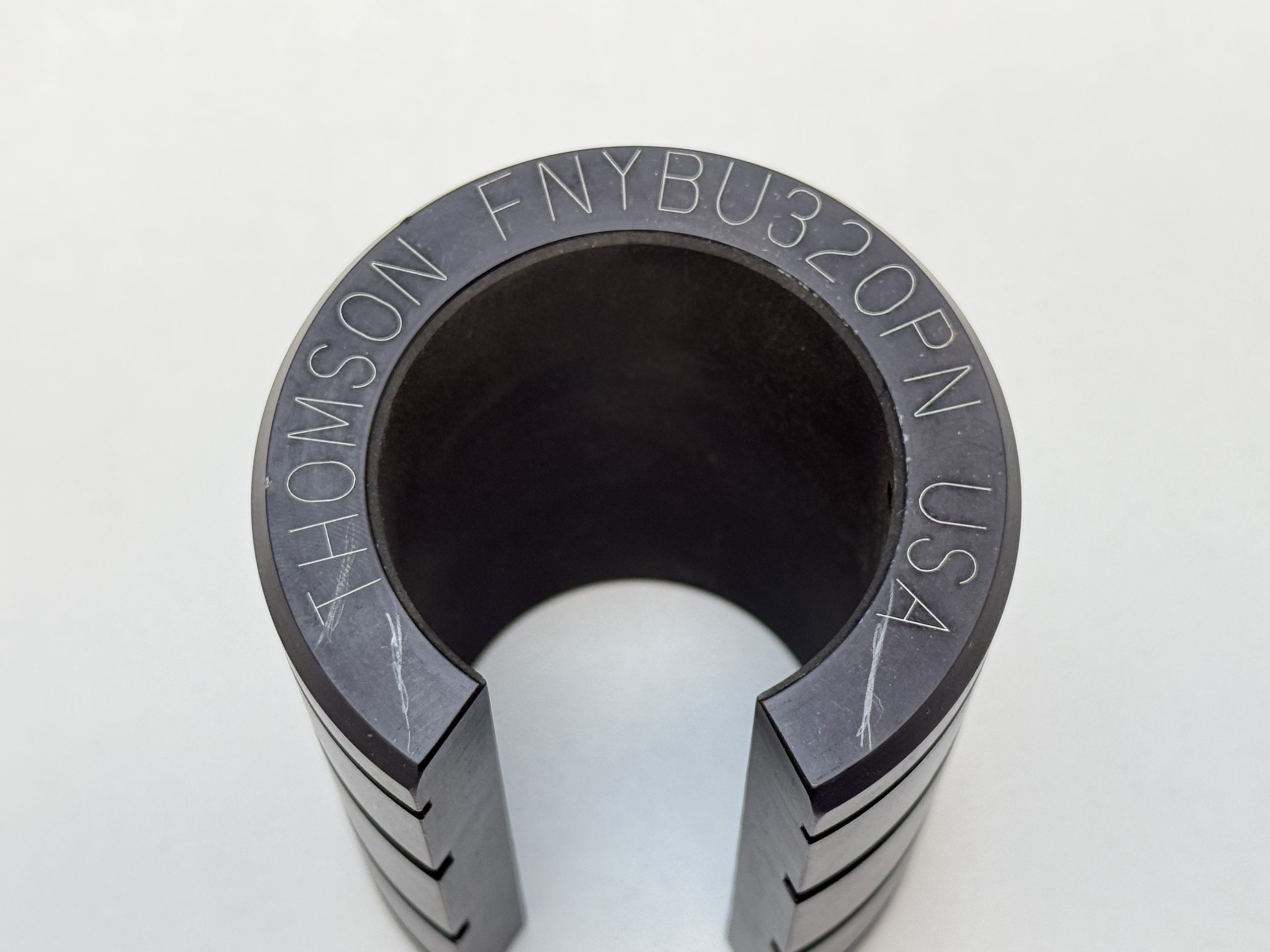

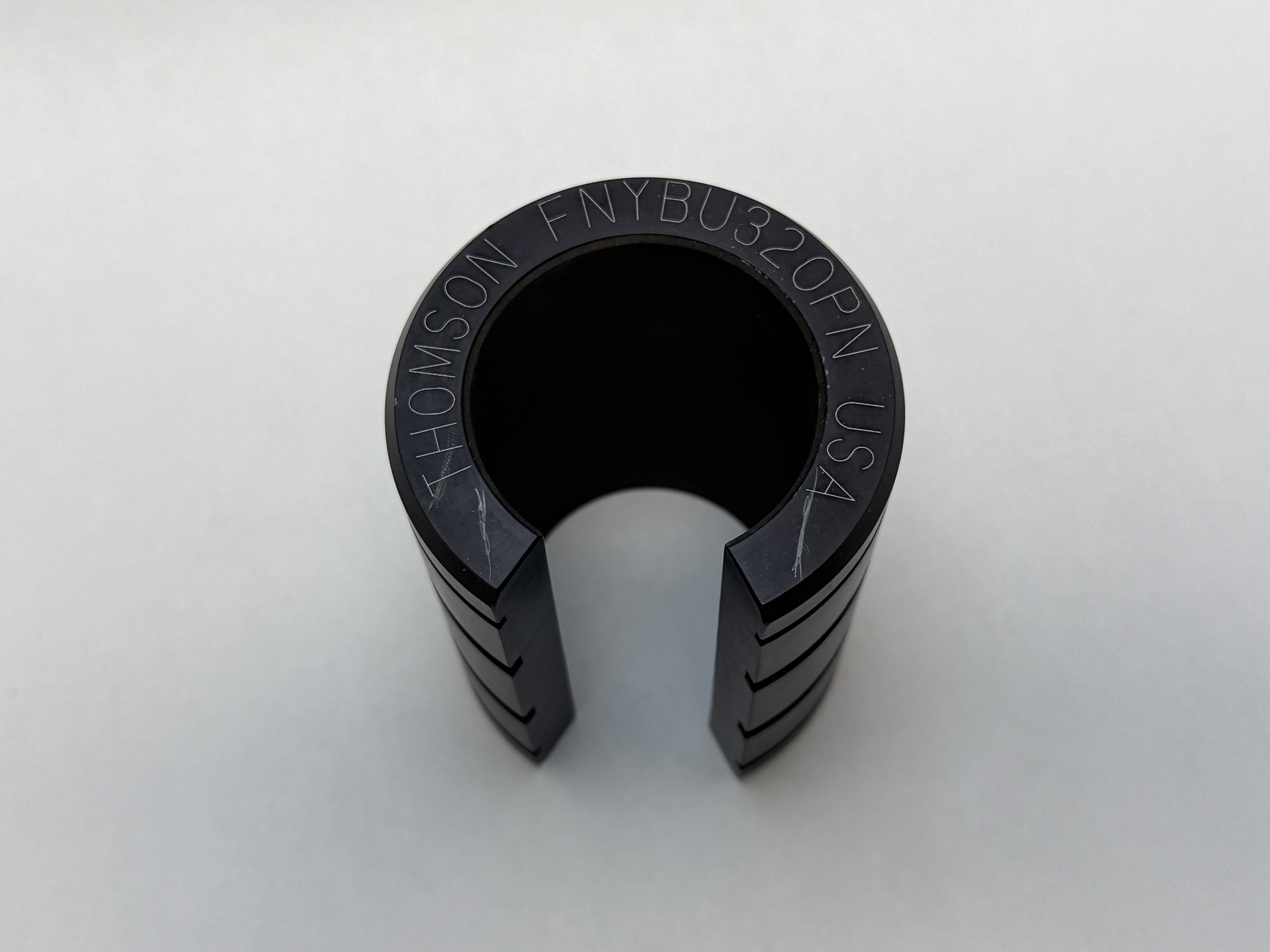

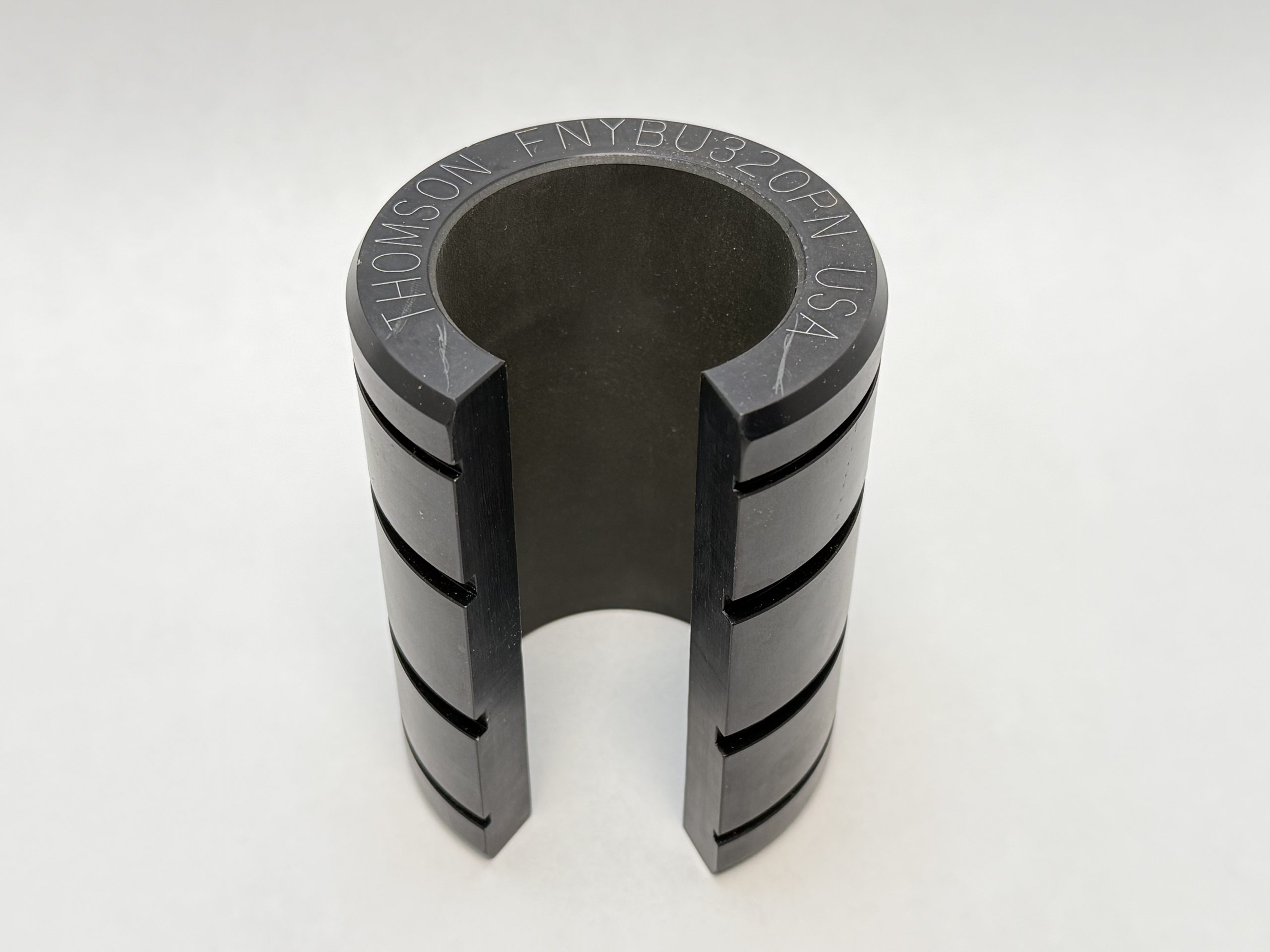

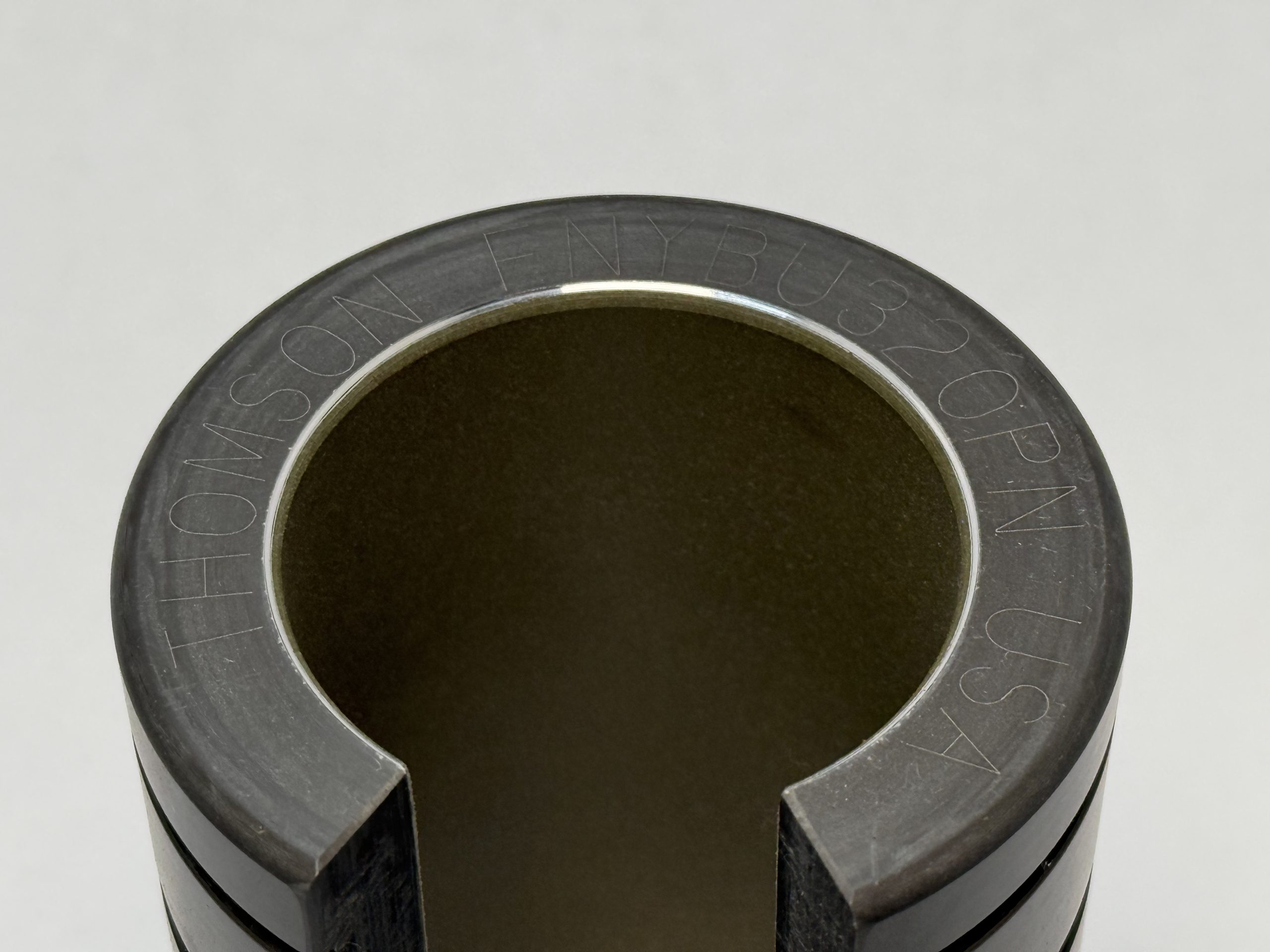

Thomson FNYBU32OPN FluoroNyliner bushing bearing, open type, for 2 in round shafting. A self-lubricating plain linear bearing: the bore is a FluoroNyliner liner sliding directly on the shaft, with no recirculating balls. The large contact area performs well under high vibration and impact loading.
FNYBU — Thomson FluoroNyliner bushing bearing, self-lubricating plain type.
32 — nominal shaft size in sixteenths of an inch: 2 in.

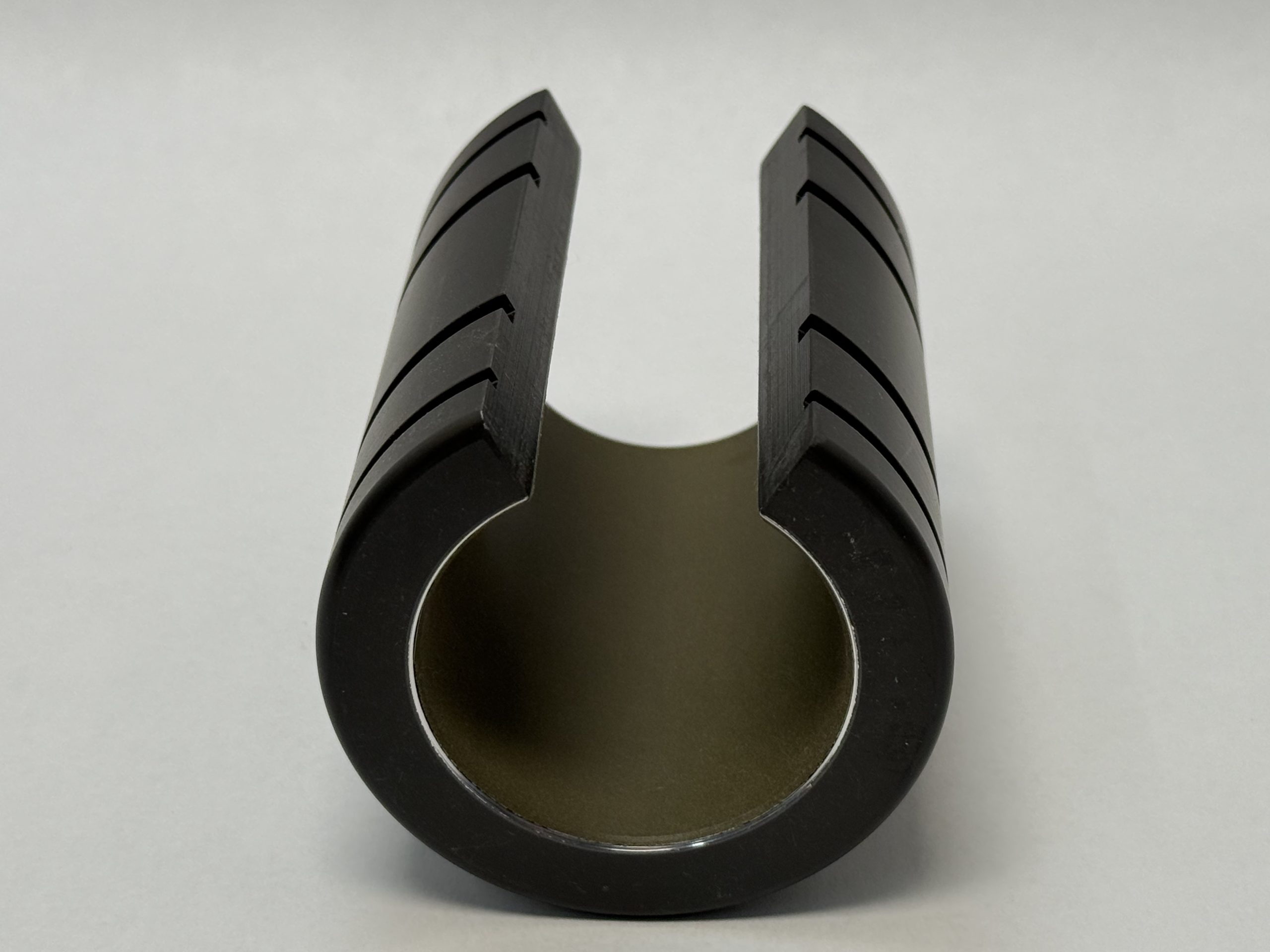

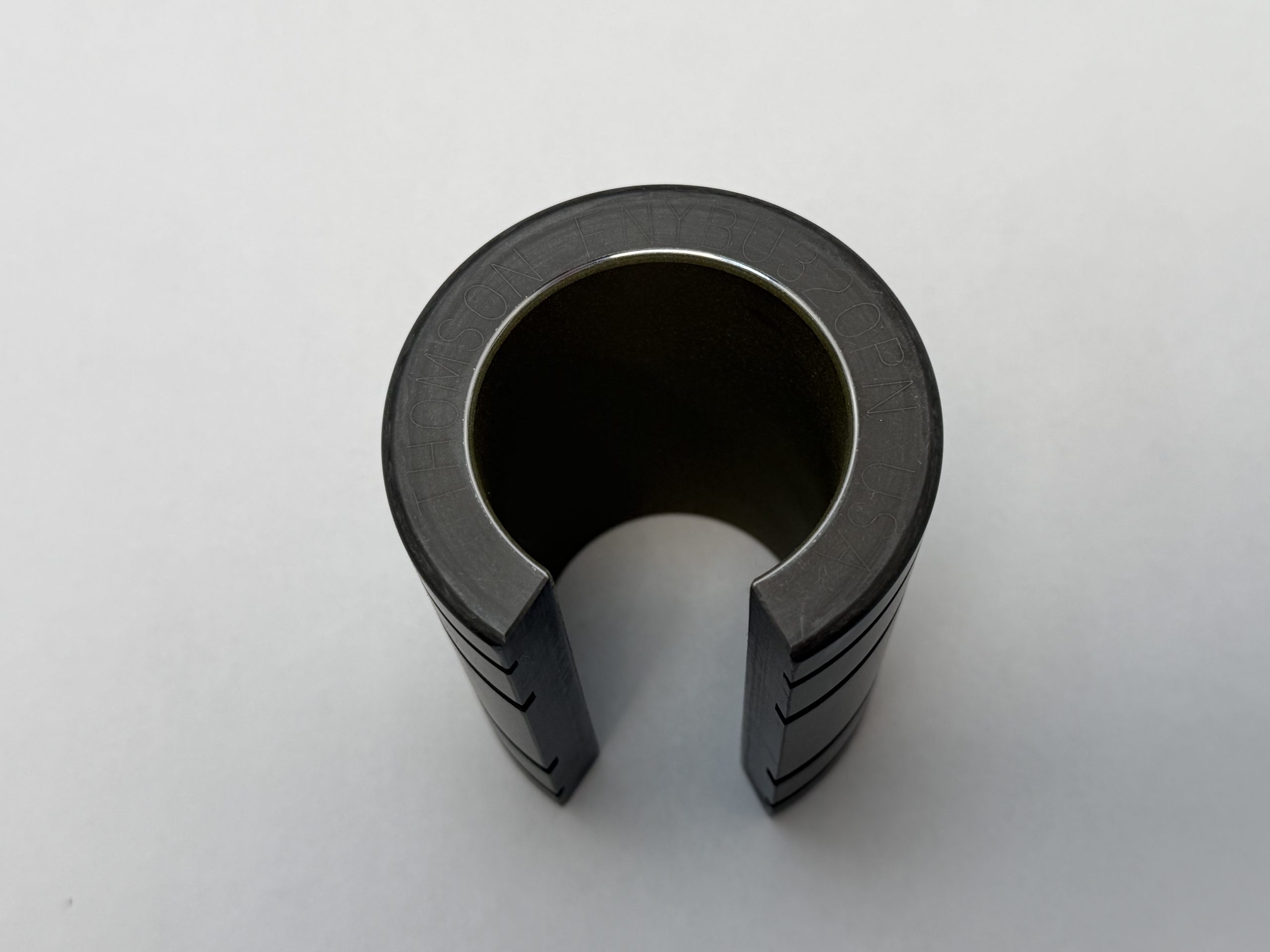

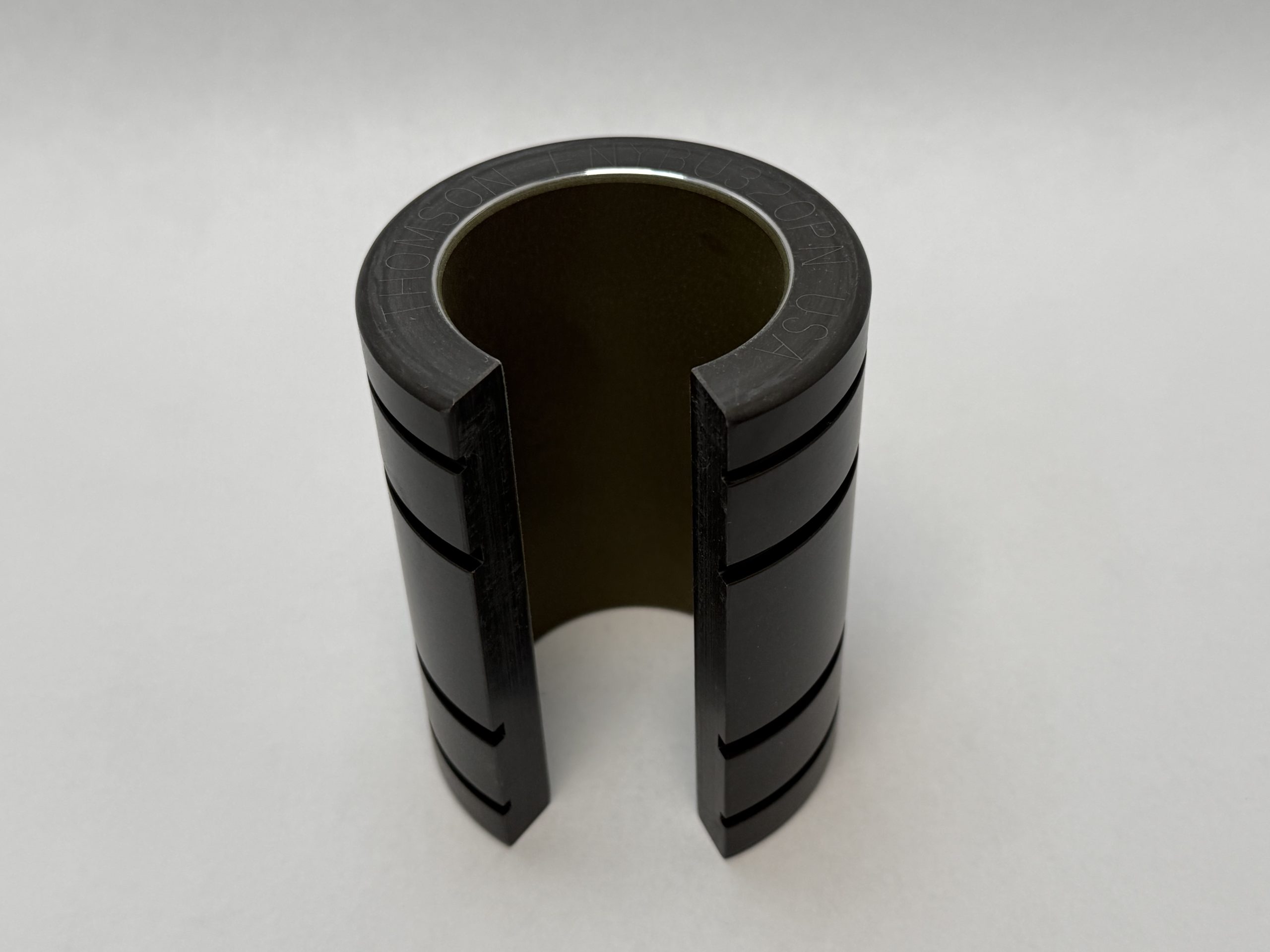

OPN — open type, slotted along its length to clear the shaft support rail on supported-shaft assemblies. Closed version of the same size: FNYBU32.
Nominal Shaft Diameter: 2 in (50.800 mm). Outside Diameter: 3 in (76.200 mm). Length: 4 in (101.600 mm). Static Load Rating: 12,500 lbf (55,603 N). Maximum Temperature: 260 °C (500 °F). Item Weight: 0.558 kg (1.23 lb). Self-Aligning: No. Adjustable: No. Shafting Class: L, including 316 stainless steel. The self-lubricating liner runs on unhardened and highly corrosion-resistant shafting, suited to washdown and submerged service.
MPN Variants: FNYBU32OPN, FNYBU-32-OPN, FNYBU 32 OPN. Closed-type counterpart: Thomson FNYBU32.
