THK SHW21CAN1SS(GK) caged-ball LM Guide block for a 37 mm wide rail, 21 mm assembly height, 68 mm width, four rows at 45 degrees. Block only.
List Price
$145.69
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | THK |
|---|---|
| MPN | SHW21CAN1SS(GK) |
| Model | SHW21CAN1SS(GK) |
| Type | Linear Bearing |
|---|---|
| Base Number | SHW21CA |
| Industry Terms | LM guide block, linear carriage, wide rail linear guide, low profile linear bearing, caged ball linear guide, LM block, SHW block |
| Housing Style | CA flanged block, tapped holes, top or bottom mounting |
| Mpn Variants | SHW21CA1SS, SHW21CAN1SS, SHW21CA1SS(GK), SHW21CAN1SSGK, SHW-21-CA1-SS, SHW 21 CA1 SS, SHW21CA1UU, SHW21CA, SHW-21 CA |
| Manufacturer Status | THK active catalogue series; GK interchangeable line current |
| Compatible With Replaces | Runs on THK SHW21 LM rail, 37 mm wide, 50 mm hole pitch |
| Additional Attributes | Static moments MA/MB 0.0806 kN-m, MC 0.229 kN-m (one block). Block length L 59 mm, L1 43.6 mm. Mount 60 x 29 mm, 6 x M5. Rail hole pitch 50 mm. Rail mass 2.9 kg/m. |
| Dynamic Load Rating | 8,240 N |
| Static Load Rating | 12,800 N |
| Bearing Type | Linear motion guide carriage block, caged ball |
| Item Weight | 0.24 kg (0.53 lb) |
| Number Of Rows | 4 rows of balls |
| Part Number | SHW21CAN1SS(GK) |
| Common Misspellings | SHW 21 CAN1 SS; SHW21 CAN1SS; THK SHW-21CA; SHW21CAN1 SS; THK SW21CA |

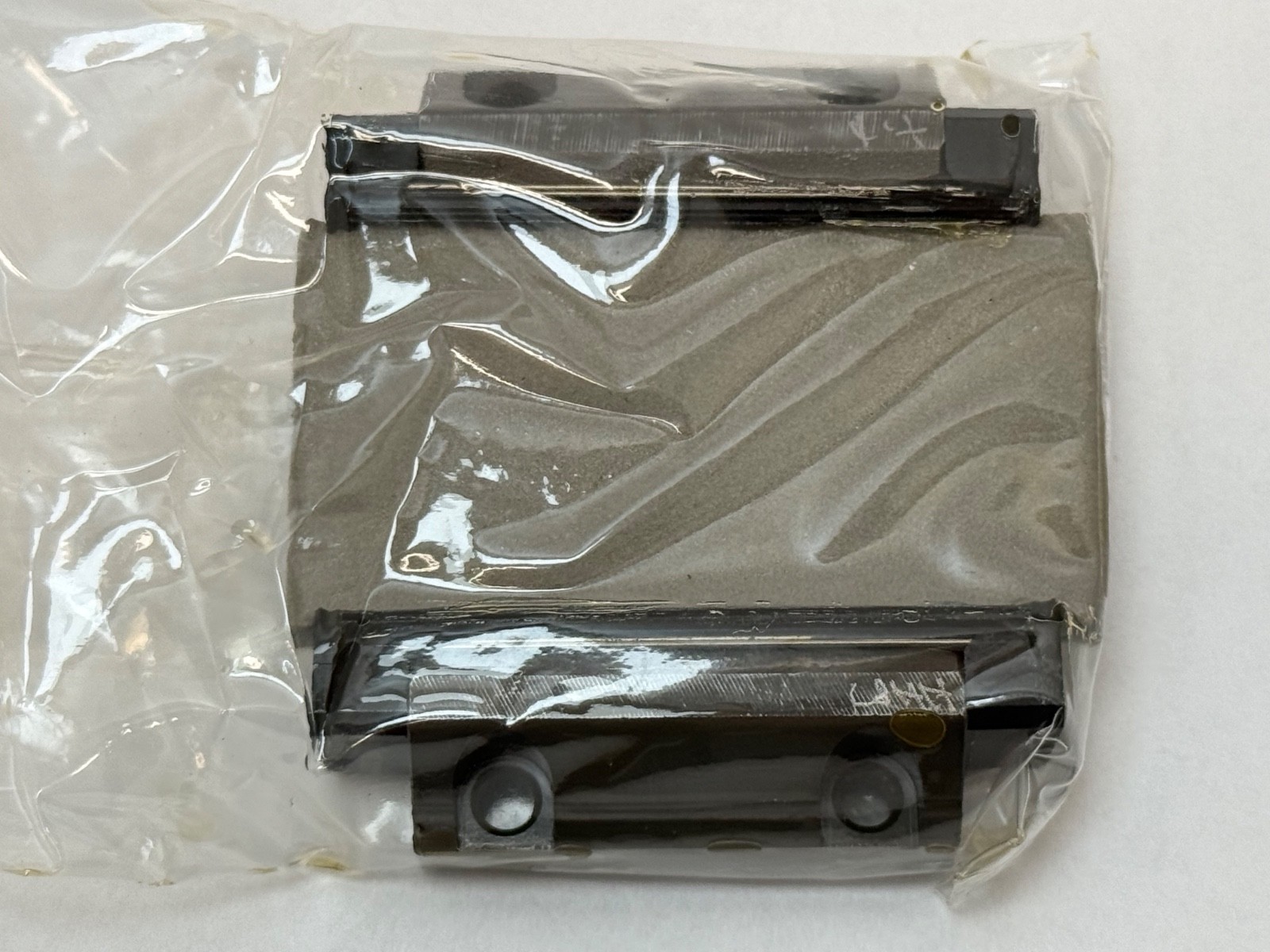

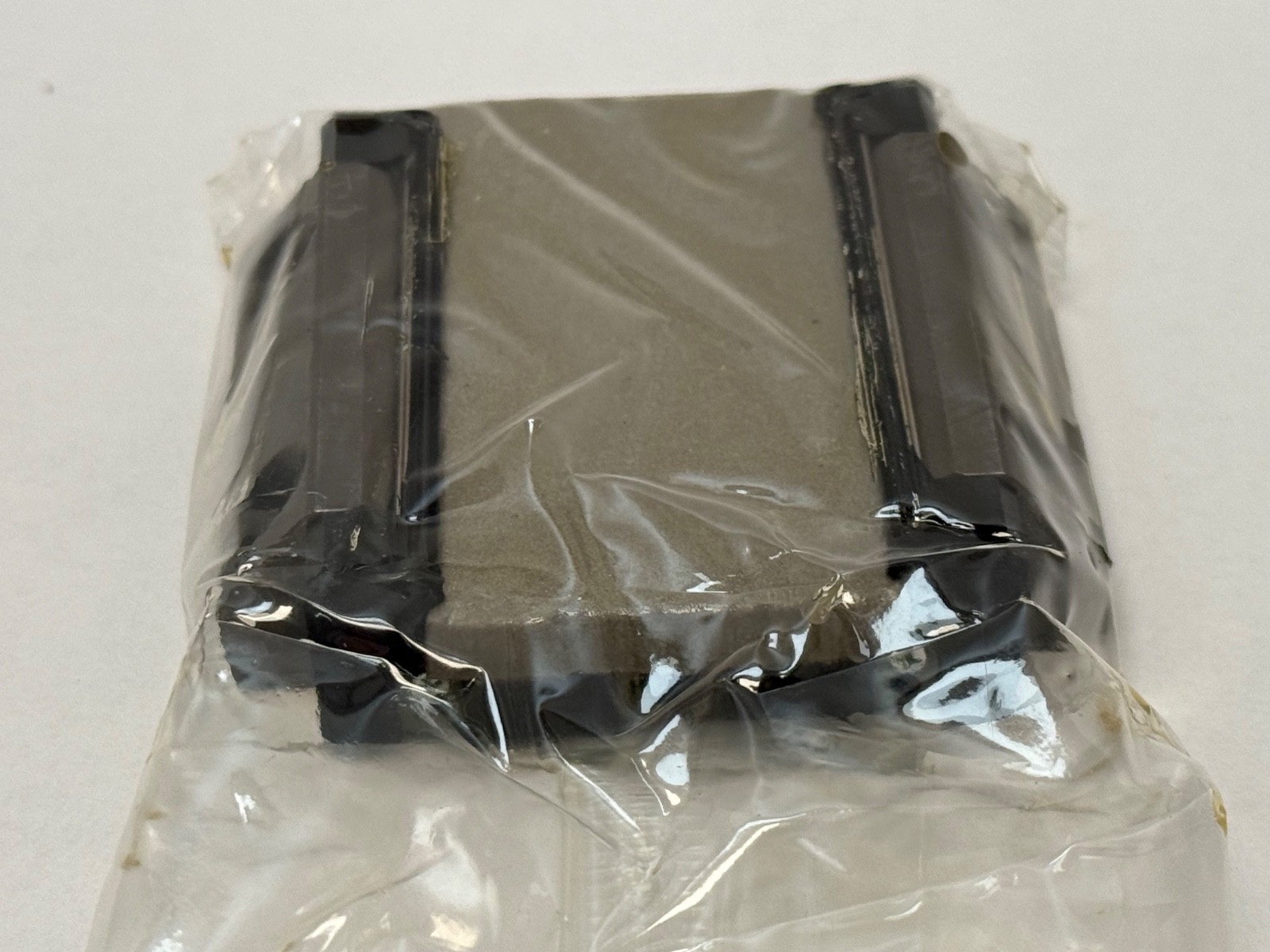

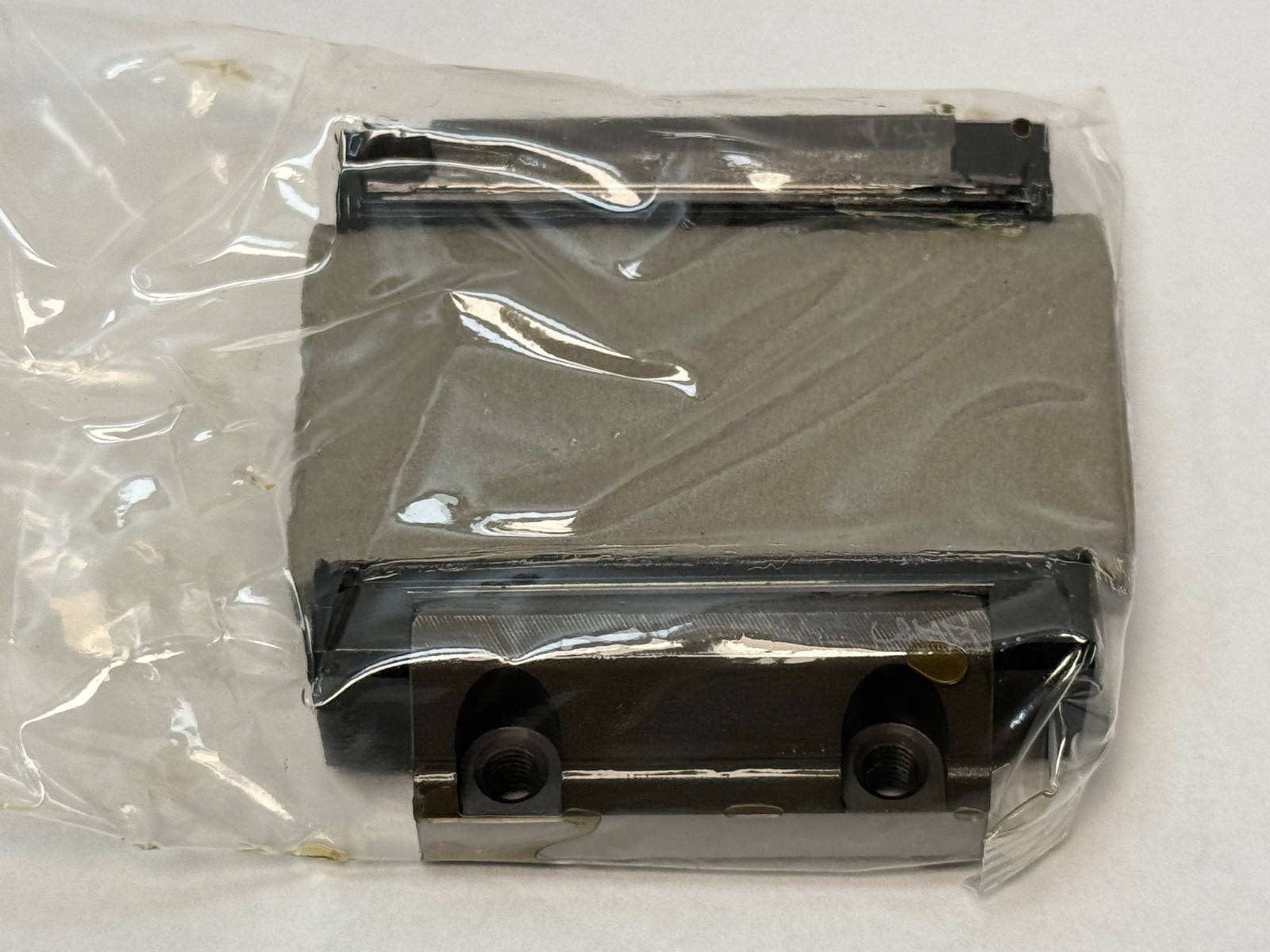

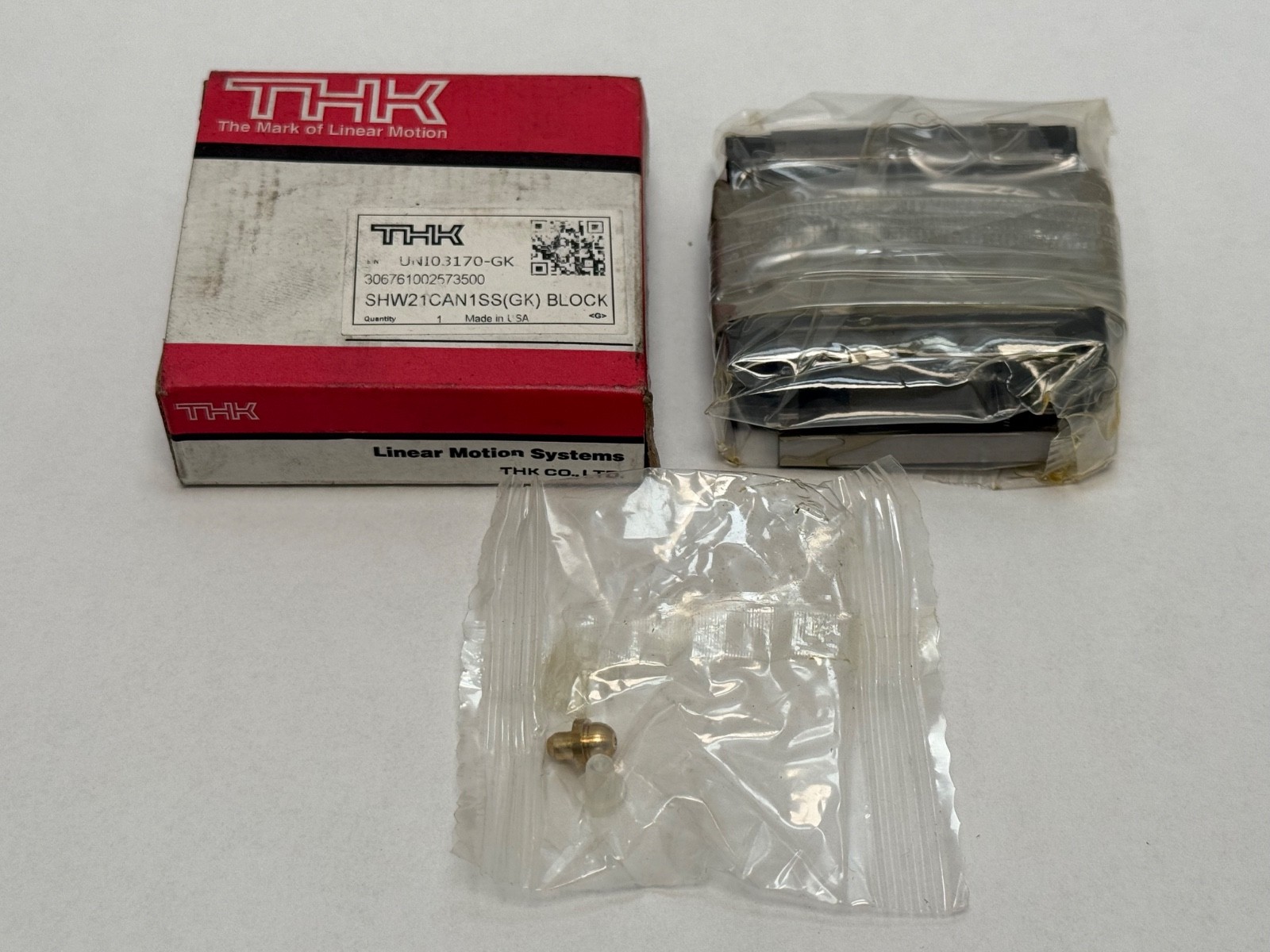

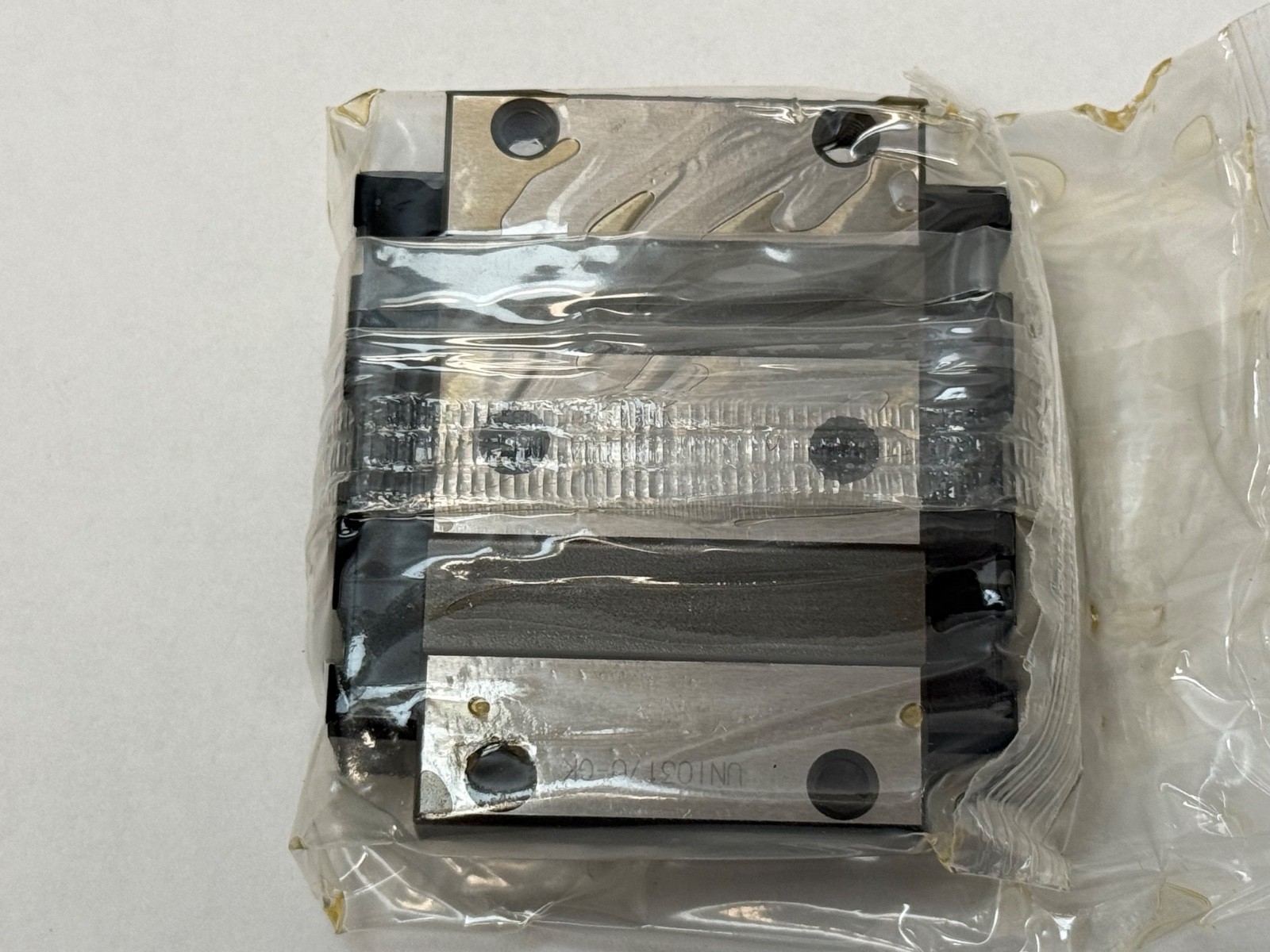

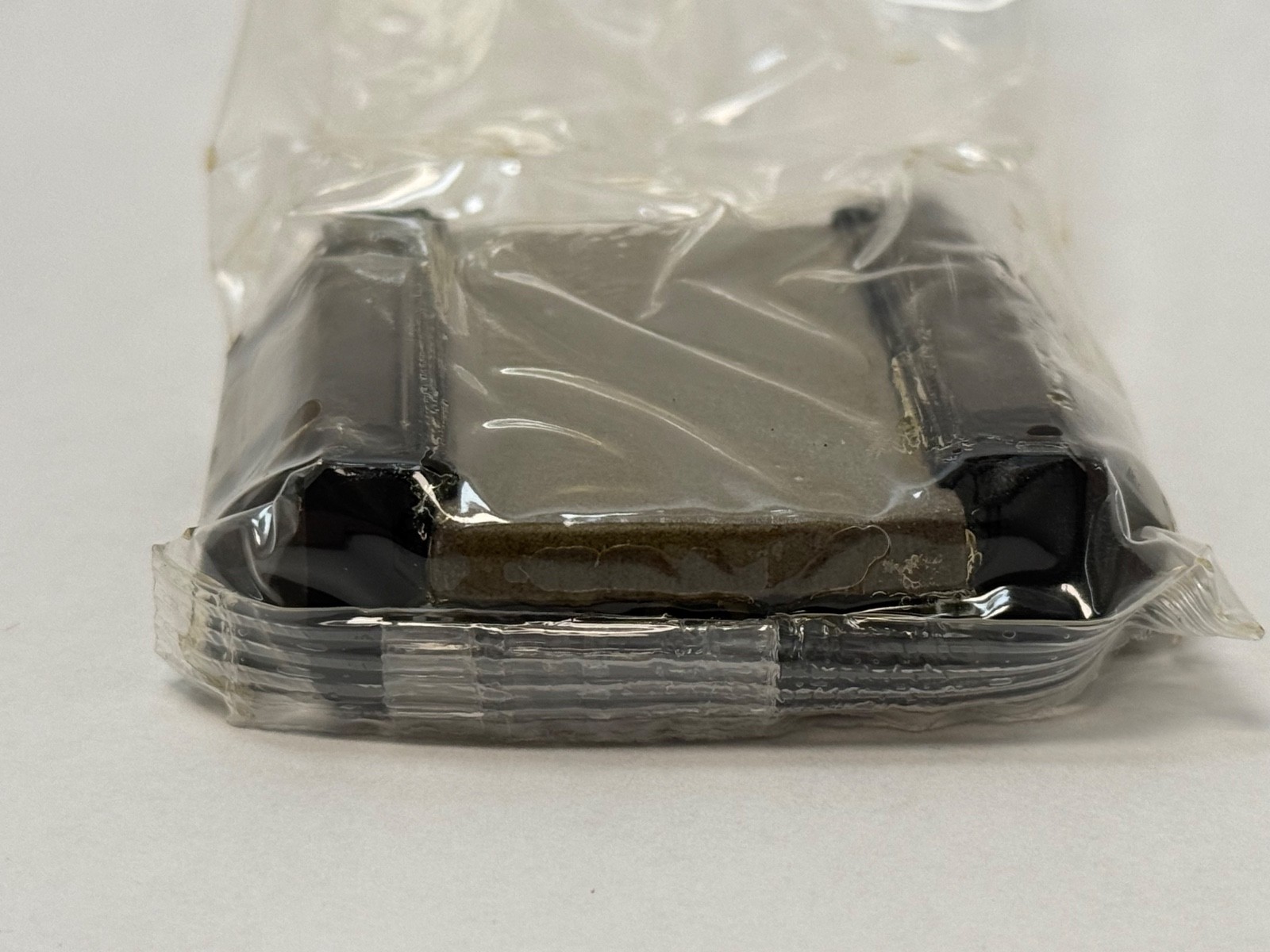

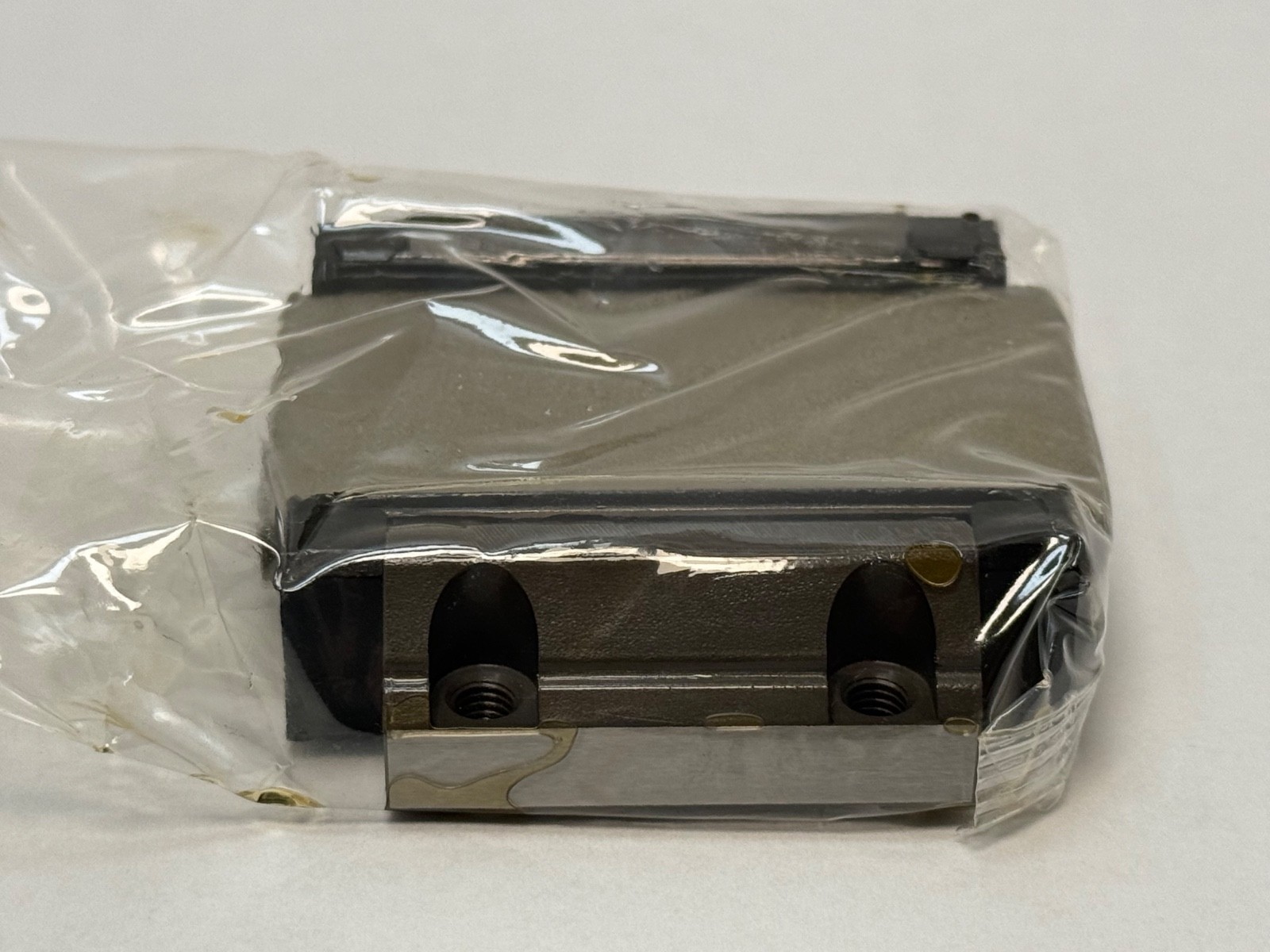

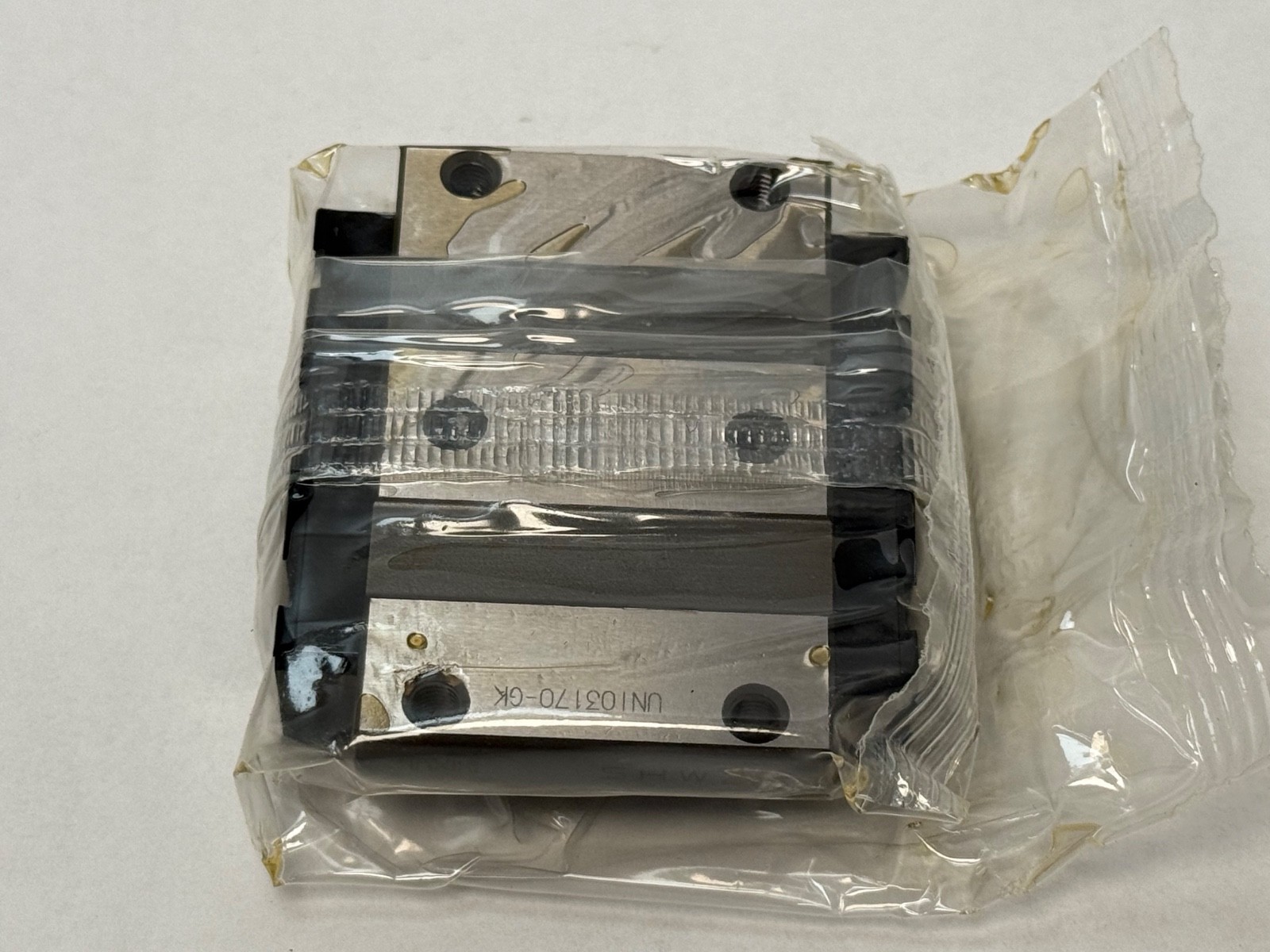

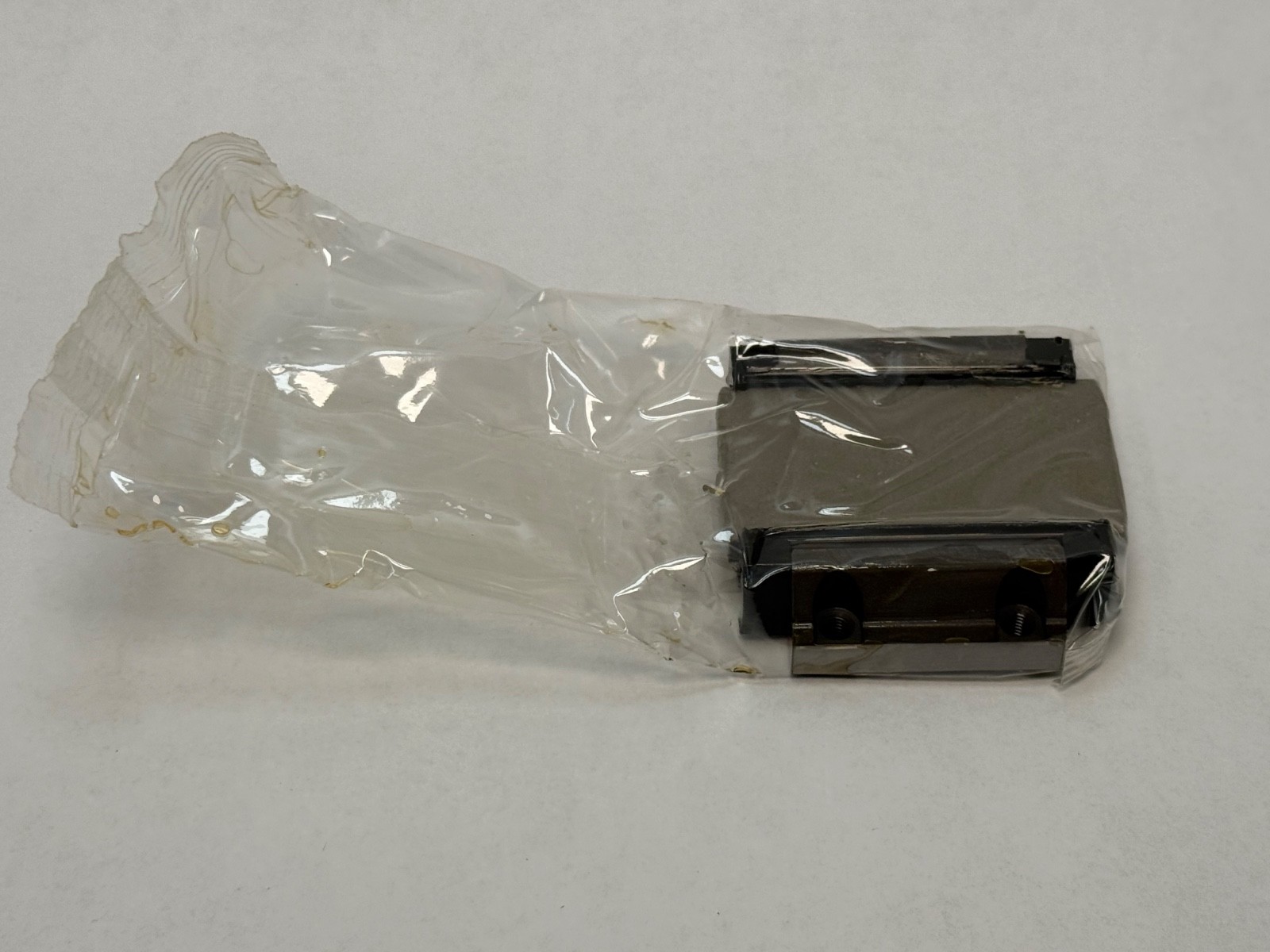

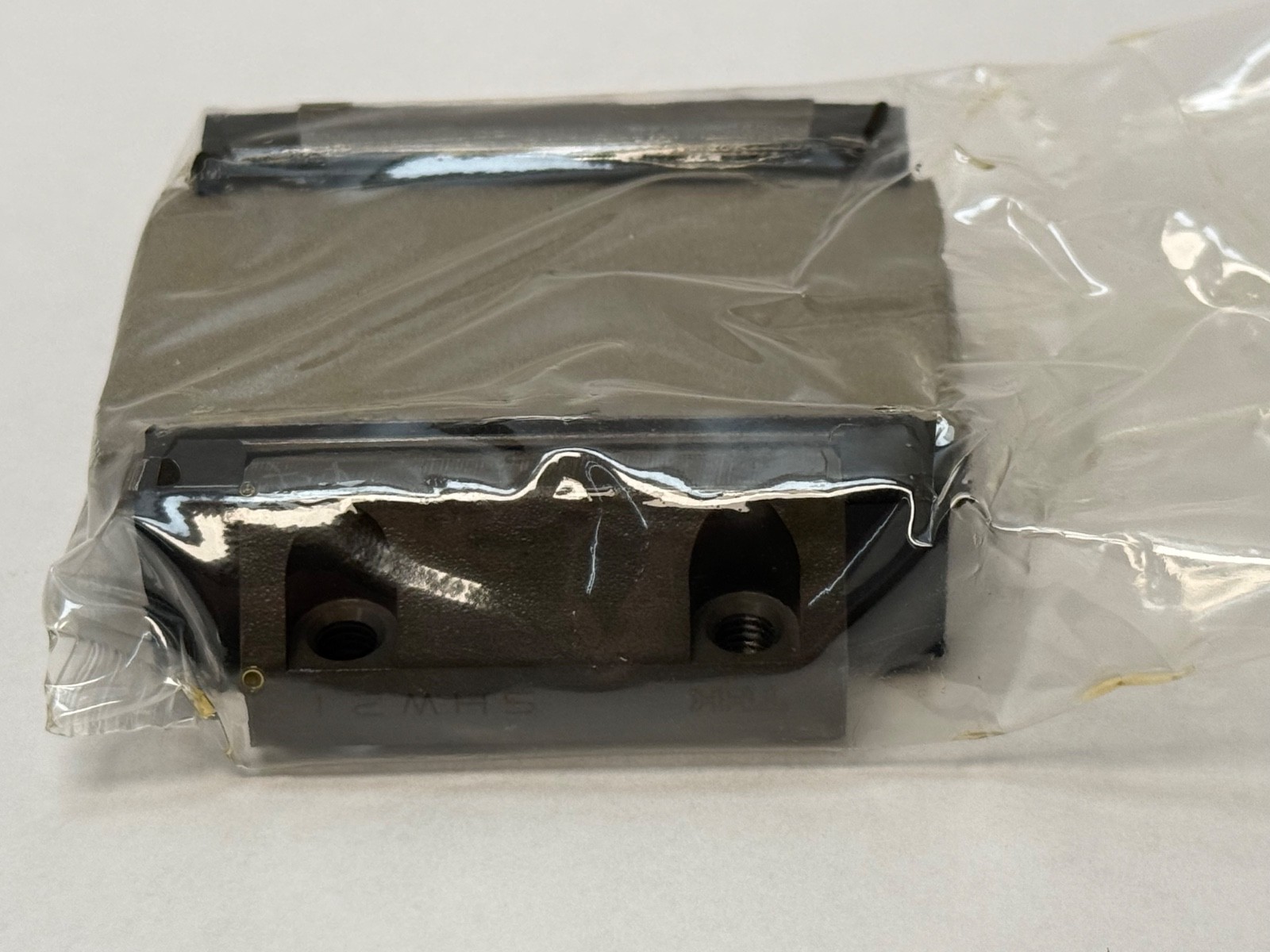

THK SHW21CAN1SS(GK) is a caged-ball LM Guide carriage block, block only with no rail, from the wide low-profile SHW series. It runs on a 37 mm wide SHW size-21 rail. Four rows of balls at a 45° contact angle give equal load capacity in four directions. Assembly height: 21 mm. Block width: 68 mm. Unit Quantity: 1 Pc.
SHW — wide, low-profile caged-ball LM Guide series.
21 — size, corresponding to a 37 mm wide rail.
CA — flanged block with tapped holes, mountable from the top or the bottom.
1 — THK coding field for the number of blocks used on the same rail.
SS — end seal plus side seal.
GK — THK interchangeable block-only and rail-only series.
Assembly Height M: 21 mm. Block Width W: 68 mm. Block Length L with SS seals: 59 mm. Block Body Length L1: 43.6 mm. Mounting Hole Pattern B x C: 60 x 29 mm, 6 x M5 taps, through-hole 4.4 mm diameter. Dynamic Load Rating C: 8,240 N. Static Load Rating C0: 12,800 N. Static Permissible Moment MA: 0.0806 kN·m (one block), 0.434 kN·m (two blocks). Static Permissible Moment MB: 0.0806 kN·m (one block), 0.434 kN·m (two blocks). Static Permissible Moment MC: 0.229 kN·m (one block). Rolling Elements: four rows of caged balls, 45° contact angle. Item Weight: 0.24 kg (0.53 lb). Unit Quantity: 1 Pc.
Mating rail width W1: 37 mm (0 / −0.05). Rail height M1: 11 mm. Rail hole pitch F: 50 mm. Rail hole d1 x d2 x h: 4.5 x 7.5 x 5.3 mm. Rail mass: 2.9 kg/m. Standard rail lengths: 130, 230, 380, 480, 580 and 780 mm; maximum 3000 mm. Grease nipple fitting size for size 21: PB1021B.
As a GK-series block it combines with any SHW21 GK rail of the same model number. Related block type in the same size: SHW21CR. Adjacent sizes: SHW17CA and SHW27CA.
No. It is the carriage block only, for a 37 mm wide SHW size-21 rail.
Dynamic Load Rating is 8,240 N and Static Load Rating is 12,800 N. Static permissible moment MC is 0.229 kN·m.
SS is an end seal plus side seal. GK marks THK’s interchangeable block-only and rail-only series.
