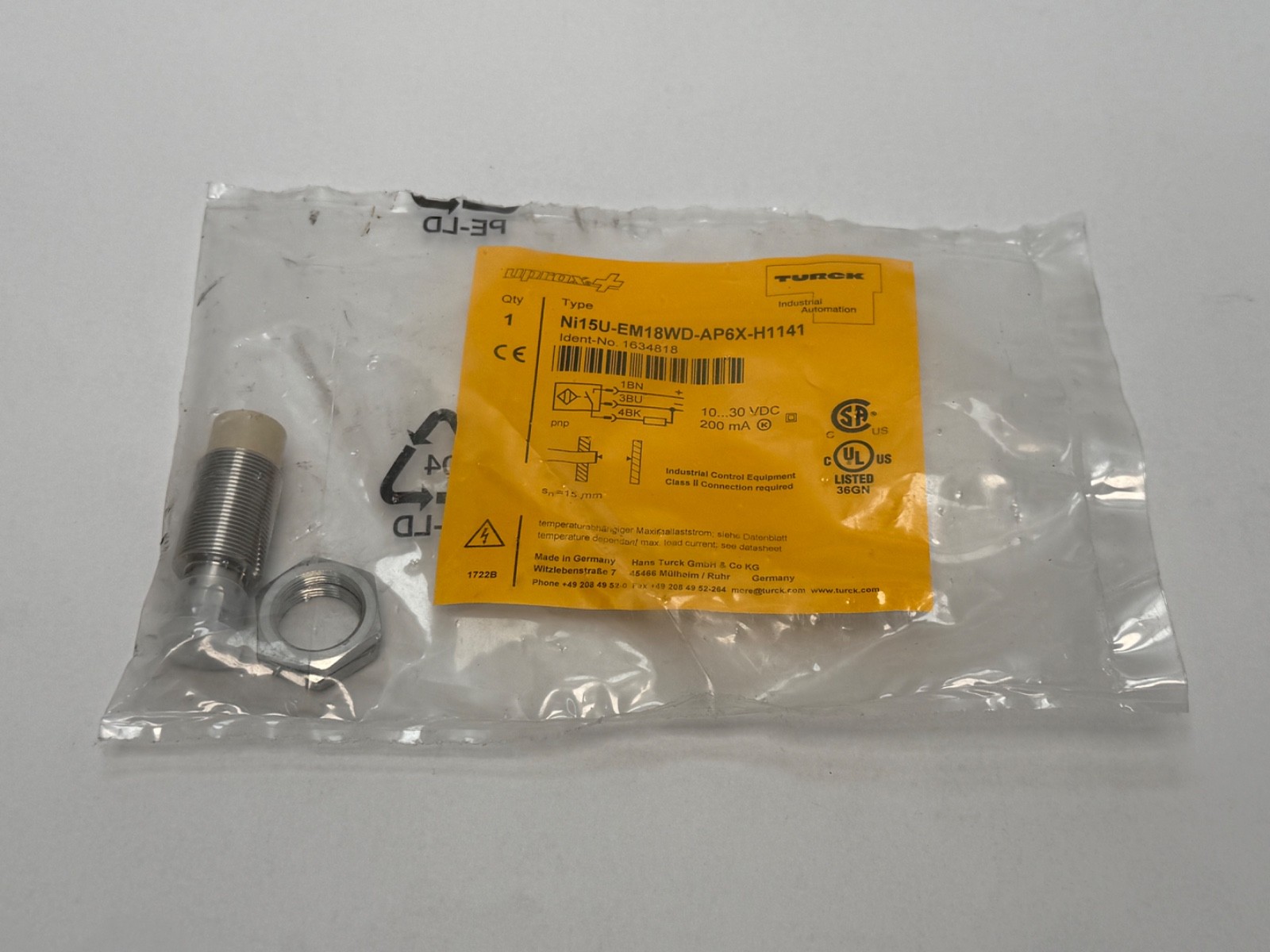

TurckNI15U-EM18WD-AP6X-H1141Inductive Proximity Sensor — M18 Stainless, 15 mm Non-Flush, PNP NO, 10-30 VDC, M12 Connector, IP69K

Product Description

What this part is

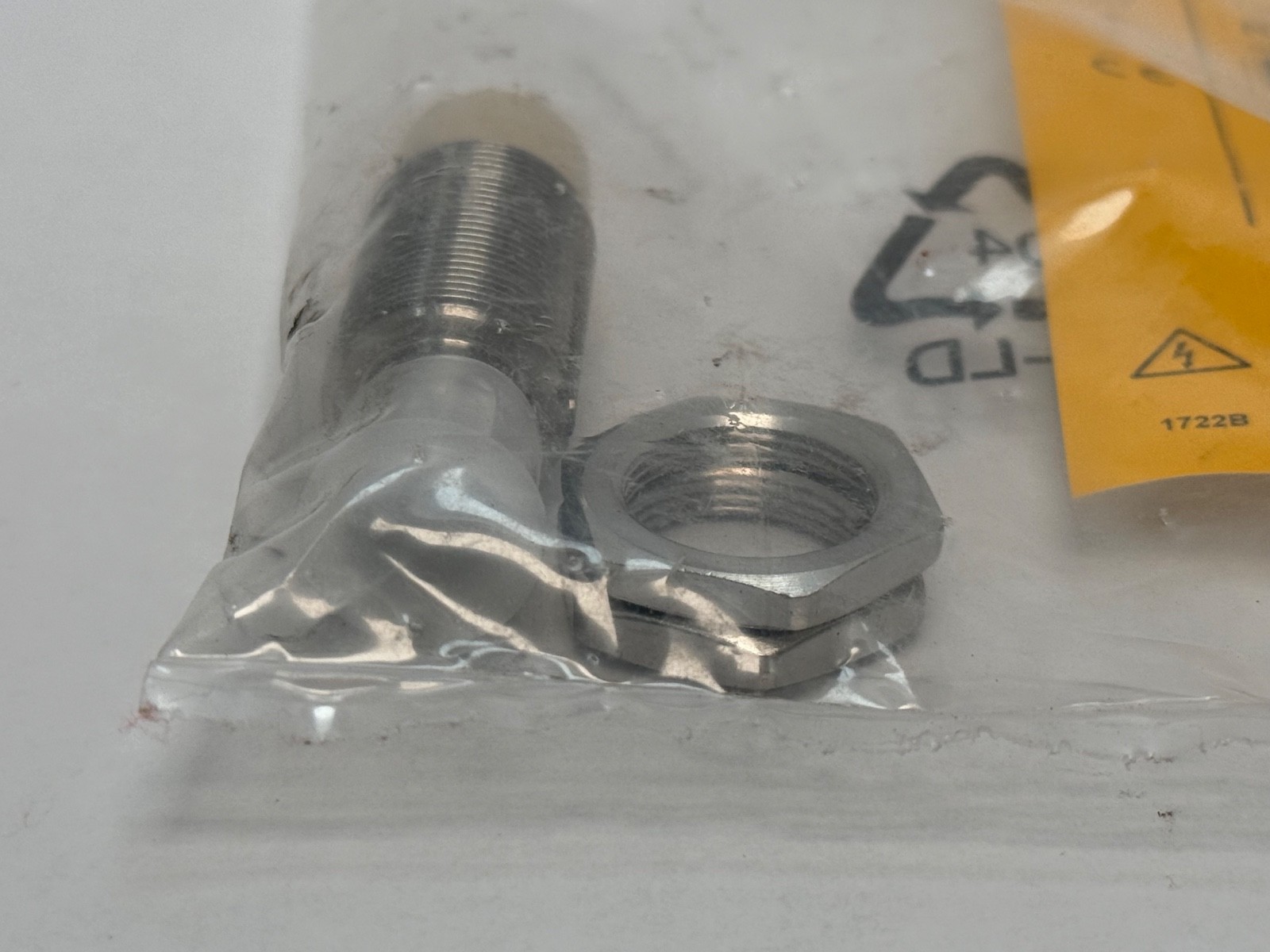

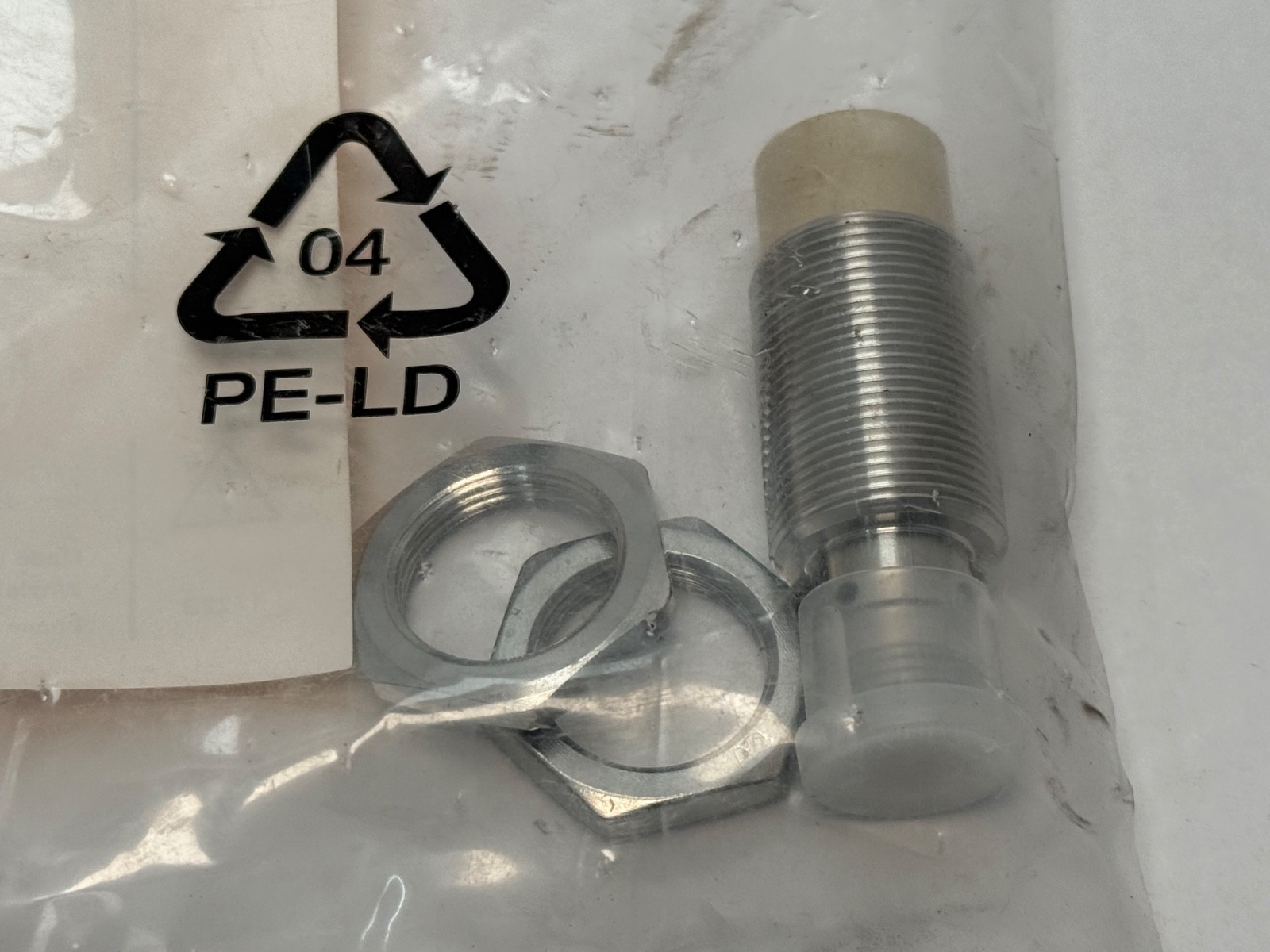

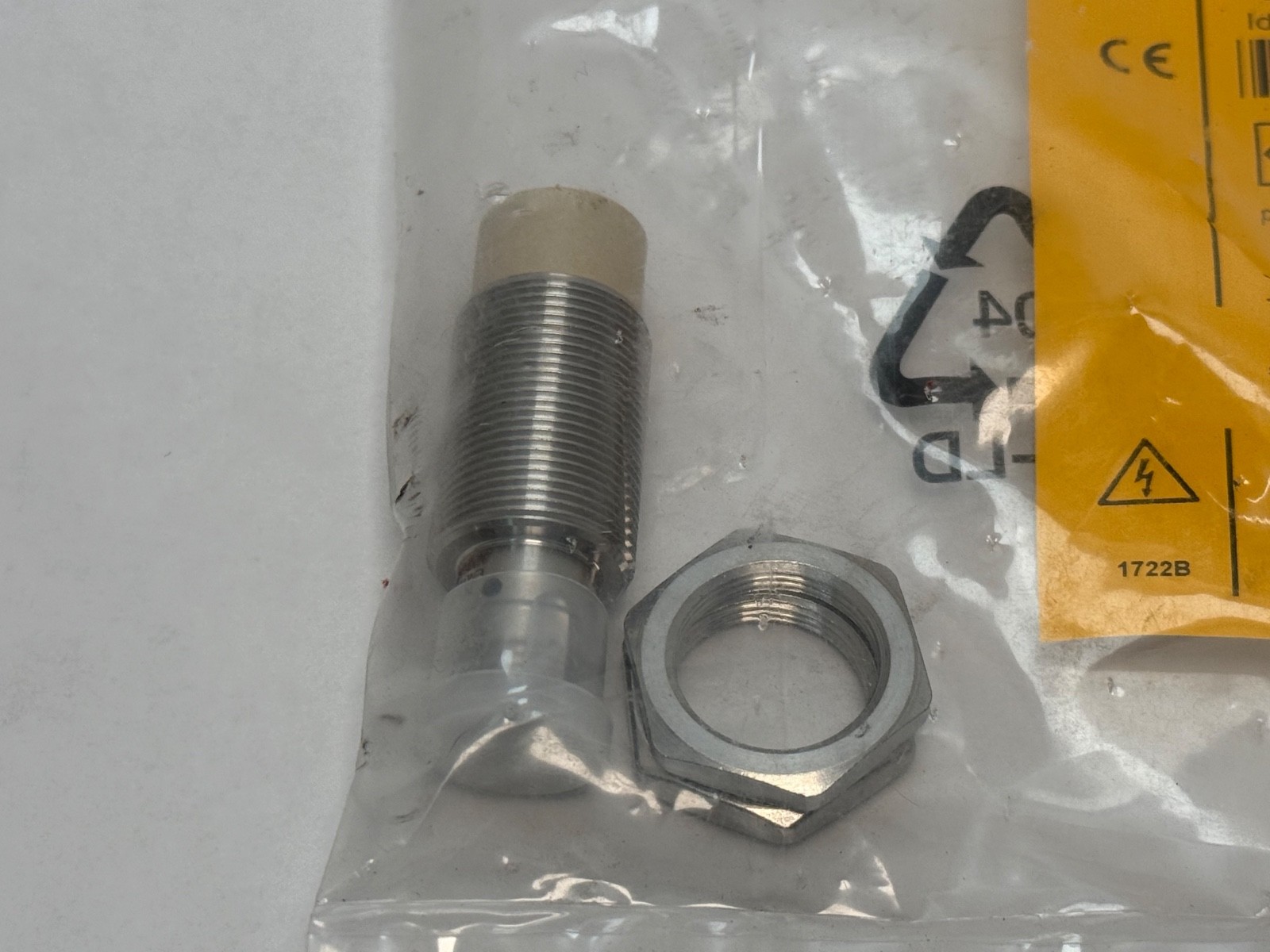

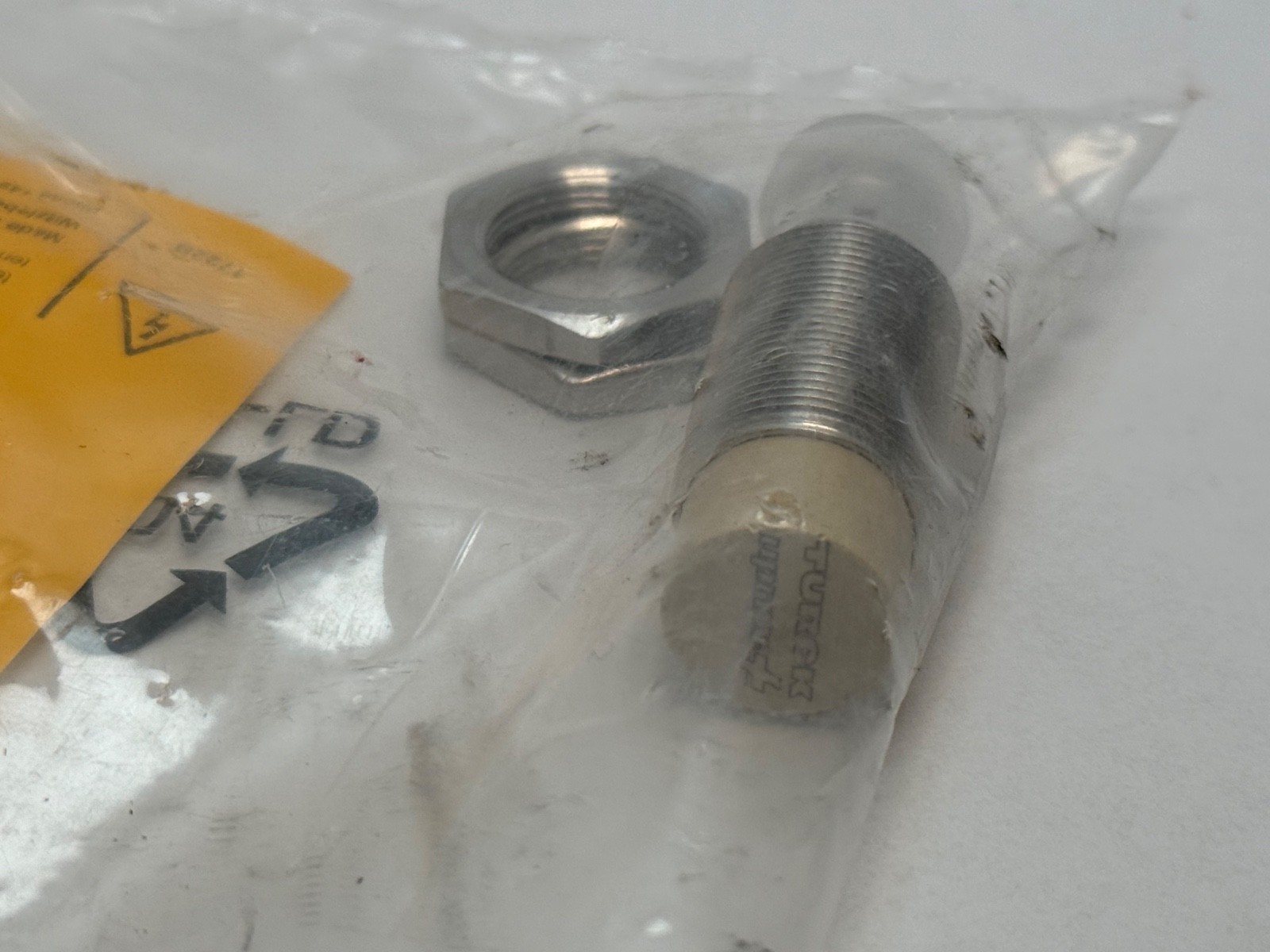

Turck NI15U-EM18WD-AP6X-H1141 (ident no. 1634818) is an inductive proximity sensor for the food industry: an M18 x 1 threaded barrel in 1.4404 (AISI 316L) stainless steel with a liquid crystal polymer front cap, factor 1 on all metals and a 15 mm rated switching distance.

Decoding the designation

NI15U — non-flush inductive sensor, uprox+, 15 mm rated switching distance.

EM18WD — M18 stainless steel barrel, washdown design.

AP6X — DC 3-wire, PNP normally open output.

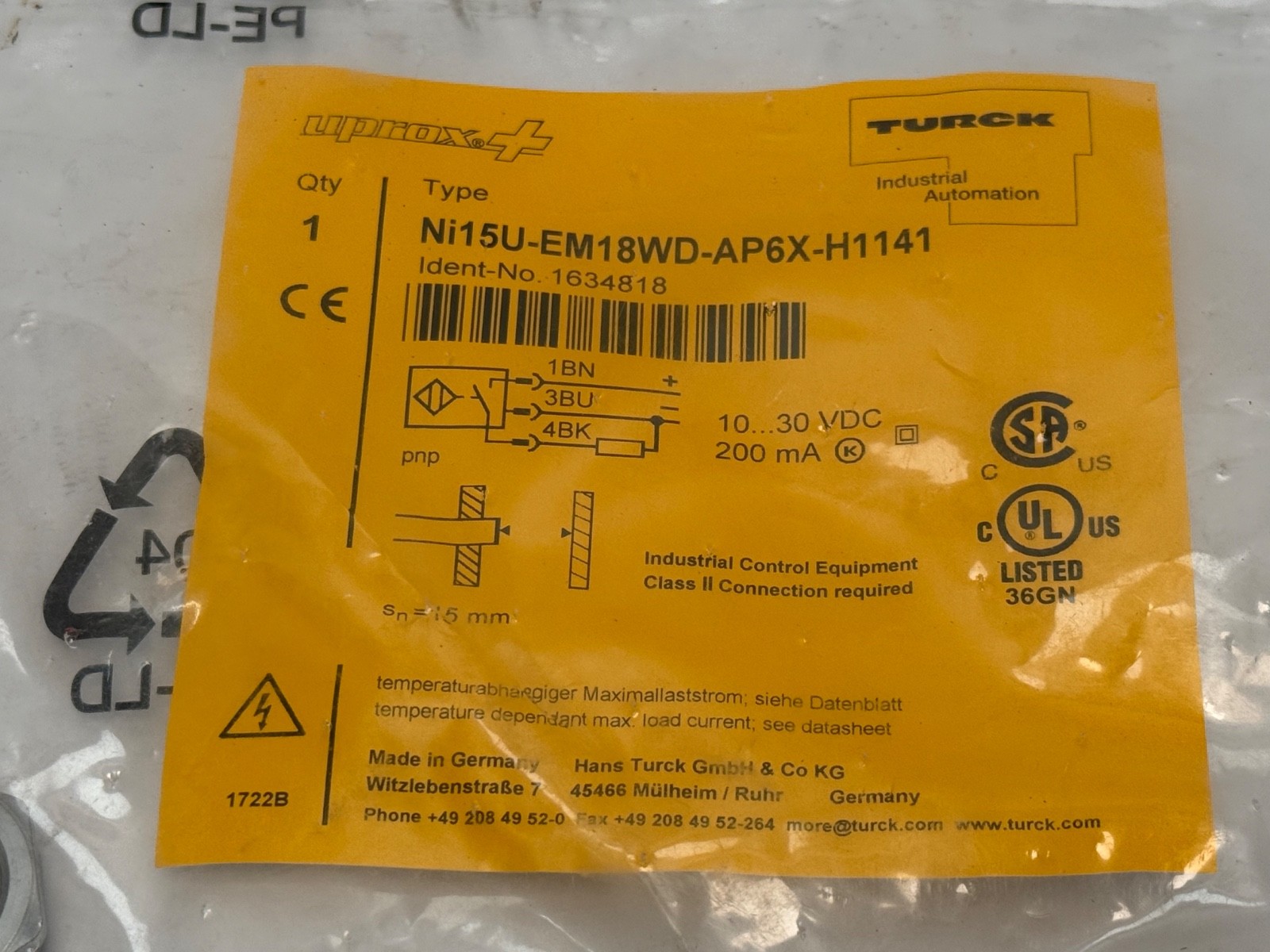

H1141 — M12 x 1 male connector.

Specifications

Rated Switching Distance: 15 mm. Mounting: Non-flush. Operating Voltage: 10 to 30 VDC. Output Function: NO contact, PNP. Switching Frequency: 1.0 kHz. Electrical Connection: Connector, M12 x 1. Housing Material: Stainless steel 1.4404 (AISI 316L). Ambient Temperature: -40 to 100 °C. Protection Class: IP68, IP69K. Special Features: uprox+, wash down, factor 1, resistant to magnetic fields, pressure resistant, double-lip seal, laser-engraved label. Item Weight: 48 g. GTIN: 4047101128819.

Dimensions and mounting

Construction Size: M18 x 1 threaded barrel. Mounting Accessory: Turck BSS-18 mounting clamp (6901320).

Compatibility and replacement

Turck ident no. 1634818. Data sheet and CAD model available from Turck (turck.us).

Frequently asked questions

What is the switching distance of the NI15U-EM18WD-AP6X-H1141?
15 mm rated, non-flush mounting.

What output does it have?
PNP, normally open, DC 3-wire, 10 to 30 VDC.

Is it washdown rated?
Yes. IP68 and IP69K, with a 316L stainless housing and resistance to common acidic and alkaline cleaning agents.
