Availability:
2 in stock

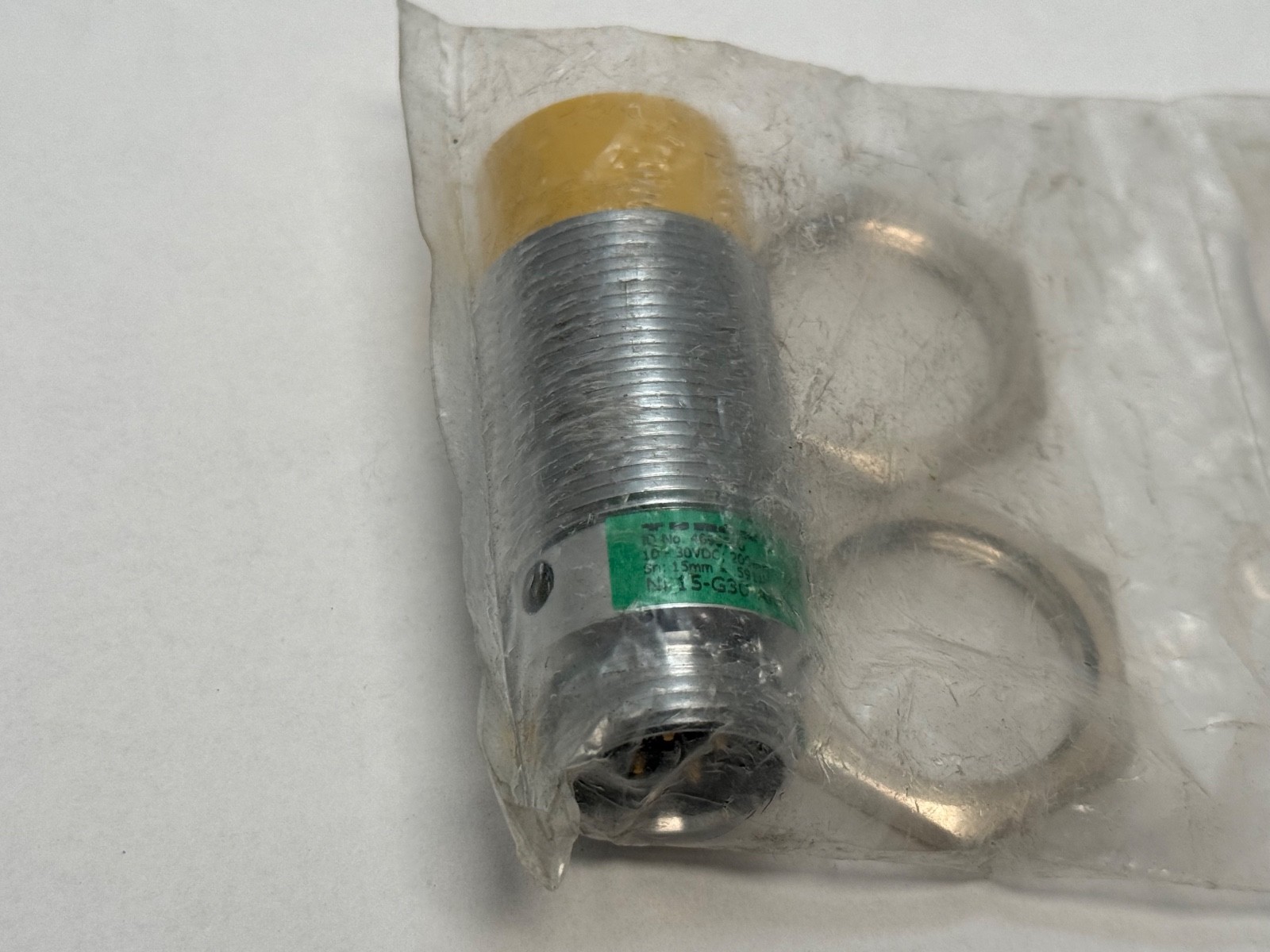

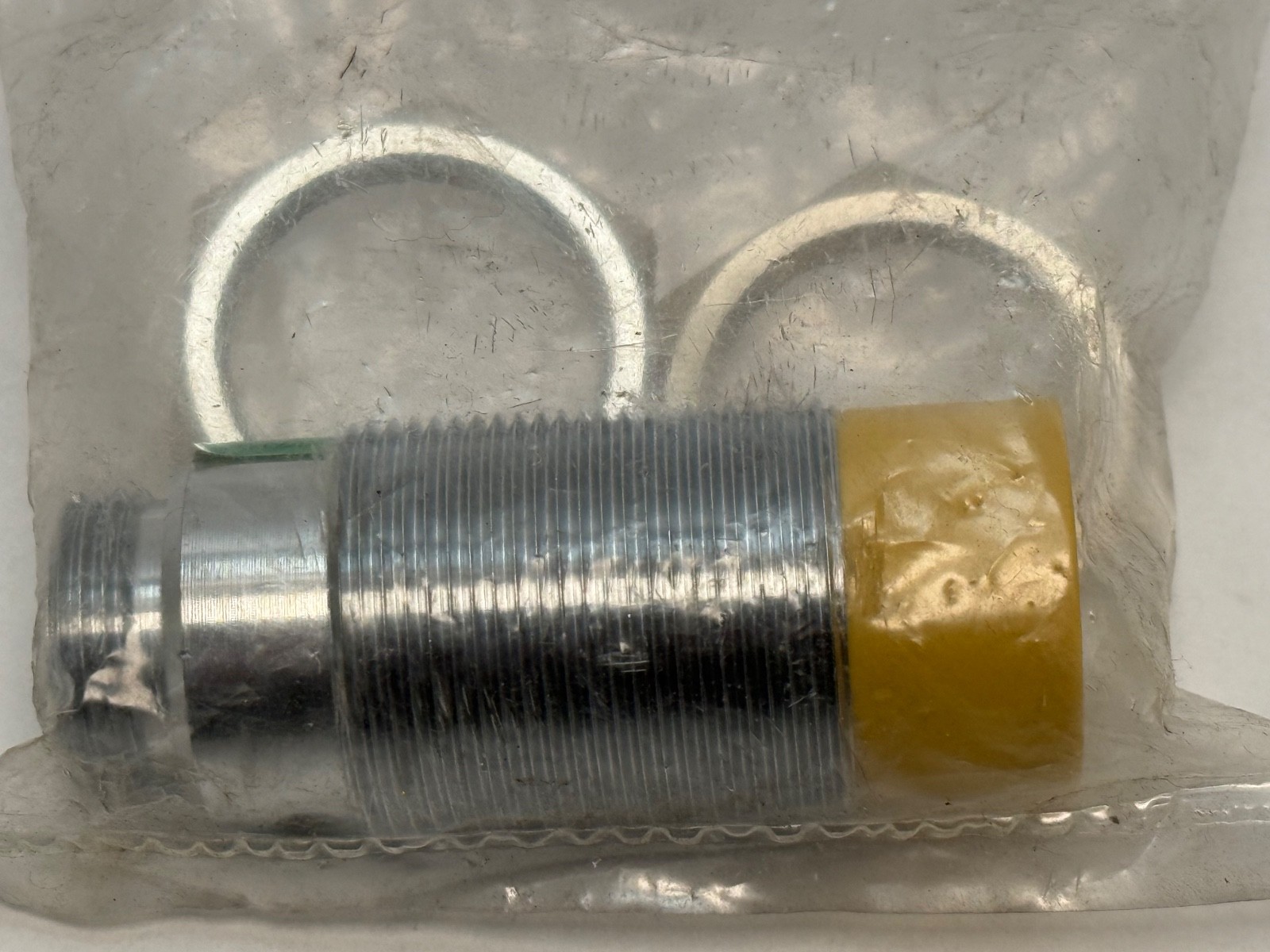

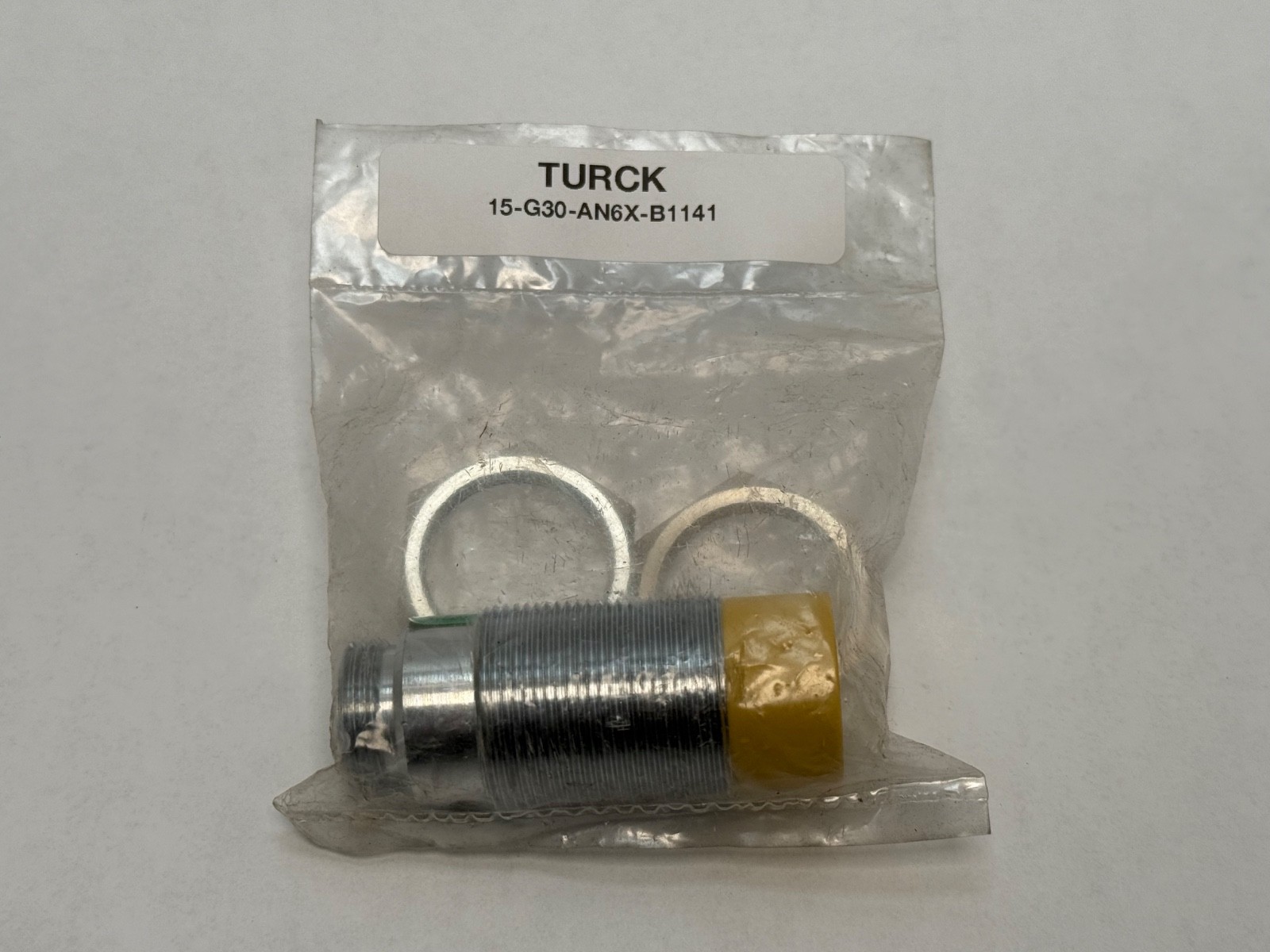

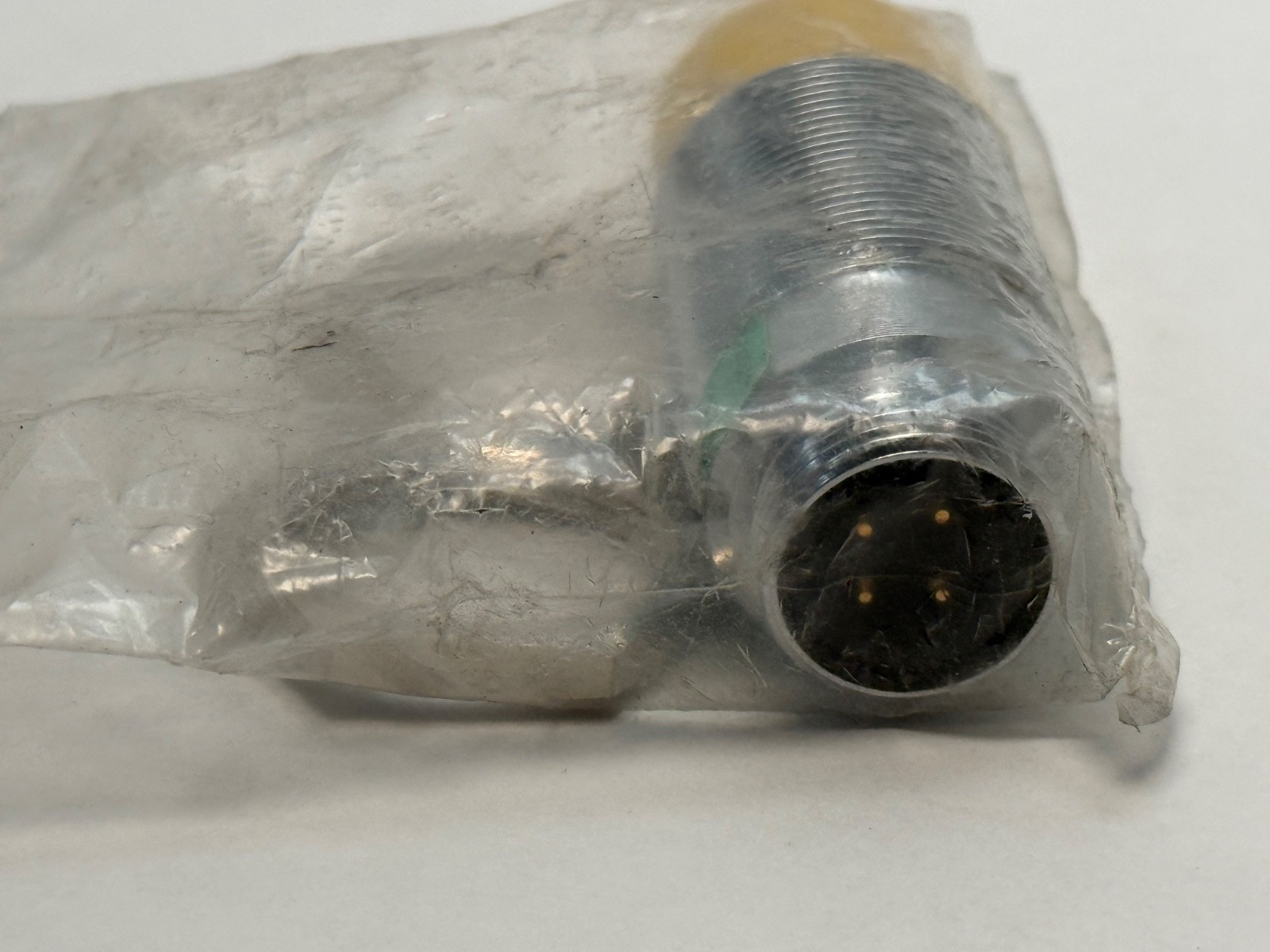

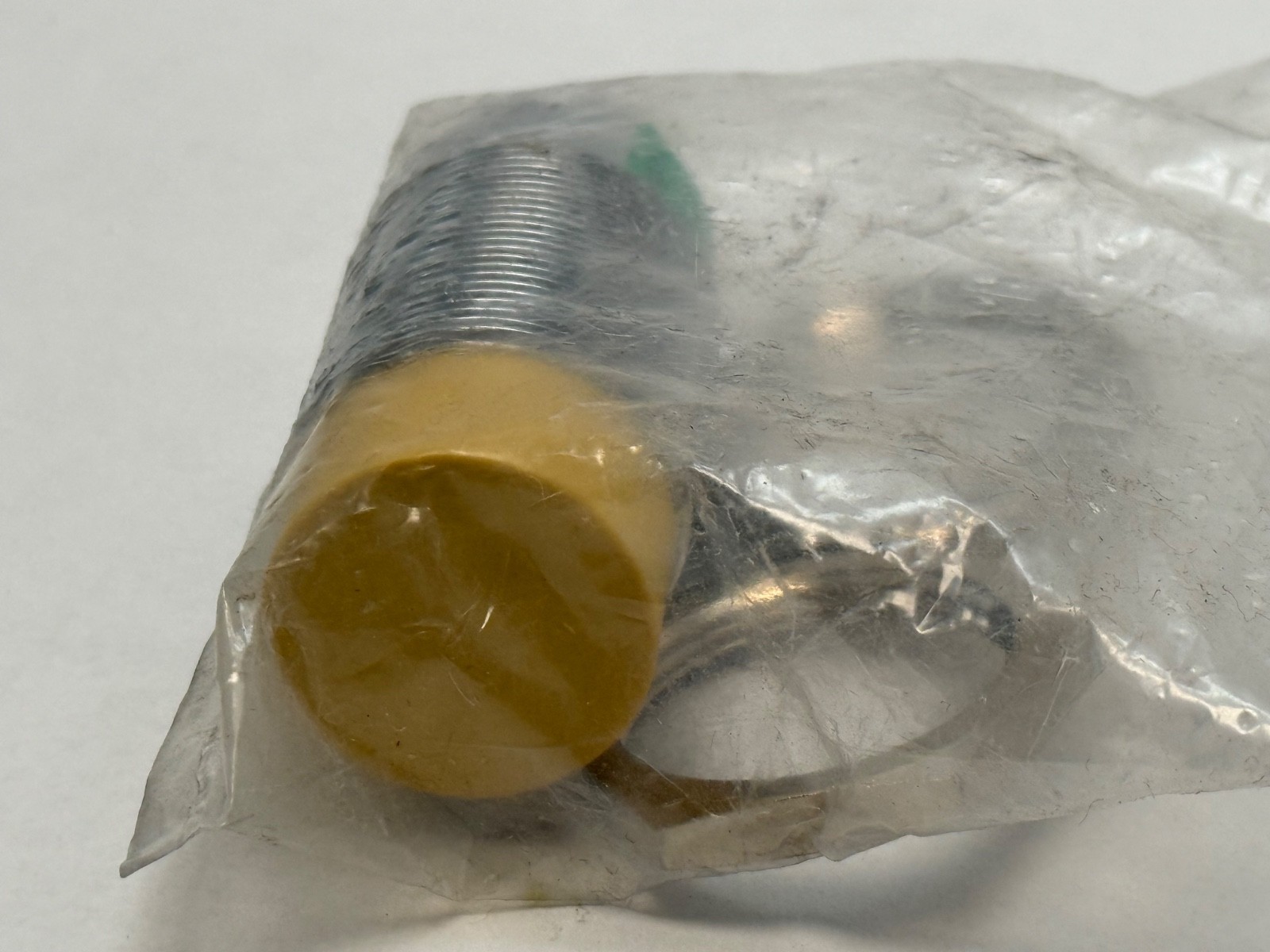

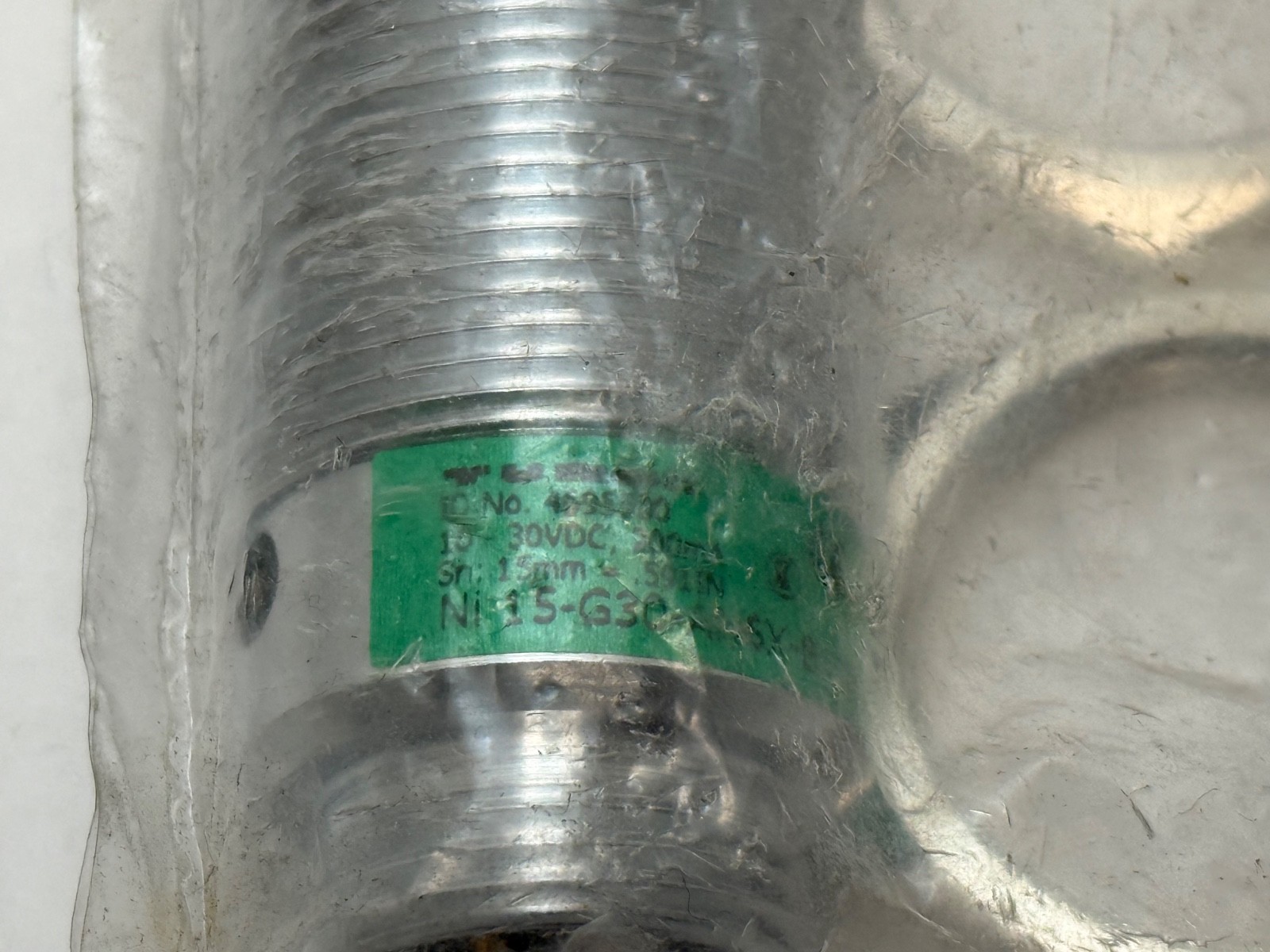

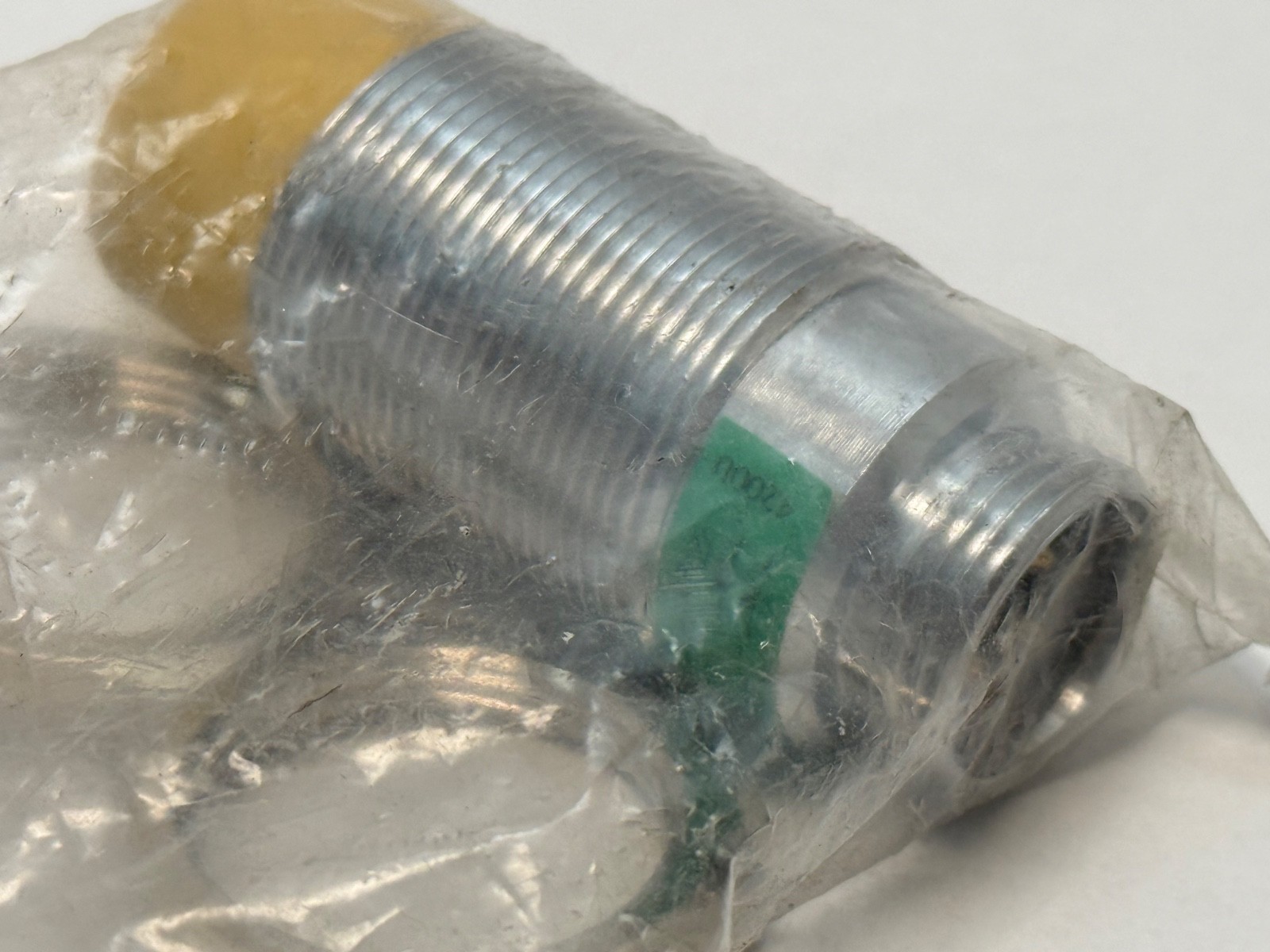

Turck NI15-G30-AN6X-B1141 inductive proximity sensor, 15 mm non-flush sensing, threaded brass barrel, NPN normally open output, 7/8 in connector, IP67 rated.
List Price
$42.46
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Turck |
|---|---|
| Model | 46955 |
| Base Number | NI15-G30-AN6X |
|---|---|
| Industry Terms | Inductive proximity switch, prox sensor, non-embeddable sensor |
| Common Misspellings | BI15-G30-AN6X-B1141, NI15-G30-AN6X-B1144, NI15-G30-AN6X |
| Application Types | Non-contact detection of metal targets in industrial automation |
| Termination Type | Connector |
| Output Type | NPN |
| Sensing Technology | Inductive |
| Connector Style | 7/8 in |
| Sensor Type | Inductive |
| Mounting Style | Threaded barrel |
| Minimum Operating Temperature | -25 °C |
| Maximum Operating Temperature | 70 °C |
| Mpn Variants | NI15-G30-AN6X-B1141, 15-G30-AN6X-B1141, NI15G30AN6XB1141, 46955 |
| Compatible With Replaces | Turck order ID 46955 |
| Additional Attributes | Switching frequency: 0.5 kHz; Active face: PA12-GF30 |
| Series | NI15-G30 |
| Type | Inductive Proximity Sensor |
| Current Type | DC |
| Ip Rating | IP67 |
| Housing Material | Metal, CuZn (brass) |
| Mounting Type | Non-flush |
| Body Style | Threaded Barrel |
| Shield | Unshielded |
| Contact Form | Normally Open (NO) |
The Turck NI15-G30-AN6X-B1141 is a DC inductive proximity sensor in a threaded metal barrel, Turck order ID no. 46955. It detects metal targets without contact at a rated switching distance of 15 mm and connects through a 7/8 in connector.
Sensor Type: Inductive proximity sensor. Rated Switching Distance: 15 mm. Mounting Conditions: Non-flush. Output Function: NPN. Switching Element Function: Normally open (NO). Operating Voltage: DC. Switching Frequency: 0.5 kHz. Protection Class: IP67. Electrical Connection: Connector. Connector Type: 7/8 in. Operating Temperature: -25 °C to 70 °C.
Design: Threaded barrel. Housing Material: Metal, CuZn (brass). Active Face Material: PA12-GF30. Mounting: Non-flush, with the active face standing proud of the surrounding metal.
Turck Order ID: 46955. Related Turck executions in the same housing: NI15-G30-AP6X-B1141 (PNP output) and NI15-G30-VN4X-B1141 (NPN complementary output). CAD model and data sheet: available from Turck (turck.us).
What is the sensing range of the NI15-G30-AN6X-B1141?
Rated switching distance: 15 mm, non-flush mounting.
What output does it have?
NPN output with a normally open (NO) switching element, DC operating voltage.
What is its Turck order number?
Turck order ID no. 46955.
