LeuzeRK 72/4Retro-Reflective Photoelectric Sensor — 0.1-4 m Range, 12-30 V DC, PNP Output, IP67, 2 m Cable

Condition: Used

Availability:

1 in stock

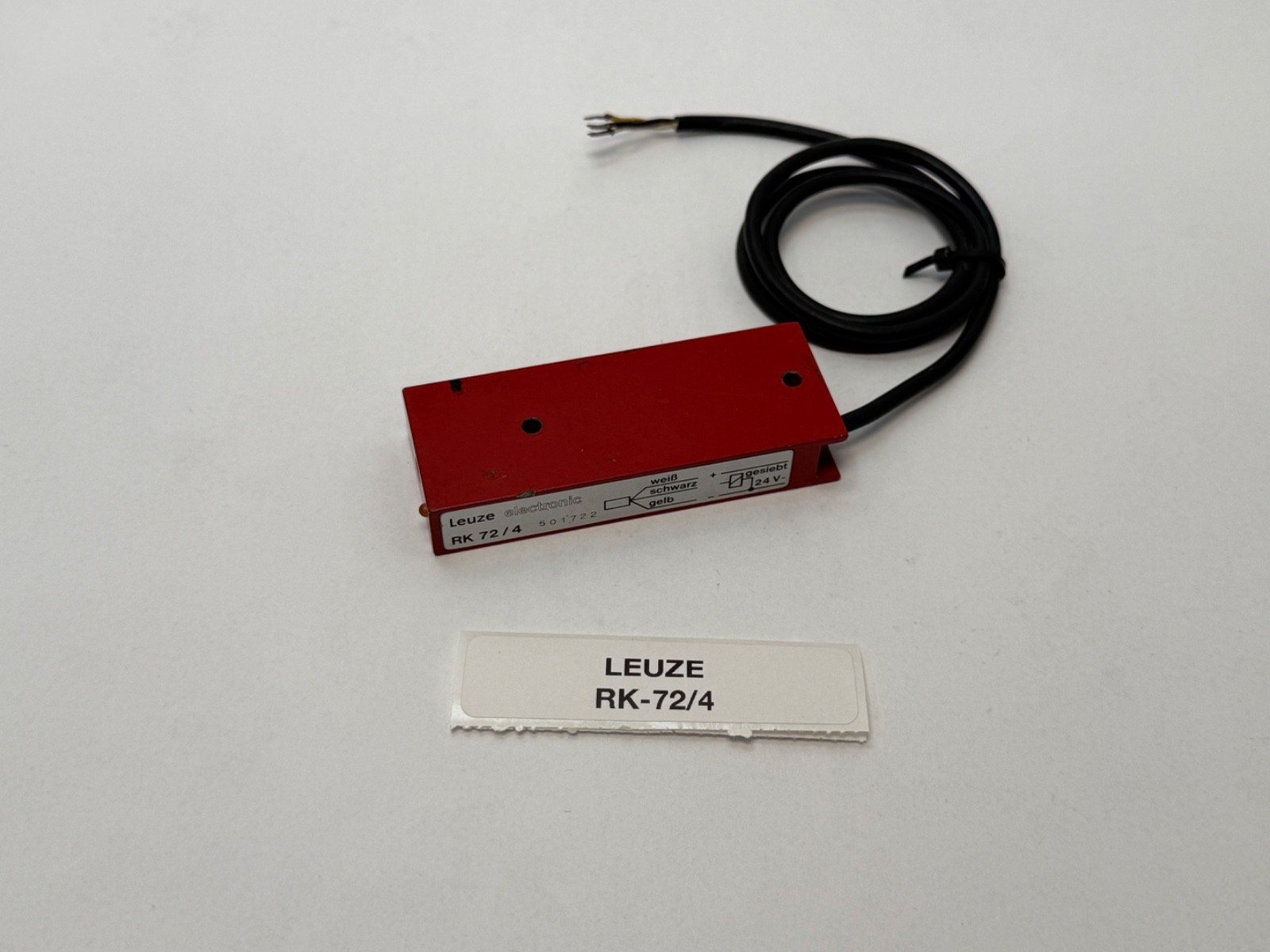

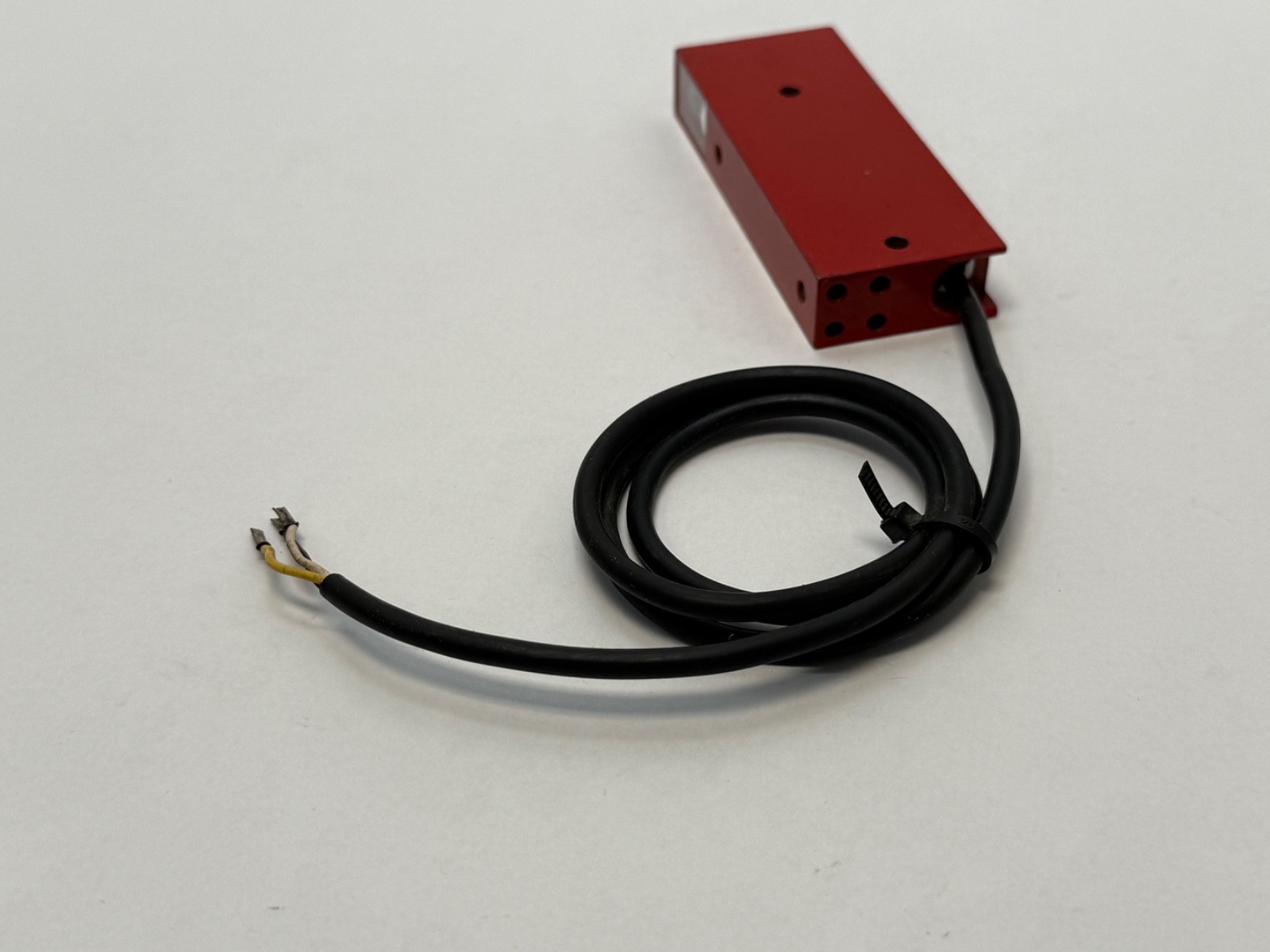

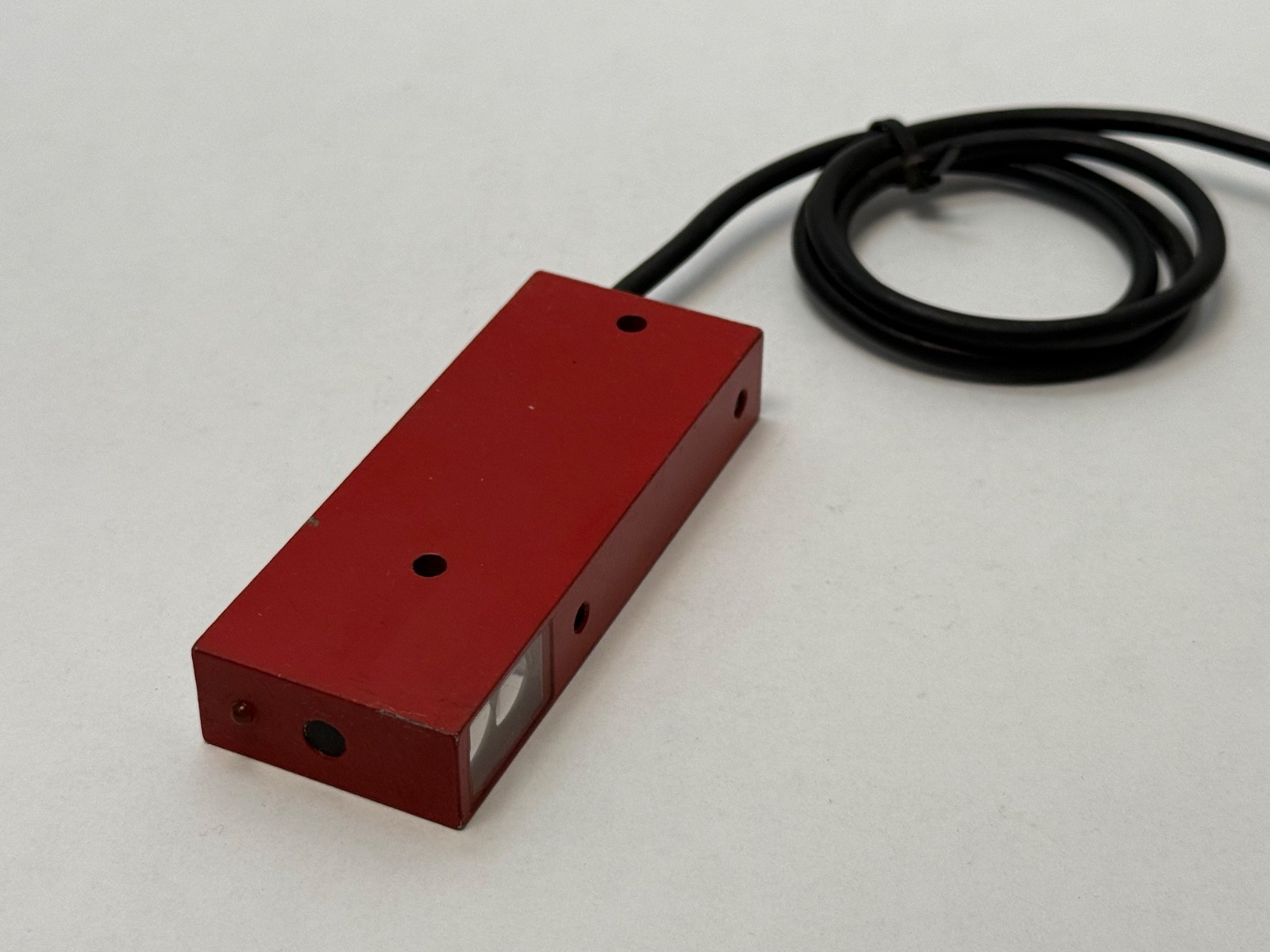

Leuze RK 72/4 unpolarized retro-reflective photoelectric sensor, 12-30 V DC, PNP light/dark switching output, 0.1-4 m range, IP67 metal housing, 2 m cable.

Same day shipment

List Price

$59.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandLeuze
MPNRK 72/4
Model50000413

Technical Specifications

TypeRetro-Reflective Photoelectric Sensor
Current TypeDC
Base NumberRK 72
Industry TermsRetro-reflective photoelectric sensor, reflex light barrier, photo eye, reflector sensor
Common MisspellingsLeuse RK72/4, RK 724, RK72-4
Input Voltage12-30 V DC

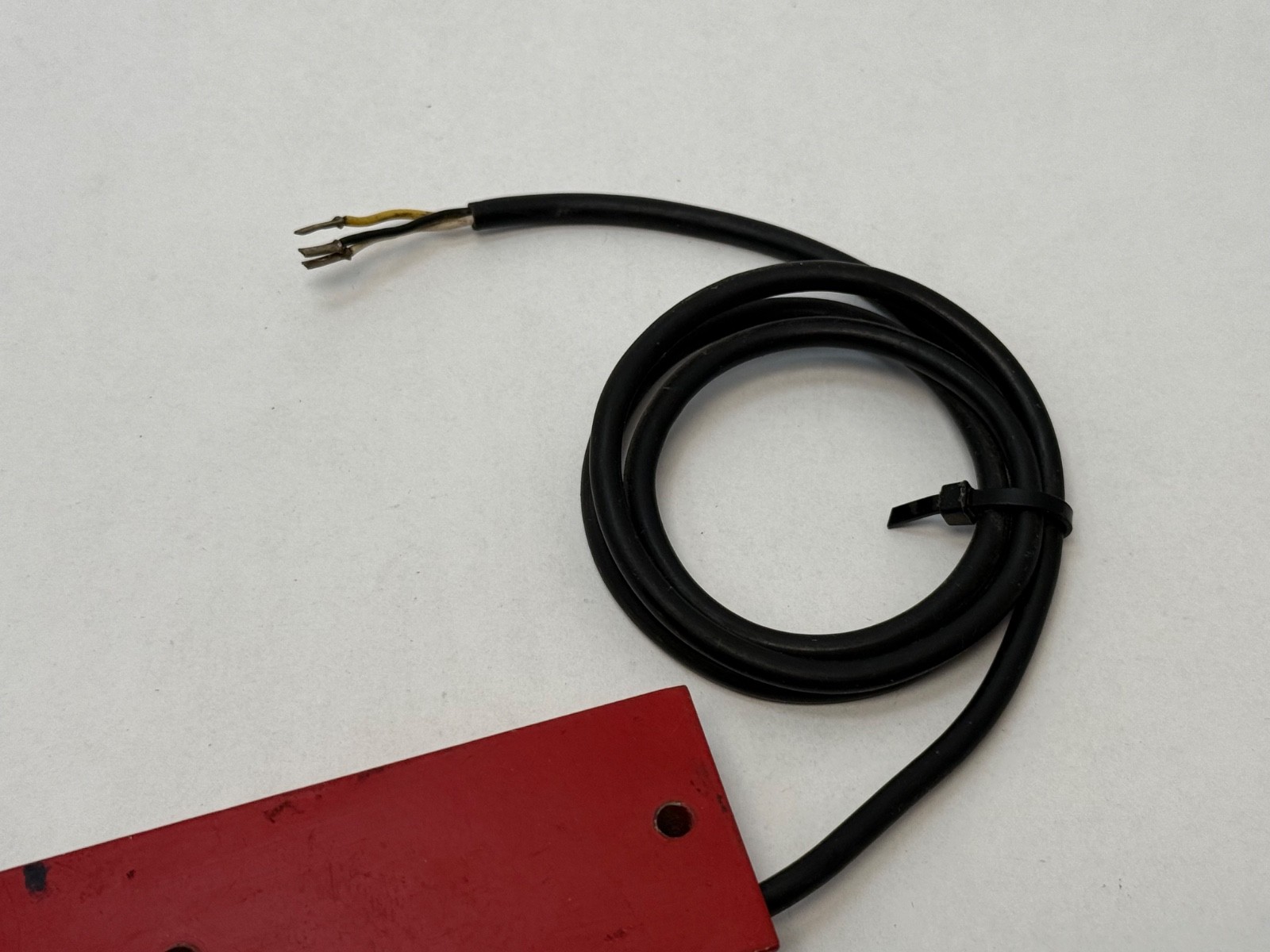

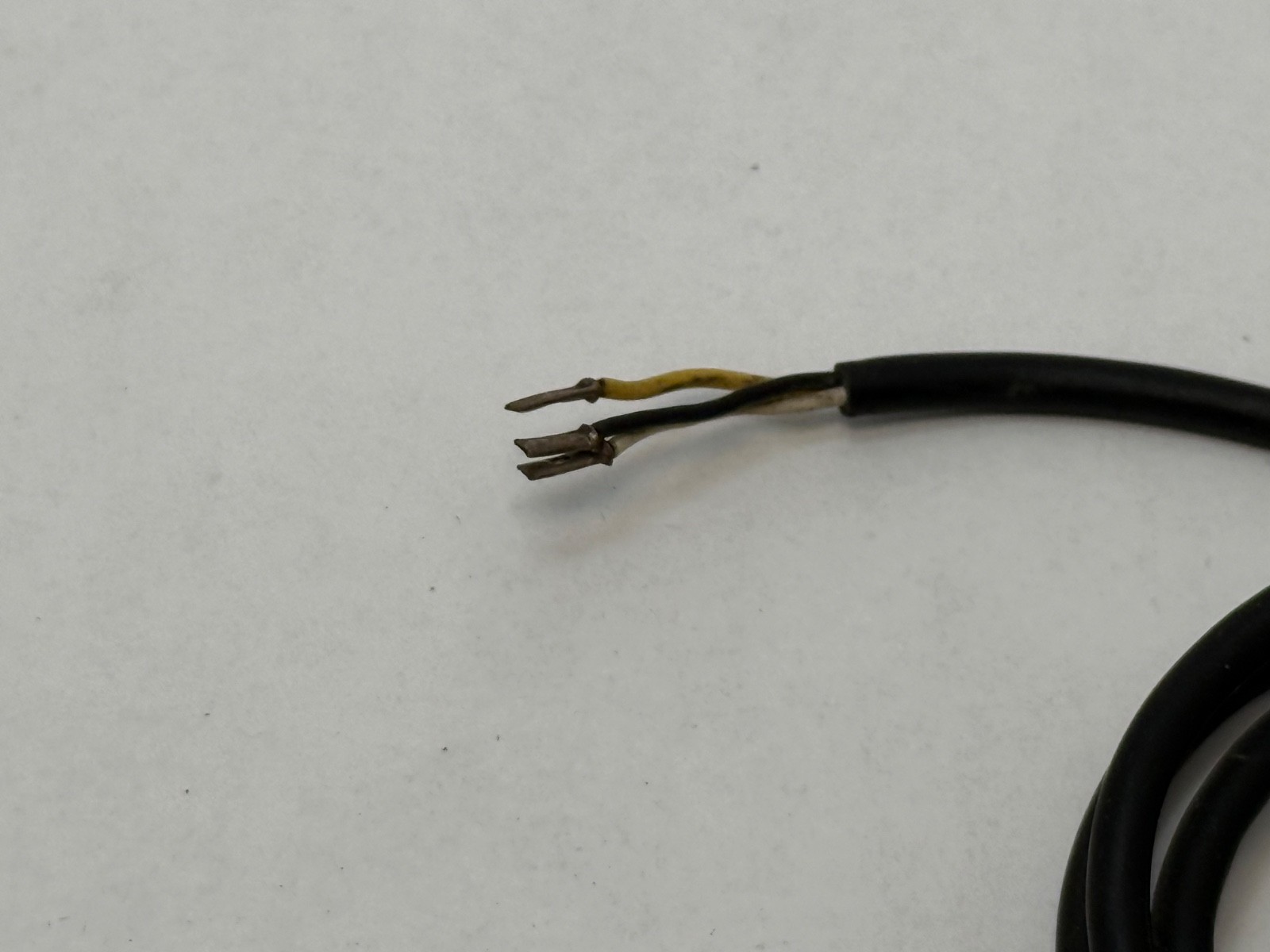

Termination TypeCable, 3-wire, 2 m
Output TypePNP transistor, light/dark switchable
Sensing TechnologyRetro-reflective, unpolarized, infrared LED
Analog DigitalDigital
Sensor TypePhotoelectric
Item Width15 mm
Item Height90 mm
Item Length35 mm
Minimum Operating Temperature-20 °C
Maximum Operating Temperature60 °C
Mpn VariantsRK 72/4, RK72/4, RK-72/4, 50000413
Manufacturer StatusDiscontinued
Compatible With ReplacesLeuze successor device: RK18B.1/4P-6000 (part no. 50117374); plug version: RK 72/4 S (part no. 50000419)
Ip RatingIP67
Mounting TypeThrough-hole mounting
Compatible ModelLeuze RK18B.1/4P-6000 (50117374) successor
Seller Part Number: AD1B1#GHBOVM

Product Description

What this part is

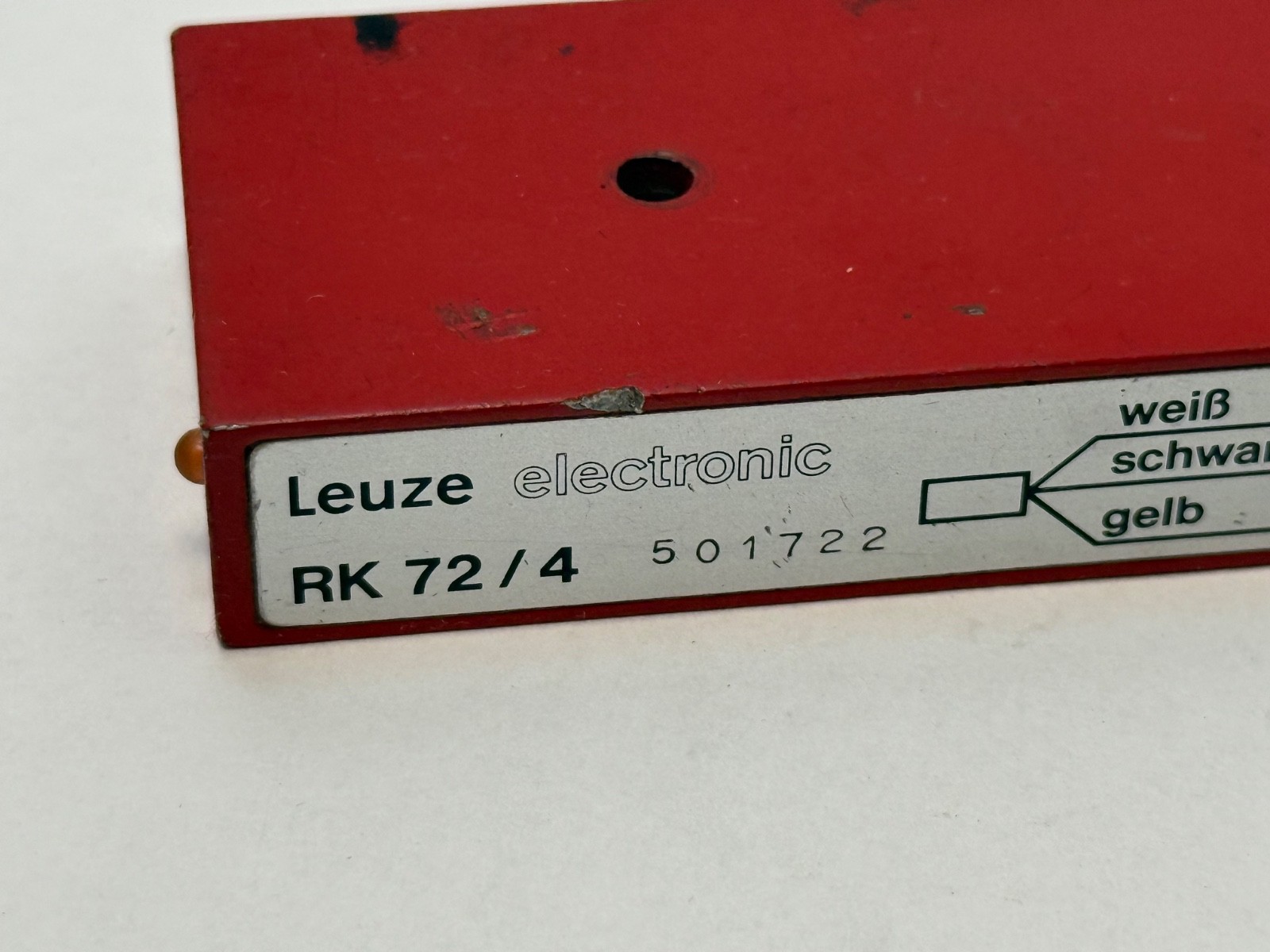

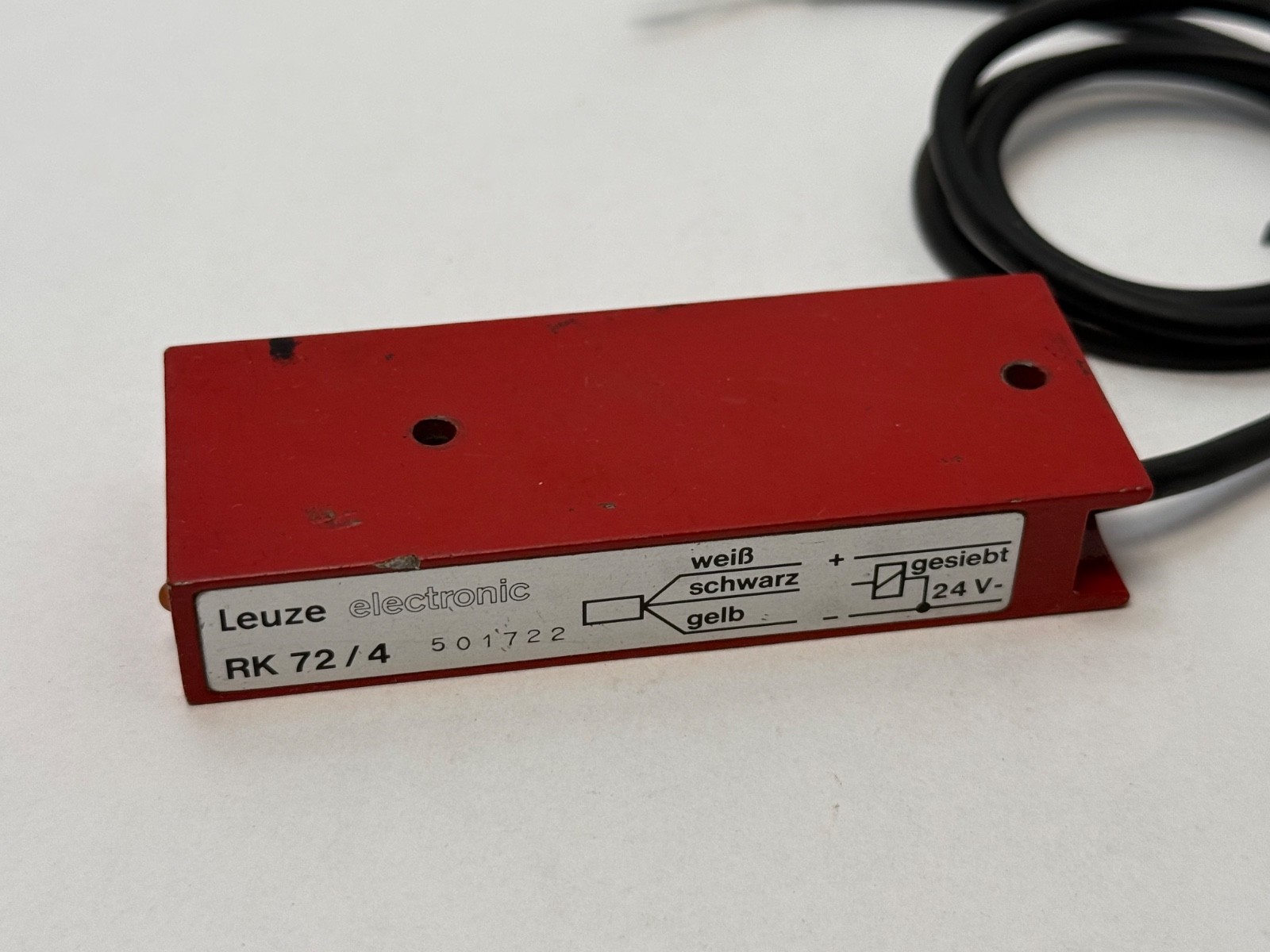

The Leuze RK 72/4 is an unpolarized retro-reflective photoelectric sensor from the Leuze 72 series, Leuze part no. 50000413. It sends an infrared LED beam to a reflector and switches when an object interrupts the beam. Supply Voltage: 12–30 V DC. Output: one PNP transistor switching output, light/dark switchable. Housing: red metal housing with a glass lens cover, IP67.

Specifications

Operating Principle: Reflection principle, unpolarized retro-reflective. Light Source: Infrared LED. Operating Range: 0.1–4 m guaranteed. Operating Range Limit: 0.1–6 m typical. Supply Voltage: 12–30 V DC. Protective Circuit: Polarity reversal protection. Number of Switching Outputs: 1. Switching Element: PNP transistor. Switching Principle: Light/dark switchable. Switching Frequency: 100 Hz. Response Time: 5 ms. Connection: Cable, 3-wire, 2,000 mm long. Degree of Protection: IP67. Operating Temperature: −20 to 60 °C. Storage Temperature: −30 to 70 °C. Customs Tariff Number: 85365019. ETIM Class: EC002717. ECLASS: 27270902.

Dimensions and mounting

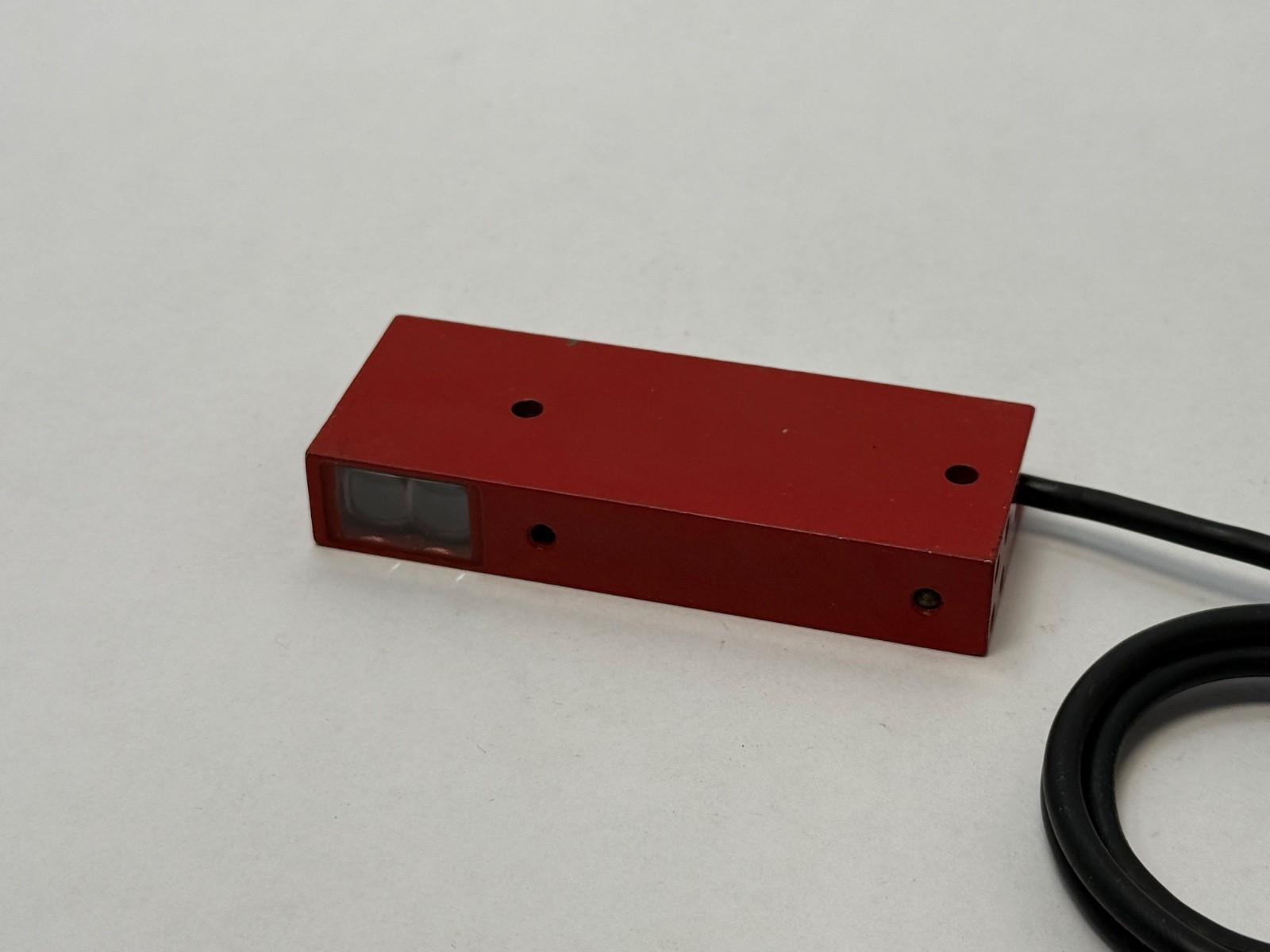

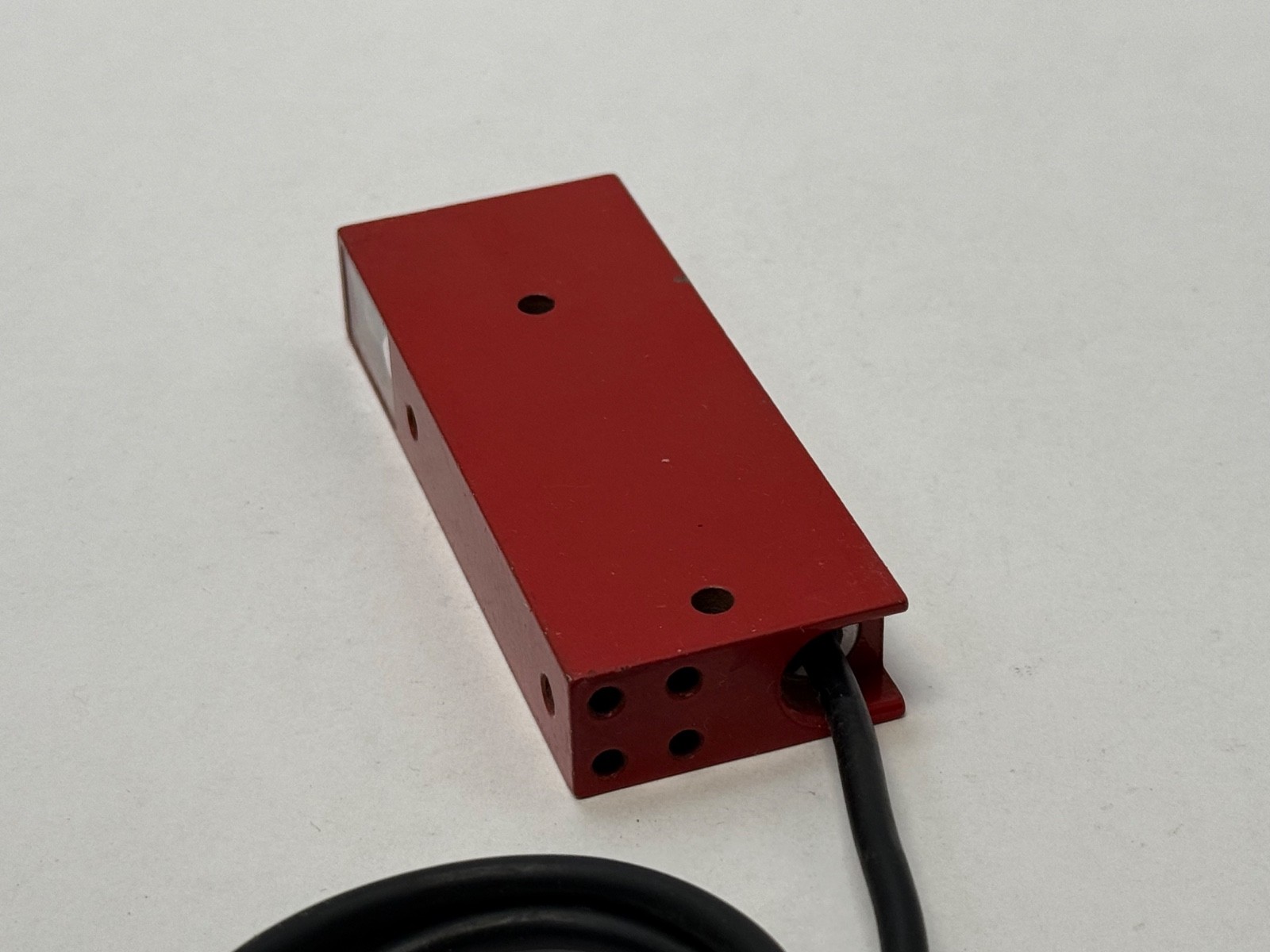

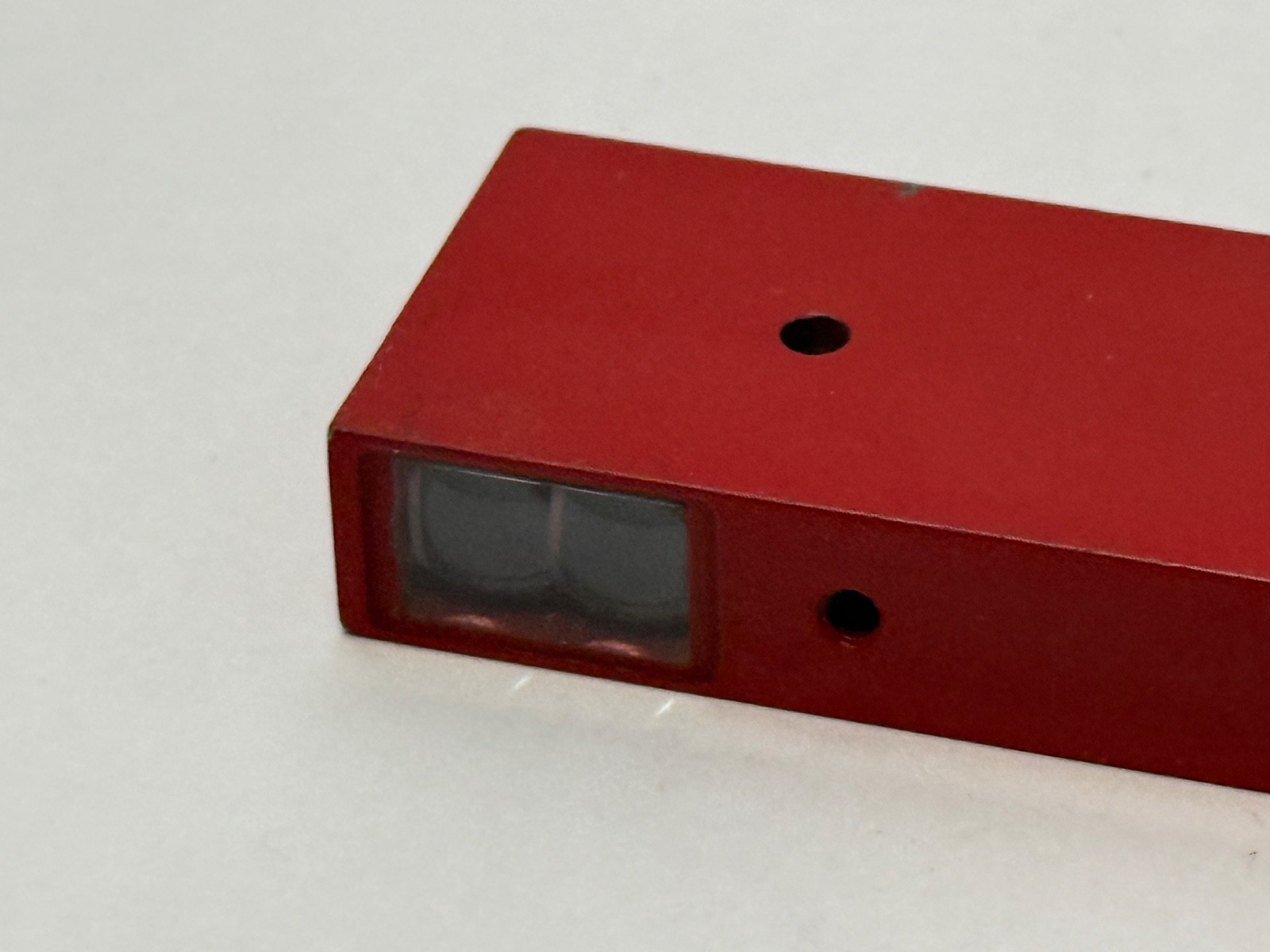

Dimensions (W x H x L): 15 mm x 90 mm x 35 mm. Housing Material: Metal. Lens Cover: Glass. Housing Color: Red. Fastening: Through-hole mounting, or via an optional Leuze mounting device.

Compatibility and replacement

Leuze lists the RK 72/4 as no longer available and names the RK18B.1/4P-6000 (part no. 50117374) as its successor device, an unpolarized retro-reflective sensor with a 0–6 m maximum operating range. The RK 72/4 S (part no. 50000419) is the same sensor with a 4-pin plug connection in place of the 2 m cable.

CAD model and data sheet: available from Leuze (leuze.com).

Frequently asked questions

What is the Leuze part number for the RK 72/4?
Leuze part no. 50000413.

What output does the RK 72/4 have?
One PNP transistor switching output, light/dark switchable, with a 100 Hz switching frequency and 5 ms response time.

What replaced the Leuze RK 72/4?
Leuze names the RK18B.1/4P-6000, part no. 50117374, as the successor device.
