Elan safety relay module, 24 VDC supply, three NO safety contacts rated 4 A at 230 VAC (AC-15) and 24 VDC (DC-13), stop category 0, IP40 housing.
List Price
$122.82
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Elan |
|---|---|
| MPN | SRB-NA-R-C.15-24V |
| Model | SRBNARC15-24V |
| Coil Voltage | 24 VDC |
|---|---|
| Condition | Used |
| Type | Safety Relay Module |
| Additional Attributes | Standards: EN 954-1, EN 60204-1; BIA No. 97201; UL E54284; CSA LR13571 |
| Base Number | SRB-NA-R-C.15 |
| Industry Terms | safety relay, safety relay module, emergency stop relay, guard monitoring relay |
| Common Misspellings | SRBNARC15, SRB NA R C15, SRB-NAR-C.15 |
| Application Types | Machine safety, emergency stop circuits, guard door interlocks |
| Input Voltage | 24 VDC |
| Termination Type | Screw terminal |
| Output Type | Relay contacts, stop category 0 |
| Current Rating | 4 A AC-15 at 230 VAC; 4 A DC-13 at 24 VDC |
| Minimum Operating Temperature | -25 °C |
| Maximum Operating Temperature | 55 °C |
| Voltage | 250 V AC/DC contact rating |
| Mpn Variants | SRB-NA-R-C.15-24V, SRBNARC15-24V, SRB-NA-R-C15, SRB-NA-R-C.15/SX |
| Manufacturer Status | Discontinued |
| Compatible With Replaces | SUNX / Panasonic SRB-NA-R-C.15/SX |
| Series | SRB-NA-R |
| Current Type | DC |
| Ip Rating | IP40 housing, IP20 terminals |
| Application | Emergency stop and safety guard monitoring |

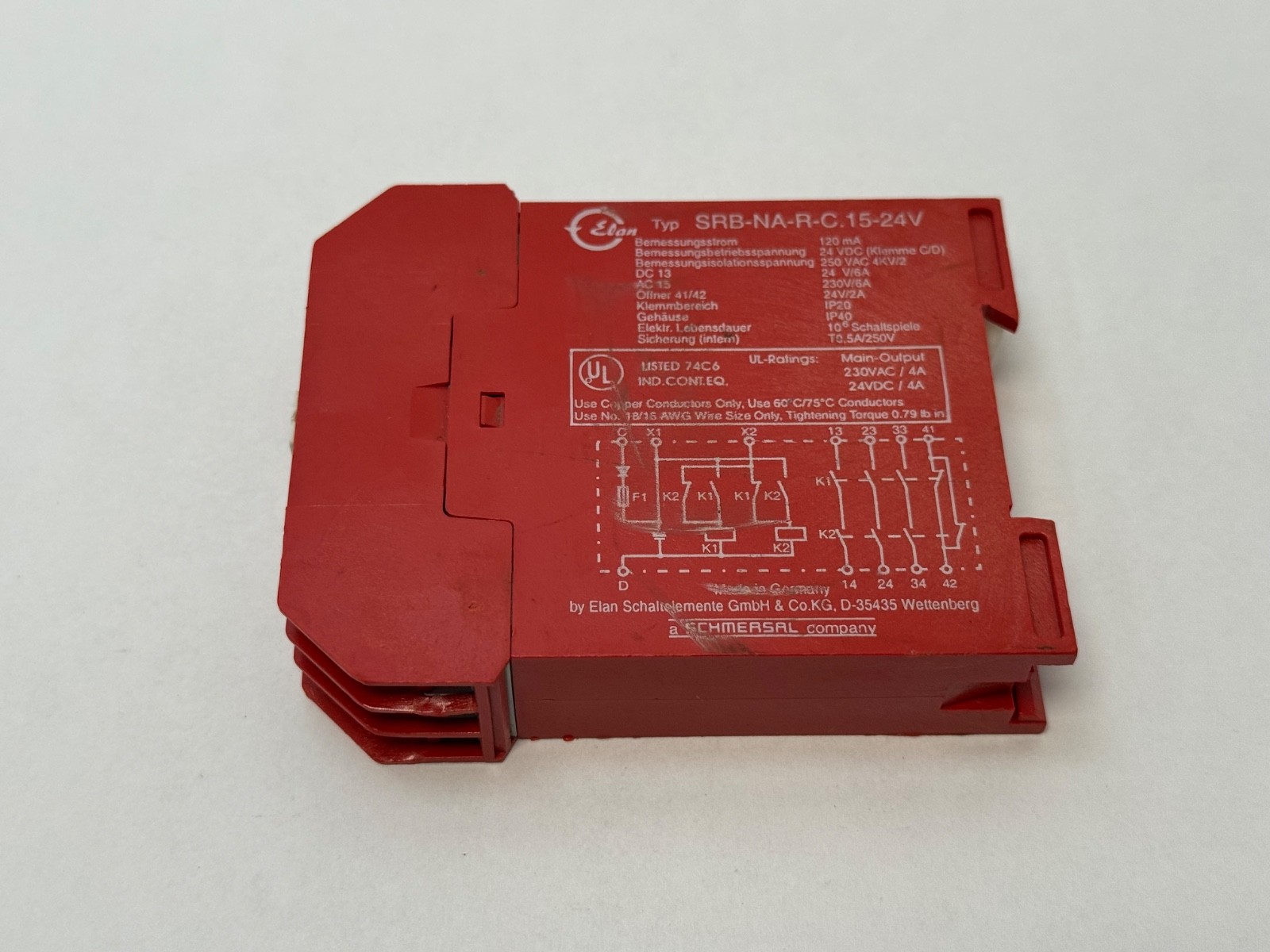

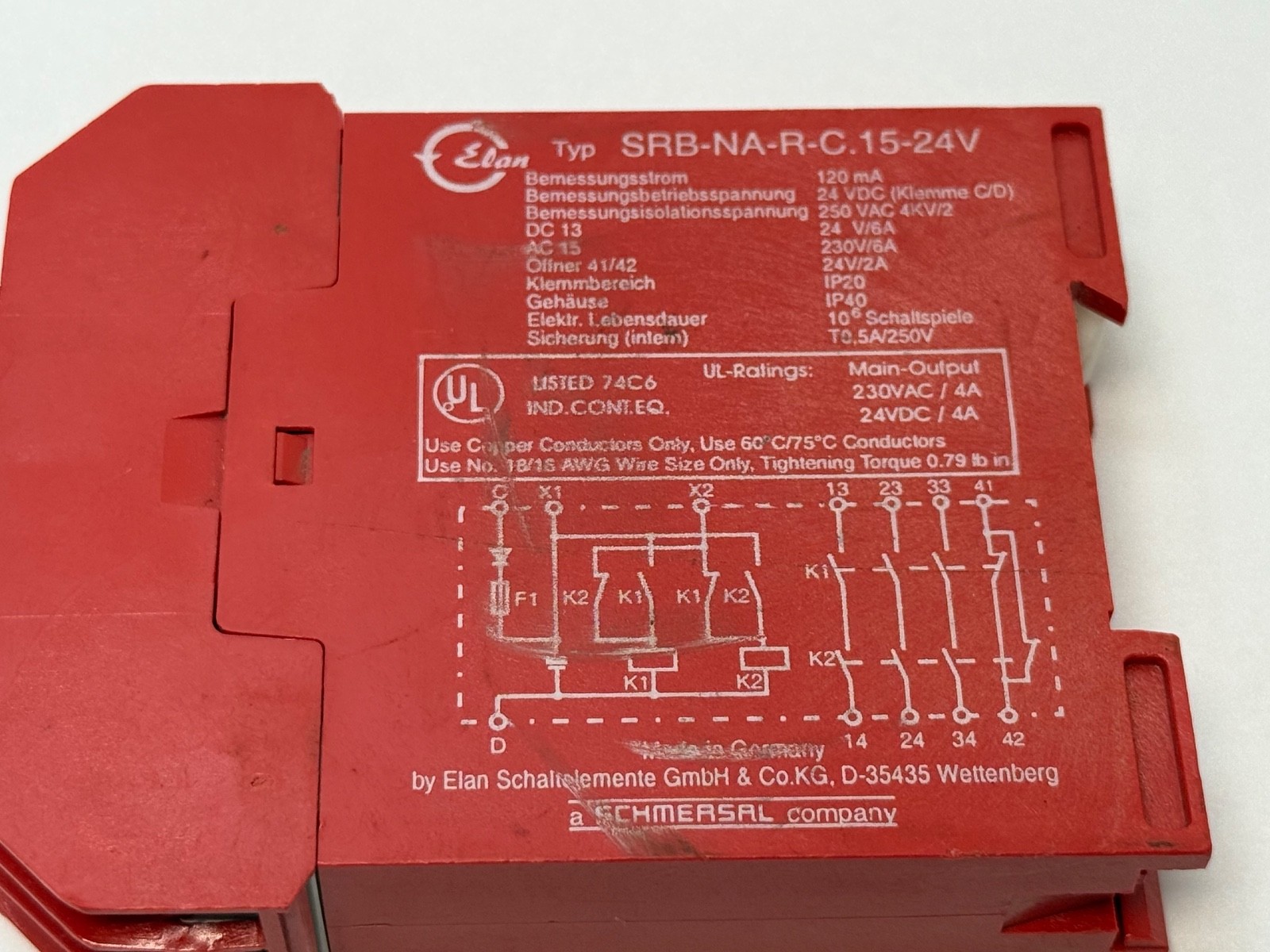

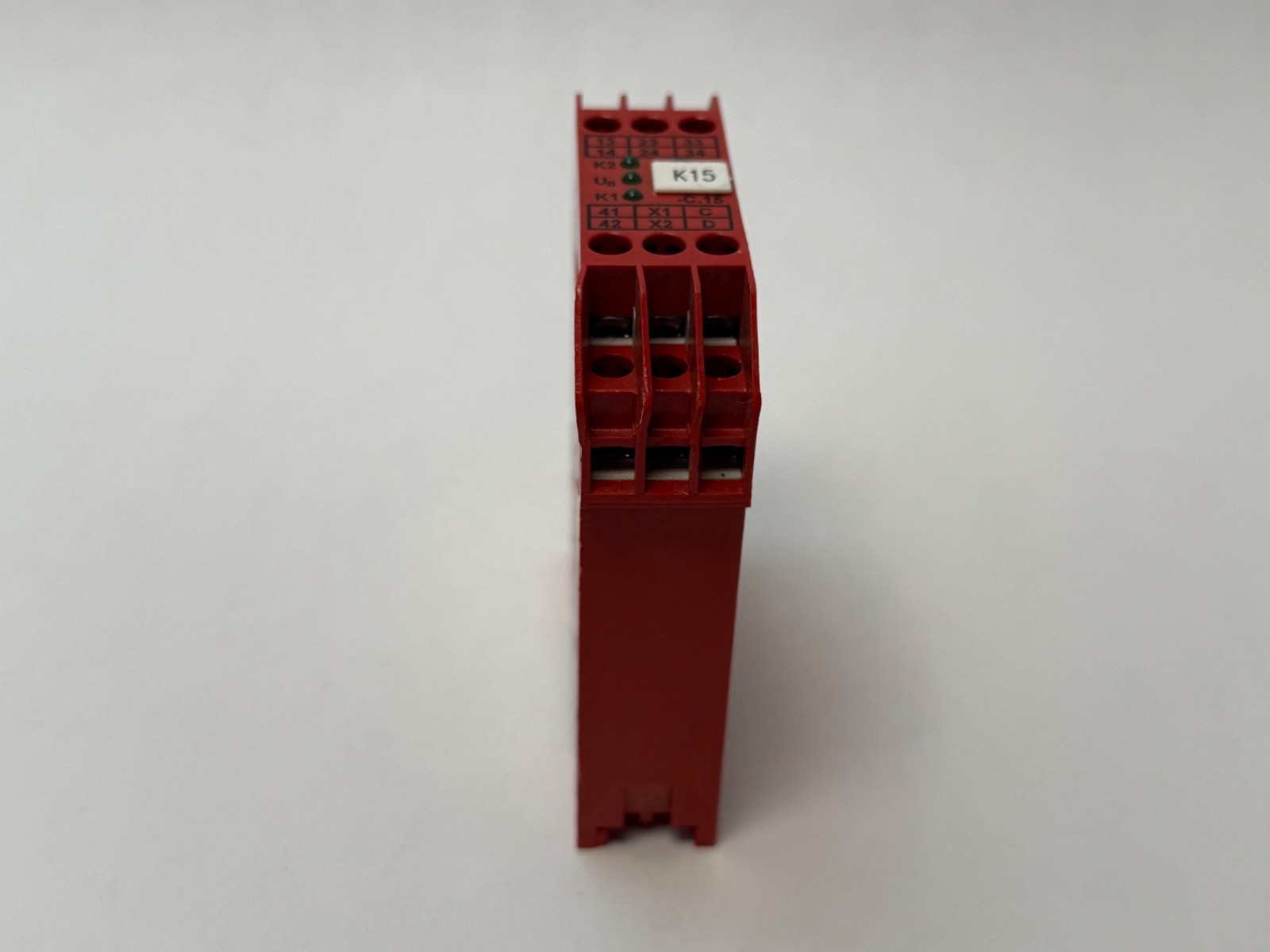

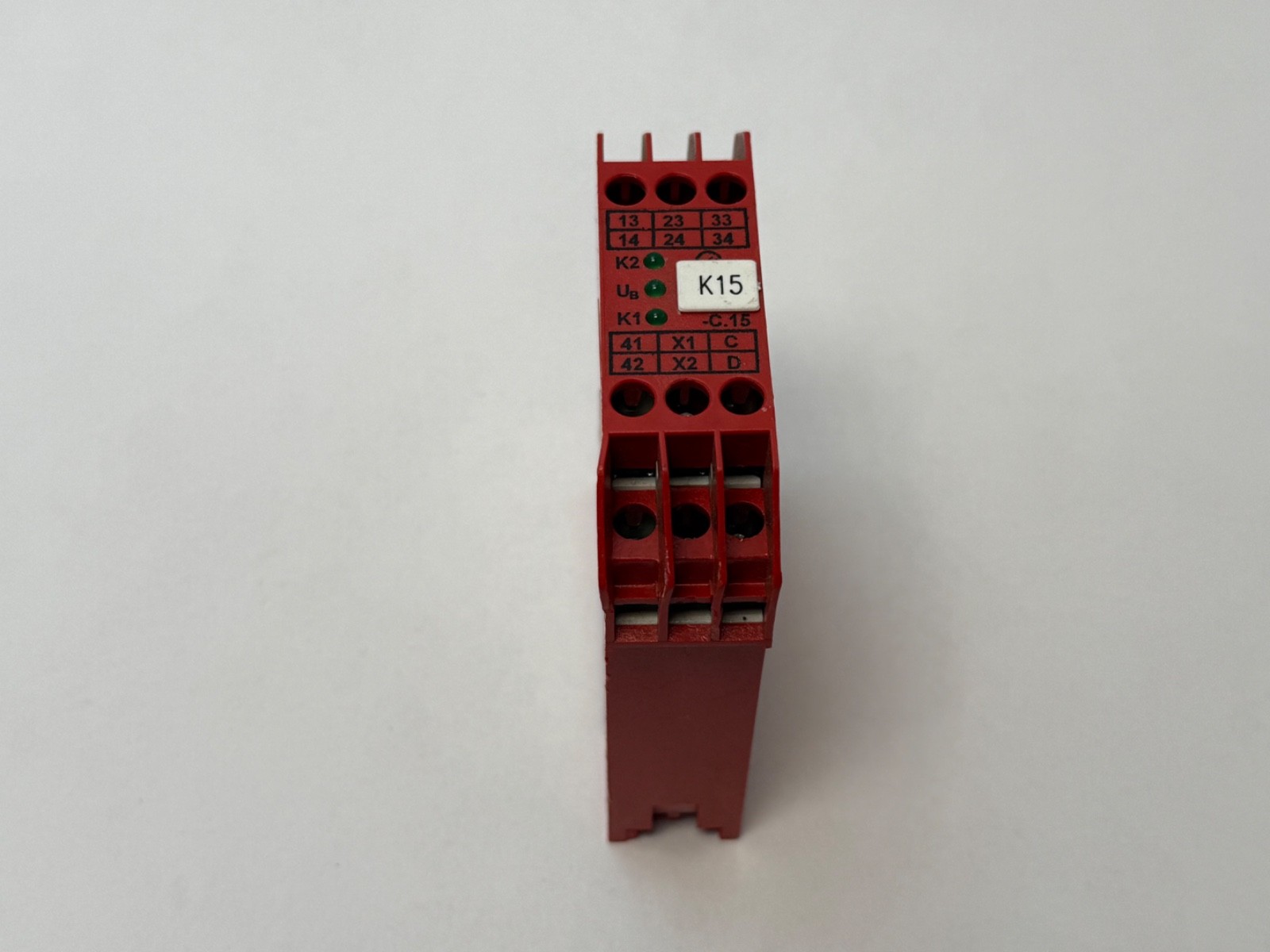

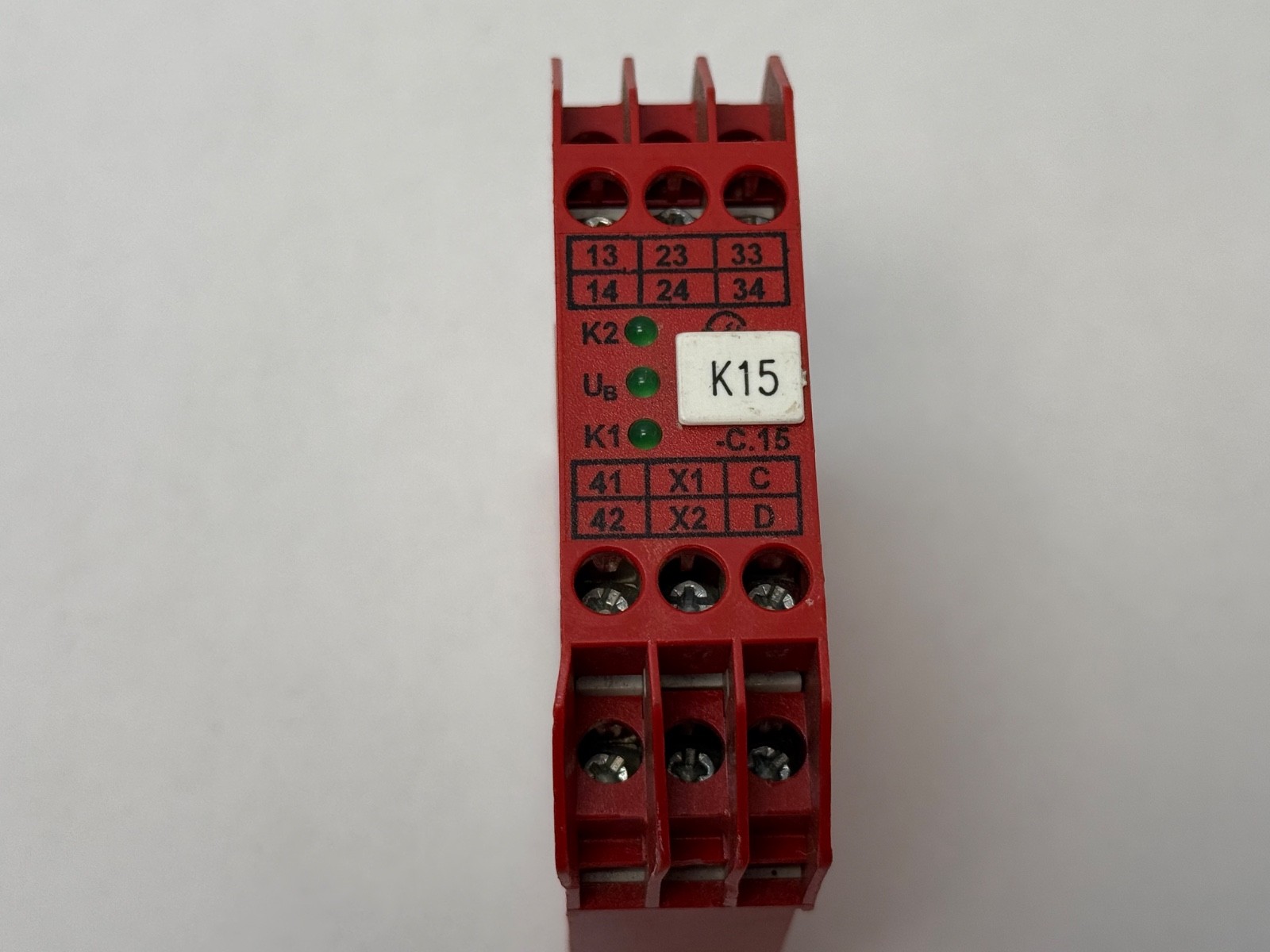

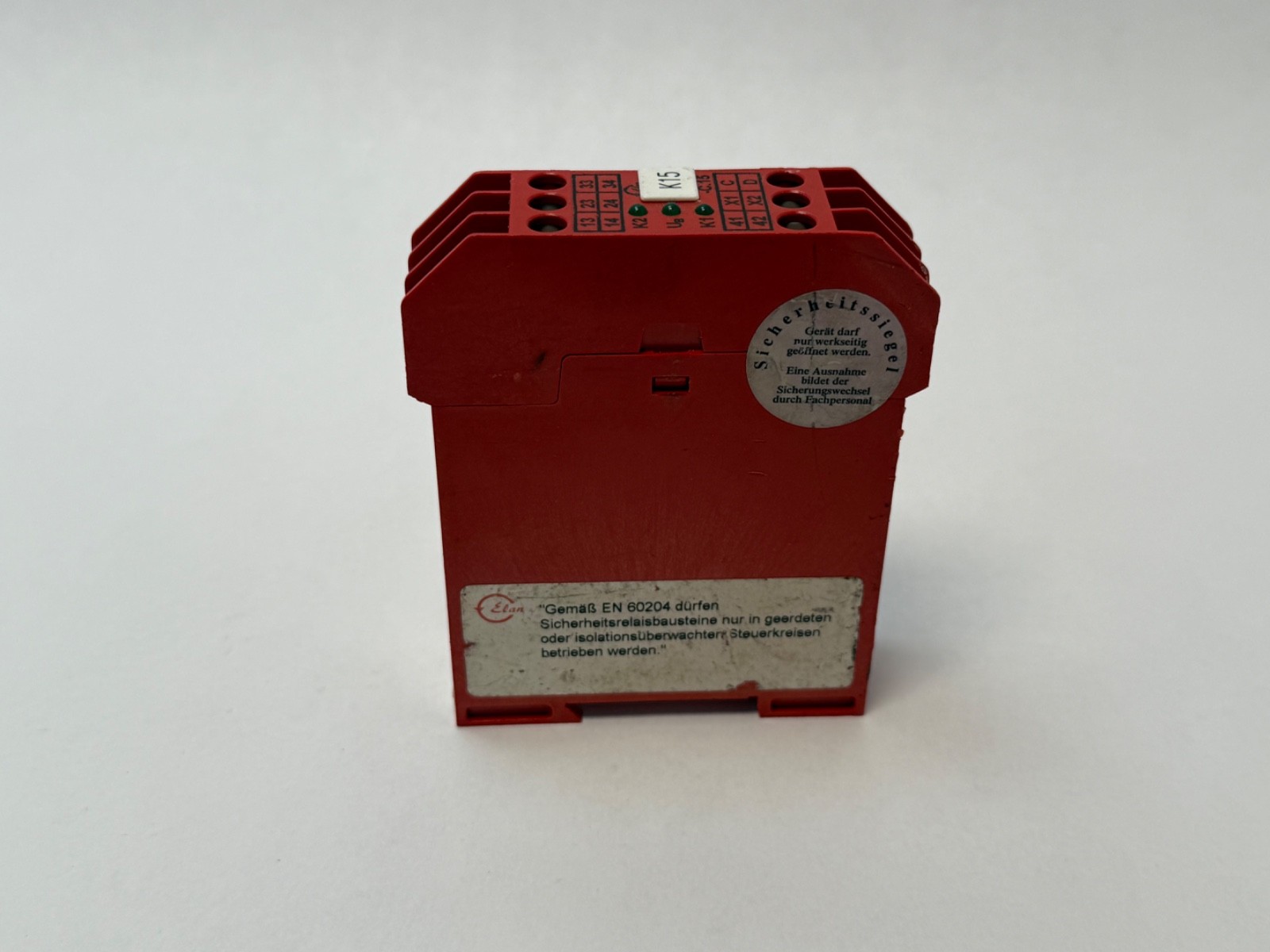

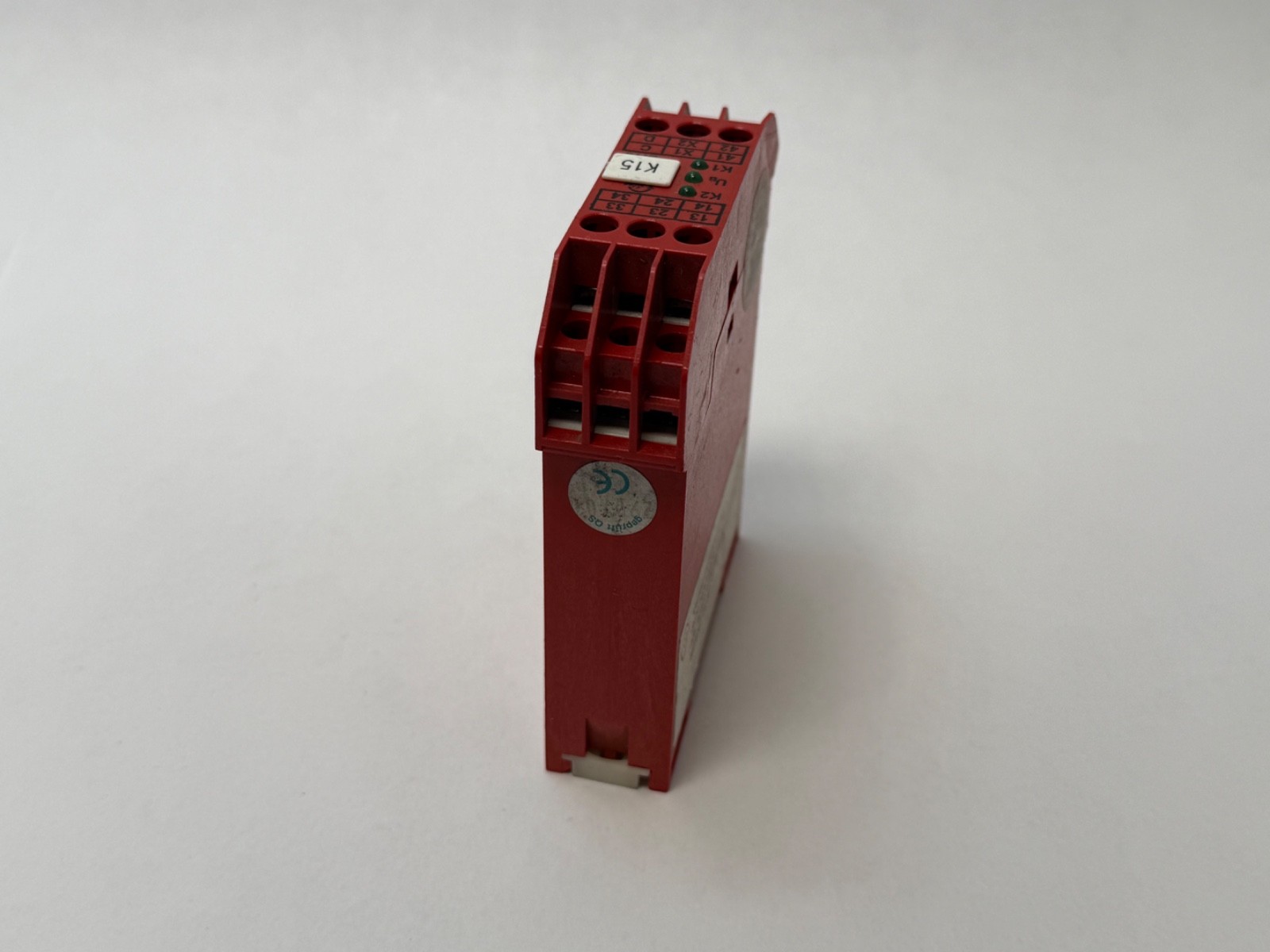

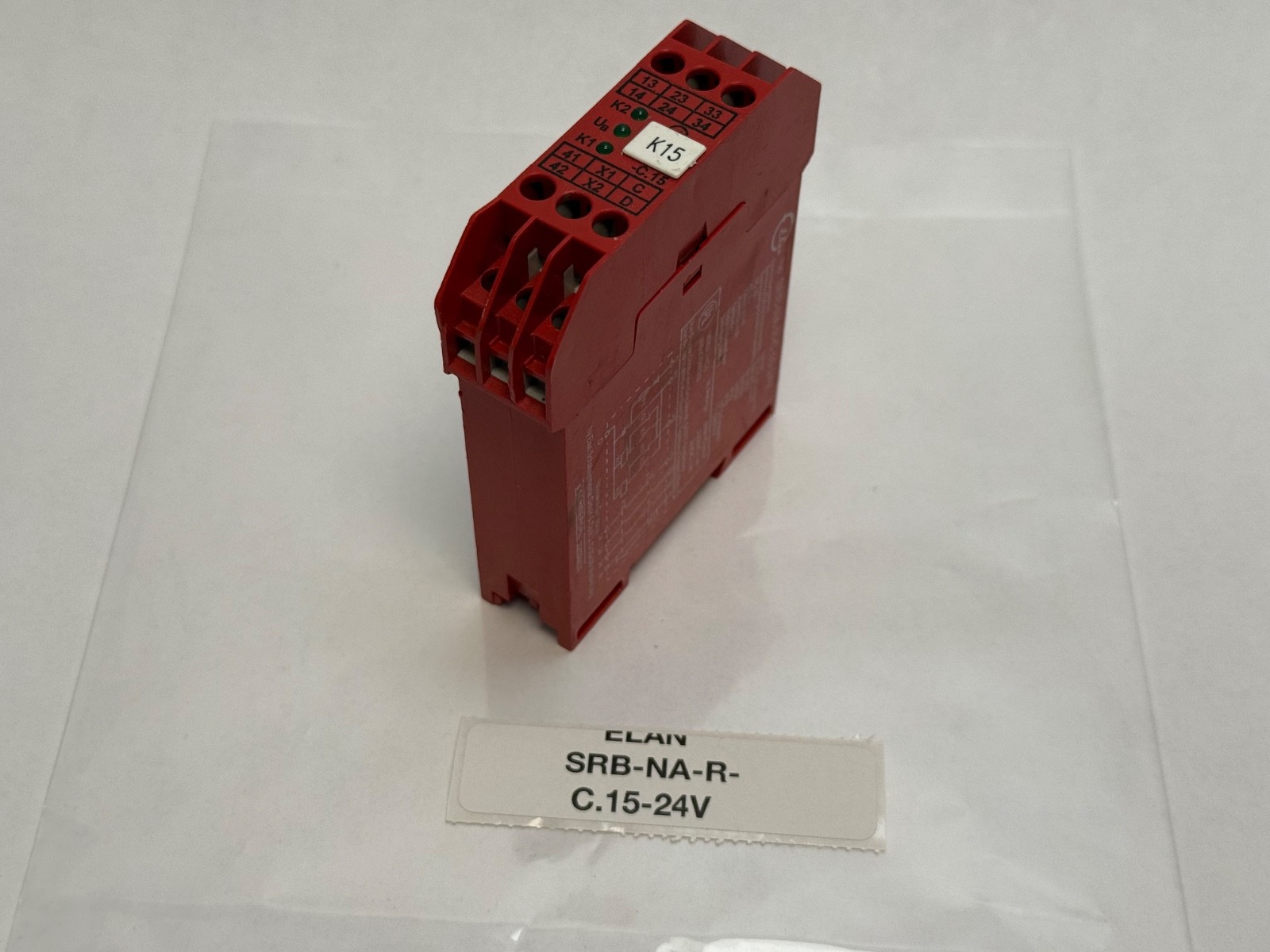

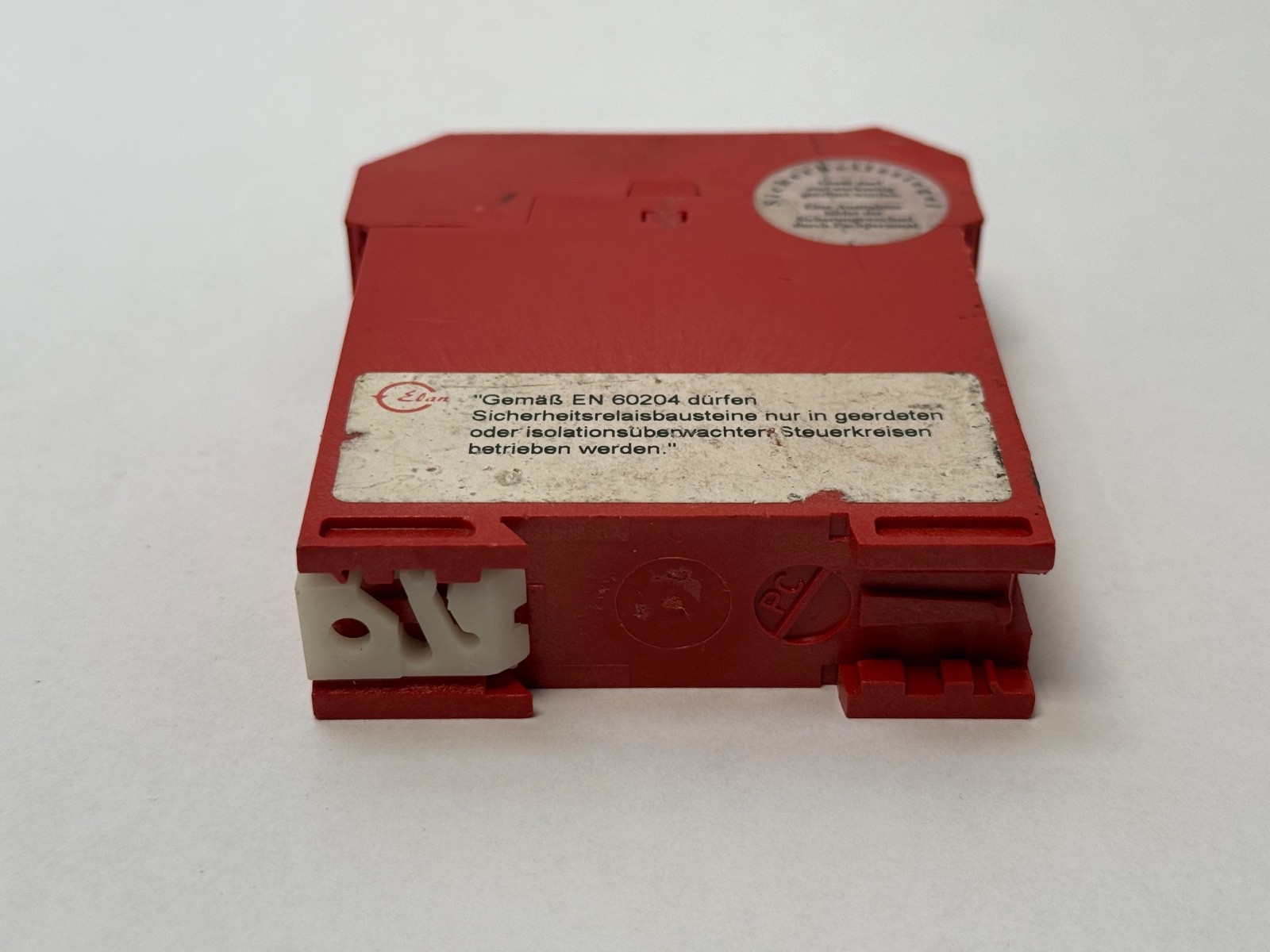

The Elan SRB-NA-R-C.15-24V is a safety relay module from Elan, a Schmersal group brand. It monitors emergency stop and guard circuits and switches three normally open safety contacts. Rated Supply Voltage: 24 VDC. The same unit was sold by SUNX/Panasonic as SRB-NA-R-C.15/SX.
Type: Safety Relay Module. Supply Voltage: 24 VDC, +20% / -15%, ripple 10% P-P or less. Input: contact input. Safety Outputs: 3 NO contacts, stop category 0. Contact Rated Voltage: 250 V AC/DC. Current Rating (EN 60947-5-1): AC-15 4 A at 230 VAC; DC-13 4 A at 24 VDC. Minimum Load: 10 mA at 10 VDC. Contact Resistance: 100 mΩ or less (initial). Response Time, Manual Start: 30 ms or less. Standards: EN 954-1, EN 60204-1, EN 50081-1, EN 50082-2. Approvals: BIA No. 97201, UL E54284, CSA LR13571.
Termination Type: screw terminal block. Wire Size: 0.5 mm² x 1 minimum, 2.5 mm² x 2 maximum. Enclosure Rating: IP40 housing, IP20 terminals. Housing Material: glass-fibre reinforced thermoplastic. Operating Temperature: -25 to +55 °C. Storage Temperature: -25 to +70 °C. Humidity: 35 to 85% RH, non-condensing. Vibration: 10 to 55 Hz, 0.5 mm amplitude. Shock: 15 G, 11 ms.
MPN Variants: SRB-NA-R-C.15-24V, SRBNARC15-24V, SRB-NA-R-C15, SRB-NA-R-C.15/SX. Series: Elan SRB-NA-R. Manufacturer Status: discontinued.
What supply voltage does the SRB-NA-R-C.15-24V use?
24 VDC, with a tolerance of +20% / -15%. The C.15 in the part number is the model code, not a voltage range.
How many safety contacts does it have?
Three normally open safety contacts, rated AC-15 4 A at 230 VAC and DC-13 4 A at 24 VDC.
What is the operating temperature range?
-25 to +55 °C in operation and -25 to +70 °C in storage.
