SiemensSingle-Axis 80 A Drive Power Module with PWM Board, Internal Cooling, SIMODRIVE 611

Product Description

What this part is

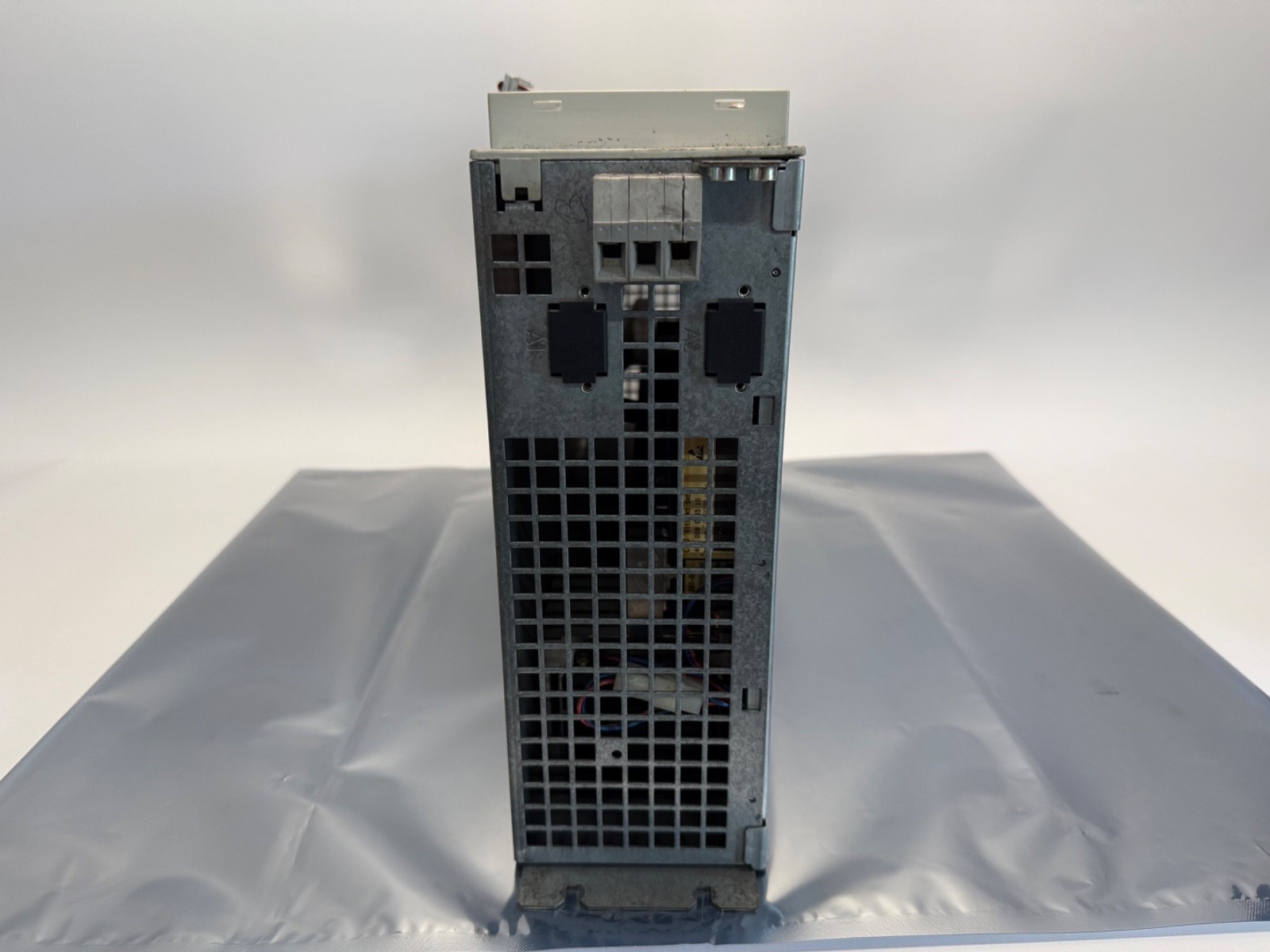

Siemens SIMODRIVE 611 single-axis power module with its pulse-width modulation board fitted. Brand: Siemens. Part Number: 6SN1123-1AA00-0DA0. Product Type: drive power module. Axes: 1. Rated Current: 80 A. Cooling: internal. Controller Platform: SIMODRIVE 611. Unit Quantity: 1 Pc. Country of Origin: Germany. The module is the output stage that switches motor current for one axis of a SIMODRIVE 611 rack.

Decoding the order code

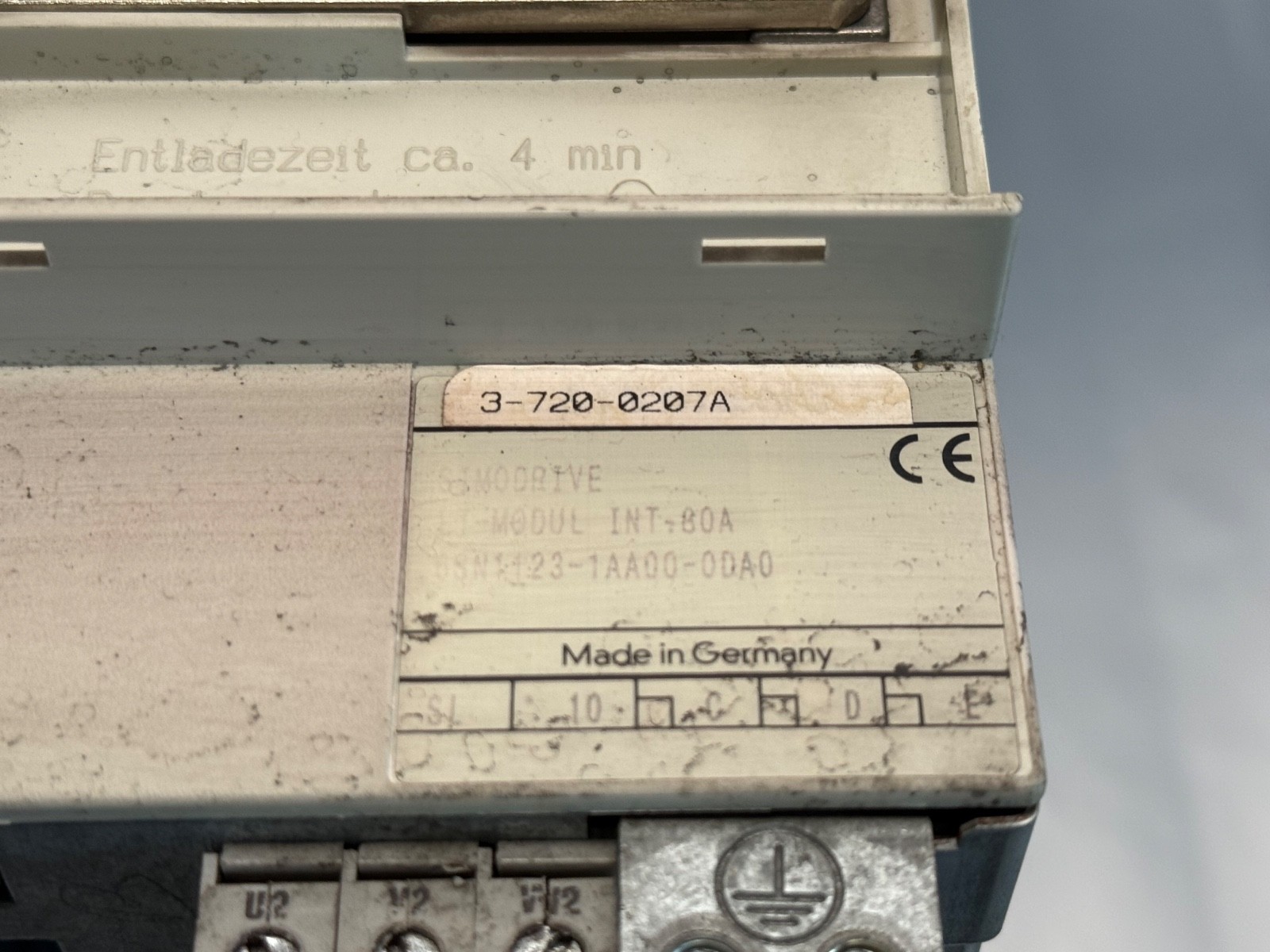

6SN1123 — the Siemens order-number group for SIMODRIVE 611 power modules.

0DA0 — the rating code, setting one axis at 80 A with internal cooling.

What these specs mean in practice

Rated Current: 80 A. Axes: 1. Cooling: internal. Internal cooling means the heat sink and fan sit inside the module envelope, so the rack does not need an external air duct behind it and the module can be exchanged without disturbing cabinet ductwork. The PWM board is the stage that turns the control unit’s demand into gate pulses for the output transistors, and it is matched to the current rating of the module it sits on.

Mounting data

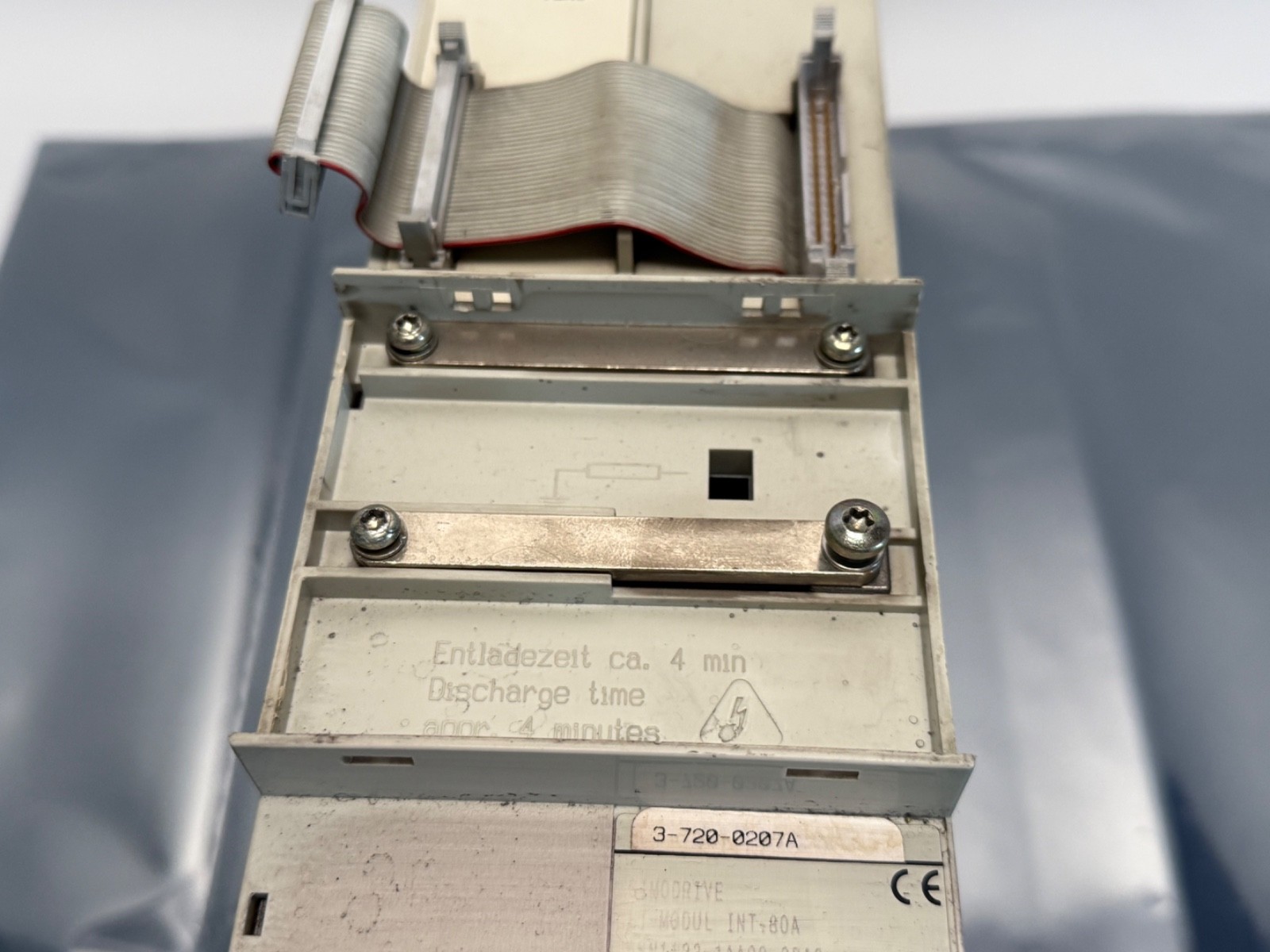

Mounting Type: rack module for a SIMODRIVE 611 drive cabinet. Connector Style: DC link busbars at the top of the module, motor terminations at the base.

Quantity and configuration

Unit Quantity: 1 Pc. Power module with PWM board. Condition: takeout, tested.

Interchange guidance

Searchable forms of the number: 6SN1123-1AA00-0DA0, 6SN1123 1AA00 0DA0 and 6SN11231AA000DA0. The last block of the order number carries the rating, so sibling modules 6SN1123-1AA00-0DA1, -0DA2, -0EA2 and -0LA1 differ in current rating or cooling arrangement.
