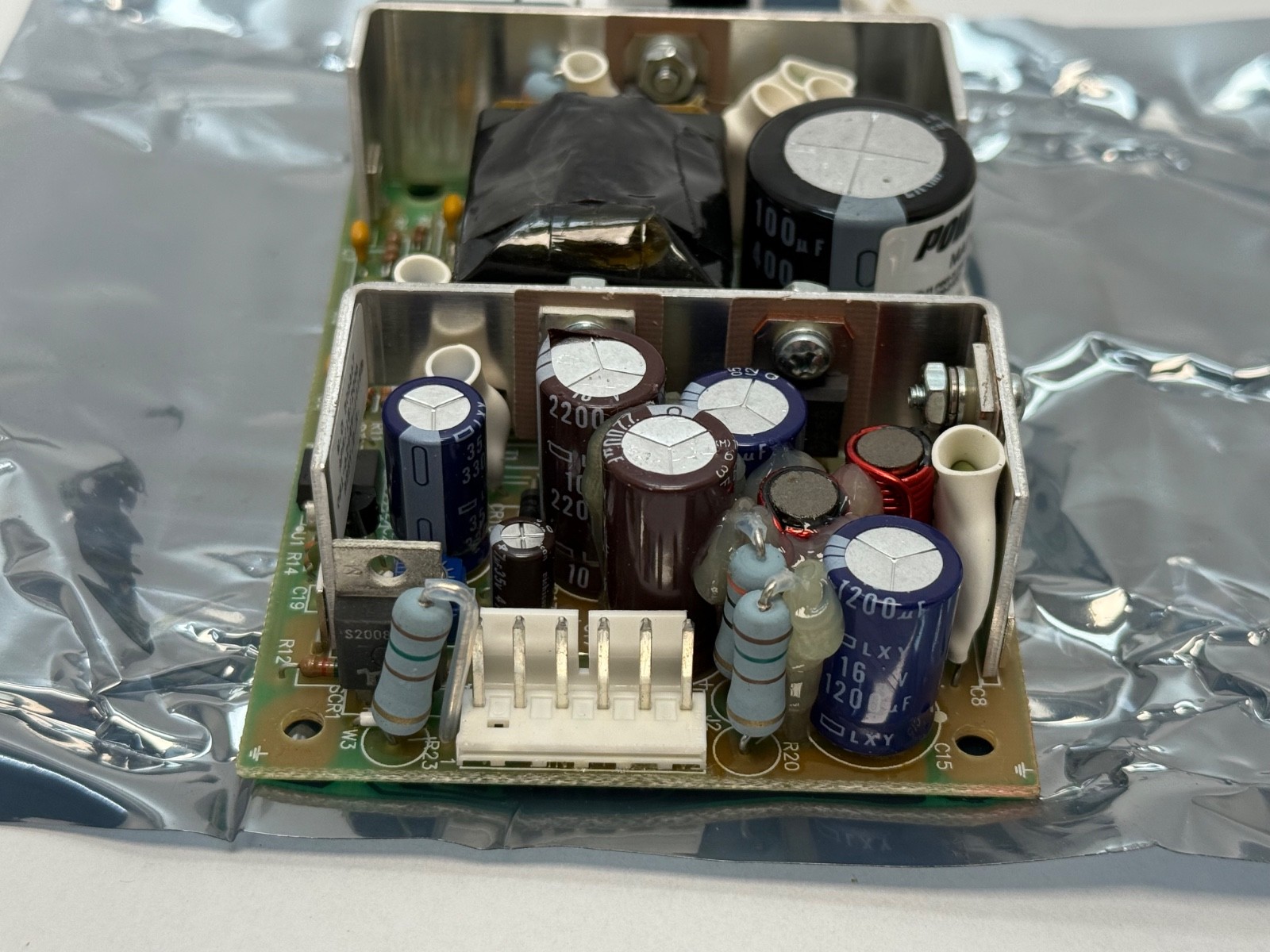

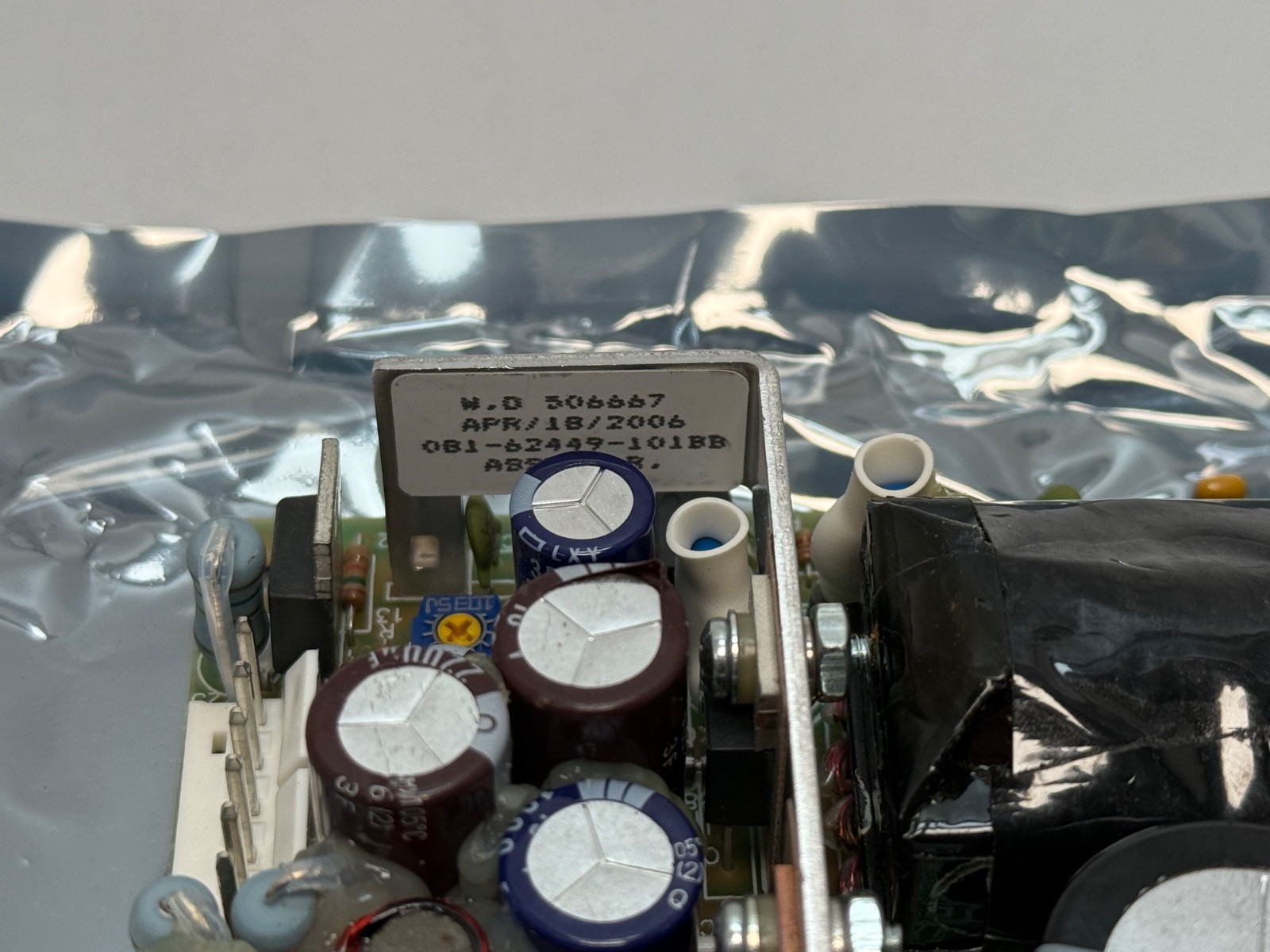

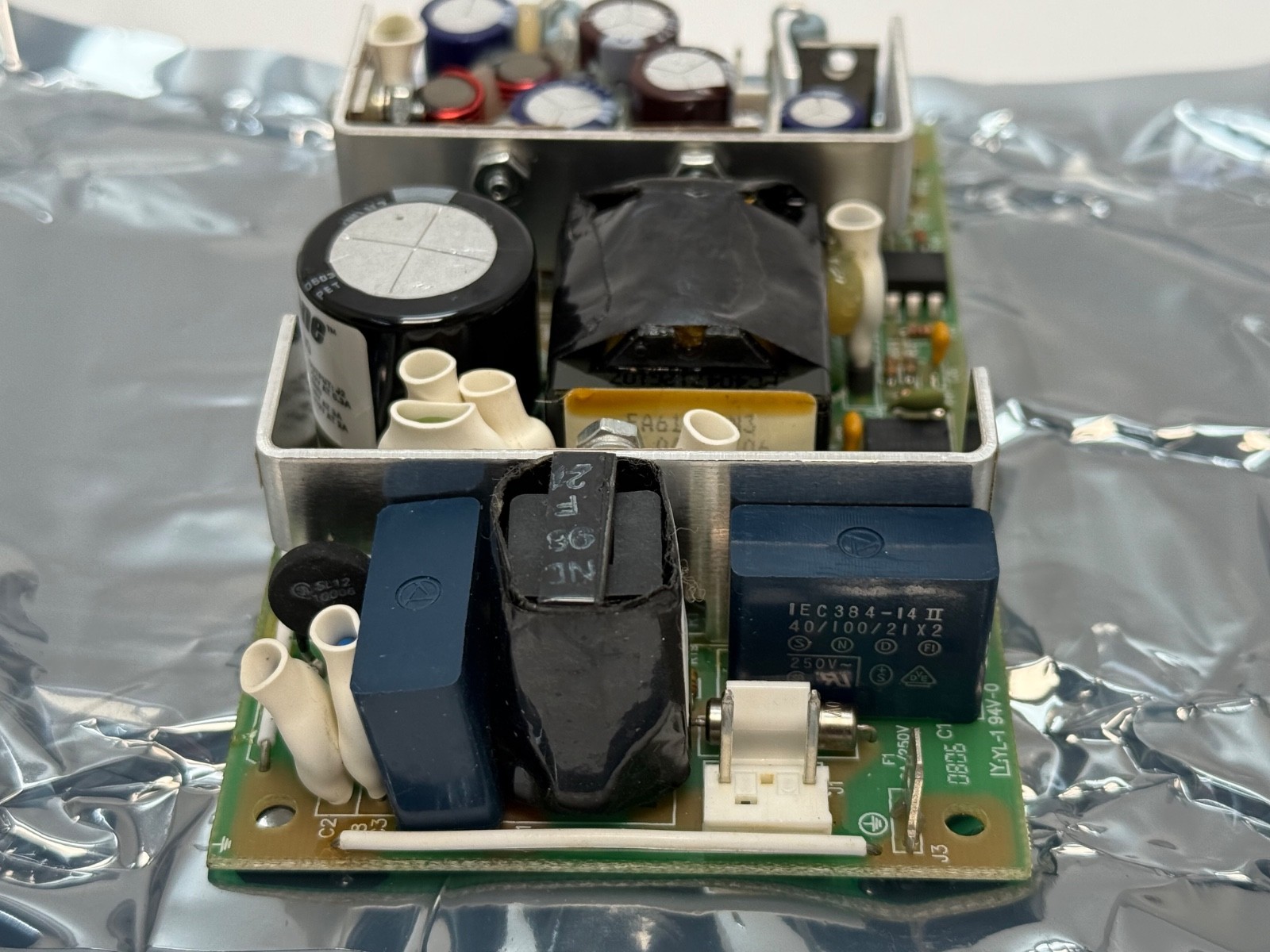

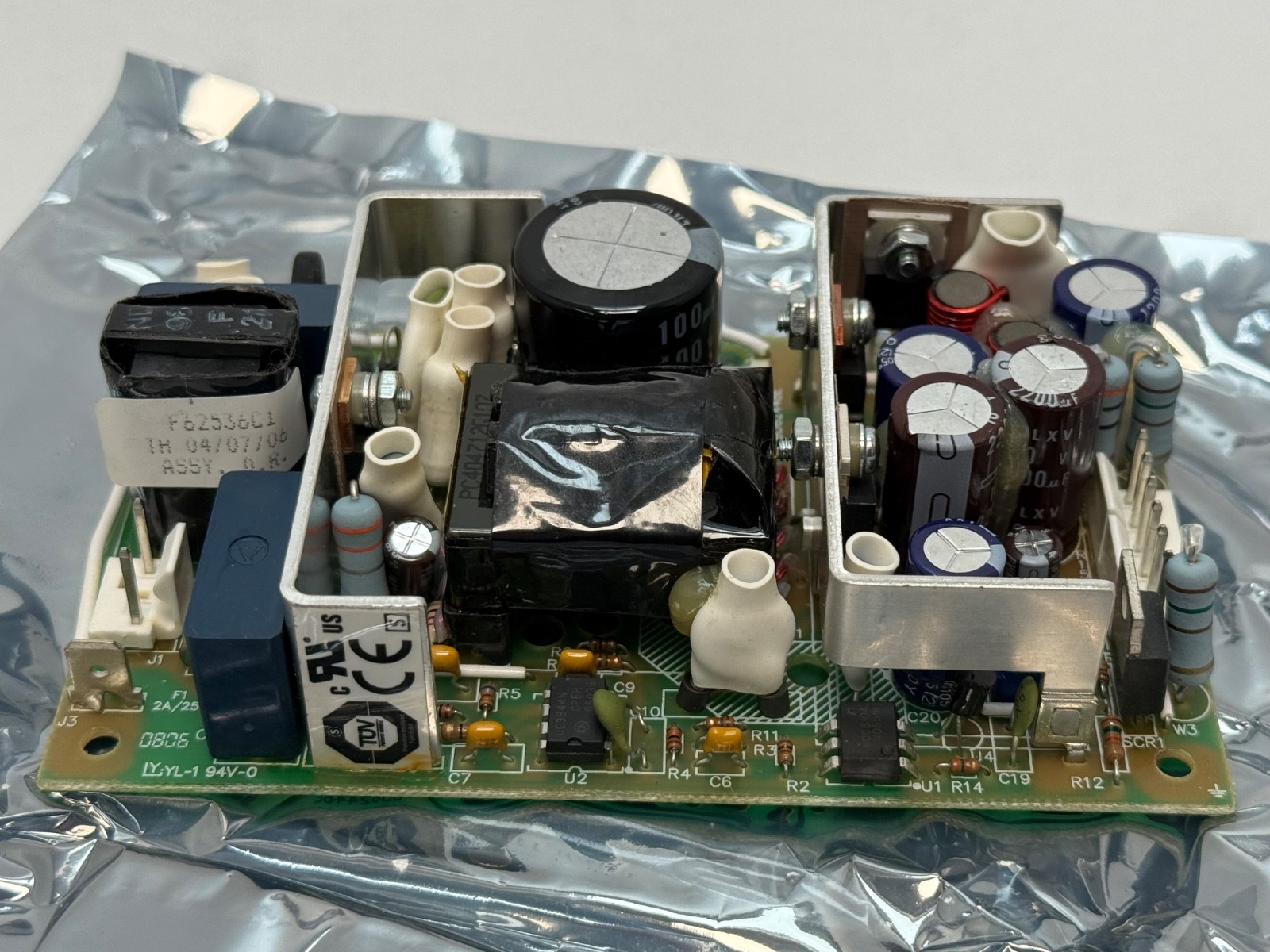

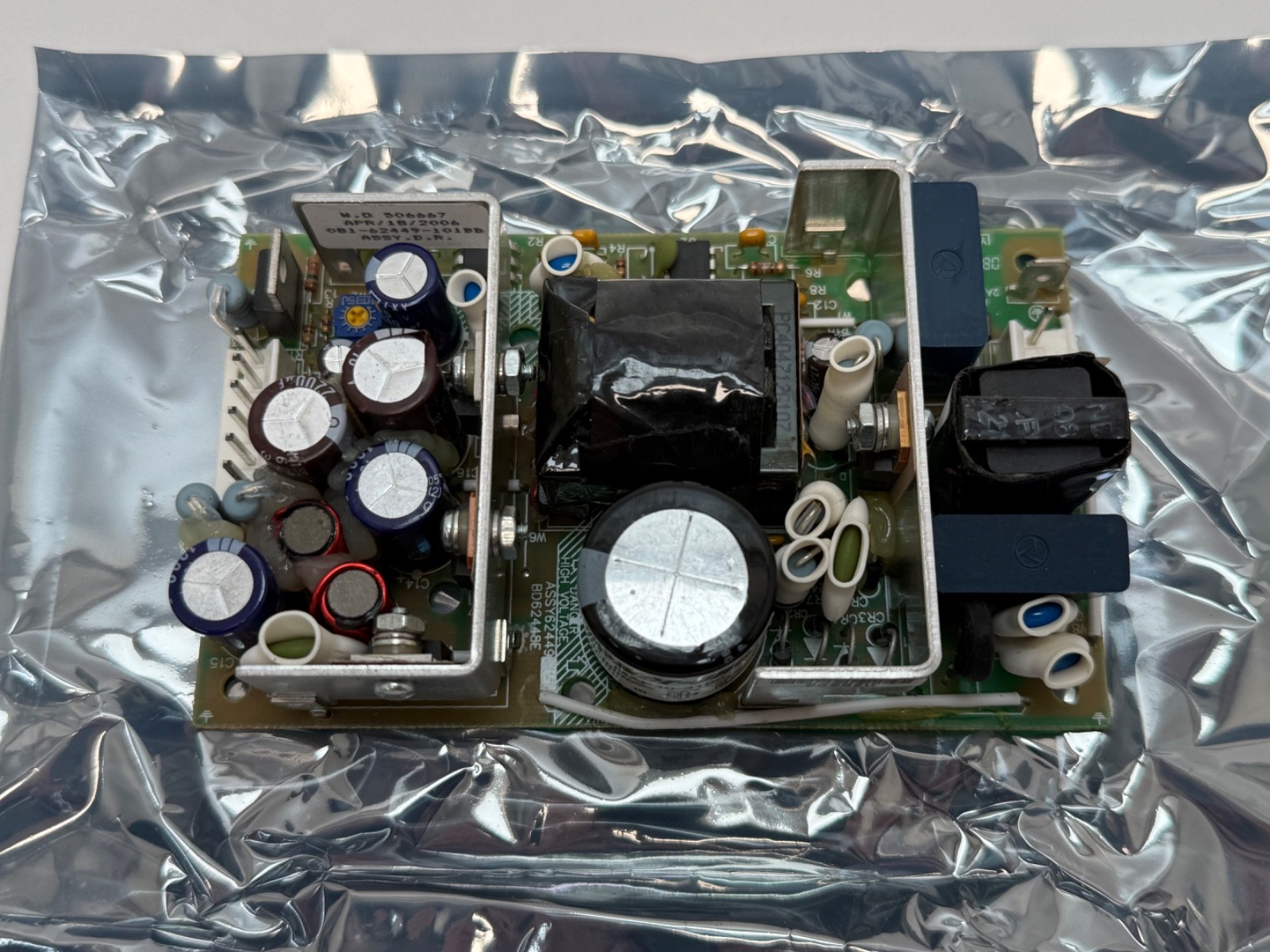

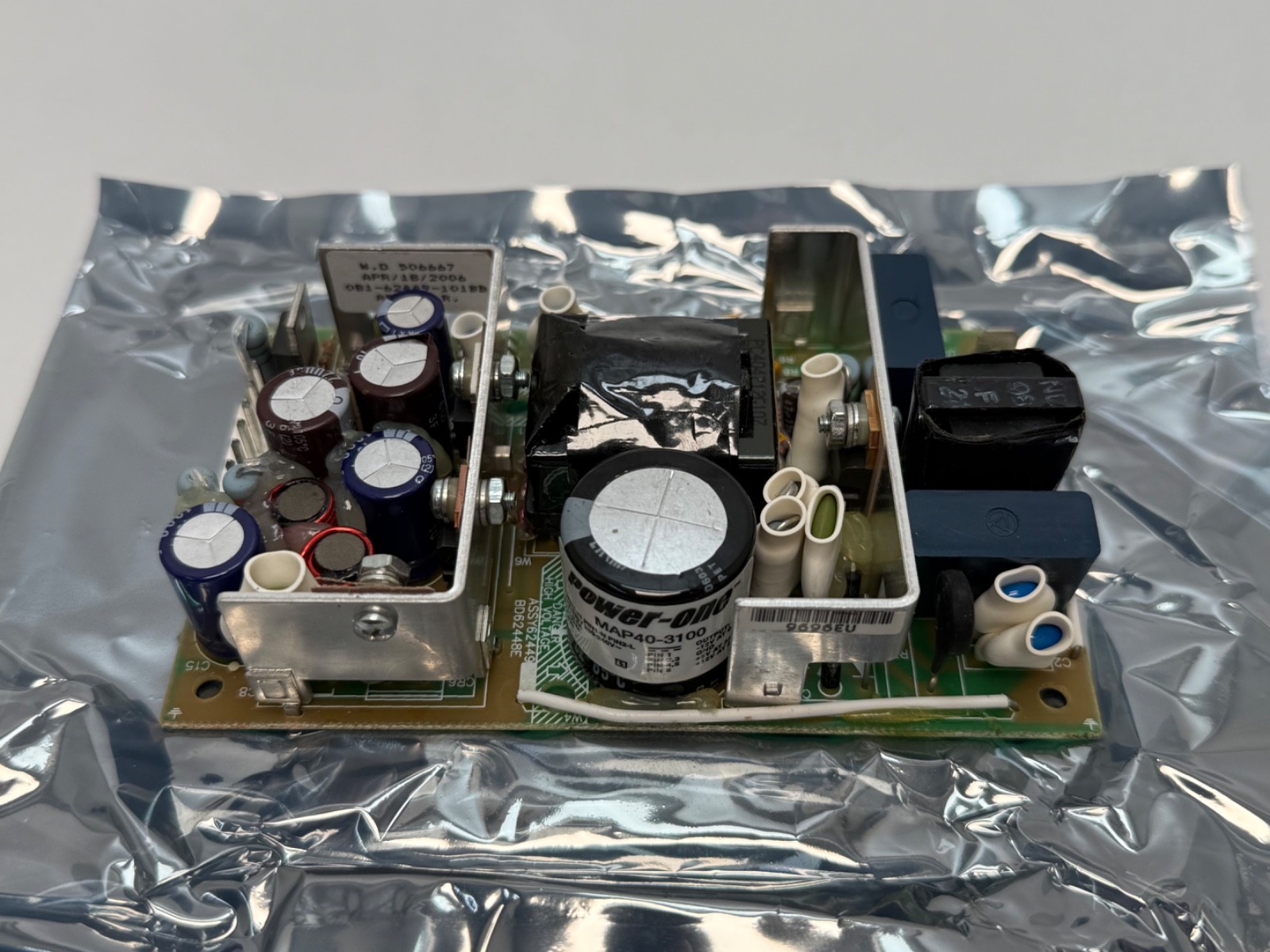

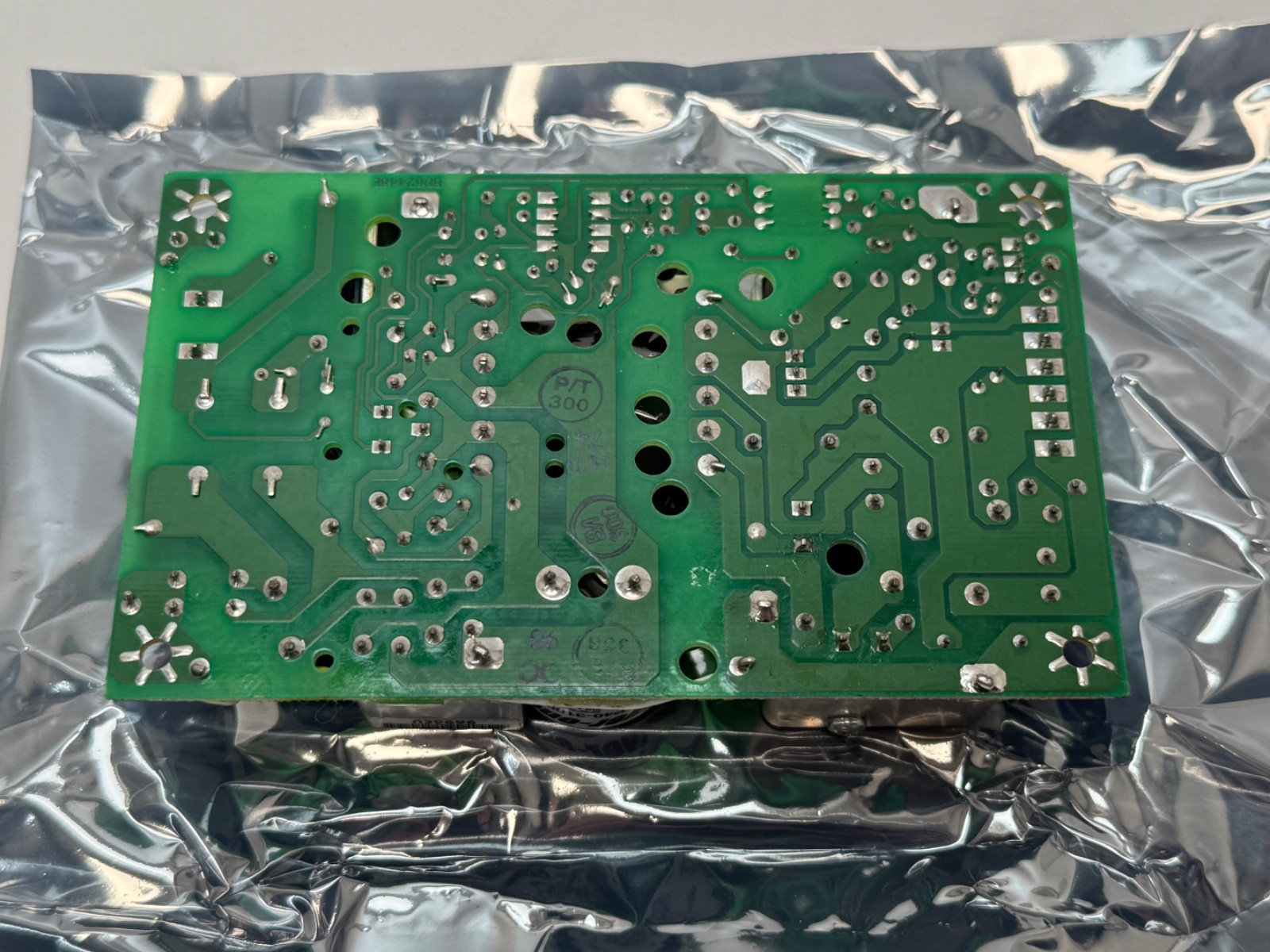

Power OneMAP40-3100AC-DC Open Frame Power Supply — 40 W Triple Output, +5 V 3 A, +12 V 2 A, -12 V 0.3 A, 90-264 VAC Input

Condition: New

Availability:

1 in stock

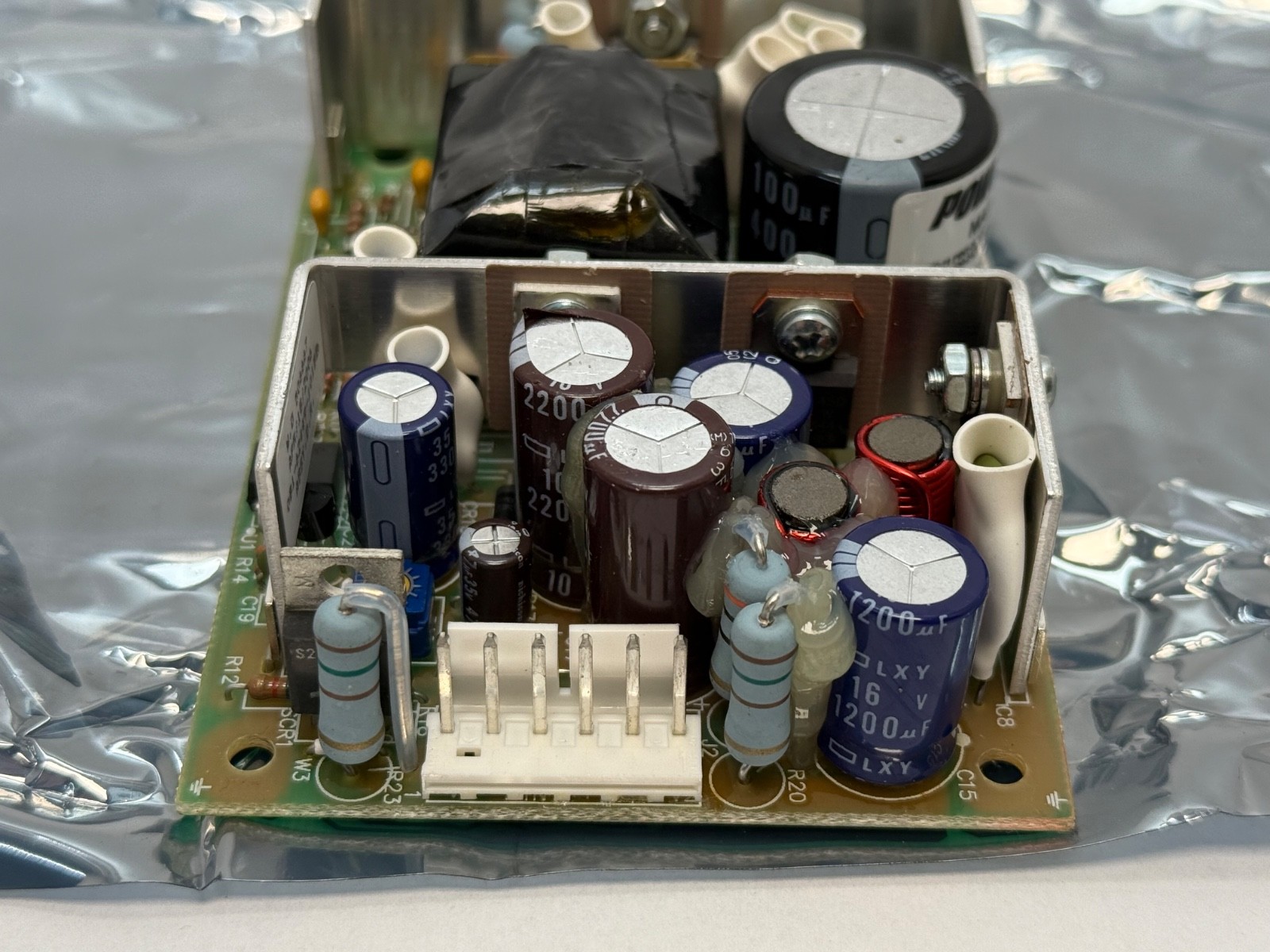

Power-One MAP40-3100 open frame AC-DC power supply, 40 W triple output: +5 V 3 A, +12 V 2 A, -12 V 0.3 A. Input 90-264 VAC, 47-63 Hz, 3 x 5 in board.

Same day shipment

List Price

$108.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandPower One
MPNMAP40-3100
ModelMAP403100

Technical Specifications

Base NumberMAP40
Industry Termsopen frame power supply, AC-DC converter, SMPS, triple output power supply, 3 x 5 power supply
Common MisspellingsMAP 40-3100, MAP-40-3100, PowerOne MAP40-3100
Power Rating40 W
Input Voltage90-264 VAC
Connector StyleMolex single-row; 0.250 in Faston earth
Item Width3.00 in (76.2 mm)
Item Height1.25 in (31.8 mm)
Item Length5.00 in (127.0 mm)
Current Rating3 A (+5 V), 2 A (+12 V), 0.3 A (-12 V)
Minimum Operating Temperature0 °C
Maximum Operating Temperature70 °C (50% load)
Output Voltage+5 V, +12 V, -12 V
Mpn VariantsMAP40-3100, MAP403100, MAP40-3100G, MAP40 3100
Manufacturer StatusNot recommended for new designs (lead solder exemption version)
Compatible With ReplacesMAP40-3100G (RoHS version)
Additional AttributesEfficiency 70% typical; hold-up 15 ms; inrush 38 A peak; switching frequency 25 kHz; UL/CSA/IEC/EN 60950-1; EN55022 Class B
SeriesMAP30/40/42 (MAP40)
TypeOpen Frame Switching Power Supply
Current TypeAC to DC
Item Weight0.26 kg (0.6 lb)
Ac Frequency Rating47-63 Hz
Mounting TypeChassis Mount, Open Frame
Application TypesEmbedded electronics; industrial control equipment; instrumentation
Seller Part Number: B-AR5B5#6JUELA

Product Description

What this part is:

The Power-One MAP40-3100 is a 40 W triple-output open frame AC-DC switching power supply from the MAP30/40/42 Series, now supported by Bel Power Solutions. Type: Open frame switching power supply. Series: MAP40. Number of Outputs: 3. The board fits the international standard 3 x 5 in footprint, with input and output connections on single-row Molex connectors. The board carries the CE Mark.

Decoding the designation:

MAP40 — the 40 W multiple-output member of the MAP30/40/42 Series.

3100 — the triple-output model delivering +5 V, +12 V and -12 V.

G suffix — the RoHS lead-free version, MAP40-3100G. The unsuffixed MAP40-3100 uses the lead solder exemption.

Specifications:

Output Power: 40 W maximum with convection cooling. Output 1: +5 V, 3 A, peak 5 A, adjustable 4.75 V to 5.25 V. Output 2: +12 V fixed, 2 A, peak 3.5 A, quasi-regulated. Output 3: -12 V fixed, 0.3 A, peak 0.5 A. Line Regulation: 0.2% on +5 V, 1% on +12 V and -12 V. Load Regulation: 2% on +5 V, 3.5% on +12 V, 2% on -12 V. Ripple and Noise: 1% peak to peak, 20 MHz bandwidth.

Input Voltage: 90 to 264 VAC. Input Frequency: 47 to 63 Hz. Input Current: 1.2 A RMS at 90 VAC, 40 W load. Hold-up Time: 15 ms at 115 VAC. Inrush Current: 38 A peak at 264 VAC, thermistor limited. Switching Frequency: 25 kHz nominal, fixed. Efficiency: 70% typical at full load, 120 VAC. Overload Protection: 130%, automatic recovery. Input Protection: internal AC line fuse.

Operating Temperature: 0 to 50 °C at 100% load, to 70 °C at 50% load, derating 2.5% per °C above 50 °C. Storage Temperature: -40 to 85 °C. Relative Humidity: 5 to 95%, non-condensing. MTBF: greater than 311,000 hours. Safety Approvals: UL/CSA 60950-1, IEC 60950-1, EN 60950-1. EMI: EN55022 / CISPR 22 and FCC Part 15 Class B.

Dimensions and mounting:

Dimensions: 5.00 x 3.00 x 1.25 in (127.0 x 76.2 x 31.8 mm). Item Weight: 0.26 kg (0.6 lb). Mounting Type: Chassis mount, open frame board. Input Connector: J1 Molex single-row, pin 1 neutral, pin 2 line. Output Connector: J2 Molex single-row, mates with Molex Series 2139 or 41695 0.156 in crimp terminal housing. Safety Earth: 0.250 x 0.032 in Faston terminal.

Compatibility and replacement:

MPN Variants: MAP40-3100, MAP403100, MAP40-3100G. Same-series models with other output sets: MAP40-3000G, MAP40-3101G, MAP40-3105G, MAP40-3500G, MAP40-3003G. CAD model and data sheet: available from Bel Power Solutions (belfuse.com).

Frequently asked questions:

What outputs does the MAP40-3100 provide?

Three outputs: +5 V at 3 A, +12 V at 2 A and -12 V at 0.3 A, 40 W maximum total.

What input voltage does the MAP40-3100 accept?

Universal AC input, 90 to 264 VAC at 47 to 63 Hz.

What is the difference between MAP40-3100 and MAP40-3100G?

The G model is the RoHS lead-free version with the same electrical ratings; the unsuffixed model uses the lead solder exemption.
