Power OneHD5-12/OVP-ALinear Regulated Power Supply – 5 V DC, 12 A, OVP, 100-240 V AC Input

Product Description

What this part is

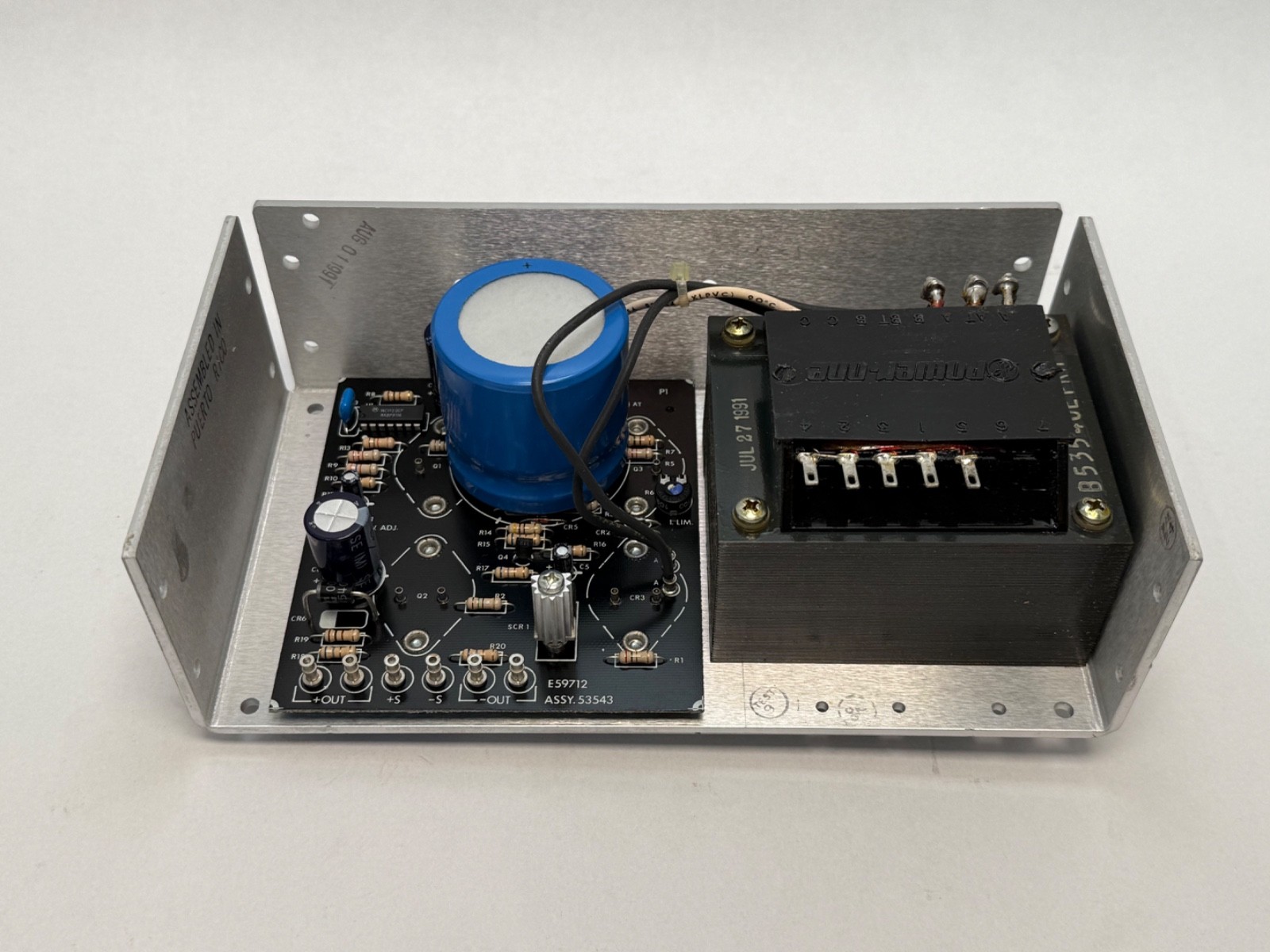

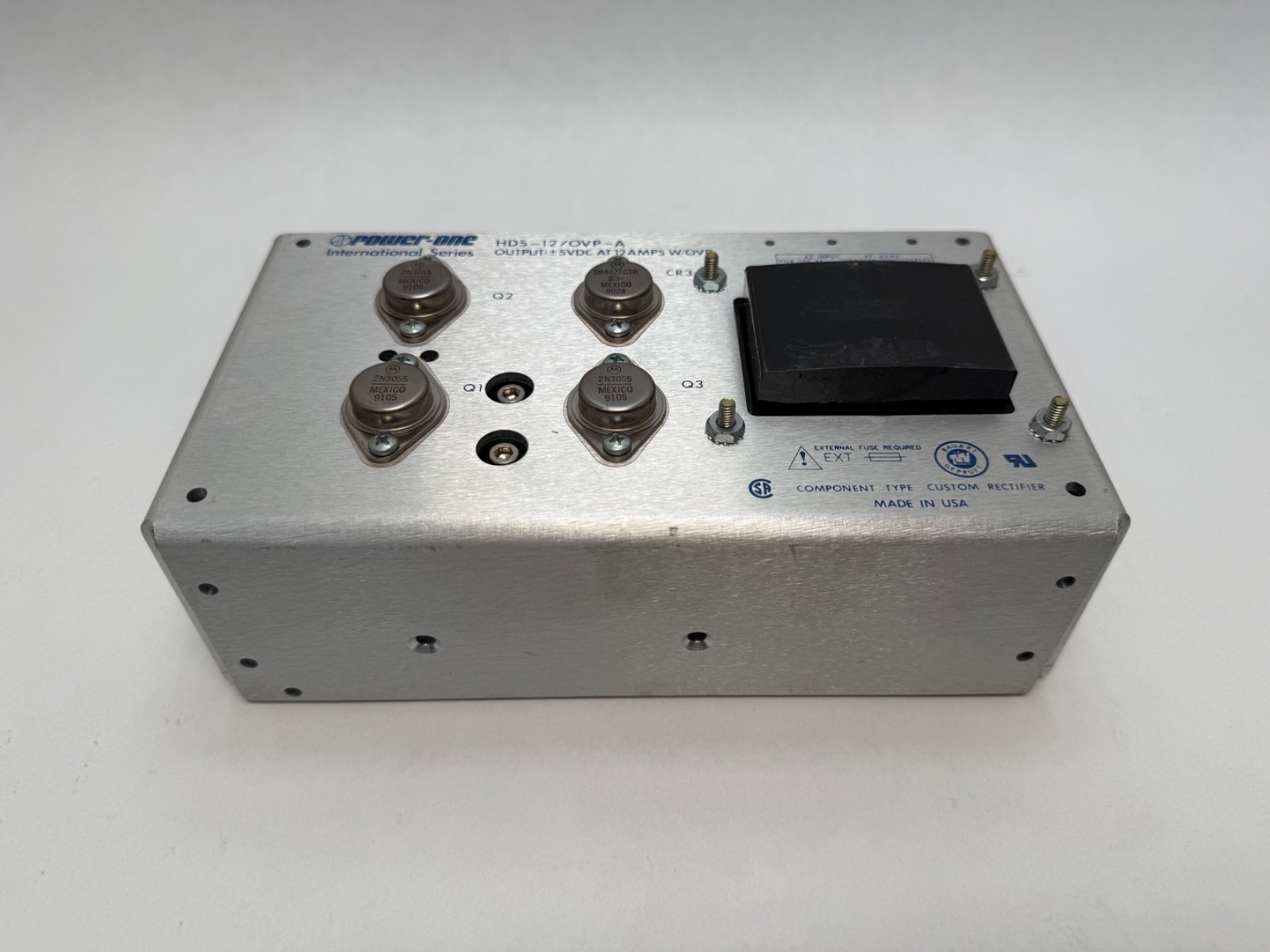

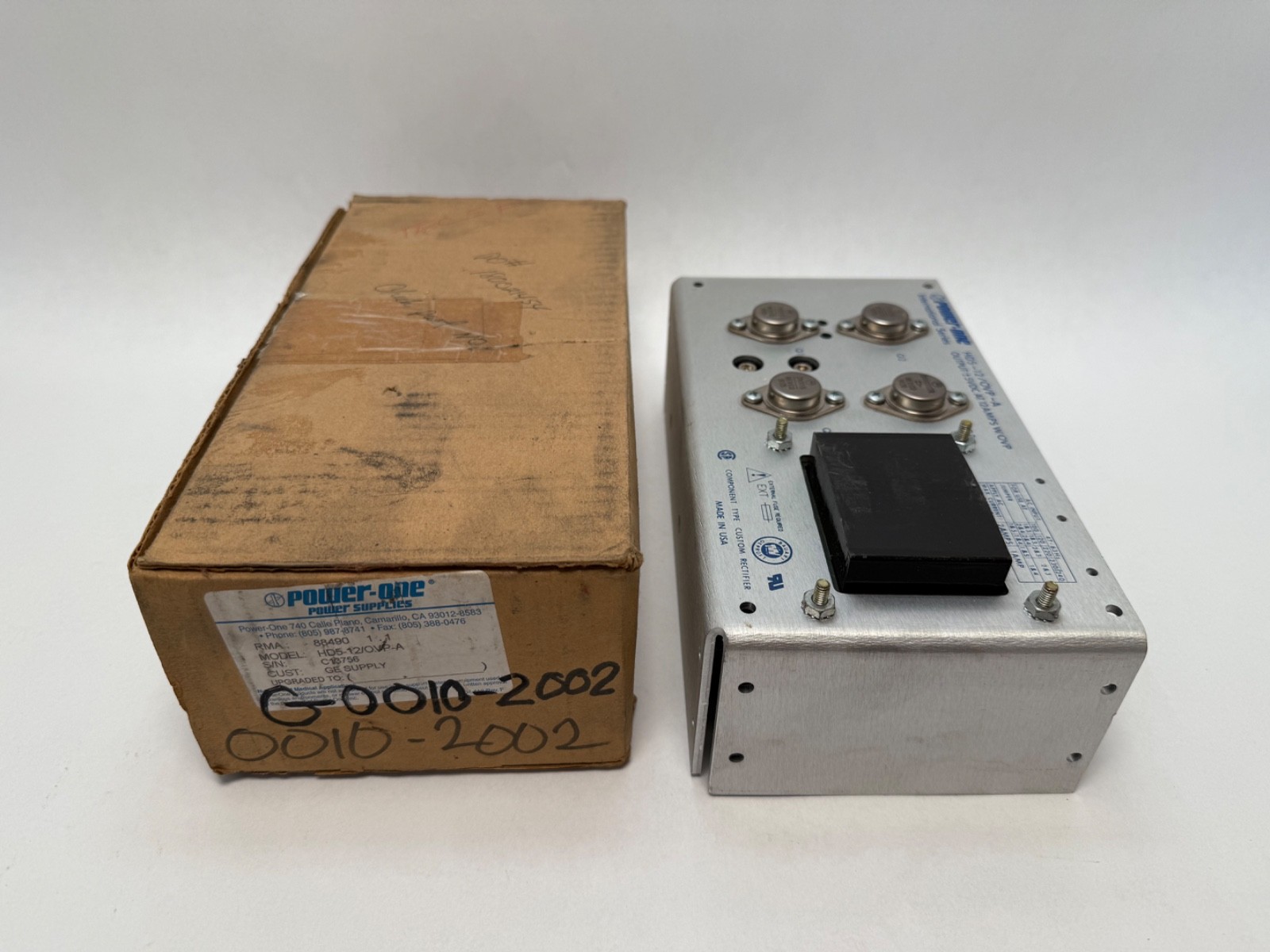

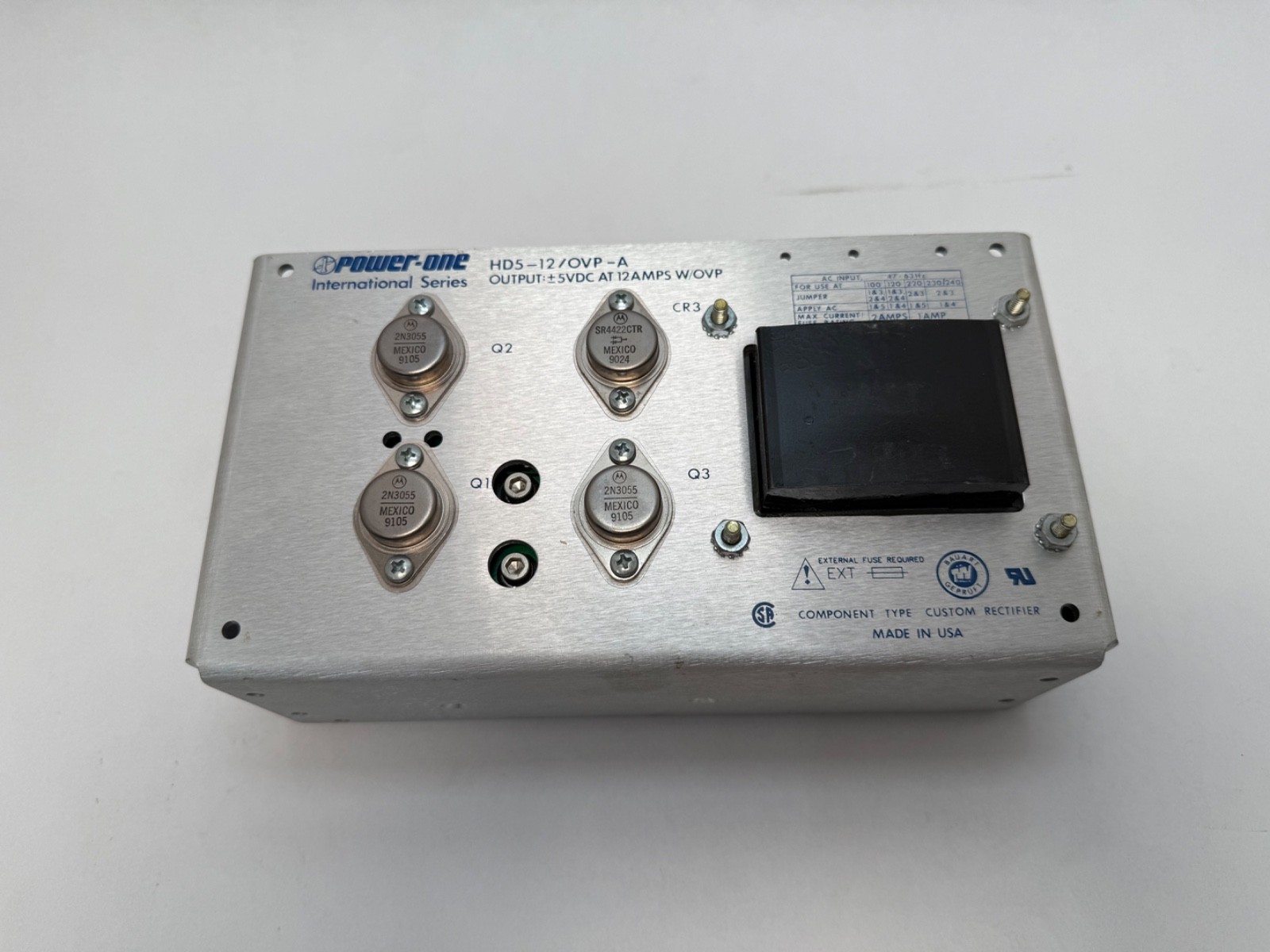

A Power-One HD5-12/OVP-A linear regulated open-frame power supply from the HD series. Output Voltage: 5 V DC. Output Current: 12 A. Overvoltage Protection: fitted (OVP). Input Voltage: 100/120/220/240 V AC, selectable. Input Frequency: 47–63 Hz.

Decoding the designation

HD — Power-One HD series linear power supply case size.

5-12 — 5 V DC output at 12 A.

OVP — overvoltage protection module fitted.

A — Power-One revision suffix.

Specifications

Supply Type: Linear regulated, open frame. Output Voltage: 5 V DC. Output Current: 12 A. Number Of Outputs: 1. Input Voltage: 100/120/220/240 V AC. Input Frequency: 47–63 Hz. Overvoltage Protection: Yes. Unit Quantity: 1 Pc.

Dimensions and mounting

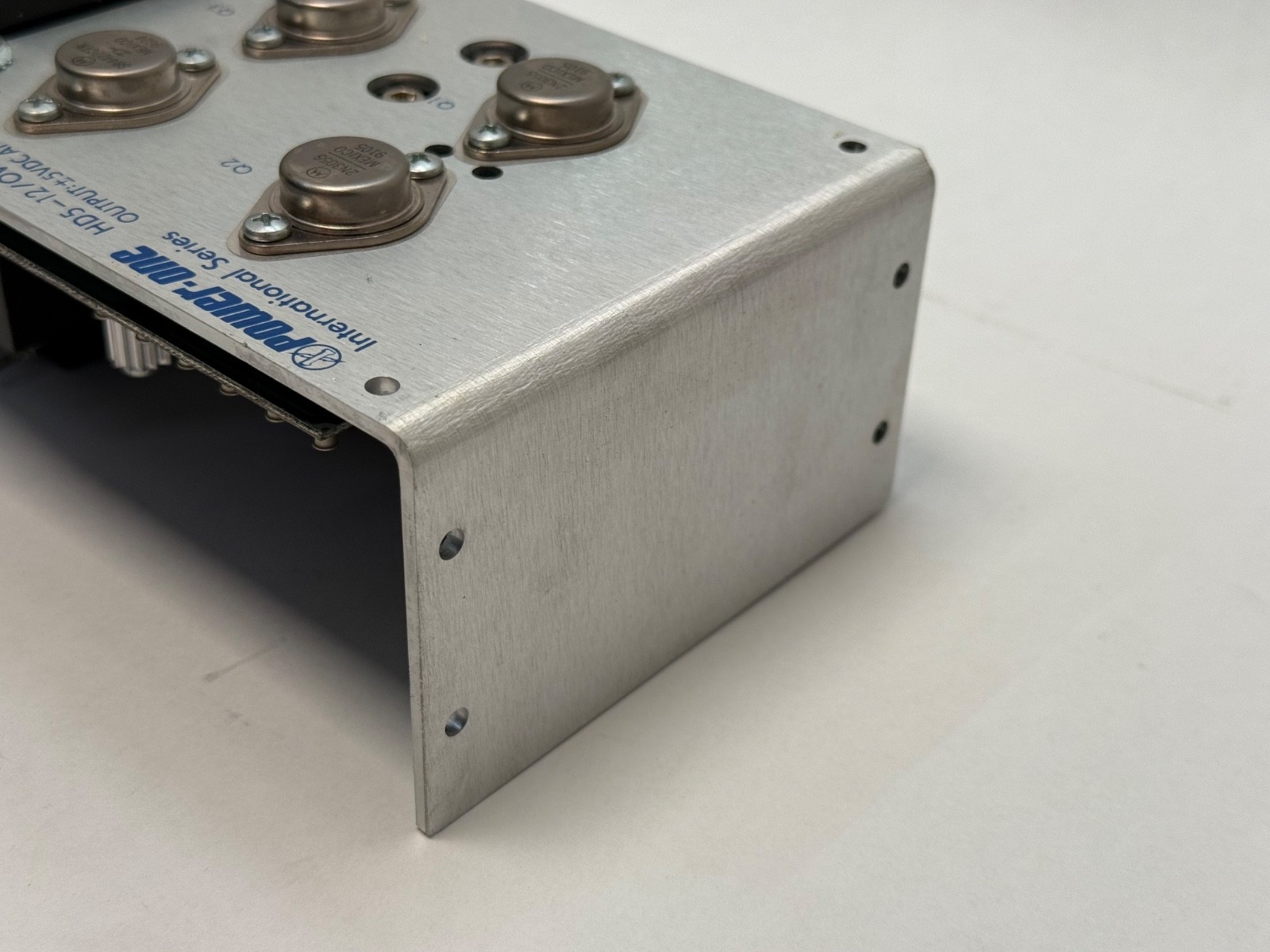

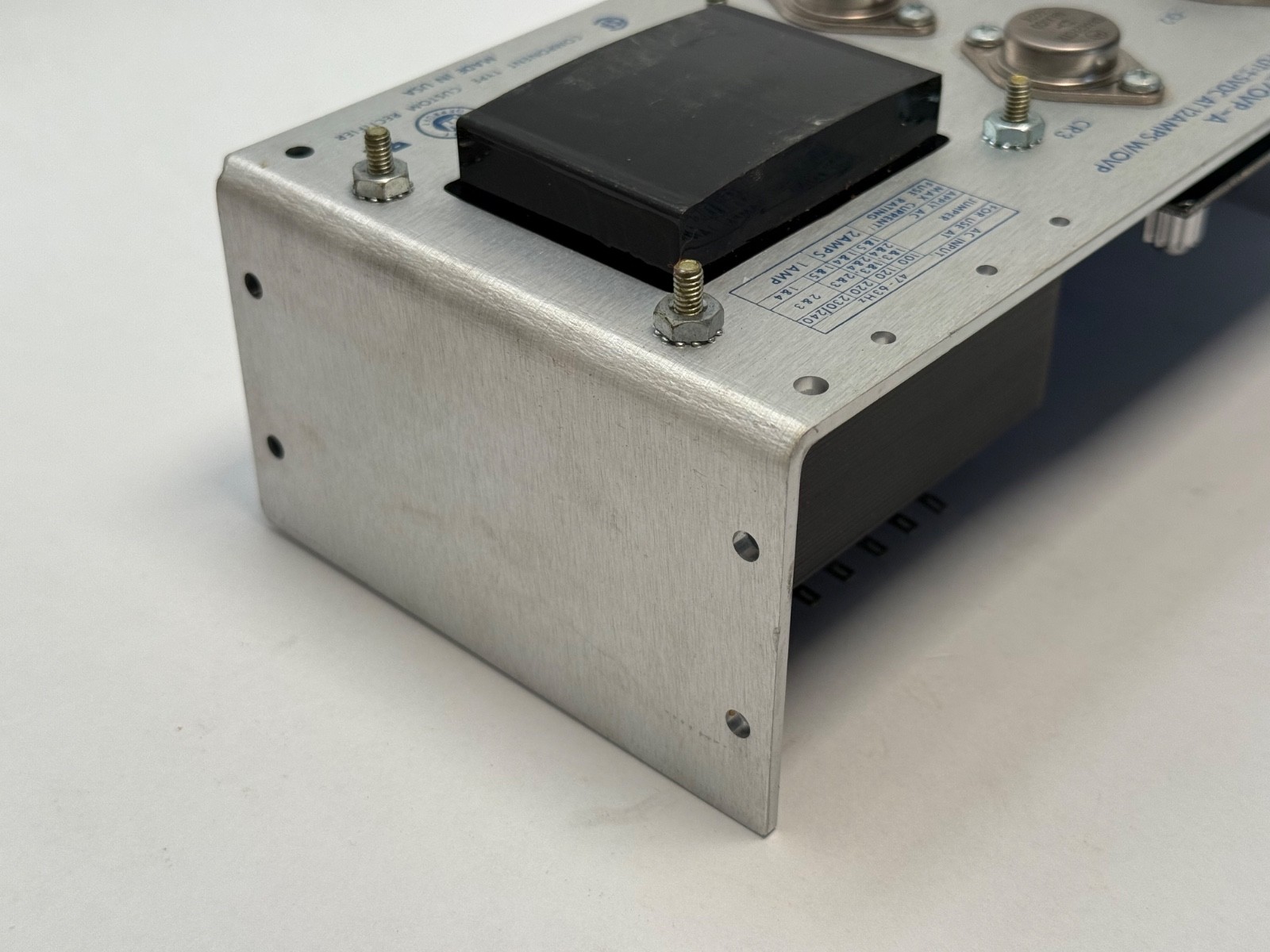

Dimensions: 5.00 x 3.50 x 9.00 in. Open-frame chassis for panel or enclosure mounting.

Compatibility and replacement

Direct replacement for Power-One HD5-12/OVP-A and HD5-12-OVP-A. The Power-One linear line is now supplied under the Bel Power Solutions name.

Frequently asked questions

What is the output of the HD5-12/OVP-A?
5 V DC at 12 A.

Is this a switching or linear power supply?
A linear regulated power supply.

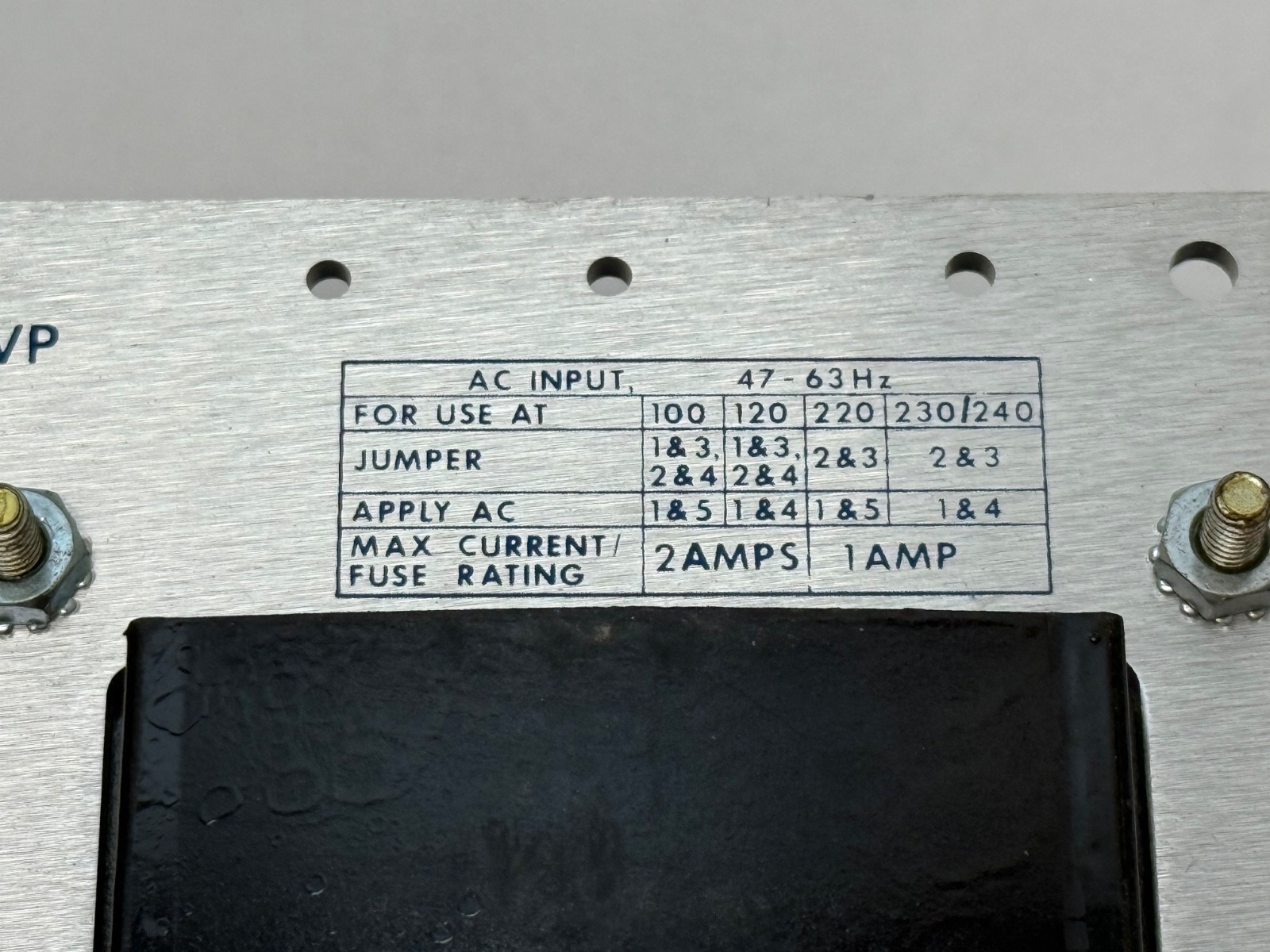

What input voltages does it accept?
100, 120, 220 or 240 V AC at 47–63 Hz.
