US DigitalHD25-1000-N-S-H-NE-SIncremental Optical Shaft Encoder — NEMA Size 25, 1000 CPR, Sealed IP65, 9.5-30 VDC, Single-Ended, No Index, With 7-Pin Cable

Product Description

What this part is

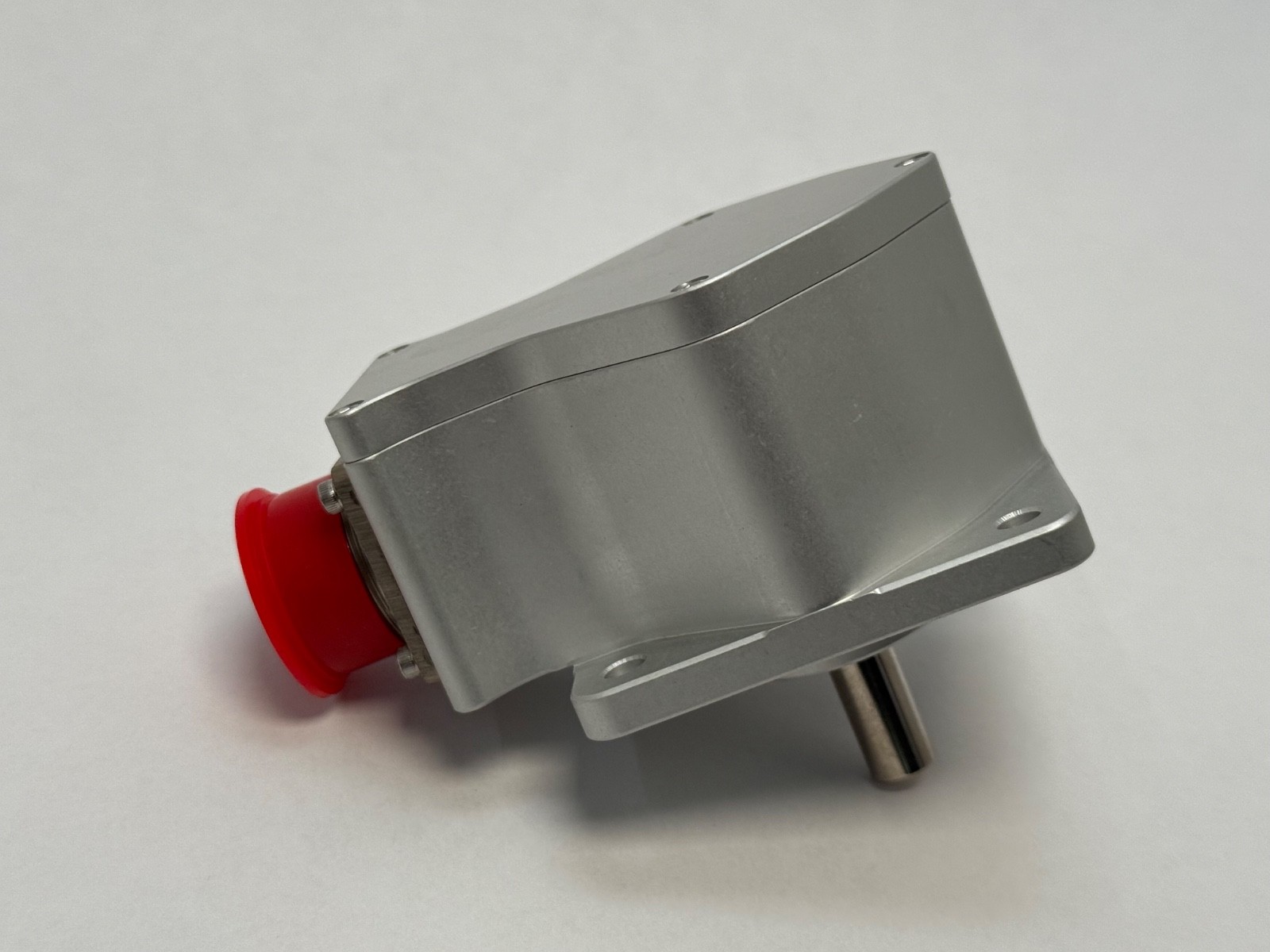

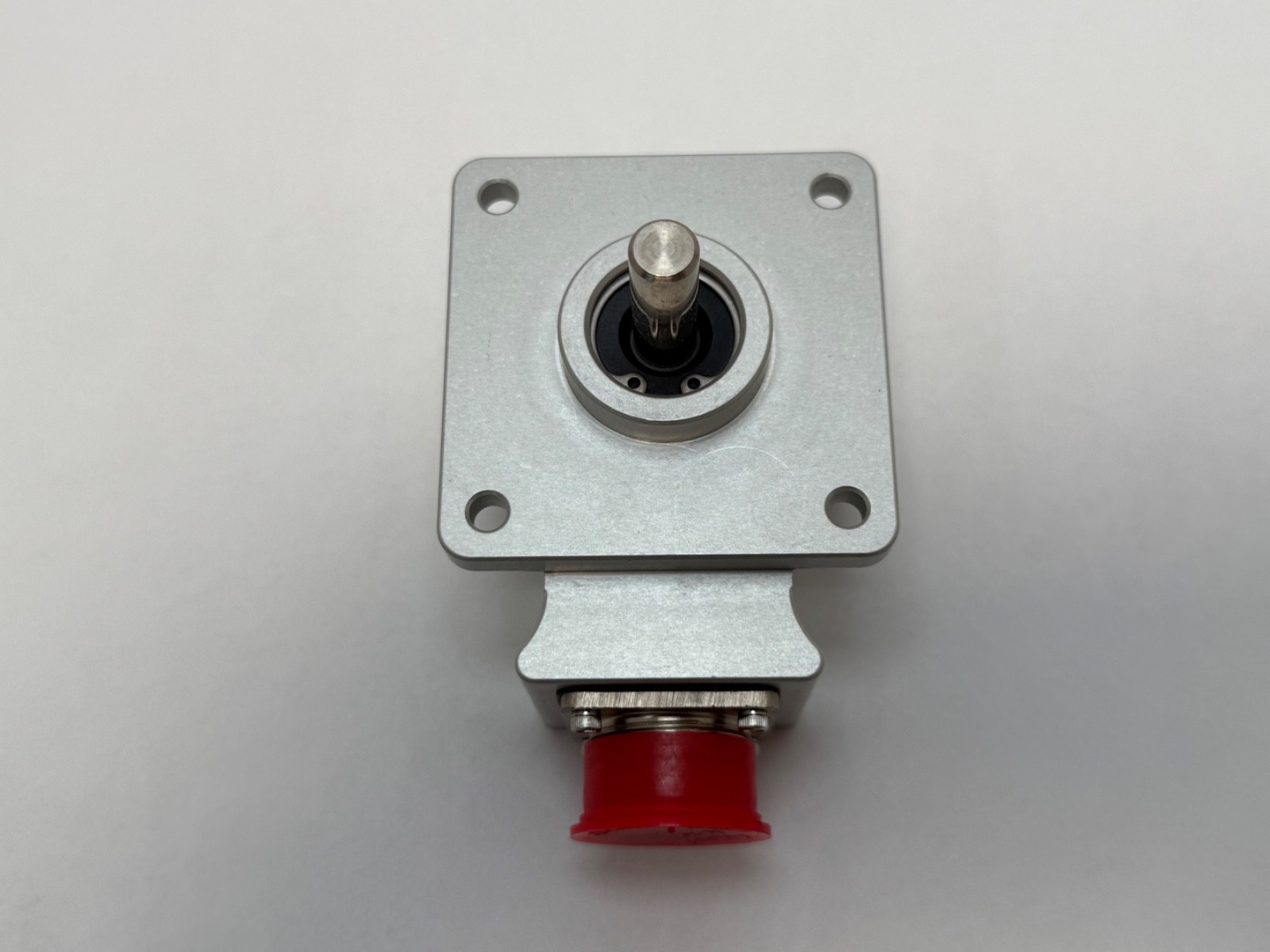

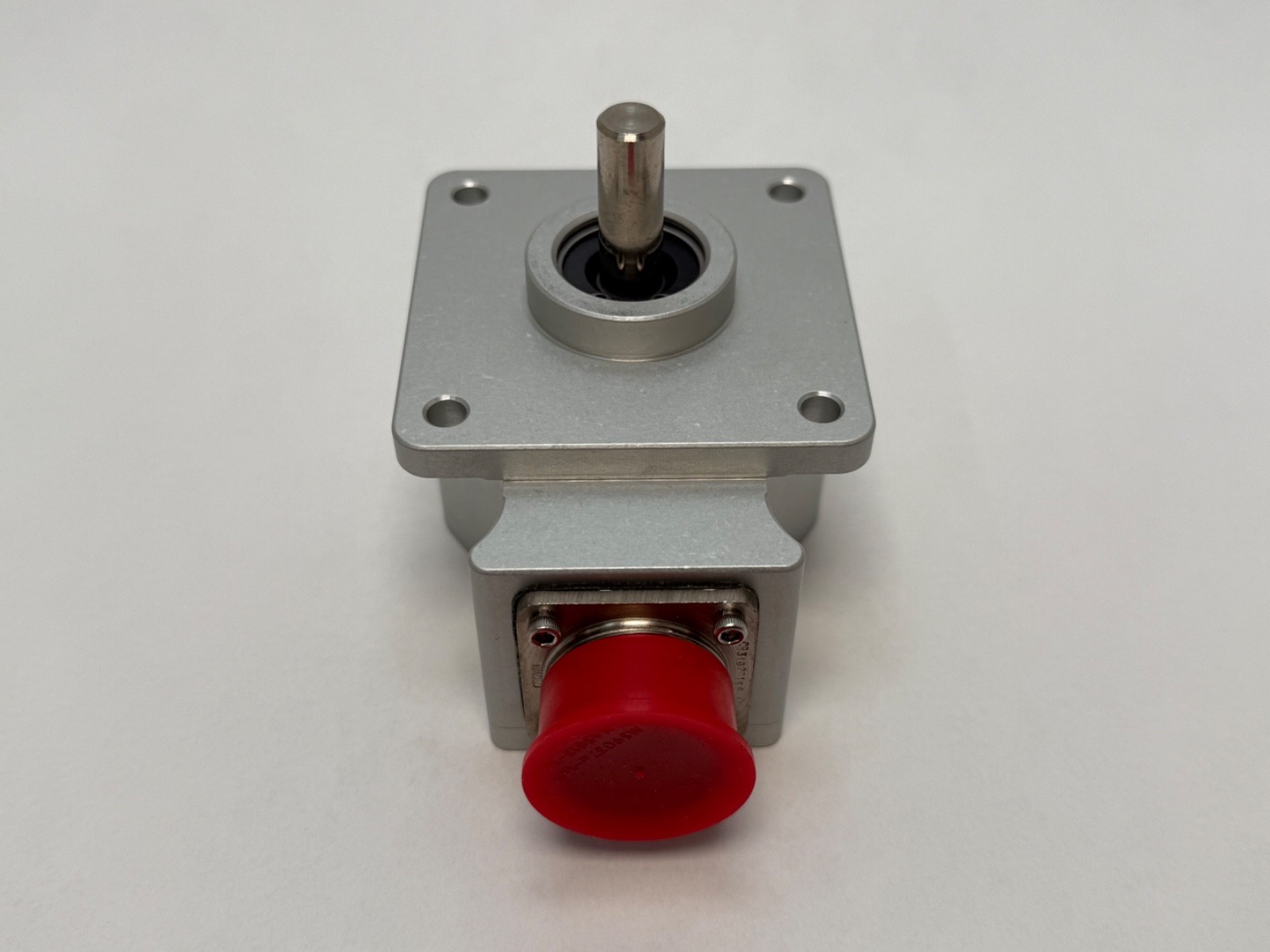

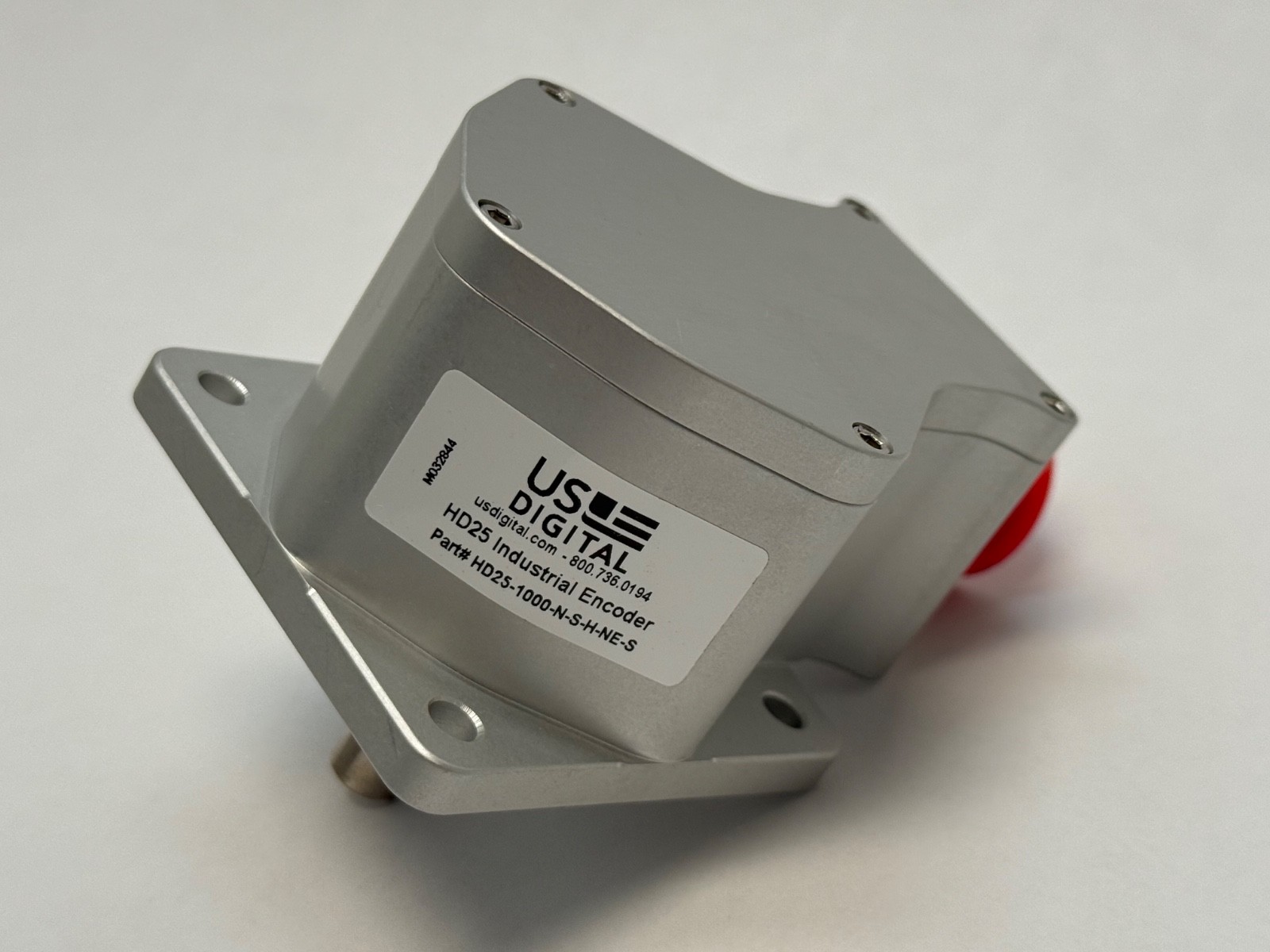

The US Digital HD25-1000-N-S-H-NE-S is a rugged incremental optical shaft encoder in the industry-standard NEMA size 25 package. It outputs two-channel quadrature squarewave signals for position and speed feedback. This listing includes a US Digital CA-RC7-SH-NC-100 shielded cable.

Decoding the designation

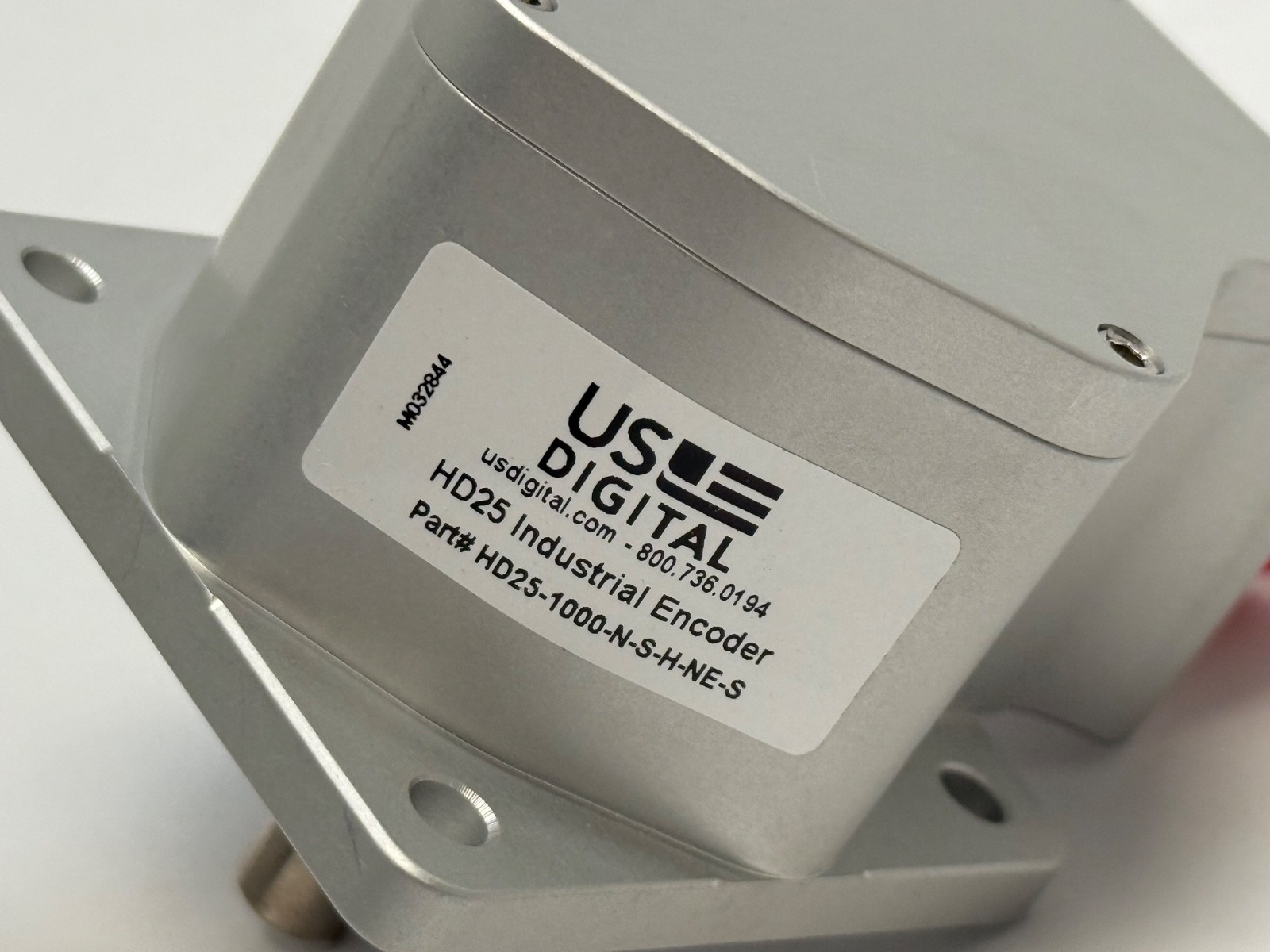

HD25 — US Digital heavy-duty size 25 incremental shaft encoder.

1000 — 1,000 cycles per revolution (4,000 pulses per revolution in quadrature).

N — non-flat shaft.

S — sealed housing, IP65.

H — high-voltage version, 9.5 to 30 VDC.

NE — no index channel.

S — single-ended output.

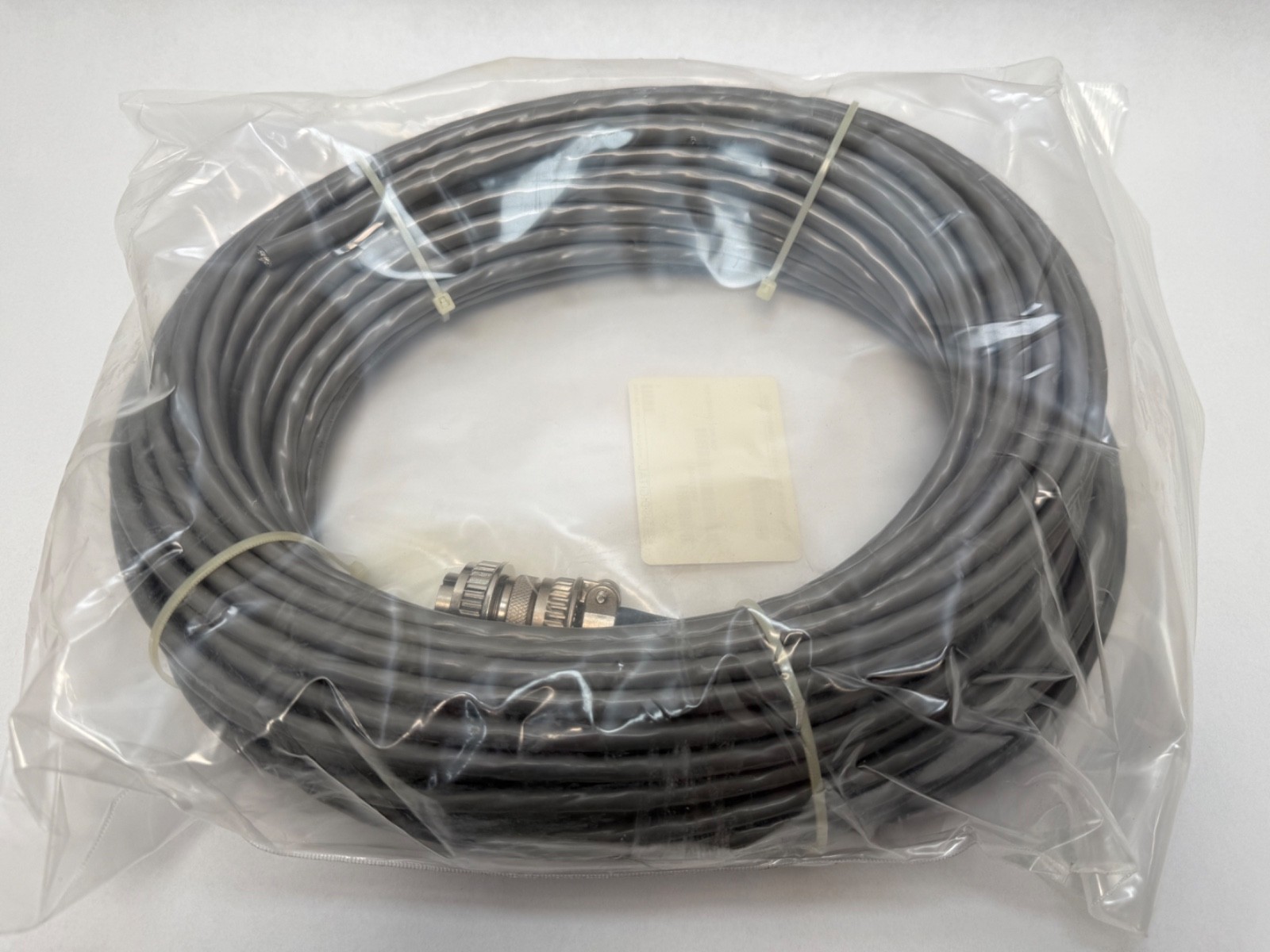

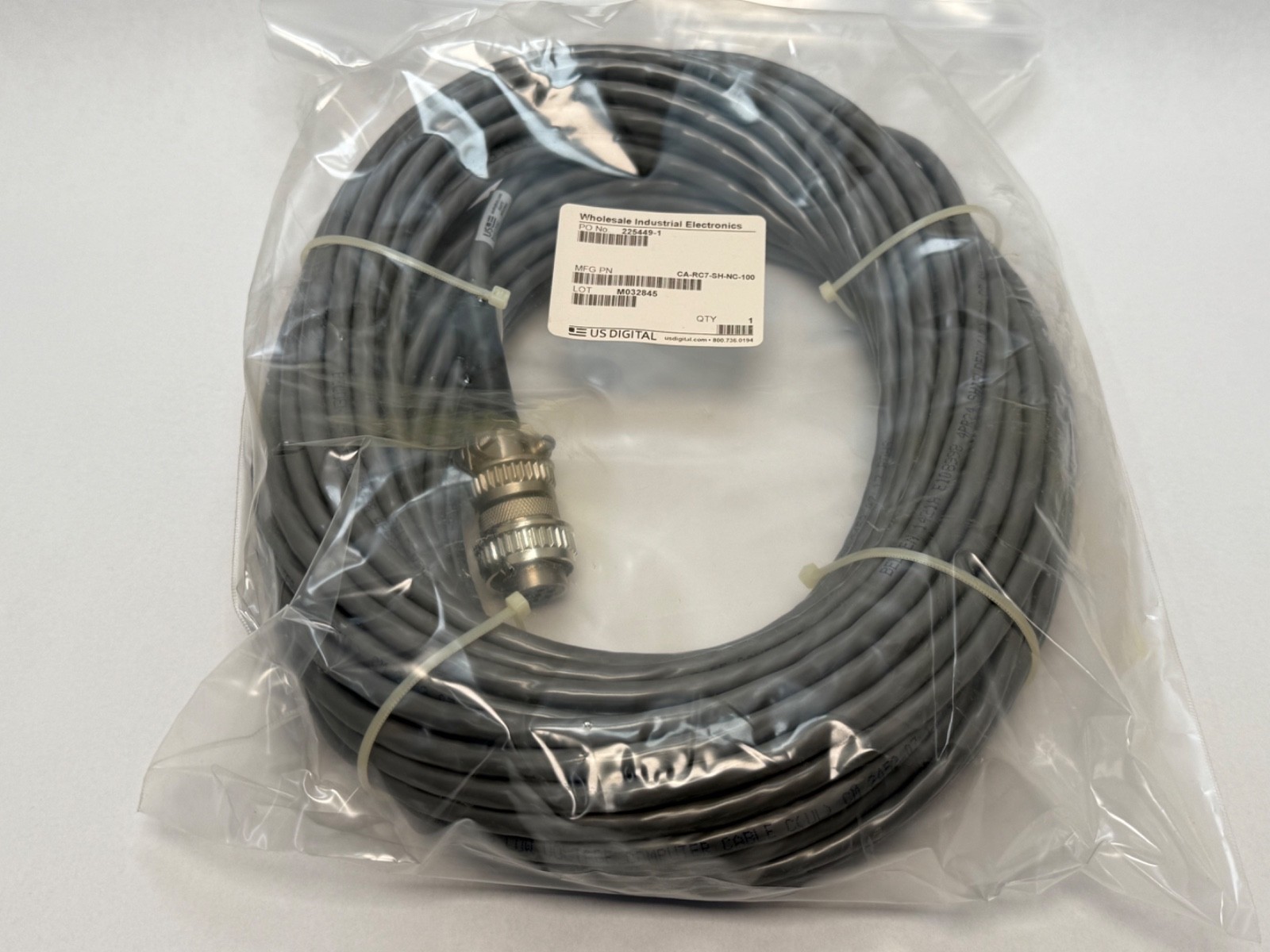

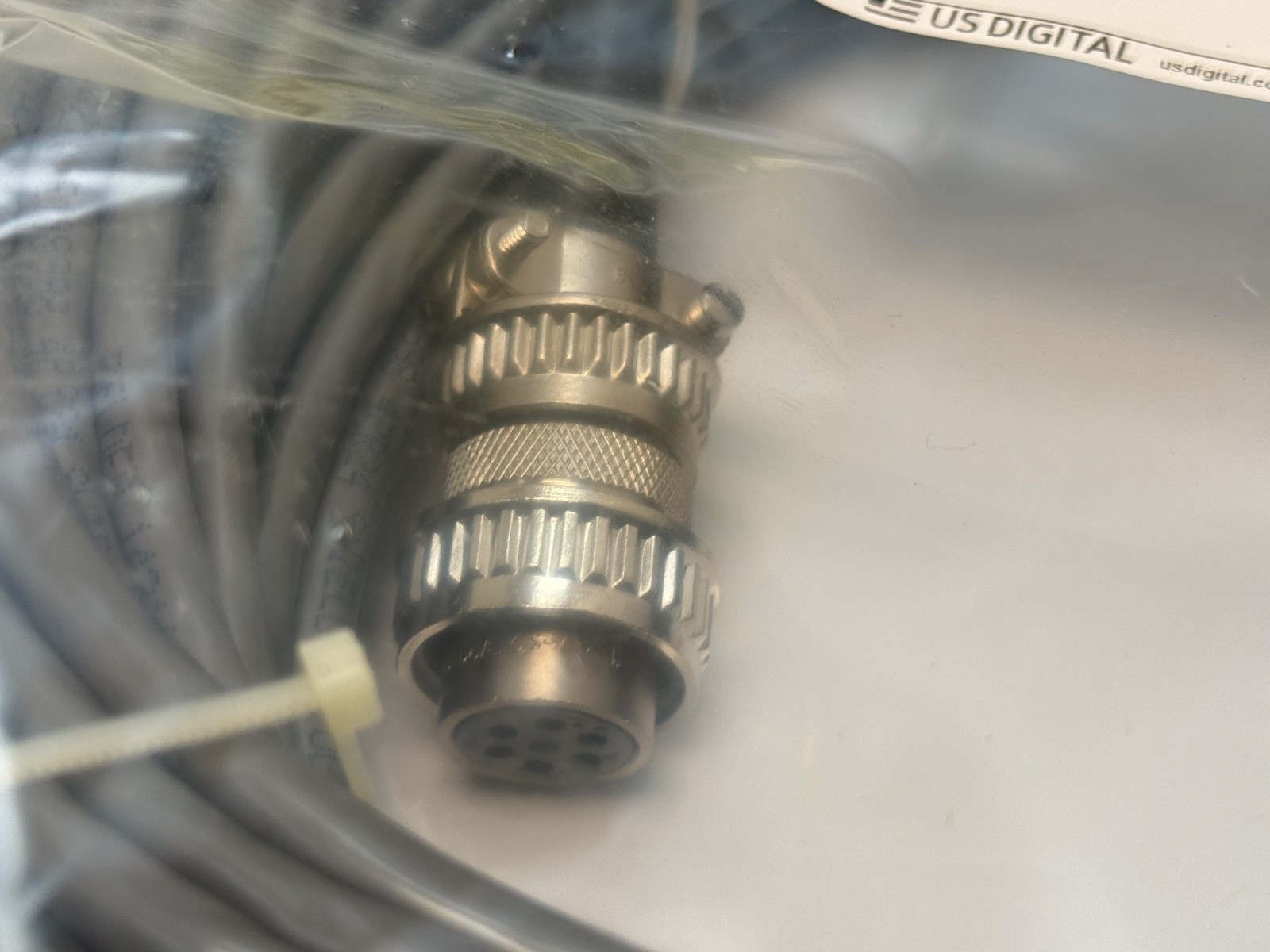

CA-RC7-SH-NC-100 — 7-pin MIL-DTL-5015 female connector to flying leads, shielded cable, 100 ft length code.

What these specs mean in practice

Resolution: 1,000 CPR. Output: 2-channel quadrature, single-ended. Supply Voltage: 9.5 to 30 VDC. Supply Current: 138 mA max. Low-level Output: 0.5 V max at 20 mA. Output Rise/Fall Time: 700 ns typical. Connector: 7-pin MIL-style screw-on.

Housing Material: Anodized aluminum. Shaft Material: Stainless steel. Shaft Diameter: 0.3748 in (+0.0000/-0.0003 in). Max Shaft Speed: 6,000 rpm (sealed, mechanical). Shaft Torque: 3.5 in-oz typical (sealed). Max Shaft Load: 40 lb axial, 35 lb radial. Max Shaft Runout: 0.0003 in TIR. Item Weight: 17 oz.

Operating Temperature: -40 to 85 °C (high-voltage version, under 3,600 CPR). Humidity: 100% condensing (IP65 sealed). Vibration: 20 G. Shock: 75 G.

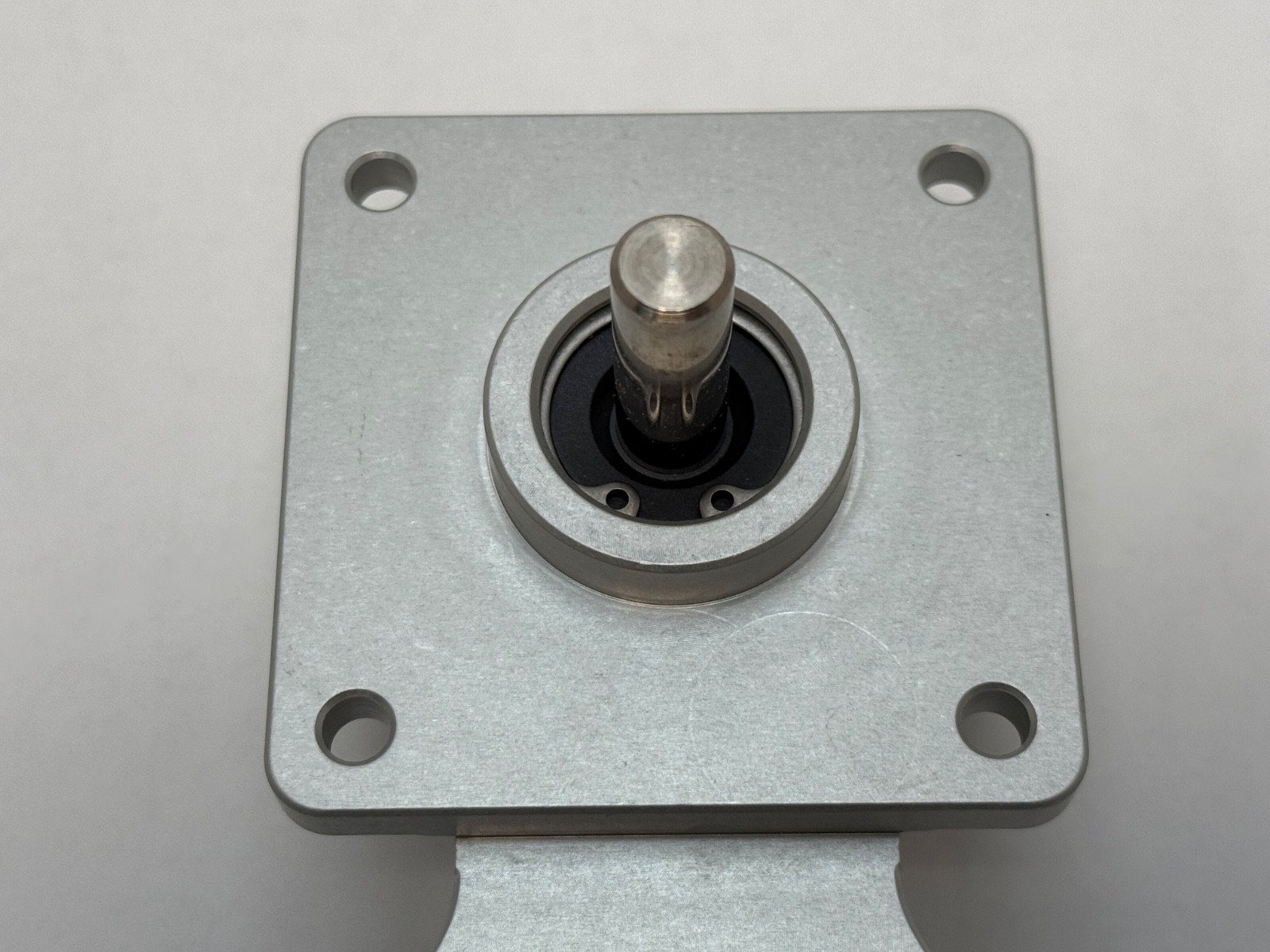

Mounting data

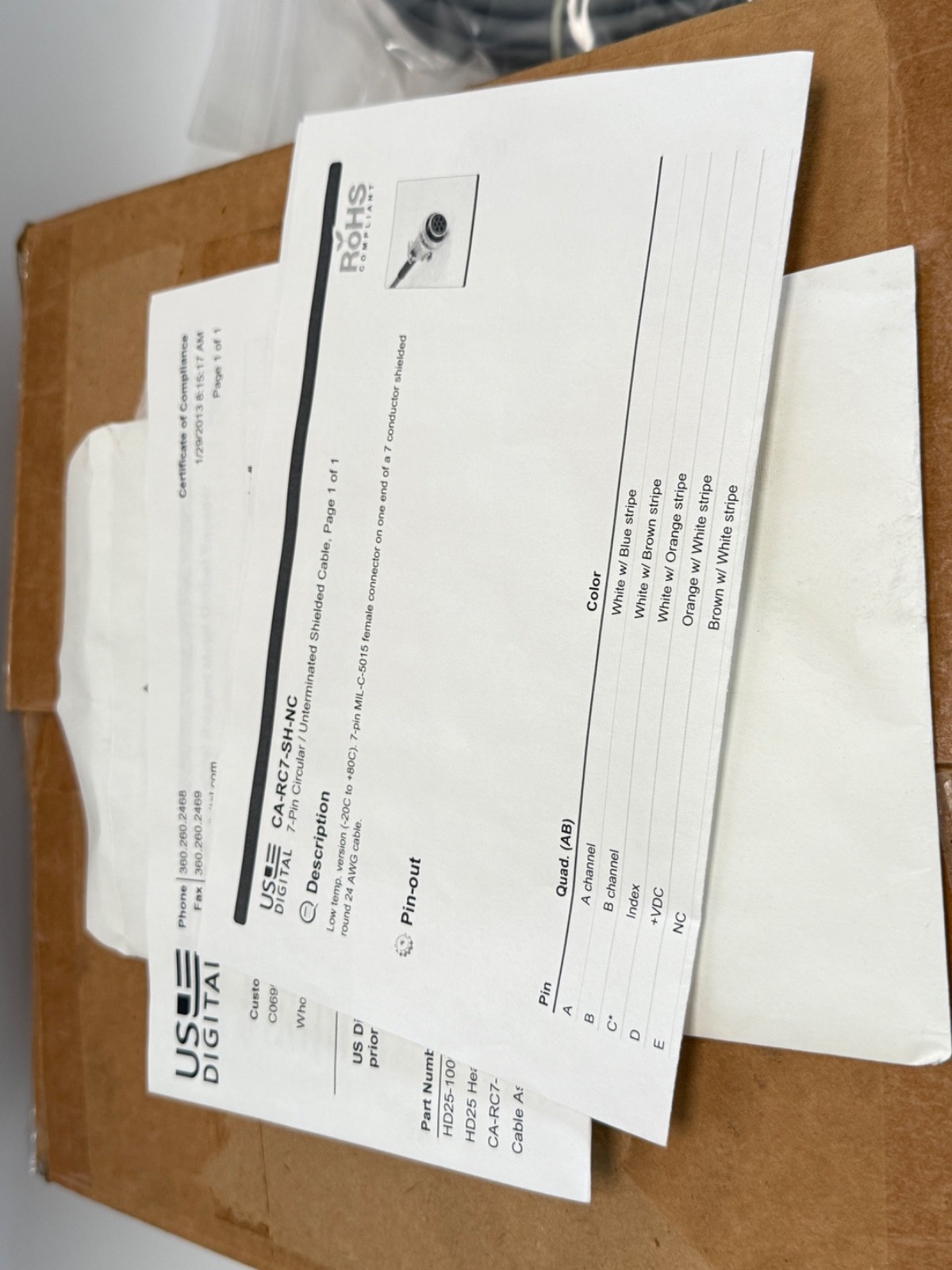

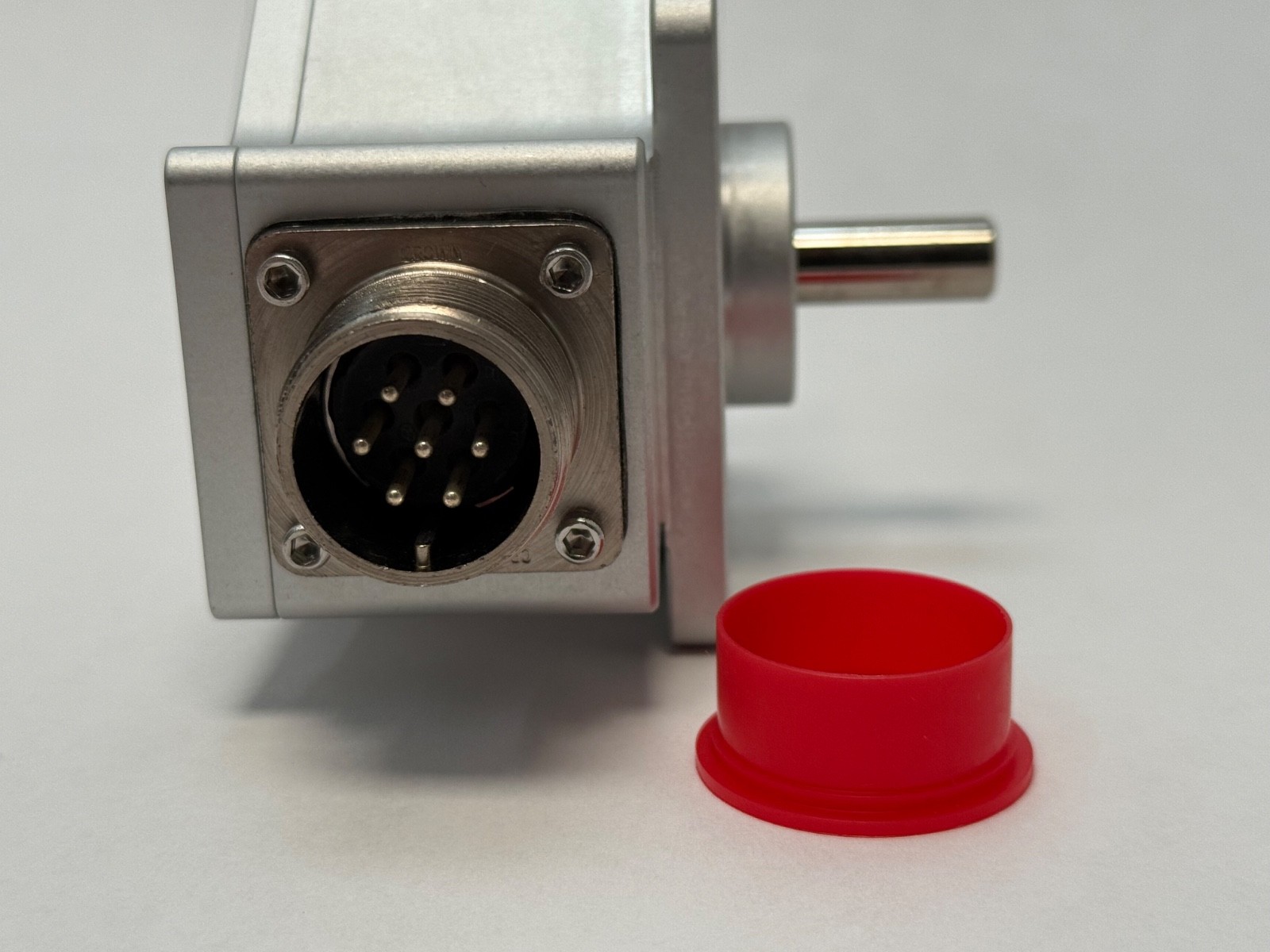

Package: NEMA size 25. Pin-out, 7-pin connector: A = A channel, B = B channel, C = Index (unused on NE), D = +VDC, E = case ground, F = common, G = NC.

Quantity and configuration

One HD25-1000-N-S-H-NE-S encoder and one CA-RC7-SH-NC-100 cable.
