Pepperl+Fuchs THI40N incremental rotary encoder, 180 ppr, 8 mm hollow shaft, 4.75-30 V DC push-pull output, 40 mm body. Altendorf part 283935 / K6730.0048.
List Price
$87.11
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Pepperl+Fuchs |
|---|---|
| MPN | THI40N-1CYY5R3TN-00180 |
| Model | THI40N1CYY5R3TN00180 |
| Encoding Type | Incremental |
|---|---|
| Output Type | Push-pull, incremental |
| Shaft Diameter | 8 mm |
| Shaft Type | Hollow shaft 8 mm |
| Voltage | 4.75-30 V DC |
| Mpn Variants | THI40N-1CYY5R3TN-00180, THI40N1CYY5R3TN00180, Altendorf 283935, K6730.0048 |
| Compatible With Replaces | Altendorf 283935, K6730.0048 |
| Min Temp | -10 °C |
| Series | THI40N |
| Max Temp | 70 °C |
| Type | Incremental Rotary Encoder |
| Ip Rating | IP54 |
| Item Weight | 160 g |

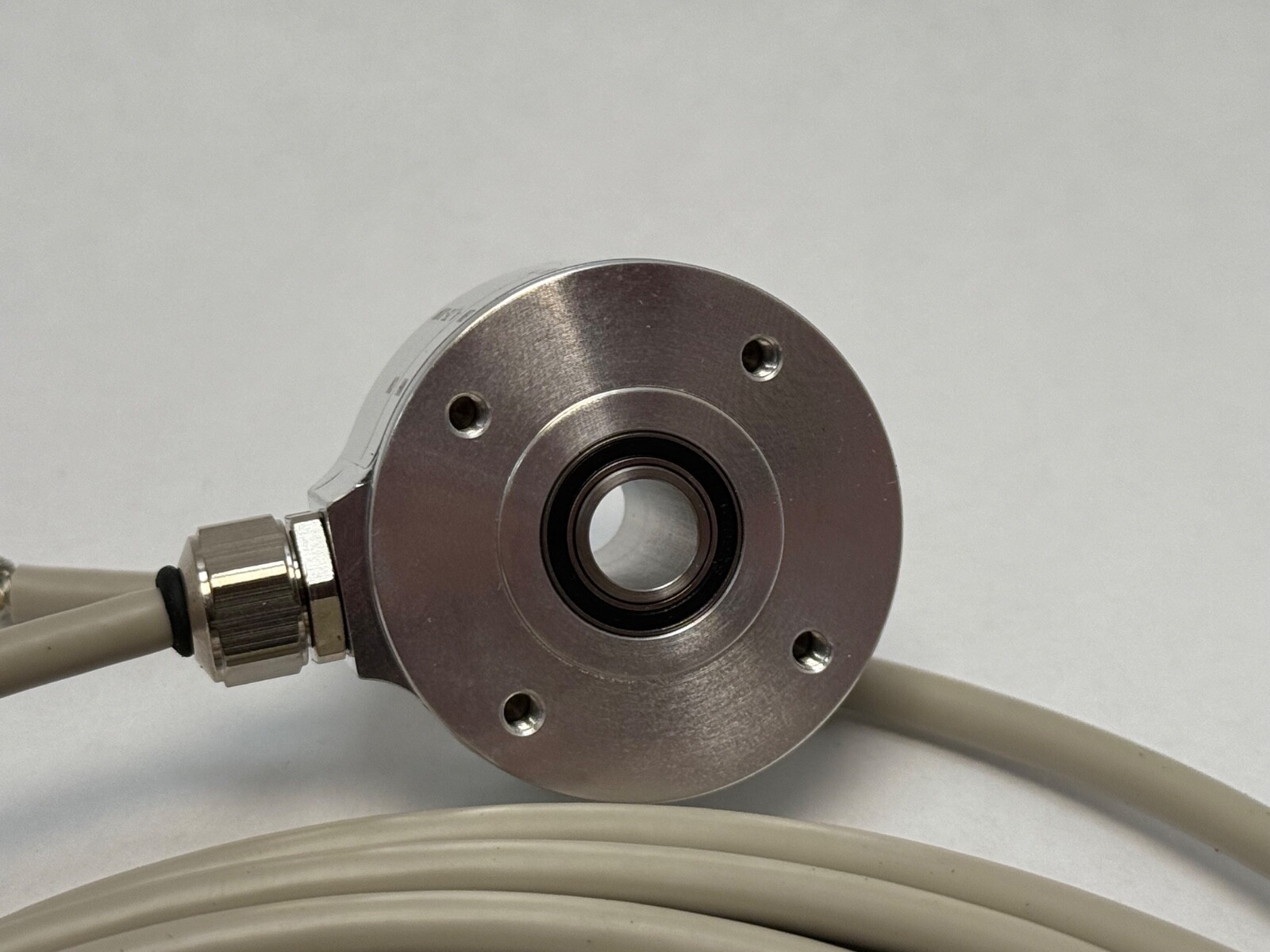

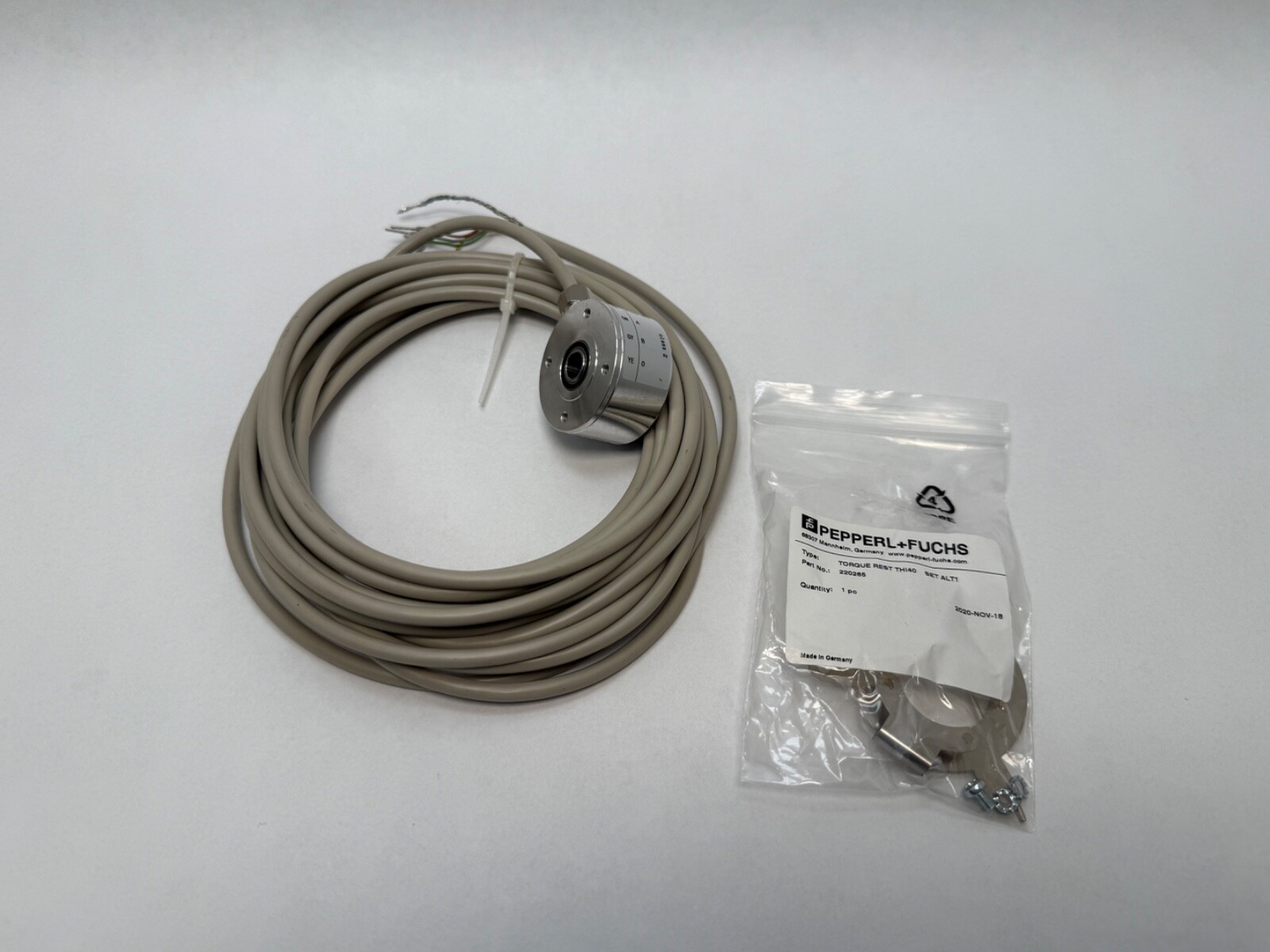

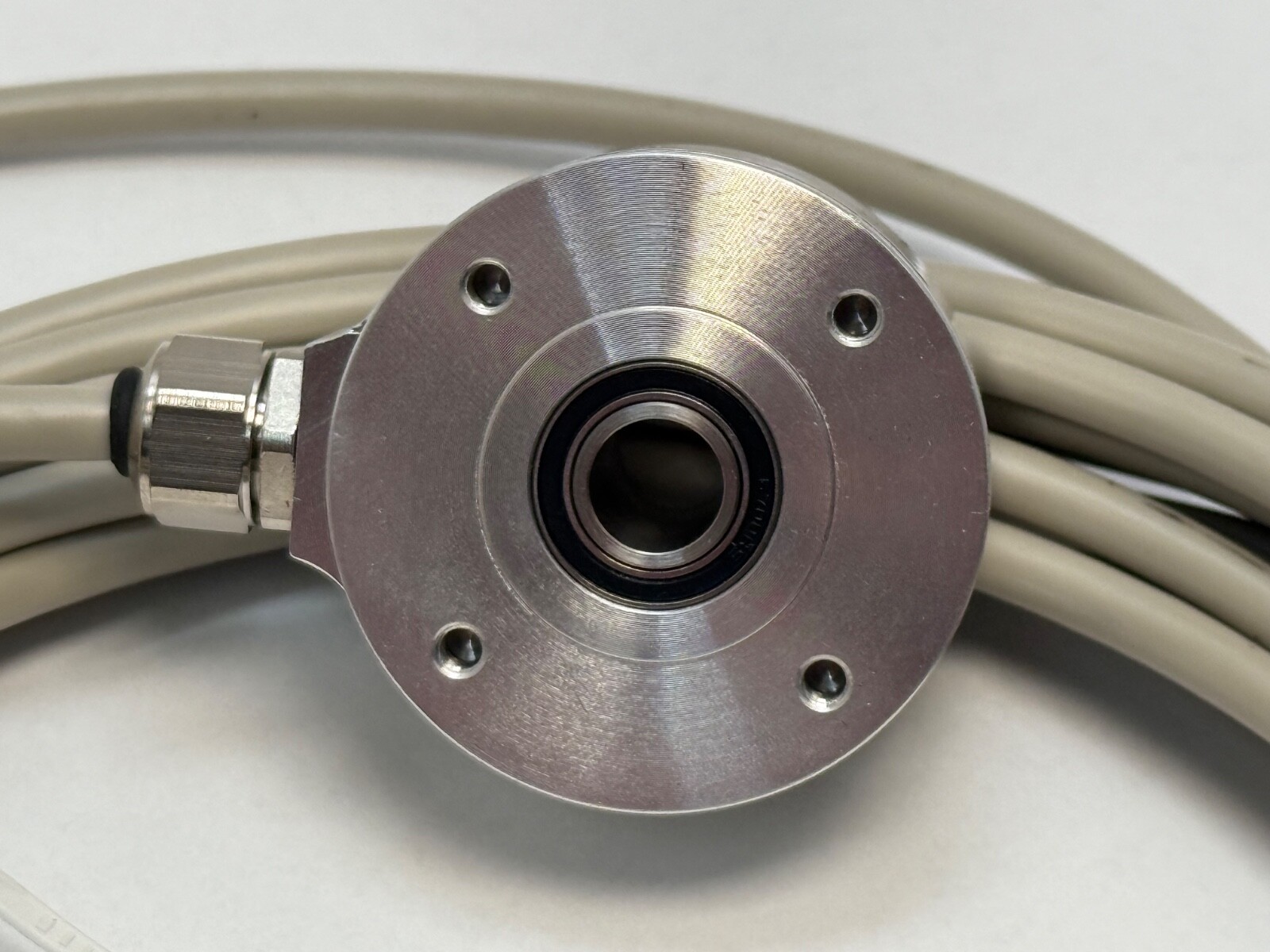

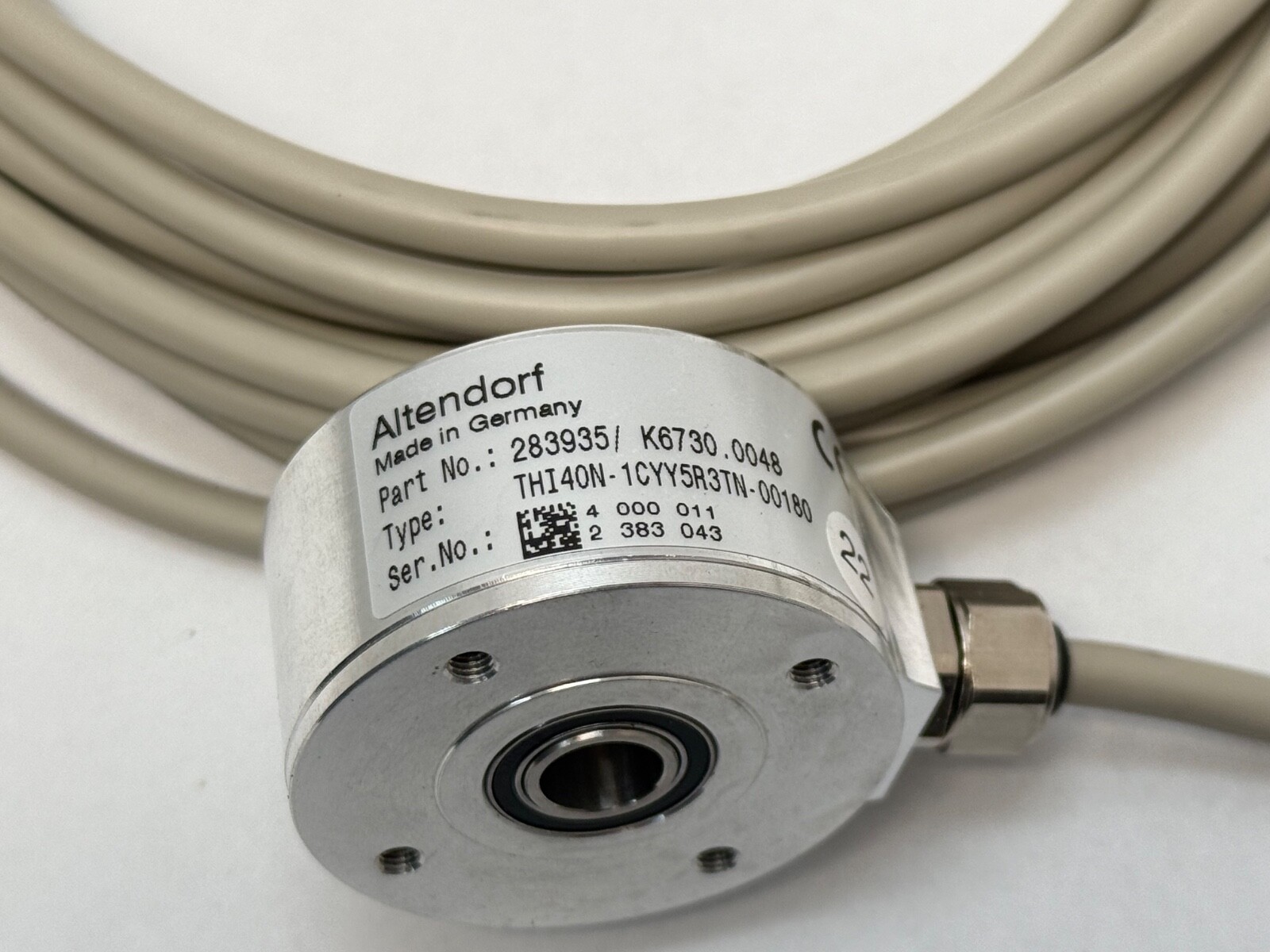

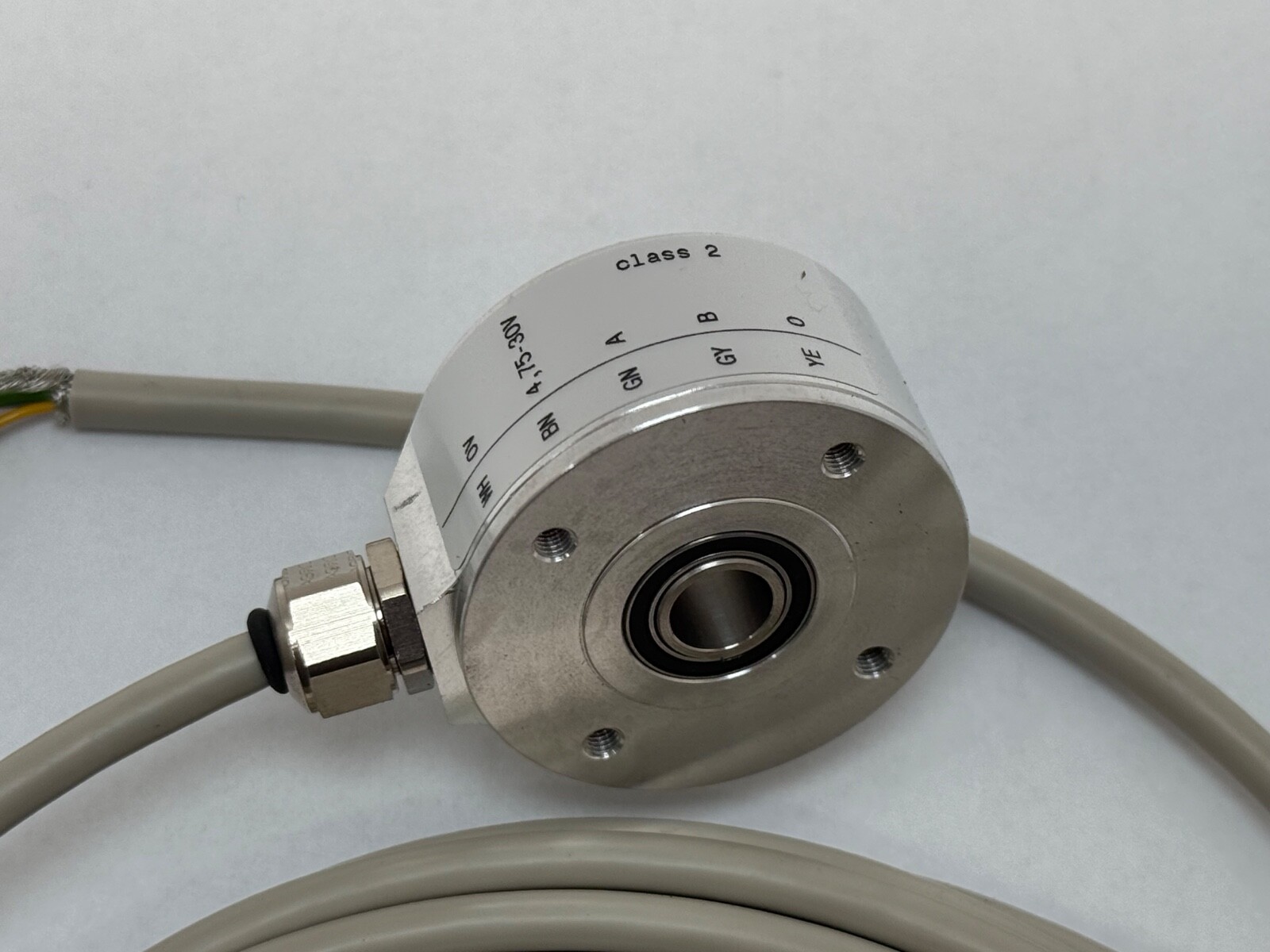

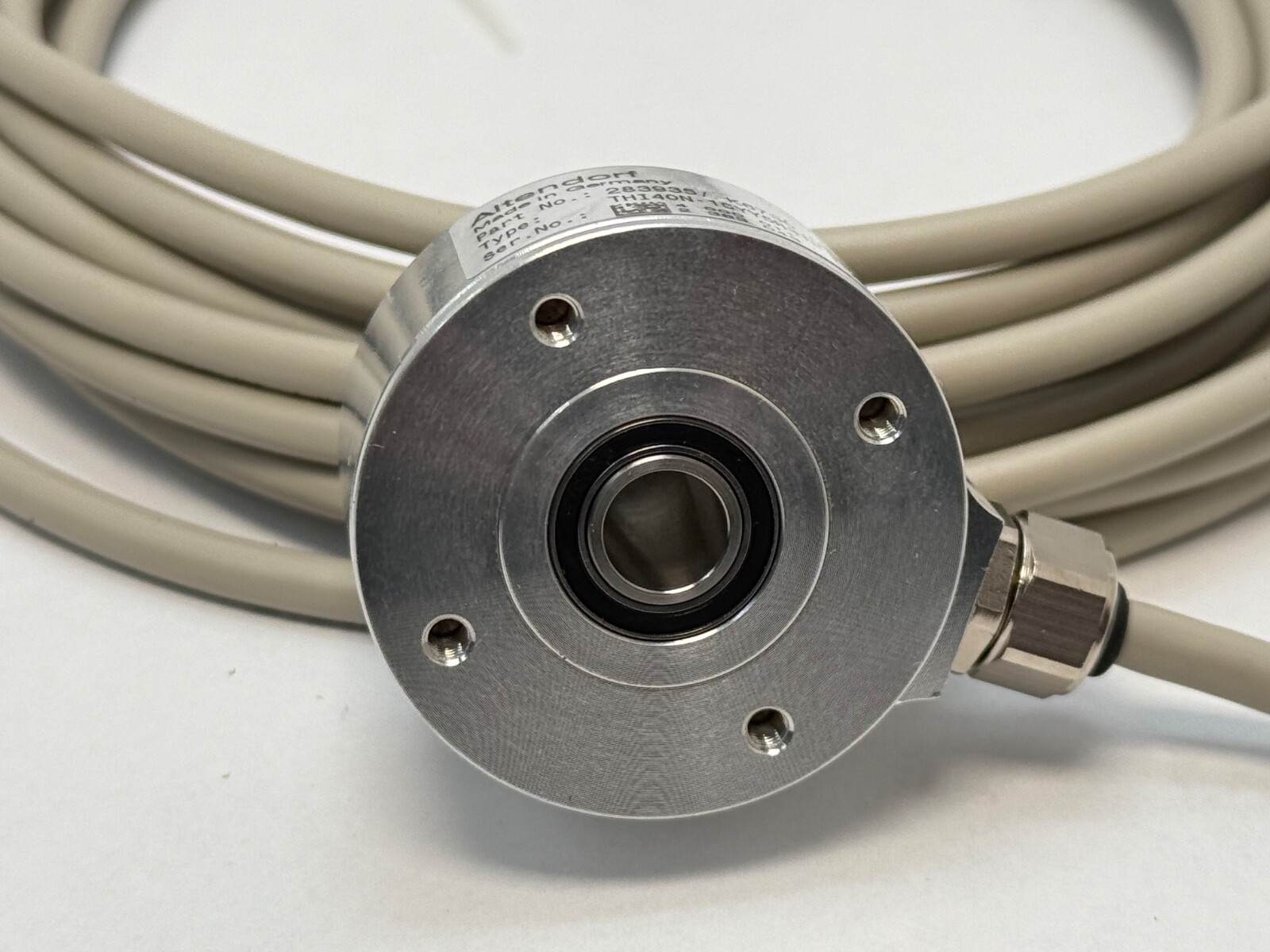

Pepperl+Fuchs THI40N-1CYY5R3TN-00180 is a compact 40 mm incremental rotary encoder with an 8 mm hollow shaft and 180 pulses per revolution. This unit carries Altendorf part numbers 283935 and K6730.0048.
THI40N — Pepperl+Fuchs THI40N incremental hollow shaft encoder, 40 mm diameter, aluminium housing.

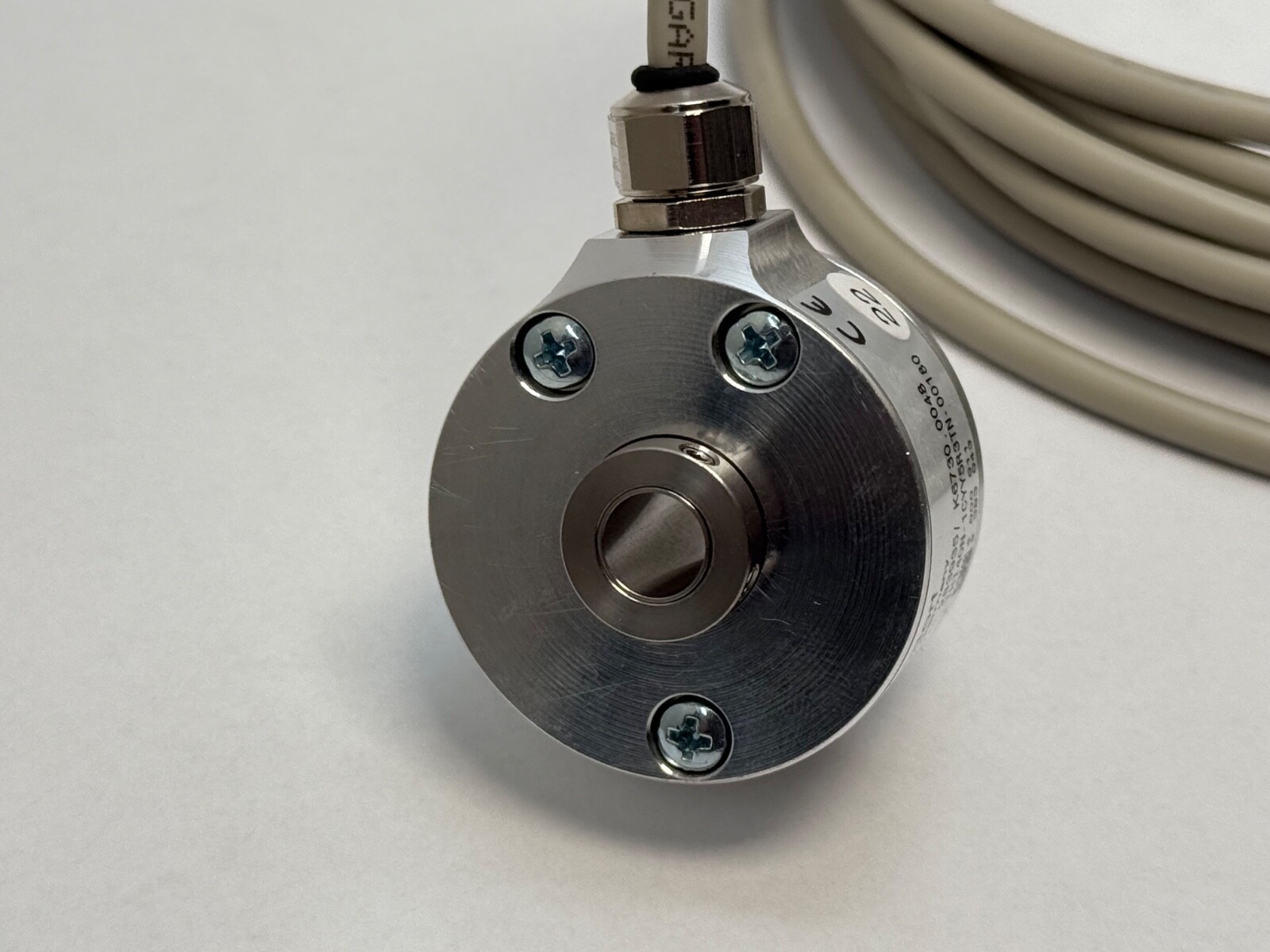

1C — hollow shaft 8 mm, clamping ring at cover side.

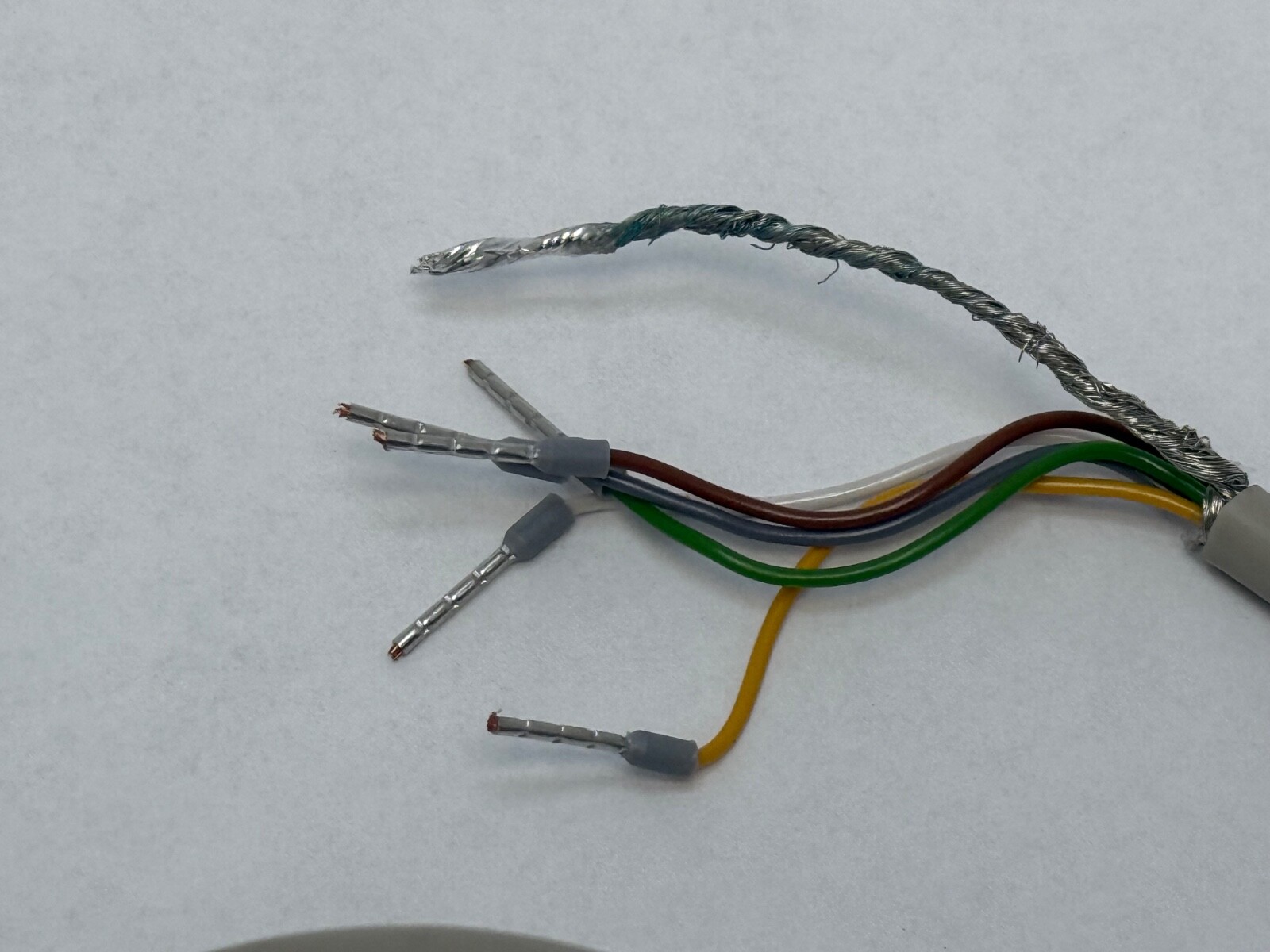

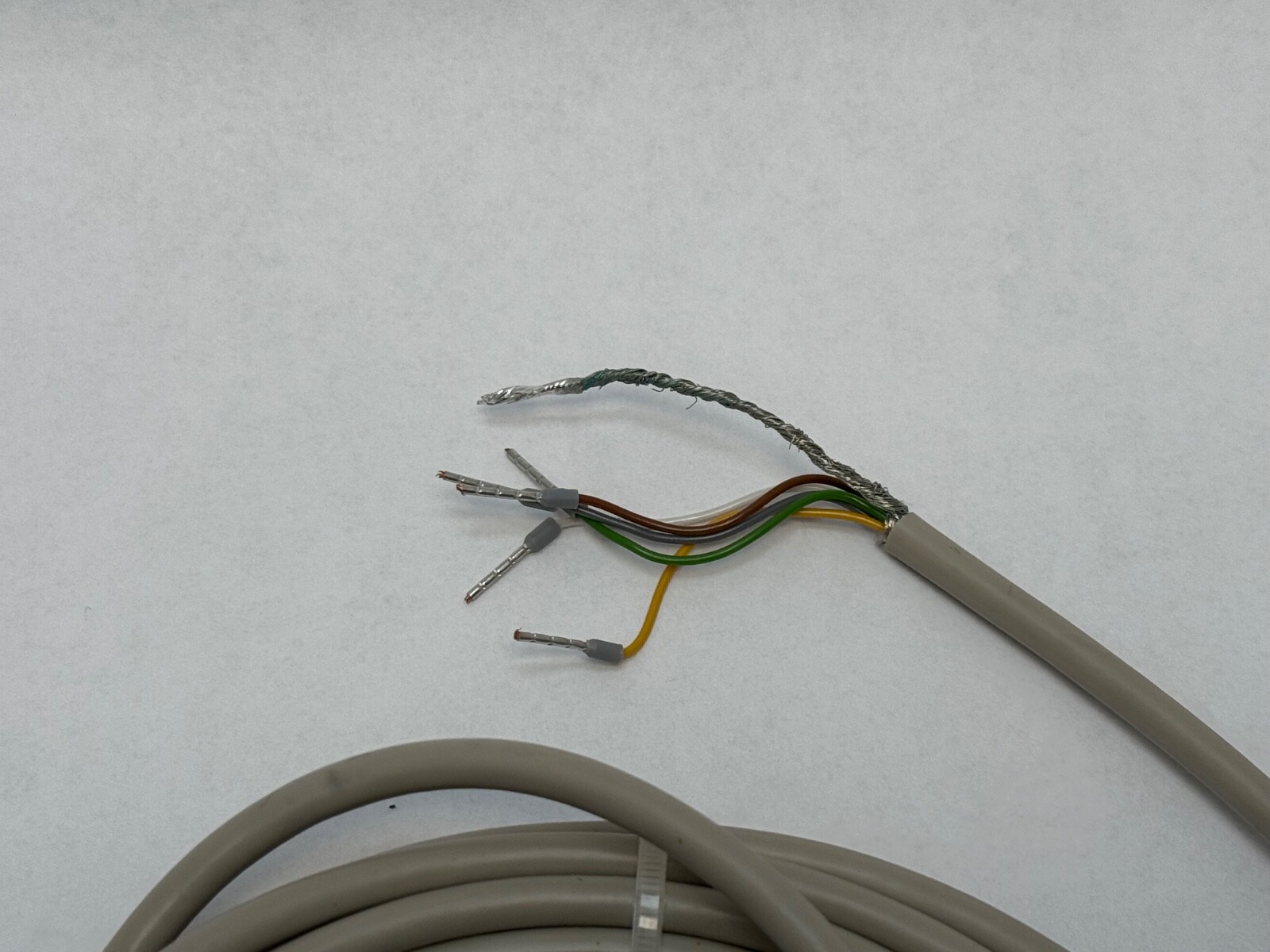

R — radial cable exit.
T — 4.75 to 30 V push-pull output switching.
N — normal temperature range.
00180 — 180 pulses per revolution.
Detection Type: Photoelectric sampling. Pulse Count: 180 ppr. Operating Voltage: 4.75 to 30 V DC, reverse polarity protected. No-load Supply Current: max. 55 mA. Output Type: Push-pull, incremental. Load Current: max. 30 mA per channel, short-circuit protected. Output Frequency: max. 100 kHz. Degree of Protection: IP54. Operating Temperature: -10 to 70 °C. Storage Temperature: -25 to 85 °C. Max Speed: 6000 rpm. Starting Torque: 1 Ncm or less. Moment of Inertia: 5 gcm² or less. Shock Resistance: 100 g, 6 ms. Vibration Resistance: 10 g, 10 to 2000 Hz. Housing and Flange: Aluminium. Shaft: Stainless steel. Mass: approx. 160 g. Approval: cULus Listed.

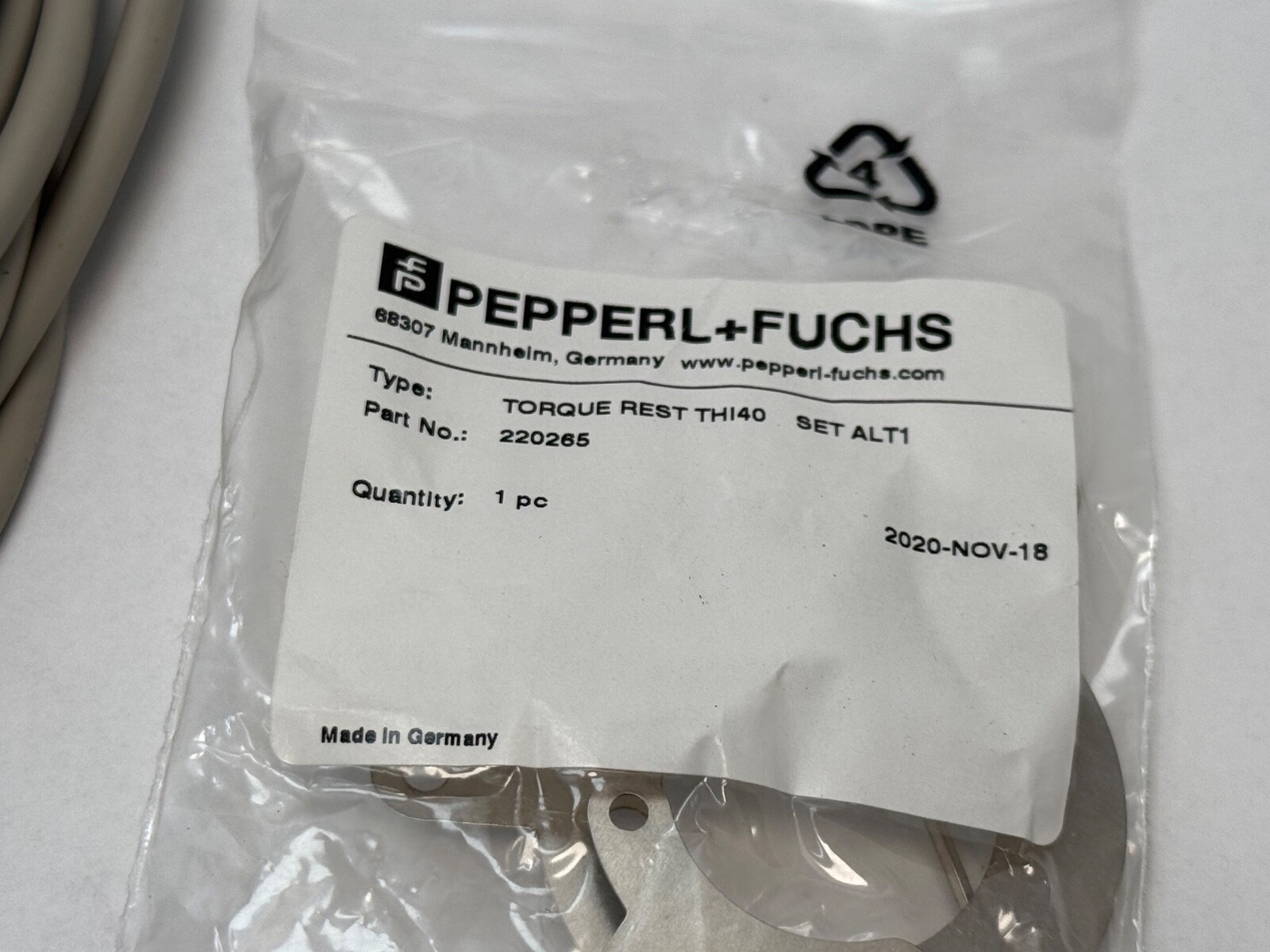

Diameter: 40 mm. Length: 20.7 mm. Hollow Shaft: 8 mm, clamping ring at cover side. Mounting: torque rest; max shaft offset 0.15 mm radial, 0.25 mm axial.

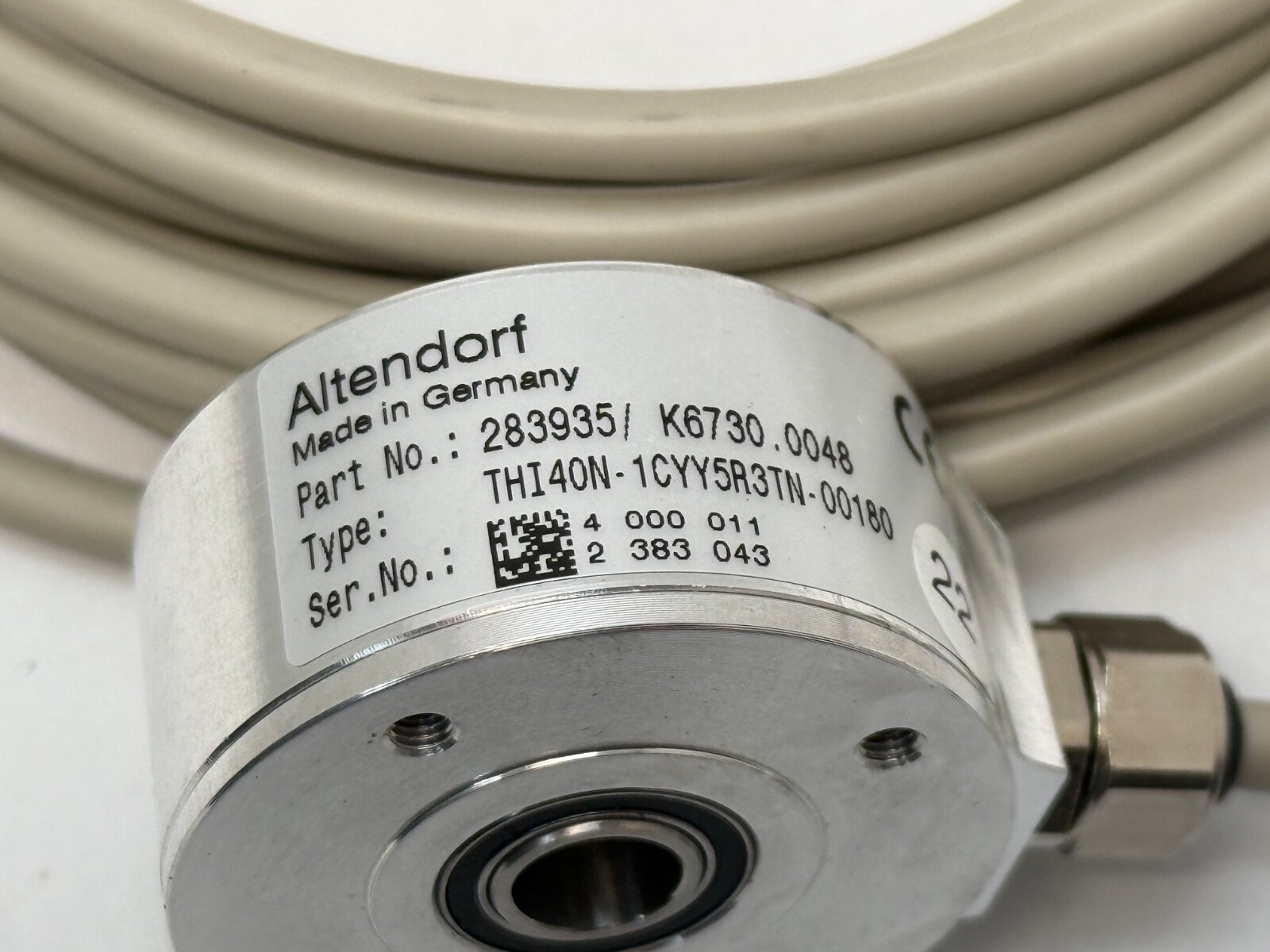

OEM application: Altendorf part 283935, K6730.0048. Part number formats: THI40N-1CYY5R3TN-00180, THI40N1CYY5R3TN00180.
CAD model and data sheet: available from Pepperl+Fuchs (pepperl-fuchs.com).
What resolution is the THI40N-1CYY5R3TN-00180?
180 pulses per revolution.
What shaft does it fit?
An 8 mm shaft, through an 8 mm hollow shaft with the clamping ring at the cover side.
What supply voltage does it need?
4.75 to 30 V DC with push-pull outputs.
