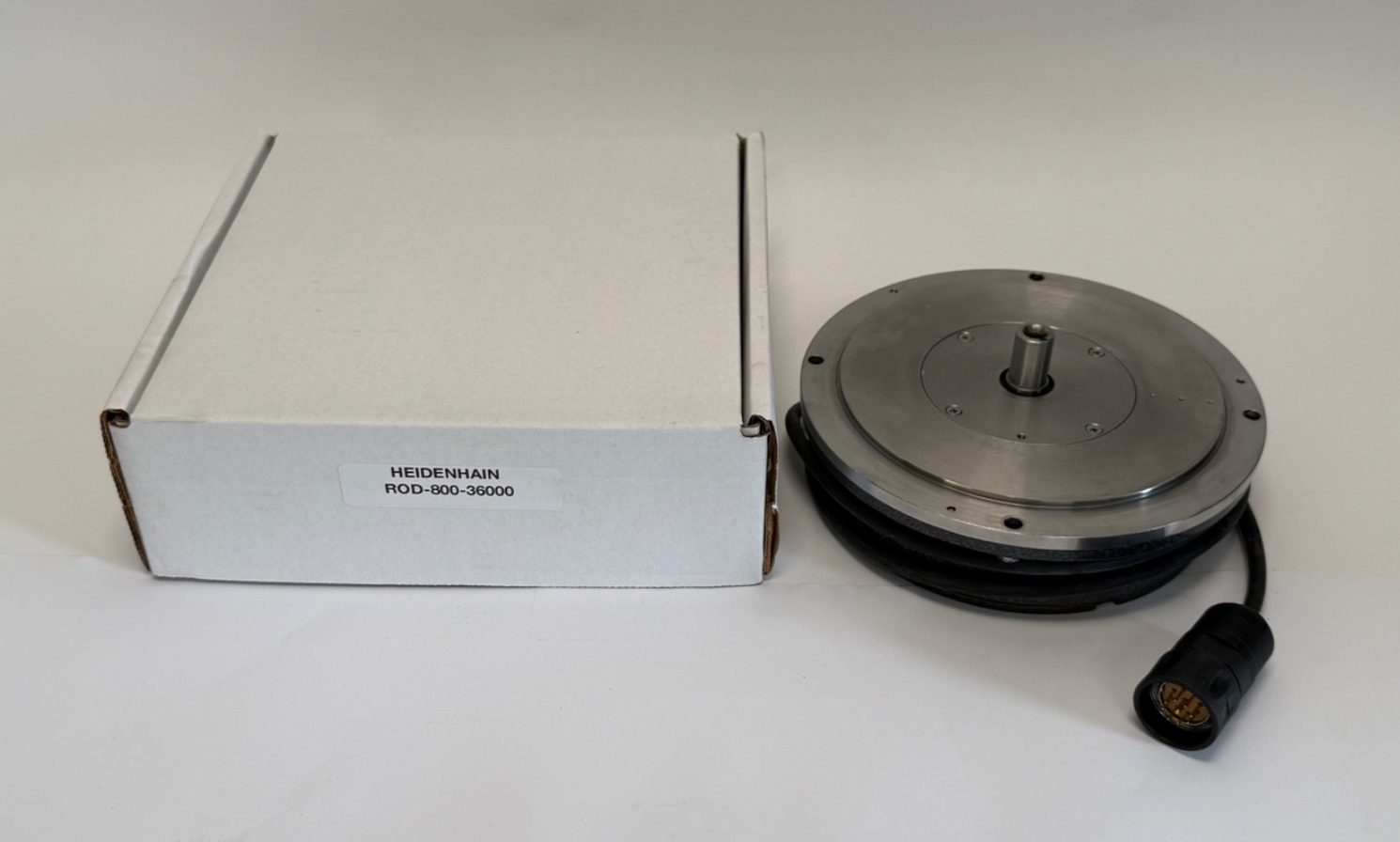

HeidenhainROD-800-36000Ultra-High-Accuracy Incremental Angle Encoder, 36000 Lines/Rev, 11 µApp Sinusoidal Output, Integral Bearing with Separate Shaft Coupling, Measuring Steps to 0.00005°

Product Description

What this part is

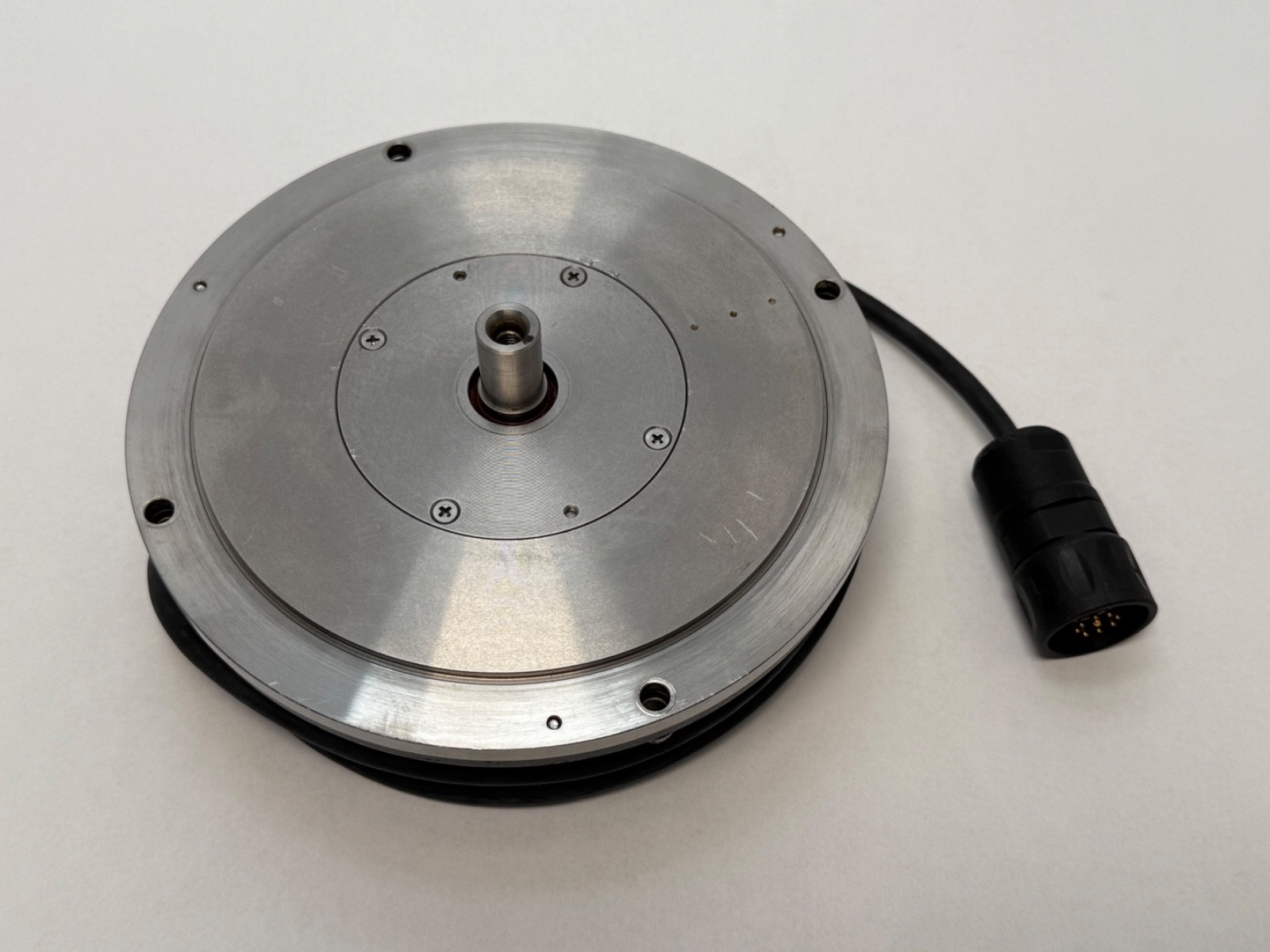

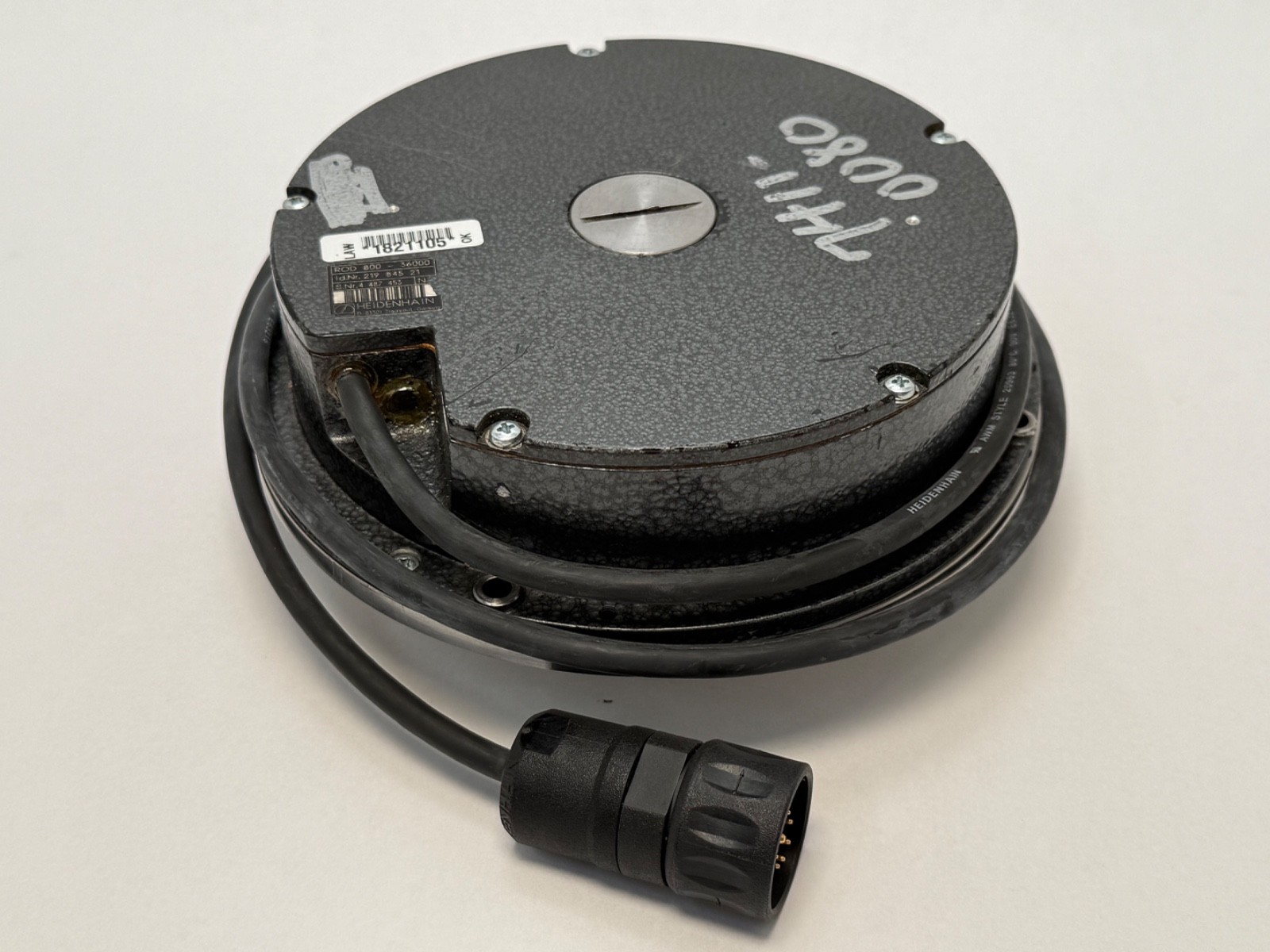

This is a HEIDENHAIN ROD 800 incremental angle encoder with 36000 lines per revolution, HEIDENHAIN ID number 219 845-21. It is a large-diameter, ultra-high-accuracy angle encoder with an integral bearing, designed for connection to the measured shaft through a separate shaft coupling.

The distinction that matters here is between an angle encoder and a rotary encoder. HEIDENHAIN reserves “angle encoder” for devices in the arc-second accuracy class — rotary tables, swivel heads, telescope and antenna mounts, printing-cylinder registration, precision indexing. A general-purpose rotary encoder counts revolutions and fractions of them; this instrument measures an angle, and its price and its handling requirements both follow from that. It is an incremental device, so absolute angular position is only known after traversing the reference mark.

Decoding the designation

ROD — HEIDENHAIN’s designation for a rotary/angular encoder with its own integral bearing, driven through an external coupling. (Contrast the RON and RPN families, and the bearingless ERO / ERA ring encoders, which are mounted directly on the customer’s own bearing.)
800 — the ROD 800 family: the large-diameter, highest-accuracy tier in HEIDENHAIN’s sealed integral-bearing angle encoder range.
36000 — 36000 lines (signal periods) per revolution. At 36000 periods per turn, one signal period spans 36 arc seconds, and interpolating that period in the downstream electronics is what yields measuring steps down to 0.00005°.

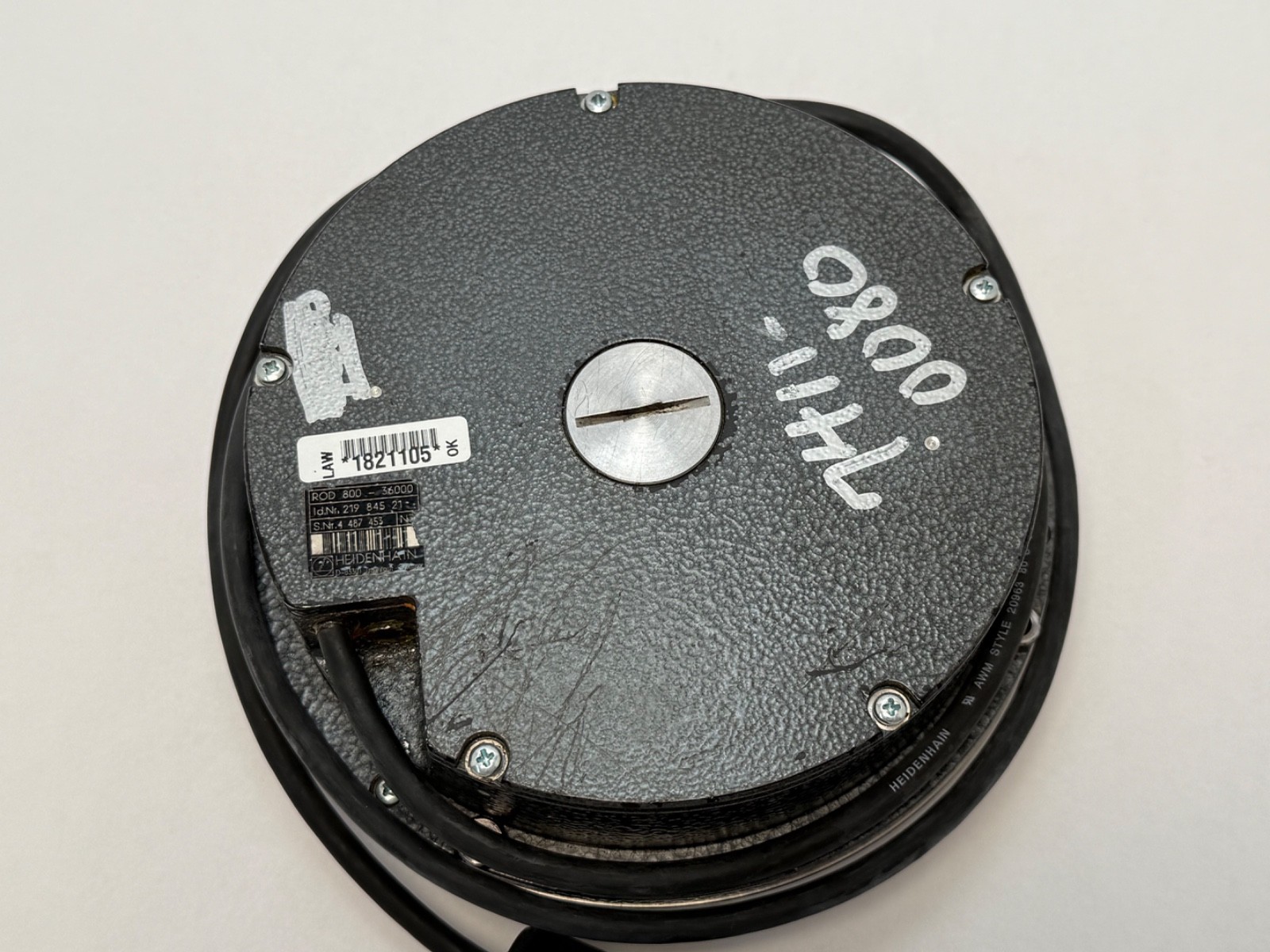

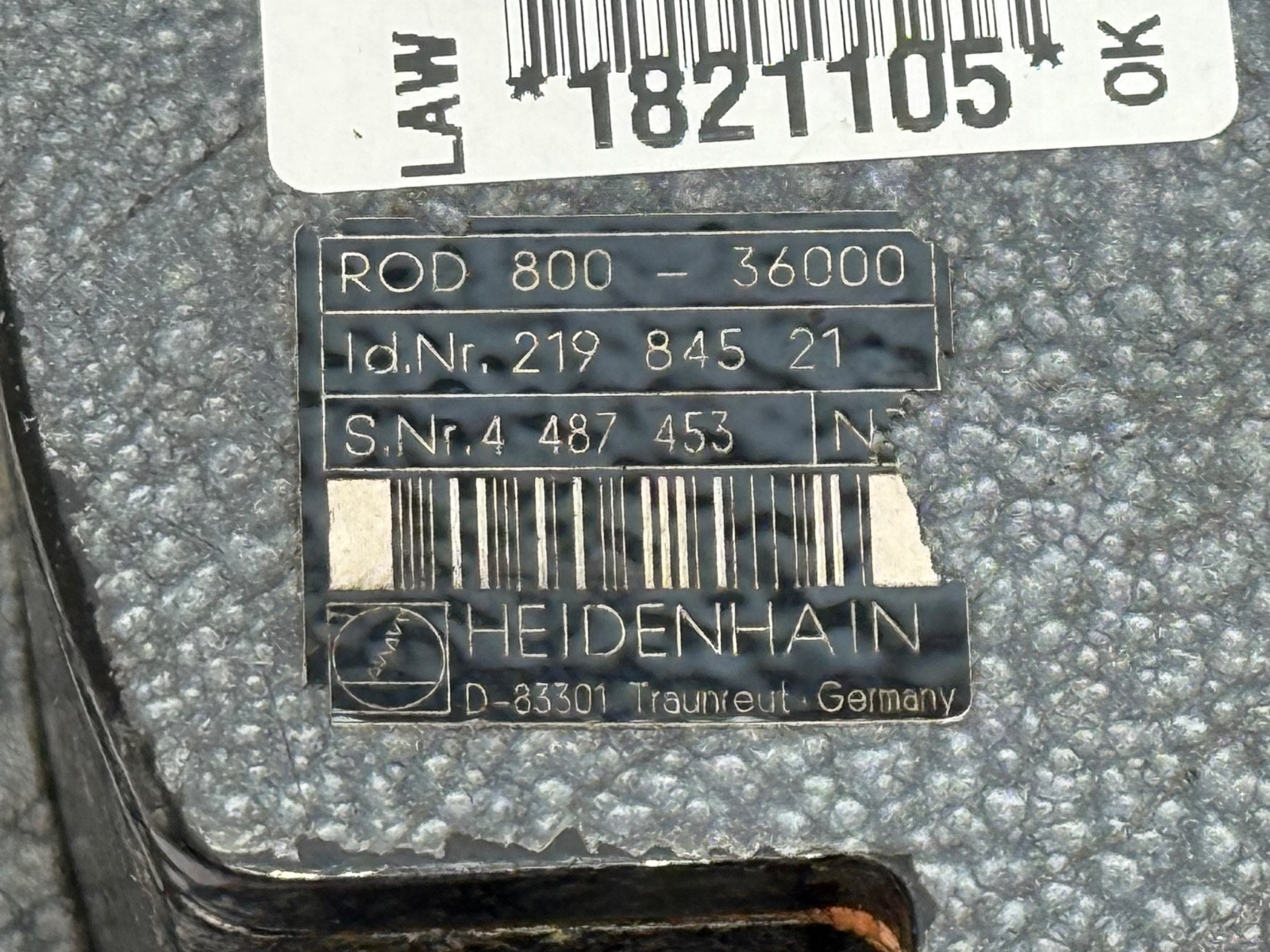

219 845-21 — the HEIDENHAIN ID number, which is the definitive identifier for the exact build. Also written 219845-21 and 21984521.

The output signal: read this before you buy:
This encoder delivers 11 µA peak-to-peak sinusoidal current signals, not TTL square waves and not 1 Vpp voltage signals. That is the single most important compatibility fact about it, and it is where most wrong purchases happen.

The 11 µApp interface is HEIDENHAIN’s older analogue current-signal standard, used by legacy HEIDENHAIN counters, position display units and CNC controls of that generation. A modern control expecting 1 Vpp or TTL will not read this encoder directly — you need either a control with an 11 µApp input or a HEIDENHAIN interface/converter box between them. Conversely, the reason the analogue sinusoidal output exists at all is that it is what makes the fine interpolation possible: you cannot get 0.00005° steps out of a square wave, only out of a clean sine pair that downstream electronics can subdivide.

Published specifications

Type: incremental angle encoder, integral bearing, separate shaft coupling
Line count: 36000 signal periods per revolution (one period = 36 arc seconds)
Output: 11 µApp sinusoidal current signals, incremental with reference mark
Measuring step: to 0.00005° with appropriate interpolating electronics
Accuracy class: ultra-high accuracy, HEIDENHAIN’s large-diameter angle encoder tier
HEIDENHAIN ID: 219 845-21

What these specs mean in practice

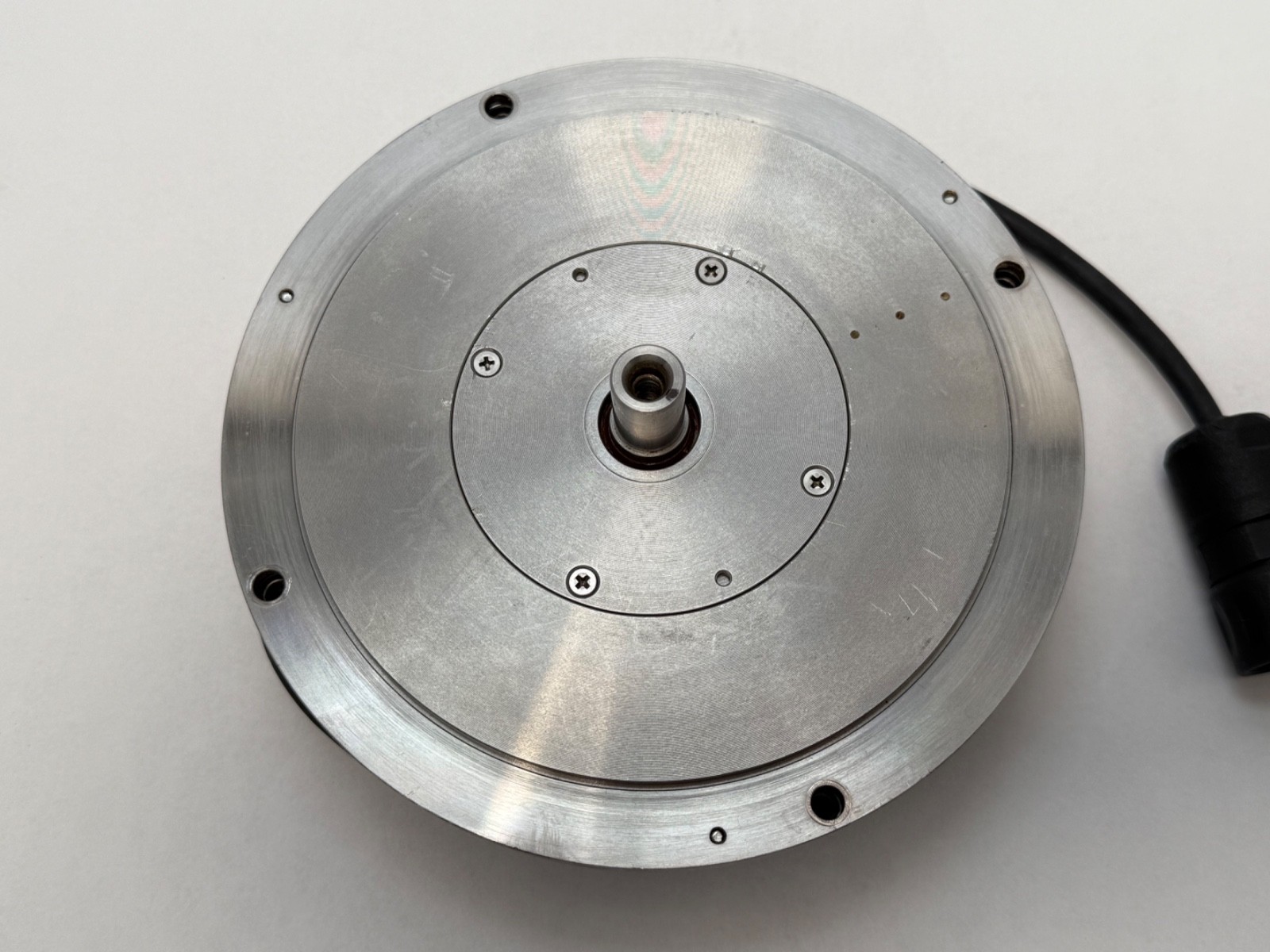

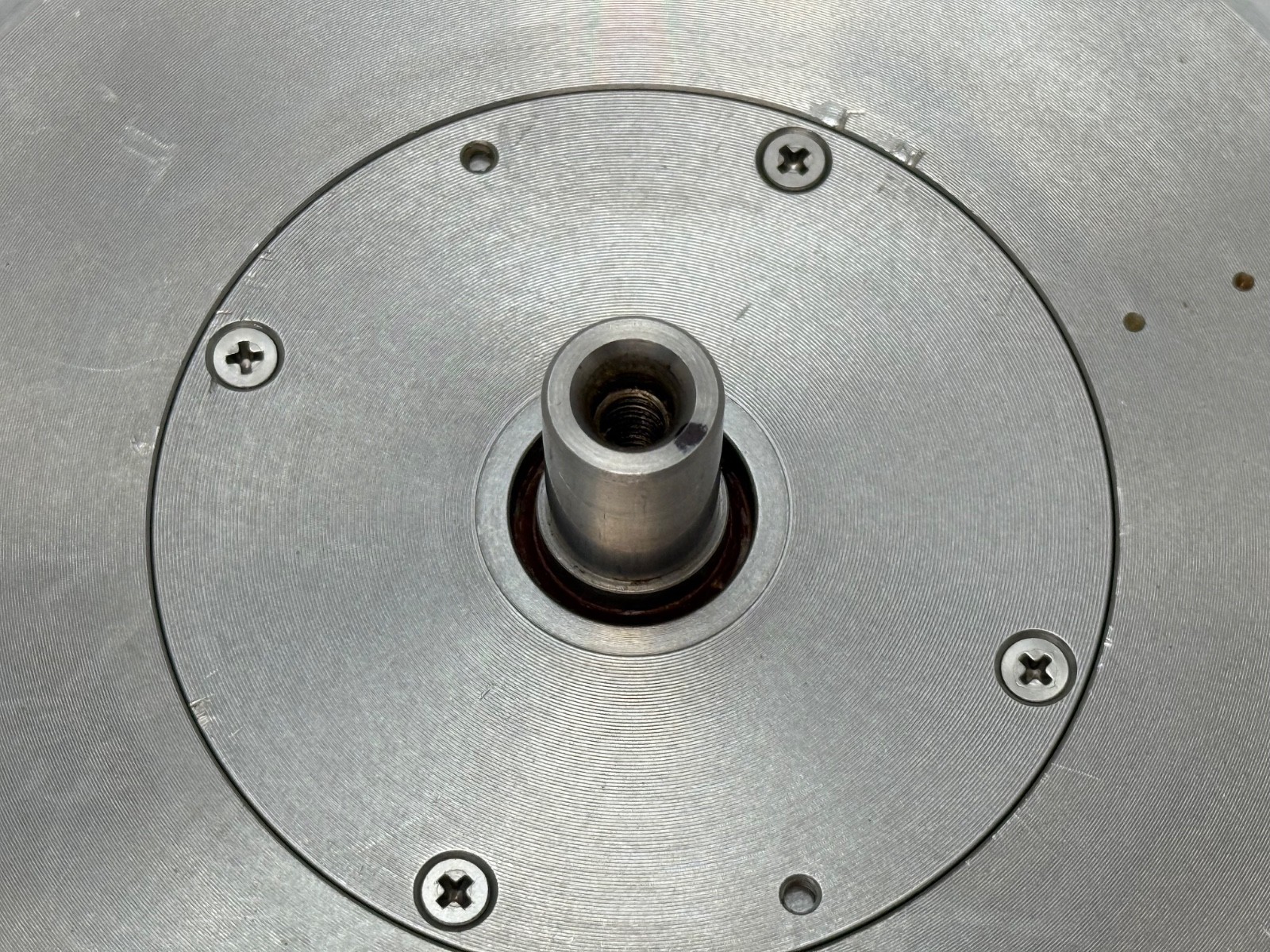

The coupling is part of the measurement, not an accessory. A ROD-series encoder has its own bearing, which is exactly why it must be connected through a compliant shaft coupling: the coupling absorbs axial and radial misalignment that would otherwise load the encoder’s bearing and, more importantly, would inject angular error straight into your measurement. A ROD 800 bolted up rigidly to a slightly eccentric shaft will happily produce readings that are precise and wrong. Budget for the correct HEIDENHAIN coupling and a properly machined mounting face.

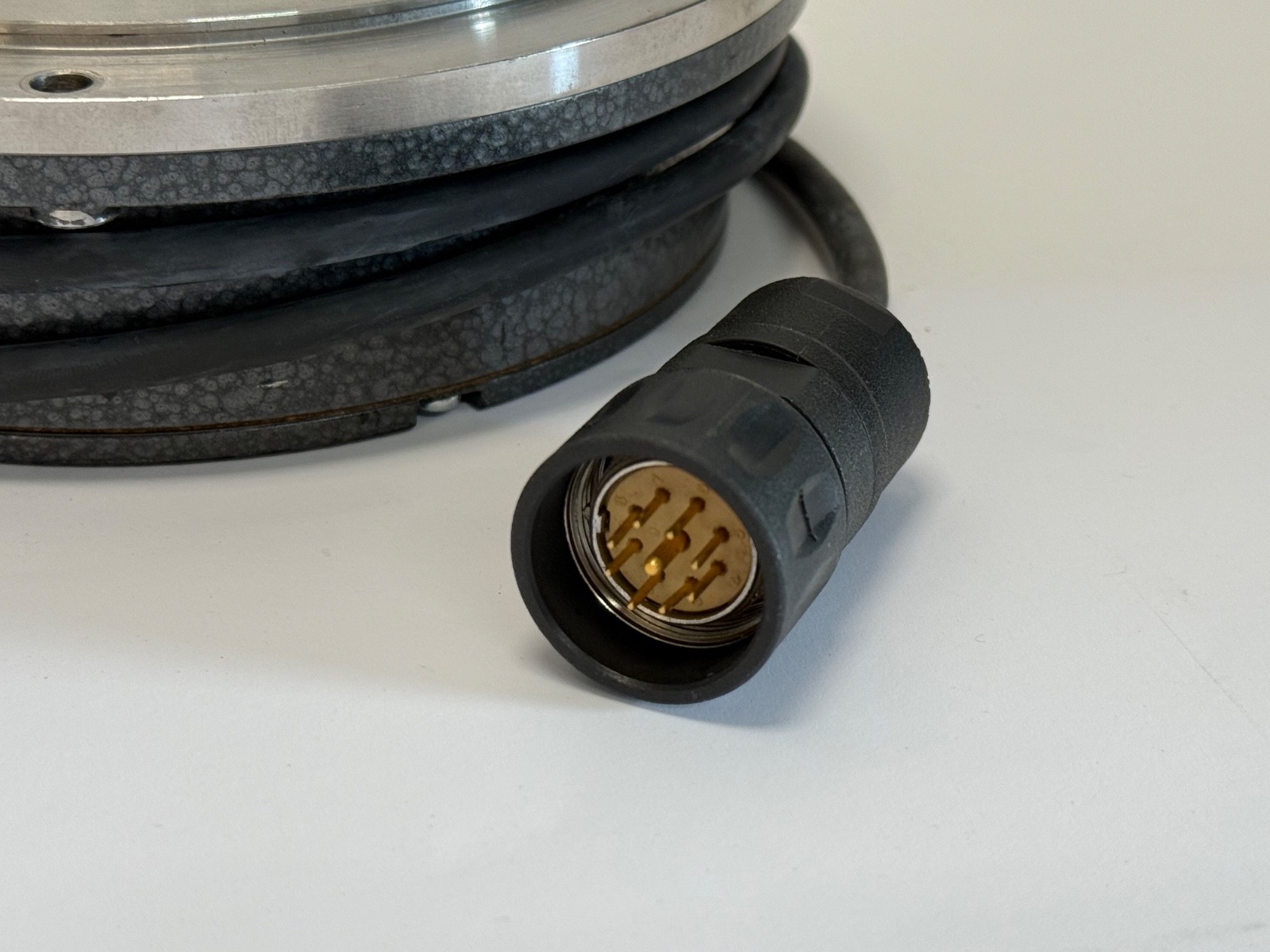

Signal cleanliness is the accuracy budget. At 11 µApp the signal levels are genuinely small, so cable length, screening and grounding are not best practice — they are the specification. Run the encoder cable as a single continuous screened HEIDENHAIN cable where possible, avoid splices, ground the screen as the interface documentation requires, and keep it out of any duct carrying motor or contactor wiring.

Quantity and configuration

Sold as one encoder. No shaft coupling, no mounting flange, adapter or clamping ring, no encoder cable or mating connector, no interface box or signal converter, no counter or position display unit, and no manual are included. On this class of instrument the coupling and the cable are specified per installation, so expect to order them to suit.

Installation and setup notes

Treat this as a metrology instrument, not a machine part. Do not drop it, do not lever anything against the shaft, and do not use the shaft to lift the housing — the graduated disc and its bearing are the whole value of the unit. Clean and check the mounting face for flatness and the shaft for concentricity before assembly; angle-encoder error budgets are consumed by mounting error long before they are consumed by the encoder. Fit the specified coupling and set the axial and radial offsets within its stated tolerance. Land the screened cable per the interface documentation and confirm signal amplitude and symmetry at the interface before commissioning — HEIDENHAIN counters and diagnostic tools read out both, and a marginal amplitude that still “works” is a fault developing. Finally, traverse the reference mark to establish datum after every power-up: this is an incremental device.

Interchange guidance

Searched as ROD 800 36000, ROD-800-36000, ROD800-36000, ROD800 36000, 219 845-21, 219845-21, 21984521 and Heidenhain angle encoder 36000. Closely related HEIDENHAIN designations worth knowing: ROD 780 and ROD 880 are the current integral-bearing incremental angle encoders in the same architecture, and ROD 880C-36000 is the same 36000-line count in the current family — carried as cross-references because they share the search intent and the measuring principle, but the mechanical interface and the output signal standard differ (the current families are supplied with 1 Vpp and TTL options rather than 11 µApp), so confirm both before treating one as a replacement. Also in the HEIDENHAIN angle-encoder range: RON and RPN integral-bearing encoders, and the ERO / ERA / RCN families. Note on brand-field accuracy: HEIDENHAIN is the correct manufacturer for a ROD designation, and the ID-number format “219 845-21” is HEIDENHAIN’s own convention — a useful confirmation, since HEIDENHAIN encoders fitted to third-party spindles and tables are frequently mis-branded to the machine builder.
