Availability:
1 in stock

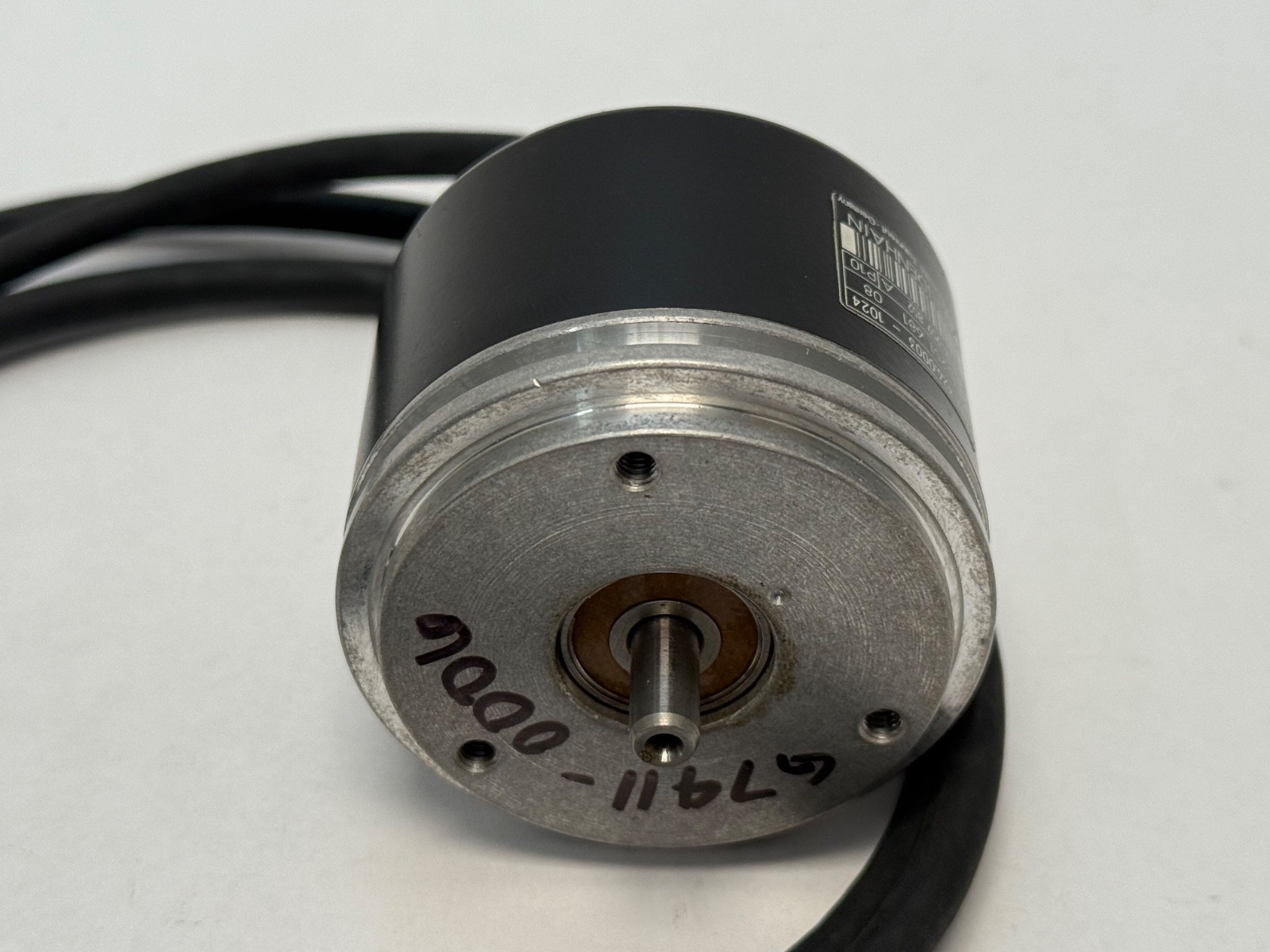

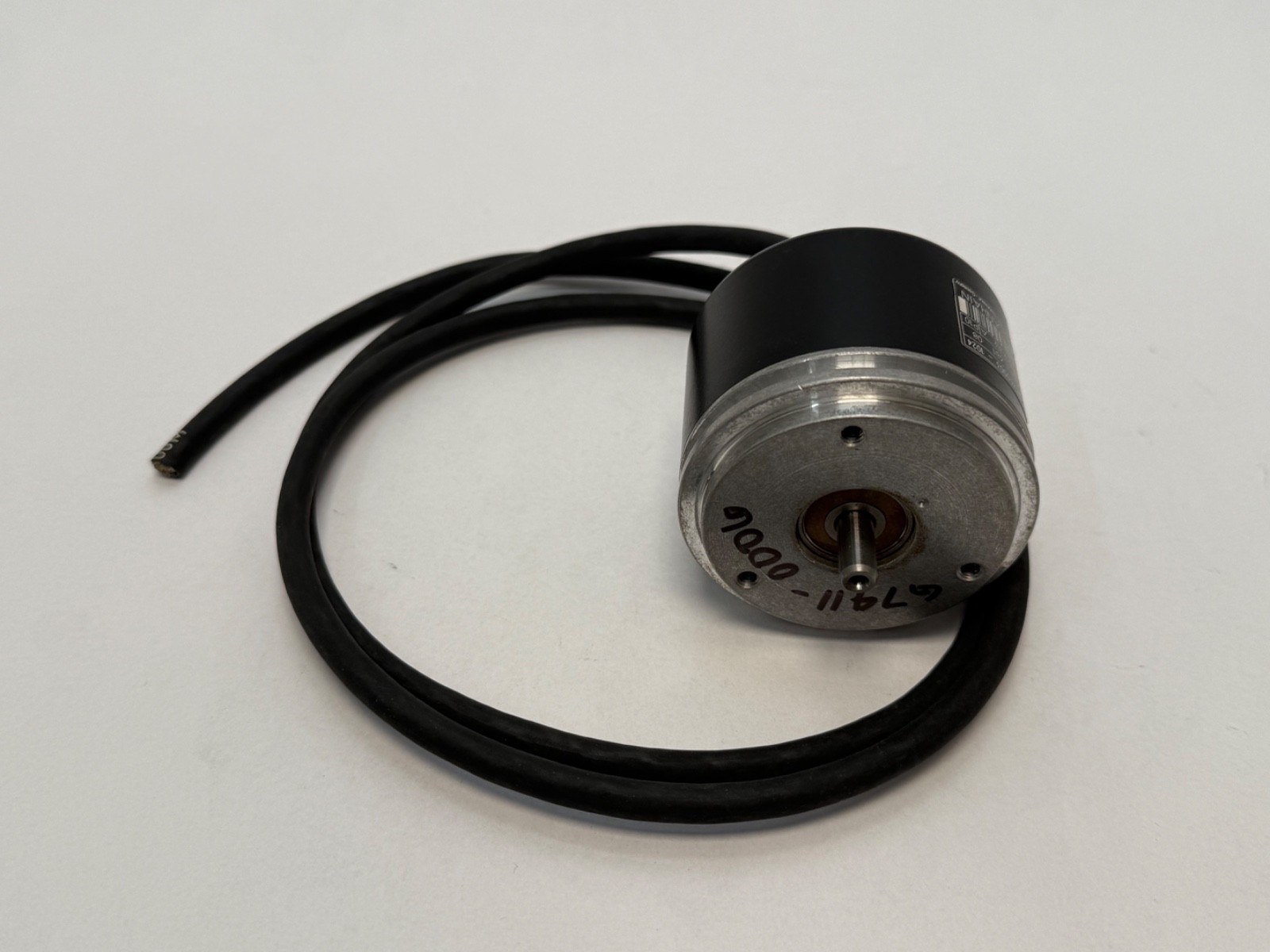

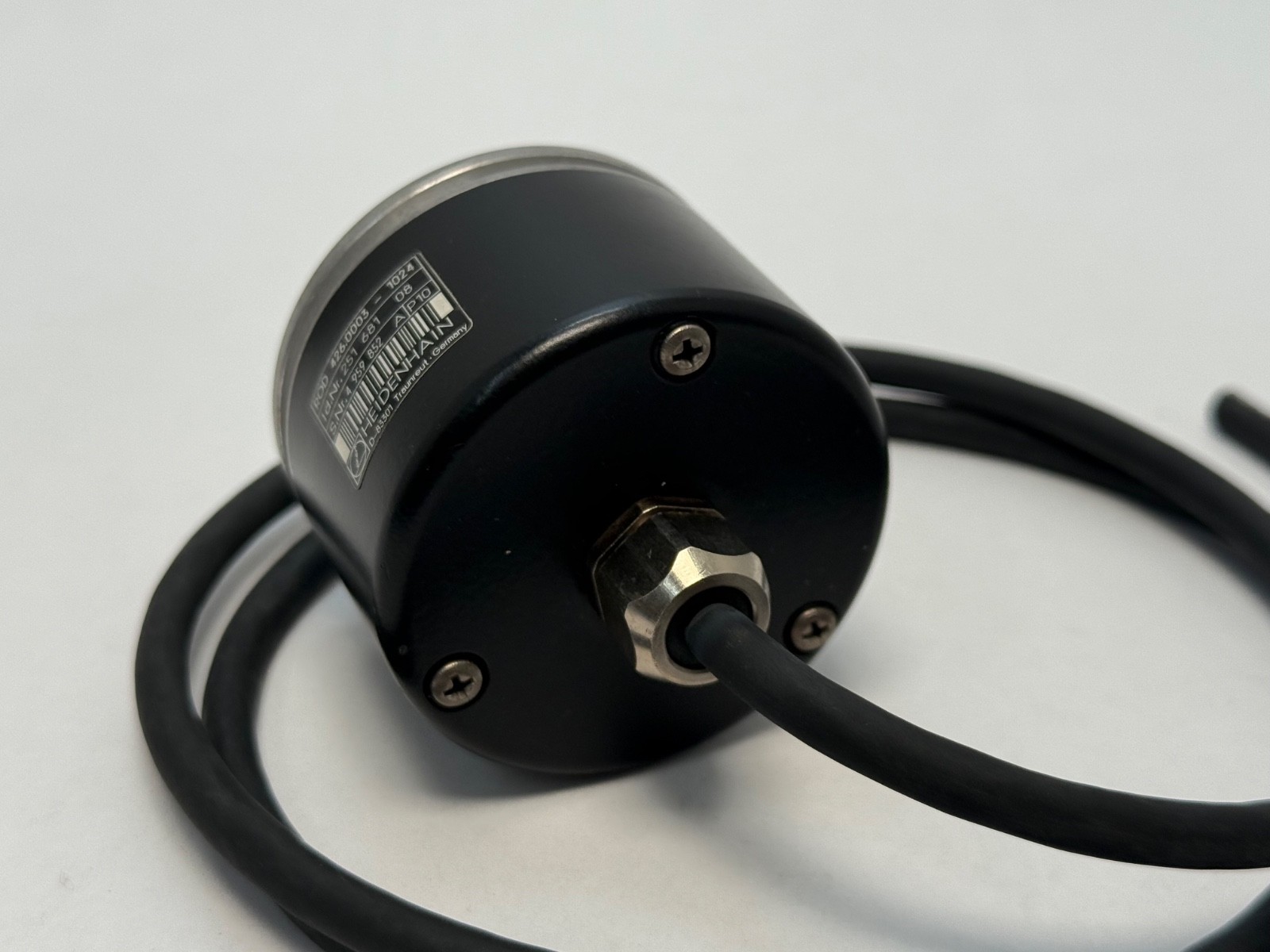

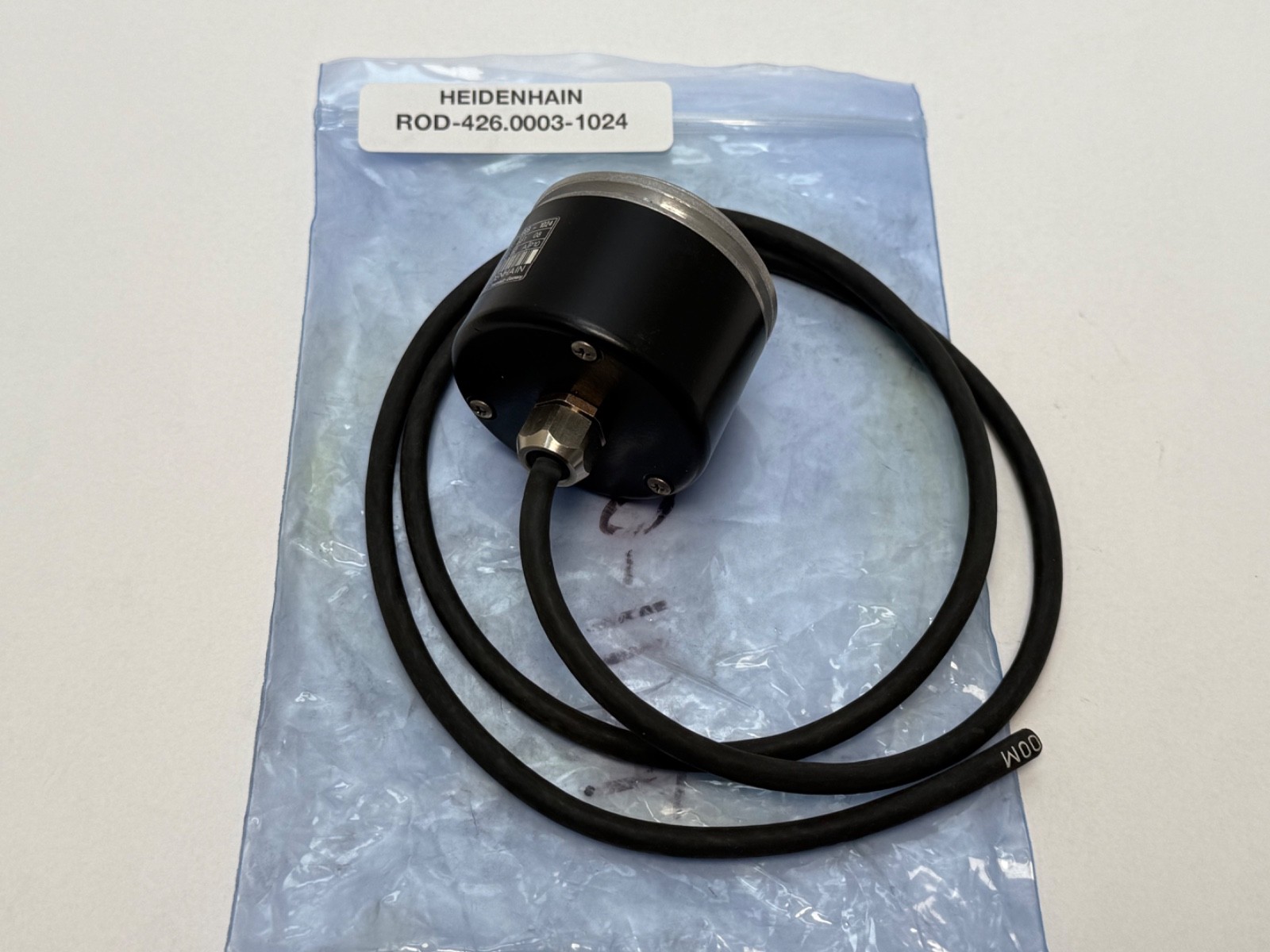

Heidenhain ROD 426.003-1024 incremental rotary encoder, TTL, 1024 lines, 5 V supply, 6 mm solid shaft, synchro flange, ID 251-681-08. New open box.
List Price
$179.99

1 in stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET

No Risk, No Hassle
| MFR / Brand | Heidenhain |
|---|---|
| MPN | ROD 426.003-1024 |
| Model | ROD 426.003-1024 |
| Type | Rotary Encoder |
|---|---|
| Base Number | ROD 426 |
| Industry Terms | incremental encoder, rotary encoder, shaft encoder, TTL encoder, synchro flange encoder |
| Common Misspellings | Heidenhein, Heidenheim, ROD426-1024, R0D 426 |
| Encoding Type | Incremental |
| Mpn Variants | ROD 426.003-1024, ROD-426.003-1024, ROD 426 1024, ROD426, 251-681-08, 251 681-08, 25168108 |
| Compatible With Replaces | Heidenhain ROD 426 1024-line TTL, ID 251-681-08 |
| Additional Attributes | Interface: TTL; Line Count: 1024; Voltage Supply: DC 5 V ±0.5 V; Current Consumption: 120 mA; Shaft: 6 mm solid; Flange: Synchro; Reference Mark: One; Scanning Frequency: 300 kHz; Mech. Permissible Speed: 16,000 rpm; Protection: IP67 housing / IP64 shaft; Operating Temperature: -40 °C to 100 °C |
| Item Weight | 0.3 kg (0.66 lb) |
| Application Types | Servo motor feedback; machine tool axes; motion control systems |
The Heidenhain ROD 426.003-1024 is an incremental rotary encoder from the Heidenhain ROD 400 series with synchro flange and solid shaft, Heidenhain ID 251-681-08. Unit Quantity: 1 Pc.
ROD — Heidenhain incremental rotary encoder with integral bearing and solid shaft.
426 — ROD 400 series synchro-flange model with TTL output.
1024 — line count, 1024 signal periods per revolution.
251-681-08 — Heidenhain ID number identifying the exact ordered version.
Interface: TTL. Line Count: 1024. Voltage Supply: DC 5 V ±0.5 V. Shaft: Solid shaft, 6 mm. Flange: Synchro. Reference Mark: One. Encoding Type: Incremental. Series: ROD 400. Scanning Frequency: 300 kHz maximum. Mechanically Permissible Speed: 16,000 rpm. Current Consumption: 120 mA without load. Protection: IP67 at housing, IP64 at shaft inlet. Operating Temperature: -40 °C to 100 °C. Mass: 0.3 kg (0.66 lb). Output signals: two square-wave signals 90° apart, a reference pulse and their inverted signals over an RS-422 differential line driver. Unit Quantity: 1 Pc.

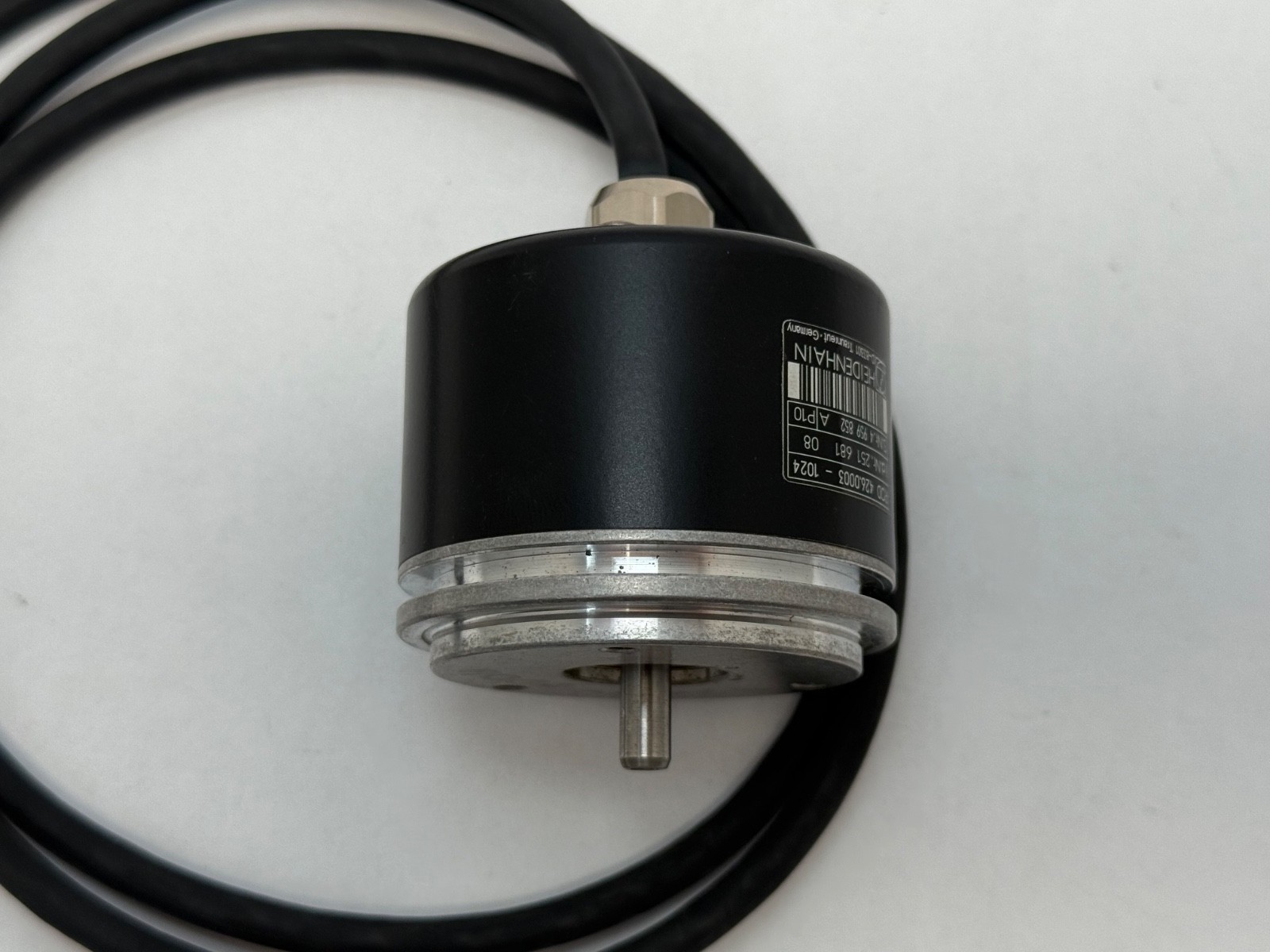

Flange: Synchro. Shaft: Solid shaft, 6 mm. Mass: 0.3 kg (0.66 lb).
Compatible With: Heidenhain ROD 426 with 1024 lines and ID 251-681-08. Part number variants: ROD 426.003-1024, ROD-426.003-1024, ROD 426 1024, ROD426, 251-681-08, 251 681-08, 25168108.
Interface: TTL. Line Count: 1024. Voltage Supply: DC 5 V ±0.5 V.

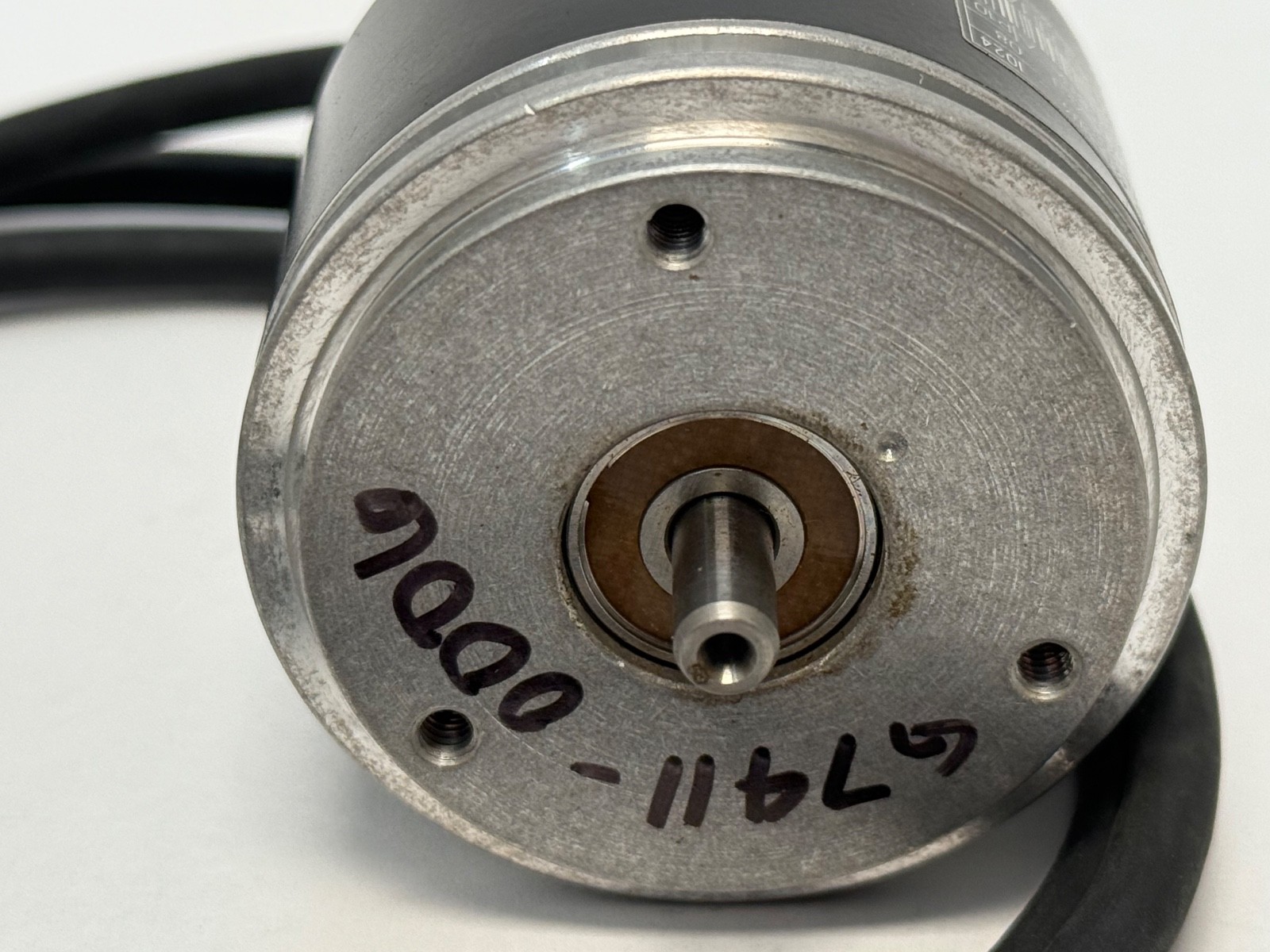

Shaft: Solid shaft, 6 mm, with synchro flange.

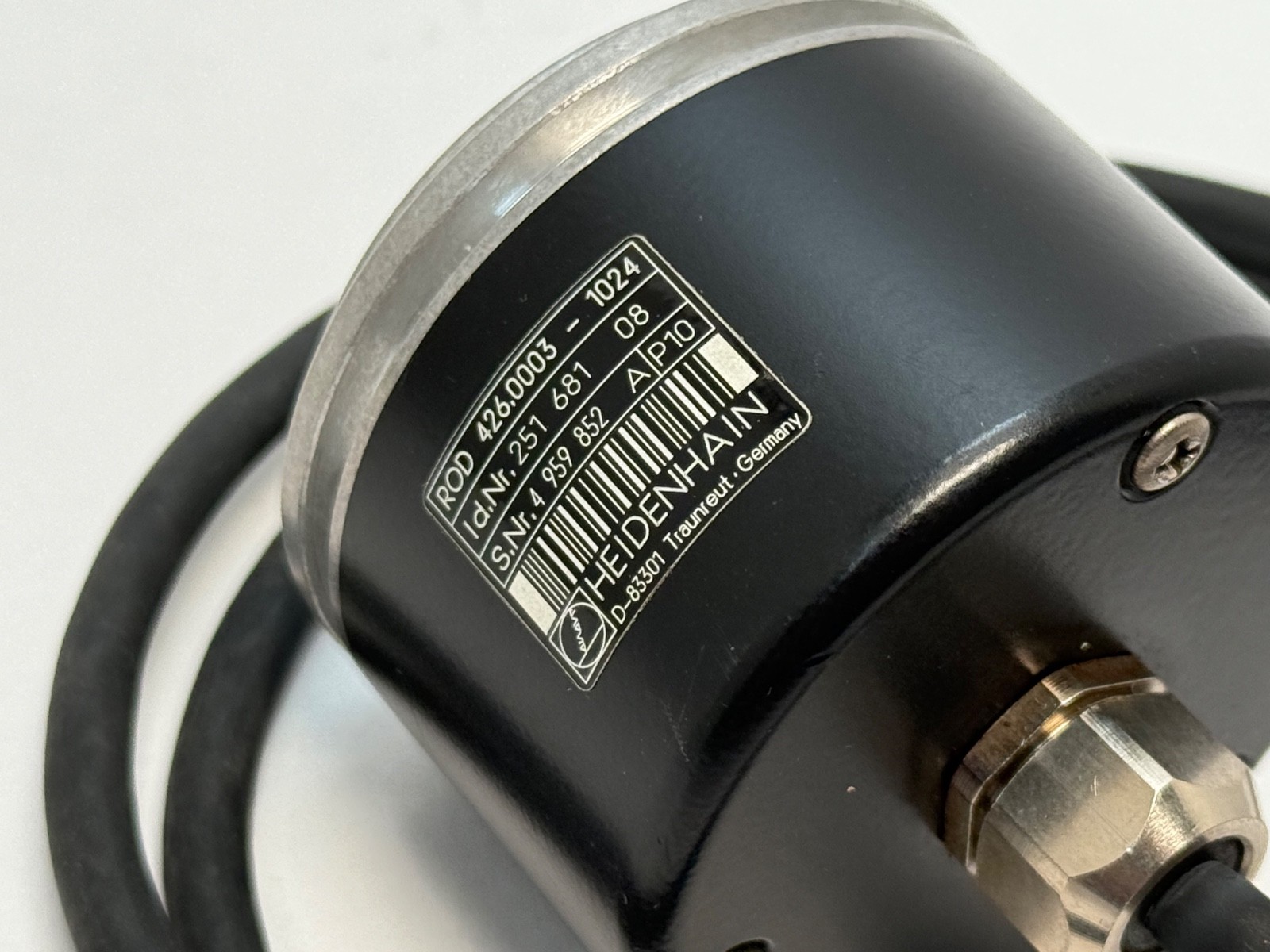

Heidenhain ID: 251-681-08.
