ELTRAEL63D50S5/28N8X6JAIncremental Encoder — 50 PPR, 8 mm Solid Shaft, 31.75 mm Square Flange, NPN, No Zero Pulse

Product Description

What this part is

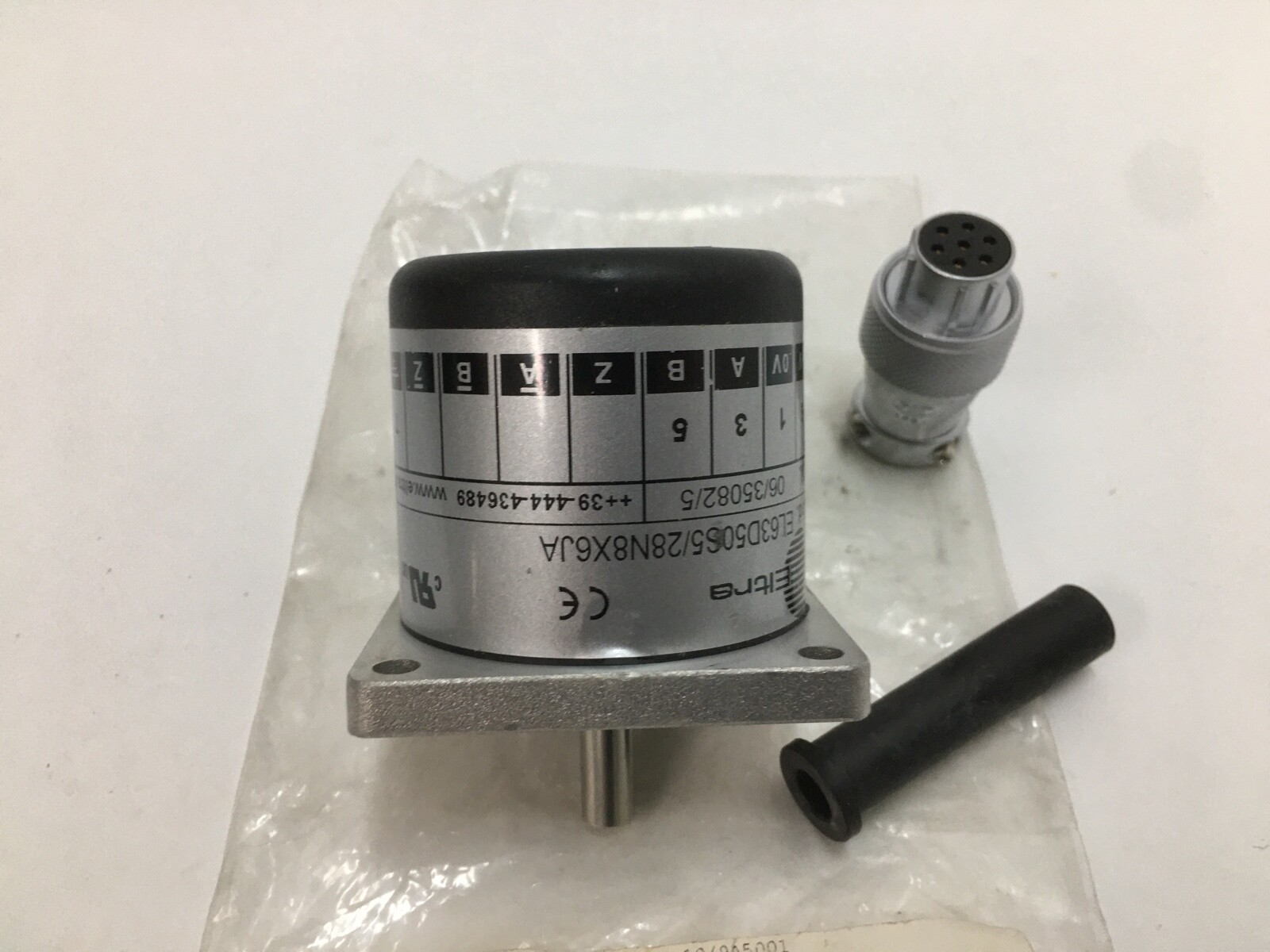

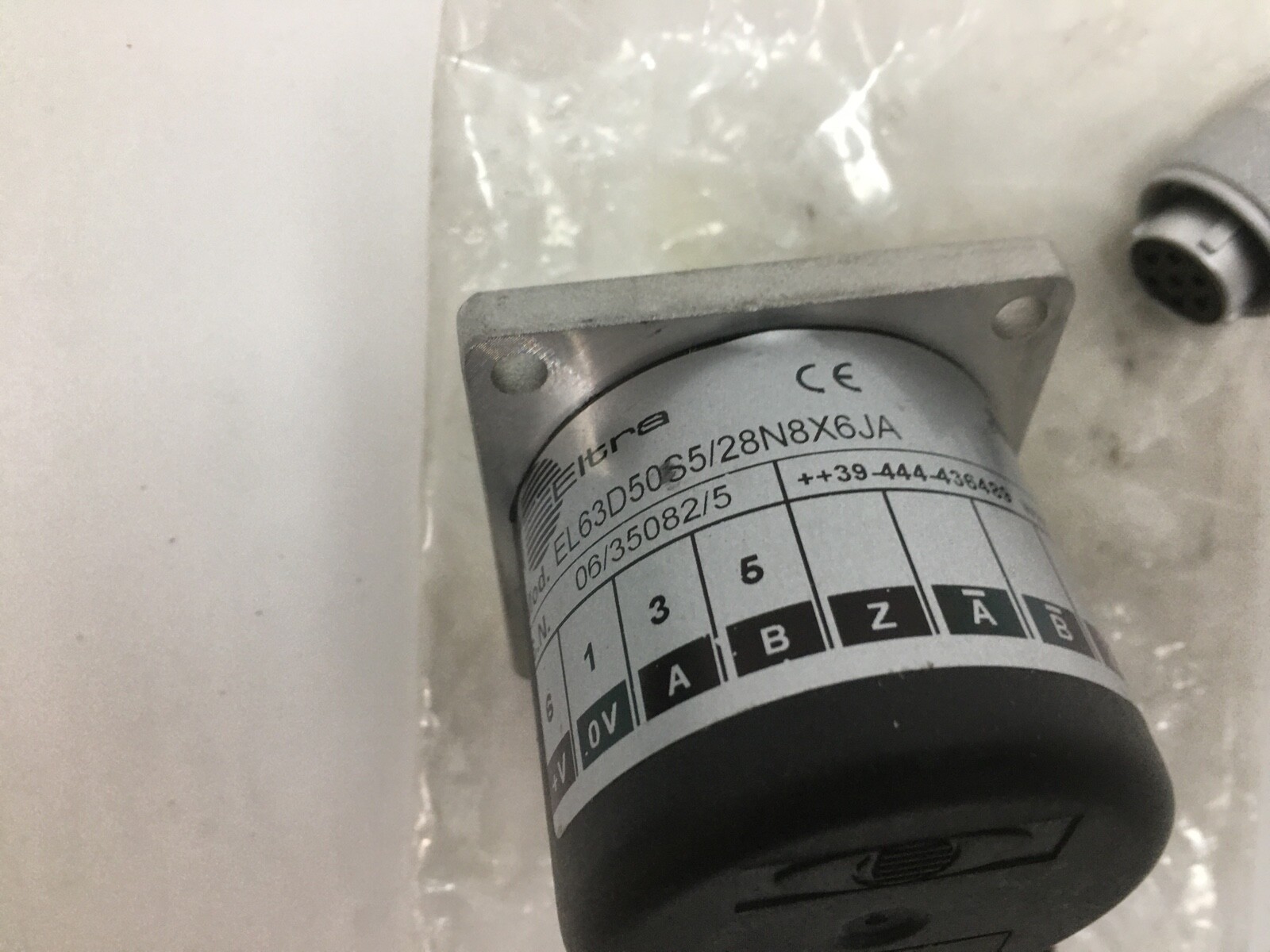

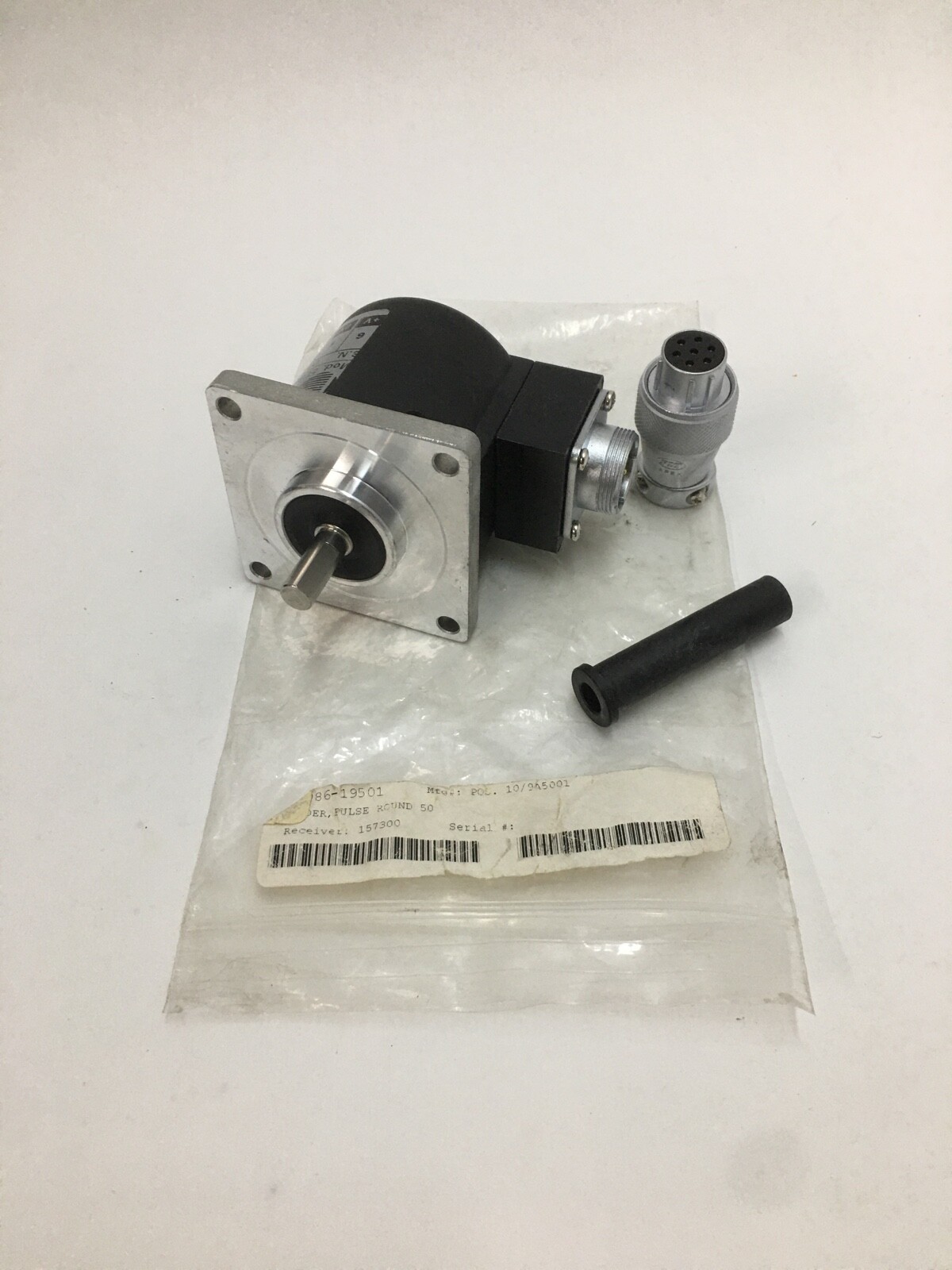

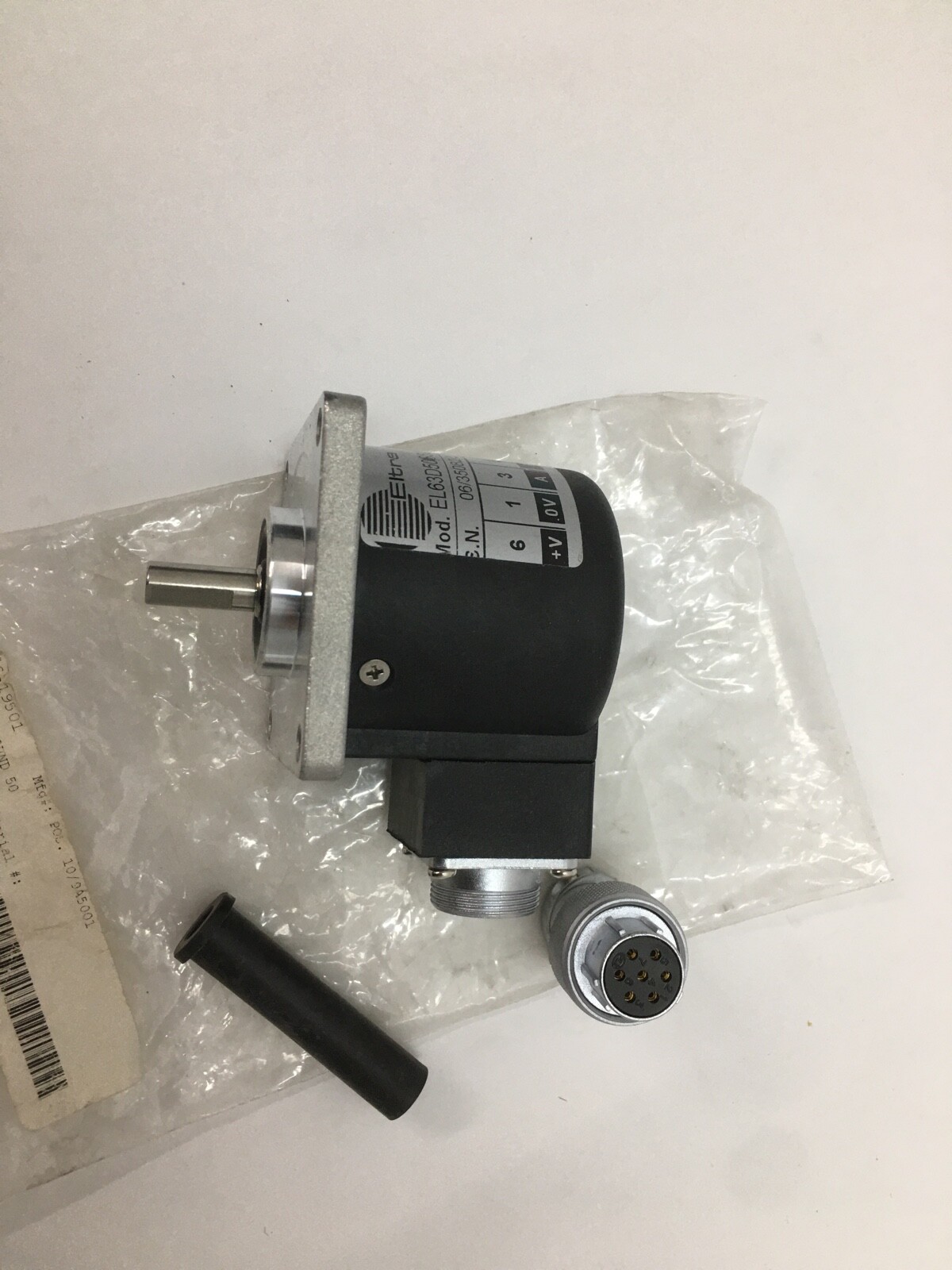

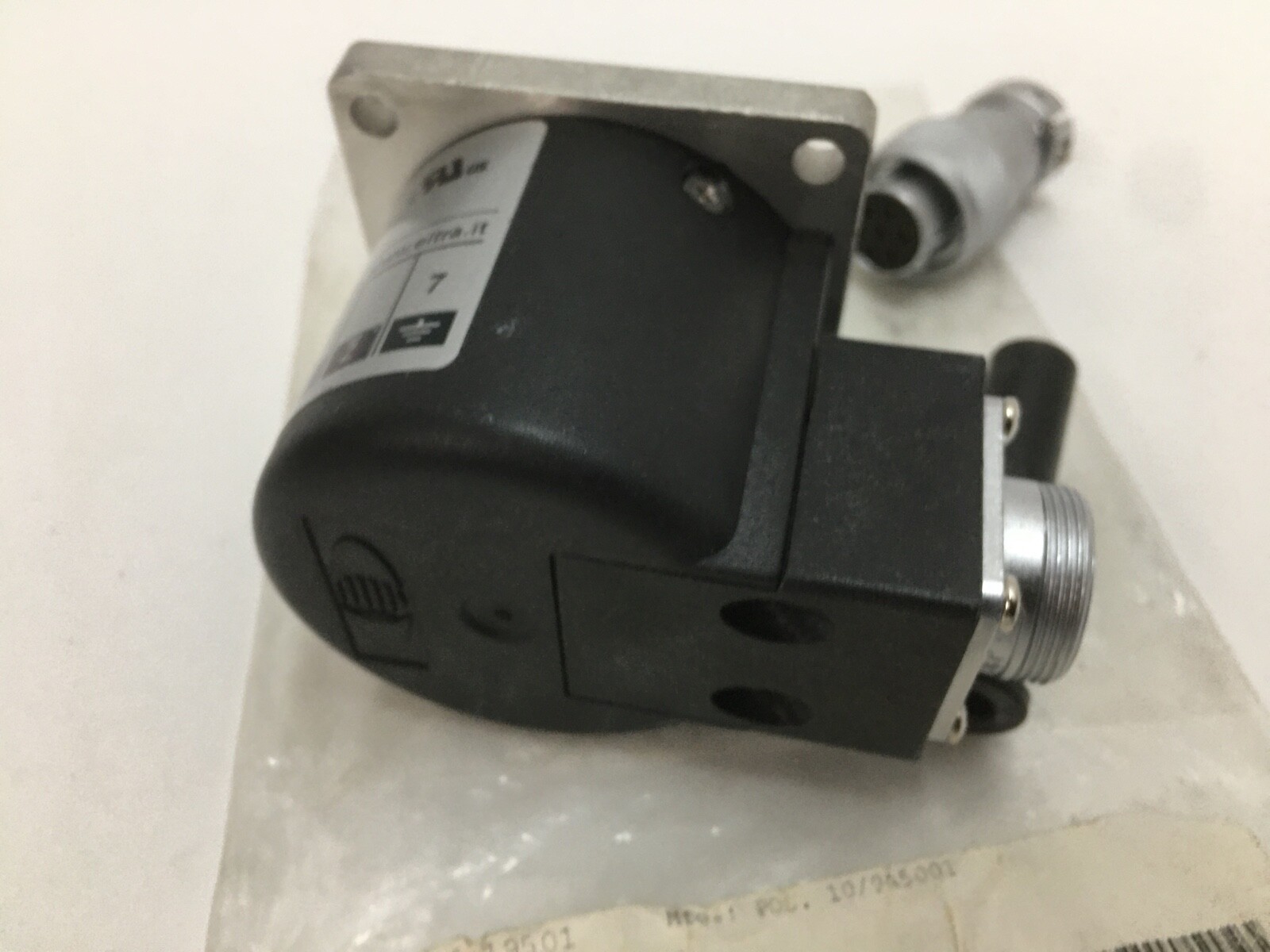

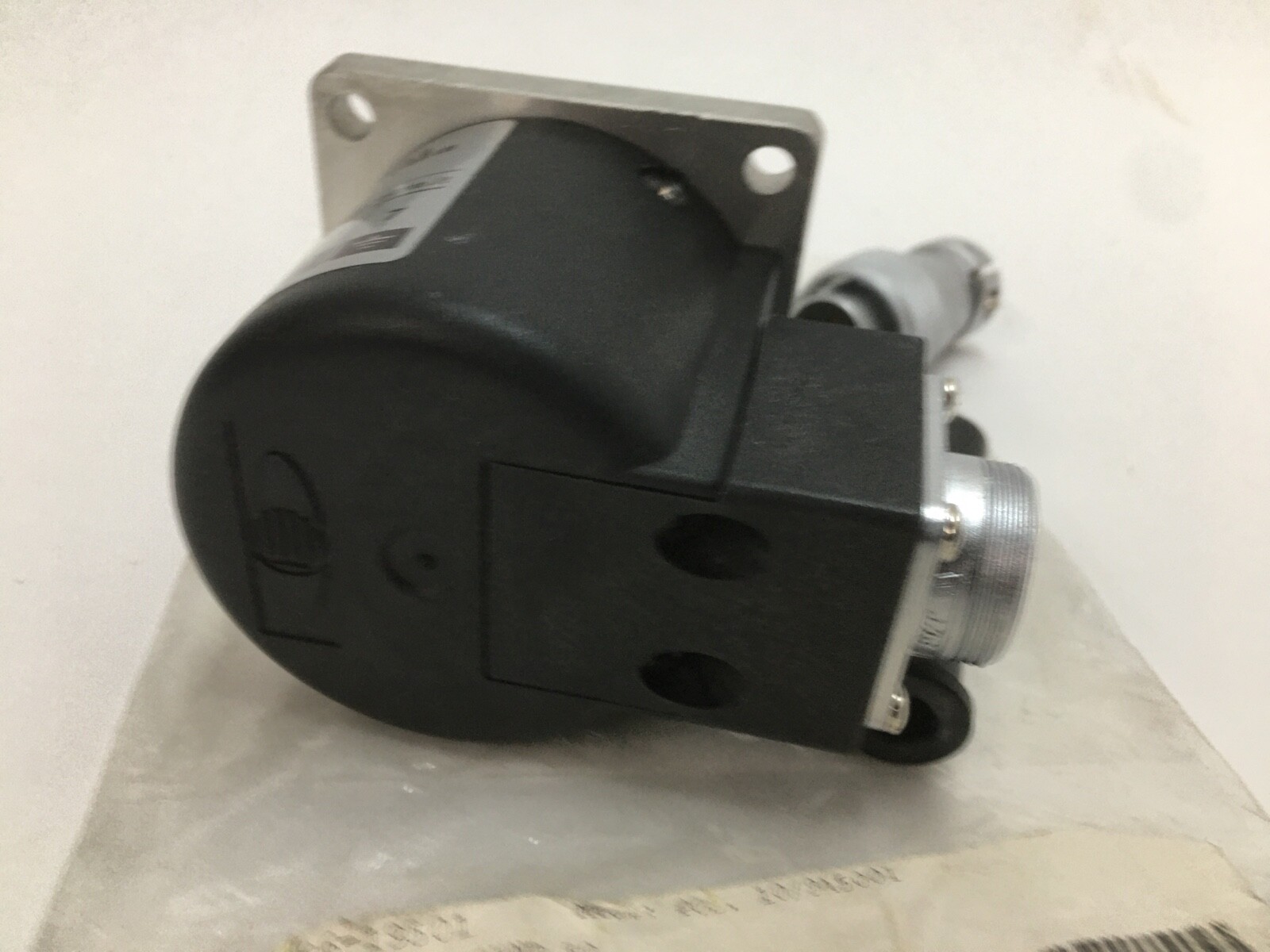

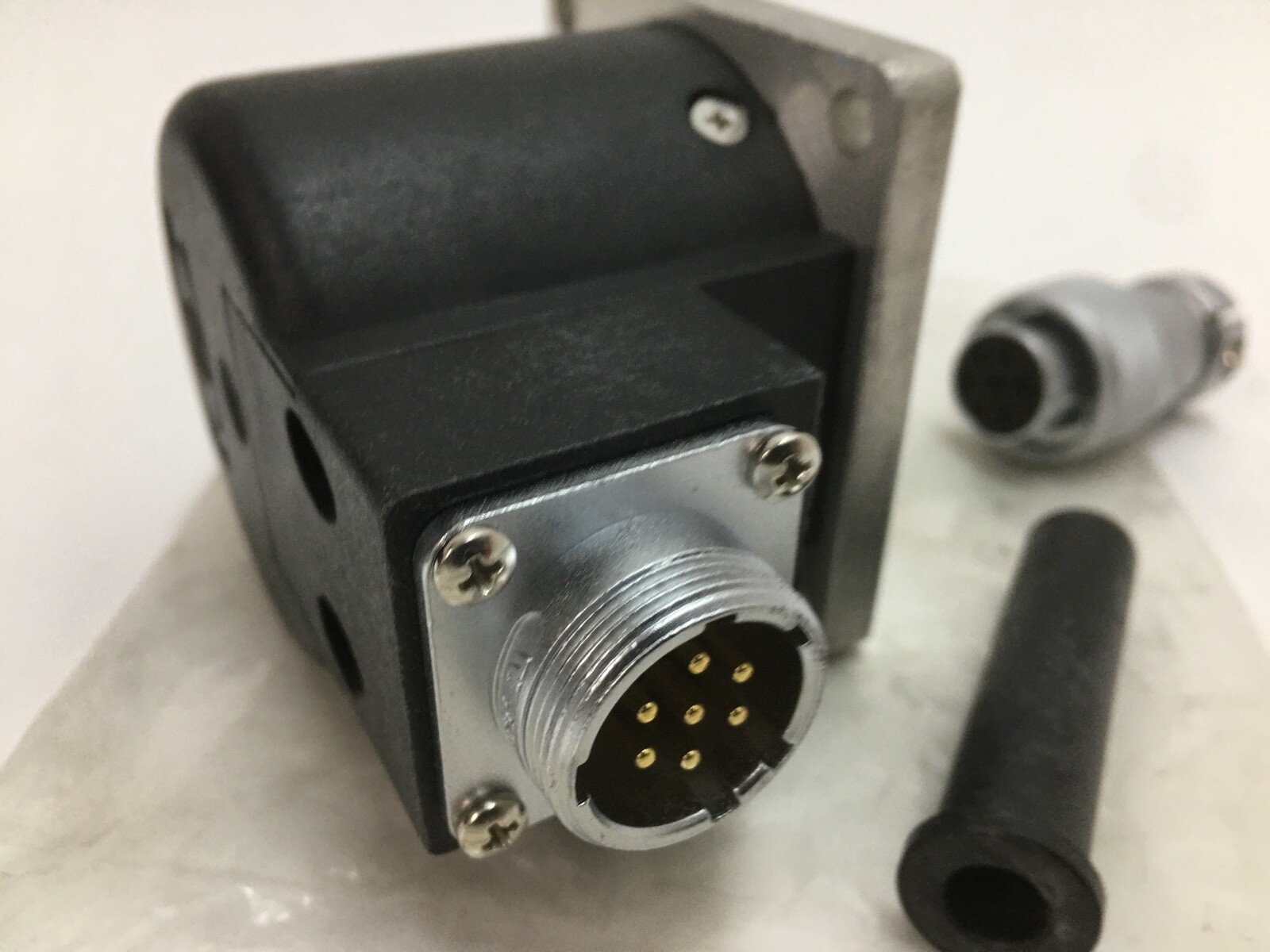

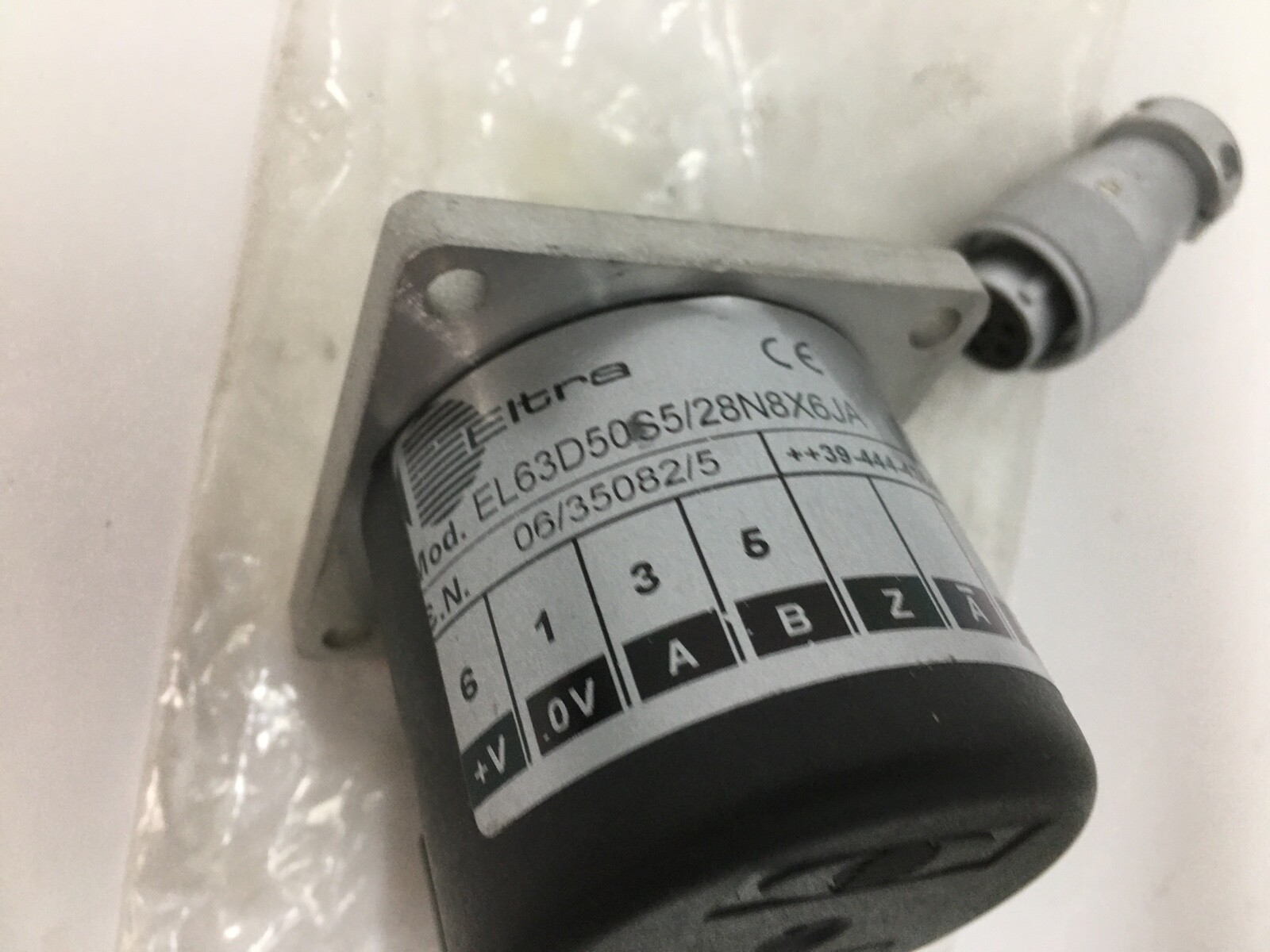

The ELTRA EL63D50S5/28N8X6JA is an incremental optical rotary encoder with a solid shaft, from ELTRA’s EL/ER 63 A-D-E series. Brand: ELTRA. MPN: EL63D50S5/28N8X6JA. Type: Incremental Encoder.

Decoding the designation

EL63 — ELTRA EL 63 series incremental encoder.

D — mounting by 31.75 mm centering square flange.

50 — 50 pulses per revolution.

S — no zero pulse.

N — NPN output.

8 — 8 mm shaft diameter.

What these specs mean in practice

Resolution: 50 PPR. Output: NPN. Zero Pulse: None. Shaft Type: Solid. Shaft Diameter: 8 mm. Mounting: 31.75 mm centering square flange. Bearings: 2. Shaft Material: Stainless steel. The series is built to carry high axial and radial shaft loads.

Quantity and configuration

Unit Quantity: 1 Pc. Condition: new, open box.

Interchange guidance

MPN Variants: EL63D50S5/28N8X6JA, EL63D50S528N8X6JA, EL 63 D 50 S 5/28 N 8 X 6 JA. Related part: ELTRA EL63D60S5/28N8X6JA is the 60 PPR version of the same configuration.

Frequently asked questions
What is the ELTRA EL63D50S5/28N8X6JA?The ELTRA EL63D50S5/28N8X6JA is a 50 PPR incremental encoder with an 8 mm solid shaft and NPN output.

How does it mount?It mounts by a 31.75 mm centering square flange.

Is there a version with a different resolution?The EL63D60S5/28N8X6JA is the 60 PPR version of the same configuration.
