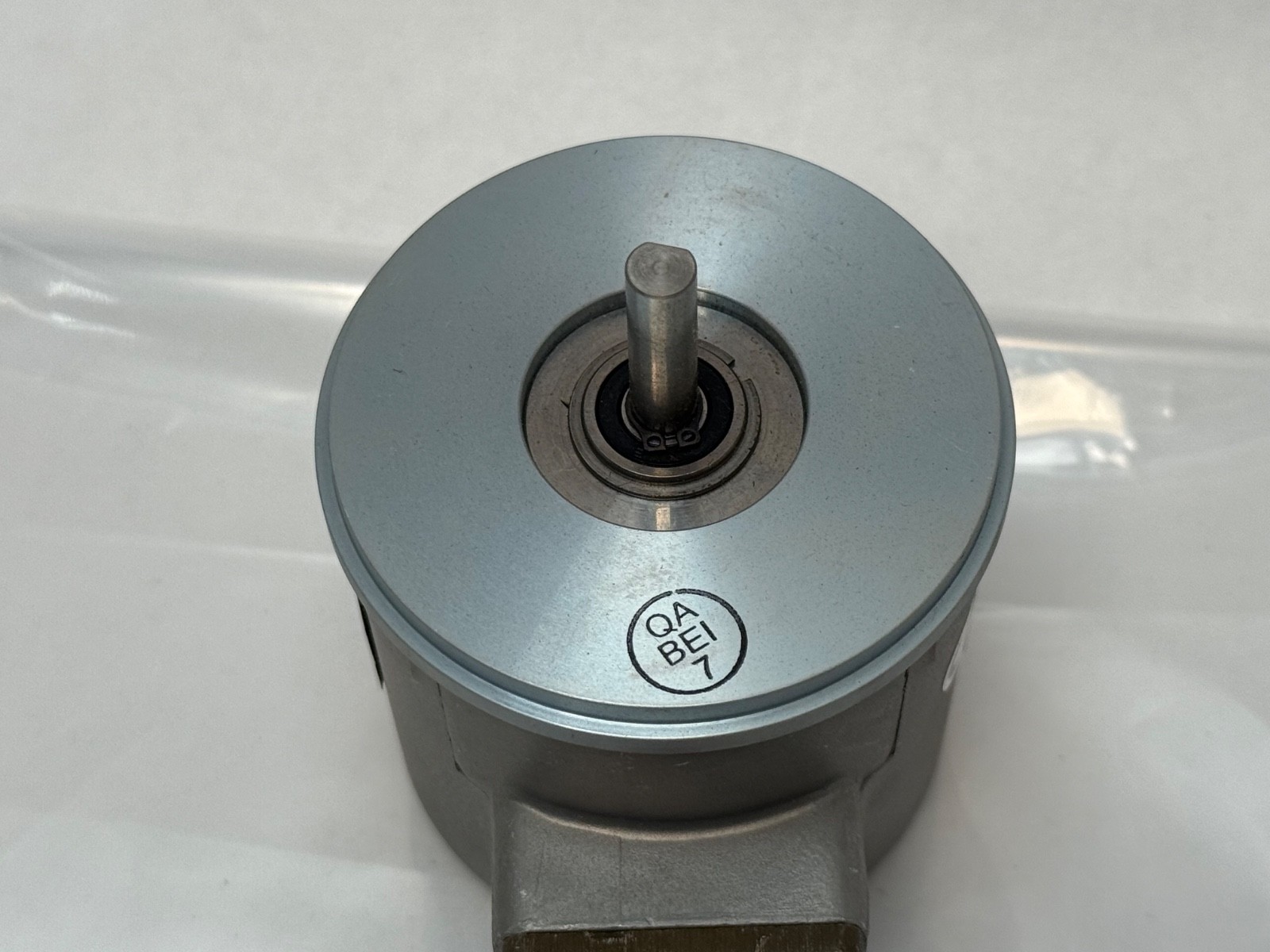

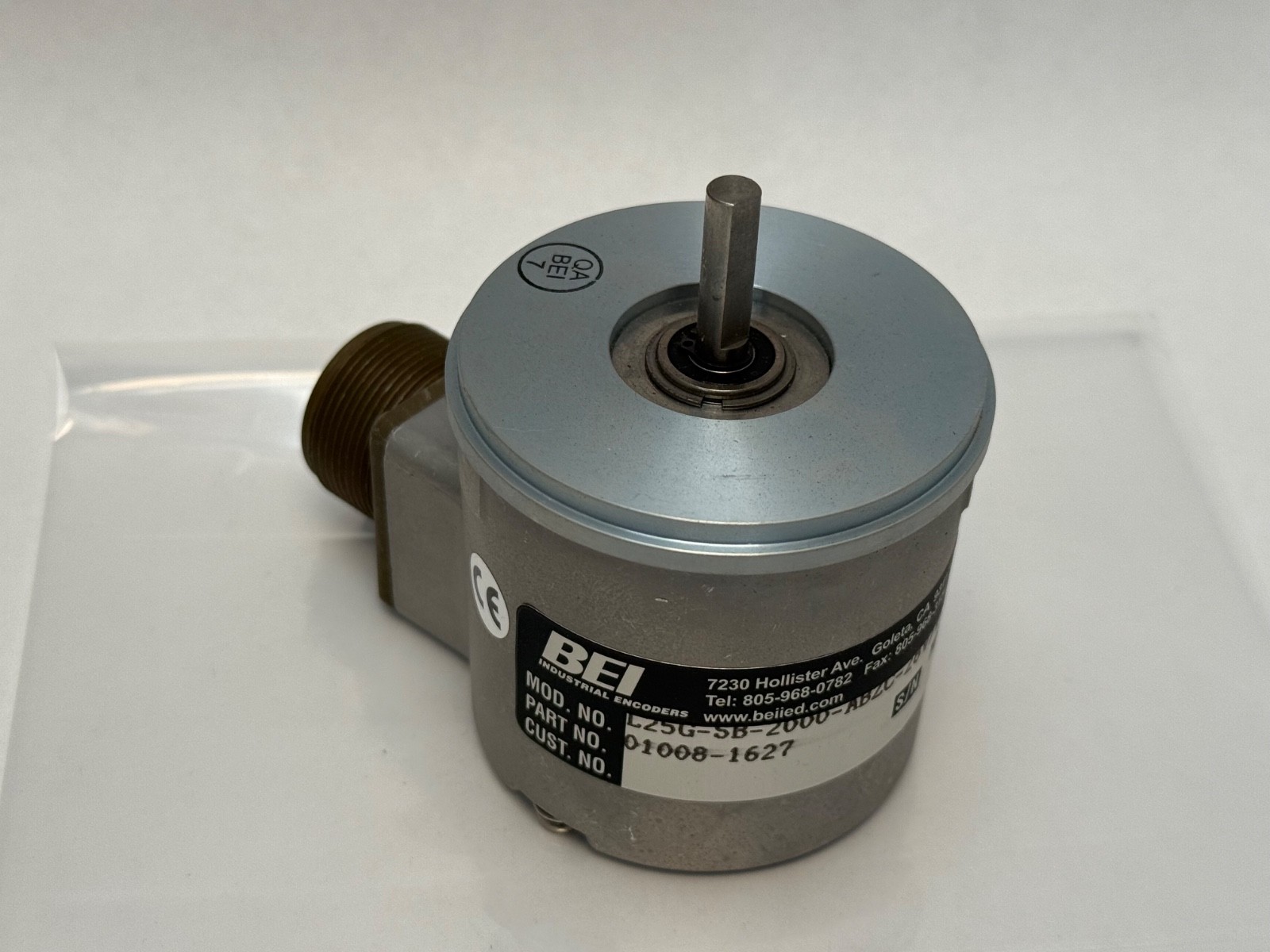

BeiH25G-SB-2000-ABZC-28V/V-SM18Heavy-Duty Incremental Rotary Encoder, 2000 PPR, 2.62 in Servo Mount, 3/8 in Shaft, Complementary A/B/Z Line Driver, 5-28 VDC, 10-Pin MS Connector

Condition: New

Availability:

1 in stock

BEI H25G-SB-2000-ABZC-28V/V-SM18 incremental rotary encoder, 2000 PPR, 3/8 in shaft, 2.62 in servo mount, 5-28 VDC line driver, 10-pin MS connector.

List Price

$402.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandBei
MPNH25G-SB-2000-ABZC-28V/V-SM18
Model01008-1627

Technical Specifications

Base NumberH25
Industry Termsrotary encoder; incremental encoder; quadrature encoder; shaft encoder; pulse generator; PPR encoder; servo mount encoder; machine tool encoder
Common MisspellingsBEI Ideacod; BEI Duncan; H25 G SB 2000; ABZ C encoder; 28V/5 encoder; Sensata H25G
Application TypesMachine-tool speed and position feedback; web process control (dancers, slitters, flying knives); conveyor and line-shaft speed reference; PLC high-speed counter input; motor shaft feedback
Encoding TypeIncremental
Bore Shaft Size3/8 in (0.3747/0.3743 in) stainless steel, flat 0.75 in x 0.03 in deep
Housing StyleH25G 2.62 in diameter servo mount
Mpn VariantsH25G-SB-2000-ABZC-28V/V-SM18; H25G SB 2000 ABZC 28V/V SM18; H25GSB2000ABZC28VVSM18; 01008-1627; 010081627
Manufacturer StatusLegacy / discontinued - BEI Industrial Encoders is now Sensata Technologies
Compatible With ReplacesBEI/Sensata H25 servo-mount incremental encoders of matching PPR, output type and connector; accessories 31165-001/-002 servo clamps, 39074-12-12 coupling, 31186-1810/-1820/-1850 cable assemblies
Item Weight13 oz typical
Part Number01008-1627
Min Temp-40 °C
Max Temp85 °C
Limiting Speed10,000 rpm (nominal mechanical)
Seller Part Number: AG2B5#BHNQX5

Product Description

What this part is:

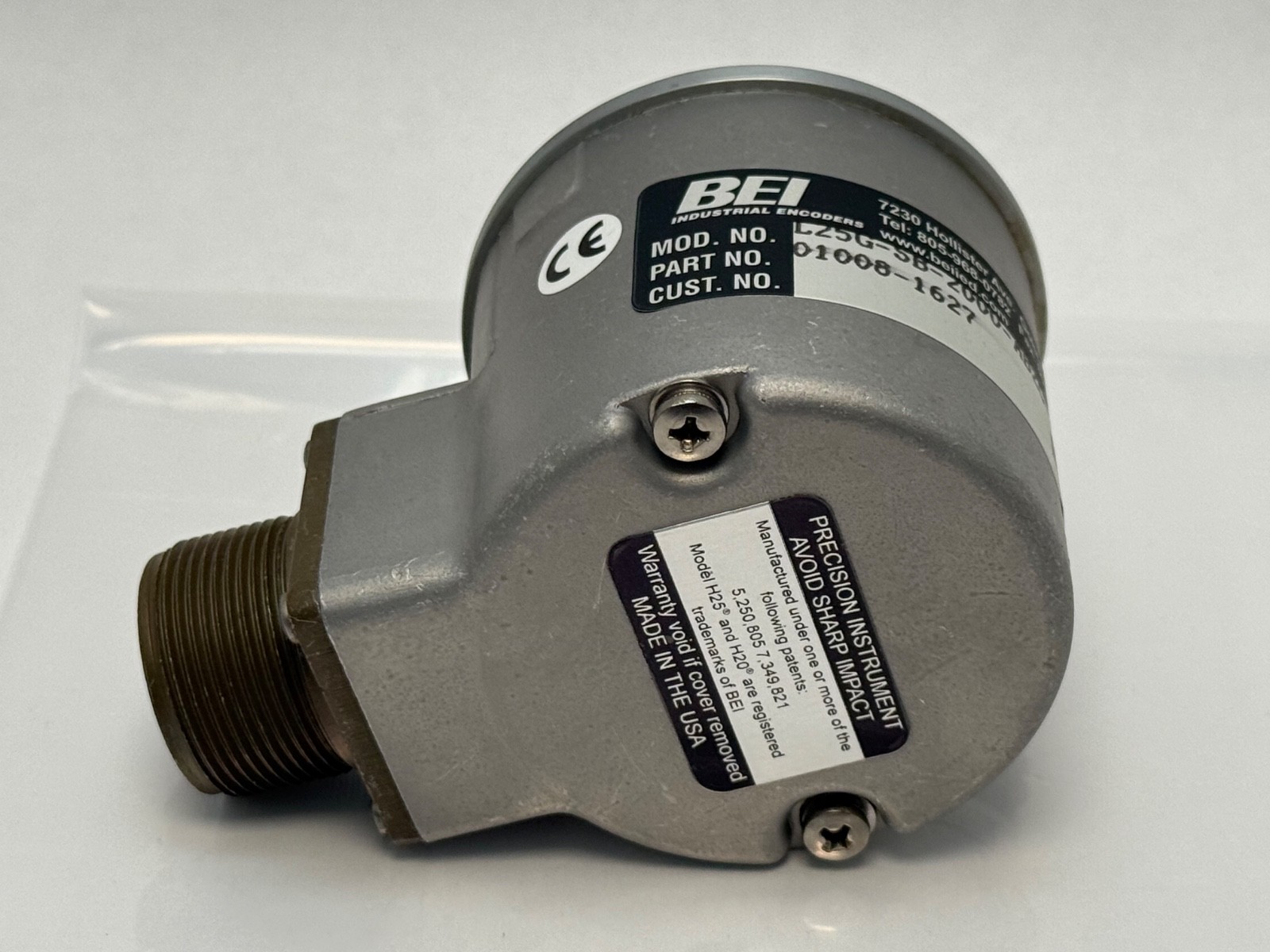

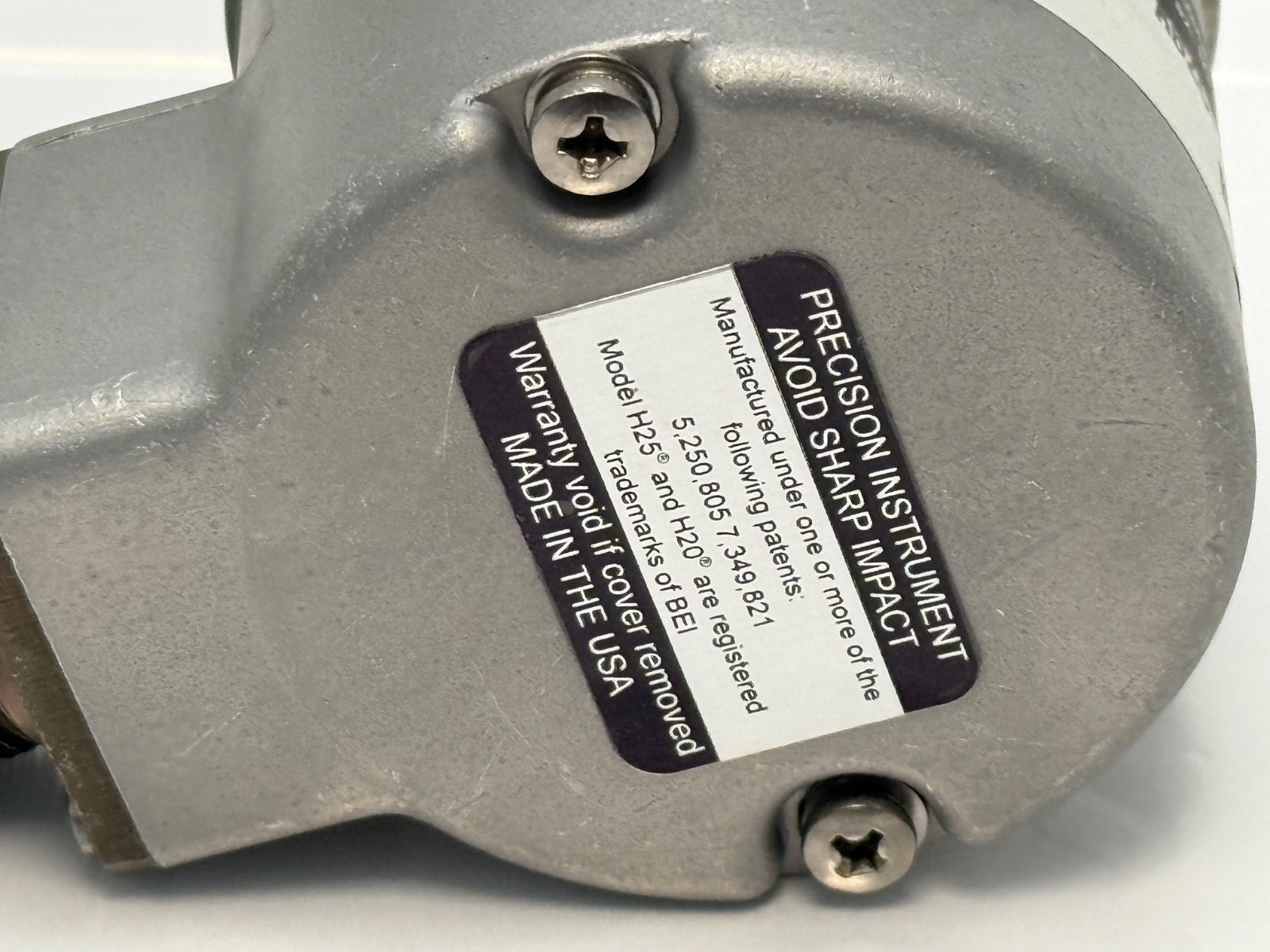

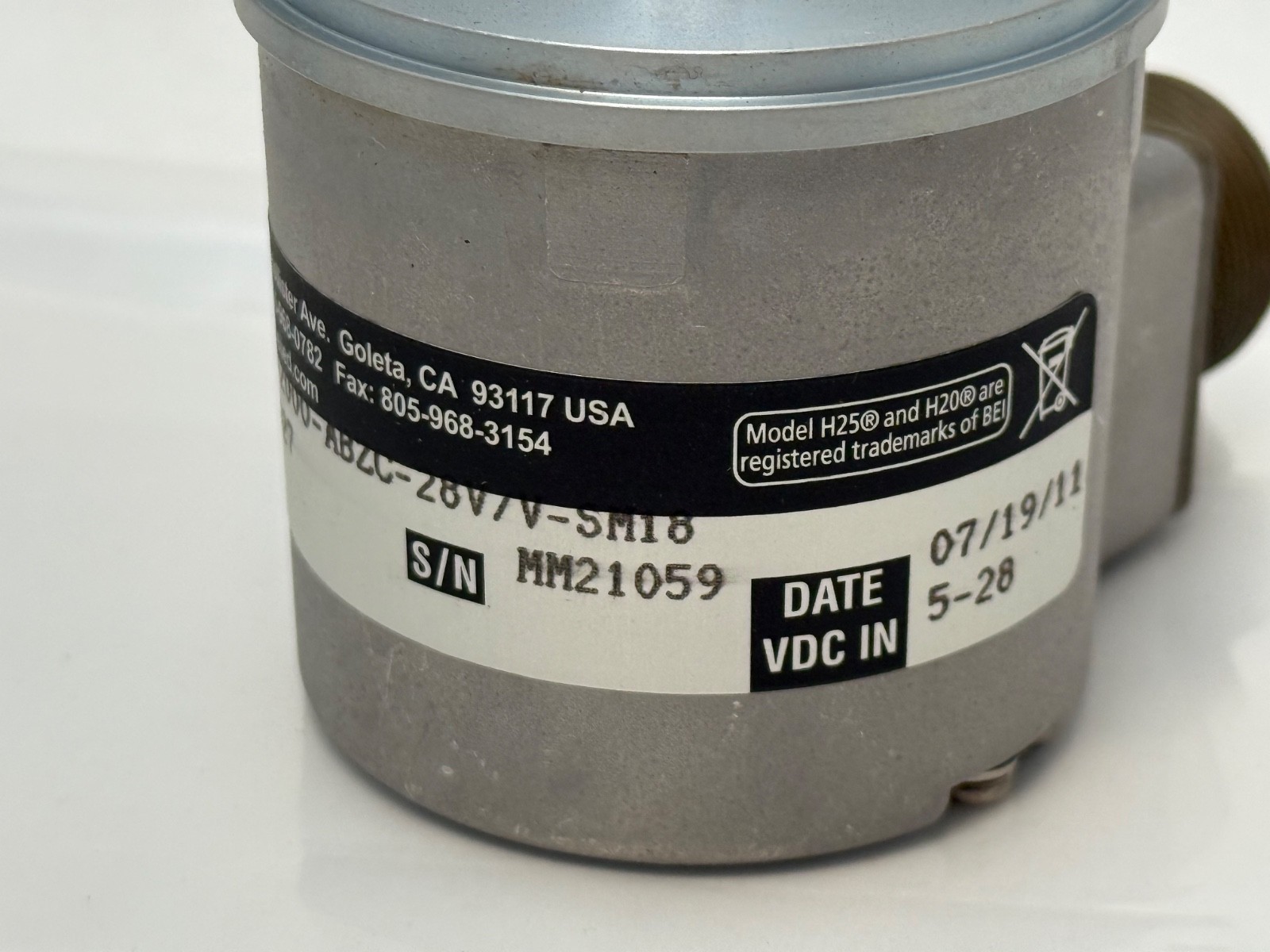

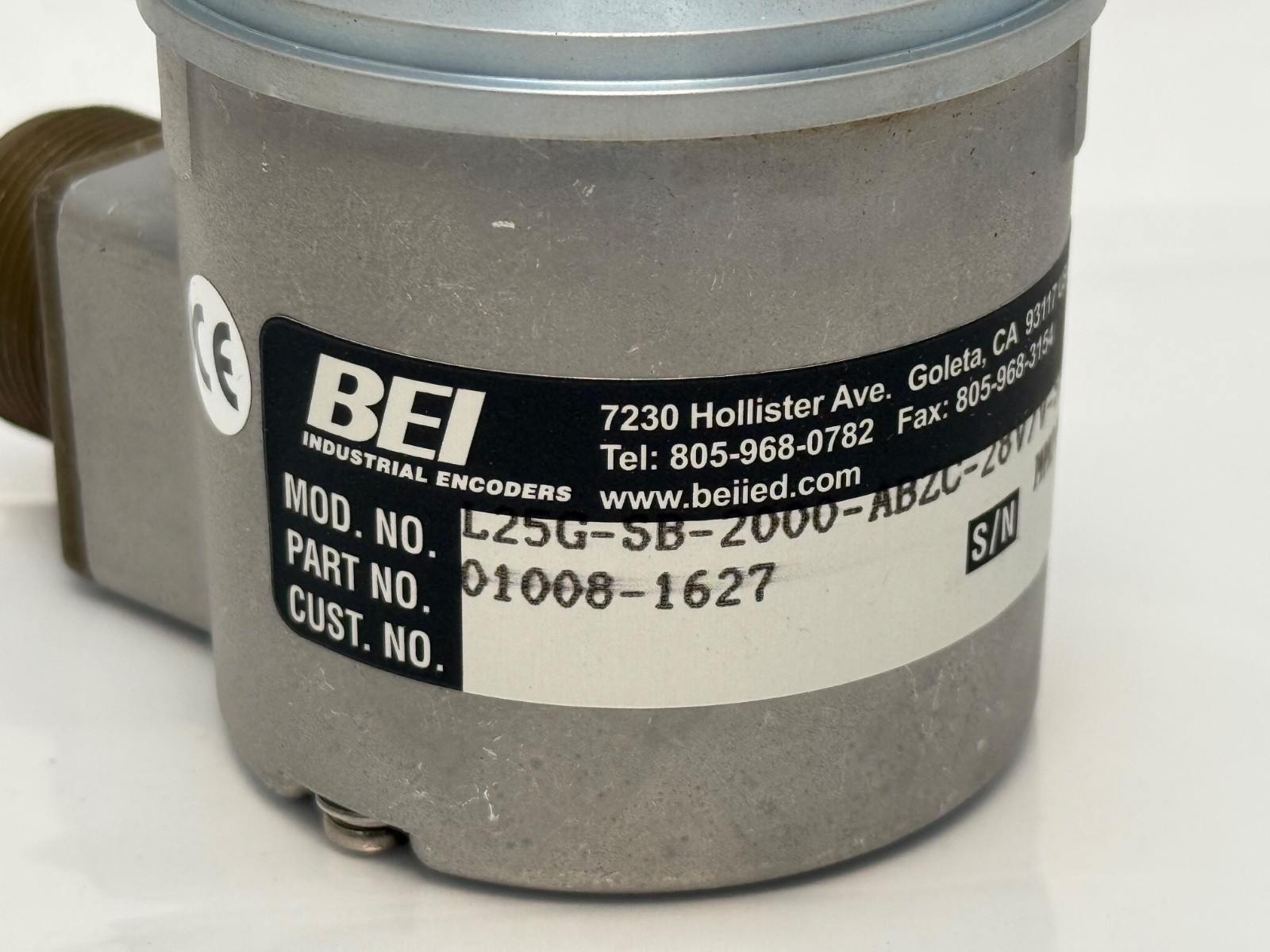

BEI H25G-SB-2000-ABZC-28V/V-SM18 heavy-duty incremental rotary encoder, 2000 pulses per revolution, 3/8 in stainless steel shaft, 2.62 in diameter servo-mount housing, differential A/B/Z outputs with complements, 5 to 28 VDC line driver, side-exit 10-pin MS connector. Nameplate: MOD. NO. H25G-SB-2000-ABZC-28V/V-SM18, PART NO. 01008-1627, DATE 07/19/11, VDC IN 5-28. Made by BEI Industrial Encoders, now part of Sensata Technologies. Unit Quantity: 1 Pc.

Decoding the designation:

H25 — Heavy Duty family, 2.5 in body.

G — 2.62 in diameter servo-mount housing, clamp mounted.

SB — shielded bearings, no shaft seal. Maximum starting torque 1.0 in-oz.

2000 — 2000 cycles per shaft turn; 8000 counts per revolution with 4x quadrature decoding.

ABZ + C — dual quadrature channels plus a once-per-revolution index, each with its complement: A, /A, B, /B, Z, /Z. A leads B for counter-clockwise rotation viewed from the shaft.

28V/V — line-driver output, 5 to 28 VDC supply, output swing equal to the supply.

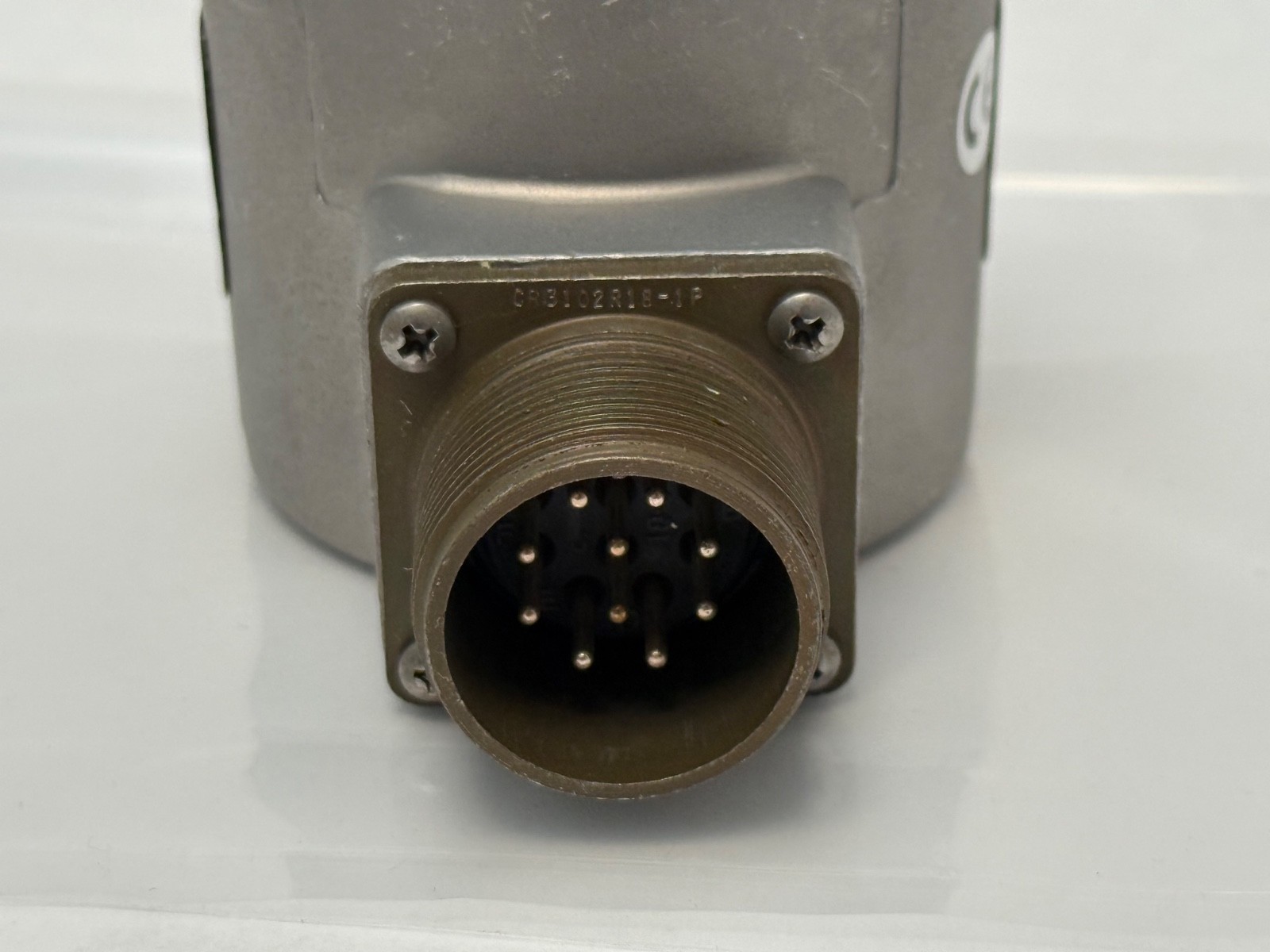

S / M18 — side-exit termination on an MS3102R18-1P 10-pin connector.

Specifications:

Resolution: 2000 PPR. Supply Voltage: 5 to 28 VDC. Supply Current: 100 mA typical plus output load, 250 mA maximum. Frequency Response: 300 kHz. Maximum Mechanical Speed: 10,000 rpm nominal. Output: Line driver with complements, A/B/Z. Operating Temperature: -40 to +85 °C. Shock: 100 g for 5 ms. Vibration: 50 to 2000 Hz at 30 grms. Humidity: 98% RH non-condensing. Protection: reverse-polarity, overvoltage and output protection diodes. Housing: die-cast aluminum bearing housing and cover, EMI shielded. Weight: 13 oz typical. Bearing Life: 2 x 10^8 revolutions at rated load; 1 x 10^10 revolutions at 10% of rated load.

Dimensions and mounting:

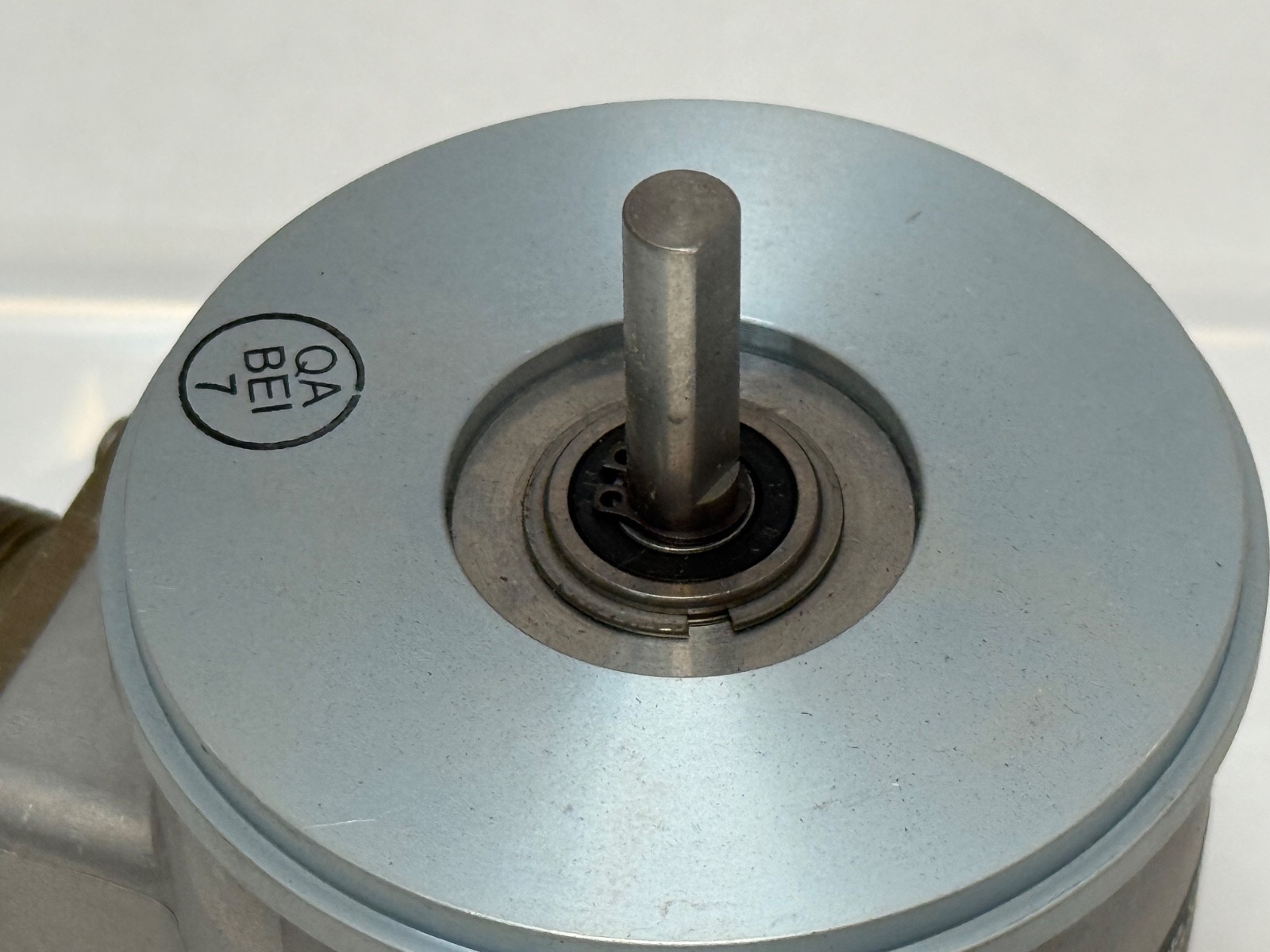

Housing Style: H25G 2.62 in diameter servo mount. Shaft: 3/8 in stainless steel, 0.3747/0.3743 in, with a 0.75 in long x 0.03 in deep flat. Shaft Runout: 0.0005 in TIR at midpoint. Shaft Loading: up to 40 lb axial and 35 lb radial. Connector: MS3102R18-1P 10-pin, mating connector MS3106F18-1S.

Compatibility and replacement:

Fits the BEI/Sensata H25 servo-mount encoder family of matching PPR, output type and connector. Related accessories: BEI 31165-001 servo clamp (0.093 in grip), 31165-002 servo clamp (0.125 in grip), 39074-12-12 coupling (3/8 to 3/8 in), 31186-1810 / -1820 / -1850 cable assemblies (10, 20 and 50 ft). Manufacturer status: legacy, BEI Industrial Encoders is now Sensata Technologies.

Frequently asked questions:

What does H25G-SB mean in the BEI part number?

H25 is the Heavy Duty family with a 2.5 in body, G is the 2.62 in diameter servo-mount housing, and SB is shielded bearings with no shaft seal.

What resolution and output does this BEI encoder have?

2000 pulses per revolution, dual quadrature A/B plus Z index with complements, line-driver output on a 5 to 28 VDC supply.

What connector does the H25G-SB-2000-ABZC-28V/V-SM18 use?

A side-exit MS3102R18-1P 10-pin connector; the mating connector is MS3106F18-1S.
