Availability:
2 in stock
Siemens 6ES7142-3BF00-0XA0 ET 200eco BM142 digital output module, 8 DO 24 V DC / 2 A on M12, PROFIBUS DP to 12 Mbit/s, IP65/67. EAN 4025515068556.
List Price
$191.25
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | SIEMENS |
|---|---|
| MPN | 6ES7142-3BF00-0XA0 |
| GTIN | 4025515068556 |
| Model | 6ES7142-3BF00-0XA0 |
| Condition | Seller refurbished |
|---|---|
| Series | SIMATIC ET 200eco |
| Type | Digital Output Module |
| Connectivity | PROFIBUS DP, 9.6 kbit/s to 12 Mbit/s |
| Base Number | BM142 |
| Industry Terms | Distributed I/O module; PROFIBUS output module; IP67 I/O block; field I/O module; ET200eco DO |
| Condition Note | Made In Germany |
| Input Voltage | 24 V DC |
| Termination Type | M12 sockets, single assignment |
| Output Type | Digital, 24 V DC |
| Connector Style | 8 x M12 |
| Analog Digital | Digital |
| Item Width | 60 mm |
| Item Height | 210 mm |
| Item Length | 28 mm |
| Nominal Current Rating | 2 A per channel |
| Output Voltage Rating Dc | 24 V DC |
| Controller Platform | SIMATIC ET 200eco |
| Number Of Ports | 8 |
| Current Rating | 2 A per channel (4 A per group) |
| Output Amperage | 2 A per channel |
| Mpn Variants | 6ES7142-3BF00-0XA0; 6ES7-142-3BF00-0XA0; 6ES71423BF000XA0; BM142 |
| Compatible With Replaces | Connecting block 6ES7194-3AA00-0.A0 (ordered separately) |
| Additional Attributes | Vendor ID: 80DDh; Power Loss: 4 W typ.; Input Current: 70 mA (1L+), 60 mA (2L+ no load); Output Current Range: 5 mA to 2.4 A at 0-55 °C; Short-Circuit Threshold: 4 A/channel; Inductive Shutdown Limit: 2L+ (-44 V); Lamp Load: 10 W max; Load Resistance: 12 Ω to 4 kΩ; Residual Current Signal 0: 0.5 mA max; Switching Frequency: 100 Hz resistive / 0.5 Hz inductive / 1 Hz lamp; Unshielded Cable: 30 m max; Isolation: 500 V DC tested, none between channels; Potential Difference: 75 V DC / 60 V AC |
| Current Type | DC |
| Ip Rating | IP65/67 |
| Nominal Rated Input Voltage | 24 V DC |
| Item Weight | 0.21 kg (0.46 lb) |
| Mounting Type | Machine mount on connecting block 6ES7194-3AA00-0.A0 |
| Compatible Model | Connecting block 6ES7194-3AA00-0AA0 (ECOFAST) or 6ES7194-3AA00-0BA0 (M12, 7/8") |
| Communication Standard | PROFIBUS DP |

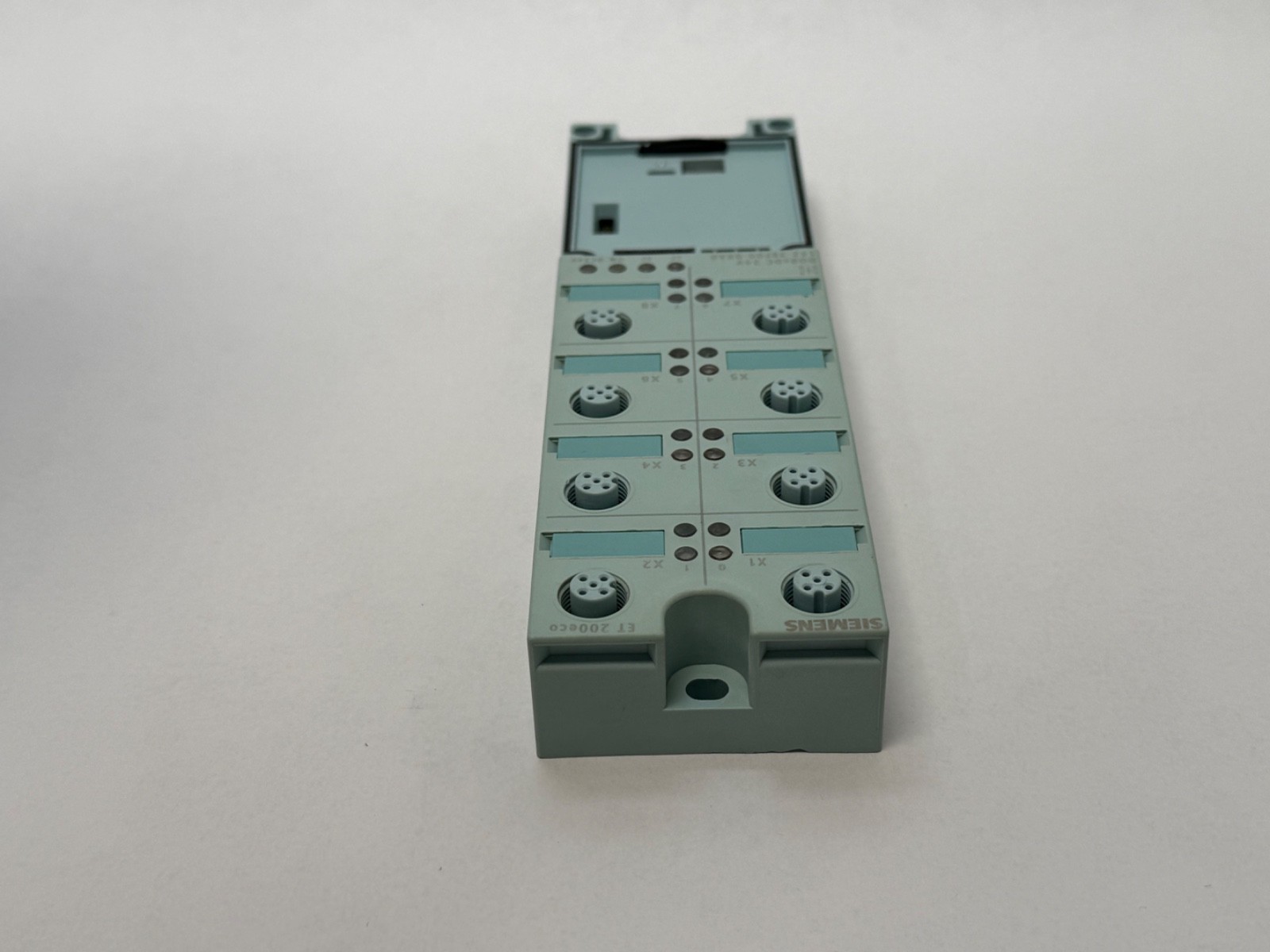

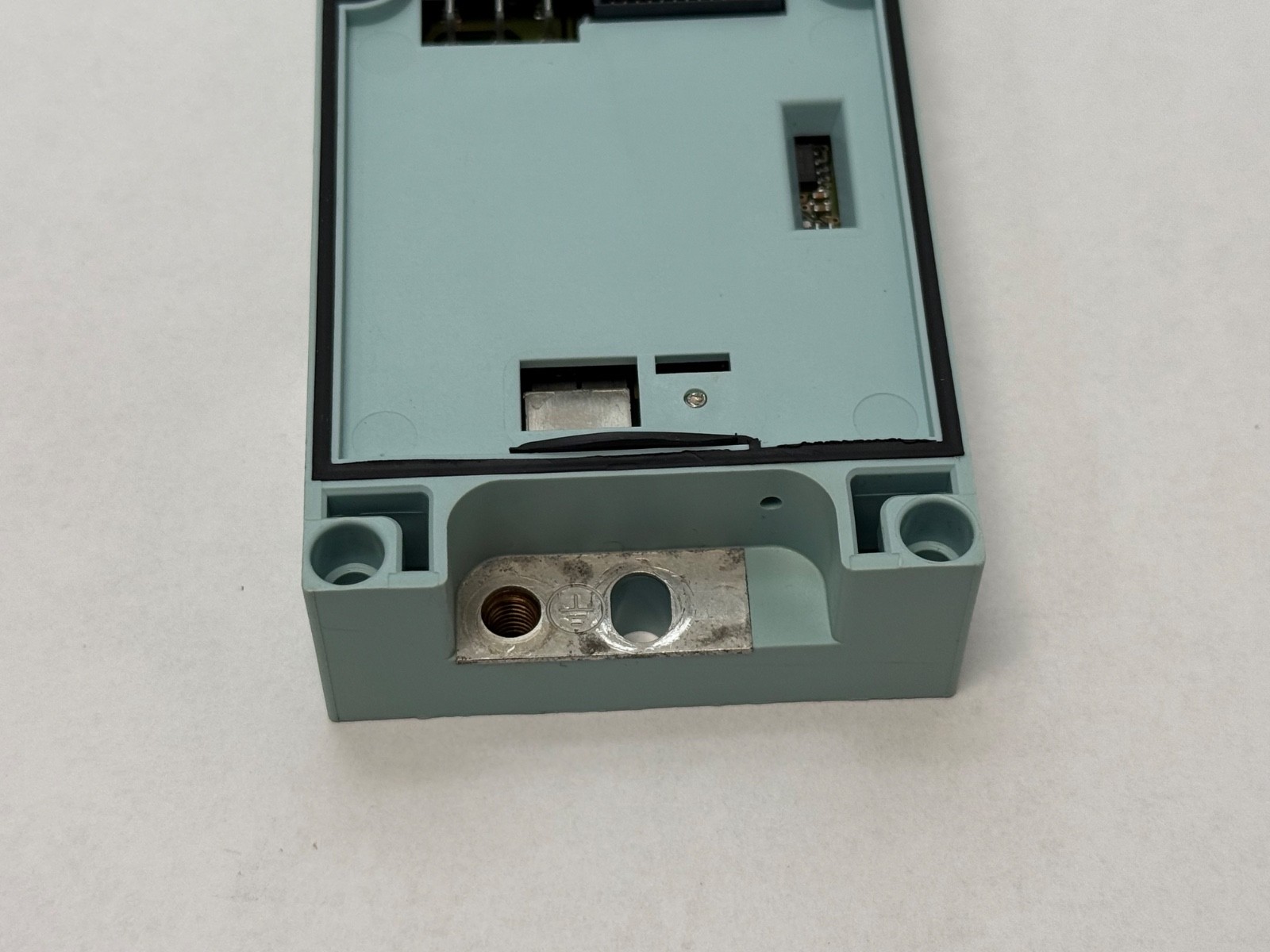

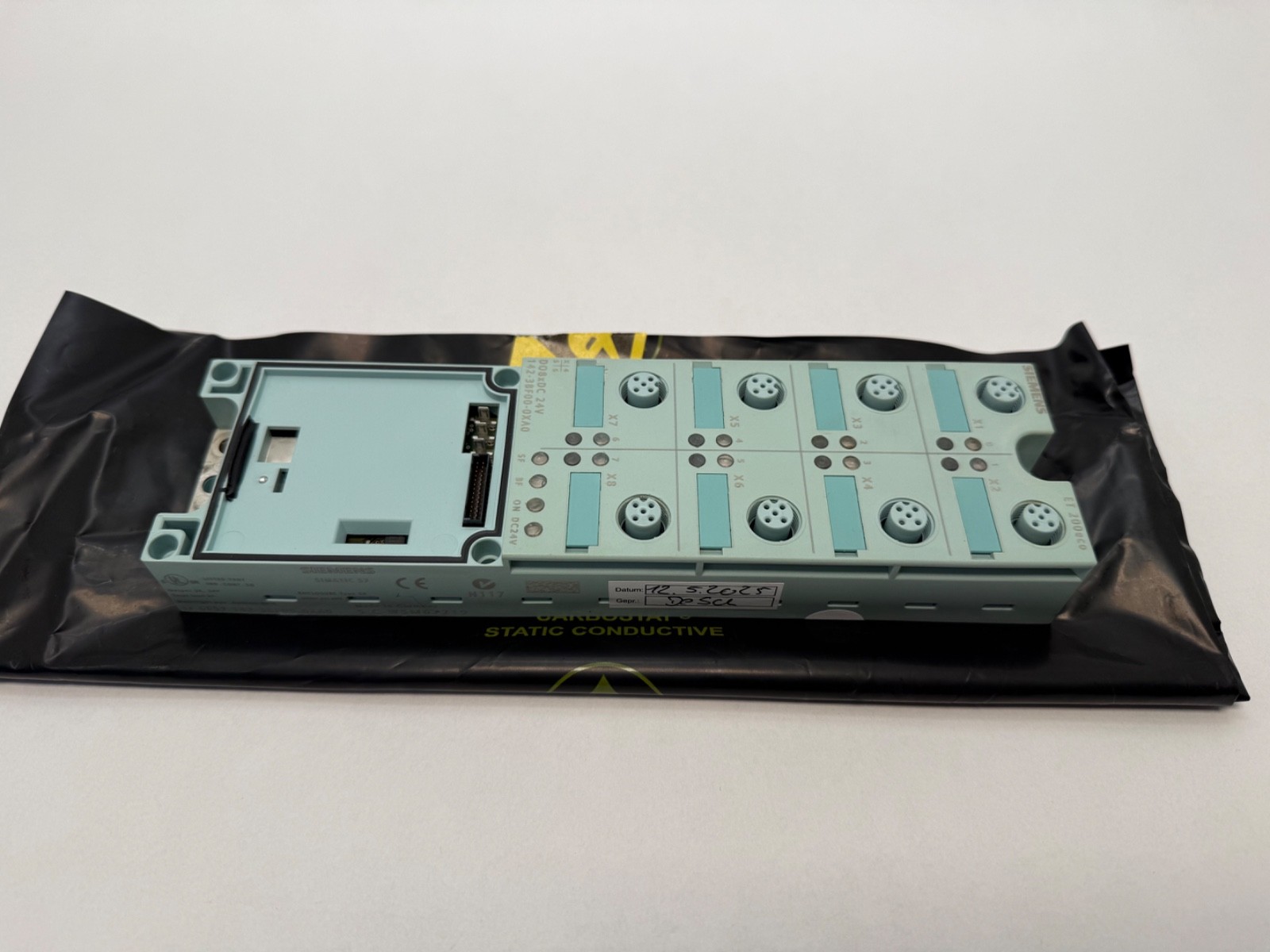

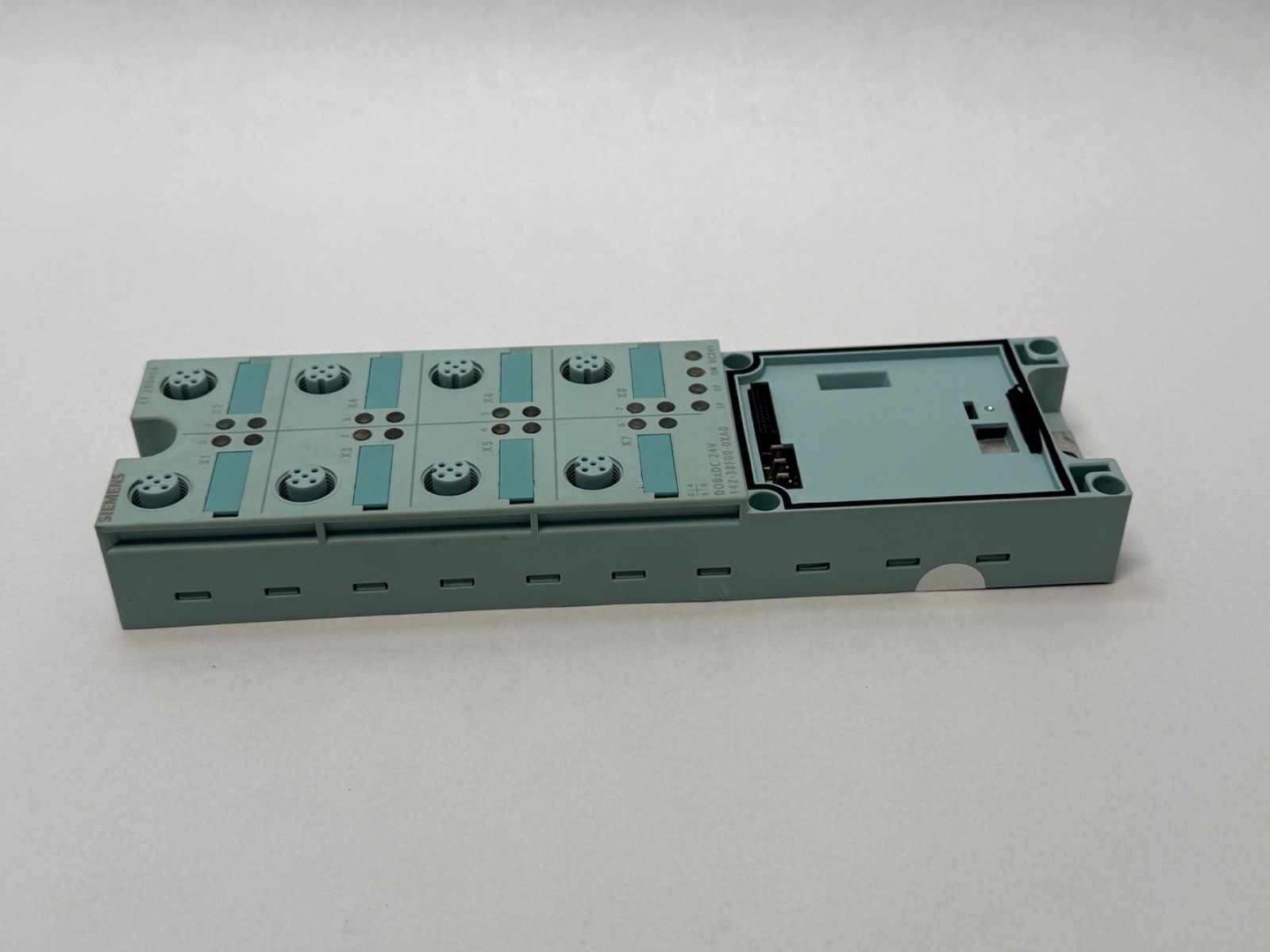

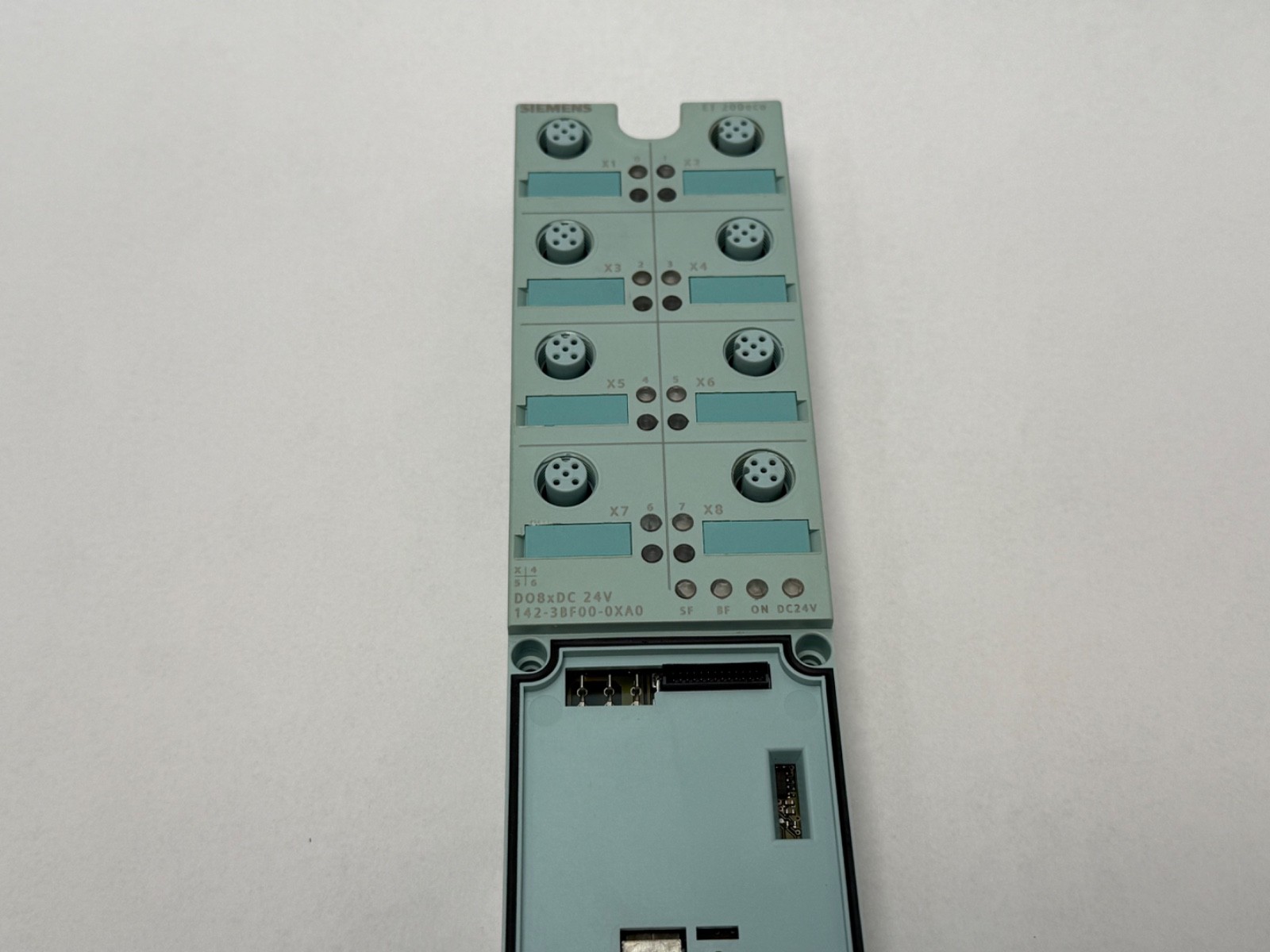

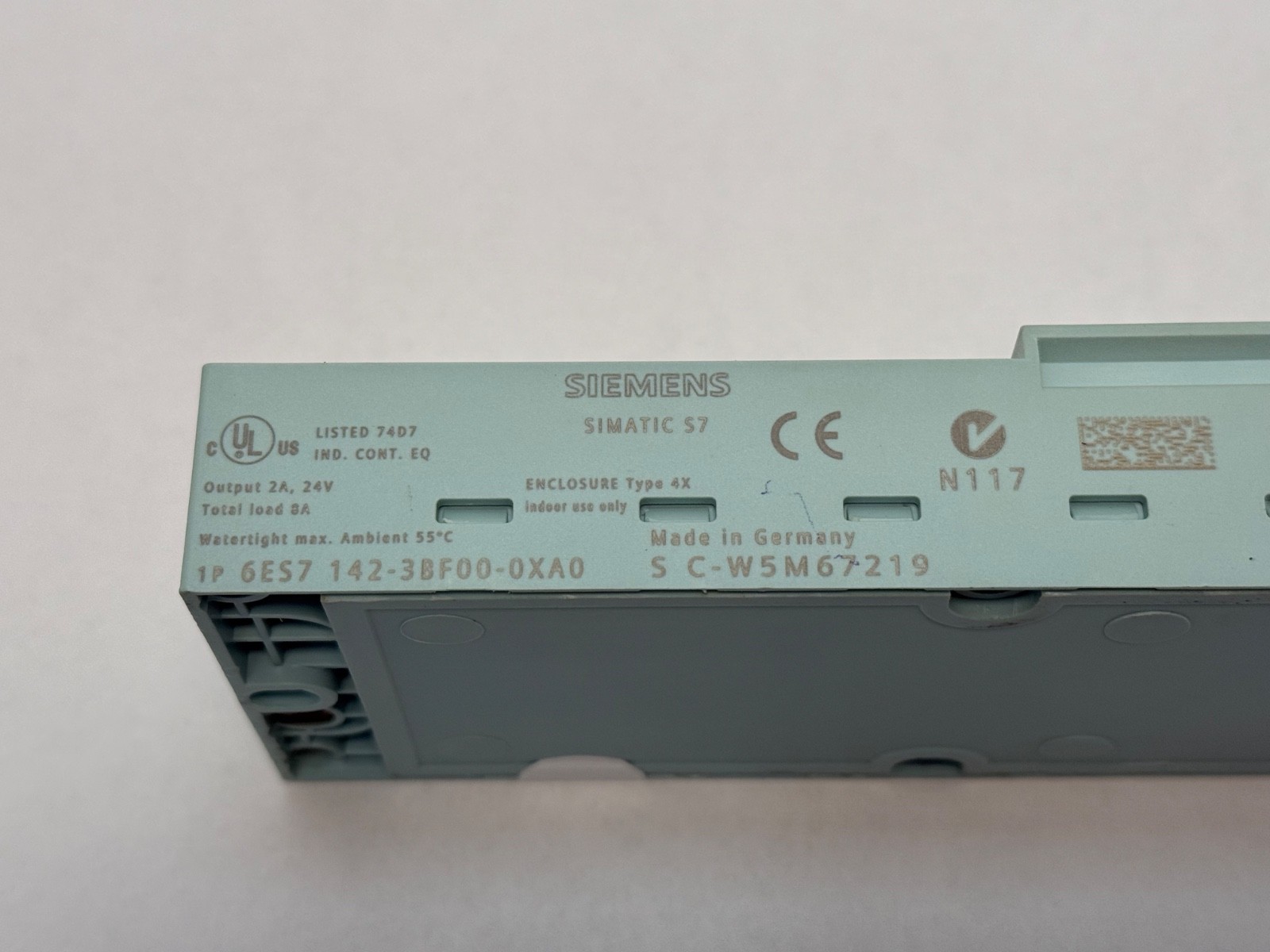

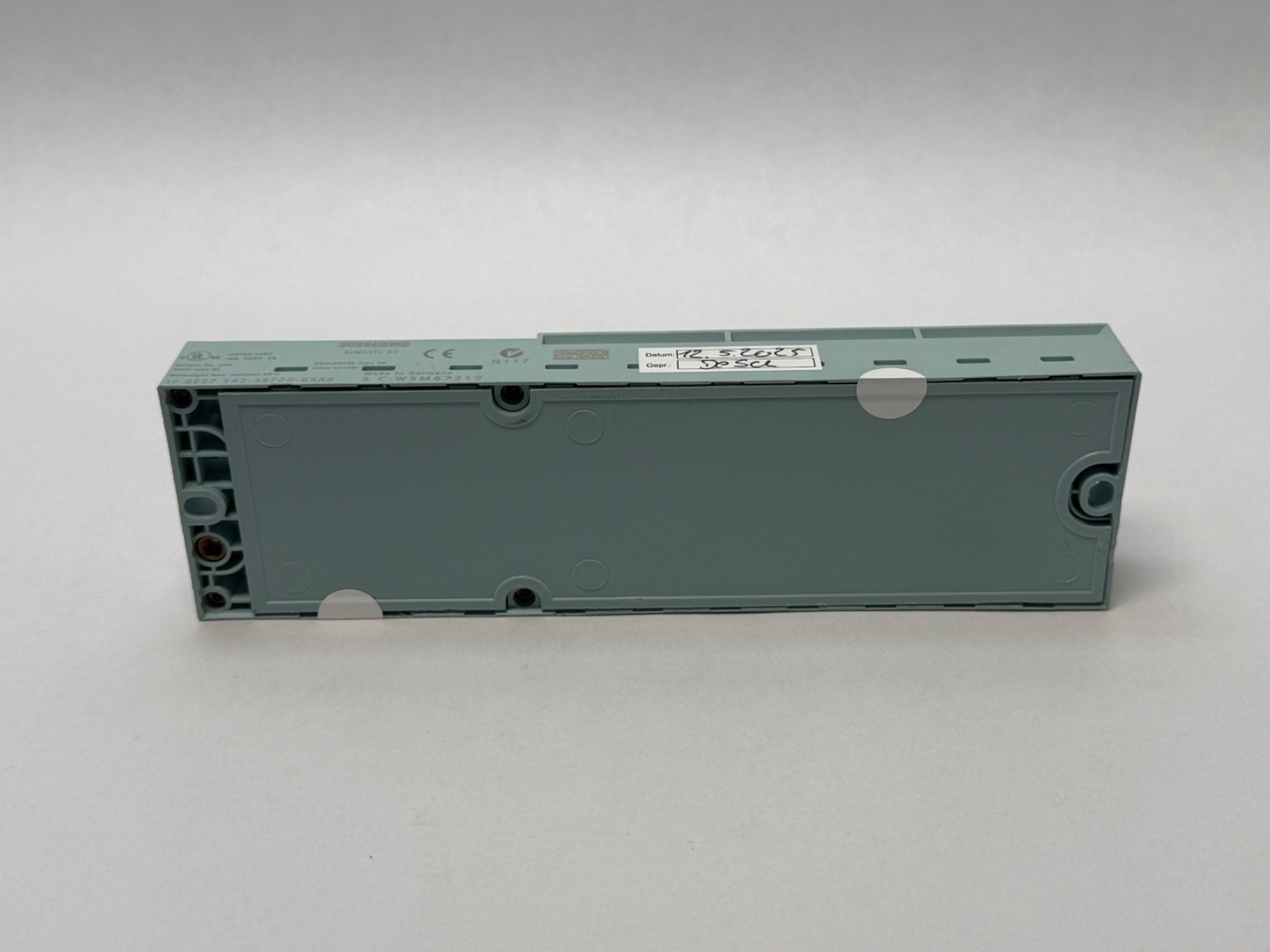

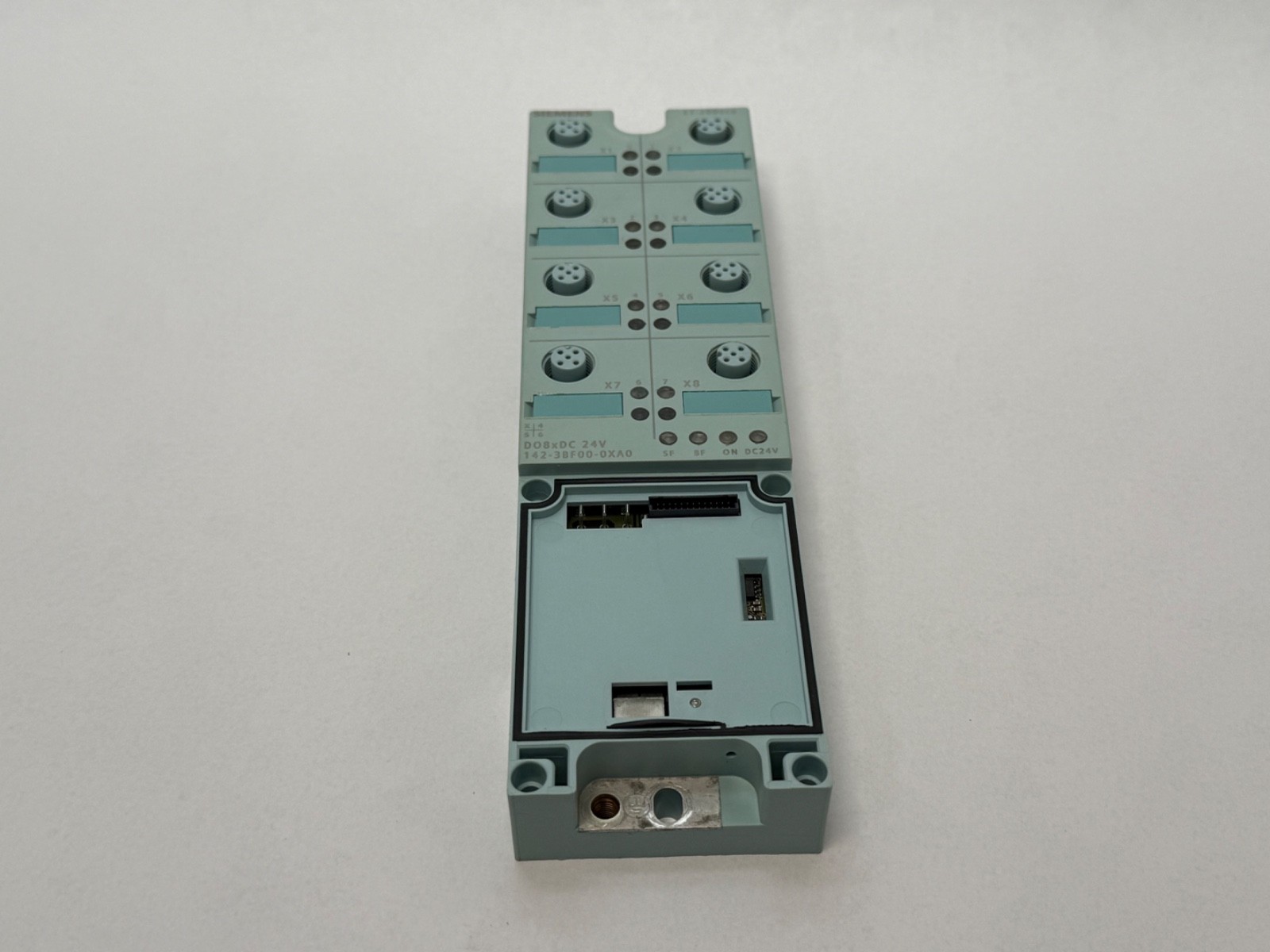

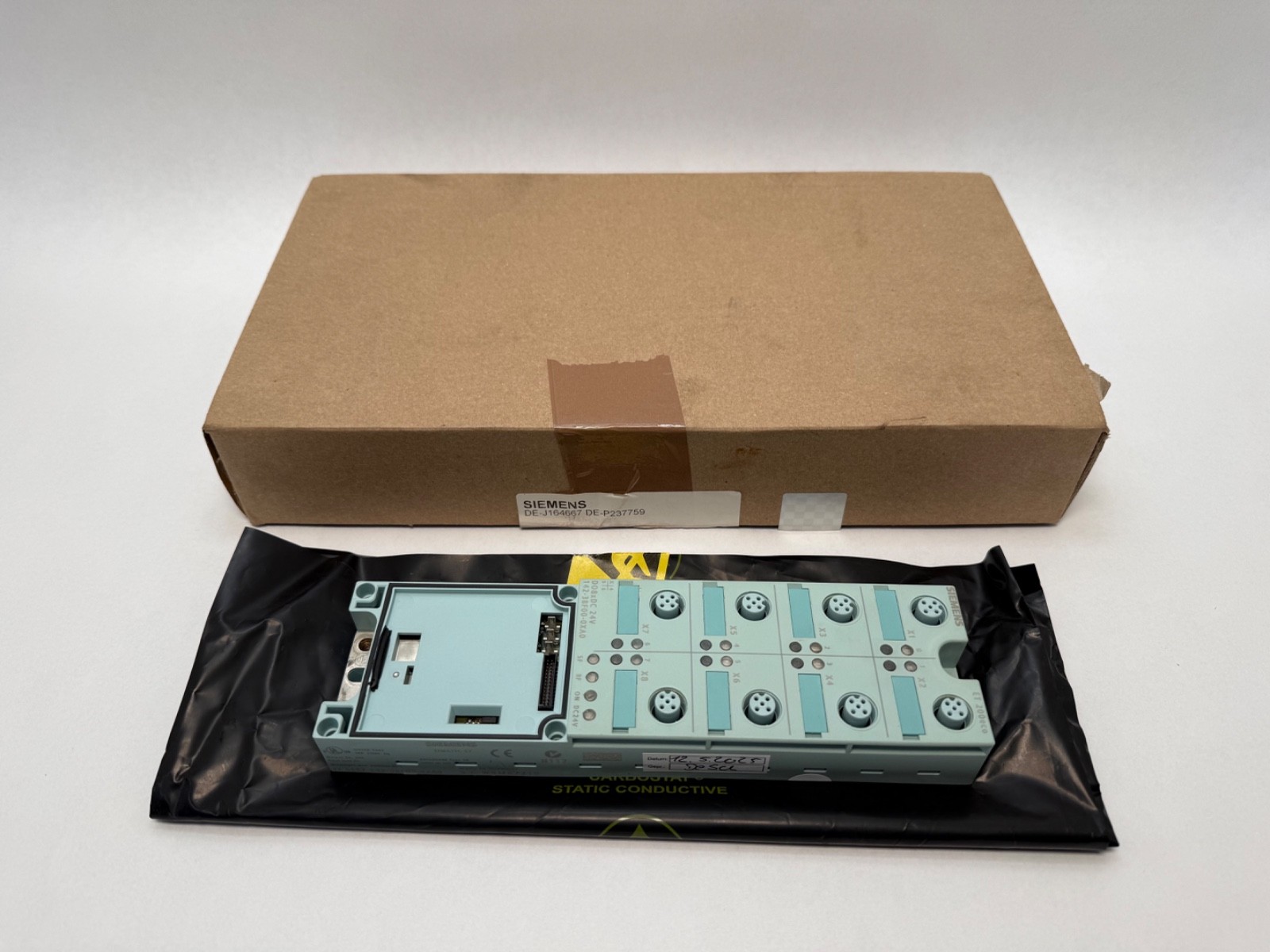

The Siemens 6ES7142-3BF00-0XA0 is the SIMATIC DP Basic Module BM142 for the ET 200eco distributed I/O system: a PROFIBUS DP slave with eight 24 V DC, 2 A digital outputs on M12 sockets, single assignment, in an IP65/67 housing for machine mounting outside the control cabinet. EAN: 4025515068556.
Number of Digital Outputs: 8. Output Voltage: 24 V DC. Output Current: 2 A rated per channel, permissible range 5 mA to 2.4 A at 0 to 55 °C. Total Current per Group: 4 A for sockets X1, X3, X5, X7 and 4 A for sockets X2, X4, X6, X8, up to 55 °C.
Short-Circuit Protection: Yes, electronic, response threshold 4 A per channel. Inductive Shutdown Voltage Limit: 2L+ (-44 V). Lamp Load: 10 W maximum. Load Resistance Range: 12 Ω to 4 kΩ. Output Voltage for Signal 1: 2L+ (-0.8 V) minimum. Residual Current for Signal 0: 0.5 mA maximum. Controlling a Digital Input: Yes.
Switching Frequency: 100 Hz resistive load, 0.5 Hz inductive load per IEC 60947-5-1 DC-13, 1 Hz lamp load. Parallel Switching: permitted for redundant control of a load, not for uprating.
Supply Voltage: 24 V DC (1L+), reverse polarity protected. Load Voltage: 24 V DC (2L+), reverse polarity protected. Input Current: 70 mA typical from 1L+, 60 mA typical from 2L+ without load. Power Loss: 4 W typical.
Communication: PROFIBUS DP, 9.6 kbit/s to 12 Mbit/s. Vendor ID: 80DDh. Diagnostics: readable diagnostic information, group error LED SF (red), green status LED per output. Alarms: No.
Isolation: PROFIBUS DP isolated from all other circuit components, no isolation between output channels, tested at 500 V DC. Permissible Potential Difference: 75 V DC / 60 V AC. IP Rating: IP65/67.
Output Connections: 8 x M12 sockets, single assignment. Unshielded Cable Length: 30 m maximum. Dimensions: 60 mm wide x 210 mm high x 28 mm deep. Weight: 210 g.
One BM142 basic module. Mounts on a Siemens 6ES7194-3AA00-0.A0 connecting block, ordered separately.
Fits SIMATIC ET 200eco systems on PROFIBUS DP. Connecting blocks: 6ES7194-3AA00-0AA0 (ECOFAST) and 6ES7194-3AA00-0BA0 (M12, 7/8″). Also written 6ES7-142-3BF00-0XA0 and 6ES71423BF000XA0.
