Siemens6SN1114-0AA01-0AA0Simodrive 611 Analog Parameter Module for Feed Drive Control Modules with User-Friendly Interface

Product Description

What this part is

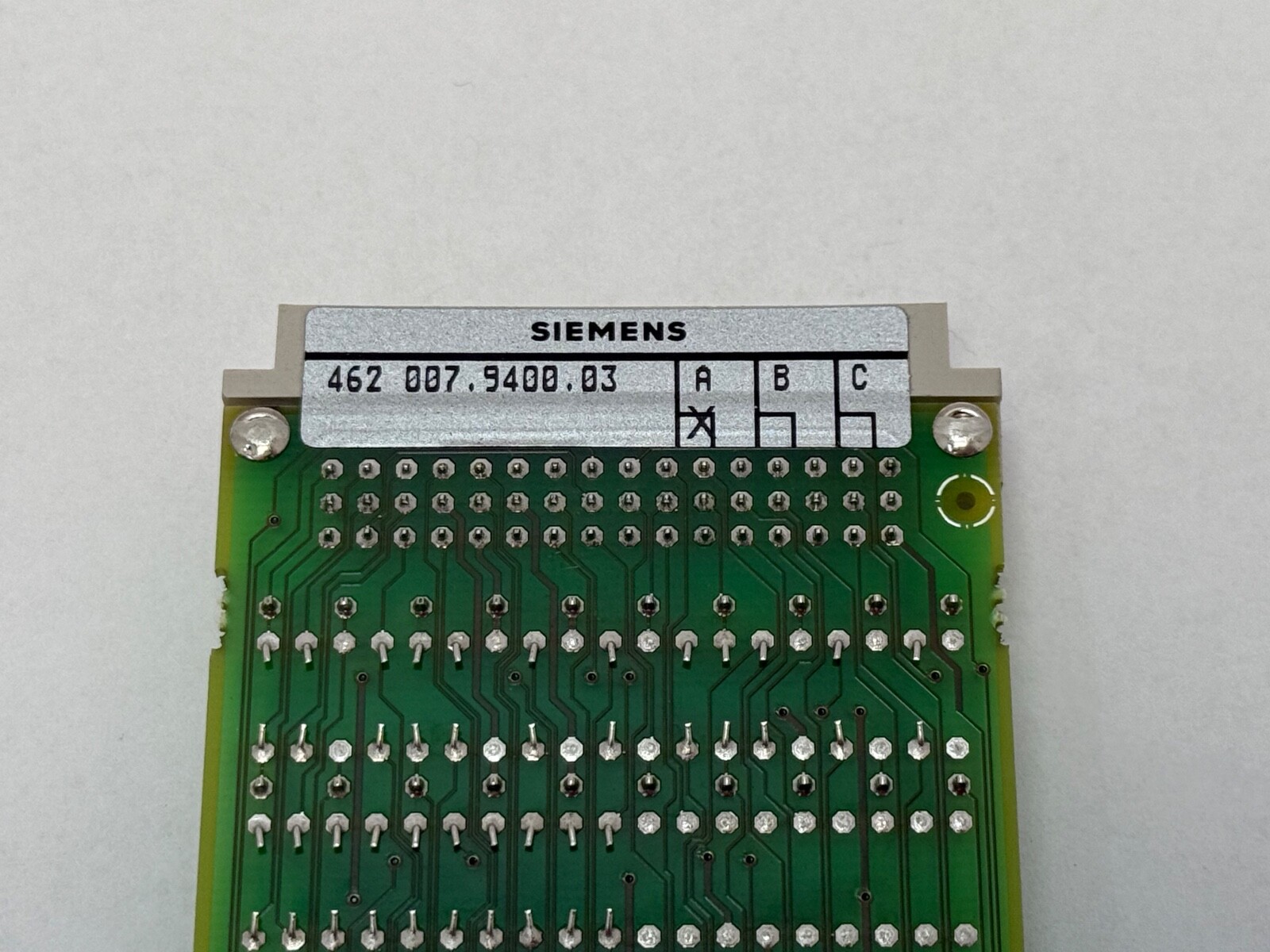

Siemens 6SN1114-0AA01-0AA0, the parameter module for SIMODRIVE 611 analog feed-drive control modules fitted with the user-friendly interface. It is a small plug-in memory board that holds the machine-specific drive parameters in non-volatile storage so they survive a power-down and a control-module change. It plugs into the front of the control module. Siemens’ internal board number is 462 007.9400.03.

Decoding the order code

6SN: Siemens SIMODRIVE 611 drive system. 1114: the 611 control-module option and add-on board range. 0AA01-0AA0: the parameter module for the analog feed drive (FD) control module with user-friendly interface.

6SN1114-0AA02-0AA0 is the option module that adds main spindle drive (MSD/HS) functions to a user-friendly FD control module. Per Siemens’ SIMODRIVE 611 analog configuring tables, the -0AA01- parameter module is Required for the FD analog user-friendly control module, while the -0AA02- main spindle option is Possible.

6SN11xx is SIMODRIVE 611. SIMODRIVE 610 uses 6SC61xx numbers.

Published specifications

System: SIMODRIVE 611 analog. Function: parameter module, non-volatile storage of machine-specific drive parameters. Applies to: analog feed drive (FD) control modules with user-friendly interface, for 1FT5 AC servomotors. Requirement status per Siemens configuring tables: required for the FD analog user-friendly control module. Mounting: inserted into the front of the control module. Siemens internal board number: 462 007.9400.03. Made in Germany.

What these specs mean in practice

SIMODRIVE 611 analog offered two interface versions of the feed-drive control module with the same control quality but different links to the machine control: a standard interface and a user-friendly interface. The user-friendly version gains a second speed setpoint input and a richer signal interface, and it is that version which takes this parameter module. The machine-specific settings live on this board rather than on the control board.

Because the parameters sit on a plug-in board, a failed control module can be swapped and the original parameter module carried across, and the axis returns with its own settings.

What is included

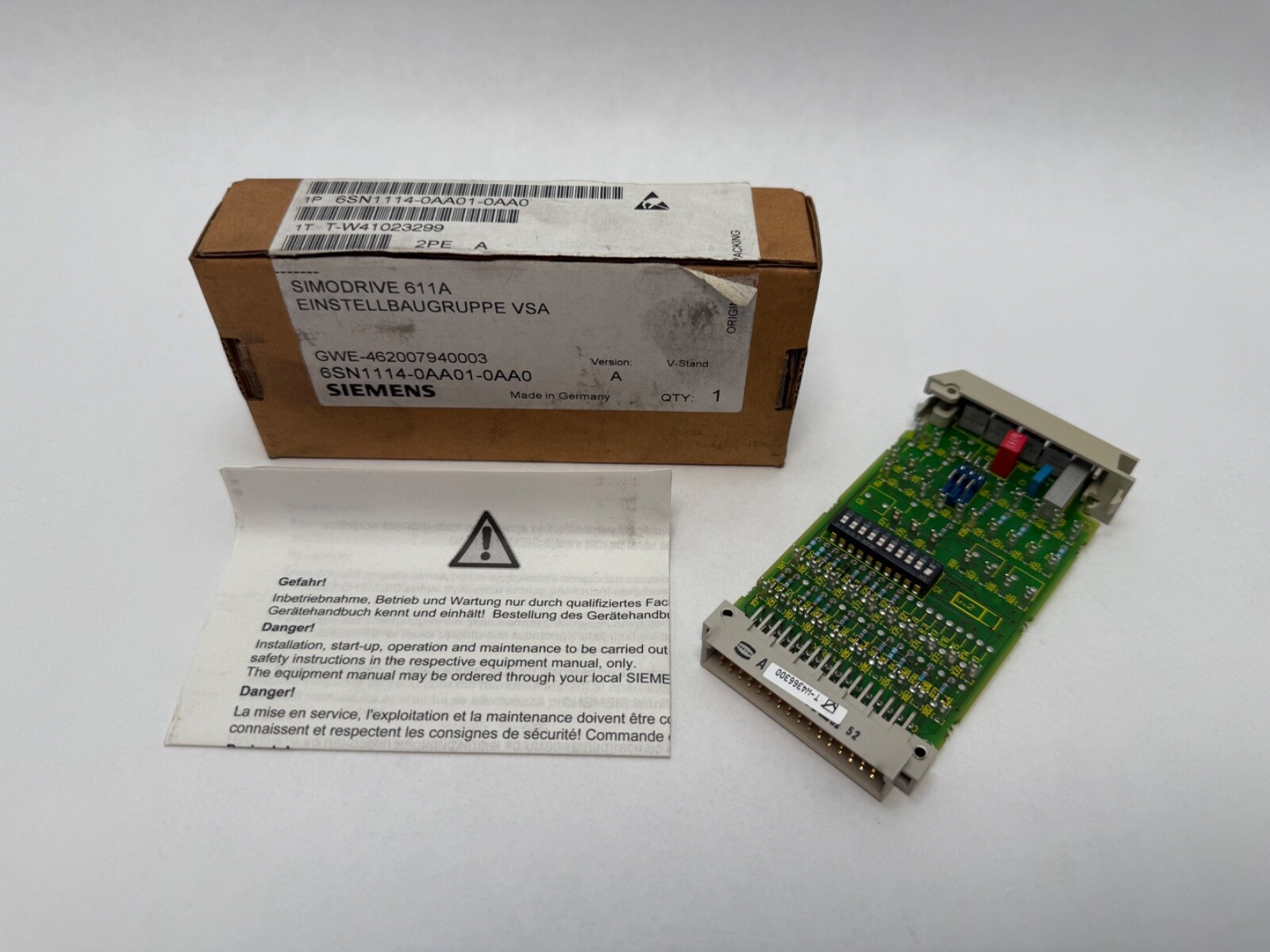

Parameter module only, as pictured. Sold as 1 piece.

Mounting data

The module inserts into the front of the control module. The user-friendly interface version of the control module accepts this board.

Interchange guidance

6SN1114-0AA01-0AA0 is also written 6SN11140AA010AA0. The equivalent Siemens board number is 462 007.9400.03. Siemens documentation also references a closely related 6SN1114-0AA01-0AA1 parameter board. 6SN1114-0AA02-0AA0 is the main spindle option module, a different function. The PROFIBUS-DP option modules in the same 1114 range (6SN1114-0NB00-0AA1, 6SN1114-0NB01-0AA0) belong to SIMODRIVE 611 universal. Also searched as 6SN1114 0AA01 0AA0, 6SN1114-0AA01, 462-007.9400.03, Simodrive 611 parameter board, and Siemens 611 analog parameter module.
