Furnas22DS32ANEMA Size 1 Reversing Contactor, 27 A, 600 V AC, 10 HP, Series B, No Overload

Condition: Used

Availability:

1 in stock

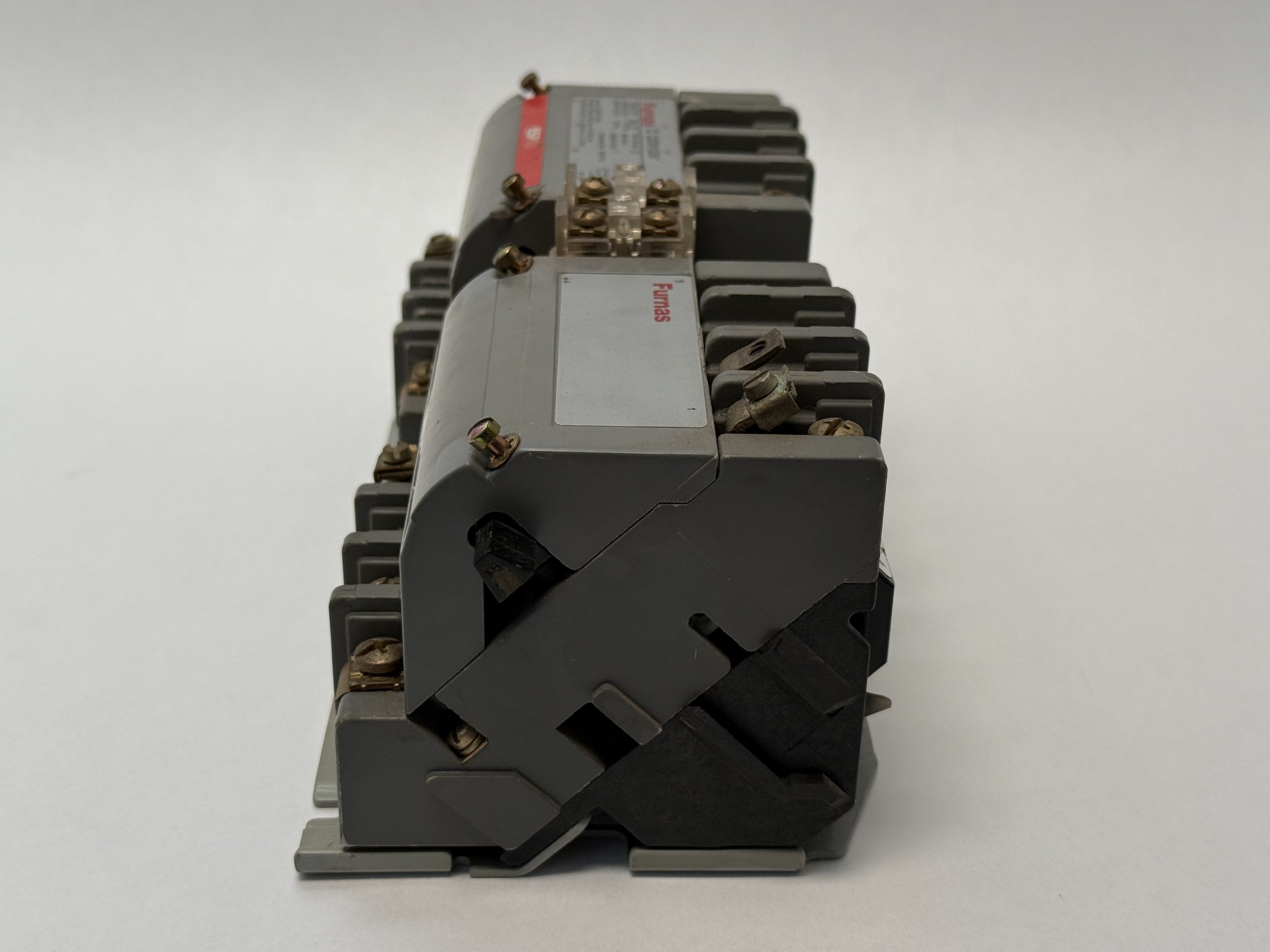

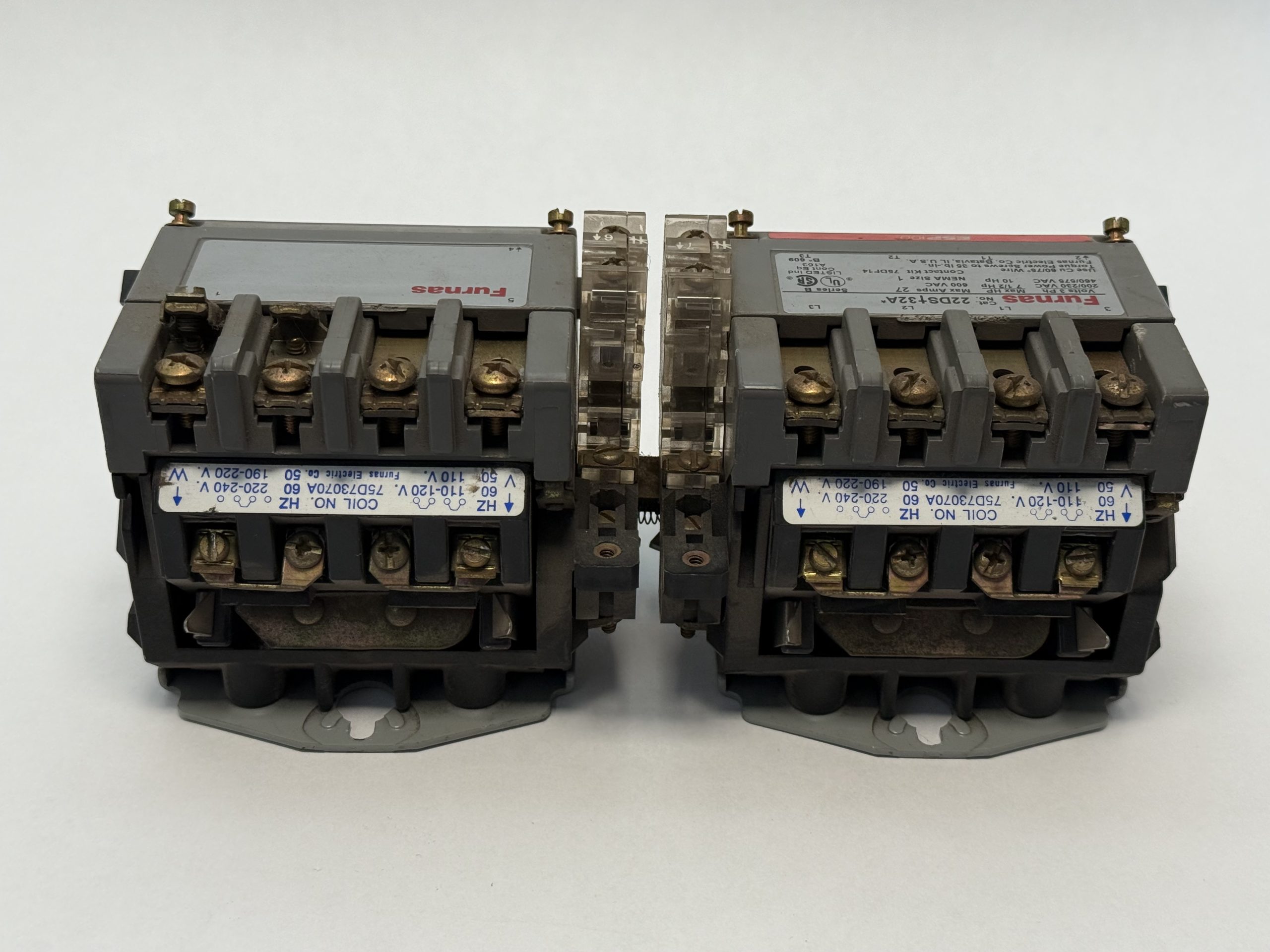

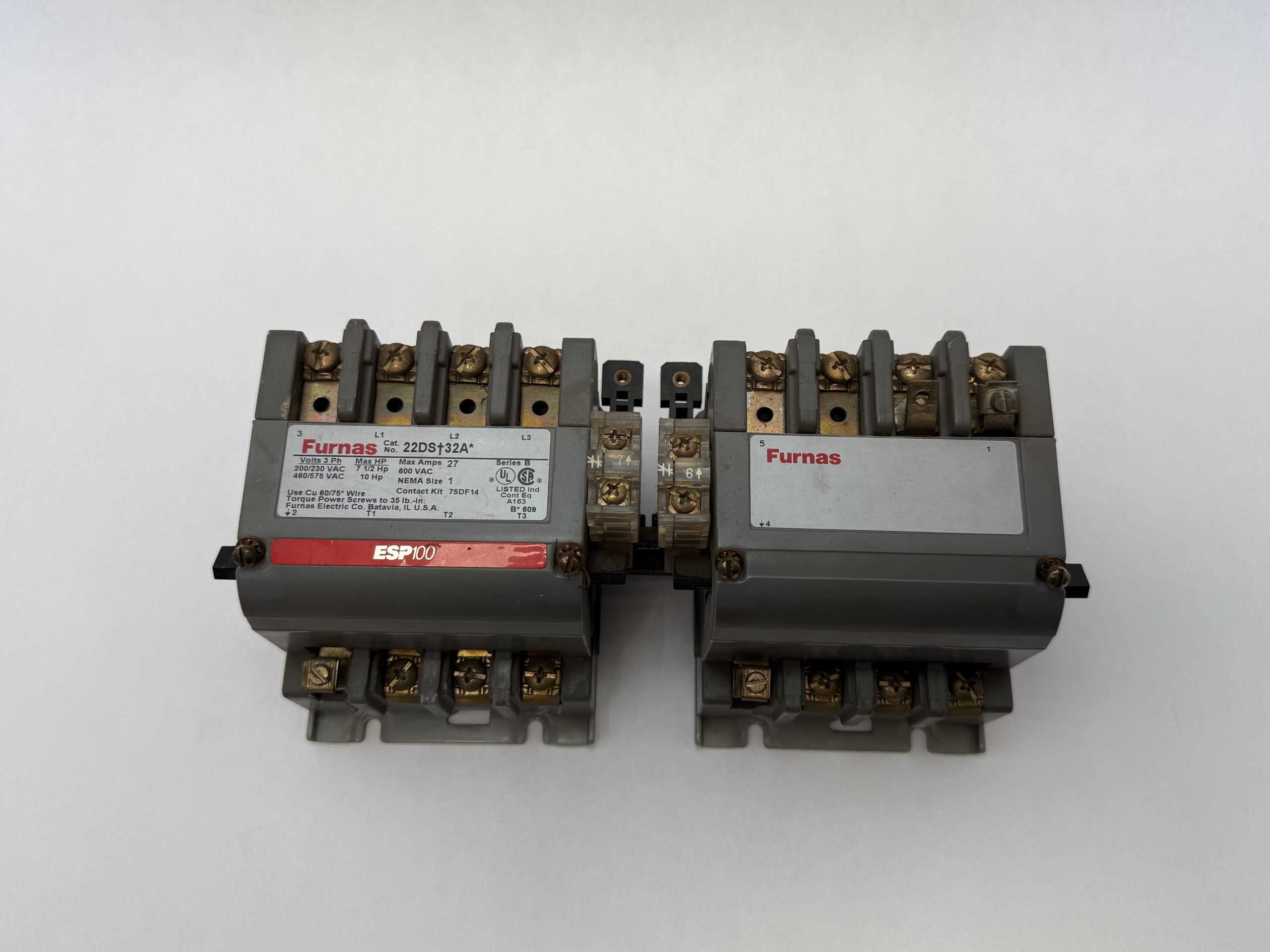

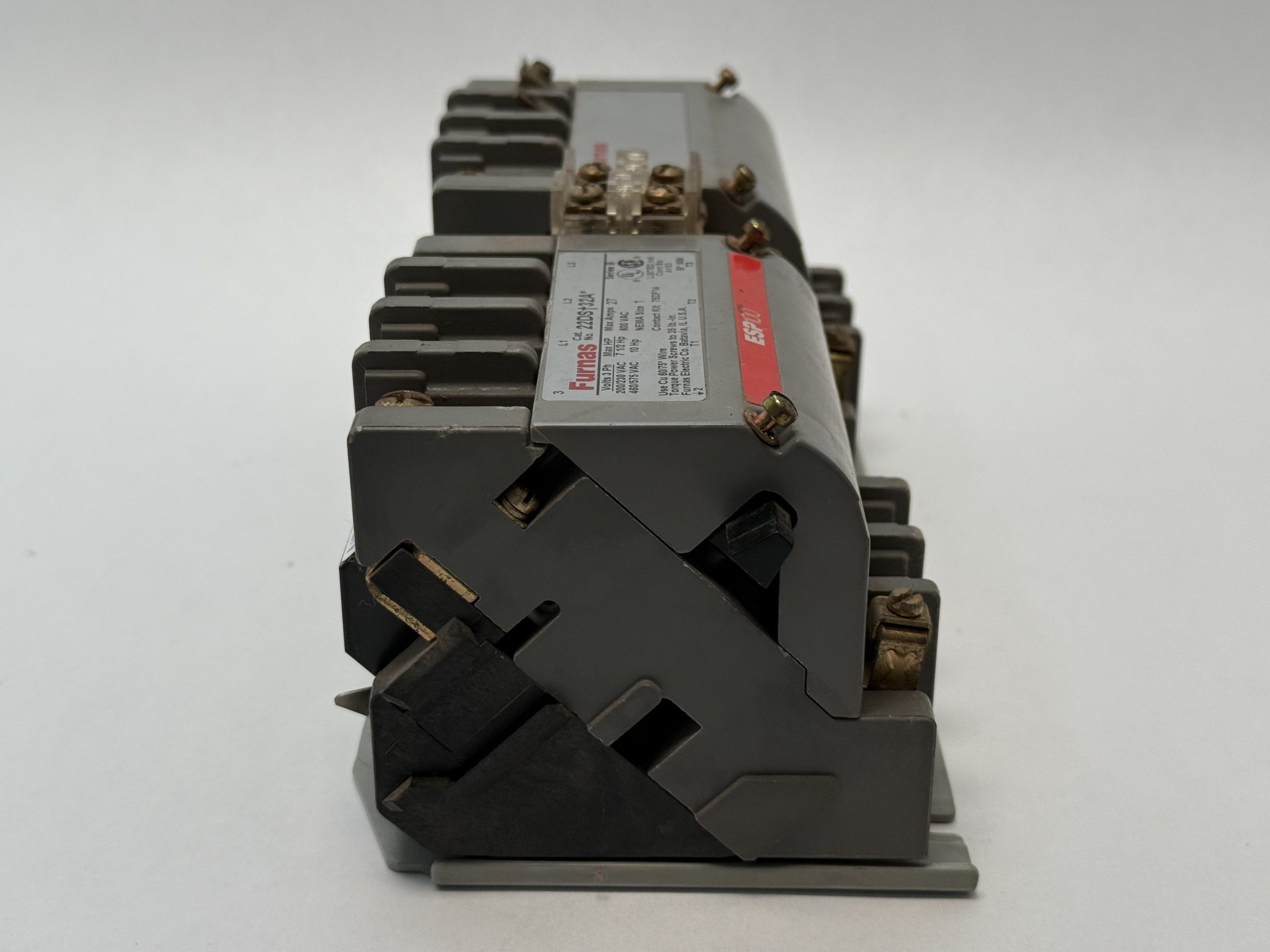

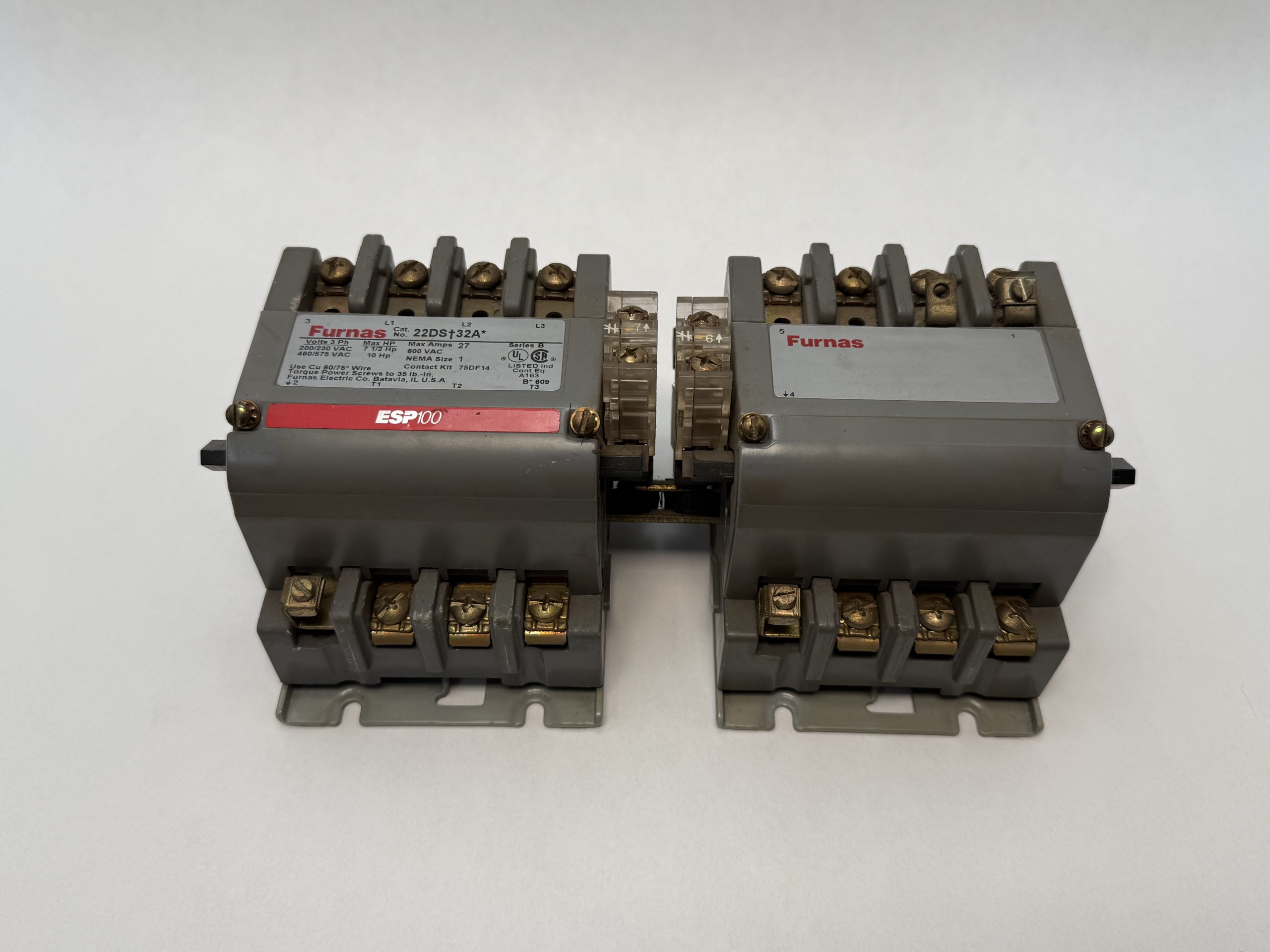

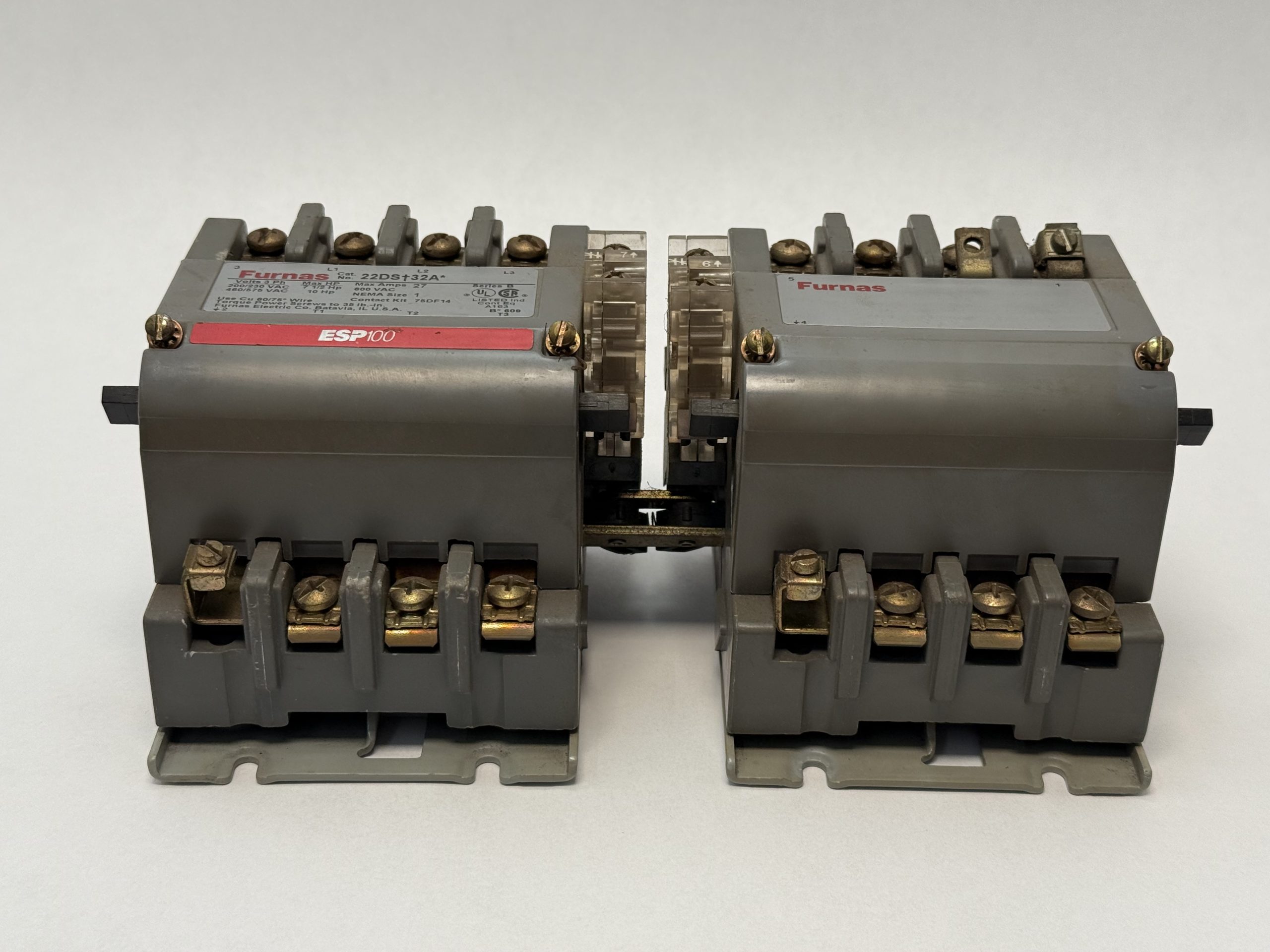

Furnas 22DS32A NEMA Size 1 reversing contactor pair, Series B, ESP100 line: 27 A, 600 V AC, 10 HP at 460/575 V, mechanical interlock. No overload relay. Used.

Same day shipment

List Price

$152.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFurnas
MPN22DS32A

Technical Specifications

Number Of Phases3
Current Rating27 A
TypeReversing Contactor
Nema Size1
Horsepower7.5 HP at 200/230 V; 10 HP at 460/575 V
Maximum Voltage600 V AC
Industry TermsReversing contactor; reversing starter; NEMA Size 1 contactor; forward-reverse contactor; mechanically interlocked contactor; Class 22
Common Misspellings22D532A; 22DS23A; 22SD32A; 22DS32-A; Furnace 22DS32A
Application TypesForward / reverse control of 3-phase motors; reversing motor starter assemblies
Number Of Poles3 per contactor
Mpn Variants22DS32A; 22DS-32A; 22DS 32A; 22DS+32A
Compatible With ReplacesFurnas / Siemens Class 22 Size 1 reversing starters; Furnas contact kit 75DF14 (label)
Additional AttributesLabel catalog no.: 22DS†32A*, Series B; line: ESP100 (label); NEMA Size 1; contactor amp rating 27 A; max 600 V AC, 3-phase (label); max HP 7.5 at 200 V, 7.5 at 230 V, 10 at 460 V, 10 at 575 V; 3 power poles per contactor; two contactors with mechanical interlock on a common base; open type; no overload relay fitted; coil voltage not marked on rating label; contact kit 75DF14 (label); UL listed, CSA (label); maker on label: Furnas Electric Co., Batavia, IL
SeriesESP100
Part Number22DS32A

Cross-References

Cross Reference 1Siemens 22DUD32A* - Size 1 open, adds ESP200 OLR 5.5-22 A
Cross Reference 2Siemens 22DUE32A* - Size 1 open, adds ESP200 OLR 10-40 A
Seller Part Number: BJ3#EZYOEE

Product Description

What this part is:

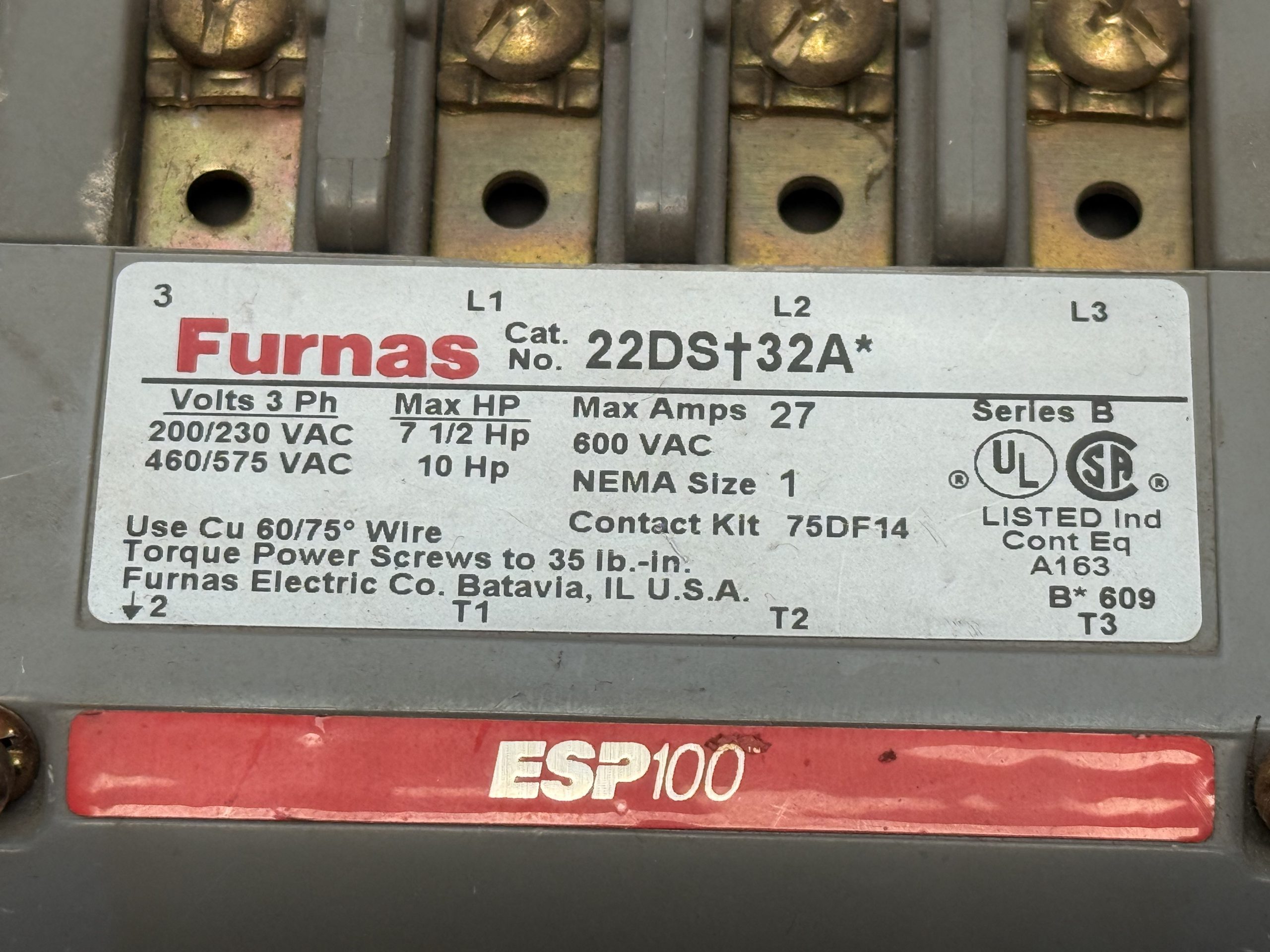

Furnas 22DS32A is a NEMA Size 1, 3-pole reversing magnetic motor starter from the Furnas ESP100 line (Furnas is now part of Siemens), supplied here as the reversing contactor pair only: two 3-pole contactors on a common base with a mechanical interlock between them. No overload relay is included. The rating label reads Cat. No. 22DS†32A*, Series B. Unit Quantity: 1 Pc. Condition: used. The coil voltage is not marked on the rating label.

Decoding the designation:

22 — Siemens / Furnas Class 22, reversing NEMA motor starter.

D — NEMA Size 1.

3 — 3 power poles, 3-phase.

2 — suitable for 3-wire control, NO auxiliary contact included.

A — open type.

* — coil voltage letter, taken from the Siemens coil table; not filled in on this label.

Specifications:

NEMA Size: 1. Contactor Amp Rating: 27 A. Maximum Voltage: 600 V AC, 3-phase (label). Maximum Horsepower, 3-phase: 7½ HP at 200 V; 7½ HP at 230 V; 10 HP at 460 V; 10 HP at 575 V. Power Poles: 3 per contactor. Interlock: mechanical, between the forward and reverse contactors. Enclosure: open type. Overload Relay: not included. Contact Kit: 75DF14 (label). Line: ESP100 (label). Series: B (label). Approvals: UL listed, CSA (label). Maker on label: Furnas Electric Co., Batavia, IL. Country of origin: USA.

Dimensions and mounting:

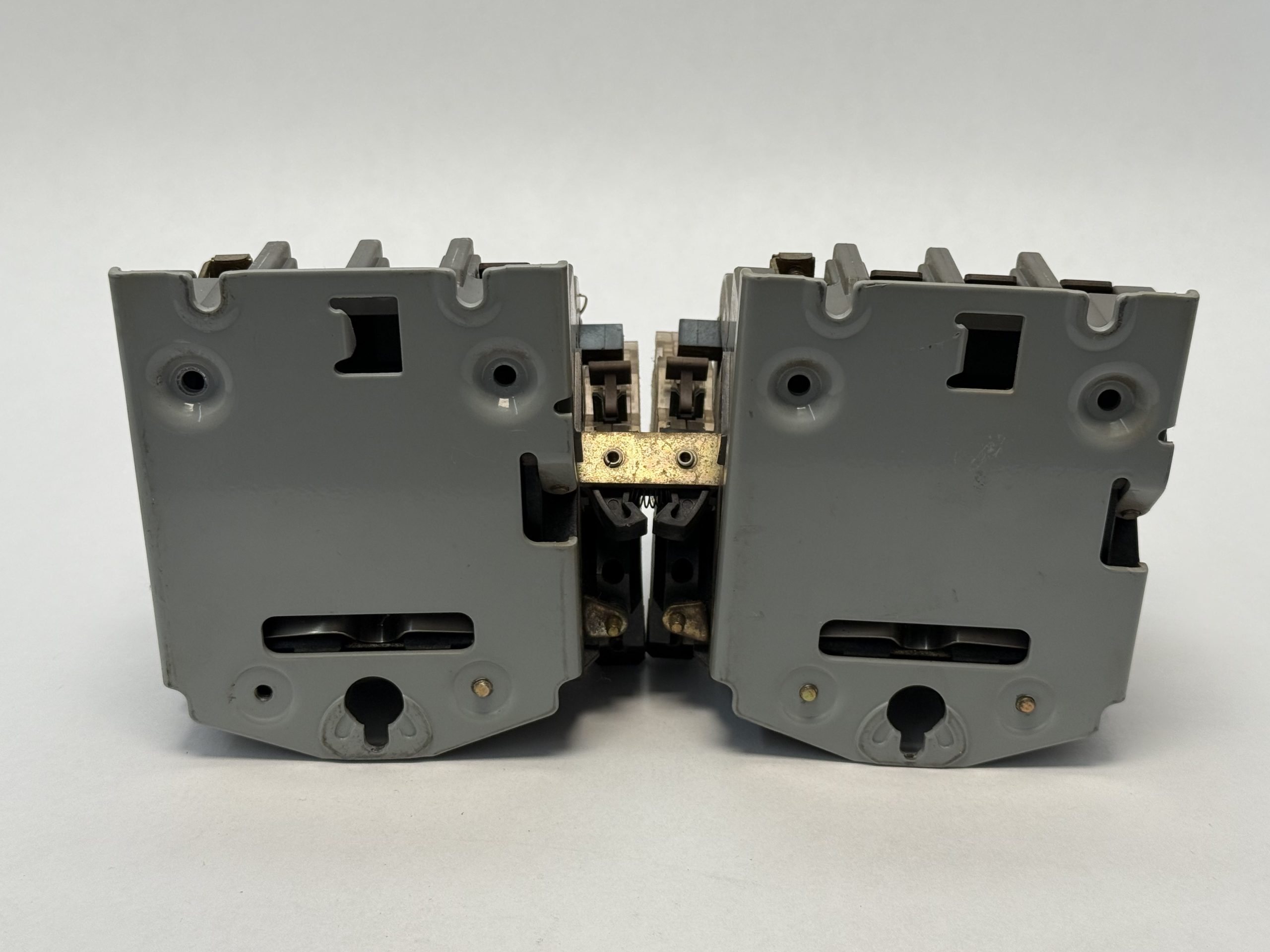

Open-type unit: both contactors and the mechanical interlock share one common base.

Compatibility and replacement:

Current Siemens Class 22 Size 1 open reversing starters use ESP200 solid-state overload relays: 22DUD32A* (5.5–22 A overload range; 3 HP at 200/230 V, 10 HP at 460/575 V) and 22DUE32A* (10–40 A range; 7½ HP at 200/230 V). The final letter sets the coil voltage. Also written 22DS-32A and 22DS+32A.

Frequently asked questions:

Does this Furnas 22DS32A include an overload relay?

No. It is the reversing contactor pair with its mechanical interlock only; no overload relay is fitted.

What are the ratings of the Furnas 22DS32A?

NEMA Size 1, 27 A, 600 V AC max, 3-phase: 7½ HP at 200/230 V and 10 HP at 460/575 V.

What coil voltage does it have?

The coil voltage is not marked on the rating label; the coil letter position prints as *.
